G 3115 - Paper cutter OLYMPIA - Free user manual and instructions

Product Type	Guillotine Paper Cutter
Brand	Olympia
Model	G 3115
Cutting Length	310 mm
Cutting Capacity	15 sheets (80 g/m²)
Compatible Materials	Paper, cards, photo paper, laminated sheets
Power Supply	Manual (no electricity)
Estimated Weight	2.5 kg
Estimated Dimensions (L × W × H)	420 × 300 × 120 mm
Main Function	Straight cut of documents
Safety Features	Plexiglass blade guard, pressure bar with finger protection, guillotine lock
Maintenance	Clean with a damp cloth and a soft brush for the blade; do not use harsh chemicals
Guillotine Adjustment	Adjustment screw to set blade tension
Paper Guide	Rail with lock and grid lines for precise positioning
Warranty	Return to point of sale with packaging and receipt
Disposal	Electrical device: do not dispose of with household waste, take to a recycling center

Frequently Asked Questions - G 3115 OLYMPIA

How to install the blade guard?

Remove the screws from the pressure bar, unlock the guillotine and lift it slightly. Insert the plexiglass guard from the back, ensuring the holes align. Fix it with the screws without overtightening.

What types of materials can I cut with this paper cutter?

You can cut paper, cards, photo paper, and laminated sheets. Do not use the device for other materials like metal or hard plastic.

How to lock the guillotine after use?

Lower the guillotine completely using the handle, then turn the locking device counterclockwise to lock it under the table.

What to do if the guillotine does not stay in the upright position?

The guillotine may be too loose. Slowly tighten the adjustment screw located on the side with an appropriate tool until it stays in position. If it becomes too stiff, loosen it slightly.

How to clean the blade safely?

Clean the blade carefully with a soft brush. Do not use chemical or abrasive products. Wipe surfaces with a slightly damp cloth.

What is the maximum cutting capacity?

The G 3115 model can cut up to 15 sheets of standard paper (80 g/m²) at once. For thicker paper, reduce the number of sheets.

Can I cut documents with staples or paper clips?

No, always remove staples, paper clips, and other metal objects before cutting to avoid damaging the blade.

How to adjust the paper guide?

Unlock the guide lock, slide it on the rail to the desired position using the grid lines, then lock it to serve as a stop.

Does the paper cutter require electrical power?

No, this device is completely manual. No battery or power outlet is needed.

How to dispose of the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection center or recycling facility in accordance with regulations on waste electrical and electronic equipment.

USER MANUAL G 3115 OLYMPIA

Service-Center Hattingen

Zum Kraftwerk1

45527 Hattingen

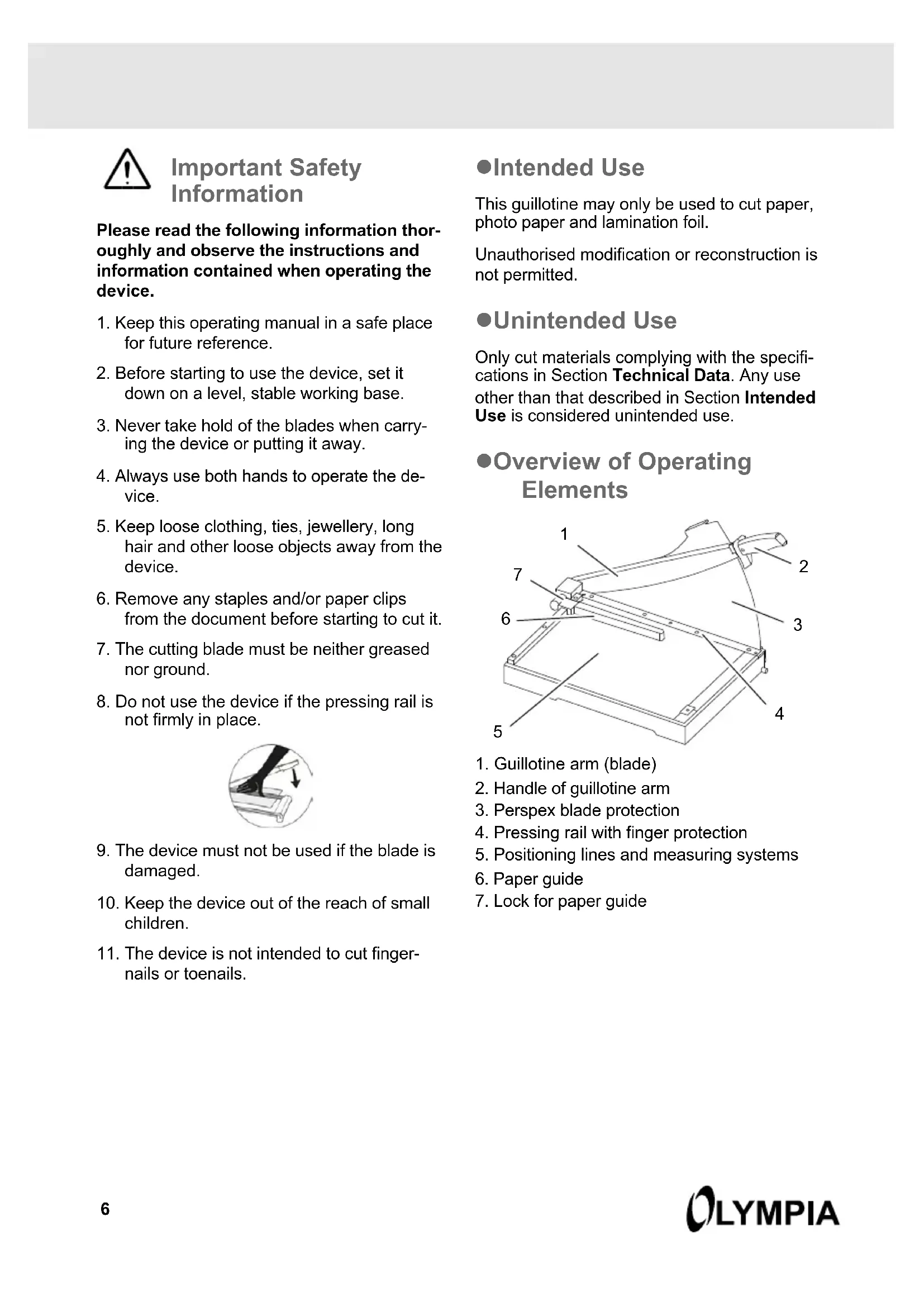

Please read the following information thoroughly and observe the instructions and information contained when operating the device.

1. Keep this operating manual in a safe place for future reference.
2. Before starting to use the device, set it down on a level, stable working base.
3. Never take hold of the blades when carrying the device or putting it away.
4. Always use both hands to operate the device.
5. Keep loose clothing, ties, jewellery, long hair and other loose objects away from the device.
6. Remove any staples and/or paper clips from the document before starting to cut it.
7. The cutting blade must be neither greased nor ground.
8. Do not use the device if the pressing rail is not firmly in place.

1. The device must not be used if the blade is damaged.
2. Keep the device out of the reach of small children.
3. The device is not intended to cut fingernails or toenails.

- Intended Use

This guillotine may only be used to cut paper, photo paper and lamination foil.

Unauthorised modification or reconstruction is not permitted.

- Unintended Use

Only cut materials complying with the specifications in Section Technical Data. Any use other than that described in Section Intended Use is considered unintended use.

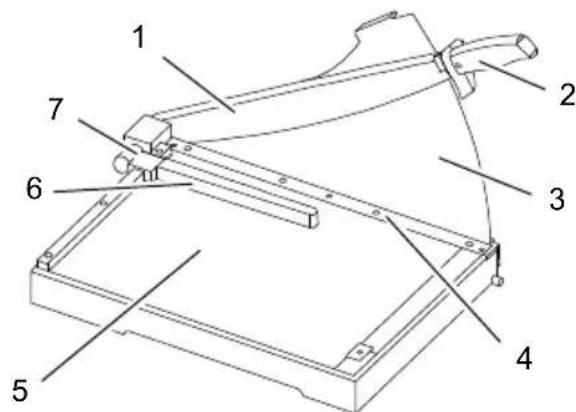

- Overview of Operating Elements

1. Guillotine arm (blade)
2. Handle of quillotine arm
3. Perspex blade protection
4. Pressing rail with finger protection
5. Positioning lines and measuring systems
6. Paper guide
7. Lock for paper guide

Assembling the Blade Protection

Before starting to use the guillotine, assemble the perspex blade protection to protect the user from the sharp guillotine blade.

1. Remove the device carefully from the packaging.

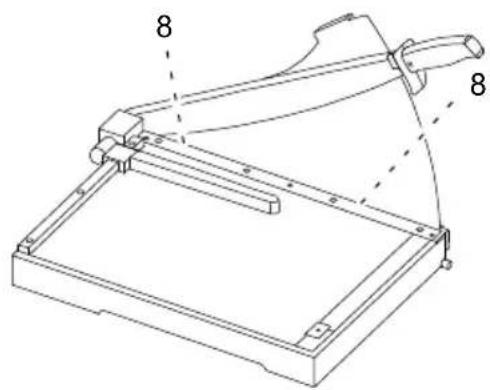

2. Remove the screws (8) from the pressing rail (4).
3. Remove the protective card from the perspex blade protection (3).
4. Unlock the guillotine arm (1) by turning the lock (9) clockwise.
5. Pull the guillotine arm (1) upwards a little. Install the perspex blade protection (3) carefully, from the rear, so that the protection is against the blade.

Note: The handle (2) is provided with a small projection which must be on the left-hand side of the perspex blade protection (3). Move the cover so that the screw holes are in line with the respective thread.

Attention: Property damage! The perspex blade protection (3) could be damaged. Do not tighten the screws too tight.

1. Fix the perspex blade protection (3) in place on the pressing rail (4) with the screws (8).

- Guillotine

1. Remove the device carefully from the packaging.

Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade.

1. Before starting to use the device, set it down on a level, stable working base.
   Note: The guillotine arm (1) is locked on the underside of the cutting unit.

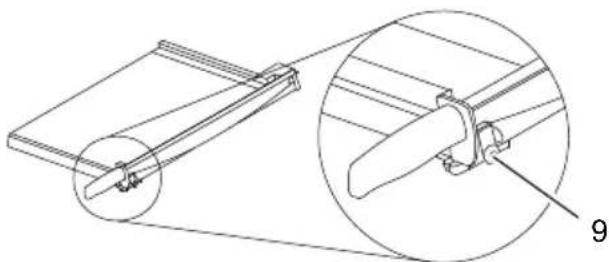

2. Unlock the guillotine arm (1) by turning the lock (9) clockwise.

1. Use the handle (2) to move the guillotine arm (1) upwards.
2. Place the material to be cut in the required position under the pressing rail (4) and press the pressing rail down.
3. Cut the material by moving the guillotine arm (1) down using the handle (2).

Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade.

Note: After completing the cutting task, the guillotine arm (1) must be locked to the underside of the cutting unit.

1. Use the handle (2) to move the guillotine arm (1) down as far as possible. Lock the guillotine arm by turning the lock (9) anticlockwise.

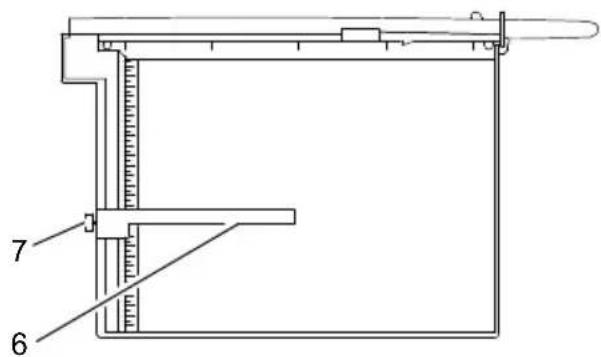

Paper Guide

1. Release the lock (7) for the paper guide (6).
2. Slide the paper guide (6) carefully on the rail.

Note: Do not slide the paper guide (6) if the lock (7) has not been released.
3. Position the paper guide (6) with the aid of the measuring units and systems (5).
Note: The paper guide (6) can be adjusted continually in the rail.
4. Lock the paper guide (6). The paper guide serves as a stopper for the material to be cut.

-Technical Data

Cutting length (mm)

G 3640	360
G 4640 460
G 3120 310
G 4420 448
G 4415 448
G 3115 310

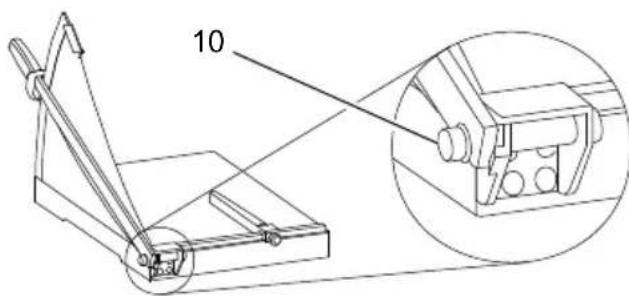

Adjusting the Guillotine Arm

After a period of time in use, the guillotine arm (1) becomes too loose and no longer remains in position of its own accord. The guillotine arm (1) must then be readjusted.

1. Tighten the screw (10) slowly, using an appropriate tool.

Note: Check whether the guillotine arm remains in position, taking the safety information into account. If the guillotine arm is too difficult to move, loosen the screw (10) slowly, using an appropriate tool.

Cutting capacity Sheets (80g / m^2)

G 3640	40
G 4640 40
G 3120 20
G 4420 20
G 4415 15
G 3115 15

Dimensions (L x W x H) (mm)

G 3640	294 x 630 x 360
G 4640 394 x 730 x 370
G 3120 385 x 405 x 300
G 4420 360 x 535 x 445
G 4415 360 x 535 x 445
G 3115 385 x 410 x 445
Weight (kg)
G 3640	4.9
G 4640 8.2
G 3120 2.7
G 4420 4.9
G 4415 4.9
G 3115 2.7

- Cleaning the Device

Attention: Risk of injury! The guillotine blade is very sharp! Take the utmost caution when cleaning the guillotine blade!

Clean the outer surfaces of the device with a slightly damp cloth. Clean the blade carefully with a soft brush.

Do not use any aggressive cleaning agents or chemicals to clean the device.

- Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The

symbol indicates that the device must not be disposed of in normal domestic waste! Packaging materials must be disposed of according to local regulations.

Guarantee

Dear Customer,

we are pleased that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.
