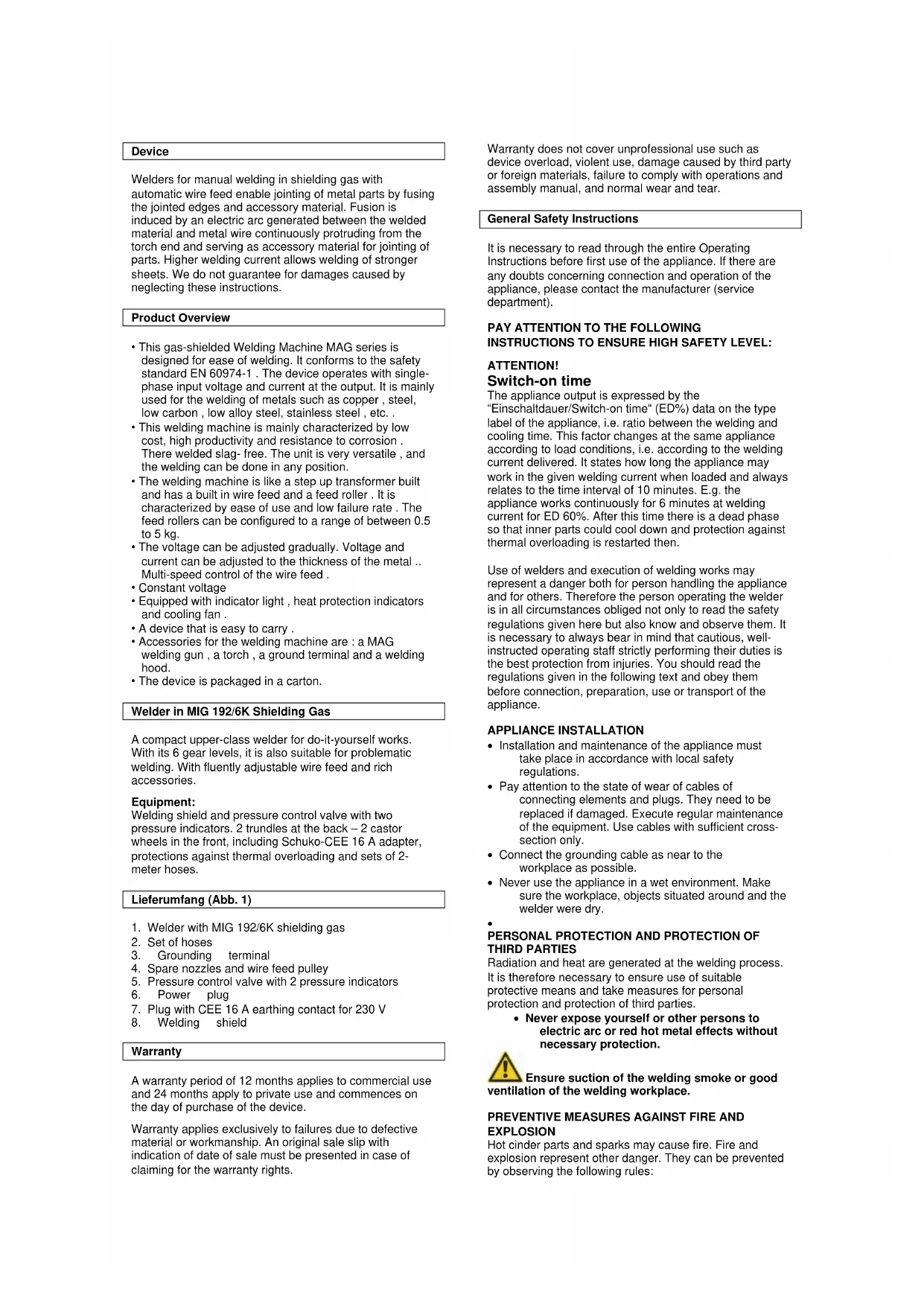

• This gas-shielded Welding Machine MAG series is designed for ease of welding. It conforms to the safety standard EN 60974-1 . The device operates with single- phase input voltage and current at the output. It is mainly used for the welding of metals such as copper , steel, low carbon , low alloy steel, stainless steel , etc. .

• This welding machine is mainly characterized by low cost, high productivity and resistance to corrosion . There welded slag- free. The unit is very versatile , and the welding can be done in any position.

• The welding machine is like a step up transformer built and has a built in wire feed and a feed roller . It is characterized by ease of use and low failure rate . The feed rollers can be configured to a range of between 0.5 to 5 kg.

• The voltage can be adjusted gradually. Voltage and current can be adjusted to the thickness of the metal .. Multi-speed control of the wire feed .

• Equipped with indicator light , heat protection indicators and cooling fan .

• A device that is easy to carry .

• Accessories for the welding machine are : a MAG welding gun , a torch , a ground terminal and a welding hood.

• The device is packaged in a carton. Welder in MIG 192/6K Shielding Gas A compact upper-class welder for do-it-yourself works. With its 6 gear levels, it is also suitable for problematic welding. With fluently adjustable wire feed and rich accessories. Equipment: Welding shield and pressure control valve with two pressure indicators. 2 trundles at the back – 2 castor wheels in the front, including Schuko-CEE 16 A adapter, protections against thermal overloading and sets of 2- meter hoses. Lieferumfang (Abb. 1)

1. Welder with MIG 192/6K shielding gas

3. Grounding terminal

4. Spare nozzles and wire feed pulley

5. Pressure control valve with 2 pressure indicators

7. Plug with CEE 16 A earthing contact for 230 V

Warranty A warranty period of 12 months applies to commercial use and 24 months apply to private use and commences on the day of purchase of the device. Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights. Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear. General Safety Instructions It is necessary to read through the entire Operating Instructions before first use of the appliance. If there are any doubts concerning connection and operation of the appliance, please contact the manufacturer (service department).

PAY ATTENTION TO THE FOLLOWING

INSTRUCTIONS TO ENSURE HIGH SAFETY LEVEL: ATTENTION! Switch-on time The appliance output is expressed by the “Einschaltdauer/Switch-on time“ (ED%) data on the type label of the appliance, i.e. ratio between the welding and cooling time. This factor changes at the same appliance according to load conditions, i.e. according to the welding current delivered. It states how long the appliance may work in the given welding current when loaded and always relates to the time interval of 10 minutes. E.g. the appliance works continuously for 6 minutes at welding current for ED 60%. After this time there is a dead phase so that inner parts could cool down and protection against thermal overloading is restarted then. Use of welders and execution of welding works may represent a danger both for person handling the appliance and for others. Therefore the person operating the welder is in all circumstances obliged not only to read the safety regulations given here but also know and observe them. It is necessary to always bear in mind that cautious, well- instructed operating staff strictly performing their duties is the best protection from injuries. You should read the regulations given in the following text and obey them before connection, preparation, use or transport of the appliance. APPLIANCE INSTALLATION

• Installation and maintenance of the appliance must take place in accordance with local safety regulations.

• Pay attention to the state of wear of cables of connecting elements and plugs. They need to be replaced if damaged. Execute regular maintenance of the equipment. Use cables with sufficient cross- section only.

• Connect the grounding cable as near to the workplace as possible.

• Never use the appliance in a wet environment. Make sure the workplace, objects situated around and the welder were dry.

THIRD PARTIES Radiation and heat are generated at the welding process. It is therefore necessary to ensure use of suitable protective means and take measures for personal protection and protection of third parties.

• Never expose yourself or other persons to electric arc or red hot metal effects without necessary protection. Ensure suction of the welding smoke or good ventilation of the welding workplace.

PREVENTIVE MEASURES AGAINST FIRE AND

EXPLOSION Hot cinder parts and sparks may cause fire. Fire and explosion represent other danger. They can be prevented by observing the following rules:• Do not use the appliance in immediate surroundings of easily combustible materials such as wood, wooden sawdust, "varnishes", solvents, petrol, petroleum, natural gas, acetylene, propane and similar inflammable materials. Remove them from the workplace or protect them against sparks.

• A suitable extinguisher needs to be around as a measure for fire extinguishing.

• Do not execute any welding or cutting works on closed vessels or tubes.

• Do not execute any welding or cutting works on vessels or tubes even when open if they contain or have contained any materials that could explode or elicit any dangerous reactions due to heat or moisture. WELDER INSTALLATION The following regulations must be observed at the welder installation:

• The operating staff must have free access to the operating elements and appliance connectors.

• It is not suitable to install the appliance in tight rooms: Sufficient welder ventilation is very important. Avoid heavily dusty or dirty rooms where the equipment could suck in dust or other objects.

• The appliance (including cables) must not be an obstacle in passage or inhibit other persons from working.

• It is necessary to work with the welder on a flat surface and use suitably secured gas bottle for its operation only. Emergency Action Apply the first aid adequate to the injury and get qualified medical assistance as quickly as possible. Protect the injured person from more accidents and calm him/her down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

3. Number of injured persons

Marking on appliance

Explanation of symbols The following symbols are used in these Instructions and/or on the appliance: Product safety:

Product is in accordance with appropriate standards of the European Community

Prohibition, general (in connection with any other icon) Fire, open light source and no smoking No cable pulling Appliance not to be used when wet

Warning/Attention Warning against dangerous electric voltage

Warning against danger of trip Warning against deleterious gases Warning against hot surface Instructions:

Use protective boots Use protective gloves Use protective clothes Use a shield for face protection Pull the power plug out before opening Please read the Operating Instructions before use Environment protection: Do not throw waste to environment but dispose it properly. Packing cardboard material may be delivered to collecting centres designed thereto. Any damaged or liquidated electric or electronic devices must be delivered to appropriate collection centre..

Package: Protect against humidity This side up Interseroh-RecyclingTechnical data:

Network connection Network safeguarding MAG- welding material thickness IP 21 S protection Weight

In this environment, there is an increased risk of electric shock single-phase transformer - rectifier

Applicable safety standards: EN 60974-1:2005 U1: Rated Input Voltage (AC) (Tolerance ± 10%) I1max: Maximum rated input current I1eff: Maximum effective input current X: load duration factor Ratio of actual working time to total working time Note 1: This factor is between 0 and 1 and can be specified with a percentage Note 2: The default is meant by total working time a cycle of 10 min. A load duration factor of 60% means, for example, that follow welding 4 to 6 minutes minutes idle. U0: Open circuit voltage Open-circuit voltage of the secondary coil U2: Working voltage Nominal output voltage during welding U2 = (14 +0.05 I2)

A / V - A / V: Adjustment of welding current and in working voltage IP: protection class example IP21S H: insulation class Intended Use Welding machine for thermal compound of iron - ferrous metals by melting the edges and supply of an additional material. Failure to comply with the provisions of the general regulations and the provisions of this manual, the manufacturer for damages can not be held responsible.Residual risks and protective measures Mechanical residual risks Threat Description Protective measure Residual risk Perforation, puncture Hands can be perforated by wire Wear protective gloves or keep hands in safe distance from wire exit.

Spraying drops at welding can cause burns. Wear protective clothes and welder's mask.

Electric residual risks Threat Description Protective measure Residual risk Direct electric contact Faulty cable or plug can cause electric shock. Avoid contact with wet hands and ensure corresponding grounding

Heat residual risks Threat Description Protective measure Residual risk Burns, chilblains Contact with the hose nozzle and processed piece can cause burns. Let the hose nozzle and processed piece cool down after operation finishing. Wear protective gloves.

Exposure to radiation

Threat Description Protective measure Residual risk Infrared, visible and ultraviolet light Electric arc causes infrared and ultraviolet radiation Always use a suitable protective welding shield, protective clothes and protective gloves.

Exposure to processed material and other matters Threat Description Protective measure Residual risk Contact, aspiration Long-term aspiration of welding gases can be harmful to health. Use exhaust equipment when working or work in rooms with good ventilation. Avoid direct gas aspiration. Fire or explosion Hot cinder and sparks can cause fire and explosion. Never work with the appliance in an easily combustible environment.

Other risks Threat Description Protective measure Residual risk Slip, trip or fall of persons Slip, trip or fall of persons Keep your workplace clean

Disposal Disposal instructions are illustrated in the form of pictograms on the device or packaging. Description of the pictograms is given in "Identification" chapter. Disposal of transport packaging Packaging protects the device against damage during transport. Packaging materials are usually selected according to their effect on environment and disposal methods and can therefore be recycled. Returning of the packaging back to circulation saves resources and costs for packaging disposal. Parts of the packaging (e.g. foil, styropor) may be dangerous for children. Risk of suffocation! Keep these parts of the packaging out of reach of children and dispose as soon as possible.

Operation requirements The operating staff must carefully read the Operating Instructions before appliance use. Qualification No professional qualification is needed for work with the appliance apart from the detailed training provided by a qualified expert. Minimum age Only persons above 18 years of age are allowed to work with the appliance. An exception includes cases when the appliance is used by a youngster within professional training to reach skills supervised by a trainer.Training Appliance use only requires appropriate instructions. No special training is needed. Technical data Voltage 230 V/400 V Frequency 50 Hz Max. network output 16 A Protection 40 V Idle run voltage 25-160 A Control range 230 V Control range 400 V 115 A ~ 15 %/ 160 A ~ 10%/ Received material thickness 1-9 mm Switch-on time 0,6-1,0 mm Max. wire thickness

Attention: The appliance can be used and stored in an even working position (on a flat surface). Please respect the symbols on the package! Make sure the gas bottle was well fixed and sealed. Assembly and first putting into operation Assembly set 1 – Assembly of wheels on the appliance: Fig. 2, Fig. 3, Fig. 4 Assembly set 2 – Appliance handle assembly: Fig. 5 Assembly set 3 – Installation of the gas bottle on the appliance Fig. 6, Fig. 7 Assembly set 4 - Welder's shield assembly: Fig. 8, Fig. 9 Safety instructions for first putting into operation

• Make sure the electric connection is sufficiently protected.

• Use the prescribed protective clothes (pic.10).

• Ensure there are no other persons near the workplace or in dangerous areas.

• Make sure there are no flammable materials near the workplace.

• Plug the cable into appropriate outlet, the outlet must be protected by a safety fuse or power interlock switch. Caution Installation only by qualified electricians!

• Power factor (cos): 0.70

• H07RN-F4G1.5 mm ² power cable

• H01N2-D 1 * 16 mm ² welding cable The power cable and any extension cable must have at least identical cross-section.

• ATTENTION! Electric safety is only guaranteed when the appliance is in accordance with valid regulations for electric equipment, properly connected to efficient grounding equipment.

• Check whether the power voltage and frequency you dispose of correspond to the data on the appliance type label. Procedure Proceed in the mentioned order at assembly of individual parts. Keep correct layout of the assembly parts according to the given pictures. The appliance is not functional yet. Open the gas flow by 5-7 l/a min pressure. Protect the gas outlet against wind gust. In addition, it is necessary to respect the following information: The first switch levels 1-2 serve for welding of thin-walled sheets with other levels serving for thicker walls. Wire feed speed also needs to be set at each switch level change. If a drop is formed on the wire end at welding, the wire feed speed must be increased whereas if wire pressure is perceivable against the hose, you must reduce the speed. As parts being welded are very hot always use pliers if you want to move them and remove deposits on the torch end. As soon as the electric arc has been ignited hold the hose at an angle of app. 30° to the perpendicular. Welding wire installation pic. 11

1) Open the left side door of the welder by pulling the

2) Insert the welding wire spool (weight depends on

the appliance model) so that it was possible to pull the wire out of the spool at the top. Caution: Make sure the wire did not uncoil from the spool and that its end was straight and without fray. The spool resistance can be adjusted to a fixing nut in the centre.

correspond to the wire diameter and, if necessary, remove the wire pulley fixation by loosening the screws.

6) Position now the stirrup element and tighten the

turning knob so that the wire on pulleys ran evenly. If the wire on pulleys slips, tighten more the turning knob. Attention: Do not tighten it too firmly as the extreme pressure to pulleys could cause damage to the wire feed engine.

7) Select 230V or 400V voltage. For 230V, use the

supplied adapter plug, for 400V, connect the lead-in cable directly by CEE 16A red plug.

8) Now, switch on the welder by setting the selector

voltage switch to voltage selected in point 7.

9) After you have checked that all safety measures have

been taken set the changeover switch to level 1 and wire feed regulation to level 1.

10) Remove the gas nozzle and current nozzle and let the

wire get out of the hose by pressing the pressure switch on the hose. Re-fit both nozzles subsequently.

11) Set the necessary gas volume on the gas bottle

armature. Tip: (0.6 mm-wire → 6 l/an hour); (0.8 mm-wire → 8 l/an hour); (1.0 mm-wire → 10 l/an hour)

12) The appliance is now ready for welding.

General information on welding and shielding gas The main area of application is in shops, can be applied universally, suitable both for thinner sheets and thicker materials. The more welding levels the appliance has, the better utilisation at work with sheets applies. Necessary accessories: Co 2/Argon mixed gas, welding wire, welder's shield, pressure control valve. It is also suitable for aluminium and VA premium steel, using suitable gas and wire. (Clean argon/VA-wire/aluminium wire), potentiometer.good bad

1. Connection of set of hoses

2. Grounding terminal connection

3. Wire feed speed setting

4. Welding level setting

8. Power plug connection

Safety instructions fro operating staff

• Use the appliance only after you have carefully read the Operating Instructions.

• Respect all safety instructions mentioned in the Instructions.

• Behave responsibly to other persons.

• Attention!!! Never use a rusted welding wire. Instructions step by step The welded zone must be free of rust and varnish. Always use a protective welder's shield, welding gloves and suitable protective clothes. The angle of the set of hoses setting should be app. 30 degrees with respect to the processed piece.

1. Polish a large surface on the processed piece at the

weld seam and grounding terminal connection until glossy.

2. Mount the grounding terminal to the prepared spot of the

3. Set parameters of the welder according to the user table

for welding (chap. 3).

4. Set necessary volume of gas on the gas bottle armature

5. Tip: (0.6 mm-wire → 6 l/an hour); (0.8 mm-wire → 8 l/an

hour); (1.0 mm-wire → 10 l/an hour)

6. You can start welding if you have protective clothes on.

Tip: Before you start working do some testing welding to test the optimum setting of the welding parameters and reach an optimum result. Fig.14 Parameters for welding are set optimally when uniform noise is present and the welding seam is well penetrated in the material, i.e. it is relatively flat during work.

Tips for welding Failure Cause and remedy Example The processed piece is awry

1. Poor seam preparation

2. Straighten the edges and fix them to the welding

Weld elevation 1. Idle run voltage is too low

2. Welding speed is too low

3. Faulty adjacent angle of the welding torch

Small metal layer 1. Welding is too quick

2. Too low voltage for welding speed

Welds have oxidised appearance

1. Weld in a pit with a long electric arc

3. The wire is crooked or it excessively protrudes from the wire

4. Faulty wire feed speed

Insufficient root welding 1. Irregular or insufficient distance

2. Faulty adjacent angle of the welding torch

3. Worn-out wire guidance tube

4. Wire feed or welding speed is too low

The processed piece is awry

1. Wire feed speed is too high

2. Faulty adjacent angle of the welding torch

The welded zone should be free of rust and varnish. The torch is selected according to material type. We recommend first trying the current strength on a waste piece.Failures - Causes - Removal Failure Cause Removal The welding current falters

1. The excessive temperature protection has

failed due to overloading.

1. The excessive temperature protection will

automatically be reset after transformer has cooled down (after app. 10 minutes, pay attention to ED!) The welding current is not available at all. The interlock power switch or RCD has failed

1. The line fuse has failed

1. Have the fuse checked

The welding current is not available.

1. Poor contact between the grounding terminal

2. Any failure in the grounding cable or

1. Clean and refine the welded area and part surface.

The wire feed engine does not work, the signal light is switched on.

1. The gear ring is failed or blocked.

1. Replace the gear ring.

2. Replace the engine (contact your customer

service). The wire feed engine does not work, pulleys are turning.

1. The pulley pressure is not set correctly.

2. Impurities, dust, etc. on the torch current

3. Faulty gas nozzle.

5. The wire guidance tube is dirty or damaged.

1. Set the pulley pressure correctly.

2. Clean the appliance contact tube. Use an air

compressor for that. Replace the contact tube when heavily dirty.

5. Clean it with compressed air and, if necessary,

have the hose set replaced. Wire feed is irregular.

1. Impurities on the wire guidance. The gas

nozzle is worn-out or faulty.

2. The gas nozzle is clogged.

3. There is an obstacle in the wire feed pulley

4. The wire feed pulley guide has been

1. Clean the appliance wire guidance with air

4. Clean the wire feed pulleys.

5. Replace the wire feed pulleys.

6. Set the wire voltage correctly.

Instable burning of the electric arc.

1. Faulty wire speed setting.

2. Impurities on the welded area.

3. The gas nozzle is worn-out or faulty.

1. Set the wire speed according to recommended

2. Clean or polish the welded surface.

3. Replace the gas nozzle and check the edge.

Welded seam is porous.

2. The nozzle holder is clogged.

3. Rusty or damp material.

4. The torch is too far or you are holding it at a

wrong angle to the welded spot.

1. Open the gas and set the gas supply.

2. Clean or replace the gas nozzle.

3. Arrange the spot of welding properly or increase

5. The distance between the gas nozzle and

processed piece must be 8-10 mm and the hose needs to be held at an angle of 30°.

6. Check the rubber hose, connector and

assemblage of the set of hoses – Press the gas nozzle down to a correct position. The welding wire stops near the current nozzle.

1. The current nozzle is worn-out.

2. The welding wire is warped.

3. The wire feed speed is too low.

3. Follow the wire feed speed instructions.

The welding pressure is irregular.

1. The welding wire has been blocked on the

pressure. Penetration is too weak.

1. Too weak welding current.

2. Too long electric arc.

1. Increase the welding current and wire feed.

2. Hold the hose near the processed piece.

Penetration is too strong.

1. Too high welding current.

2. The wire feed speed is too low.

3. Incorrect distance of the torch from the

1. Reduce the welding current and wire feed.

2. Move the torch slowly and smoothly.

3. The nozzle distance from the processed piece

must be 8-10 mm.Inspection and maintenance Hose set maintenance Regular maintenance needs to be executed for perfect function of the hoses. The gas nozzle needs to be regularly sprinkled by protective nozzle spray and freed of deposits inside. The following steps need to be taken for this case:

1. Remove the nozzle (1) by pulling forward

2. Free the nozzle of any deposits formed by the weld

3. Sprinkle it with protective nozzle spray.

4. If the nozzle is rusty, it needs to be replaced.

Current nozzle maintenance The following steps need to be taken for this case:

1. Remove the nozzle (1) by pulling forward.

2. Unscrew the current nozzle (2)

3. Check whether the hole the wire goes

through is not too wide or, in case of need, replace it before reassembly.

4. Press the button on the hose so that the

wire protruded and remount the current nozzle. Nozzle holder maintenance The following steps need to be taken for this case (see pic. 15):

1. Holes for gas drainage can sometimes be slightly

stuffed, in such a case the gas nozzle needs to be disassembled by pulling (1),

2. unscrew then the current nozzle (2),

3. unscrew the gas distributor (3) and replace with a new

Safety instructions for inspection and maintenance Only a regularly maintained and treated appliance can become a reliable helper. Insufficient care and maintenance can be a cause of unpredictable accidents and injuries. Service Any technical questions? Complaint? Do you need spare parts or operation manual? Go to our website www.guede.com and the section Service will help you quickly and without bureaucracy. Please, help us to help you. In order to identify your device in case of complaint, please indicate serial number, order number and year of manufacture. All information is available on the product label. To have all information always at hand, put them down. Serial number: Order number: Year of manufacture: Phone: +49 (0) 79 04 / 700-360 Fax: +49 (0) 79 04 / 700-51999 E-Mail: support@ts.guede.com Important information for the customer Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

2. De motor is defect.

is versleten of defect.

2. Arc electric prea lung

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

Angaben zum Unterzeichner: Geschäftsführer Hr. Arnold Technische Dokumentation: J. Bürkle FBL; QS 7Introduction To enjoy your new Automatic welding helmet as long as possible, please read carefully the Operating Instructions and the attached safety instructions before putting the appliance into operation. We also recommend keeping the Operating Instructions for future reference. Making technical changes to improve the appliance as part of the continuous product development reserved. This document represents the original Operating Instructions. Supply includes Take the Automatik 4/9-13 out of the transport container and check whether there are the following parts:

• Original Operating Instructions

• Warranty certificate If any parts are missing or are damaged, please contact your dealer. Appliance description Extremely light helmet, though extremely stable and durable. Plastic material resistant to high thermal and mechanical load. Fittings: Adjustable continuous darkening DIN 9 to 13. Suitable for all welding processes with various lightness. Big auto darkening filter (90x45mm). Welding helmet is supplied by common batteries. Continuously adjustable band around head with padded front band. Manual switching using the Auto-Off function. Adjustable filter sensitivity. Product description (pic. 1, 2)

2. Auto darkening filter

11. Band around head

14. Battery compartment

Darkening instructions (pic. 3) A. Electrode welding B. MIG Fe welding C. MIG Al welding D. WIG welding E. CO2 MAG welding F. Tubular cord electrode welding G. Plasma arc cutting H. Plasma arc welding

Technical specifications Automatik 4/9-13 welding helmet Sight glass size: 90 x 45 mm Supply: 2 AAA micro batteries Lightening and darkening delay rate: 1/25,000 s Darkening and lightening delay rate: 0.4 s Darkening level: from DIN 9 to DIN 13 Lightening level: DIN 4 Weight: 0.5 kg General safety instructions Please read carefully the Operating Instructions. Familiarise with the control elements and appropriate use of the appliance. Keep the Operating Instructions for future reference. Safe work

Keep the place of your work clean! Mess in the place of your work may result in injuries. Consider the environment Do not expose the appliance to rain. Do not use the appliance in a wet or moist environment. Provide adequate lighting. Keep other persons in a safe distance! Do not let other persons, especially children, touch the appliance. Keep them in a sufficient distance from the place of your work. Behave responsibly to other persons. Store the appliance properly! An appliance that is not used should be kept in a dry, locked place inapproachable to children. Do not overload your appliance! Work within the specified output range. Use the right appliance! Do not use the appliance for purposes for which it has not been designed. Look after your appliance! Follow the servicing regulations and instructions. Check regularly the appliance and have it replaced by an authorised professional if damaged. Be careful! Pay attention to what you are doing. Use common sense when working. Do not use the appliance when you are tired. CAUTION! Use of any other accessory equipment may lead to a risk of injury. Have your appliance repaired by a professional only! This appliance corresponds to appropriate safety regulations. Repairs may only be executed by a professional, using original spare parts; otherwise, the user will face a risk of injury. Appliance-specific safety instructions

Appliance to be used only after reading the Operating Instructions.

1. The Automatik welding helmet protects

against intensive exposure, e.g. explosive 8substances and fragments of abrading wheels and grinding wheels.

2. The Automatik welding helmet does not

protect against splashing by dangerous and corrosive liquids.

3. The Automatik welding helmet is not suitable

for oxy-acetylene welding, laser welding or welding works with a too low number of amperes.

4. Never weld with the Automatik welding

helmet without being adequately instructed by qualified staff first.

5. Never open and handle the Automatik

welding helmet electronic cassette. The manufacturer will not be liable for any consequential damage or injury.

6. Never leave the place of your work with the

Automatik welding helmet being on as it could unexpectedly get dark and cause injury.

7. The Automatik welding helmet must never be

exposed to excess temperatures.

10. Appropriate protective equipment must

necessarily be worn for welding: safety shoes, utility gloves, protective glasses and closefitting clothing.

11. Check the Automatik welding helmet

function every time it is to be used. Appropriate darkening must especially be provided for welding.

12. If the Automatik welding helmet or electronic

cassette are damaged, you must not work with the Automatik welding helmet. Risk of injury! Any scratched or damaged foils must be immediately replaced.

13. Mineral filter foils may only be used in

combination with an appropriate underlying foil.

14. Work under adequate visibility or lighting

16. Parts of the Automatik welding helmet that

may come into contact with skin may invoke an allergic reaction with sensitive persons. Marking Product safety:

Product corresponds to appropriate EU standards

Protect against rain and moisture!

Warning/Caution Commands:

Do not touch these parts to prevent any burns. Learn to use the appliance before using it.

Environment protection:

Dispose waste professionally so as not to harm the environment. Packing cardboard material may be delivered to collecting centres for recycling.

Any faulty and/or disposed electric or electronic devices must be delivered to appropriate collection centres.

- Protect against moisture - Fragile - This side up Interseroh-Recycling Technical specifications:

Sight glass size Power supply

Lightening level Darkening level Lightening and darkening delay rate Darkening and lightening delay rate

Weight 9Helmet specification: GUEDE EN 175 S CE GUEDE: manufacturer EN 175: standard number S: mechanical resistance: increased resistance Pre-fitted glass specification: GUEDE S CE GUEDE: manufacturer S: mechanical resistance: increased resistance Underlying foil specification: GUEDE S CE GUEDE: manufacturer 1: optical class S: mechanical resistance: increased resistance Auto welding protective filter specification:

4: lightening level 9: lowest darkening level 13: highest darkening level GUEDE: manufacturer 1: optical class 3: scattered light class 1: homogeneity class 3: angle-depending light transmission level 379: used standard number S: mechanical resistance: increased resistance Training Please read carefully the Operating Instructions and the servicing instructions. Familiarise thoroughly with the controls and proper using of the appliance. You must know how the appliance works and how controls can quickly be switched off. Never let children work with the appliance. Never let an adult person work with the appliance without proper training. Do not let any persons, especially small children and pets, to the place of your work. Be careful to prevent slipping or falling. Use as designated The Automatik 4/9-13 welding helmet has been approved to be solely used for the following: Head and eye protection when welding by these methods:

• Plasma arc welding The Automatik welding helmet is not suitable for oxy- acetylene welding, laser welding or welding works with a too low number of amperes. The appliance cannot be used for other works than those for which it has been designed and which are specified in these Operating Instructions. Any other use will be considered a use in conflict with the designation. The manufacturer will not be liable for any consequential damage and injuries. Please be sure to know that the appliance has not been designed for industrial purposes.

Before using the appliance Before using the fittings, please check whether all components of the Automatik welding helmet have been fitted properly. Adjust the Automatik welding helmet considering the comfortable and perfect use and the required dimensions. Adjust the Automatik welding helmet bands using the bolt on the back side and appropriate holes on the band around head. The front part with the welding band must remain centred on the forehead. Insert the batteries included in the supply. Respect the positive/negative pole. Protective foils of the Automatik welding helmet must necessarily be removed before using the appliance for the first time; otherwise, auto darkening will not work properly. The Automatik welding helmet must not be exposed to impacts, must not fall on the floor and never be exposed to excess temperatures. Protection level selection There are 5 protection levels (9 to 13) that can be adjusted during the welding process using the external potentiometer on the side of the helmet. After the welding process is initiated, the helmet gets automatically dark. Otherwise, please check whether the filter cassette has been switched on properly. Please follow the darkening instructions (pic. 3) Sensitivity selection Use the turning knob in the upper part of the filter cassette to adjust the sensitivity. This will prevent the welding process from being negatively affected by the change in the lightness in the environment. LOW Recommended for welding works with a high number of amperes and processes in an environment with intensive light. HIGH Recommended for welding works with a low number of amperes and processes in an environment with lack of light. Also recommended for permanent soldering works, e.g. TIG soldering. Warranty The warranty exclusively applies to material or manufacturing defects. Original purchase voucher with the purchase date must be provided for lodging a claim in the warranty period. The warranty does not cover any unauthorised use such as appliance overload, violent use, damage by a foreign person or an undesirable item. Failure to follow the Operating Instructions or assembly instructions and ordinary wear and tear are also excluded from the warranty. Residual risks and protective measures Other risks: Risk Description Protective measure(s) Eye injury No solar radiation protection, e.g. at solar eclipse Not to be used

10Behaviour in case of emergency Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible. Protect the injured person from other injuries and calm him/her down. First aid kit must always be available in the place of your work in case of accident in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away. If help is needed, please provide the following details:

1. Place of accident

3. Number of injured persons

Disposal The disposal instructions are based on icons placed on the appliance or its package. The description of the meanings can be found in the “Marking” section. Transport package disposal The package protects the appliance against damage during transport. Packing materials are usually chosen depending on their environmental friendliness and disposal method and can therefore be recycled. Returning the package to material circulation saves raw materials and reduces waste disposal costs. Parts of packages (e.g. foils, styropor) can be dangerous to children. Risk of suffocation! Keep parts of packages away from children and dispose them as soon as possible. Operator requirements The operator must carefully read the Operating Instructions before using the appliance. Qualification No special qualification is necessary for using the appliance apart from detailed instruction by an expert. Minimum age The appliance can only be operated by persons over 18 years of age. An exception includes youngsters operating the appliance within their professional education to achieve necessary skills under trainer's supervision. Training Using the appliance only requires appropriate instructions by a professional or reading the Operating Instructions. No special training necessary. Maintenance Do you have any technical questions? A claim? Do you need spare parts or the Operating Instructions? You will be helped quickly and without needless bureaucracy at our webpage www.guede.com in the Services part. Please help us be able to assist you. To be able to identify your appliance when claimed, we need to know its serial No., order No. and year of production. All these details can be found on the type label. Enter the details below for future reference. Serial No. Order No. Year of production: Tel.: +49 (0) 79 04 / 700-360 Fax: +49 (0) 79 04 / 700-51999 E-mail: support@ts.guede.com Accessory equipment/spare parts

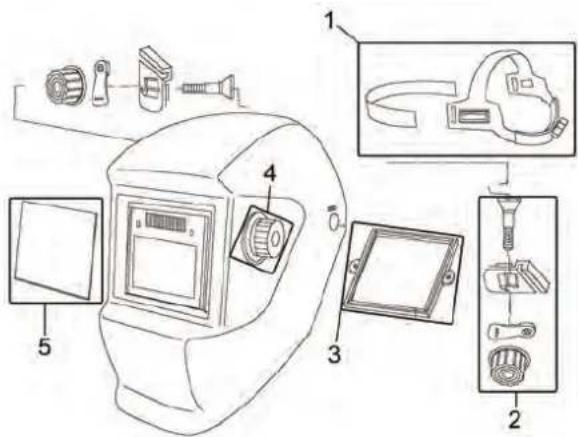

1. Band around head 16957-01001

2. Fixation for band around head16957-01002

3. Pre-fitted glass holder 16957-01003

4. Potentiometer 16957-01004

5. Pre-fitted glass 16957-01005

Transport and storage Protect the Automatik shield against moisture and dust when being transported. Servicing and cleaning Protect the Automatik welding helmet, especially the electronic cassette, against liquids, in particular, corrosive liquids and dirt. Clean the Automatik welding helmet and electronic cassette at regular intervals. In any case, do not use aggressive solvents or alcohol. Make sure the sensors and solar cells are always clean. Clean them with a soft clean cloth (never plunge it in liquids). Electronic cassette and filter cover change Change the filter covers at regular intervals. Loosen the fastening screws of the filter cassette and remove the cassette. Filter covers can now be removed and changed. Service life The service life of these fittings especially depends on the maintenance and how the fittings are used. The fittings have no special applicability term; however, we recommend changing the Automatik welding helmet after 3 years. Troubleshooting The table below shows potential failures, their possible cause and remedy options. If the problem cannot be removed, contact a professional to help you.

11Symptoms Possible cause Remedy Darkening pace is reducing Low batteries Insert new batteries Darkening does not work Darkening filter is switched off Poor batteries Switch the darkening filter on

Insert new batteries Filter cover light transmission is too low Filter cover is worn out Remove the filter cover

EU DECLARATION OF CONFORMITY

We, Güde GmbH & Co. KG Birkichstrasse 6 D-74549 Wolpertshausen Germany, herewith declare that the following appliance complies with the appropriate basic safety and health requirements of the EU Directives based on its design and type, as brought into circulation by us. In case of alternation of the appliance, not agreed upon by us, this declaration will lose its validity. Appliance specification:
