USER MANUAL Baltic OneConcept

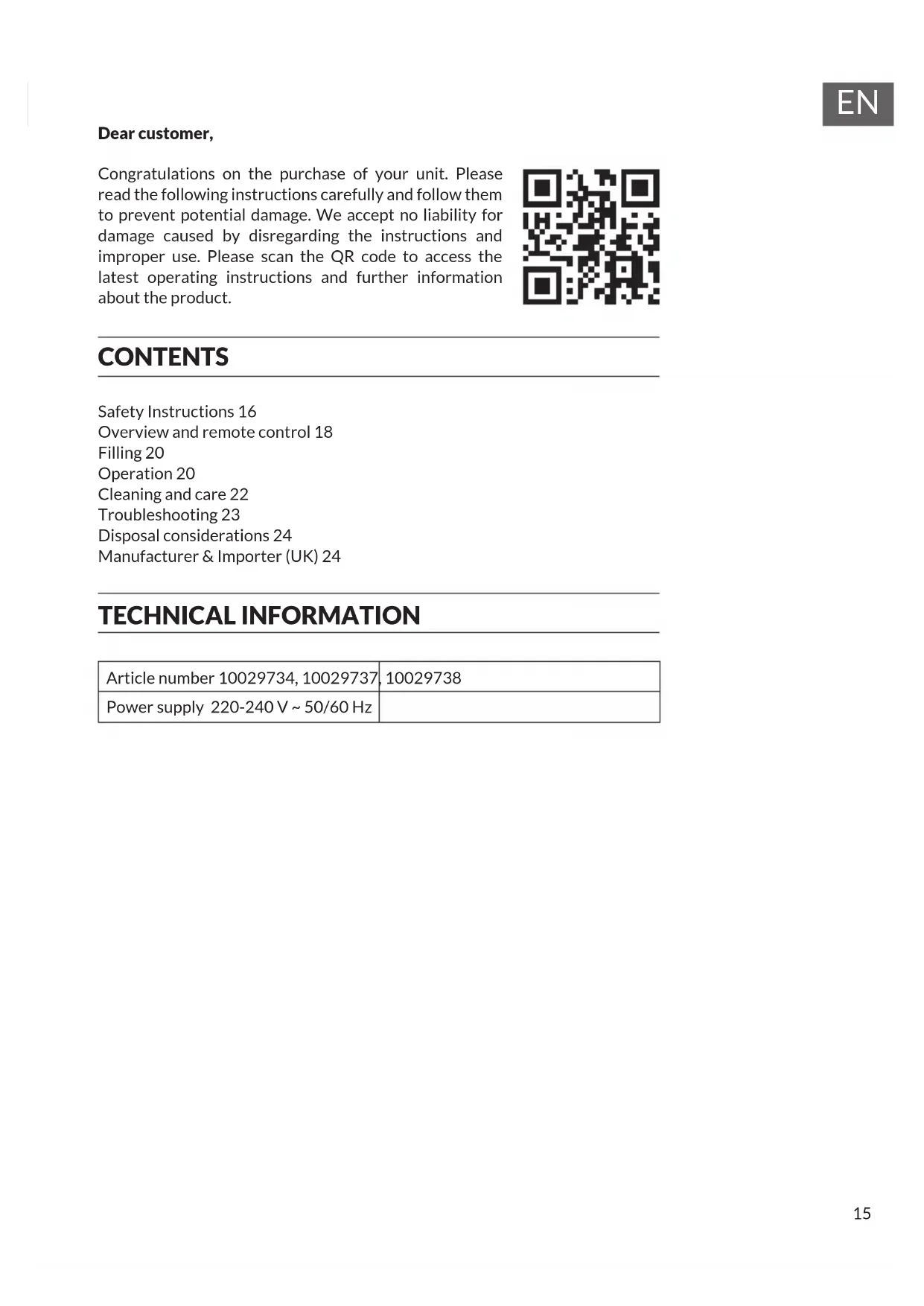

Dear customer, Congratulations on the purchase of your unit. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product. CONTENTS Safety Instructions 16 Overview and remote control 18 Filling 20 Operation 20 Cleaning and care 22 Troubleshooting 23 Disposal considerations 24 Manufacturer & Importer (UK) 24 TECHNICAL INFORMATION Article number 10029734, 10029737, 10029738 Power supply 220-240 V ~ 50/60 Hz16

• Check the voltage specication on the type plate before use. Ensure that you only connect the appliance to sockets with the appropriate voltage.

• Keep the cable away from hot surfaces and sharp objects.

• Do not lay the cable under a carpet or cover it with other objects or fabrics. Lay the cable so that no one falls over it or gets caught on it.

• Do not use the device if the plug or the power cord is damaged.

• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualied person.

• Use the unit indoors only.

• Do not cover the device.

• Place the appliance on a level, stable surface. Make sure that the device is upright.

• Make sure that the unit is switched off before inserting the plug into the socket.

• Do not operate the appliance with wet hands and do not handle the plug and the cable with wet hands.

• Do not leave the device unattended during operation. Switch the device off and unplug it when you are not using it.

• Unplug the plug from the socket before cleaning the device.

• Do not pull the plug out of the socket by the cable. Instead, hold it securely with your hand while unplugging it.

• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

• Use the device only as described in these operating instructions.

• Do not put your ngers or objects into the ventilation openings.

• Do not place the appliance near curtains, drapes, tablecloths or similar textiles. These could be drawn into the fan and could damage it.

• Do not use the unit in damp rooms such as bathrooms.

• Do not use the unit before the wheels are mounted or when it is lying on its side.

• Unwind the cable completely before use.17

• During operation, the unit humidi es the ambient air. However, avoid too high humidity. We recommend a humidity of between 40-50%. Excessive humidity can lead to mould or health problems.

• Only place the unit on surfaces that are insensitive to moisture and high humidity. It can always happen that a few drops fall out when installing or removing the water tank. If this is the case, wipe away the water drops immediately.

• Change the water in the tank after 3 days at the latest. Special notes

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and maintenance of the air cooler must not be carried out by children without supervision.

• Be aware that high humidity can promote the growth of biological organisms such as mould.

• Make sure that the area around the air cooler does not get damp or wet. If moisture occurs, turn down the power or stop the humidi cation function. Make sure that absorbent materials such as carpets, curtains, drapes or tablecloths do not get damp.

• Never leave water in the tank when the appliance is not in use.

• Empty and clean the air cooler before storage. Clean the storage area before the next use.

• Keep new and used batteries away from children.

• If the battery compartment cannot be closed securely, stop using the product.

• The batteries contain environmentally hazardous substances. They must be removed from the unit before it is scrapped and must be disposed of safely. WARNING Danger of injury! Make sure that children do not swallow the battery. If the button cell battery is swallowed, it can cause severe internal burns and death in as little as 2 hours. If you think batteries may have been swallowed, seek medical attention immediately.18

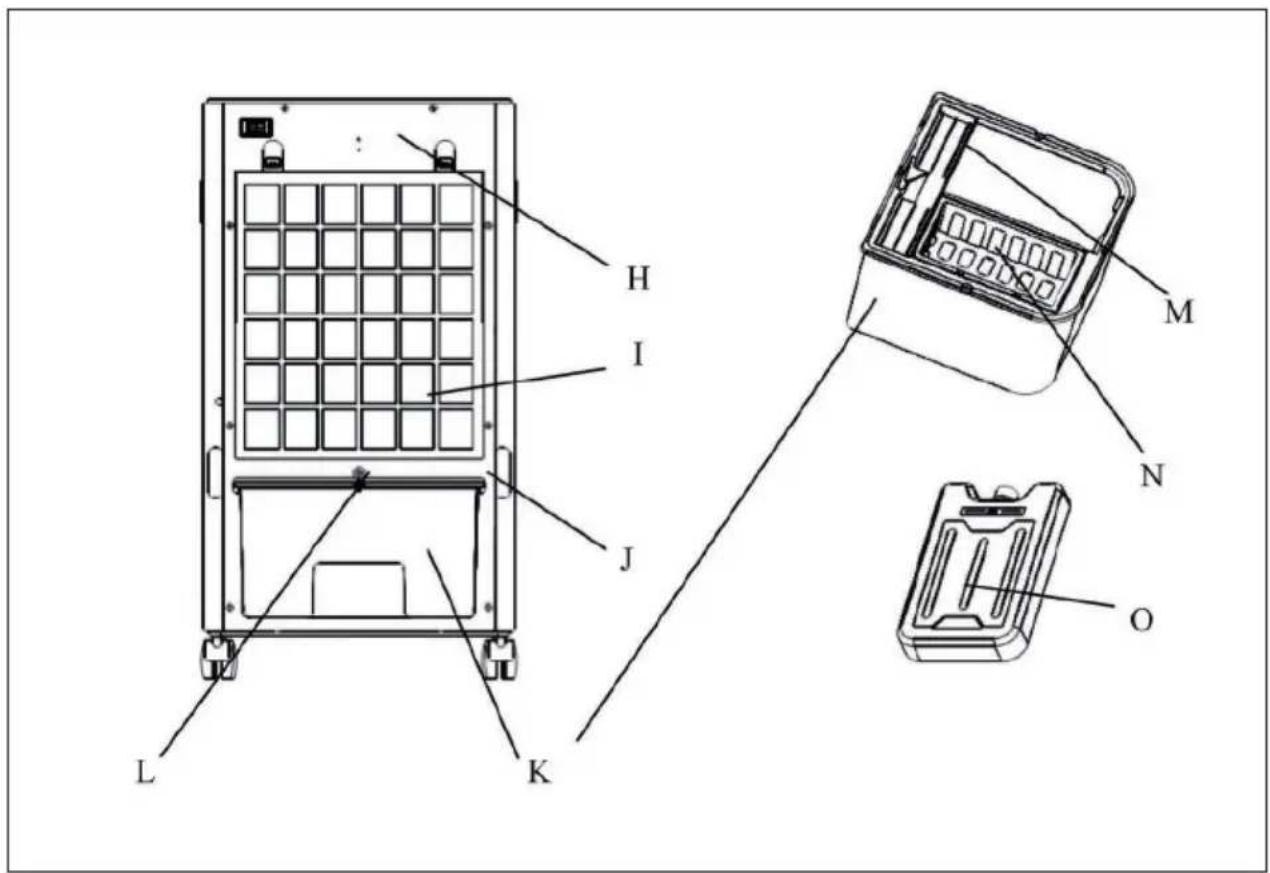

H Rear panel L Lock I Dust lter M Fuel ller cap J Cable N Ice compartment K Water tank O Cooling pad20

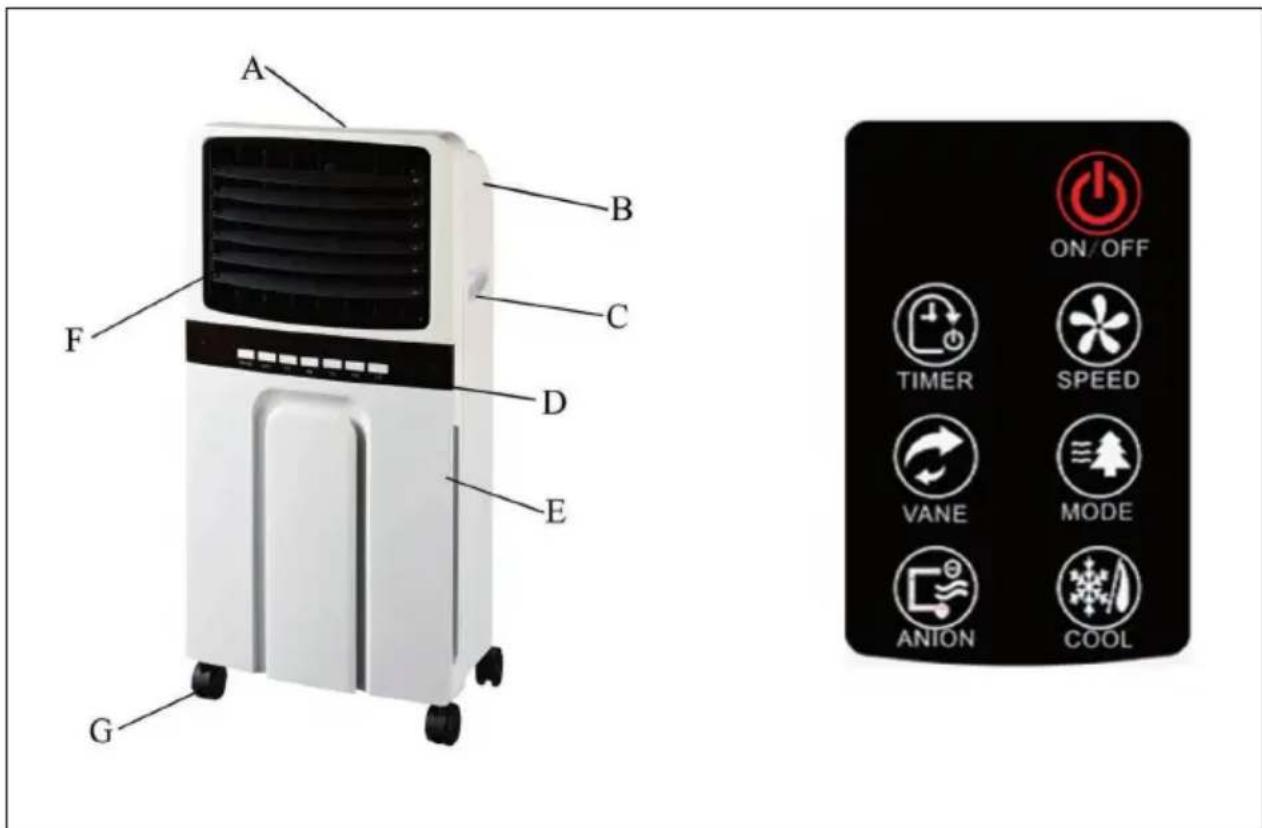

FILLING OPERATION ON/OFF button Switches the unit on and off. SPEEDbutton Press this button several times to switch between the 3 speed levels. VANE button Press this button to vary the orientation of the slats. TIME button Press this button several times to set the switch-off timer to a time between

MODEbutton Press this button to switch between the three operating modes Normal, Natural and Sleep.

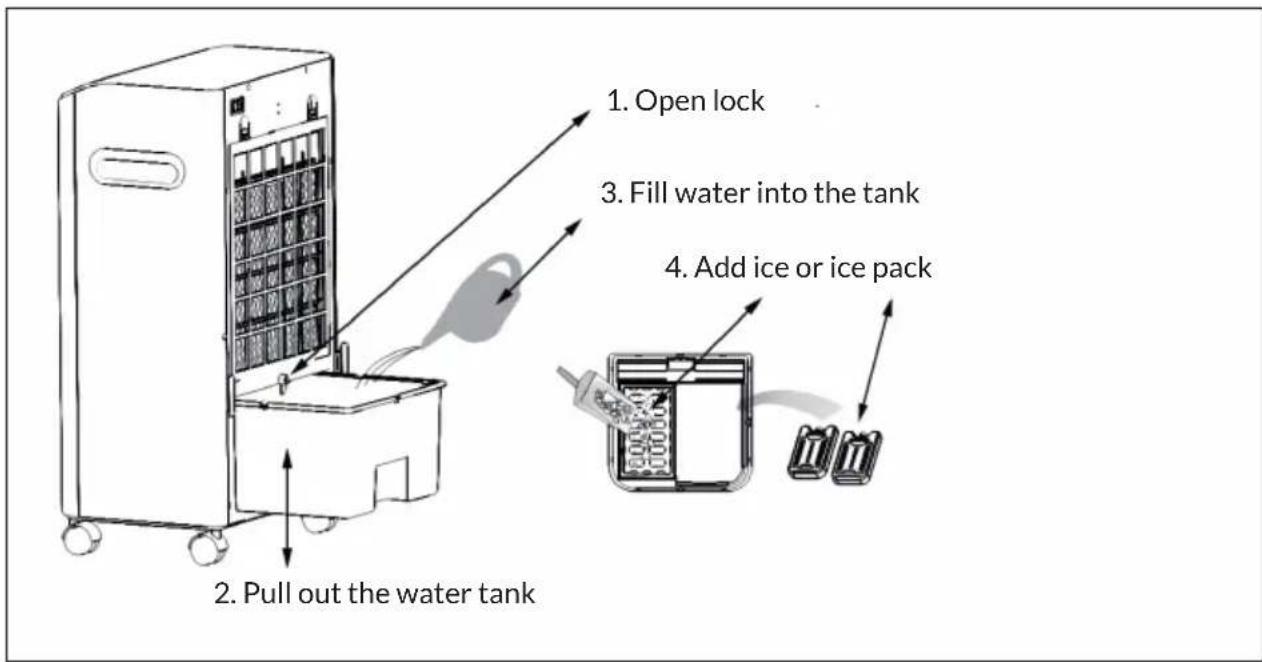

2. Pull out the water tank

3. Fill water into the tank

4. Add ice or ice pack21

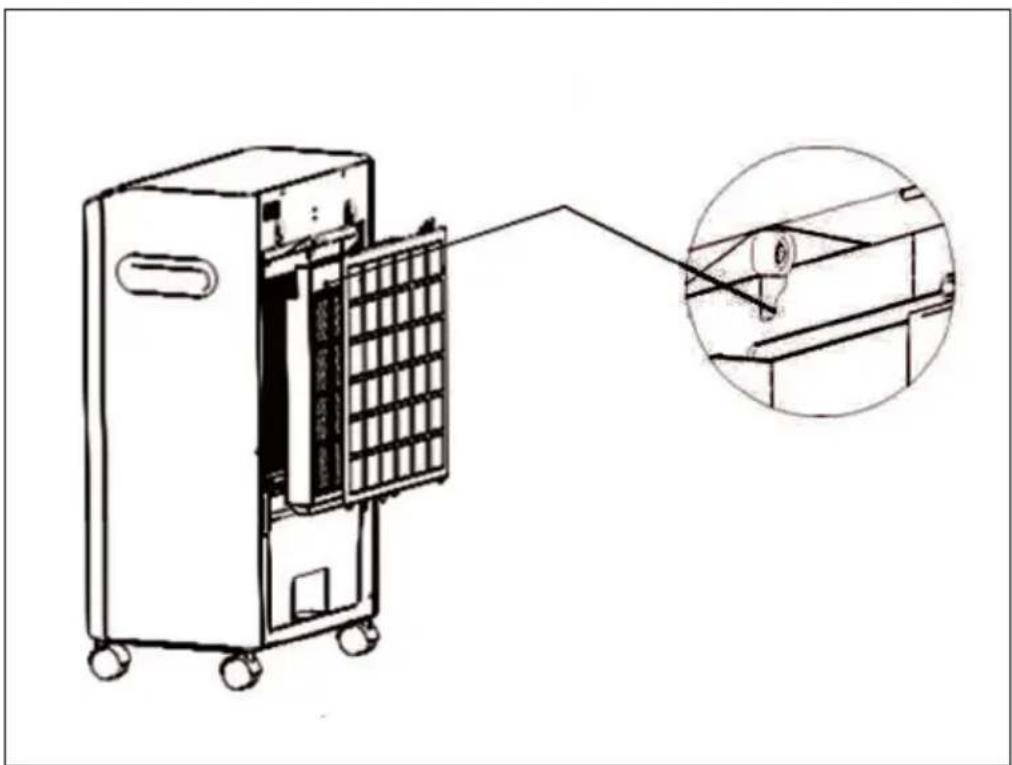

COOL button Switches on the cooling function. The light comes on when the water tank is insufciently lled. ION button Switches the ionisation function on and off. To remove the lters for cleaning

1. Remove the dust lter.

2. Turn the lter knobs outwards (see illustration on the right).

3. Remove the honeycomb lter.22

• Switch off the device and unplug the power cord. Always disconnect the mains plug before cleaning to avoid electric shocks or mechanical damage.

• Use a commercially available cleaning agent and a soft brush for cleaning. Do not use chemical cleaners for cleaning. Cleaning the outer surface

• Wipe the surface with a damp cloth. Do not use water, as it could enter the unit and damage the electronics.

• Do not use corrosive cleaning agents or solvents. Storage

• If the product will not be used for a long time, unplug it from the mains and pack it away to prevent dust from getting into the housing.

• After packing, store it in a dry, ventilated place.23

TROUBLESHOOTING Problem Possible cause Soluon approach The appliance does not work. The plug has not been inserted correctly. Plug the power plug securely into the wall socket. The nebuliser unit has not been installed correctly. Install the nebuliser unit correctly. The unit is switched off. Switch the device on. The wiring in the unit has come loose. Contact a specialist company for repairs. The humidier does not work / The pump makes strange noises. No water in the water tank or the water level is below the MIN mark. Switch off the machine and ll water into the water tank. The lter screen of the submersible pump is clogged. Clean the lter screen. The water outlet hole of the nebuliser unit is blocked. Clean the nebuliser unit. The pump or the wiring in the unit has come loose. Contact a specialist company for repairs. Abnormal noises. Deposits in the nebuliser unit. Remove the nebuliser unit and clean the components. Loose fan blades or engine damage. Contact a specialist company for repairs.24

DISPOSAL CONSIDERATIONS If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service. This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom25
