USER MANUAL MCH2 OneConcept

Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid damaging the item. We do not cover any damages that may arise from improper use of the item or the disregard of the safety instructions.

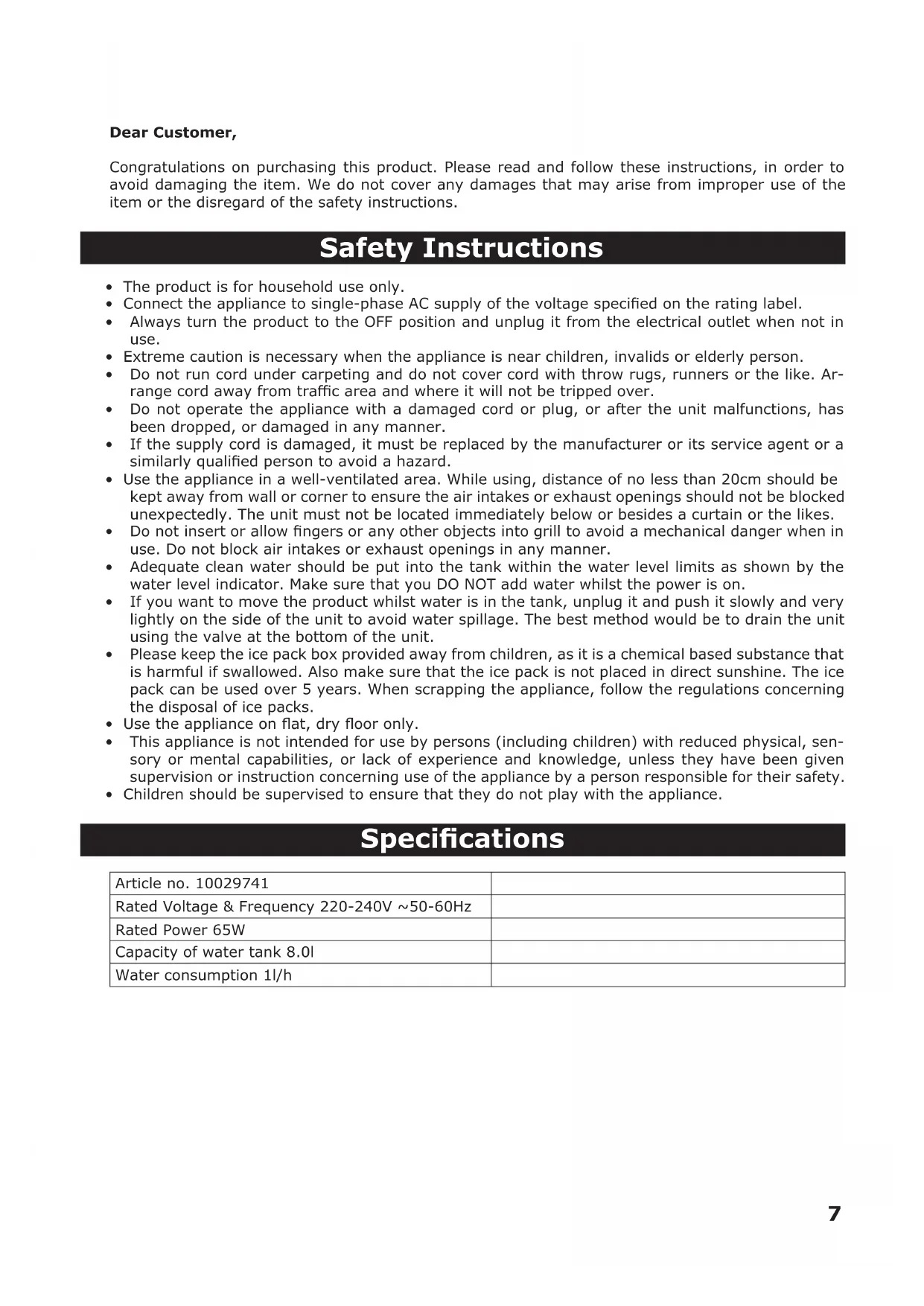

Safety Instructions

• The product is for household use only.
• Connect the appliance to single-phase AC supply of the voltage specified on the rating label.
• Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.
• Extreme caution is necessary when the appliance is near children, invalids or elderly person.
• Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.
• Do not operate the appliance with a damaged cord or plug, or after the unit malfunctions, has been dropped, or damaged in any manner.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.
• Use the appliance in a well-ventilated area. While using, distance of no less than 20cm should be kept away from wall or corner to ensure the air intakes or exhaust openings should not be blocked unexpectedly. The unit must not be located immediately below or besides a curtain or the likes.
• Do not insert or allow fingers or any other objects into grill to avoid a mechanical danger when in use. Do not block air intakes or exhaust openings in any manner.
• Adequate clean water should be put into the tank within the water level limits as shown by the water level indicator. Make sure that you DO NOT add water whilst the power is on.
• If you want to move the product whilst water is in the tank, unplug it and push it slowly and very lightly on the side of the unit to avoid water spillage. The best method would be to drain the unit using the valve at the bottom of the unit.
• Please keep the ice pack box provided away from children, as it is a chemical based substance that is harmful if swallowed. Also make sure that the ice pack is not placed in direct sunshine. The ice pack can be used over 5 years. When scrapping the appliance, follow the regulations concerning the disposal of ice packs.
• Use the appliance on flat, dry floor only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

Specifications

Article no. 10029741
Rated Voltage & Frequency 220-240V ~50-60Hz
Rated Power 65W
Capacity of water tank 8.0l
Water consumption 1l/h

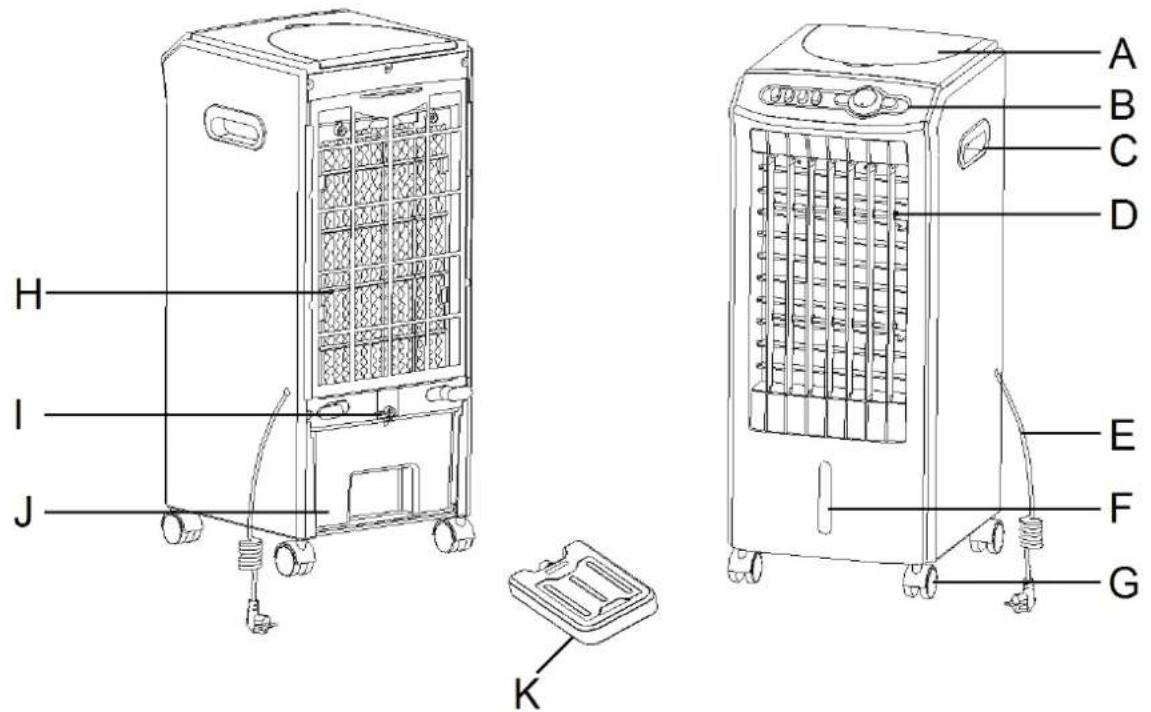

Structure and Parts

Top cover	A G Rear cover
Control panel	B H Air fi ler
Handle	C I K nob
Lamellar air outlet	D J Water tank
Power cord and plug	E K Ice pack
Water level indicator window	F

Control panel:

OFF

HIGH

MED LOW

TIMER

COOL

VANE

Timer Set the timer to 120min max. Cool Switch the cooling function on/off
Vane	The lamellar grill starts moving to gain more air circulation.	On/Off Power off
High/Med/Low	Switch on/off high, medium or low power modes.

INSTRUCTIONS FOR USE

When using the appliance, make sure that it is on a flat and stable surface. Damage may occur if it does not stand properly.

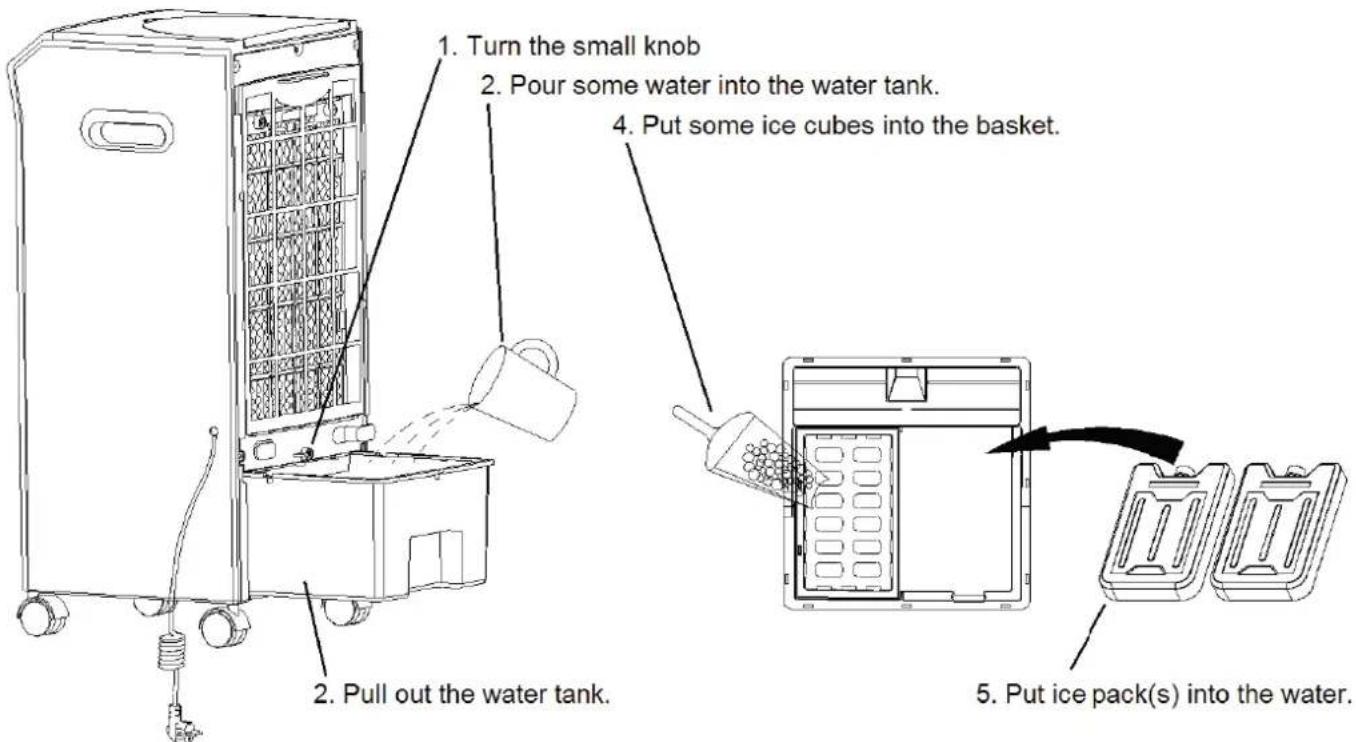

Fill the water tank:

Insert the plug directly into a standard AC socket-outlet. Be sure the plug fi ts tightly into outlet.

Turn the timer knob to ON position.

Press the LO/MI/HI buttons to set the desired fan speed (Low/Medium/High).

If you want to enlarge the blast area in your room, press the VANE button, the fan will blast your room in large scope. To stop oscillating, just press the VANE button again. Moving the horizontal louvers either up or down can make further wind direction enhancements.

Cool button: The cooling function can only be set with the fan operating.

• Before operating the unit in Cool mode, make sure that water tank is properly fixed. Then proceed to add clean water into the water tank. While adding the water, make sure that you keep an eye on the water level indicator to make sure that you do not OVER or UNDER FILL the unit. Press the button Cool after you have added the water and the unit should commence to blow cooler air.
• If you find that the air after Step 1 is still not cool enough, you can add additional ice block into the water tank or ice basket directly by drawing out the water tank. Be sure not to exceed the water tank capacity otherwise damage to the unit or electric shock may occur.

Note: Before using ice cubes, firstly you must remove the lid from the ice cubes box and add clean water into the ice pack box until reaching the water level scale, then turn the lid back to the ice cubes box and wait for 15 minutes; secondly you should place it in your refrigerator and let the ice cubes freeze for 1 to 2 hours.

You may pull out the water tank completely, then replace water in the water tank or clean water tank.

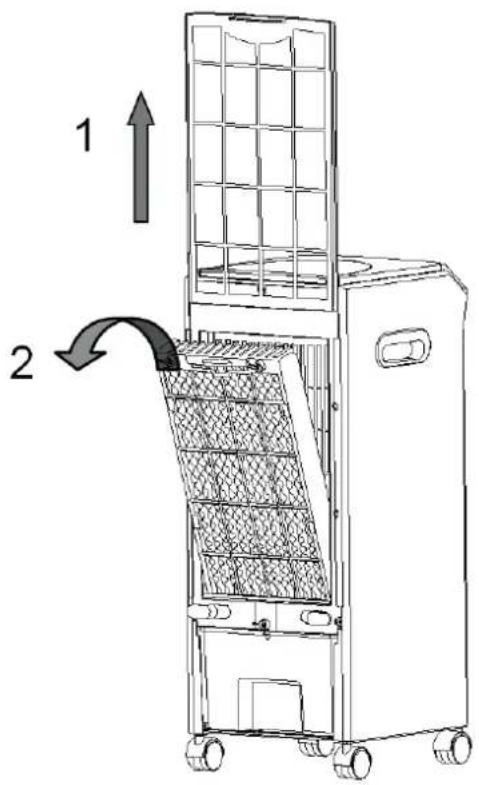

How to disassemble the dust-proof bracket and honeycomb filter

1. Pull out the dust-proof bracket
2. Rotate the knobs outwards like left image

To turn on the unit just press the button OFF.

To completely shut the unit o, turn all the controls to OFF, and remove plug from the socket-outlet.

Maintenance

Always remove the plug from the socket-outlet and allow the fan blower to stop acting before clean it.
- Clean the external surfaces of the unit with a soft damp (not dripping wet) cloth.

WARNING:

• Do not immerse the unit in water.
• Do not use any cleaning chemicals such as detergents and abrasives.
• Do not allow the interior (especially the PCB) to get wet as this could create a hazard.

After extended periods of use, be sure to replace the water in the tank with fresh clean water at least weekly. Also remember to clean the filter by unscrewing the filter and removing the filter cradle. It should be cleaned in a mild soapy solution and then left to dry before replacing the filter.
- When the unit is not in use, make sure that it is unplugged from the wall socket, water is drained thoroughly and it is placed back into its original box for storage until later use.
- In case of malfunction or doubt, do not try to repair the fan yourself, it may result in a ure hazard or electric shock.

NOTICE

If the machine is turned off from cool wind function, before the cleaning, please keep it work under normal wind for 5 minutes in order to dry the wet curtain.

To make optimal use of the machine to maintain and extend the lift of the machine, be sure to maintain with the instructions required by the following:

Clean the wet curtain Once every two weeks

Clean the water box Once every two weeks

Clean the filter plate Once every week

Clean the filter sponge Once every two weeks

Note: Make sure to cut the power when cleaning, if the environment is not good (for example, too much dust, poor water quality) the cleaning frequency must be increased!

Environment Concerns

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)
