USER MANUAL St. Oberholz Office A OneConcept

Exterior view of a silver rectangular electronic device with black insulation (no text or symbols visible)

10031330 10031331

FAN ON/OFF

Wartung und Pflege

Line drawing of a mechanical device with a vertical panel and handle (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

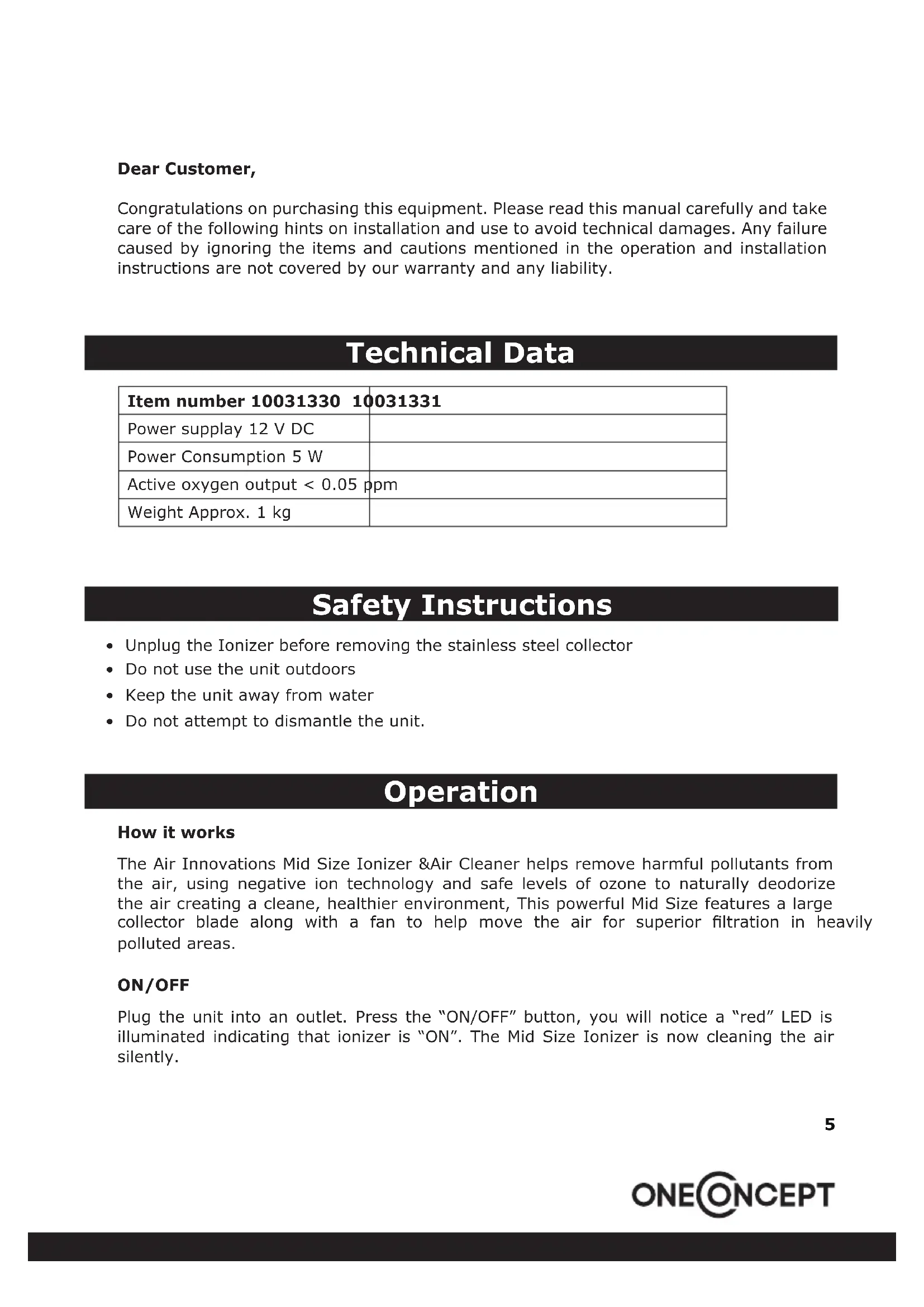

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Technical Data

Item number 10031330 10031331
Power supplay 12 V DC
Power Consumption 5 W
Active oxygen output < 0.05 ppm
Weight Approx. 1 kg

Safety Instructions

• Unplug the Ionizer before removing the stainless steel collector
• Do not use the unit outdoors
• Keep the unit away from water
• Do not attempt to dismantle the unit.

Operation

How it works

The Air Innovations Mid Size Ionizer & Air Cleaner helps remove harmful pollutants from the air, using negative ion technology and safe levels of ozone to naturally deodorize the air creating a cleane, healthier environment. This powerful Mid Size features a large collector blade along with a fan to help move the air for superior filtration in heavily polluted areas.

ON/OFF

Plug the unit into an outlet. Press the "ON/OFF" button, you will notice a "red" LED is illuminated indicating that ionizer is "ON". The Mid Size Ionizer is now cleaning the air silently.

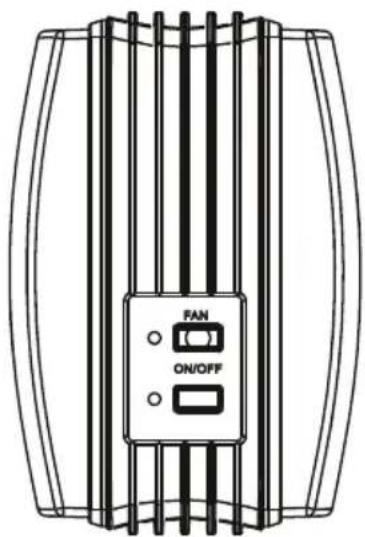

Fan feature

As indicated above, this Ionizer comes with a fan feature, The fan will increase the air flow circulation through the ionizer collection blades thus increasing the air cleaning effectiveness. Press the "FAN" button, you will notice a "green" LED is illuminated indicating that the FAN is ON

Line drawing of a cylindrical device with vertical fins and a central fan labeled 'FAN ON/OFF' (no additional text or symbols)

Cleaning

Clean the collector

Once the unit is unplugged, remove the collector blade from the bottom of the unit, see illustration. Simply wipe the collector blade with a soft, clean cloth or place the collector blade in the dishwasher on the top rack.

Line drawing of a mechanical device with a vertical panel and handle (no text or symbols)

Disposal Considerations

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

This product is conform to the following European Directives:

2014/30/EU (EMC)

2011/65/EU (RoHS)

2014/35/EU (LVD)
