USER MANUAL Northpeak OneConcept

Oscillation (Schwenkfungtion)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 8

Safety Instructions. 9

Product Overview 10

Installing 11

Maintenance and Storage 12

Disposal Considerations 13

Declaration of Conformity 13

Technical Data

Item number 10029509 10029510
Rated voltage and frequency	220 V~ 50 Hz
Power 50 W
Class II

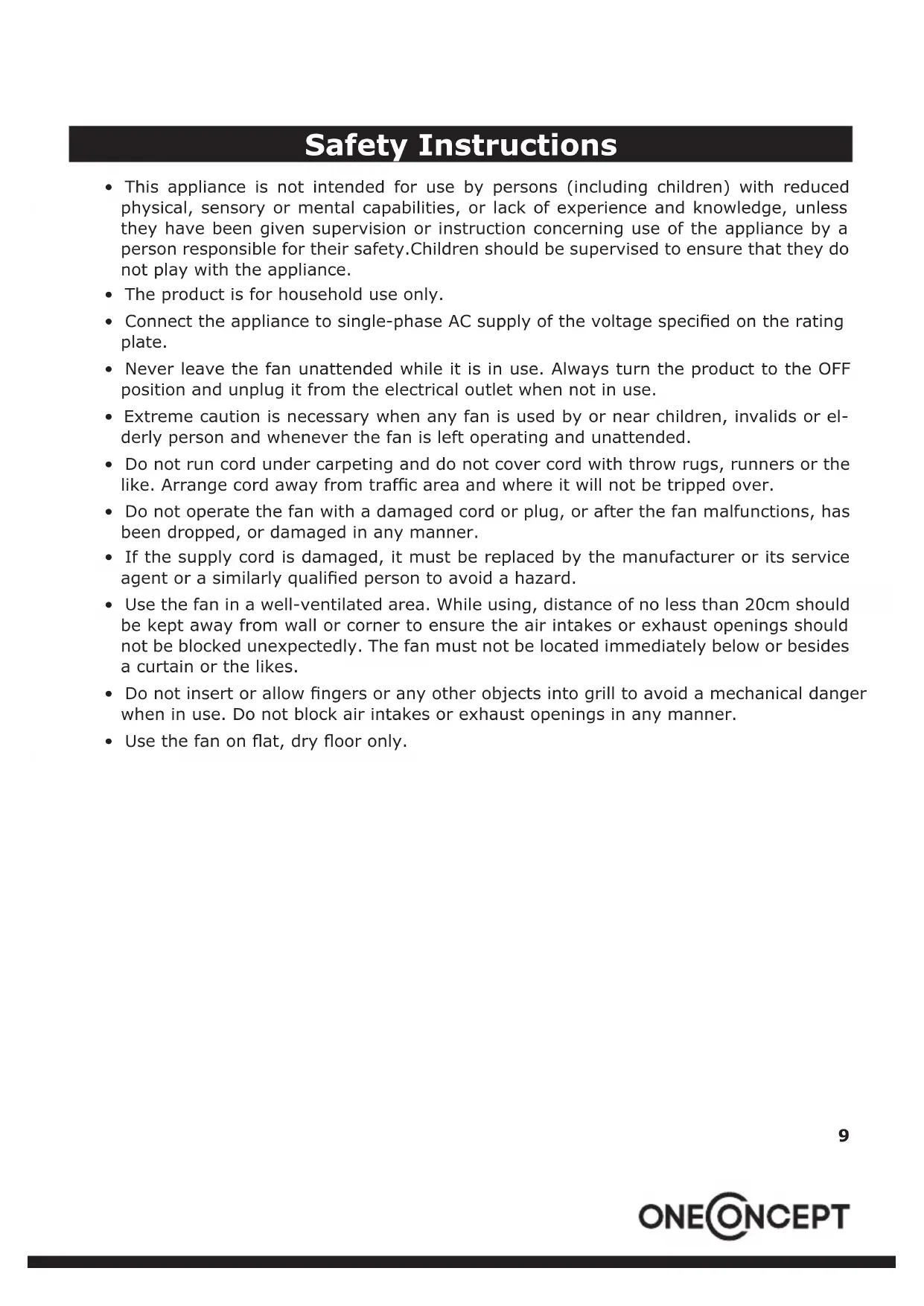

Safety Instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The product is for household use only.
• Connect the appliance to single-phase AC supply of the voltage specified on the rating plate.
• Never leave the fan unattended while it is in use. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.
• Extreme caution is necessary when any fan is used by or near children, invalids or elderly person and whenever the fan is left operating and unattended.
• Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.
• Do not operate the fan with a damaged cord or plug, or after the fan malfunctions, has been dropped, or damaged in any manner.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.
• Use the fan in a well-ventilated area. While using, distance of no less than 20cm should be kept away from wall or corner to ensure the air intakes or exhaust openings should not be blocked unexpectedly. The fan must not be located immediately below or besides a curtain or the likes.
• Do not insert or allow fingers or any other objects into grill to avoid a mechanical danger when in use. Do not block air intakes or exhaust openings in any manner.
• Use the fan on flat, dry floor only.

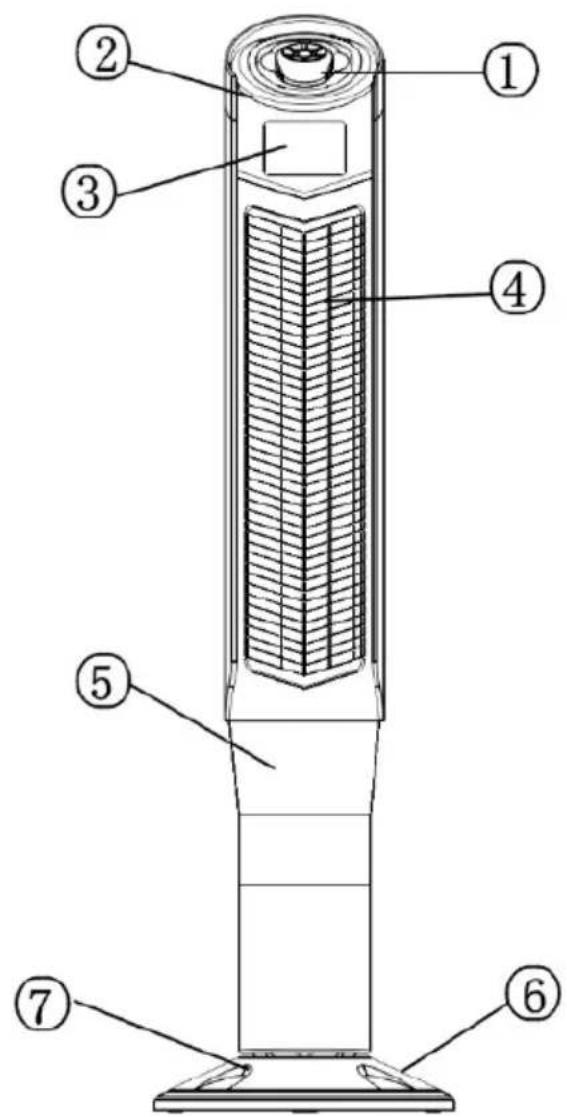

Product Overview

This tower fan is with multiple functions, such as 8 speed, 3 mode, 360-degree oscillation, 24-hour timer, remote control and ionizer. Basing on above functions, our tower fan can contribute to a natural, healthy and luxury life for you to enjoy.

1 Remote
2 Head
3 LCD
4 Air outlet
5 Support
6 Base part A
7 Base part B

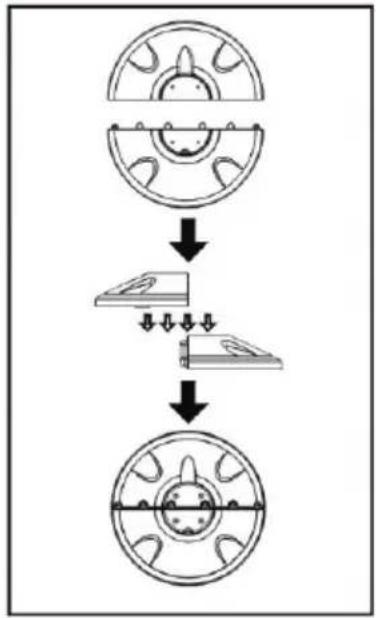

Installing

Taking out the two bases from the gift box. Forming the base A and B into a unit.

Oscillation

The oscillation can be set to 60,90,120,360 degrees.

03

Pressing O_3 to start lonizer.

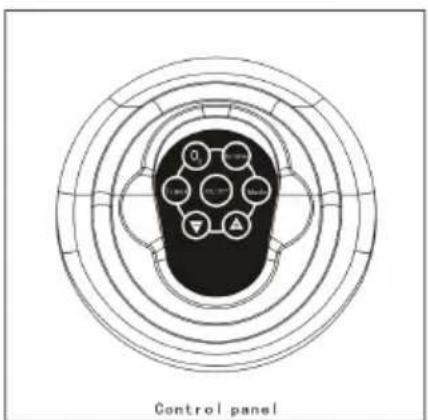

Timer

Pressing ^ + ^ or - - to choose different lengthy of time. The timer is 24 hours.

Maintenance and Storage

• Always remove the plug from the socket-outlet and allow the fan to stop acting before clean the fan.
• Clean the external surfaces of the fan with a soft damp (not dripping wet).
• Do not immerse the fan in water.
• Do not use any cleaning chemicals such as detergents and abrasives. Do not allow the interior to get wet as this could create a hazard.
• When the unit is not in use, make sure that it is unplugged from the wall socket. To store the fan, you may pack it in the original carton and store it in a cool and dry place until later use.
• In case of malfunction or doubt, do not try to repair the fan yourself, it may result in a fire hazard or electric shock.

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive 2006/66/ EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16,10179 Berlin, Germany

This product is conform to the following European Directives:

2004/108/EC (EMC)

2006/95/EC (LVD)

2011/65/EU (RoHS)

2012/206/EU (ErP)
