Product Type	Electric flush toilet with macerator pump
Brand	Dometic
Model	MasterFlush MF 8140
Height with cover	813 mm (standard model) / 711 mm (lowered model)
Seat height	432 mm (standard) / 349 mm (lowered)
Width	467 mm
Depth	375 mm
Power supply	12 V DC (20 A breaker) or 24 V DC (15 A breaker)
Water consumption	Minimum flow rate 7.6 L/min (2.0 gpm)
Max horizontal discharge	30 m (98 ft)
Max vertical discharge	3 m (9.8 ft)
Main functions	Electronic flush, water addition, dry bowl mode, automatic full tank shutoff (option)
Materials	Vitreous ceramic bowl, fiberglass-reinforced polypropylene pump body
Maintenance	Clean with non-abrasive detergent, regularly check filters and valves
Winterization	Use non-toxic antifreeze for potable systems
Safety	Close valves when away, do not flush foreign objects, risk of flooding if valve left open
Main spare parts	Hydraulic valve, macerator pump, control module, flush switch
Warranty	1 year for private use, 90 days for commercial use
After-sales service	Contact Dometic (tel. [phone] US/CA, 330-439-5550 international)

Frequently Asked Questions - MasterFlush MF 8140 DOMETIC

How to start the toilet system?

Open the water supply to the toilet. Press and hold the 'Flush' switch (2) for at least five seconds. Toss several sheets of toilet paper into the bowl and repeat until the bowl is clean.

How to add water to the bowl?

Press and hold the 'Add Water' switch (1) until the desired water level is reached. Be careful not to press too long to avoid overflow. Add more water to flush solids.

How to use dry bowl mode?

During periods of motion (e.g., rough seas), press the 'Dry Bowl' switch (3) to completely empty the bowl. No water is added. Caution: do not use this mode to flush solids, as water is needed for proper pump operation.

What to do if the flush does not activate?

Check that the black water tank is not full (the 'Tank Full' signal cuts power). Check cables, breakers, or fuses. If everything is normal, the flush switch or control module may be defective and needs to be replaced.

What to do if water supply is insufficient?

Check that the water supply line is not pinched or kinked. Clean the hydraulic valve filter or inlet filters (raw water system). If the problem persists, the hydraulic valve may be defective and needs to be replaced.

How to clean the toilet?

Use a non-abrasive detergent (preferably Dometic bowl cleaner). Avoid abrasive cleaners, caustic chemicals, lubricants, or those containing alcohol or petroleum distillates, as they can damage internal seals.

How to winterize the toilet?

Use a non-toxic antifreeze for potable systems. For a pressurized freshwater system, drain tanks and circulate the antifreeze-water mixture through the toilet and system. For a raw water system, disconnect the intake and run antifreeze directly into the pump.

How to protect the system during extended absence?

Flush in normal mode with biodegradable laundry detergent (no bleach). Flush at least five times. Open the supply and flush without water three times to remove residual water. Power off the toilet. If freezing risk, perform winterization.

What are the important safety instructions?

In a marine context, always close the seacocks when the toilet is not in use to avoid flooding. Do not flush wipes, towels, condoms, or other foreign objects. Do not modify the appliance without authorization. If connected to a shore water system, disconnect it when away.

What to do in case of full tank?

If a 'Tank Full' shutoff relay is installed, the toilet power is cut automatically. To restore, empty the black water tank until the 'full' light goes out. Without this system, monitor the level to avoid overfilling and damage.

USER MANUAL MasterFlush MF 8140 DOMETIC

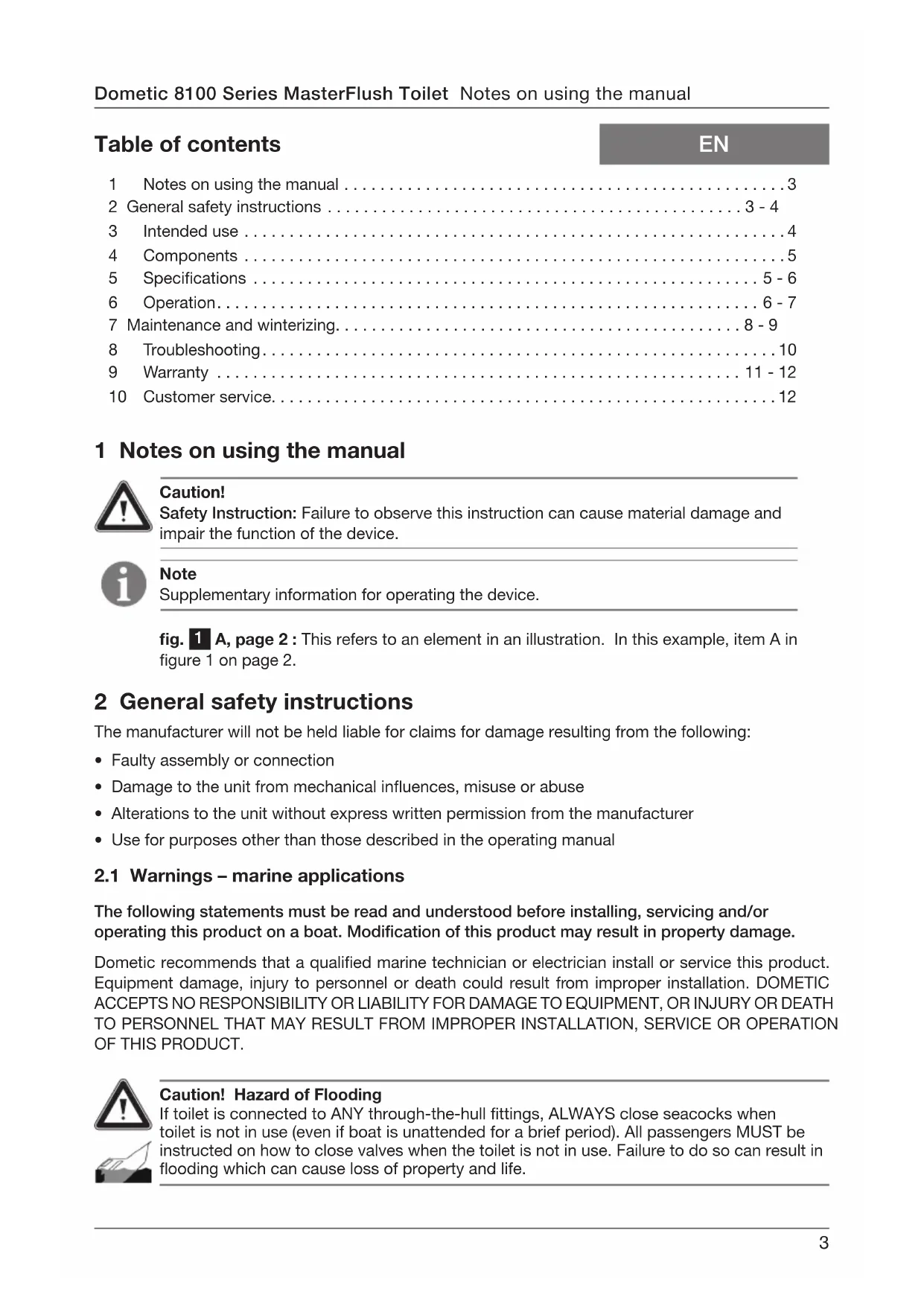

1 Notes on using the manual 3
2 General safety instructions 3-4
3 Intended use 4
4 Components 5
5 Specifications 5-6
6Operation. 6-7
7 Maintenance and winterizing. 8-9
8 Troubleshooting. 10
9 Warranty 11-12
10 Customer service. 12

1 Notes on using the manual

Caution!

Safety Instruction: Failure to observe this instruction can cause material damage and impair the function of the device.

Note

Supplementary information for operating the device.

fig. 1 A, page 2: This refers to an element in an illustration. In this example, item A in figure 1 on page 2.

2 General safety instructions

The manufacturer will not be held liable for claims for damage resulting from the following:

• Faulty assembly or connection
• Damage to the unit from mechanical influences, misuse or abuse
• Alterations to the unit without express written permission from the manufacturer
• Use for purposes other than those described in the operating manual

2.1Warnings-marine applications

The following statements must be read and understood before installing, servicing and/or operating this product on a boat. Modification of this product may result in property damage.

Dometic recommends that a qualified marine technician or electrician install or service this product. Equipment damage, injury to personnel or death could result from improper installation. DOMETIC ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR DEATH TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION OF THIS PRODUCT.

Caution! Hazard of Flooding

If toilet is connected to ANY through-the-hull fittings, ALWAYS close seacocks when toilet is not in use (even if boat is unattended for a brief period). All passengers MUST be instructed on how to close valves when the toilet is not in use. Failure to do so can result in flooding which can cause loss of property and life.

Caution! Hazard of Flooding

If the toilet uses fresh water for flushing and is connected directly or indirectly to a shore-side municipal water system at ANY time, shoreside water connections MUST be disconnected if the boat is unattended (even if boat is unattended for a brief period). Failure to do so can result in flooding which can cause loss of property and life.

Caution! Hazard of Flooding

Before beginning any work on this product, be sure that all electrical power to the unit has been turned off and that seacocks are in the CLOSED or OFF position. Failure to do so can result in flooding which can cause loss of property and life.

Caution!

Overfilling the holding tank can create serious damage to the sanitation system, such as rupturing the holding tank and releasing tank contents into the bilge. To prevent this possibility, Domatic recommends using the "full" tank shut-down relay in the toilet's electronic control module. The "full" signal from the holding tank can be generated by an optional Domatic DTM01C tank monitor or DTM04 four-level tank monitor system.

3 Intended use

The Dometic 8100 series MasterFlush toilet provides an electric-flush toilet that macerates waste and pumps it to a holding tank or other effluent storage/disposal system. Operated by a wall-mounted flush switch, the toilet allows the user to add water to the bowl (before or after flushing) and to flush the toilet by pushing a button.

3.1 Benefits

Convenient electronic flush. Add water or flush with the touch of a button.

Choice of two water consumption settings. "Normal" flush adds water to bowl while button is pushed; "Dry Bowl" does not use water during a flush - it only operates the macerator pump.

Versatile installation. Powerful macerator pump allows toilet to be located up to 98 ft. (30 m) away or 9.8 ft. (3 m) below holding tank or other discharge line destination.

Automatic "full tank" shut-down (Optional installation - tank level monitor and shut-down relay required. Available separately). When connected to a holding tank level indication system, the 8100 series toilet system will shut off electrical power to the toilet when the holding tank is full. This safety feature prevents overfilling the holding tank, which may cause damage to the boat.

4 Components

fig. 1, page 2)

Ref. Description

A Macerator toilet

B Dometic flush switch

C Electrical input wire

D Output wires (2) to toilet

E Input wires (2) from flush switch

F Output wires (2) to ground connection

G Floor mounting hardware kit

H Floor mounting template

I Flush switch wall template

J Water valve adapter

K Discharge elbow fitting

(fig. 2, page 2)

Ref. Description

1 Anti-siphon valve
2 Check valve
3 Discharge loop outlet
4 Discharge adapter fitting
5 Discharge hose fitting
6 Macerator pump
7 Water valve
8 Water valve fitting - 0.5 in. NPT

Refer to complete parts list (packed separately) for additional information.

5 Specifications

5.1 Materials

Toilet: vitreous ceramic

Macerator pump body: glass-filled polypropylene

Dometic flush switch panel: powder-coated aluminum

5.2 Minimum System Requirements

Electrical	Circuit breaker 20 amps/12 V DC; 15 amps/24 V DC
	Wiring 12 ga. (up to 20 ft./6.1 m from breaker)
Water Supply	Fitting 0.5 in. NPT
	Flow rate 2.0 gpm/7.6 lpm minimum
Discharge	Inside diameter 1.5 in./38 mm or 1 in./25 mm
	Horizontal run 98 ft./30 m maximum
	Vertical run 9.8 ft./3 m maximum

Specifications are subject to change without notice.

5.3 Dimensions (fig. 3, page 2)

Standard-height models Low-profile models

Ref. Dimension

A 18.375 in./467 mm

B 14.75 in./375 mm

C 18.375 in./467 mm

D 17 in. / 432 mm - seat height

E 14.875 in./378 mm

F 32 in. / 813 mm - seat lid up

Ref. Dimension

A 15 in. / 381 mm

B 14.75 in./375 mm

C 18.375 in./467 mm

D 13.75 in./349 mm - seat height

E 14 in. / 356 mm

F 28 in. / 711 mm - seat lid up

6 Operation

6.1 Toilet system start-up

1. Turn on water supply to toilet.
2. Press "Flush" switch (2) and hold for at least five seconds.
3. Toss several sheets of toilet paper into bowl and repeat cycle. The bowl should completely clear.

6.2 Normal toilet operation

ADDING WATER TO TOILET BOWL

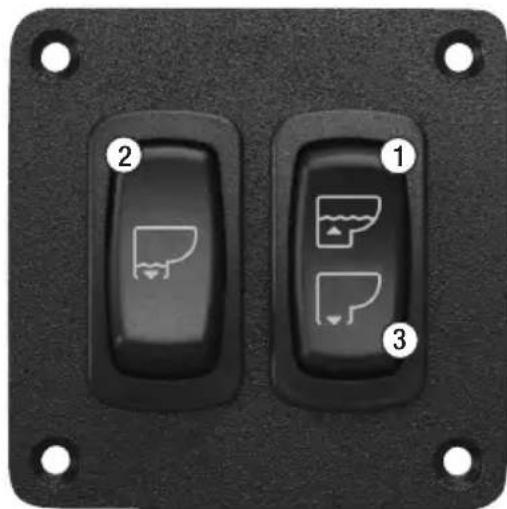

Press "Add Water" switch (1) and hold until desired water level is achieved. (Do not press "Add Water" switch too long or overflow may occur.) More water is usually added only when flushing solids.

FLUSHING TOILET

Press "Flush" switch (2) down and hold for a few seconds after waste drains from toilet bowl (about five seconds). This switch activates a powerful macerator pump that siphons water and waste from the bowl, macerates, and propels the effluent through the discharge line/holding tank. To use less water for liquid-only flushes, press "Flush" switch for shorter period of time.

During periods of rough travel, water in a toilet bowl can splash out and into the bathroom area. To avoid this situation, press "Dry Bowl" switch (3) to drain water completely from toilet bowl. Water is not added to bowl during or after pressing the "Dry Bowl" switch.

Caution - Do Not Flush Waste with "Dry Bowl" Switch!

To maintain proper cleanliness and operation of the toilet and macerator pump, water should be used with every flush.

Caution - Do Not Flush Foreign Objects!

Flush only water, bodily wastes and rapid-dissolving toilet tissue. Do not flush wet wipes, sanitary napkins, condoms, diapers, paper cups, cotton swabs, food, hair or liquids such as oils or solvents as clogging or damage to the toilet or toilet system may occur.

Note

Make sure all guests understand toilet operation before use.

6.3 Toilet operation when connected to "full tank" shut-down relay and tank monitor system

When a Dometic 8100 series macerator toilet system uses a "full tank" shut-down relay, electrical power to the toilet is shut off when the holding tank level reaches "full". To restore electrical power to the toilet for flushing, holding tank contents must be emptied or discharged until the "full" tank indicator is not activated.

7 Maintenance and winterizing

7.1 Cleaning the toilet

To maintain the toilet's original, lustrous appearance, use Dometic Toilet Bowl Cleaner or other non-abrasive bathroom and toilet bowl cleaners. Please follow label directions.

Caution

To avoid damaging internal seals, do not clean toilet with abrasive cleaners, caustic chemicals, or lubricants and cleaners that contain alcohols or petroleum distillates.

7.2 Routine maintenance

MONTHLY

1. Inspect toilet, plumbing, and plumbing connections, wires, and wire connections.
2. Open and close all plumbing valves, including seacocks.
3. Check in-line water filters and vented loops for blockage.

YEARLY

Check water valve filter. Also check water valve filter if water flow into toilet becomes insufficient.

7.3 During extended periods of non-use

The macerator toilet and sanitation hoses should be protected if toilet will not be needed for an extended period of time (more than two weeks, especially in hot weather).

1. Flush toilet in "Normal" mode and add 4 oz. (118 ml) of liquid biodegradable laundry detergent (should NOT contain bleach or environmentally harmful substances). Note: If using sea water for flushing, shut off power to sea water pump and add fresh water by pouring directly into the bowl during the flush cycle.
2. Flush toilet at least five times.
3. Turn off water supply to toilet.
4. Flush the toilet without water. Repeat three times. (This procedure will minimize any remaining water in the macerator pump.)
5. Turn off power to the toilet.

If system will be subjected to freezing temperatures, please follow above procedure, and then winterize system as described below.

7.4 Winterizing

At the end of each season, the Dometic macerator toilet should be winterized for storage by using potable water-safe antifreeze (if boat or vehicle will be exposed to freezing temperatures).

Note

Use nontoxic antifreeze designated for potable water systems. (See boat or vehicle owner's manual.)

Caution

Never use automotive-type antifreeze in freshwater systems.

PRESSURIZED FRESH WATER SYSTEM

1. Drain potable water tank and empty holding tank.
2. Add freshwater antifreeze to potable water tank.
3. Flush potable water antifreeze and water mixture through toilet(s) and into entire system, including the waste holding tank, diverter valve connections, discharge pumps, etc. Turn off power to toilet.

Each installation is different, so amounts may vary. User discretion is required to assure adequate protection.

RAW WATER SYSTEM

Parts required: - Hose that fits raw water pump, about 3 ft. (1 m) long

• one container

• Close intake and discharge seacocks. See Hazard of Flooding risks in this manual.

• Turn off power to toilet.
• Disconnect and drain intake hose and in-line filters.
• Connect hose to raw water pump intake.
• Place hose connected to pump intake into bucket with antifreeze in it.
• Turn on power to toilet and flush until antifreeze is removed from toilet.
• Disconnect power to toilet and reconnect all intake and drain hoses.

8 Troubleshooting

Problem Possible Cause Service Instruction
1. Flush function works, but water in bowl empties slowly or not at all.	a. Discharge piping is pinched or kinked.	a. Check discharge piping.
	b. Discharge piping is too high. (Remember, all upward vertical loops and should not exceed a total of 9.8 feet (3 m) in height.)	b. Reroute discharge piping.
	c. The macerator pump or discharge piping is blocked.	c. Close seacocks and clear blockage.
2. Macerator pump makes unusually loud noise or continually trips breaker.	a. Foreign material in pump chamber.	a. Close seacocks and clear foreign material.
3. Flush cycle is not activated after pushing on flush switch.	a. Holding tank is full and signal from tank has shut down electrical power to toilet.	a. Empty holding tank.
	b. Electrical power to toilet is shut off or disrupted.	b. Check wiring and circuit breakers (or fuses).
	c. Flush switch is malfunctioning.	c. Replace flush switch.
4. Insufficient or no water enters the bowl.	a. Water supply line is pinched or kinked.	a. Check water supply line.
	b. Screen in water valve is blocked.	b. Clear blockage at water valve.
	c. Intake water filters are blocked (in raw water system).	c. Clear water filters.
	d. Water valve is malfunctioning.	d. Replace water valve.

9 Warranty and product liability

North America and Rest of the World:

Manufacturer's One-Year Limited Warranty

Dometic Corporation, Sanitation Division warrants to the original purchaser only that this product, if used for personal, family or household purposes, is free from defects in material and workmanship for a period of one year from the date of purchase.

If this Dometic product is placed in commercial or business use, it will be warranted to the original purchaser only to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase.

Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic, to be defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are to be borne by the purchaser-user.

EXCLUSIONS

IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT, ABUSE, ALTERATION OR USE OF UNAUTHORIZED COMPONENTS. ALL IMPLIED WARRANTYES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF ONE YEAR FROM DATE OF PURCHASE.

IMPLIED WARRANTY

No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase for products used for personal, family or household purposes, and ninety (90) days from the date of purchase for products placed in commercial or business use.

OTHER RIGHTS

Some states do not allow limitations on the duration of an implied warranty and some states do not allow exclusions or limitations regarding incidental or consequential damages; so, the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

To obtain warranty service, first contact your local dealer from whom you purchased this product or go to dometic.com to locate a dealer near you.

Europe:

Warranty and Customer Service

Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions applicable for the country concerned. For warranty or other service, please contact our Dometic Service department listed elsewhere in this manual. Any damage due to improper use is not covered by the warranty.

The warranty does not cover any modifications to the product or the use of non-original Dometic parts; the warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained.

Product Liability

Product liability of Dometic Group and its subsidiary companies does not include damages which may arise from: faulty operation; improper alterations or intervention in the equipment; adverse effects from the environment which may impact the equipment itself or the direct vicinity of the equipment or persons in the area.

To obtain warranty service, first contact your local dealer from whom you purchased this product or go to dometic.com to locate a dealer near you.

10 Customer service

There is a strong, worldwide network to assist in servicing and maintaining your sanitation system. For the Authorized Service Center near you, please call from 8:00 a.m. to 5:00 p.m. (ET) Monday through Friday.

You may also contact or have your local dealer contact the Parts Distributor nearest you for quick response to your replacement parts needs. They carry a complete inventory for the Dometic product line.

Telephone: [phone] U.S.A. and Canada

330-439-5550

International

Fax: [phone] U.S.A. and Canada

330-439-5567

International

Web site: Dometic.com

Inhalt

DE

Domatic: aluminium paint epoxy

5.2 Configuration système minimale requise

C 467 mm / 18,375 in.

D 432~mm / 17 in. -brilhoogte

E 378mm / 14,875 in.

F 813 mm / 32 in. - opstaande bril

Ref. Afmeting

A 381mm / 15 in.

B 375mm / 14,75 in.

C 467 mm / 18,375 in.

FUNCTIE "TOILETPOT DROGEN"

C 467 mm / 18,375 in.

D 349 mm / 13,75 in. - stolens hojd

E 356mm / 14 in.

7.4 Forbereda for vintern

C 467 mm / 18,375 in.

D 432 mm / 17 in. - saedehojde

E 378mm / 14,875 in.

F 813 mm / 32 in. - saedlag oppe

Ref. Mäl

A 381~mm / 15 in.

B 375mm / 14,75 in.

C 467~mm / 18,375 in.

D 349 mm / 13,75 in. - seat height

E 356mm / 14 in.

F 711 mm / 28 in.-seat lid up

6 Betjening

6.1 Opstart af toiletsystemet

7.1 Rengoring at toilettet

Websted: Dometic.com

Innhold

NO
