Product type	Child car seat
Brand	Foppapedretti
Model	Tourist
Category	Car seat
Weight groups	Group 1 (9-18 kg), Group 2/3 (15-36 kg)
Approval	ECE R44/04, ISOFIX Universal (Group 1), Universal/Semi-Universal (Groups 2/3)
Installation	ISOFIX + Top Tether (Group 1), 3-point seat belt (Groups 2/3), ISOFIX + belt option (Groups 2/3)
Harness	5-point, removable for use in Group 2/3
Reducer	Included, for children under 15 kg
Headrest adjustment	7 positions, adjusts harness height in Group 1
Seat inclination	5 positions
Vehicle orientation	Forward facing only
Seat compatibility	Rear lateral or center seats (with 3-point belt), front passenger (airbag deactivated)
Cover maintenance	Machine washable at 30°C, delicate cycle, do not tumble dry
Cleaning plastic parts	Water and soap, no solvents
Warranty	12 months, manufacturer's conventional warranty
Country of origin	Italy (Foppa Pedretti S.p.A.)

Frequently Asked Questions - Tourist Foppapedretti

How to install the car seat in group 1 with ISOFIX?

For group 1 (9-18 kg), attach the ISOFIX connectors to the vehicle's anchors until you hear a "click", check the green indicator, then attach the Top Tether strap to the designated anchor point and tighten it until the indicator turns green. Consult the vehicle manual for compatible positions.

How to adjust the headrest and harness height?

Press the button behind the headrest and slide it up or down. The harness straps follow the adjustment. The gap between the harness and the child's shoulders should be about 1 cm (one finger). Loosen the harness first before adjusting.

Can I use the car seat on the front passenger seat with an airbag?

No, never use on a front passenger seat with an active frontal airbag. If the airbag can be deactivated, slide the seat back and consult the vehicle manual.

Up to what weight should I use the reducer?

The reducer is recommended for children weighing less than 15 kg, to ensure better support and comfort. Beyond that, remove it.

How to wash the car seat cover?

The cover can be removed and machine washed at 30°C on a delicate cycle with a mild detergent. Do not spin dry or put in a tumble dryer. Let it air dry.

Can the 5-point harness be removed for groups 2/3?

Yes, for groups 2/3 (15-36 kg), the 5-point harness must be removed and stored in the compartment under the seat. Then use the vehicle's 3-point seat belt.

What to do if the car seat has been involved in an accident?

It is imperative to replace the car seat after a violent impact or accident, even if no damage is visible, as there may be internal damage compromising safety.

Can the car seat be used on the rear center seat?

Yes, if the rear center seat is equipped with a three-point seat belt. Check compatibility in the vehicle manual.

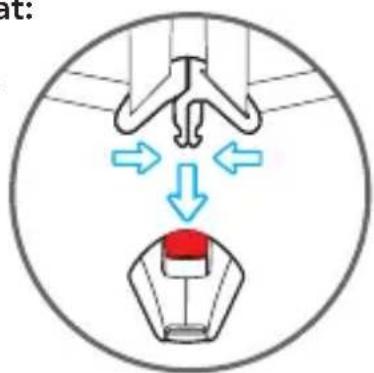

How to release the harness in an emergency?

Press the red button on the central buckle to release the tongues. The buckle is designed for quick release.

Can I use a non-original cover?

No, use only the cover provided or approved by the manufacturer. A non-compliant cover may affect the operation of the restraint system.

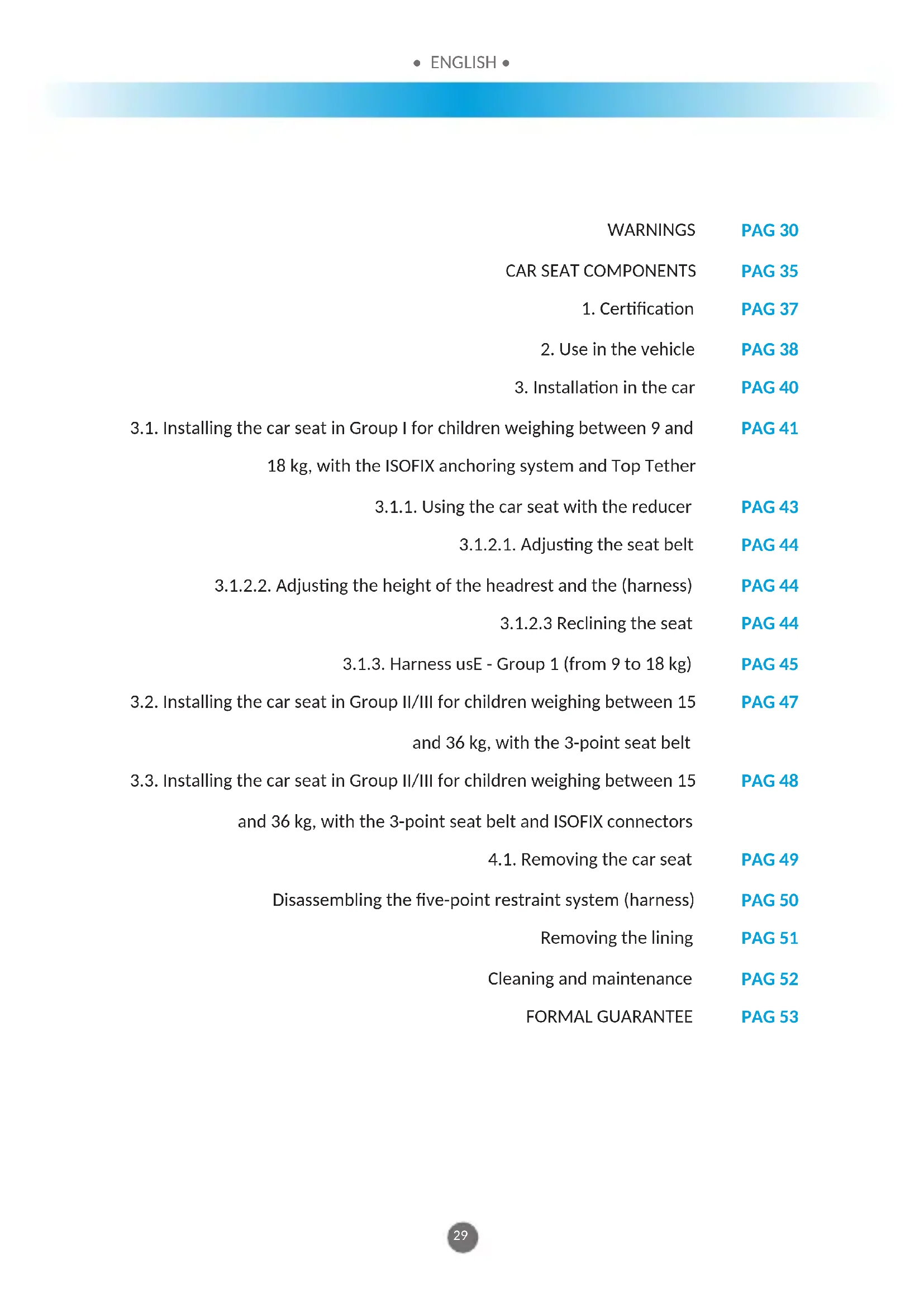

USER MANUAL Tourist Foppapedretti

EN CAR SEAT - Assembly instructions

1. Certification PAG 37

2.Use in the vehicle PAG 38

3.Installation in the car PAG 40

3.1. Installing the car seat in Group I for children weighing between 9 and PAG 41

18 kg, with the ISOFIX anchoring system and Top Tether

3.1.1. Using the car seat with the reducer PAG 43

3.1.2.1. Adjusting the seat belt PAG 44

3.1.2.2. Adjusting the height of the headrest and the (harness) PAG 44

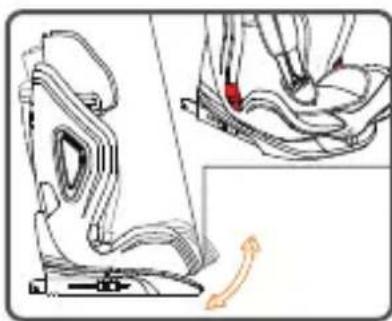

3.1.2.3 Reclining the seat PAG 44

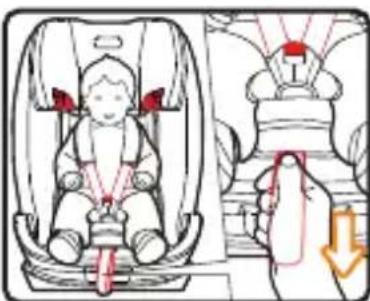

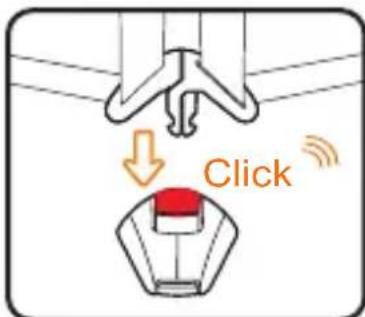

3.1.3.Harness usE - Group 1 (from 9 to 18kg PAG45

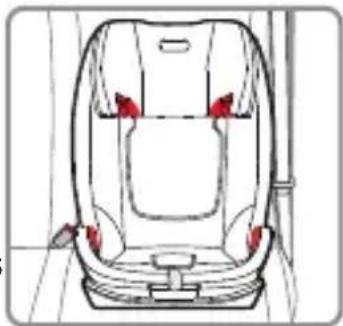

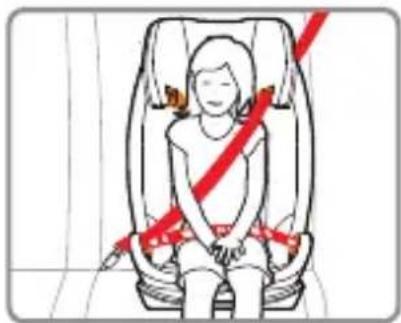

3.2. Installing the car seat in Group II/III for children weighing between 15 PAG 47

and 36kg with the 3-point seat belt

3.3.Installing the car seat in Group II/III for children weighing between 15 PAG 48

and 36kg with the 3-point seat belt and ISOFIX connectors

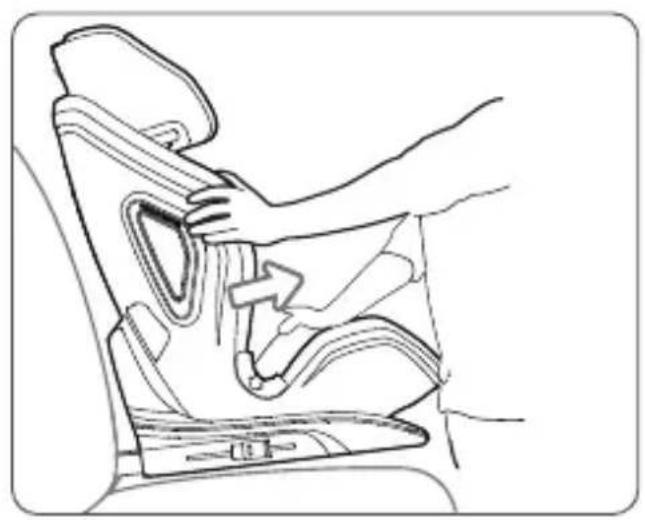

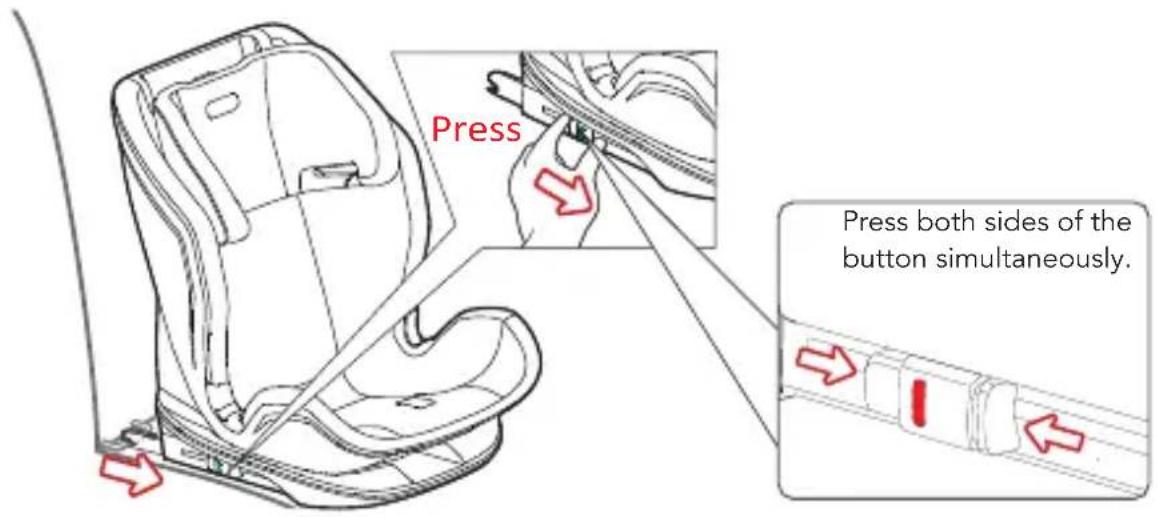

4.1. Removing the car seat PAG 49

Disassembling the five-point restraint system (harness) PAG 50

Removing the lining PAG 51

Cleaning and maintenance PAG 52

FORMAL GUARANTEE PAG 53

WARNING

Group 1 (UNIVERSAL ISOFIX).

IMPORTANT NOTICE:

1. This is a "UNIVERSAL ISOFIX" child restraint device for group 1 (9-18 kg) for use in vehicles with an ISOFIX anchoring system, and a "Universal/Semi-Universal" device for group 2 and 3 (15-36 kg). Approved in compliance with Regulation No. 44/04, it is suitable for general use in vehicles and is compatible with most, but not all, passenger seats.
2. To use a UNIVERSAL ISOFIX system, it is necessary to read the vehicle manual before proceeding with the installation. The vehicle manual will indicate which passenger seats are compatible with the size class of the UNIVERSAL ISOFIXapproved car seat.
3. This restraint device has been classified as "Universal" according to stricter approval criteria than previous models that do not have this notice.
4. The mass group and the ISOFIX size class for which the device can be used are: GROUP 1, class B1 for 9-18 kg.
5. If in doubt, contact the manufacturer of the child restraint device, or the retailer.

WARNING!

In group 1 the car seat must be fixed to the passenger seat only using the ISOFIX lower attachments and the Top Tether belt, fixed to the anchoring point provided by the manufacturer. Consult the vehicle manual to check that the ISOFIX category B1 car seats are suitable for your car.

Group 2-3 (UNIVERSAL).

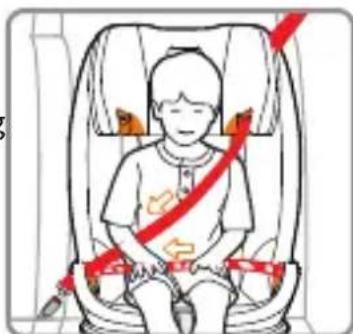

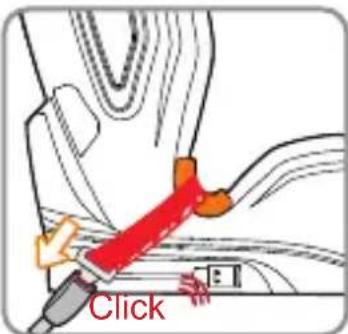

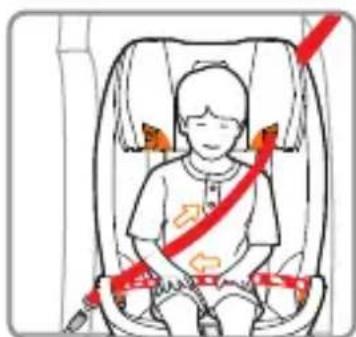

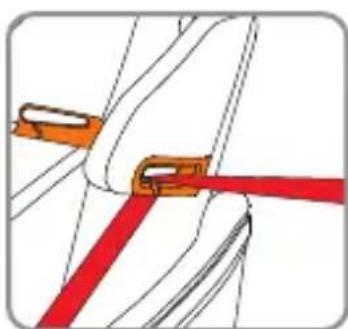

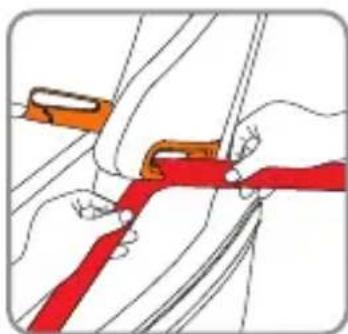

IMPORTANT NOTICE: Installation with the vehicle 3-point seat belt;

1. This is a "Universal" child restraint device, approved according to Regulation No. 44/04. Perfect compatibility is more easily achieved in cases where the vehicle manufacturer states in the instruction manual that the vehicle allows a "Universal" child restraint device to be installed for the age group in question.
2. This restraint device has been classified as "Universal" according to stricter approval criteria than previous models that do not have this notice.
3. Only suitable for use in vehicles equipped with 3-point static or retractor seat belts, approved according to regulation UN/ ECE no.16 or other equivalent standards.
4. If in doubt, contact the manufacturer of the child restraint device, or the retailer.

WARNING

Group 2-3 (SEMI-UNIVERSAL).

IMPORTANT NOTICE: Installation with the ISOFIX connectors and vehicle 3-point seat belt;

1. This is a SEMI-UNIVERSAL approved child restraint device according to ECE Regulation R44/04, and is only compatible with vehicles included in the "vehicle list".
2. Only suitable for use in vehicles equipped with 3-point static or retractor seat belts, approved according to regulation UN/ ECE no.16 or other equivalent standards.
3. If in doubt, contact the manufacturer of the child restraint device, or the retailer.

WARNING 2

This Child Restraint is classified for "Semi-universal" use and is suitable for fixing into the seat positions of the following cars:

CAR

(See the car list)

YES YES NO

CentreOuterOuter

Seat positions in other cars may also be suitable to accept this child restraint. If in doubt, consult either the child restraint manufacturer or the retailer.

The vehicle manufacturer may include information in its manual on the suitability for installation on the passenger seat in different positions. If in doubt, contact the manufacturer of the child restraint, or the retailer.

WARNING

WARNING

• This restraint device complies with ECE Regulation R44/04 for use with children weighing between 9 and 36kg .
• WARNING: NEVER leave your child unattended - your child's safety is your responsibility.
• WARNING: Adult assembly required.
• Read the instructions carefully before use and store them in the special compartment for reuse in future.
• Failure to follow the car seat installation instructions carefully could pose a risk to your baby.
• WARNING: The child car seat must be fitted in accordance with the manufacturer's instructions. Incorrect installation could be dangerous.
• WARNING: Always ensure that new or occasional users [e.g. grandparents] have read the instructions or been taught the correct installation by someone who has read and understood the instructions.
• WARNING: Always keep this instruction manual with the child car seat, or in the vehicle in which you are carrying the child car seat. Some models of child car seat have a pocket to store the instructions.

BEFORE STARTING

• WARNING: Do not fit the child car seat in a rearward facing position
• WARNING: Before installing the child car seat ensure that the passenger seat you are using is locked in the upright position.
• WARNING: Do not use the child car seat in the home - it has only been designed to be used in the car.
• WARNING: Do not leave loose/unsecured objects on the back seat of your car or the parcel shelf. They may be dangerous to your child if you are forced to brake suddenly.

WHEN USING THE CHILD CAR SEAT

• WARNING: Make sure that the child car seat is placed somewhere so that rigid items and plastic parts do not become trapped in doors or movable seat units when the seat is in everyday use.
• WARNING: Always use the vehicle's door child safety lock system, if one is available, to make it impossible for the child to open the car doors from inside.
• WARNING: Allow the child a break during long car journeys and make sure they don't get out of the car seat unaided and without supervision.
• Ensure that it is not loose or wobbly after you have fitted it. If it is loose, refit it.

WARNING

• WARNING: Ensure that the child car seat is secured to the car seat at all times even when not in use.
• WARNING: The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.
• WARNING: Stop the car at regular intervals to check that the child car seat is in the correct position and that both the car seatbelt AND the child car seat harness (if required) are still fastened and latched.
• WARNING: In the event of an emergency it is important to be able to release the child quickly (as defined by British Standards). This means that seat buckle cannot be fully tamper proof and you should actively discourage your child from playing with or using the buckle.
• WARNING: Do not place anything under the child car seat (e.g. a towel or cushion) as this could affect the performance of the seat in an accident.
• WARNING: Avoid winter clothing bundling Bulky clothing can lead to incorrect harness tightening. In an accident, the child can slip right out of the extra padding - and thus out of the seat. Let the car warm up or cool down prior to placing your child in there if possible. If your child is cold, place a blanket over the top of the harness.
• WARNING: Make sure to properly secure any loose objects, such as luggage or books, in your car as they may cause injuries in the event of an accident.
• WARNING: Make sure that all the locking devices have been fastened correctly before use.
• WARNING: Do not use spare parts or accessories other than those supplied or approved by the manufacturer, as they may make the product unsafe.
• WARNING: The child car seat must be fitted securely to the passenger seat.

SEAT BELT

• WARNING: NEVER use any load bearing contact points other than those described in these instructions or marked on the child car seat.
• WARNING: Ensure that the lap section of the seatbelt or harness is worn low down, so that pelvis is firmly engaged.
• WARNING: Make sure that ALL the passengers in your vehicle have their seatbelts fastened, as unrestrained people can be very dangerous to the child in an accident.
• WARNING: NEVER use a seatbelt routing scheme that differs from these instructions.
• WARNING: The lap and diagonal seatbelt must be used at all times when your child is in the child car seat.
• WARNING: Make sure that there are no twists in the seatbelt.
• WARNING: Do not place luggage on the parcel shelf without securing it: in the event of an accident it could cause serious damage to passengers.

WARNING

SUNLIGHT/HOT DAYS

• WARNING: Do not leave your child in the child car seat while parked in direct sunlight or on a hot day.
• WARNING: Do not subject the child car seat to prolonged direct sunlight as this may be dangerous for your child (the metal and plastic fittings could become hot) and may cause the fabric to fade. You can reduce this problem by covering the child car seat with a sheet when not in use.

SECOND HAND OR DAMAGED CHILD CAR SEATS AND SEATBELTS

• WARNING: Never buy a second hand child car seat. It may have unseen damage.
• WARNING: The manufacturer only guarantees this product when the original owner uses it.
• WARNING: You MUST replace the child car seat and your vehicles seatbelts if they become badly worn or amaged.
• WARNING: You MUST replace the child car seat if it is involved in an accident it may have unseen damage and may not protect your child as well as it should. At the very least send the child car seat to your retailer for inspection, together with the accident report.

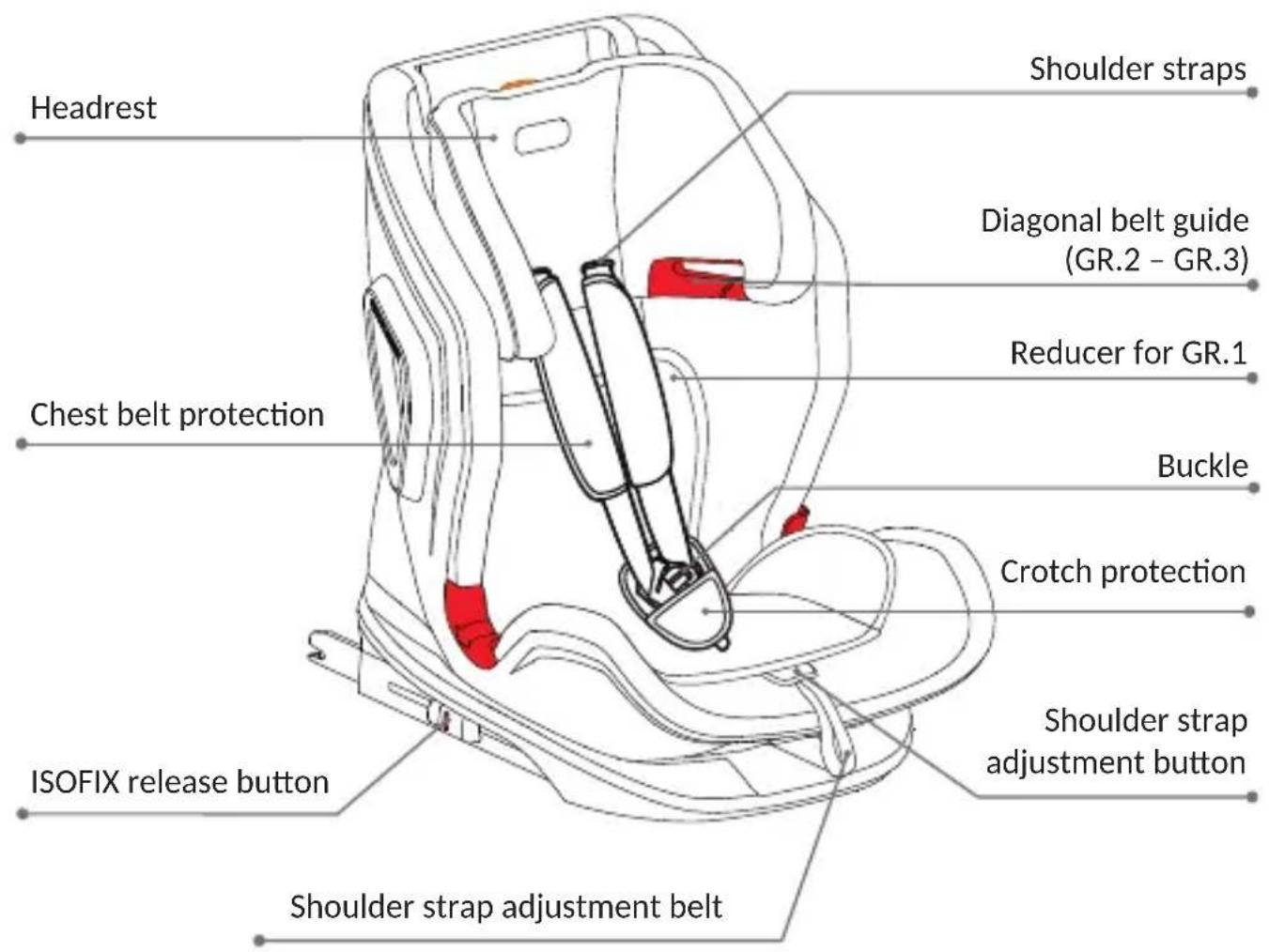

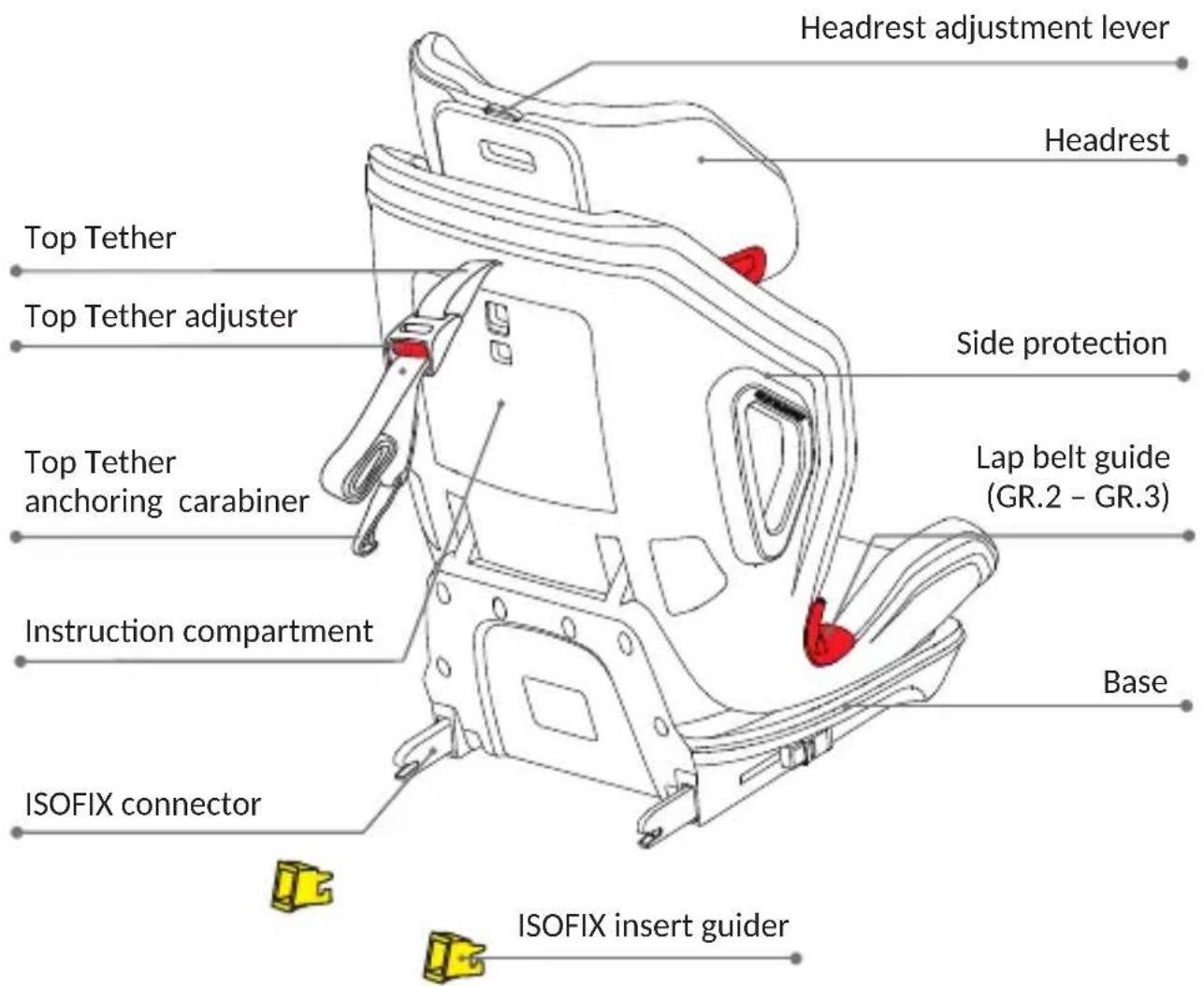

CAR SEAT COMPONENTS

APPROVAL

1. Certification

... as a safety car seat

Tourist car seat	Tested and certified according to the standard ECE R44-04
	Group Weight
Type CN07-TT		9 - 36 kg1 / 2 / 3

The car seat has been designed, tested and approved in accordance with the requirements of the European Regulation concerning devices for the safety of children ECE R 44-04.

On the shell of the car seat there is a label that lists the approval number.

Any changes made to the car seat will invalidate the approval.

Only the manufacturer is authorised to make changes to the car seat.

USE IN THE VEHICLE

2. Use in the vehicle

WARNING

DO NOT use the product with a two-point seat belt. Install the child restraint with a three-point seat belt.

Please comply with the regulations in force in your own country.

The seat belt must be approved according to the ECE R16 regulation or other equivalent standards.

Do not use with a two-point seat belt.

The car seat is compatible with passenger seats equipped with three-point seat belts.

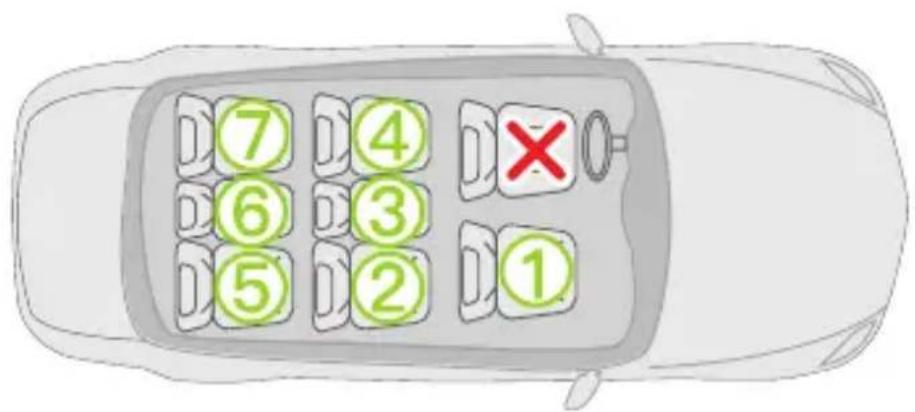

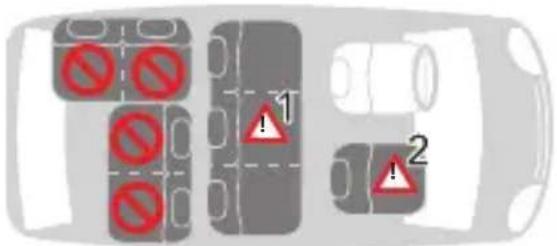

The car seat can be installed as shown in the figure:

·Forward-facing	YES
·Rear-facing	NO
·With a 2-point seat belt The use of two-point seat belts significantly increases the risk of injury to the child in the event of an accident.	NO
·With 3-point seat belts The seat belt must be approved according to the ECE R16 regulation or other equivalent standards	YES
·With the ISOFIX anchoring system and Top Tether If a front airbag is fitted: slide the passenger seat very far back and check the instructions contained in the vehicle manual.	YES
·On the front passenger seat DO NOT USE ON PASSENGER SEATS EQUIPPED WITH ACTIVE FRONT AIRBAGS! The car seat can be attached to the front passenger seat using the ISOFIX systems, or alternatively without these, by following the same warnings as for these systems (slide the passenger seat backwards and consult the instructions in the vehicle user manual).	YES 2
·On the two rear side passenger seat	YES
·On the rear centre passenger seat The car seat can be used on the central rear passenger seat if it is equipped with a three-point seat belt.	YES 1

(You must comply with local regulations in force in your country of residence).

INSTALLING THE CAR SEAT IN THE VEHICLE

3. Installation in the car

Never leave your child unattended in the car seat

For the safety of the passengers

In the event of sudden breaking or in an accident, people or objects which are not secured, or which are placed in an unsafe way, could result in injury to the other passengers.

Always make sure that:

• the passenger seat backrests are locked (for example, click the folding rear seats into place);
• all heavy or sharp objects inside the passenger compartment (e.g. on the parcel shelf) are positioned securely;
• the car seat is always securely attached to the passenger seat, even when not in use.

INSTALLING THE CAR SEAT IN THE VEHICLE

3.1. Installing the car seat in Group I for children weighing between 9 and 18kg , with the ISOFIX anchoring system and Top Tether

IMPORTANT

Make sure that the vehicle is equipped with ISOFIX anchoring points.

For more information on which passenger seats can be used to install the car seat, see the vehicle manual.

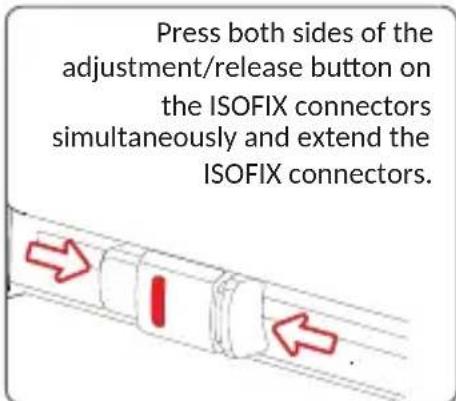

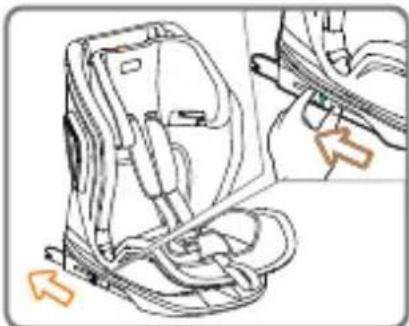

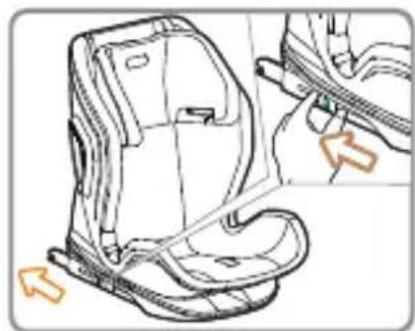

Press both sides of the adjustment/ release button on the ISOFIX connectors simultaneously and extend the ISOFIX connectors.

If your car does not have standard ISOFIX connector guides, insert those supplied with the car seat with the recess facing upwards in the two ISOFIX anchoring points in the car.

SUGGESTION: The ISOFIX anchoring points are located between the seat and the backrest of the passenger seat.

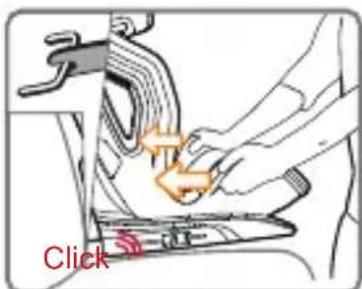

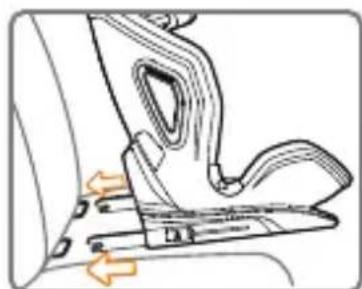

Align the ISOFIX connectors with the anchoring points fixed to the vehicle passenger seat and press until you hear a "click". The indicator on both brackets will turn green, confirming that they have attached. Check that both brackets are attached correctly. Shake the car seat to be sure it is correctly fixed in place.

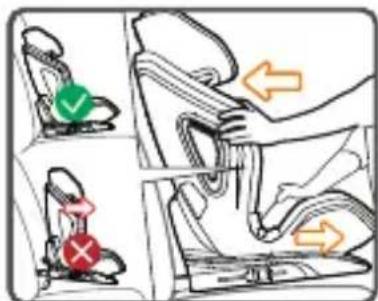

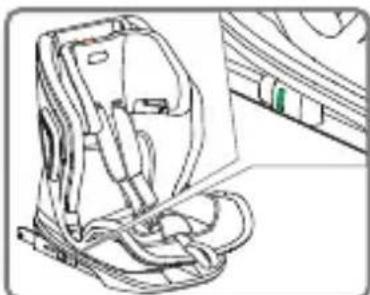

Push the car seat against the passenger seat, making sure that both ISOFIX connectors are extended in the same position.

INSTALLING THE CAR SEAT IN THE VEHICLE

3.1. Installing the car seat in Group I for children weighing between 9 and 18kg , with the ISOFIX anchoring system and Top Tether

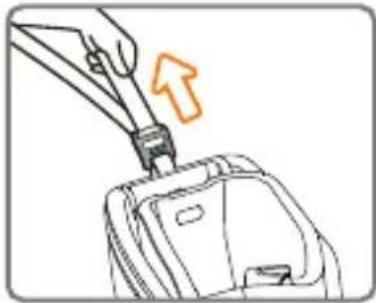

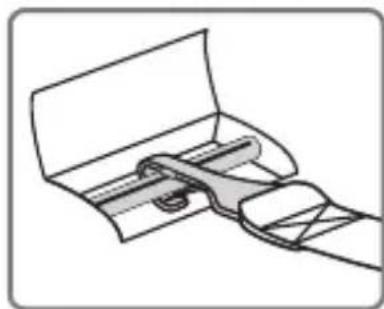

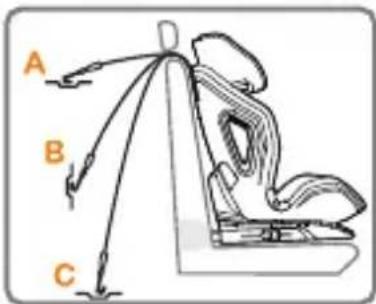

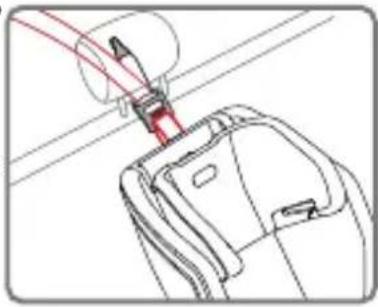

Extend the belt with the "Top Tether" carabiner and hook it to the anchoring point indicated in the vehicle user manual. Check for this icon inside the passenger compartment.

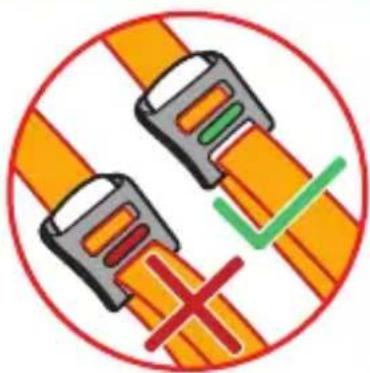

Tighten the Top Tether belt until the indicator turns green. This indicates that the belt is tightened correctly. The Top Tether belt must pass over the backrest of the vehicle passenger seat, it must never pass over the headrest. If necessary, lift up or remove the headrest from the passenger seat.

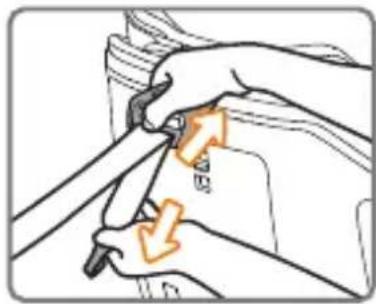

To release the Top Tether belt, press the button on the Top Tether belt-tightening adjuster and loosen the belt to reduce the tension. Unhook the belt anchoring carabiner.

ATTENTION

If the Top Tether anchoring strap has been correctly attached and tightened, the indicator will turn green.

The Top Tether strap must pass over the backrest of the vehicle passenger seat, it must never pass over the headrest. If necessary, lift up or remove the headrest from the passenger seat.

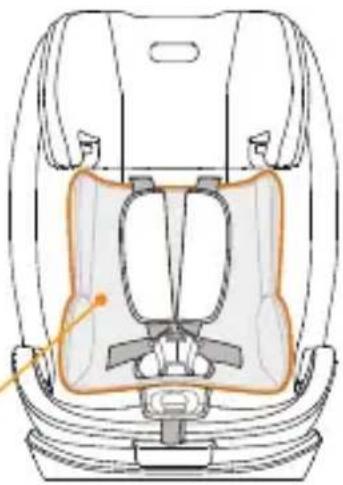

3.1.1. Using the car seat with the reducer

ATTENTION

For the safety of your child

Use the car seat with the reducer supplied when the child weighs less than 15kg . The reducer is used to ensure greater comfort to young children. The reducer gives your child greater support during the first months.

• Always secure the child with the belt when placed in the car seat.
• Never leave the child unattended in the car seat.
• Never leave the child unattended in the car seat when placed on high-up surfaces (such as tables, etc).
• Make sure that the ends of the straps have not been caught in moving parts (e.g. automatic doors, escalators, etc.).
• CAUTION! The plastic parts of the car seat can heat up in the sun, causing burns to the child. Protect the car seat from excessive heat, for example, by using a lightweight cover.
• Take regular breaks when travelling on long journeys. Your child can get tired very easily. Avoid leaving the child in the car seat for too long.

INSTALLING THE CAR SEAT IN THE VEHICLE

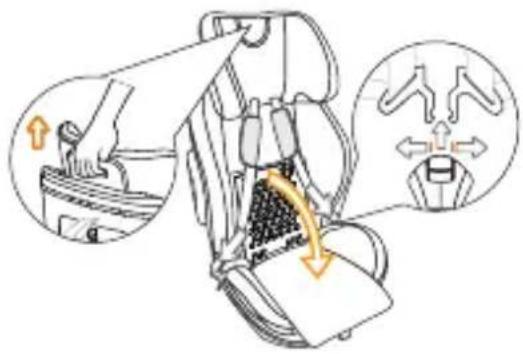

3.1.2. Adjusting the seat belts, headrest and seat

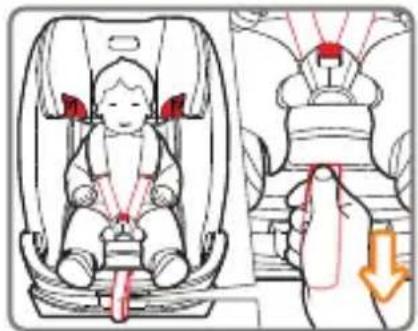

3.1.2.1. Adjusting the seat belt

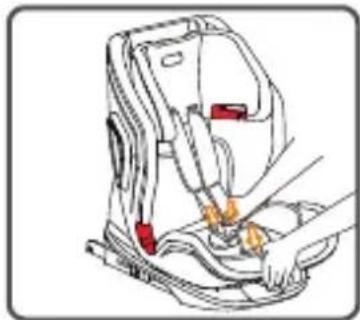

IMPORTANT

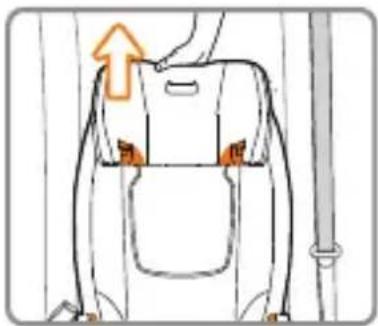

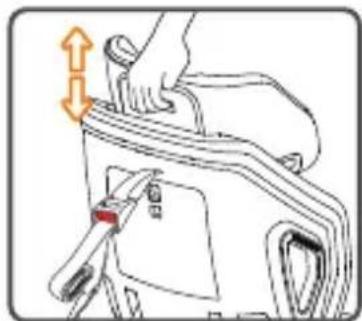

Adjusting the headrest correctly ensures maximum protection for your child when inside the car seat.

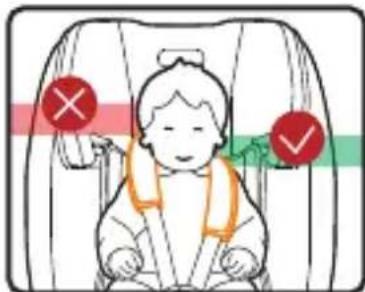

When using the 5-point harness, the headrest must be adjusted so that there is a 1-finger (1 cm) space between the shoulder straps and the top of the shoulders.

IMPORTANT: Loosen the shoulder straps before adjusting the headrest.

Adjusting the straps to a position lower or higher than the child's shoulders can compromise your child's safety.

To loosen the harness: Press the adjustment button and at the same time grip the straps (chest belts) at the bottom, under the pads of the chest protectors, and pull them forwards to loosen them.

IMPORTANT: Do not pull on the shoulder pads.

3.1.2.2. Adjusting the height of the headrest and the (harness)

The headrest can be adjusted to 9 different heights. Press the button and raise or lower the headrest, adjusting it according to the child's height.

In group 1, the adjustment of the headrest also changes the height of the shoulder straps.

Ensure that the straps are positioned just above the child's shoulders and that there is a space of about 1 finger (1 cm).

NOTES: Loosen the shoulder straps before adjusting the headrest.

IMPORTANT: The headrest must be adjusted so that there is a one or two-finger gap between it and the child's shoulders.

3.1.2.3. Reclining the seat

The car seat can be adjusted into 5 different positions, from the vertical position to the most reclined.

Press the adjustment handle located under the front of the car seat and, holding it down, adjust the seat into position 1. Release the handle when the seat is in the desired position and make sure that it is locked correctly; you will hear a "click" when the seat has attached.

CAR SEAT IN THE VEHICLE

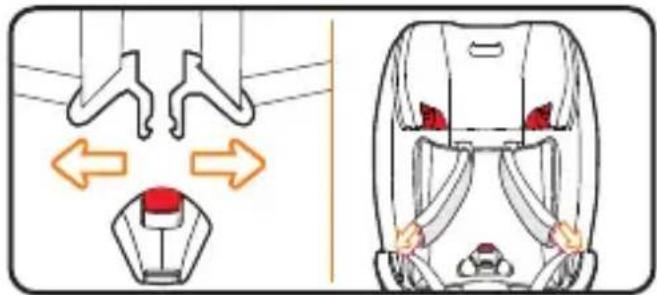

3.1.3. Harness usE - Group 1 (from 9 to 18 kg )

Press the red button on the central buckle to release the shoulder straps.

Place the shoulder straps on the sides of the car seat.

Place the child into the car seat. Place the straps over the child's shoulders, join together the two belt tabs and hook them to the buckle.

IMPORTANT! Correct adjustment of the headrest ensures maximum protection for your child when they are inside the car seat.

When using the 5-point harness, the headrest must be adjusted so that there is 1 finger (1 cm) gap between the shoulder straps and the top of the shoulders.

IMPORTANT: Loosen the shoulder straps before adjusting the headrest

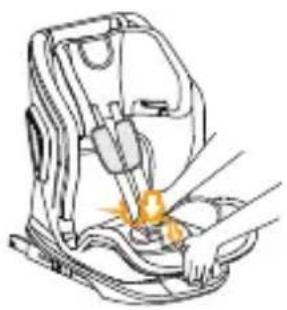

To attach the buckle: Hold together the central buckle tabs (fig. 1-2) and insert them in the special slot inside the harness buckle (fig. 2). A "click" will indicate that it has attached correctly (fig. 3).

NOTE: to attach the buckle, it is necessary to insert both tabs.

To release the buckle: Press the red button to remove the tabs from the central buckle.

Tightening the harness: Pull the harness adjustment strap so as to tighten it properly against the body of the child. The harness is correctly tightened when the gap between the harness and the child is no greater than the thickness of your finger (1 cm).

NOTE: check that the buckle is secured by tugging the shoulder and waist straps.

ATTENTION: Do not twist or overlap the harness straps.

INSTALLING THE CAR SEAT IN THE VEHICLE

3.1.4. Tightening the harness

ATTENTION

Pull the harness adjuster strap towards you, neither upwards nor downwards.

After adjustment, the loose adjuster strap should be hidden under the cover.

3.1.5. Precautions to make sure you have correctly fastened the car seat harness

IMPORTANT

For the safety of your child, always make sure that:

• The harness belts are correctly adjusted according to the child's height, and are correctly tightened;
  The chest straps are adjusted in the correct position;
• The harness belts are not twisted;
  The tabs are properly engaged in the buckle

CAR SEAT IN THE VEHICLE

3.2. Installing the car seat in Group II/III for children weighing between 15 and 36kg , with the 3-point seat belt

It is recommended that you use the 5-point harness for as long as possible. Remove the reducer to use the car seat in the GROUP 1 configuration for a longer time.

When your child has outgrown the group 1 (9- 18kg) configuration and you wish to use the seat for a child in either group 2 (15 - 25kg)

or group 3 (22-36kg) then you will need to remove the child car seats integral 5-point harness. See paragraph 4.2.

Installation with the vehicle 3-point seat belt.

Only suitable for use in vehicles equipped with 3-point static or retractor seat belts, approved according to regulation UN/ ECE no.16 or other equivalent standards.

As shown in figure, pass the diagonal part of the 3-point belt through the red diagonal belt guide located in the lower part of the headrest, from the retractor side. Place the child into the car seat.

Adjust the headrest to the appropriate height (cfr. par. 3.1.2.2).

Pull out the 3-point seat belt of the vehicle and, passing it over the front of your child, attach the vehicle's seat belt by inserting the tip into the buckle. A "click" will indicate that it is attached correctly.

Make sure that you have positioned the lap belt as low as possible on the child's pelvis, and that it has been inserted in the belt guides of the lap seat belt and that you have correctly attached the buckle. The diagonal belt must pass through the diagonal belt guide

INSTALLING THE CAR SEAT IN THE VEHICLE

The headrest must be adjusted so that there is a one or two-finger gap between it and the child's shoulders.

3.3. Installing the car seat in Group II/III for children weighing between 15 and 36kg , with the 3-point seat belt and ISOFIX connectors

It is recommended that you use the 5-point harness for as long as possible.

Remove the reducer to use the car seat in the GROUP 1 configuration for a longer time.

When your child has outgrown the group 1 (9-18kg) configuration and you wish to use the seat for a child in either group 2 (15 - 25kg) or group 3 (22-36kg) then you will need to remove the child car seats integral 5-point harness. See paragraph 4.2.

If your car does not have standard ISOFIX connector guides, insert those supplied with the car seat with the recess facing upwards in the two ISOFIX anchoring points in the car. SUGGESTION: The ISOFIX anchoring points are located between the seat and the backrest of the passenger seat.

Align the ISOFIX connectors with the anchoring points fixed to the vehicle passenger seat and press until you hear a "click". The indicator on both brackets will turn green, confirming that they have attached. Push the car seat against the passengerseat, making sure that both ISOFIX connectors are extended in the same position.

Fasten the 3-point seat belt, for further details on installation, see the instructions in paragraph 3.2.

AR SEAT FROM THE VEHICLE

4.1. Removing the car seat

Press both sides of the button simultaneously, the ISOFIX indicator will turn red. Repeat this process on both ISOFIX release buttons.

Once the ISOFIX connectors have been released, slide the connectors along the car seat shell to retract them.

A metallic sound may be heard while the connectors are sliding.

DISASSEMBLING THE FIVE-POINT RESTRAINT SYSTEM

4.2.2 Storing the five-point restraint system (harness)

1

3

2

4

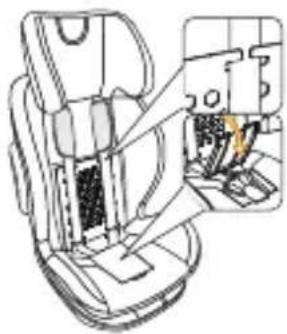

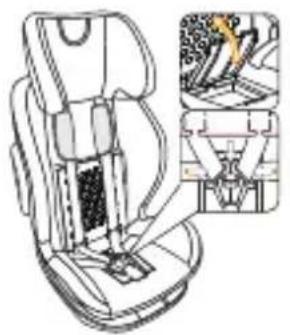

To loosen the harnes: Press the adjustment button and at the same time grip the straps (chest belts) at the bottom, under the pads of the chest protectors, and pull them forwards to loosen them.

IMPORTANT: Do not pull on the shoulder pads.

To obtain the 9 headrest adjustment positions, the harness must be completely loose.

Press the lever located at the top of the headrest and lift it to the maximum position.

Open the buckle.

Detach the press studs on the side of the lining (fig. 2).

Lift up the seat fabric and open the compartment on the bottom of the seat (fig. 3).

Hook the tips to the buckle and insert the buckle into the internal compartment, then close the compartment again.

Lock the chest straps in the back locking loops.

Put the fabric back onto the seat and backrest, then attach the press studs (fig. 4).

REMOVING THE LINING

4.3. Removing the linings for cleaning or repositioning of the cover

Removing the lining

Loosen the harness (see 4.2) and remove the reducer if it is being used.

Lift up the headrest to the highest position.

Detach the side press studs and unhook the 4 elastic loops for securing the fabric to the backrest.

Remove it, carefully pulling the fabric off from the headrest. Remove it, carefully pulling the fabric off from the frame, starting from one side, being careful while removing the fabric from the lap belt guide.

Remove the leg separator harness from the lining and take off the fabric (5).

Replacing the lining

Place the seat lining on the car seat and insert the leg separator harness with protection into the slot.

Carefully replace the lining along the side, in its housing. Be careful when placing the fabric around the lap belt guide (6).

Place the harness in front of the fabric, hook on the 4 elastic loops for securing the fabric to the backrest and attach the press studs.

Carefully replace the lining along the edge of the headrest, in its housing.

Attach the press studs at the bottom of the headrest to the seat fabric.

Make sure that it has been assembled correctly, checking that the harness belts are not twisted (7).

CLEANING AND MAINTENANCE

4.4. Cleaning and maintenance

Cleaning

It is recommended to use only original linings, as these components are fundamental for the car seat to function correctly.

Do not use the car seat without the supplied lining.

The lining can be removed and washed in a washing machine with a mild detergent, using the delicate fabric cycle (30^) . Follow the washing instructions shown on the label. The colours may fade if washed at temperatures above 30^ .

Never spin dry or tumble dry (as the fabric could become detached from the padding).

The plastic parts may be cleaned with water and soap. Do not use harsh detergents (such as solvents).

The harness may be removed and washed with soap and warm water. Warning! Never remove the tabs of the buckles from the straps.

Cleaning and maintenance

IMPORTANT: The lining is a fundamental component for your child's safety. Never use the car seat without the lining, nor replace it with other products which have not been approved, so as to avoid endangering the child's safety or compromising the proper functioning of the device.

Washing instruction:

The lining can be removed, washed at 30^ and hung out to dry

FORMAL GUARANTEE

The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A.

FORMAL GUARANTEE

Foppa Pedretti S.p.A. the head office of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer.

This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer's rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product.

To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer's address, the date of purchase of the Product with the Retailer's stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above.

The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.

EXCLUSIONS TO THE FORMAL GUARANTEE.

The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure.

In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manual or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot : "Check your baby constantly. Make sure that the sheets and blankets do not cover the baby's head...").

Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.

AVERTISSEMENTS PAG 55

COMPOSANTS PAG 60

EXCLUSIONS DE LA GARANTIE CONVENTIONNELLE.

VEHICLE APPLICATION LIST

Semi-Universal approved to ECE-R44.04 for use in the vehicles listed in the vehicle application list.

Please note that this list undergoes ongoing revision procedures, with changes and additions of vehicles accordingly.

The up to date list can be consulted on our web site: www. foppapedretti.it

INFORMATION

Please consult with the vehicle manufacturer regarding access to ISOFIX points.

DO NOT USE ON A PASSENGER SEAT WITH A FRONT AIRBAG

CHECK

WARNING: before purchasing, consult the vehicle Use and Maintenance Guide to ensure the ISOFIX anchor is present, as this could be an optional.

LISTE DES VEHICULES COMPATIBLES

Car manufacturer

1st year of production

Seat 3-point belt

Approved seat ISOFIX

147	2005	2 4	2 4
156 CROSS WAGON	----	2 4	2 4
156 SPORT WAGON	1997-2005	2 4	2 4
159	2005	2 3 4	2 4
159 saloon	2006-2008	2 3 4	2 4
Giulietta FL	2013	2 3 4	2 4
Giulietta	2010	2 3 4	2 4
159 SW	2005	2 4	2 4
GT SPORT COUPE	2004	2 4	2 4
MITO	2008	2 4	2 4
Giulia 2016		2 4 2 4

AUDI

A1	2010	2 4	2 4
A1 Sport back	2011	2 4	2 4
A2	1999-2005	2 4	2 4
A3 Sport back	2012	2 3 4	2 4
A3 Sedan 2013		2 4 2 4
A3	2012	2 4	2 4
A3 Cabrio	2008	2 4	2 4
A3 Saloon	2013	2 4	2 4
A4	2007	2 4	2 4
A4 Cabrio	2002	2 4	2 4
A4 Avant	2007	2 4	2 4
A5 FL	2011	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved set ISOFIX
A4	2015 2 4 2 4
A4 Avant	2015 2 4 2 4
A5 Sport back	2009 2 4 2 4
A5 Sport back 4 seat	2011	2 4	2 4
A5 Sport back 5 seat	2011	2 4	2 4
A5 Cabrio	2009	2 4	2 4
A6	2010	2 3 4	2 4
A6 Avant	2011	2 3 4	2 4
A7 Sport back	2010 2 4 2 4
A8	2009	2 4	2 4
A8 FL	2010	2 4	2 4
Q3	2011	2 4	2 4
Q5	2008 2 4 2 4
Q5 FL	2012	2 4	2 4
Q7	2005	2 4	2 4
Q7	2015	2 4	2 4
Q7 FL II	2013	2 4 5 7 2 4 5 7
Rs4 Cabrio	2006	2 4	2 4
S3	2010	2 4	2 4
S5 Cabrio	2009	2 4	2 4
GSQ5	2013	2 4	2 4
TT	2006	2 4	2 4

BMW

1 20042424
1 20112424
2 Active Tourer 2014 2 4 2 4
2 Grand Tourer 2015 2 4 2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved set ISOFIX
3	2005 2 4 2 4
3	2011 2 4 2 4
3 Touring	2005 2 4 2 4
3 Touring	2012 2 4 2 4
3 GT	2013 2 4 2 4
4 Grand Coupe	2014 2 4 2 4
5	2010	2 4 2 4
5 Touring	2010	2 4 2 4
5 GT	2009 2 4 2 4
6 Grand Coupe	2011	2 4 2 4
7	2008	2 4 2 4
7	2015 2 4 2 4
X1	2009	2 4 2 4
X2	2015	2 4 2 4
X3	2010 2 4 2 4
X4	2014	2 4 2 4
X5	2006	2 4 2 4
X5	2013 2 4 2 4
X6	2014 2 4 2 4
1 Cabrio FL	2011	2 4	2 4
1 Coupe FL	2011	2 4	2 4
2 Coupe	2013	2 4	2 4
3 Cabrio	2007	2 4	2 4
3 Coupe FL	2010	2 4	2 4
5 FL	2013	2 4	2 4
5 Touring FL	2013	2 4	2 4
X1 FL	2012	2 4	2 4

Cadillac

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
X3	2004	2 4	2 4
X6	2008	2 4	2 4
X6 FL	2012	2 4	2 4
HINI MINI cooper	1994-1997	2 4	2 4
HINI MINI cooper cabrio	2006	2 4	2 4
HINI MINI club man	2007	2 4	2 4
HINI MINI 2nd gen.	2006	2 4	2 4

CTS 2007 24 24

Chevrolet

Aveo	2006	2 4	2 4
Aveo hatchback	2011	2 4	2 4
Captiva	2006-2011	2 4	2 4
Matiz	2005	2 4 2 4
Captiva FL	2011	2 4	2 4
Captiva FL2	2013	2 4	2 4
Cruze	2009	2 4	2 4
Cruze SW	2012	2 4	2 4
Epica	2006-2010	2 4	2 4
Malibu	2012	2 4	2 4
Orlando	2011	2 4	2 4
Spark	2010-2013	2 4	2 4
Spark FL	2013	2 4	2 4
TRAX	2010-2013	2 4	2 4
Volt	2011	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Chrysler
300	2004	2 4	2 4
300 C	2008	2 4	2 4
Donge calibre	2006	2 4	2 4
Donge journey	2008	2 4	2 4
Donge nitro	2006	2 3 4	2 4
Donge eam(1500)	2006-2008	2 4	2 4
Jeep cherokee	2002	2 4	2 4
Jeep grand ch.	2005	2 4	2 4
PT Cruiser	2000	2 4	2 3 4
Sebring cabrio	2007	2 4	2 4

Citroen
C-Crosser	2007-2013	2 4	2 4
C1	2005	2 4 2 4
C1	2014	2 4 2 4
C3	2009	2 4 2 4
C4	2010	2 4 2 4
C5	2008	2 4 2 4
C5 Tourer	2008	2 4 2 4
C3 Picasso	2008	2 4 2 4
Berlingo	2008	2 4 2 4
C4 Picasso	2006	2 4 2 4
C4 Picasso	2013	2 4 2 4
Grand C4 Picasso	2013	2 4 2 4
C3 FL	2013	2 4	2 4
C3 FL 5 door	2005-2009	2 4	2 4
C4	2004-2010	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
C4 3 door	2004-2010	2 4	2 4
C4 Aircross	2012	2 4	2 4
C5 FL	2010-2012	2 4	2 4
C5 Tourer FL	2010	2 4	2 4
C6	2005-2012	2 4	2 4
Ds3 Cabrio	2013	2 4	2 4
Ds3	2010	2 4	2 4
Ds4	2011	2 4	2 4
Ds5	2012	2 4	2 4

Dacia

Logan	2013	2 4	2 4
Dokker	2012	2 3 4	2 4
Duster	2010	2 4	2 4
Duster FL	2014	2 4	2 4
Lodgy	2012	2 3 4	2 4
Lodgy MCV	2013	2 4	2 4
Lodgy MCV FL	2009-2013	2 4	2 4
Sandro	2008	2 4	2 4
Sandro II	2012	2 4	2 4
Sandro StepWay	2013	2 4	2 4

Daihatsu

Cuore	2007	2 4	2 4
Materia	2006	2 4	2 4
Sirion	2005-2012	2 4	2 4
Terios	2005	2 4	2 4
Trevis	2005	2 4	2 4

FIAT

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
3	2009	2 4 2 4
4	2011	2 4 2 4
5	2011	2 4 2 4

500	2007	2 4 2 4
500L	2012	2 4
500L Living	2013	2 4
500X	2014	2 4 2 4
Bravo	2007	2 4
Croma II	2005-2008	2 4
Croma II FL	2008-2010	2 4
Doblo	2009	2 4
Grande Punto	2006	2 4
Idea	2003	2 4
Panda	2012	2 4
Punto 3door FL2	2012	2 4
Punto Evo	2010-2011	2 4
Tipo	2015	2 4 2 4
Tipo 5 porte	2016	2 4 2 4
Tipo station wagon	2016	2 4 2 4
Freemont	2011	2 4 2 4
Qubo	2008	2 4

Ford

B-max	2012	2 4	2 4
EcoSport	2014	2 4	2 4
Focus hatchback	2011	2 4	2 4
Mondeo FL	2010	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved set ISOFIX
Mondeo Turnier	2007-2010	2 4	2 4
Mondeo Turnier FL	2010	2 4	2 4
S-Max FL	2010	2 3 4 2 3 4
Tourneo Connect	2009-10.2009	2 4 2 4
Ka	2008	2 4	2 4
Fiesta	2008	2 4 2 4
Focus	2004	2 4 2 4
Focus Wagon	2004	2 4 2 4
Focus Wagon	2011	2 4 2 4
Mondeo	2007	2 4 2 4
C-max	2003	2 4 2 4
C-max	2010	2 4 2 4
C-max 7	2010	2 4 2 4
S-max	2006	2 4 2 4
S-max	2015	2 4 2 4
Galaxy	2015	2 4 2 4
Ecosport	2013	2 4 2 4
Kuga	2008	2 4 2 4
Kuga	2012	2 4 2 4
Edge	2016	2 4 2 4
Tourneo Custom	2012	2 3	2 3
Transit Kombi	2013	2 3	2 3

Honda

Accord(5 doors)	2003	2 4	2 4
Accord tourer	2002-2008	2 4	2 4
Accord	2008	2 4	2 4
City	2009	2 4	2 4
Civic	2012	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
CR-V	2012	2 3 4	2 4
FR-V	2004	2 4	2 4
Insight	2009	2 4	2 4
Jazz	2015	2 4	2 4

Hyundai
Jaguar

Grand Santa Fe 6-seater	2013	2 3 4	2 4
Grand Santa Fe 7-seater	2010	2 4	2 4
H1-Travel	2008	2 4	2 4
i10	2013	2 3 4	2 4
i10FL	2011	2 4	2 4
	2014i20	2 4	2 4
i20FL3door	2012	2 4	2 4
i20FL5door	2012	2 4	2 4
i30	2013	2 4	2 4
i30 cw	2012	2 4	2 4
	2012i30 Wagon	2 4	2 4
i40	2011	2 4	2 4
i40 cw	2011	2 4	2 4
	2011i40 Wagon	2 4	2 4
	2014Genesis	2 4	2 4
	2015Tucson	2 4	2 4
ix20	2010	2 4	2 4
ix35	2009	2 4	2 4
ix35 FL	2013	2 4	2 4
Santa Fe	2012	2 4	2 4

2014XE 24 24

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
XF	2008	2 4	2 4
	2015XF	2 4	2 4
XF FL	2011	2 4	2 4
XJ	2009	2 4	2 4

Jeep

Compass FL	2013	2 4	2 4
	2014Renegade	2 4	2 4
Grand cherokee	2010	2 3 4	2 4
Grand cherokee FL	2013	2 4	2 4

Kia

Cee'd	2012	2 4	2 4
Cee'd FL	2000	2 4	2 4
Cee'd sw	2007	2 4	2 4
Cee'd Sportswagon	2012	2 4	2 4
Optima	2012-2013.11	2 4	2 4
Optima FL	2013	2 4	2 4
Optima hybrid	2013-2014	2 4	2 4
Pro Cee'd FL	2011-2013	2 4	2 4
Pro Cee'd GT	2013	2 4	2 4
Sorento	2015	2 4	2 4
Sorento FL	2012	2 4	2 4
Soul	2014	2 4	2 4
Soul FL	2011	2 4	2 4
Picanto	2011	2 4	2 4
Rio	2011	2 4	2 4
Venga	2010	2 4	2 4
Carens	2013	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Sportage	2010	2 4	2 4
Sportage	2016	2 4	2 4
Sportage FL	2014	2 4	2 4

Lancia

Delta	2008-2011	2 4	2 4
Delta FL	2011	2 4	2 4
Flavia Cabrio	2012	2 4	2 4
Thema	2011	2 4	2 4
Voyager	2011	2 4	2 4
Ypsilon	2011	2 4	2 4
Ypsilon 4seater	2011	2 4	2 4
Ypsilon 5seater	2011	2 4	2 4

Land Rover
Mazda

Discovery FL	2011	2 4	2 4
Discovery Sport	2014	2 4	2 4
Freelander	2006-2011	2 4	2 4
Freelander2 FL	2011	2 4	2 4
Freelander2 FL2	2013	2 4	2 4
Range Rover	2012	2 4	2 4
Range Rover Evoque	2011	2 4	2 4
Range Rover Sport	2012	2 4	2 4
Range Rover Sport	2013	2 4	2 4

20142	2 4	2 4
20126 Wagon	2 4	2 4
2015CX-3	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2012CX-5	2 4	2 4
3 (BL)	2009-2011	2 4	2 4
3 (BM)	2013	2 4	2 4
3 FL (BL)	2011	2 4	2 4
3 saloon	2013	2 4	2 4
3 saloon FL2	2011-2013	2 4	2 4
5	2010	2 4	2 4
5 FL	2013	2 4	2 4
6 estate	2013	2 4	2 4
6 estate FL	2010	2 4	2 4
6 Hatchback FL	2010	2 4	2 4
6 saloon	2013	2 4	2 4
CX-5	2012	2 4	2 4
CX-7	2007-2009	2 4	2 4
CX-7 FL	2009	2 4	2 4

Mercedes

	2004A	2 4	2 4
	2013C	2 4	2 4
	2014C SW	2 4	2 4
	2016E	2 4	2 4
	2016E SW	2 4	2 4
A(176)	2012	2 4	2 4
B(246)	2011	2 4	2 4
C(204)	2007	2 4	2 4
C(205)	2014	2 4	2 4
C Coup FL (204)	2011	2 4	2 4
C FL(204)	2011	2 4	2 4
C model T (204)	2007-2011	2 4	2 4

Mini

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
C model T FL (204)	2011	2 4	2 4
GLA	2013	2 4	2 4
GL (164G)	2006	2 4	2 4
GLA (245G)	2014	2 4	2 4
GLK (X 204)	2008	2 4	2 4
GLK FL	2012	2 4	2 4
ML	2005-2011	2 4	2 4
R	2010	2 4	2 4
CLS	2010	2 4	2 4
E (212)	2009	2 4	2 4
E Cabrio (207)	2010	2 4	2 4
E Coupe (207)	2009	2 4	2 4
E FL	2013	2 4	2 4
E model T (212)	2009	2 4	2 4
E model T FL (212)	2013	2 4	2 4
G FL	2012	2 4	2 4
	2013CLA	2 4	2 4
	2015CLA Shooting Brake		2 4
	2013CLS Shooting Brake		2 4
	2013S	2 4	2 4
	2015GLC	2 4	2 4
	2015GLE	2 4	2 4
	2015GLS	2 4	2 4

2013Mini	2 4	2 4
2014Mini 5 Doors	2 4	2 4
2015Mini Clubman	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
	2010Mini Countryman 4		2 4

Mitsubishi

ASX	2010	2 4	2 4
ASX FL	2012	2 4	2 4
Outlander	2012	2 4	2 4
Outlander	2006	2 4	2 4
Outlander PHEV	2013	2 4	2 4
	2013Space Star	2 4	2 4

Nissan

Juke	2010	2 4	2 4
Leaf	2011	2 4	2 4
Micra	2010	2 4	2 4
Micra FL	2013	2 4	2 4
Note	2013	2 4	2 4
Pixo	2009	2 4	2 4
	2014Pulsar	2 4	2 4
	2006Qashqai	2 4	2 4
	2013Qashqai	2 4	2 4
	2014X Trail	2 4	2 4

Opel/Vauxhall

Adam	2012	2 4	2 4
Agila	2008	2 4	2 4
Ampera	2011	2 4	2 4
Antara FL	2010	2 4	2 4
Astra H Caravan FL	2007-2010	2 4	2 4
Astra	2009	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved set ISOFIX
Astra	2015	2 4	2 4
Astra Sports Tourer	2009	2 4	2 4
Astra Sports Tourer	2015	2 4	2 4
Astra J	2009	2 4	2 4
Astra J GTC	2012	2 4	2 4
Astra J sedan	2012	2 4	2 4
Astra J Sports Tourer	2010	2 4	2 4
Cascada	2013	2 4	2 4
Insignia	2008	2 4	2 4
Insignia	2008Sport Tourer	2 4	2 4
Insignia 5door FL I	2011	2 4	2 4
Insignia 5door FL II	2013	2 4	2 4
Insignia Country Tourer FL II	2009	2 4	2 4
Insignia FL I	2011	2 4	2 4
Insignia FL II	2013	2 4	2 4
Insignia Sports Tourer FL I	2011	2 4	2 4
Insignia Sports Tourer FL II	2013	2 4	2 4
Meriva	2010	2 4	2 4
Meriva B	2010	2 4	2 4
Meriva B FL	2014	2 4	2 4
	2010Zafira	2 4	2 4
Zafira C Tourer	2012	2 4	2 4
	2012Mokka	2 4	2 4
	2006Antara	2 4	2 4

Peugeot

2014108 24 24

Car manufacturer	1st year of production	Seat 3-point belt	Approved set ISOFIX
	2007308	2 4	2 4
	2013308	2 4	2 4
	2007308 SW	2 4	2 4
308 SW	2014	2 4	2 4
207	2006-2009	2 4	2 4
2008	2013	2 4	2 4
207 CC	2007	2 4	2 4
207 SW	2006-2009	2 4	2 4
207 SW FL	2009-2013	2 4	2 4
208 3 doors	2012	2 4	2 4
208 5 doors	2012	2 4	2 4
4007	2007	2 4	2 4
	2010508	2 4	2 4
508 RXH sw	2012	2 4	2 4
508 sw	2011	2 4	2 4
3008	2016	2 4	2 4
4008	2012	2 4	2 4
5008	2009	2 4	2 4
5008 FL	2014	2 4	2 4
Partner Tepee	2008	2 4	2 4
Expert tepee	2007-2012	2 4	2 4
Expert tepee FL 8seater	2012	2 4	2 4
Expert tepee FL 9seater	2012	2 4	2 4
RCZ	2010	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Porsche
Cayenne	2009	2 4	Airbag off
Cayenne II	2010	2 4	Airbag off
Cayenne II Turbo S	2013	2 4	Airbag off
Macan	2013	2 4	Airbag off
Panamera	2010	2 4	Airbag off
Panamera 4	2009-2013	2 4	Airbag off
Panamera Executive FL	2013	2 4	Airbag off
Renault
Captur	2013	2 4	2 4
Clio	2005	2 4	2 4
Clio 3door	2009-2012	2 4	2 4
Clio 5door	2009	2 4	2 4
	2013Clio Sporter	2 4	2 4
Clio Grandtour	2008	2 4	2 4
Clio Grandtour FL	2008-2013	2 4	2 4
Clio 4	2012	2 4	2 4
Clio 4 Grandtour	2013	2 4	2 4
Clio 4 RS	2013	2 4	2 4
	2008Megane Sporter 4		2 4
	2015Megane Sporter 4		2 4
	2015Espacer	2 4	2 4
	2015Kadjar	2 4	2 4
Espace 4	2006-2010	2 4	2 4
Espace 4 FL	2010-2012	2 4	2 4
Fluence	2010	2 4	2 4
Grand Espace 4 FL4	2012	2 4	2 4
Grand Modus	2008-2012	2 4	2 4
Grand Scenic	2009-2013	2 4	2 4
Grand Scenic FL	2012-2013	2 4	2 4
Kangoo	2008-2012	2 4	Airbag off
Kangoo FL	2013	2 4	2 4
Laguna 3 FL	2010	2 4	2 4
Laguna 3 Grandtour	2008-2010	2 4	2 4
Laguna 3 Grandrout FL	2010	2 4	2 4
Megane 2 CC	2006-2010	2 4	2 4
Megane 3 5door	2008-2012	2 4	2 4
Megane 3 CC	2010	2 4	2 4
Megane 3 Coupe	2006-2009	2 4	2 4
Megane 3 Coupe FL	2012	2 4	2 4
Megane 3 FL	2014	2 4	2 4
Megane 3 FL Grandtour	2014	2 4	2 4
Modus	2005	2 4	Airbag off
Scenic 3	2009	2 4	2 4
Scenic 3 FL	2012	2 4	2 4
Scenic XMOD	2013	2 4	2 4
Twingo	2014	2 4	2 4
Twingo 2	2007-2012	2 4	Airbag off
Twingo 2 FL	2012	2 4	Airbag off
Twingo 2 FL seatbench	2012	2 4	Airbag off
ZOE	2013	2 4	2 4

SEAT

Car manufacturer

1st year of production

Seat 3-point belt

Approved seat ISOFIX

Alhambra	2010	2 3 4 5 7	2 3 4 5 7
	2016Ateca	2 4	2 4
Leon	2012	2 4	2 4
Leon SC	2013	2 4	2 4
Leon ST	2013	2 4	2 4
Mii	2012	2 4	2 4
Mii 3door	2012	2 4	2 4
Mii 5door	2012	2 4	2 4

Skoda
Smart

Octavia 3	2013	2 4	Airbag off
Octavia 3 Combi	2013	2 4	Airbag off
Superb	2015	2 4	Airbag off
Superb Wagon	2015	2 4	Airbag off
Superb Combi FL	2013	2 4	Airbag off
Super FL	2013	2 4	Airbag off
	2014Fabia	2 4	2 4
Fabia Wagon	2015	2 4	2 4
	2013Rapid Spaceback		2 4
	2007Roomster	2 4	2 4
Yeti	2009	2 4	2 4
Yeti FL2	2013	2 4	Airbag off

ForTwo	2014	1	Airbag off
ForTwo 2 FL	2010	1	Airbag off
Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Subaru
Forester	2013	2 4	2 4
Forester (SH)	2008-2013	2 4	2 4
Forester (SJ)	2013	2 4	2 4
Impre WRX STI	2008	2 4	2 4
Suzuki
Alto	2008	2 4	2 4
Grand Vitara 5door FL	2013	2 4	2 4
Jimmy FL	2012	2 4	2 4
Celerio	2014	2 4	2 4
	2010Swift	2 4	2 4
	2016Baleno	2 4	2 4
	2013S-Cross	2 4	2 4
	2015Vitara	2 4	2 4
Kizashi	2010	2 4	2 4
Splash	2008-2012	2 4	2 4
Splash FL	2012	2 4	2 4
Sx4	2010	2 4	2 4
Sx4 S-Cross	2013	2 4	2 4
Tesla
Model S	2013-2014	2 4	2 4
Model S FL	2014	2 4	2 4
Toyota
Auris	2012	2 4	2 4
Auris Touring Sports	2013	2 4	2 4
Auris 5door	2013	2 4	2 4

Car manufacturer	1st year of production	Seat 3-point belt	Approved seat ISOFIX
Land Cruiser FL2	2014	2 4	2 4
Prius	2016	2 4	2 4
Prius+	2012	2 4	2 4
Yaris	2011	2 4	2 4
Corolla verso	2004	2 4	2 4
	2014Aygo	2 4	2 4
	2009Verso	2 4	2 4
	2013Rav4	2 4	2 4
	2003Lanc Cruiser	2 4	2 4

Volvo

C70 FL	2009-2013	2 4	2 4
S60	2010	2 4	2 4
S80 FL2	2013	2 4	2 4
V40	2012	2 4	2 4
V40 Cross Country	2013	2 4	2 4
V50	2011-2012	2 4	2 4
V60	2010	2 4	2 4
V60 FL	2013	2 4	2 4
V70	2007-2011	2 4	2 4
V70 FL	2011-2013	2 4	2 4
	2008Xc60	2 4	2 4
Xc60 FL	2013	2 4	2 4
Xc70	2007-2011	2 4	2 4
Xc 70 FL	2011-2013	2 4	2 4
Xc 90	2014	2 4	2 4
Xc90 FL	2011	2 4	2 4

VW

Amarok	2010	2 4	2 4
Beetle	2011	2 4	2 4
Beetle Cabrio	2012	2 4	2 4
CC	2012	2 4	2 4
E-UP	2013	2 4	2 4
Eos FL	2010	2 4	2 4
Golf 6	2008	2 4	2 4
Golf 6 Cabrio	2011	2 4	2 4
Golf 6 plus	2009	2 4	2 4
Golf 6 R	2009	2 4	2 4
Golf 7	2012	2 4	2 4
Golf GTI	2013	2 4	2 4
Golf 7 Sportsvan	2014	2 4	2 4
Golf 7 Variant	2013	2 4	2 4
Jetta 6	2011	2 4	2 4
Jetta Hybrid	2013	2 4	2 4
Passat B6	2005-2010	2 4	2 4
Passat B6 Variant	2005-2010	2 4	2 4
Passat B7	2010	2 4	2 4
Passat B7 Alltrack	2012	2 4	2 4
Passat B7 Variant	2010	2 4	2 4
Passat CC	2008-2012	2 4	2 4
Phaeton FL 2	2010	2 4	2 4
Polo 5	2009-2014	2 4	2 4
Car manufacturer	1st year of production	Seat 3-point belt	Approved set ISOFIX
Polo 5 Crosspolo	2010	2 4	2 4
Scirocco	2008	2 4	2 4
Sharan 2	2010	2 4	2 4
T5	2009	2 4	2 4
Tiguan	2007-2011	2 4	2 4
Tiguan FL	2011	2 4	2 4
Touareg 2	2010	2 4	2 4
Up 3door	2011	2 4	2 4
Up 5door	2012	2 4	2 4
Passat	2013	2 4	2 4
Passat Variant	2004	2 4	2 4
	2004Caddy	2 4	2 4
Touran	2003	2 4	2 4
Touran	2015	2 4	2 4

Importato da:
