USER MANUAL HCX 10D8 DAB Trevi

User manual and connection

SYSTEME HIFI AVEC DAB+/CD/MP3/USB/AUX IN ET CONNEXION BLUETOOTH®

WARNING: DO NOT OPEN THE SET. NEITHER CONTROLS OR SPARE PARTS TO BE USED BY THE USER ARE TO BE FOUND INSIDE IT. APPLY TO AUTHORISED TREVI CENTERS FOR SERVICE OPERATIONS.

The wires in this mains lead are coloured in accordance with the following wiring codes:

Blue: Neutral

Brown: .Live

The wires in this mains lead must be connected to the terminals in the plug as follows:

Blue wire: N or Black

Brown wire: L or Red

Neither wire is to be connected to the earth (E or W) terminal of three-pin plug.

Should the fuse fail in the plug remove the plug form the wall socket and replace the fuse with a 3 Amp. ASTA approved BS 1362 fuse.

FUSE
BROWN
CORE GRIP

VOLTAGGIO PERICOLOSO

This symbol on the back of the unit and in this manual indicate the presence on them of important instructions for safe use. Please read them carefully before using the appliance.

DANGEROUS VOLTAGE

This symbol on the back of the unit and in this manual indicates the presence in this equipment components operating at high voltage, do not open it to avoid the risk of electric shock.

WARNING ON THE LASER

This device is equipped with a laser beam reading system. Although the laser is of low power and with a safety device that prevents open door operation, scrupulously observe the following warnings:

Do not bring the eye to the laser lens with the device open, risk of retinal injury.

Do not attempt to disassemble or tamper with the laser unit, risk of radiation absorption.

NOTES OF USE

Listen at high volume for long periods of time, may damage your hearing.

• Avoid using it in the following cases:
• Near strong heat sources, such as central heating plants or stoves.
• In very humid places such as bathrooms, swimming pools, etc.
• In very dusty places.
• In places subject to strong vibrations.
• Position the appliance in such a way that there is always enough room for free air circulation (at least 5 cm).
• Do not block the air inlets.
  If any liquid enters the appliance, unplug it immediately from the socket and take it to the nearest TREVI authorised service centre.
  Before switching on the appliance, always check that the power cable and the connection cable are properly installed.
• No naked flame sources, such as lighted candles, should be placed on this.
  The apparatus shall not be exposed to dripping or splashing water and no object filled with water, such as vases, should be placed on the unit.
• Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning we recommend the use of a soft, slightly damp cloth. Avoid solvents or abrasives.

IMPORTANT

The good construction of this machine guarantees the perfect functioning for a long time. However, should any problem arise, you should consult your nearest authorized service center.

TREVI pursues a policy of continuous research and development. Therefore, the products may have different features from those described.

To avoid possible hearing damage, limit the time listening at high volumes

DESCRIPTION OF COMMANDS

1. CD player
2. STANDBY button
3. Display
4. Volume adjustment
5. II / SCAN button, Play / Pause / Search and store radio stations automatically
6. SOURCE button, source selection
7. Headphones socket

8. Audio Input (AUX IN)

9. Key, Stop.

10. USB input.
11. /TUNE - button, previous track / radio station
12. TUN + button, next track / radio station
13. MENU / INFO key, access to menus / display information display
14. SELECT / MONO / ST button, selection of mono / stereo radio / settings confirm
15. Remote control receiver

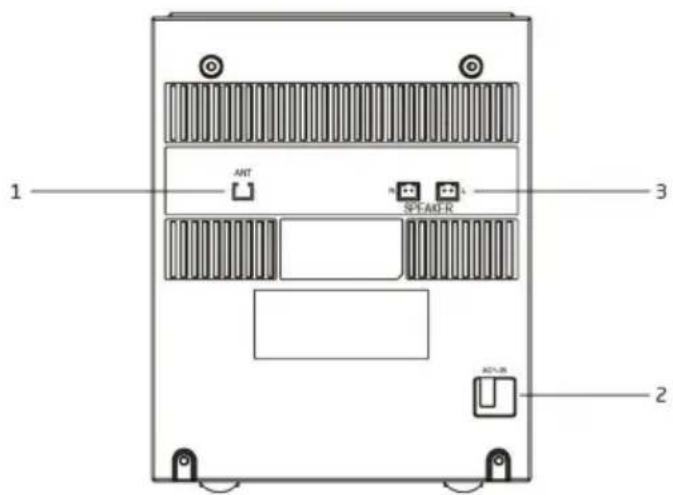

1. Antenna socket, insert the supplied antenna cable
2. Power cord
3. R/L speaker connection sockets

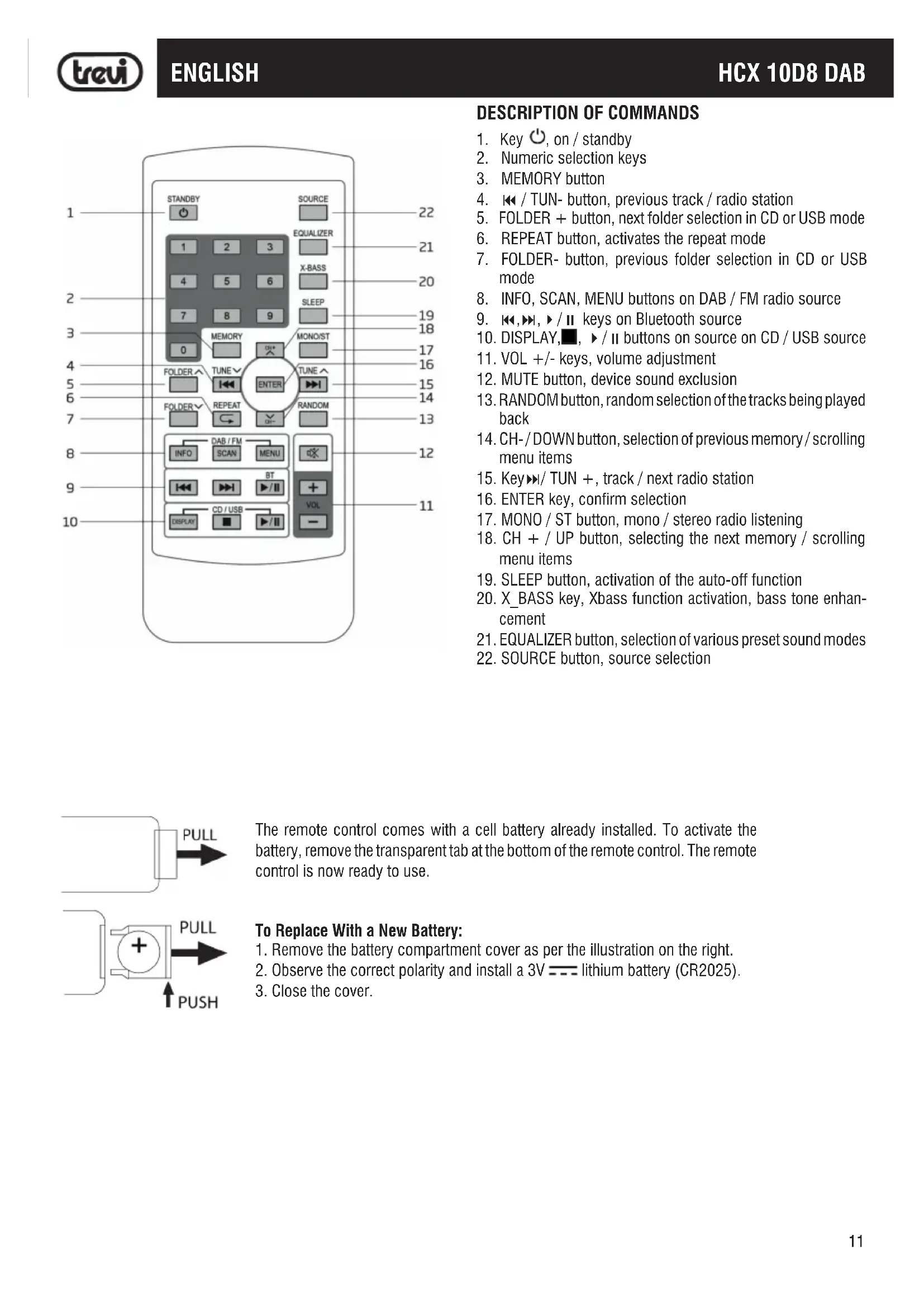

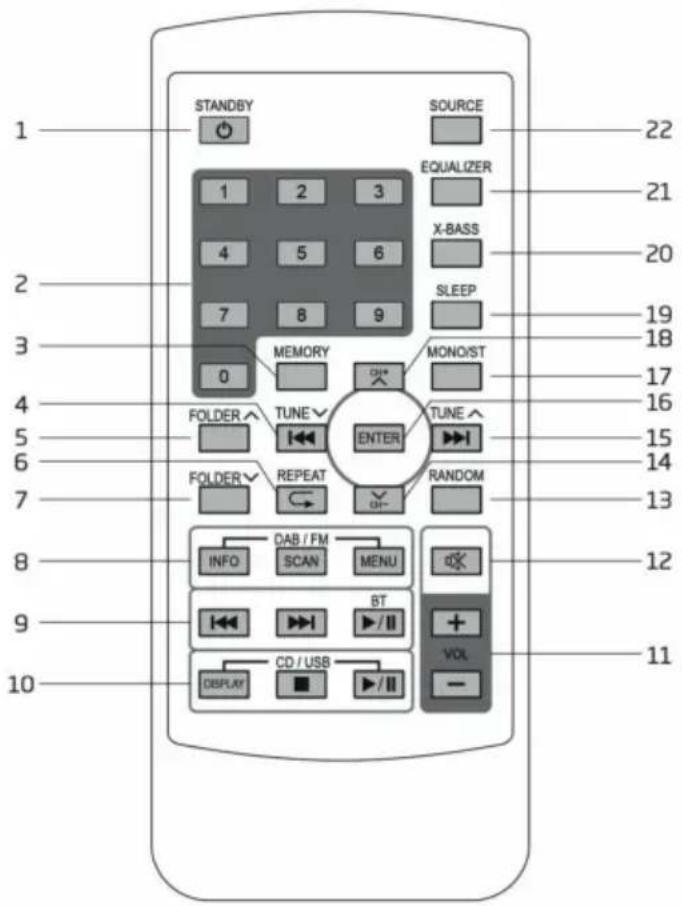

DESCRIPTION OF COMMANDS

1. Key on/standby
2. Numeric selection keys
3. MEMORY button
4. TUN- button, previous track / radio station
5. FOLDER + button, next folder selection in CD or USB mode
6. REPEAT button, activates the repeat mode
7. FOLDER- button, previous folder selection in CD or USB mode
8. INFO, SCAN, MENU buttons on DAB / FM radio source
9. , , / keys on Bluetooth source
10. DISPLAY, , buttons on source on CD/USB source
11. VOL +/- keys, volume adjustment
12. MUTE button, device sound exclusion
13. RANDOM button, random selection of the tracks being played back
14. CH-/DOWN button, selection of previous memory/scrolling menu items
15. Key TUN +, track / next radio station
16. ENTER key, confirm selection
17. MONO / ST button, mono / stereo radio listening
18. CH + / UP button, selecting the next memory / scrolling menu items
19. SLEEP button, activation of the auto-off function
20. X_BASS key, Xbass function activation, bass tone enhancement
21. EQUALIZER button, selection of various preset sound modes
22. SOURCE button, source selection

The remote control comes with a cell battery already installed. To activate the battery, remove the transparent tab at the bottom of the remote control. The remote control is now ready to use.

To Replace With a New Battery:

1. Remove the battery compartment cover as per the illustration on the right.
2. Observe the correct polarity and install a 3V lithium battery (CR2025).
3. Close the cover.

SUPPLY

Connect the power cord (2) to 100-240V 50 / 60Hz power outlet.

Do not connect the appliance to electrical outlets other than those indicated.

At the first start-up the device will scan the DAB stations present, the display will show the word SCANTIME. Wait until the display shows the current time.

Note: Unless otherwise specified, the descriptions of the commands apply to both the device and the remote control.

ON/OFF

1. Press the STANDBY / FUNC (2) button to turn the unit on.
2. Press the STANDBY / FUNC (2) button to turn off the unit

Note: In CD, USB or AUX source, if no operation is performed within 15 minutes, the unit will automatically enter STANDBY mode.

VOLUME CONTROL, XBASS AND EQUALIZER FUNCTION

1. Turn the Volume control (4) on the unit or press the VOL + or VOL- (11) button on the remote control to increase or decrease the volume.
2. Press the XBASS button (20) to activate the bass boost function. Press it again to deactivate it.
3. Press the EQUALIZER key (21) to select one of the preset audio dynamics (Classic, Rock, Pop, Jazz, Flat).

FM RADIO OPERATION

1. Switch on the appliance and press the SOURCE button (6) repeatedly until the FM indication appears on the display.
2. Press the keys /TUN + (12) or /TUN- (11) on the unit repeatedly, or the keys /TUN + (15) or /TUN- (4) on the remote control to increase or decrease the frequency 0.05MHz and perform a step-by-step search.
3. Hold down for a few seconds the keys /TUN + (12) or /TUN - (11) on the unit, or the keys /TUN + (15) o /TUN - (4) on the remote control to tune into the station next or previous radio with the best signal received.
4. Press the SCAN key for a long time to activate the automatic radio station search and save function (SCAN). The unit is able to store up to 20 stations. By long pressing the MENU key (13, 8 on the remote control) it is possible to select the type of automatic search; under SCAN confirm with SELECT (14) and select STRONG (stations with strong signal) or ALL (all stations), confirm with SELECT (14).

5. To store a radio station:

6. Move to the frequency to be memorized, press and hold down the MEMORY (3) key on the remote control.

The word PROG flashes on the display.

• With the keys▶/TUN+ (15) o «/TUN- (4) on the remote control, select the memory number where you want to save the radio station.
• Press the ENTER key (16) to confirm.
• The unit can store up to 20 stations.
• To call up a stored radio station use the CH + (18) and CH- (14) buttons.
• To switch the playback from STEREO to MONO and vice versa, press the MONO / ST button (14).

Note: To get the best FM reception connected and oriented the antenna. If reception is not good try to adjust the length and orientation of the antenna differently, however the quality of FM reception depends very much on the place where the device is placed.

1. Switch on the appliance and press the SOURCE button (6) several times until the DAB indication appears on the display. When you switch it on for the first time, the radio will automatically scan and store all the available DAB stations.
2. If you want to repeat the scan operation of the available DAB stations, long press the MENU / INFO button (13) to access the DAB menu. Full scan will appear.
3. Press the SELECT (14) button to start scanning the DAB stations.
4. Press the /TUN + (12) o /TUN - (11) button on the unit, or the /TUN + (15) o /TUN - (4) buttons on the remote control to scroll through the various tuned DAB stations. Press the SELECT (14) button on the desired DAB station to start playback.
5. Press the MENU / INFO button (13) several times to display information about the received station.

RADIO DAB/DAB+MENU

1. Long press the MENU / INFO button (13) to enter the DAB menu.
2. Press the key /TUN+ (12) o /TUN- (11) on the unit, or the keys /TUN+ (15) o /TUN- (4) on the remote control to display the various DAB menu items.
3. Press the SELECT (14) button to select the displayed menu item.

Full scan: allows you to scan the entire DAB / DAB + band and automatically store the found stations.

Manual tune: allows you to manually scan a single DAB / DAB + frequency. Press the /TUN+ o /TUN- key to select the channel number for the frequency to be scanned and then press the SELECT (14) key to start scanning. The found stations will be automatically stored. At the end, long press the MENU / INFO key (13) to return to the DAB menu.

DRC: allows you to enable / disable the DRC function to improve the sound while listening in noisy environments. The DRC level can be set up (high), low (low) or OFF (off).

Prune: allows you to delete from the list of stations stored all the radio found but not available (poor signal). Move with the keys / TUN + o / TUN - to Y (YES) and confirm the deletion with the SELECT key (14).

System: allows access to the system menu:

Language: it is possible to choose the language of the menus; Italian, English (default), Deutsch, Spanish, Dutch, Francais are available.

Factory Reset: allows you to reset the device to the factory settings. At the end of the reset an automatic scan of the DAB / DAB + stations will be performed. Move with the keys: / TUN + or 9 / TUN- to Y (YES) and confirm with the SELECT key (14).

SW version: allows you to view the software version of the device.

STORING RADIO STATIONS

To store a radio station, perform the following steps:

1. Tune to the desired radio station.
2. Long press the MEMORY key (3), the display will show PROG.
3. Use the /TUN + o TUN- keys to select a memory location.
4. Press the SELECT (14) button to confirm and save the radio station.

Repeat this operation for each radio station you want to save. There are 20 memory locations available.

1. To call up a stored radio station use the CH + (18) and CH- (14) buttons.

1. Switch on the appliance and press the SOURCE button (6) several times until the CD READ indication appears on the display, indicating that the disc is being loaded. If the disc is not on the display the NO DISC indication will appear.
2. Open the CD compartment (1) by lifting the door at the center point (OPEN text) and insert the disk, with the written side facing up. Close the door gently.
3. After a few seconds the display (3) will show the number of tracks on the disc. Press the button to activate music playback.
4. Press the button to activate the pause, the display will show the flashing symbol. Press the key again to deactivate the pause.
5. Press the button to stop playback permanently.

JUMP TRACE AND QUICK SEARCH

1. Press the /TUN + o TUN- to move to the previous track or next one.
2. Press and hold the / TUN + o / TUN during playback to quickly search a particular musical passage. Release the button to return to normal playback.

REPEAT

• Press the REPEAT button (6) on the remote control, until the RPT ONE indication appears on the display to reproduce the same track continuously.
• Press the REPEAT key (6) on the remote control until the RPT ALL indication appears on the display to continuously reproduce all the tracks present.
• Press the REPEAT button (6) on the remote control until the RPT FOLD indication appears on the display to continuously play all the tracks in the selected folder (only for MP3 CDs containing folders).
• Press the REPEAT (6) key on the remote control until the NORMAL indication appears on the display to play back all the tracks present only once.
• Press the RANDOM button (13) on the remote control (the RANDOM indication appears on the display) to randomly reproduce all the tracks present. Press it again to deactivate the function.

ALBUM FUNCTION

NOTE: function valid only for MP3 CDs containing folders.

1. When playing an MP3 CD with multiple folders, press the FOLDER + (5) and FOLDER- (7) buttons to select the folder you want to play.

ID3 FUNCTION

NOTE: function valid only for MP3 tracks

1. During playback of an MP3 CD, press the DISPLAY button (10) to activate the ID3 function, information regarding the track being played will be shown.

USB INPUT OPERATION

REPRODUCTION

1. Connect a USB memory device to the USB (10) input.
2. Switch on the appliance and press the SOURCE button (6) several times until the USB READ indication appears on the display, indicating that the data on the USB device is loading. In the absence of the USB device, the display will show NO USB.

Note:

• The device may not support some USB devices, this is due to the incompatibility of some processors.

• For the rest of the functions, refer to the paragraph "CD-MP3 PLAYER OPERATION".

INPUT AUX IN

1. Switch on the appliance and press the SOURCE button (6) several times until the AUDIO IN indication appears on the display.
2. Connect any unit with audio output through the appropriate cable to the AUX IN (8) input.
3. Command the external unit from its commands.
4. Adjust the volume by controlling the unit (4) or by using the VOL + or VOL- (11) keys on the remote control.

BLUETOOTH OPERATION

1. Switch on the appliance and press the SOURCE button (6) several times until the BT indication appears on the display.
2. The word "PAIRING" will start to flash on the display and the system will automatically enter search.
3. Activate the Bluetooth functionality on the external device to be paired and make it visible.
4. Start the device search. At the end, look for the "HCX 10D8 DAB" device.
5. Enter the password "0000" if necessary.
6. After pairing, the device will emit a notification sound and the word "BT AUDIO" will remain on the display.
7. Start audio playback from your device.
8. Press the / TUN+ or / TUN- to move to the previous or next track.
9. Press the to activate the pause. Press the key again to deactivate the pause.
10. Hold down the key for a few seconds to remove the coupling.

SLEEP FUNCTION

The SLEEP function allows you to program the automatic switch-off after a certain time of the device.

By pressing the SLEEP key several times you can select the switch-off time (90, 80, 70, 60, 50, 40, 30, 20, 10, 00 = off).

The symbol ZZZ appears on the display to indicate the active function. After the programmed time has elapsed, the device switches to standby mode automatically.

HEADPHONES

1. Insert the headphones into the headphone jack (7).
2. Start the desired playback and adjust the volume.

TECHNICAL SPECIFICATIONS

Power and consumption: 100-240V 50/60Hz - 22W
FM band reception: 87.5 - 108 MHz
DAB/DAB ^+ band reception: 174.928-239.200MHz
Bluetooth transmission power: 2.5mW
Bluetooth transmission frequency: 2.4GHz
Unit dimensions: 140 x 210 x 170 mm
Speaker dimensions: 130 x 125 x 170 mm

PRECAUTIONS FOR CORRECT DISPOSAL OF THE PRODUCT.

The symbol shown on the equipment indicates that waste must be disposed of in "separate collection" and so the product must not be disposed of together with urban waste.

The user must take the product to special "separate waste collection centres" provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

RECOMMANDATIONS POUR L'ELIMINATION CORRECTE DU PRODUIT.

El的概率 that the probability of a random event is p or p - 1 . The probability of an individual being in the same group is p / (1 - p) .

EN If you will not find your language on the instruction manual, please go on our website www.trevi.it to find it

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type HCX 10D8 DAB is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.trevi.it/dms/zidi/TREVI/DOCHCX10D8DAB.pdf
