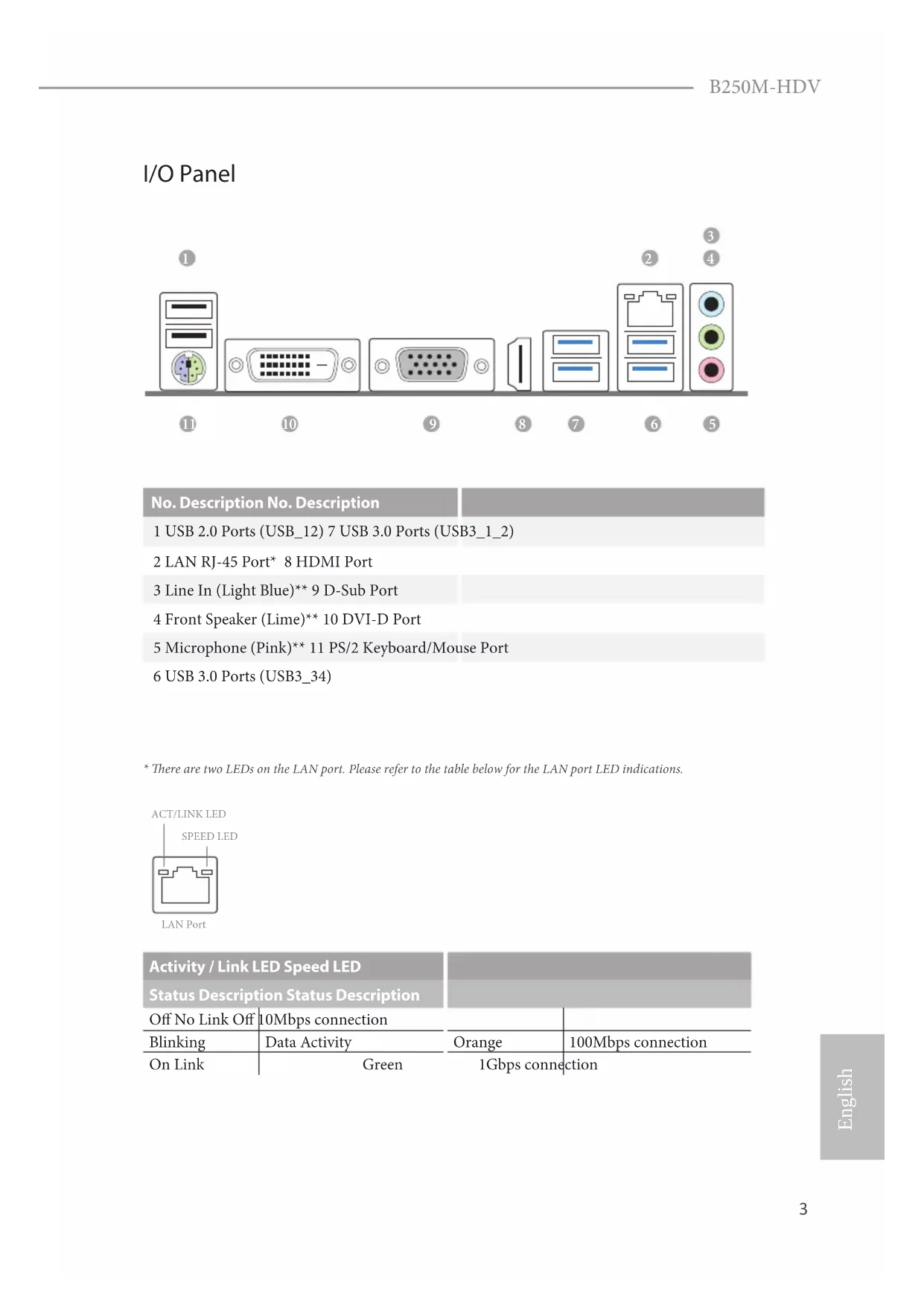

• ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. Activity / Link LED Speed LED Status Description Status Description O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection ACT/LINK LEDSPEED LEDLAN Port

English ** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager. Function of the Audio Ports in 7.1-channel Conguration: Port Function Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker Out5 English B250M-HDV

Chapter 1 Introduction

ank you for purchasing ASRock B250M-HDV motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.

1 x I/O Panel Shield Because the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to change without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. You may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.6 English

Solid Capacitor design CPU

5 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology Chipset

Dual Channel DDR4 Memory Technology

Gen Intel® CPU supports DDR4 up to 2400; 6

Gen Intel® CPU supports DDR4 up to 2133.

Supports ECC UDIMM memory modules (operate in non- ECC mode)

Max. capacity of system memory: 32GB

Supports Intel® Extreme Memory Prole (XMP) 2.0

• Supports NVMe SSD as boot disks

Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru

HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For

HWA Encode/Decode: VP8 , HEVC 8b; GPU/SWEncode/ Decode: VP9, HEVC 10b (For 6

Max. shared memory 1024MB

• e size of maximum shared memory may vary from dierent operating systems.

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HDCP with DVI-D and HDMI Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports Audio

• To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Supports Surge Protection (ASRock Full Spike Protection)

Supports Wake-On-LAN

Supports Lightning/ESD Protection (ASRock Full Spike Pro- tection)

Supports Energy Ecient Ethernet 802.3az

Supports PXE8 English Rear Panel I/O

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone Storage

6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*

• If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.

Technology ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit Connector

1 x CPU Fan Connector (4-pin)

• e CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))9 English B250M-HDV BIOS Feature

AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake up events

CPU, GT_CPU, DRAM, PCH 1.0V Voltage Multi-adjustment Hardware Monitor

CPU/Chassis temperature sensing

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

CPU/Chassis Fan multi-speed control

• To install Windows® 7 OS, a modied installation disk with xHCI drivers packed into the ISO le is required. Please refer to page 141 for more detailed instructions.

• For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may aect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.10 English is is a Micro ATX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard’s components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on

the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

English B250M-HDV Please save and replace the cover if the processor is removed. e cover must be placed if you wish to return the motherboard for aer service.14 English

2.2 Installing the CPU Fan and Heatsink

CPU_ FAN15 English B250M-HDV

2.3 Installing Memory Modules (DIMM)

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. e DIMM only ts in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1. For dual channel conguration, you always need to install identical (the same brand,

speed, size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one memory

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot;

otherwise, this motherboard and DIMM may be damaged.16 English

ere is 1 PCI slot and 3 PCI Express slots on the motherboard. PCIe slots: PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards. Before installing an expansion card, please make sure that the power supply is switched o or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.18 English

2.5 Onboard Headers and Connectors

System Panel Header (9-pin PANEL1) (see p.1, No. 11) Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may congure the way to turn o your system using the power switch. RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. e LED is on when the system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5). HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. e LED is on when the hard drive is reading or writing data. e front panel design may dier by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly. Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

GND RESET#PWRBTN#PLED-PLED+

GND19 English B250M-HDV Serial ATA3 Connectors (SATA3_0: see p.1, No. 15) (SATA3_1: see p.1, No. 14) (SATA3_2: see p.1, No. 10) (SATA3_3: see p.1, No. 9) (SATA3_4: see p.1, No. 7) (SATA3_5: see p.1, No. 8) ese six SATA3 connectors support SATA data cables for internal storage devices with up to

6.0 Gb/s data transfer rate.

If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. USB 2.0 Headers (9-pin USB_3_4) (see p.1, No. 18) (9-pin USB_5_6) (see p.1, No. 6) ere are two headers on this motherboard. Each USB 2.0 header can support two ports. USB 3.0 Header (19-pin USB3_5_6) (see p.1, No. 5) ere is one header on this motherboard. Each USB

3.0 header can support two

SATA3_2 SATA3_3 SATA3_4 SATA3_5 SATA3_0 SATA3_120 English Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 21) is header is for connecting audio devices to the front audio panel. Chassis Speaker Header (4-pin SPEAKER1) (see p.1, No. 13) Please connect the chassis speaker to this header. Chassis Fan Connectors (4-pin CHA_FAN1) (see p.1, No. 22) (4-pin CHA_FAN2) (see p.1, No. 12) Please connect fan cables to the fan connector and match the black wire to the ground pin. CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 2) is motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must

support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio header by the

steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”. GND

FAN_VOLTAGE_CONTROLFAN_SPEEDFAN_SPEED_CONTROL

English B250M-HDV ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 4) is motherboard provides a 24-pin ATX power con- nector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin

ATX 12V Power Connector (4-pin ATX12V1) (see p.1, No. 1) is motherboard provides an 4-pin ATX 12V power connector. Serial Port Header (9-pin COM1) (see p.1, No. 20) is COM1 header supports a serial port module. Chassis Intrusion Header (2-pin CI1) (see p.1, No. 16) is motherboard supports CASE OPEN detection feature that detects if the chassis cove has been removed. is feature requires a chassis with chassis intrusion detection design. TPM Header (17-pin TPMS1) (see p.1, No. 17) is connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certicates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

GND TTXD1DDCD#1 RRI#1 Signal GND22 English Print Port Header (25-pin LPT1) (see p.1, No. 19) is is an interface for print port cable that allows convenient connection of printer devices.

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. e Ultra M.2 Socket supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).

• Please be noted that if M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. Installing the M.2_SSD (NGFF) Module Step 1 Prepare a M.2_SSD (NGFF) module and the screw. BCD

Step 3 Move the stando based on the module type and length. e stando is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the stando by hand. BCD

Step 4 Peel o the yellow protective lm on the nut to be used. Hand tighten the stando into the desired nut location on the motherboard. ABCDE

Step 5 Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only ts in one orientation.

Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.25 English B250M-HDV M.2_SSD (NGFF) Module Support List For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com Vendor Size Interface Length P/N
