HDB115T - Washing machine ASKO - Free user manual and instructions

Product Type	Washing Machine
Brand	Asko
Model	HDB115T
Washing Capacity	7 kg
Dimensions (H x W x D)	850 x 600 x 590 mm
Net Weight	75 kg
Power Supply	230 V, 10 A
Energy Class	A
Maximum Spin Speed	1400 rpm
Wash Programs	Cotton, Synthetics, Delicates, Quick, etc.
Options	Delayed Start, Extra Rinse, Prewash
Safety	Child Lock, Anti-tip Device
Stacked Installation	Hidden Helper Kit included with spacers and anti-tip device
Integrated Accessories	Foldable Ironing Board
Optional Accessories	Jeannette (ironing support)
Maintenance	Regular cleaning of the filter and parts in contact with dirt
Repairability	Spare parts available, repair by authorized technician
Warranty	2 years

Frequently Asked Questions - HDB115T ASKO

Can I stack this washing machine with a dryer?

Yes, the HDB115T model is designed to be stacked with an Asko dryer using the supplied Hidden Helper kit. Follow the assembly instructions to install the spacers and the anti-tip device.

How to install the Hidden Helper mounting kit?

The kit includes a paper template, screws, wall plugs, and two anti-tip devices. First, install the spacers on the washing machine, then place the dryer on top. Secure the anti-tip device between the two appliances to ensure stability.

Is the washing machine equipped with an ironing board?

Yes, a foldable ironing board is integrated above the dryer (in stacked configuration). It unfolds by opening the drawer and is adjustable in height via the side stops.

How to adjust the ironing board?

To adjust the slide travel, loosen the stop bolts, adjust the position, then retighten. Make sure the plastic pins are locked before putting the board back in place.

Can I add a Jeannette to the ironing board?

Yes, a Jeannette is available as an option. It attaches to the right or left side of the ironing board with two screws, then unfolds and stores easily under the board.

How to clean the machine filter?

Regularly clean the filter and parts in contact with dirt to ensure machine efficiency. Remove the filter, rinse it with clean water, and replace it after drying.

What to do in case of a defective power cord?

Replacement of the power cord must be carried out by qualified personnel or an authorized technician for safety reasons. Do not use the appliance if the cord is damaged.

Can the machine be used by children?

No, this appliance is not intended for use by persons (including children) with reduced capabilities without supervision. Supervise children to prevent them from playing with the machine.

Where can I find spare parts for this model?

Spare parts are available from Asko after-sales service or authorized distributors. Contact an authorized technician for any repair involving safety or operation.

What should I do if the anti-tip device is not properly attached?

Before screwing the device, ensure that the edges of the spacers are aligned with those of the washing machine and dryer. Follow the installation steps illustrated in the manual for secure assembly.

USER MANUAL HDB115T ASKO

Operating Instruction

Käyttoohje

Fitting and countersink instructions for integrated door.

Appliance wallmounting kit instructions

When installing your Hidden Helper® as the picture shows, you must use tip guards on the washer and dryer. These can be required from your local dealer.

Including this kit you will find. I pc. Paper template

6 pcs. Screws
6 pcs. Plugs
2 pcs. Tip guards

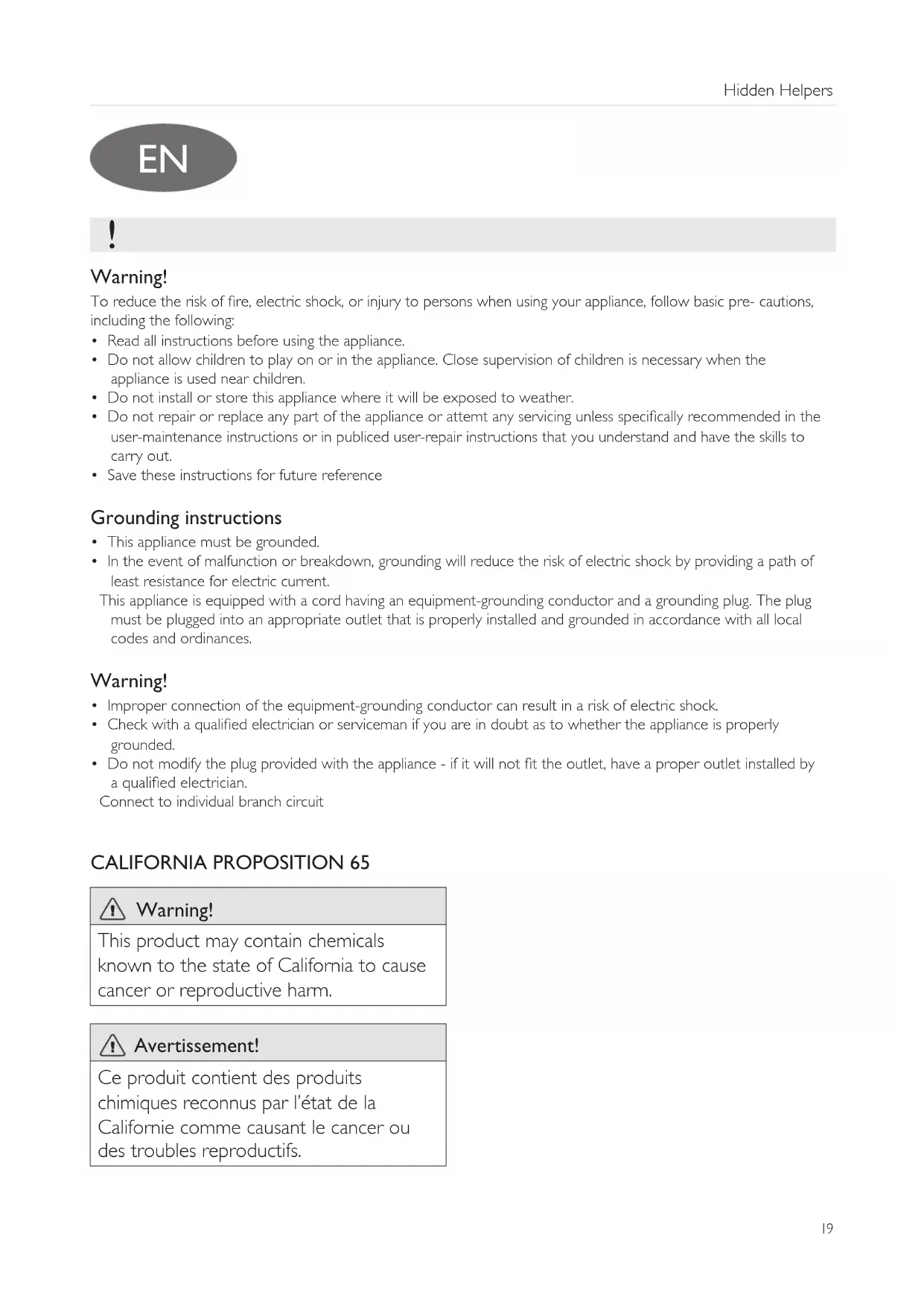

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Do not install or store this appliance where it will be exposed to weather.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in publicized user-repair instructions that you understand and have the skills to carry out.
• Save these instructions for future reference

Grounding instructions

• This appliance must be grounded.
• In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Warning!

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
• Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Connect to individual branch circuit

CALIFORNIA PROPOSITION 65

Warning!

This product may contain chemicals known to the state of California to cause cancer or reproductive harm.

Avertissement!

Installation of spacer in new machines

Note: The spacers must only be used with washing machines and tumble dryers manufactured by Asko Appliances, Sweden.

Instruction Picture
1. Put the spacers on the washing machine. Make sure that the edges of the spacers are lined up carefully with the edge of the washing machine panel.
2. Remove the anti-tilt device from the tumble dryer.This is no longer needed.
3. Open the knockout hole on the back of the dryer using a hammer and screwdriver. (You must not remove it completely, just open it.)
4. Screw out the feet of the tumble dryer 3 turns from their fully screwed-in position. Then lift up the tumble dryer. Put the back feet of the tumble dryer in the "keyholes" in the spacer and slide the tumble dryer backwards. Put the front feet down in the holes.
5. In the case of dryers with metal foot attach the left and right holder with two Bolts (enclosed) on each to prevent the dryer tipping over.
6. Remove the two outer screws on the back of the washing machine so that you can fit the anti-tilt device.
7.A. Stacked installation. Attach the enclosed anti-tilt protection to the washing machine and the dryer. Push the upper part of the anti-tilt protection into the dryer until it hooks into place. Screw the lower part into place with the screws you removed from the washing machine (A). If the machines are set right against the wall, the dryer cable must be routed through the cutout on the middle section (B).
7.B. Installation on washing machine or tumble dryer. Attach the enclosed anti-tilt protection as illustrated. Screw them into place with the screws you removed from the washing machine (A).
Note! Check that the edges of the spacers are lined up carefully with the edges of the washing machine and tumble dryer before you screw the anti-tilt device in place.

Installation of spacer on machines that have been stacked

Note: The spacers must only be used with washing machines and tumble dryers manufactured by Asko Appliances, Sweden.

Instruction Picture
1. Remove the anti-tilt device, which is no longer needed. Lift the tumble dryer down.
2. Put the spacers on the washing machine. Make sure that the edges of the spacers are lined up carefully with the edge of the washing machine panel.
3. Screw out the feet of the tumble dryer 3 turns from their fully screwed-in position. Then lift up the tumble dryer. Put the back feet of the tumble dryer in the "keyholes" in the spacer and slide the tumble dryer backwards. Put the front feet down in the holes.
4.A. Stacked installation. Attach the enclosed anti-tilt protection to the washing machine and the dryer. Push the upper part of the anti-tilt protection into the dryer until it hooks into place. Screw the lower part into place with the screws you removed from the washing machine (A). If the machines are set right against the wall, the dryer cable must be routed through the cutout on the middle section (B).
4.B. Installation on washing machine or tumble dryer. Attach the enclosed anti-tilt protection as illustrated. Screw them into place with the screws you removed from the washing machine.

Adjusting the ironing board

Instruction Picture
1. Press the door to open it.
2. Take hold of the handle and pull it out until it is fully extended. Fold up the ironing board.
3. To ensure that it is stable, it is important that the back edge of ironing board is pushed firmly against the tumble dryer when it is in the locked position.
4. If necessary, you can adjust the ironing board. Carefully bend out the two plastic latches (one on each side) using a screwdriver. Pull out the ironing board.
5. Adjust the extension length by undoing the screws on the two stops A(one on each side). Check that the plastic pins are locked B.Replace the ironing board.A sleeve board is available as an accessory for the ironing board.

Installing the sleeve board (accessorie)

Instruction Picture
1. Assemble the enclosed holder on right or left side of the Ironing Board with the two screws.
2. Fold out the bars on the Sleeve Board and put these in the holder.
3. To loosen the Sleeve Board: • Push up and pull out. • Keep the board under the Ironing Board when it's not in use.

Swedish quality since 1950
