OPERATING INSTRUCTIONS

Instructions for use of a hidden helper

Basket

EN-CS-DA-DE-ES-ET-FI-FR-HR-IT-LV-LT-NL

NO-PL-PT-RU-SK-SL-UK-ZH.CN-ZH.TW

Installing a Hidden Helper ....

Installing a hidden helper between a washing machine and a dryer ....

Installing a Hidden Helper onto the appliance ....

Using a hidden helper ....

4EN - Warnings 47Ulosvede

6 48FR - Avei

Please read the instruction manual and save it for future rence.

To reduce the risk of injury to persons when using the product, follow basic safety instructions and warnings, including the following:

• Before using the product for the first time, please read all instructions and save them for future reference.
• Instructions for use are available on our website at www.asko.com.
• The product is intended solely for household use.
• Do not repair and do not attempt to replace any part of the product or to service it in any other way, unless this is expressly recommended in the instructions for use and maintenance or in the instructions for user repairs. Also, do not attempt any repairs or servicing if you do not understand the instructions entirely or if you lack the skills for such repairs.
• Any product repair and maintenance pertaining to safety or performance should be done by trained experts.
• In case of incorrect use or product servicing by an unauthorized person, the user shall be solely responsible for covering any damage or expenses.
• Do not allow children to play with the product or on the product. Watch children closely when you are using the product near them.
• The product is not intended for use by persons (including children) with impaired physical or mental capabilities or lack of experience and knowledge. Such persons should be instructed on safe use of the product by the person responsible for their safety.
• Do not allow children less than three years of age near the product unless they are supervised at all times.
• Do not let children younger than three years to come near the appliance, unless they are under constant supervision.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning –general danger

ELECTRIC SHOCK!

Warning – danger of electric shock

Original instructions

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Technical line drawing of a rectangular container with internal mesh structure and three arrows indicating downward force (no text or symbols)

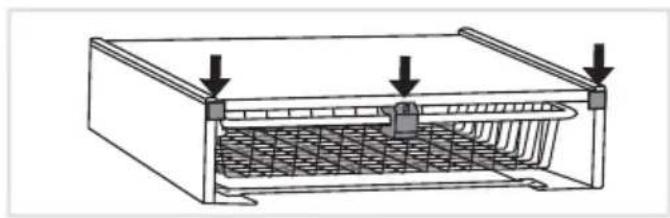

Before the first use, it is necessary to remove all transport protection. The transport elements are intended to protect the hidden helper during transport and must be removed before start-up.

INFORMATION!

The maximum recommended load of the hidden helper is 10 kg, so do not overload it to ensure safe use and prevent possible damage.

Installing a Hidden Helper

Installing a hidden helper between a washing machine and a dryer

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

WARNING!

The hidden helper may only be used with a washing machine and a dryer by the manufacturer Asko.

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

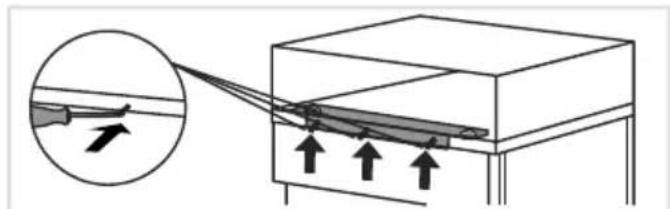

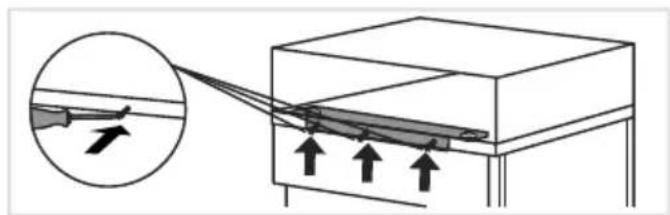

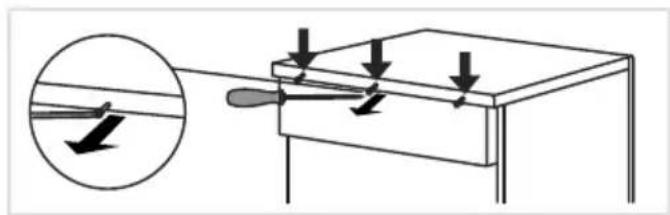

1 On the back of the washing machine, unscrew all three screws.

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

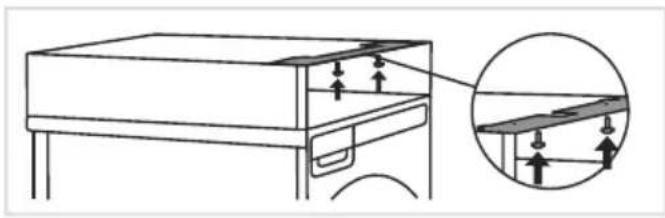

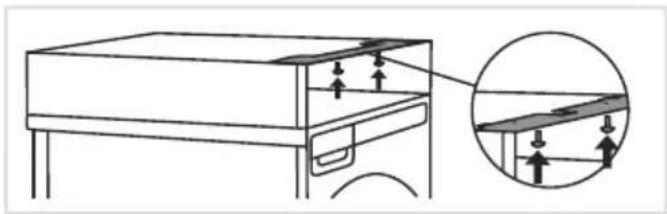

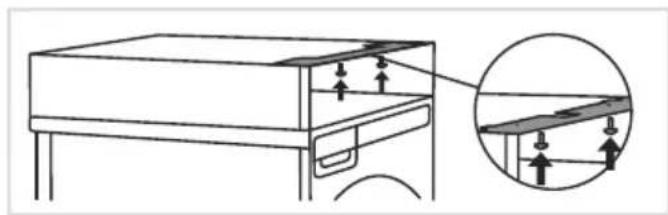

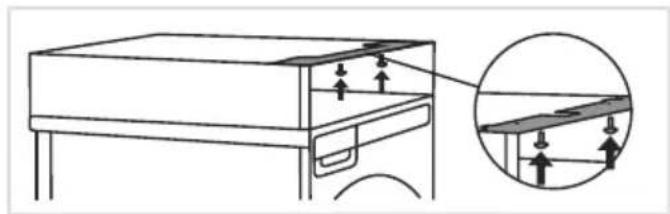

2 Install the hidden helper on the washing machine.

The fixation bracket is supplied in the hidden helper and has been temporarily fixed in the opposite direction during transport.

Before installation, unscrew it and tighten it to the back of the washing machine with three screws. For easier installation, first remove the basket (hidden helper) from the front side (see also point 4).

Diagram showing a mechanical assembly with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

The hidden helper must be screwed onto the washing machine on the left and right sides of the fixation bracket.

Use the supplied spanner to tighten the two screws.

3 Installation of screws and brackets in different models of tumble dryers.

Before installing the tumble dryer, follow the instructions below to properly install the screws and brackets on the back of the hidden helper. Select the appropriate instructions according to the appliance model indicated on the rating plate on the inside of the dryer door. The end positions of the screws and brackets are shown.

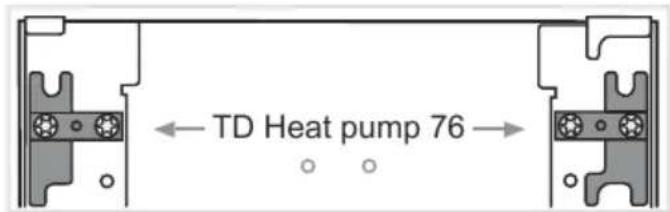

TD Heat pump 76

Tumble dryer with heat pump TD 76 The screws and brackets are pre-installed and ready for proper installation.

TD Heat pump 86

Tumble dryer with heat pump TD 86 The screws and brackets must be removed from the hidden helper beforehand.

Installing a Hidden Helper

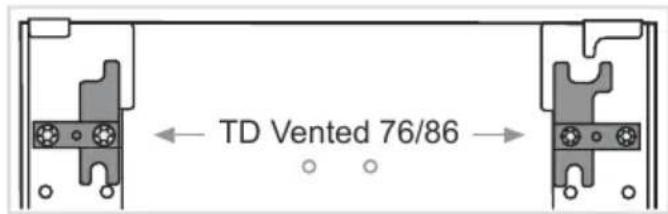

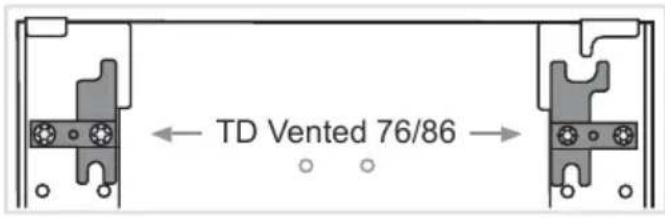

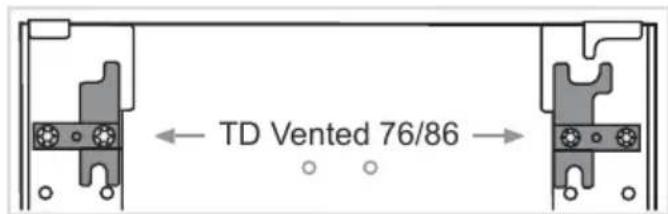

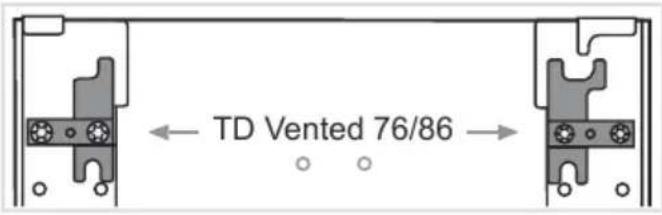

TD Vented 76/86 →

Diagram of a cabinet with an inset showing a structural detail (no text or symbols present)

Diagram showing a hand operating a 1X battery next to a circular component with a 3 mm scale indicator.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a computer with an arrow indicating leftward movement (no text or symbols present)

Technical diagram of a mechanical assembly with internal components and mounting brackets (no text or symbols)

Vented tumble dryer TD 76/86

The brackets must be rotated by 180^ . First, unscrew, rotate and re-screw them.

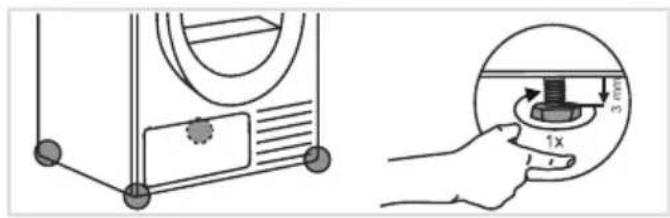

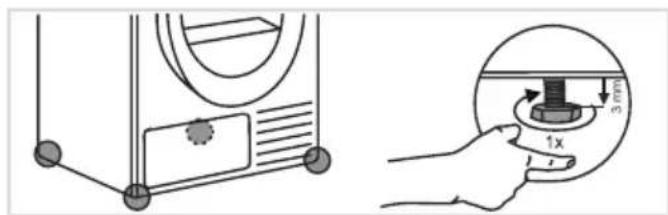

4 Installation of the front feet fixation Open the front cover and unscrew all the screws on the upper inner side and remove the front feet fixation.

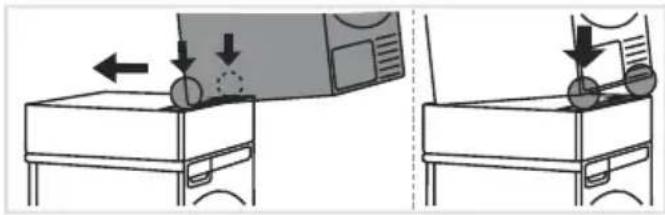

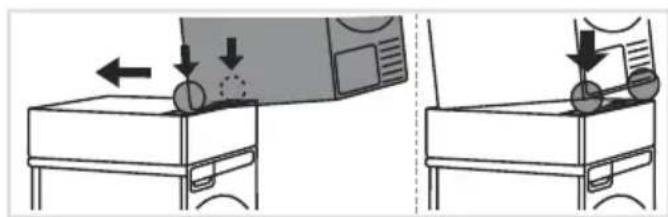

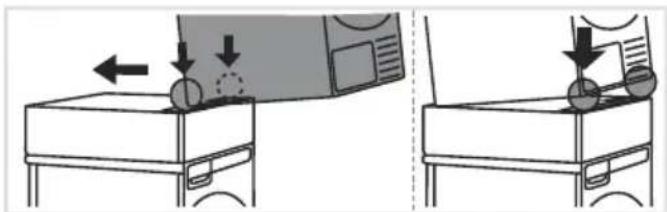

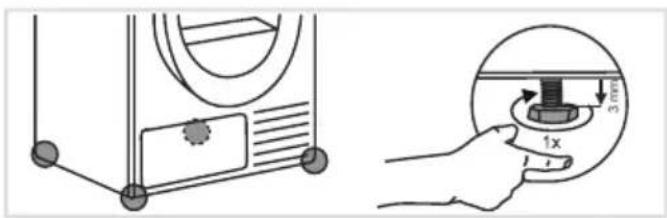

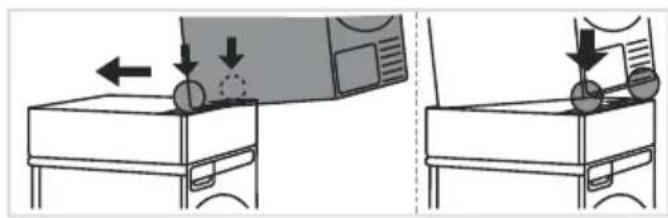

5 Before placing the tumble dryer on the hidden helper, use your hand to unscrew the feet by one turn (do not use a spanner).

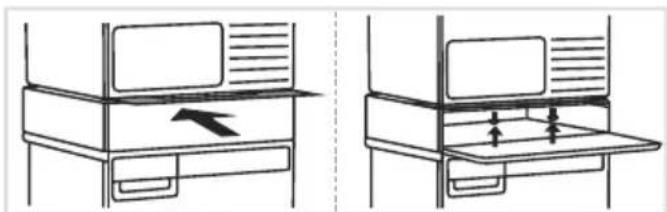

6 Lift the dryer, safely place it onto the pedestal drawer, and push it back until it locks into the pre-set brackets.

The hidden helper must be aligned with the front side of the dryer.

6.1 Once the tumble dryer is installed, reinstall the front feet fixation. Press the front feet fixation tightly against the tumble dryer and reattach it from underneath with the screws.

Then reinsert the basket.

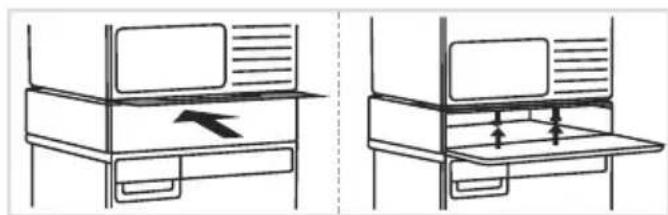

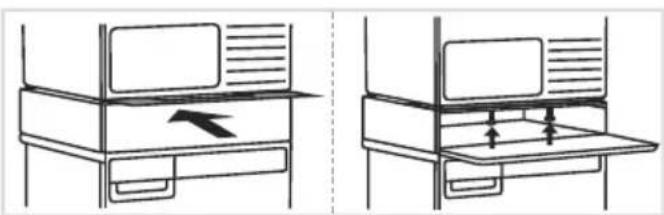

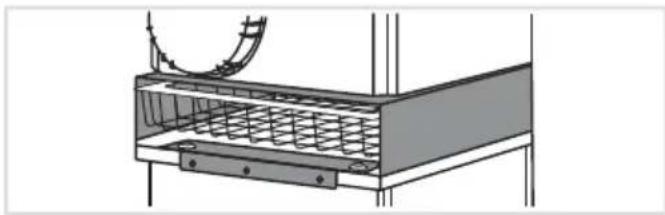

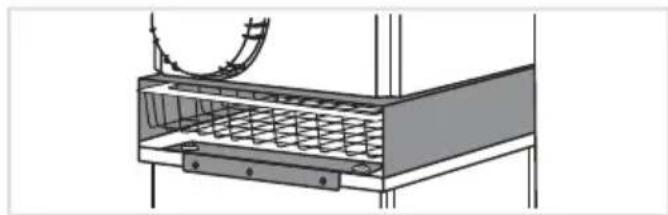

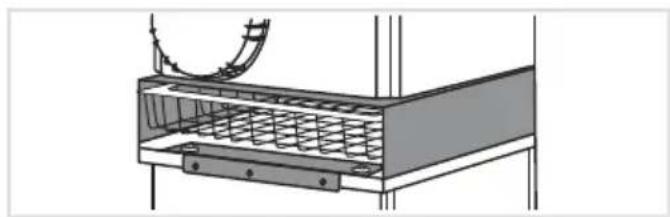

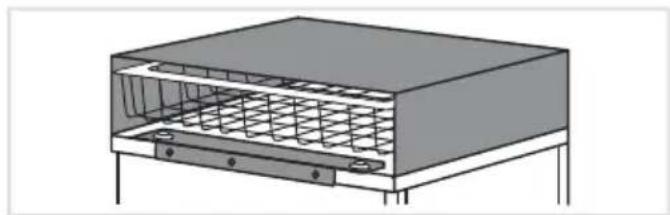

7 Final installation of the hidden helper between the washing machine and dryer, from the back.

Installing a Hidden Helper

Installing a Hidden Helper onto the appliance

Simple line drawing of a rectangular electronic component with no text or symbols

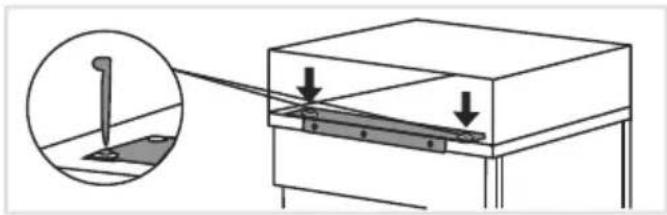

WARNING!

The hidden helper may only be used with a washing machine and a dryer by the manufacturer Asko.

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

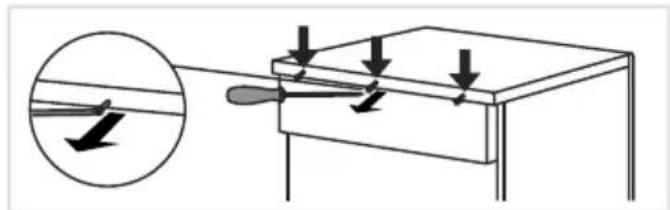

1 On the back of the appliance, unscrew all three screws.

Diagram showing a device with arrows indicating force or movement, and an inset magnified view of a tool interacting with the component (no text or symbols present)

2 Install the hidden helper on the appliance.

The hidden helper can be installed on a washing machine or tumble dryer.

The fixation bracket is supplied in the hidden helper and has been temporarily fixed in the opposite direction. Before installation, unscrew it and tighten it to the back of the washing machine with three screws, while in the case of a tumble dryer, unscrew only the outer two screws, as an intermediate hole is not provided.

For easier installation, begin by removing the Hidden Helper from the front side, then reattach it once the fixation element has been secured.

Diagram showing a mechanical assembly with a lever and a bracket, no text or symbols present

The hidden helper must be screwed onto the appliance on the left and right sides of the fixation bracket.

Use the supplied spanner to tighten the two screws.

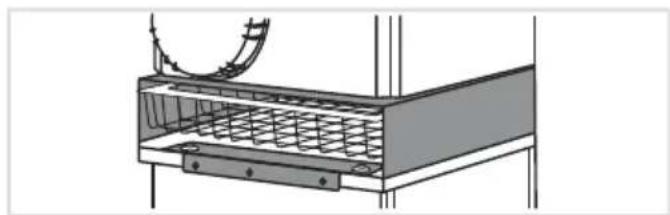

Technical illustration of a rectangular enclosure with internal grid structure and mounting base (no text or symbols)

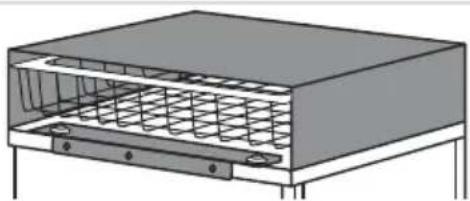

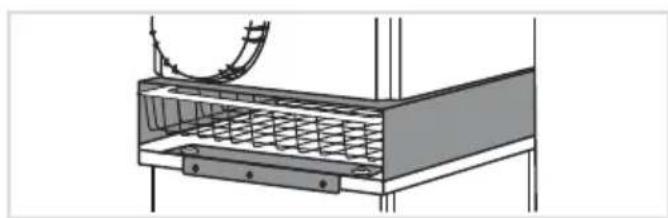

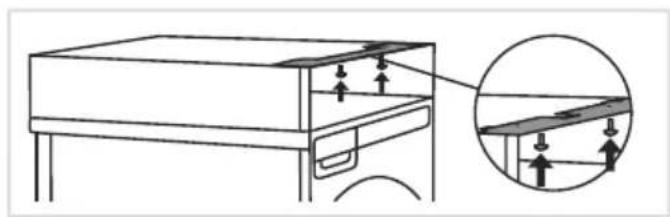

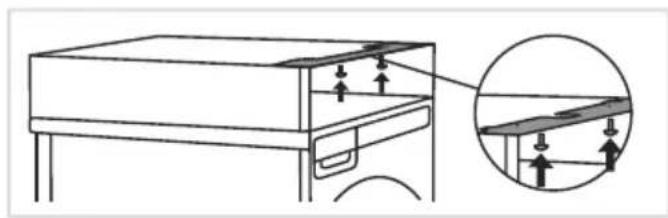

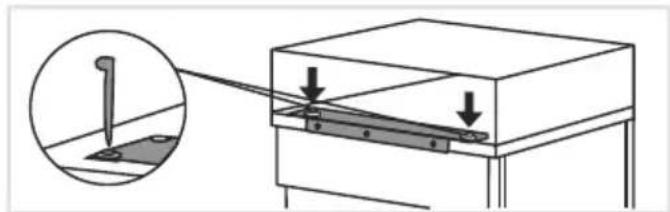

4 Final installation of the hidden helper on a washing machine or tumble dryer from the back.

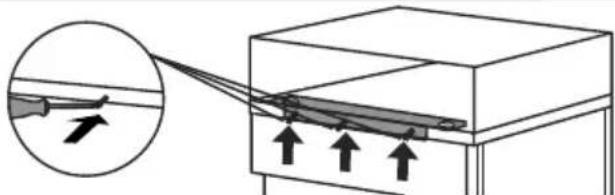

If the upper brackets are an obstacle, you can remove them for a better visual appearance.

INFORMATION!

Before tightening the fixation bracket, ensure that the edges of the hidden helper are accurately aligned with the edges of the washing machine or tumble dryer.

Using a hidden helper

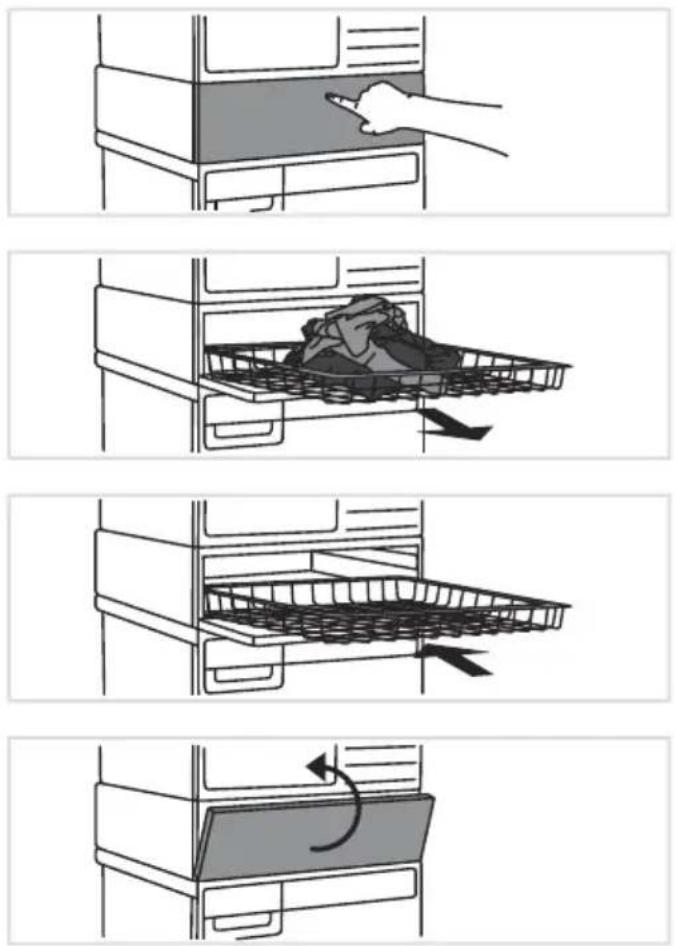

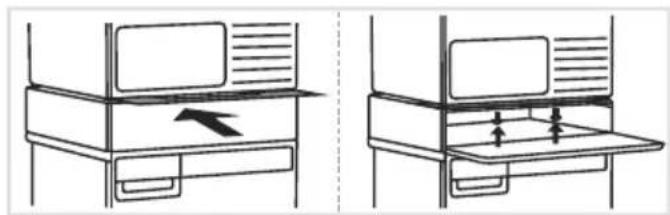

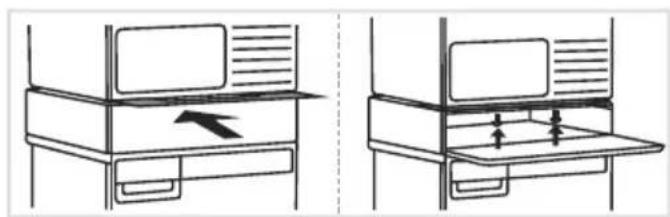

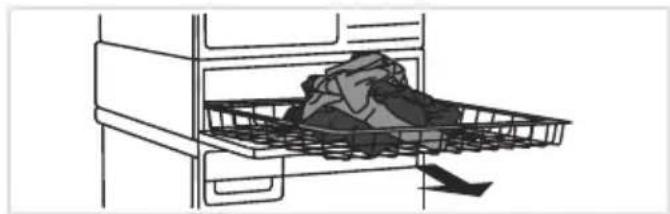

1 Press the hidden helper door to open it.

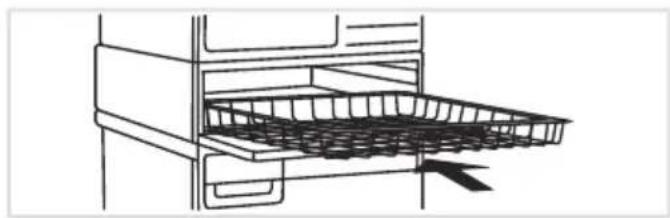

2 Pull out the basket towards you as far as it will go. After use, push it back into the hidden helper.

3 After use push the shelf back inside the hidden helper.

Diagram of a storage rack with mesh insulation and directional arrows indicating movement (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! VAROVÁNÍ!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with an inset close-up of a tool interacting with a bracket (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale indicator and a magnified view of the component being turned into a housing.

Diagram showing two stages of a device processing process, with arrows indicating movement and no visible text or symbols.

Diagram showing two views of a refrigerator with a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

Simple line drawing of a rectangular electronic component with a flat base (no text or symbols)

! VAROVÁNÍ!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

Technical line drawing of a rectangular enclosure with internal grid structure (no text or symbols)

Technical line drawing of a rectangular container with internal mesh structure and three arrows indicating downward force or assembly (no text or symbols)

Pure architectural line drawing of a building facade with no text, numbers, or symbols

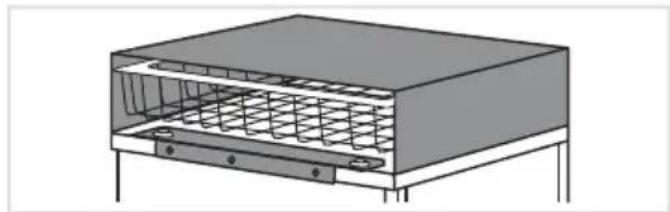

ADVARSEL!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

Tørretumbler med varmepumpe TD 76 Skruerne og beslagene er formonteret og klar til egentlig montering.

TD Heat pump 86

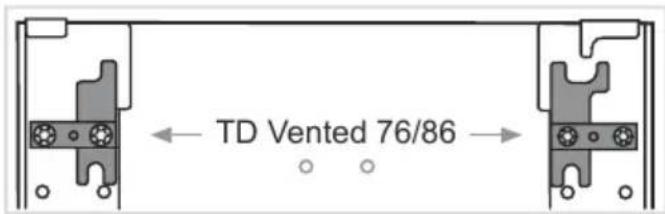

TD Vented 76/86 →
