USER MANUAL HS60W ASKO

OPERATING INSTRUCTIONS

Instructions for use of a hidden helper

Slim

EN-CS-DA-DE-ES-ET-FI-FR-HR-IT-LV-LT-NL

NO-PL-PT-RU-SK-SL-UK-ZH.CN-ZH.TW

Installing a Hidden Helper ....

Installing a hidden helper between a washing machine and a dryer ....

Installing a Hidden Helper onto the appliance ....

Using a hidden helper ....

4EN - Warnings 47Ulosvede

6 48FR - Avei

Please read the instruction manual and save it for future rence.

To reduce the risk of injury to persons when using the product, follow basic safety instructions and warnings, including the following:

• Before using the product for the first time, please read all instructions and save them for future reference.
• Instructions for use are available on our website at www.asko.com.
• The product is intended solely for household use.
• Do not repair and do not attempt to replace any part of the product or to service it in any other way, unless this is expressly recommended in the instructions for use and maintenance or in the instructions for user repairs. Also, do not attempt any repairs or servicing if you do not understand the instructions entirely or if you lack the skills for such repairs.
• Any product repair and maintenance pertaining to safety or performance should be done by trained experts.
• In case of incorrect use or product servicing by an unauthorized person, the user shall be solely responsible for covering any damage or expenses.
• Do not allow children to play with the product or on the product. Watch children closely when you are using the product near them.
• The product is not intended for use by persons (including children) with impaired physical or mental capabilities or lack of experience and knowledge. Such persons should be instructed on safe use of the product by the person responsible for their safety.
• Do not allow children less than three years of age near the product unless they are supervised at all times.
• Do not let children younger than three years to come near the appliance, unless they are under constant supervision.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning –general danger

ELECTRIC SHOCK!

Warning – danger of electric shock

Original instructions

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

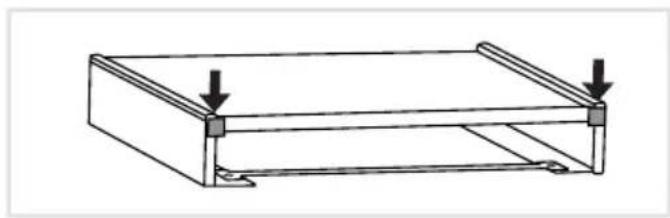

Before the first use, it is necessary to remove all transport protection. The transport elements are intended to protect the hidden helper during transport and must be removed before start-up.

INFORMATION!

The maximum recommended load of the pull-out shelf is 10 kg, so do not overload it to ensure safe use and prevent possible damage.

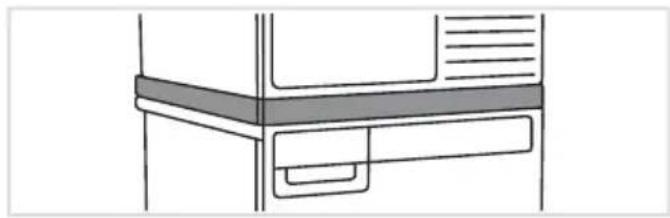

Installing a Hidden Helper

Installing a hidden helper between a washing machine and a dryer

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

WARNING!

The hidden helper may only be used with a washing machine and a dryer by the manufacturer Asko.

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's tip and arrow indicating direction (no text or symbols present)

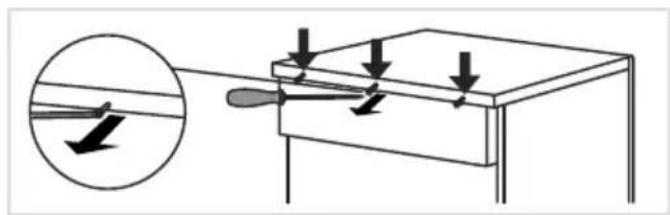

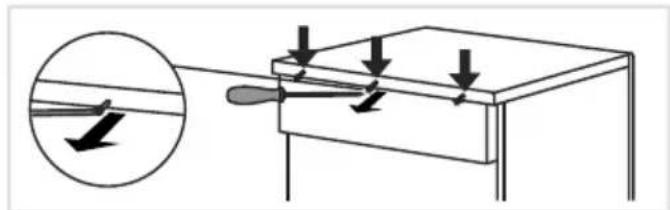

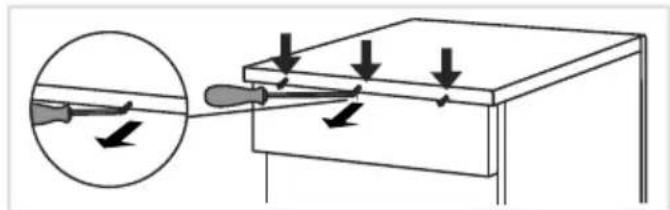

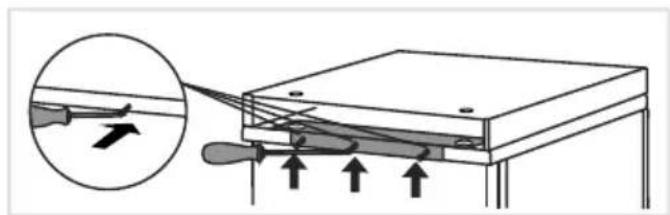

1 On the back of the washing machine, unscrew all three screws.

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

2 Install the hidden helper on the washing machine.

First, you must remove the shelf. Pull the drawer out completely, lift it slightly, and then pull it out of the rails.

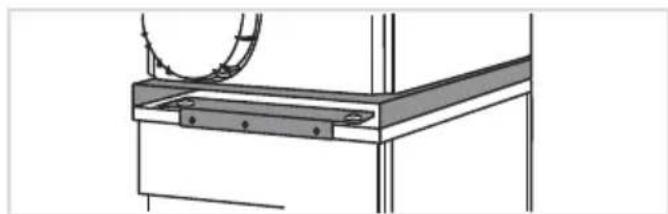

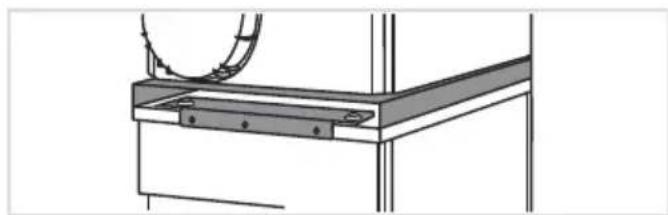

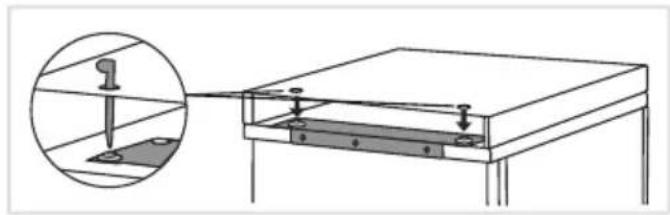

Then unscrew the fixation bracket and attach it to the back of the washing machine using three screws.

The fixation bracket is supplied in the hidden helper and has been temporarily fixed in the opposite direction during transport.

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

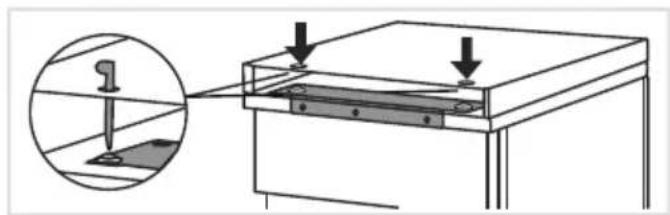

The hidden helper must be screwed onto the washing machine on the left and right sides of the fixation bracket.

For easier tightening, you can use the prepared openings on the upper part of the hidden helper. Use the spanner provided.

3 Installation of screws and brackets in different models of tumble dryers.

Before installing the tumble dryer, follow the instructions below to properly install the screws and brackets on the back of the hidden helper. Select the appropriate instructions according to the appliance model indicated on the rating plate on the inside of the dryer door. The end positions of the screws and brackets are shown.

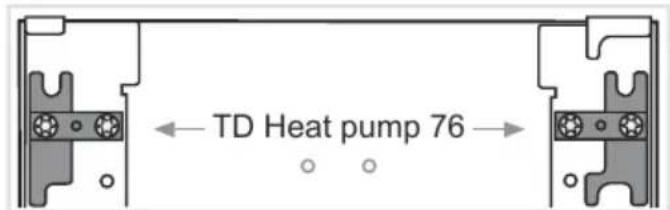

TD Heat pump 76

Tumble dryer with heat pump TD 76

The screws and brackets are pre-installed and ready for proper installation.

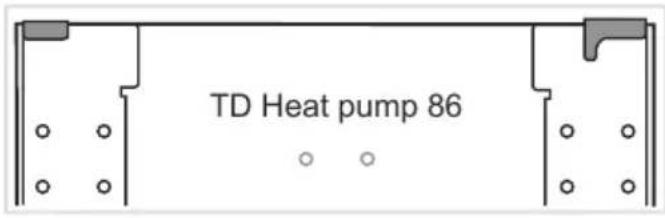

TD Heat pump 86

Tumble dryer with heat pump TD 86

The screws and brackets must be removed from the hidden helper beforehand.

Installing a Hidden Helper

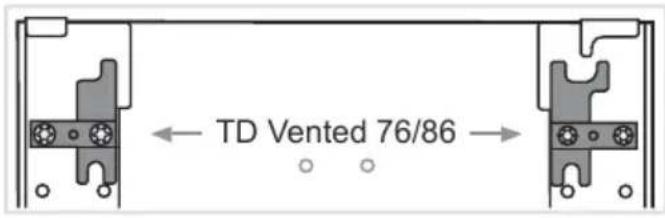

TD Vented 76/86 →

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram illustrating a pendulum mechanism with labeled components and directional arrows, including a magnified view of the device's internal structure.

Illustration of a microwave oven on a tray with motion arrows indicating movement (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and a curved component (no text or symbols)

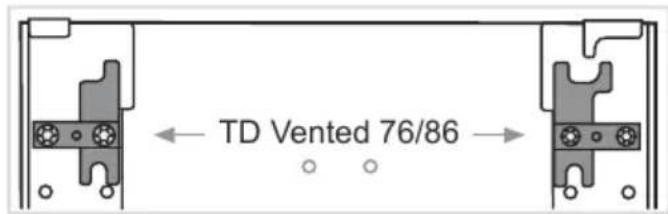

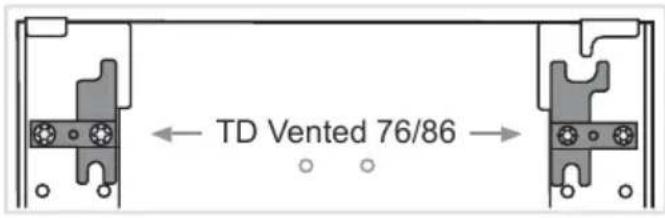

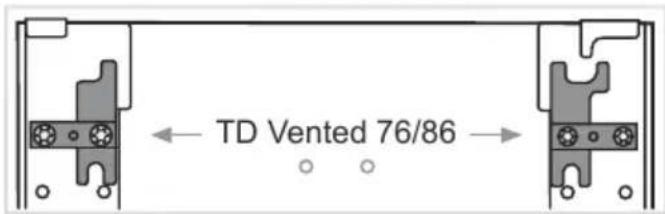

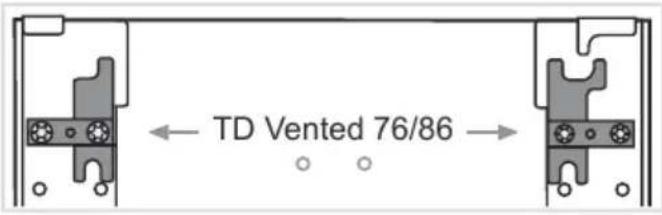

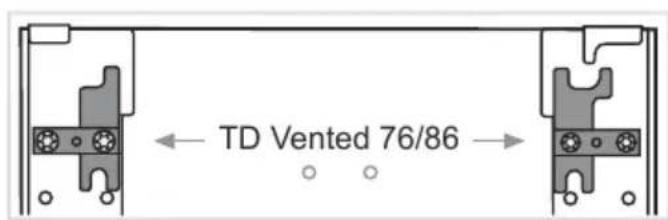

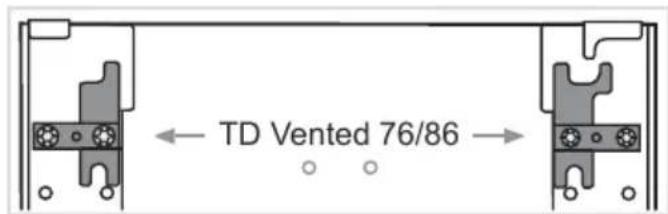

Vented tumble dryer TD 76/86

The brackets must be rotated by 180^ . First, unscrew, rotate and re-screw them.

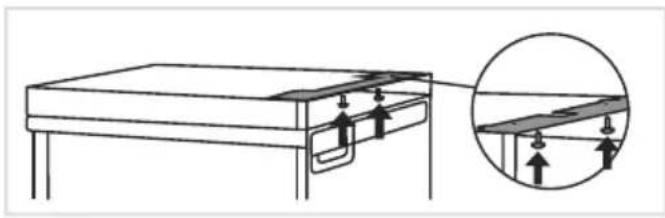

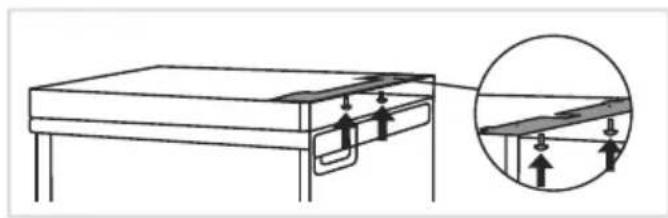

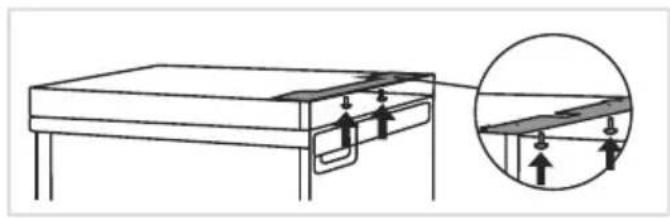

4 Installation of the front feet fixation Open the front cover of the drawer and unscrew all the screws on the upper inner side and remove the front feet fixation.

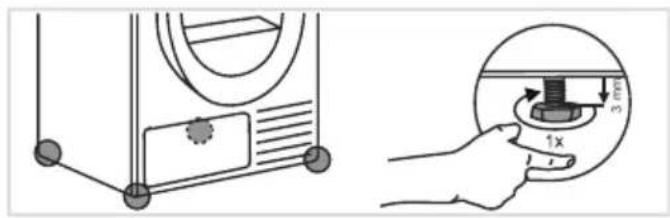

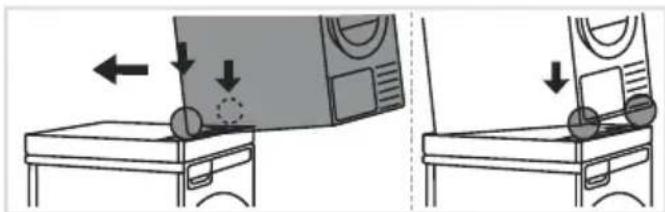

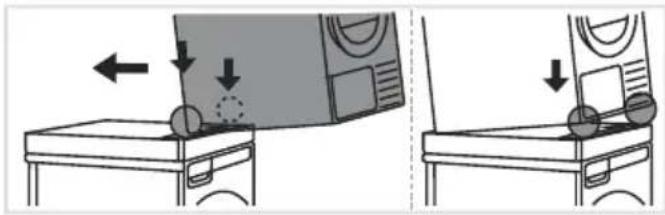

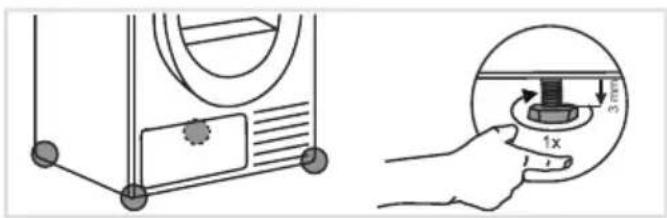

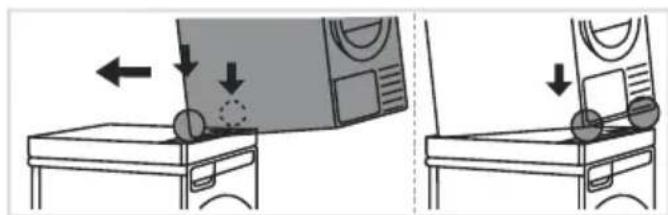

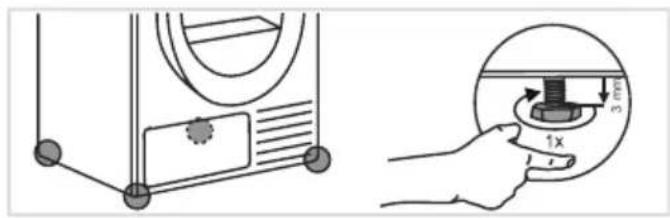

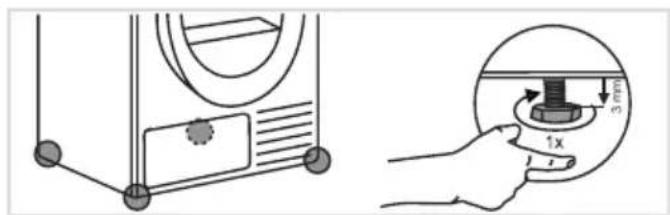

5 Before placing the tumble dryer on the hidden helper, use your hand to unscrew the feet by one turn (do not use a spanner).

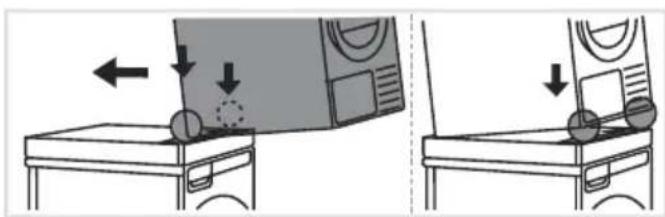

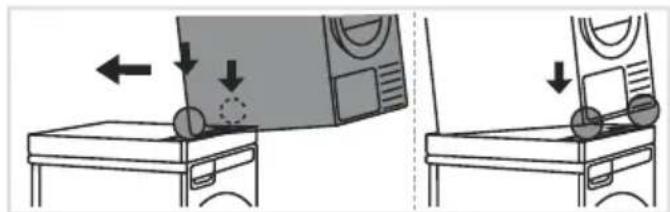

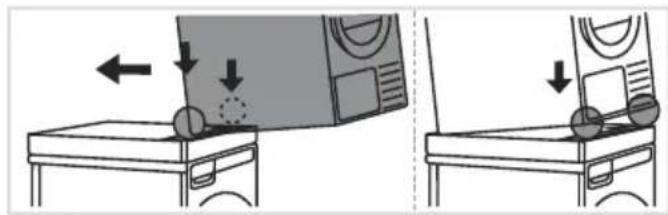

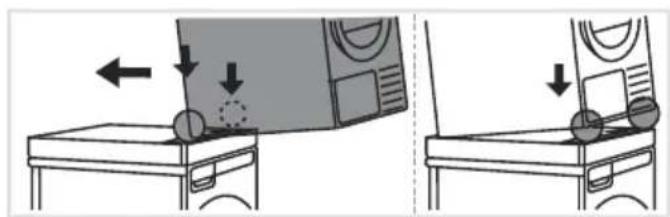

6 Lift the dryer, safely place it onto the pedestal drawer, and push it back until it locks into the pre-set brackets.

The hidden helper must be aligned with the front side of the dryer.

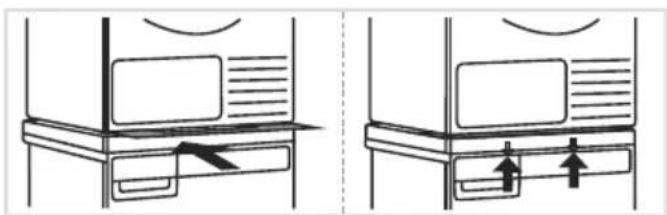

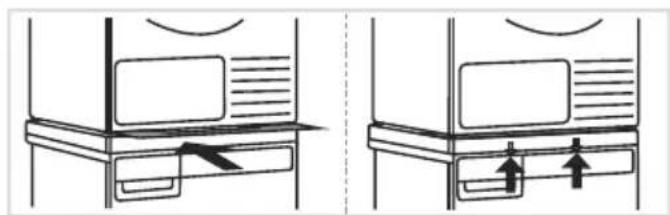

6.1 Once the tumble dryer is installed, reinstall the front feet fixation. Press the front feet fixation tightly against the tumble dryer and reattach it from underneath with the screws.

Then reinsert the drawer.

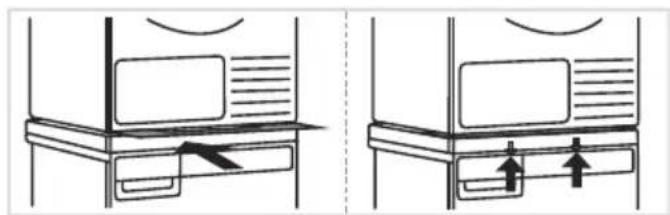

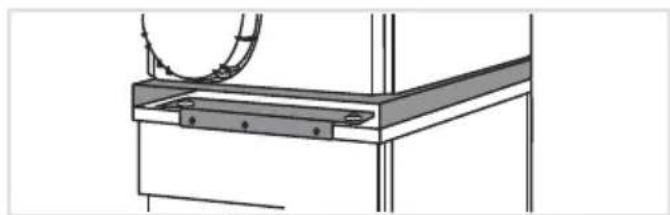

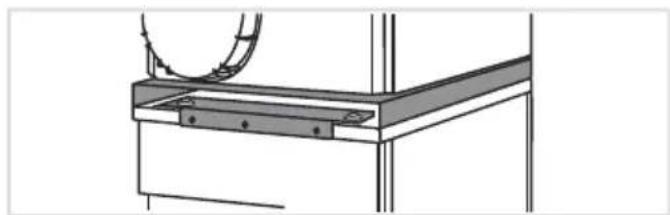

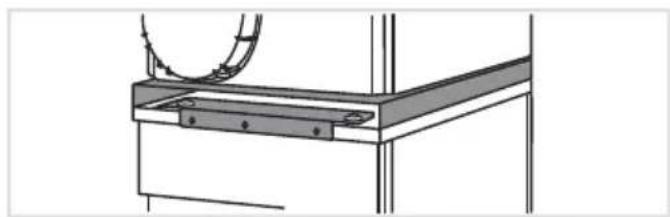

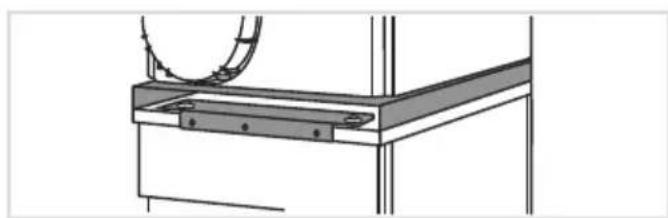

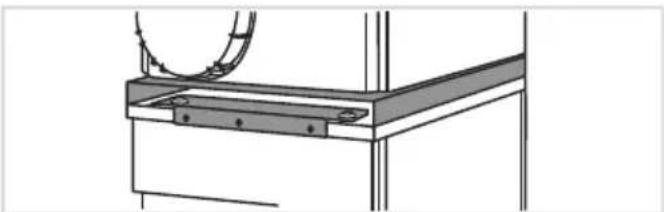

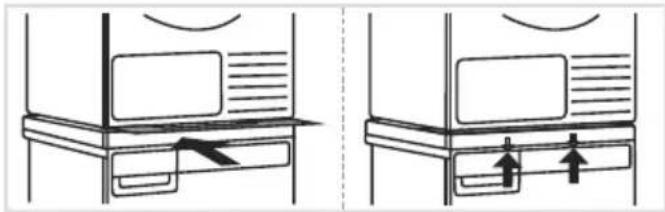

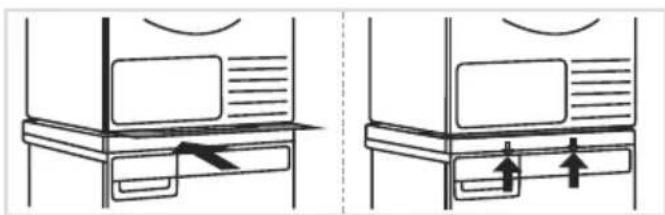

7 Final installation of the hidden helper between the washing machine and dryer, from the back.

Installing a Hidden Helper

Installing a Hidden Helper onto the appliance

Simple line drawing of a rectangular box with a lid, no text or symbols present

WARNING!

The hidden helper may only be used with a washing machine and a dryer by the manufacturer Asko.

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

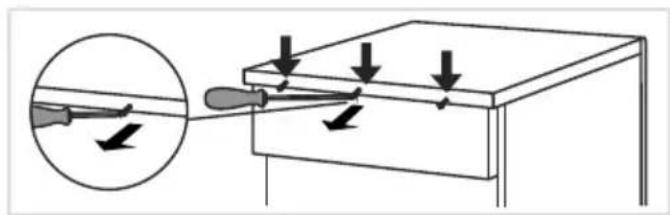

1 On the back of the appliance, unscrew all three screws.

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

2 Install the hidden helper on the appliance.

The hidden helper can be installed on a washing machine or tumble dryer.

The fixation bracket is supplied in the hidden helper and has been temporarily fixed in the opposite direction. Before installation, unscrew it and tighten it to the back of the washing machine with three screws, while in the case of a tumble dryer, unscrew only the outer two screws, as an intermediate hole is not provided.

For easier installation, begin by removing the Hidden Helper from the front side, then reattach it once the fixation element has been secured.

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

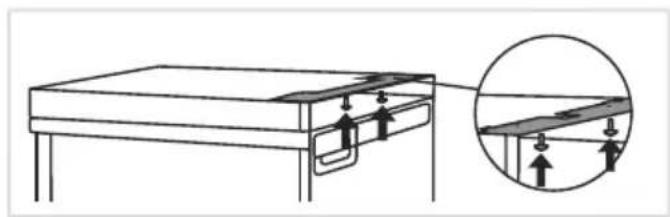

The hidden helper must be screwed onto the appliance on the left and right sides of the fixation bracket.

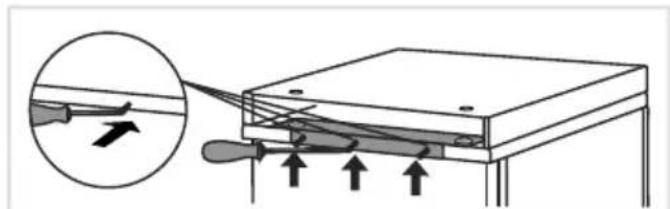

For easier tightening, you can use the prepared openings on the upper part of the hidden helper. Use the spanner provided.

Simple line drawing of a rectangular table with a flat top and a side panel, no text or symbols present.

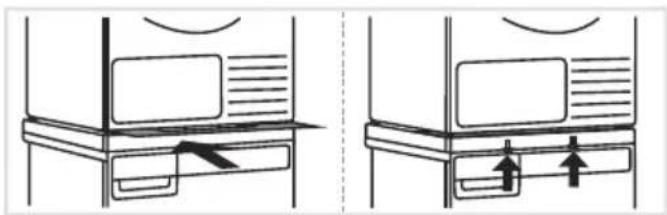

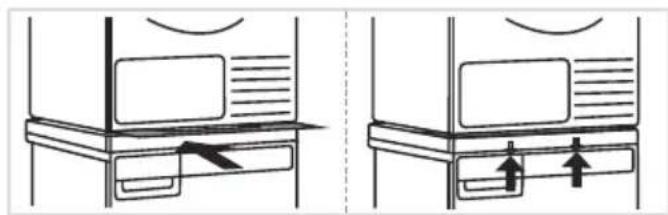

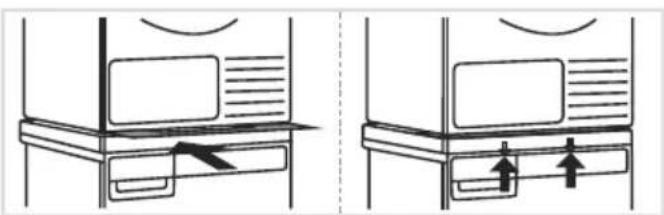

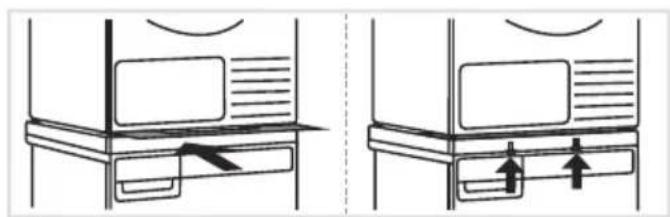

4 Final installation of the hidden helper on a washing machine or tumble dryer from the back.

If the upper brackets are an obstacle, you can remove them for a better visual appearance.

INFORMATION!

Before tightening the fixation bracket, ensure that the edges of the hidden helper are accurately aligned with the edges of the washing machine or tumble dryer.

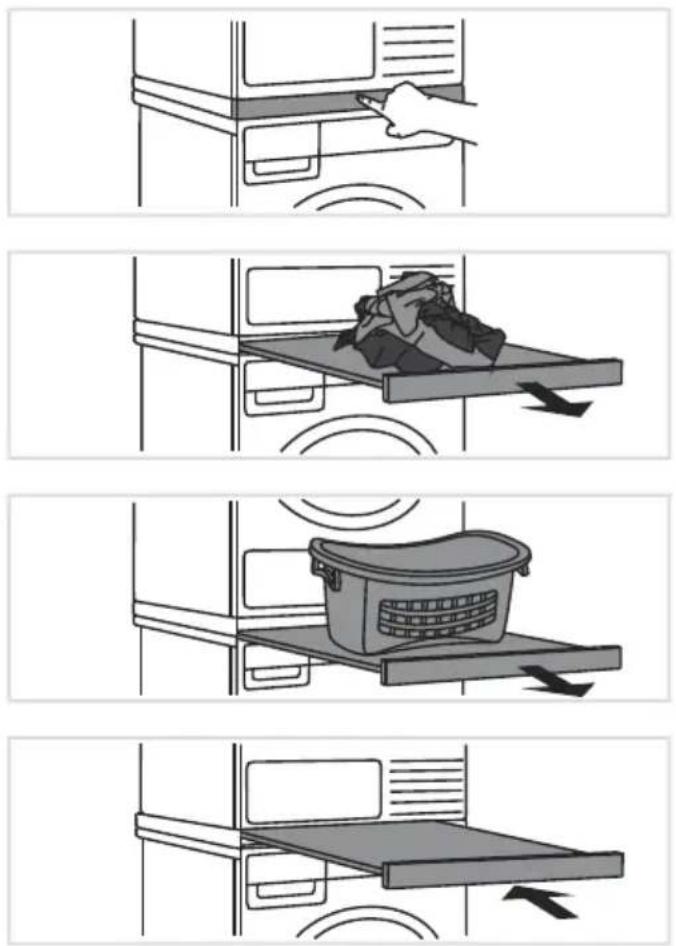

Using a hidden helper

Diagram illustrating four steps of a kitchen appliance cooling process, showing hand placement and waste disposal.

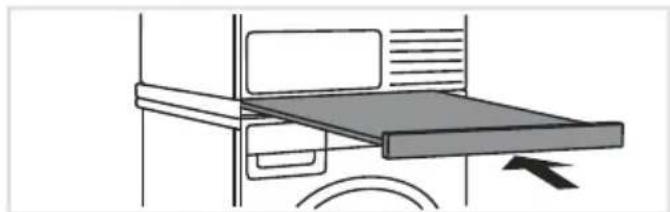

1 Press the pull-out shelf to open it.

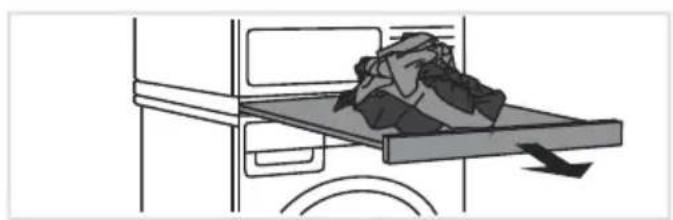

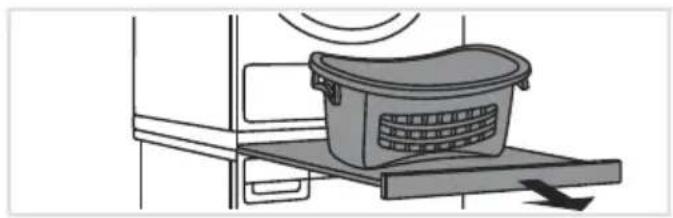

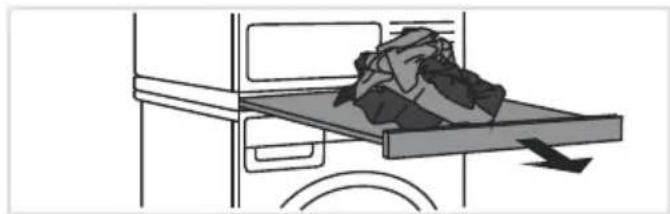

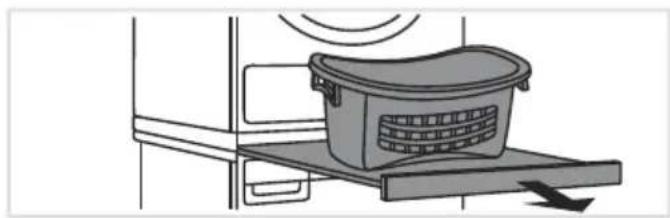

2 Pull the shelf out towards you. You can put your laundry on the shelf.

You can also put your laundry basket on the shelf.

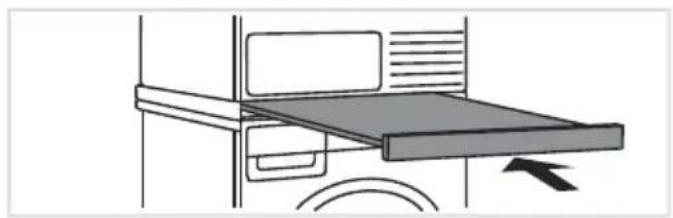

3 After use push the shelf back inside the hidden helper.

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

! VAROVÁNÍ!

Diagram showing a tool interacting with a device, with arrows indicating direction of movement (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a device with a 1x speed limit indicator and a magnified view of the device's internal structure.

Illustration of a microwave oven being compressed onto a table, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a curved pipe (no text or symbols)

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

! VAROVÁNÍ!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Diagram illustrating four steps of appliance cooling system with labeled components and airflow direction

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

ADVARSEL!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

TD Heat pump 76

Tørretumbler med varmepumpe TD 76 Skruerne og beslagene er formonteret og klar til egentlig montering.

Montering af en Hidden Helper

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale indicator and a magnified view of the component being turned into a housing.

Illustration of a microwave oven being opened on a table, showing motion arrows (no text or symbols)

Diagram showing two views of a device with arrows indicating movement or force (no text or symbols present)

Hidden Helper skal flugte med tørretumblerens forside.

Technical line drawing of a mechanical assembly with mounting brackets and a circular component (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

ADVARSEL!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular electronic device with a flat top and two side supports (no text or symbols)

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

WARNUNG!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component, no text or symbols present.

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a device with a 1x speed indicator and a magnified view of the component being turned into a housing.

Illustration of a device being opened into a machine, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with drawers and drawers, no text or symbols present

Technical line drawing of a mechanical assembly with mounting brackets and a circular component (no text or symbols)

Wärmepumpentrockner TD 86

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

! WARNING!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and a magnified inset (no text or symbols)

Technical diagram showing a mechanical assembly with a bracket and mounting base, no text or symbols present

Simple line drawing of a rectangular frame with a flat top and a horizontal base, no text or symbols present.

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

! ¡ADVERTENCIA!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram showing a mechanical device with arrows indicating force or movement, no text or symbols present

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a washing machine and its hand holding a button with a 1x ratio indicator and a 3 mm scale label.

Illustration of a microwave oven being opened on a stand, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with drawers and a door, no text or symbols present

Technical line drawing of a mechanical assembly with mounting brackets and a circular component (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

¡ADVERTENCIA!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular table with a flat top and a side panel, no text or symbols present.

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

HOIATUS!

Diagram showing a tool interacting with a device, with arrows indicating direction of movement (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

2 Paigaldage pesumasinale varjatud abiline.

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a mechanical device with a 1x speed indicator and a hand interacting with a button, illustrating a motion or positioning concept.

Illustration of a microwave oven being opened on a table, showing motion arrows (no text or symbols)

Diagram showing two views of a device with internal compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a curved component (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

HOIATUS!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

Technical line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

VAROITUS!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale indicator and a magnified view of the device's internal structure.

Illustration of a microwave oven being opened on a stand, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with a door handle and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and rectangular base (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

! VAROITUS!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Technical line drawing of a simple rectangular frame with a flat top and two side supports (no text or symbols)

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

ATTENTION!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale indicator and a magnified view of the component being turned into a button.

Illustration of a microwave oven being opened on a stand, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with drawers and drawers, no text or symbols present

Technical line drawing of a mechanical assembly with mounting brackets and a curved pipe (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

ATTENTION!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular electronic device with a flat top and two side supports (no text or symbols)

Diagram illustrating four steps of a kitchen appliance cooling process, showing hand placement and waste disposal.

Technical line drawing of a rectangular frame with two downward arrows indicating force or displacement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

⚠️ UPOZORENJE!

Diagram showing a tool interacting with a rectangular object, with an inset magnified view of the tool's motion (no text or symbols present)

1 Na stražnjoj strani perilice rublja odvrnite tri vijka.

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

2 Postavite skrivenog pomoćnika na perilicu.

Najprije morate ukloniti policu. Izvucite ladicu do kraja, lagano je podignite i zatim izvucite vodilica.

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols)

TD Heat pump 76

Sušilica s toplinskom pumpom TD 76

Vijci i nosači unaprijed su postavljeni i spren za pravilno postavljanje.

TD Heat pump 86

Sušilica s toplinskom pumpom TD 86

Vijci i nosači moraju se prethodno ukloniti iz skrivenog pomoćnika.

Postavljanje skrivenog pomoćnika (Hidden Helper)

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a device with a button and a magnified view of the button's internal structure, labeled with 1x and 2x magnification.

Illustration of a microwave oven being opened on a tray, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a curved pipe (no text or symbols)

Sušilica rublja s ventilatorom TD 76/86

Nosači se moraju zakrenuti za 180°. Prvo ih odvrnite, okrenite i ponovno zavrnite.

4 Pričvršćivanje prednjih nogica

Otvorite prednji poklopac ladice i odvrnite sve vijke na gornjoj unutarnjoj strani i uklonite fiksaciju prednjih nogica.

5 Prije postavljanja sušilice na skrivenog pomoćnika, rukom odvrnite nogice za jedan puni okret (nemojte koristiti ključ).

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

⚠️ UPOZORENJE!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

1 Na stražnjoj strani uređaja odvrnite sva trvijka.

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and a magnified inset (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a bracket and mounting base (no text or symbols)

Simple line drawing of a rectangular frame with two side supports and a central support (no text or symbols)

4 Završno postavljanje skrivenog pomoćnika na perilicu rublja ili sušilicu rublja sa stražnje strane.

Ako su gornji nosači prepreka, možete ih uklc za bolji vizualni izgled.

INFORMACIJA!

Diagram illustrating four steps of appliance cooling system with labeled components and directional arrows

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

! AVVISO!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram showing a mechanical device with arrows indicating force or movement, no text or symbols present

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing force application on a beam (no text or symbols)

Diagram showing a hand operating a device with a 1x speed indicator and a magnified view of the component being turned into a housing.

Illustration of a microwave oven being opened on a tray, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with drawers and drawers, no text or symbols present

Technical line drawing of a mechanical assembly with mounting brackets and a circular component (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

! AVVISO!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular electronic device with a flat top and two side supports (no text or symbols)

Diagram illustrating four steps of a kitchen appliance cooling process, showing hand placement and waste disposal.

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

⚠️ BRĪDINĀJUMS!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's tip and arrow indicating direction (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing force application on a beam (no text or symbols)

Diagram showing a hand operating a device with a 1x speed limit and a magnified view of the component's rotation.

Illustration of a microwave oven on a tray with motion arrows indicating movement (no text or symbols)

Diagram showing two views of a device with labeled ports and arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and a curved component (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

⚠️ BRĪDINĀJUMS!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular table with a flat top and a side panel, no text or symbols present.

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

!SPÈJIMAS!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Diagram of a table with structural supports and an inset showing a beam under load (no text or symbols)

Diagram showing a hand pressing a button on a device with a magnified view highlighting the button's rotation.

Illustration of a microwave oven being opened on a table, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and a curved component (no text or symbols)

Simple line drawing of a rectangular box placed on a stand (no text or symbols)

!SPÈJIMAS!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a bracket and mounting base (no text or symbols)

Technical line drawing of a simple rectangular frame with a flat top and two small side supports (no text or symbols)

Line drawing of a hand pressing down on a device panel with a circular icon at the bottom (no text or symbols)

Diagram of a mechanical device with a tray and load, showing internal components (no text or symbols)

Diagram of a kitchen appliance with a basket and directional arrow (no text or symbols)

Diagram of a device with a tray and directional arrow, no text or symbols present

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

WAARSCHUWING!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a tool interacting with a base plate (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand pressing a button labeled '1x' into a circular component with a 3 mm scale indicator.

Illustration of a microwave oven being compressed onto a table, showing motion arrows (no text or symbols)

Diagram showing two views of a device with arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and a circular component (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

WAARSCHUWING!

Diagram showing a lever mechanism with arrows indicating force direction, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a bracket and mounting base (no text or symbols)

Simple line drawing of a rectangular frame with a flat top and two side supports (no text or symbols)

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

ADVARSEL!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's tip and arrow indicating direction (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a device with a 3 mm radius adjustment and a 1x speed indicator.

Illustration of a microwave oven on a tray, showing motion and component changes (no text or symbols)

Diagram showing two views of a refrigerator with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and circular component (no text or symbols)

Simple line drawing of a rectangular box with a lid, no text or symbols present

ADVARSEL!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

1 Skru ut alle tre skruene på baksiden av apparatet.

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a bracket and mounting base (no text or symbols)

Simple line drawing of a rectangular table with a flat top and two small side supports (no text or symbols)

4 Endelig montering av den skjulte hjelperen på en vaskemaskin eller tørketrommel, sett bakfra. Hvis de øvre beslagene er i veien, kan du fjerne dem for et bedre visuelt utseende.

INFORMASJON!

Før du trekker til festebeslaget, må du kontrollere at kantene på den skjulte hjelperen (hidden helper)er nøyaktig innrettet med kantene på vaskemaskinen eller tørketrommelen.

Technical line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

⚠ OSTRZEŻENIE!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a device with a 1x x 3 mm scale indicator and a magnified view of the device's internal structure.

Illustration of a microwave oven on a tray with motion arrows indicating movement (no text or symbols)

Diagram showing two views of a device with internal compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a curved pipe (no text or symbols)

Simple line drawing of a rectangular box placed on a stand (no text or symbols)

⚠ OSTRZEŻENIE!

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a lever mechanism (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a bracket and mounting base (no text or symbols)

Simple line drawing of a rectangular table with a lid and two side supports (no text or symbols)

Diagram illustrating four steps of appliance cooling system with labeled components and directional arrows

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

! CUIDADO!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a tool (no text or symbols present)

TD Heat pump 76

Máquina de secar roupa com bomba de calor TD 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a washing machine and its hand holding a button with a 1x ratio indicator and a 3 mm scale marker.

Illustration of a microwave oven being opened on a tray, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with drawers and drawers, no text or symbols present

Technical line drawing of a mechanical assembly with mounting brackets and a curved pipe (no text or symbols)

Máquina de secar roupa com bomba de calor TD 86

Simple line drawing of a rectangular box with a lid, no text or symbols present

CUIDADO!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular table with a flat top and a side panel, no text or symbols present.

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

⚠️ ПРЕДОСТЕРЕЖЕНИЕ!

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with the component (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing force application (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Diagram of a table with structural supports and an inset showing force application on a beam (no text or symbols)

Diagram showing a hand operating a device with a 1x speed indicator and a magnified view of the component's rotation.

Illustration of a microwave oven being compressed onto a tray, showing motion arrows (no text or symbols)

Diagram showing two views of a device with labeled ports and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a circular component (no text or symbols)

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

⚠️ ПРЕДОСТЕРЕЖЕНИЕ!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a mechanical device with a magnified inset showing force application (no text or symbols)

Diagram showing a mechanical assembly with a pin inserted into a housing, and a magnified inset highlighting the component (no text or symbols present)

Simple line drawing of a rectangular electronic device with a flat top and two side supports (no text or symbols)

Line drawing of a hand pressing down on a device panel with a circular button (no text or symbols)

Diagram of a person lying on a bed with an arrow indicating motion (no text or symbols)

Diagram of a kitchen appliance with a basket and directional arrow (no text or symbols)

Diagram of a mechanical device with a lever and rotating component (no text or symbols)

Technical line drawing of a rectangular frame with two downward arrows indicating force or displacement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

! VAROVANIE!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Odvetrávacia sušička TD 76/86

Držiaky sa musia otočit o 180°. Najprv ich odskrutkujte, otočte a znovu utiahnite.

Diagram of a table with structural supports and an inset showing force application on a beam (no text or symbols)

Diagram showing a hand operating a mechanical device with a 1x ratio adjustment and a magnified view of the component's rotation.

Illustration of a microwave oven on a stand with arrows indicating motion, no text or symbols present

6 Zdvihnite sušičku a bezpečne ju umiestnite na skrinku a zatlačte ju dozadu, kým nezacvakne v prednastavených držiakoch.

Diagram showing two views of a refrigerator with a handle and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and circular component (no text or symbols)

Potom skrinku opät vložte.

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

! VAROVANIE!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with a magnified inset showing internal components and directional arrows (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a bracket and mounting base (no text or symbols)

Technical line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Diagram illustrating four steps of appliance cooling system with labeled components and directional arrows

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

! OPOZORILO!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

1 Na hrbtni strani pralnega stroja odvijte vs tri vijake.

Diagram of a mechanical device with arrows indicating force or movement, showing a lever and handle assembly (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

Skriti pomočnik je potrebno na levi in desni strani elementa proti prevračanju priviti na prali stroj.

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a device with a button labeled '1x' and a magnified view of the button's adjustment, likely illustrating a mechanical or electrical setup.

Illustration of a microwave oven being opened on a tray, showing motion arrows (no text or symbols)

Diagram showing two views of a refrigerator with arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a curved component (no text or symbols)

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

OPOZORILO!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Simple line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Diagram illustrating four steps of a kitchen appliance ventilation system with labeled components and airflow direction

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

! WARNING!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's tip and arrows indicating motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing force application on a beam (no text or symbols)

Diagram showing a hand operating a device with a 1x speed limit and a magnified view of the component being turned into a circular housing.

Illustration of a microwave oven being opened on a table, showing motion arrows (no text or symbols)

Diagram showing two views of a device with labeled ports and arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Ventilerad torktumlare TD 76/86

Simple line drawing of a rectangular box with a lid, no text or symbols present

! WARNING!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and an inset magnified view (no text or symbols)

2 Montera Hidden Helper på produkten.

Diagram showing a mechanical assembly with a bracket and a close-up inset of a pin inserted into a base (no text or symbols)

Simple line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Line drawing of a hand pressing down on a device panel with a circular icon at the bottom (no text or symbols)

Diagram of a vehicle's exhaust system showing material being washed onto a tray (no text or symbols)

Diagram of a kitchen appliance with a basket and directional arrow (no text or symbols)

Diagram of a device with a tray and directional arrow, no text or symbols present

Simple line drawing of a rectangular frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

! УВАГА!

Diagram showing a tool interacting with a device, with an inset magnified view of the tool's motion (no text or symbols present)

Diagram of a mechanical device with a magnified inset showing a lever mechanism (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Diagram of a table with structural supports and an inset showing force application on a beam (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale adjustment and a 1x speed indicator.

Illustration of a microwave oven being opened on a machine, showing motion arrows (no text or symbols)

Diagram showing two views of a device with labeled ports and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

! УВАГА!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a mechanical device with a magnified inset showing force application (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a pin inserted into a housing (no text or symbols present)

Simple line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Technical line drawing of a rectangular metal frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

警告!

Diagram showing a tool interacting with a wooden table, with arrows indicating direction of movement (no text or symbols present)

1 拧下洗衣机背面的所有三颗螺丝。

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a lever mechanism (no text or symbols present)

2 将隐藏助手安装到洗衣机上。

Technical diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

热泵式干衣机TD 76

TD Heat pump 86

热泵式干衣机TD 86

必须事先从隐藏助手拆下螺丝和支架。

安装隐藏助手(Hidden Helper)

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a 1x battery next to a 3 mm scale adjustment, with a device labeled '1x' visible.

Illustration of a device being opened into a tray, showing motion arrows and component placement (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

通风式干衣机TD 76/86

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with a surface (no text or symbols present)

Diagram of a device with a magnified inset showing internal components and directional arrows (no text or symbols)

警告!

Diagram of a mechanical assembly with a magnified inset showing a pin inserted into a base plate (no text or symbols present)

Technical line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Technical line drawing of a rectangular metal frame with two downward arrows indicating force or movement (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

Diagram showing a tool interacting with a wooden table, with arrows indicating direction of movement (no text or symbols present)

Diagram of a device with a lever and directional arrows indicating movement or force (no text or symbols present)

警告!

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

TD Heat pump 76

帶熱泵的幹衣機TD 76

TD Heat pump 86

熱泵式幹衣機TD 86

必須事先從隱藏助手拆下螺絲和支架。

安裝隱藏助手(Hidden Helper)

TD Vented 76/86

Diagram of a table with supports and a magnified inset showing structural details (no text or symbols)

Diagram showing a hand operating a 1x battery next to a 3 mm scale adjustment, with an inset close-up highlighting the component.

Illustration of a device being opened into a tray, showing motion arrows and component placement (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

通風式幹衣機TD 76/86

Simple line drawing of a rectangular desk with a top and side panel (no text or symbols)

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with a surface (no text or symbols present)

Diagram of a device with a magnified inset showing internal components and directional arrows (no text or symbols)

警告!

Diagram of a mechanical assembly with a magnified inset showing a pin inserted into a base (no text or symbols present)

Technical line drawing of a rectangular electronic device with a flat top and two mounting holes (no text or symbols)

Inspired by Scandinavia

ASKOAPPLIANCESAB•SOCKERBRUKSGATAN3,SE-53140LIDKÖPING,SWEDEN • www.asko.com
