USER MANUAL RP320 H.KOENIG

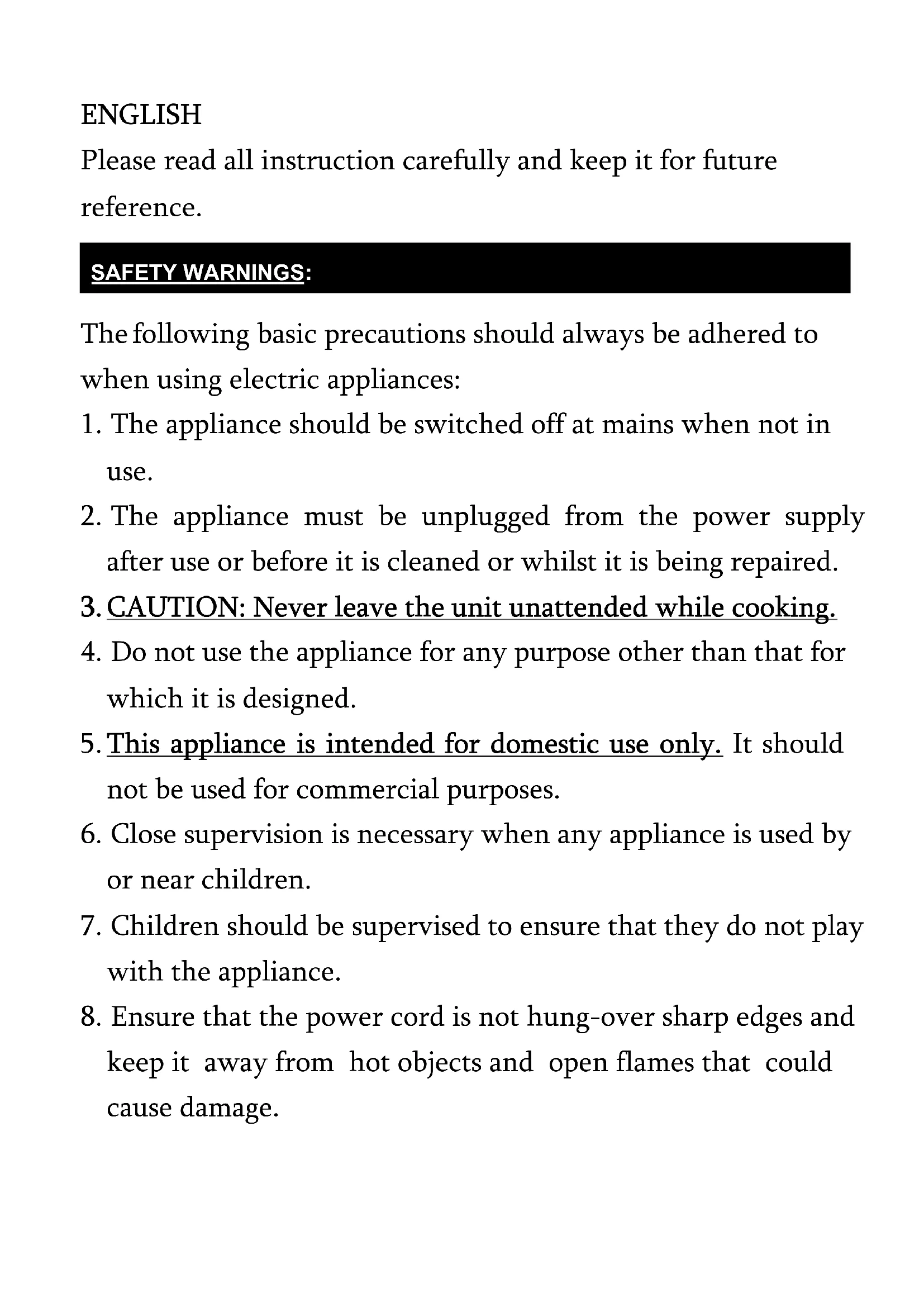

1. The appliance should be switched off at mains when not in

2. The appliance must be unplugged from the power supply

after use or before it is cleaned or whilst it is being repaired.

3. CAUTION: Never leave the unit unattended while cooking.

4. Do not use the appliance for any purpose other than that for

which it is designed.

5. This appliance is intended for domestic use only. It should

not be used for commercial purposes.

6. Close supervision is necessary when any appliance is used by

7. Children should be supervised to ensure that they do not play

8. Ensure that the power cord is not hung-over sharp edges and

keep it away from hot objects and open flames that could cause damage. SAFETY WARNINGS:9. Check the Electric Grill and power cord regularly for damage.

10. Do not operate this appliance if it has a damaged cord or

plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

11. In case and extension cable is necessary, it must be earthed.

12. Do not use two-way socket with another appliance.

13. Do not place on or near gas stove, electric stove or in a

14. Keep curtains, furniture, flammable materials, etc. away

from the unit and from the convenience outlet where the unit is plugged.

16. Do not use accessories not recommended or sold with this

17. To protect against electric shock, NEVER immerse the

appliance with heating element or cord into water.

18. This appliance is not intended to be operated by means of

used with this appliance.20. The appliance must be used on a heat-resistant surface.

21. Do not use metal or sharp implements when cooking as

these will damage the non-stick surface.

22. Ensure there is sufficient ventilation around the appliance

to allow the escape of heat and steam.

23. This appliance contains no user serviceable parts. All

repairs should only be carried out by a qualified engineer. Improper repairs may place the user at risk of harm.

24. Do not operate the appliance after a malfunction or if it has

been dropped or damaged in any way.

25. Do not move the Electric Grill while it is in use or while it

contains hot oil or fat. Doing so could cause serious harm to the operator and/or third parties.

26. Do not Place anything between the grill plate and the food

(e.g. dish, aluminum foil, etc.)

27. Before switching off at the mains turn the thermostat to

the stop position (0) or switch to off.

28. Never leave outdoors and always store.

29. Failure to follow all instructions listed may result in

electric shock, fire or serious personal injury. The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur while the product is in use. It must be understood by the Operator that common sense must be adopted whenoperating the appliance.

30. This appliance may be used by persons with reduced

physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

31. If the power cord is damaged, it must be replaced with an

after-sales service to avoid any danger.

32. This appliance may be used by children of at least 8 years

of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

33. Cleaning and maintenance should not be carried out by

children unless they are at least 8 years of age and are supervised by an adult.

34. Keep the appliance and its power cord out of reach of

children under 8 years of age.

35. When using electrical equipment, safety precautions must

always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

36. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

37. Never leave the unit unattended while in operation.38. Please keep this document at hand and give it to the future

owner in case of transfer of your device.

39. The device must not be used if it has been dropped, it

obvious signs of damage are visible or if it has leaks. Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty: - in staff kitchen areas in shops, offices and other professional environments, - in farm hostels, - by guests in hotels, motels and other residential environments, - in bed and breakfast type environments.

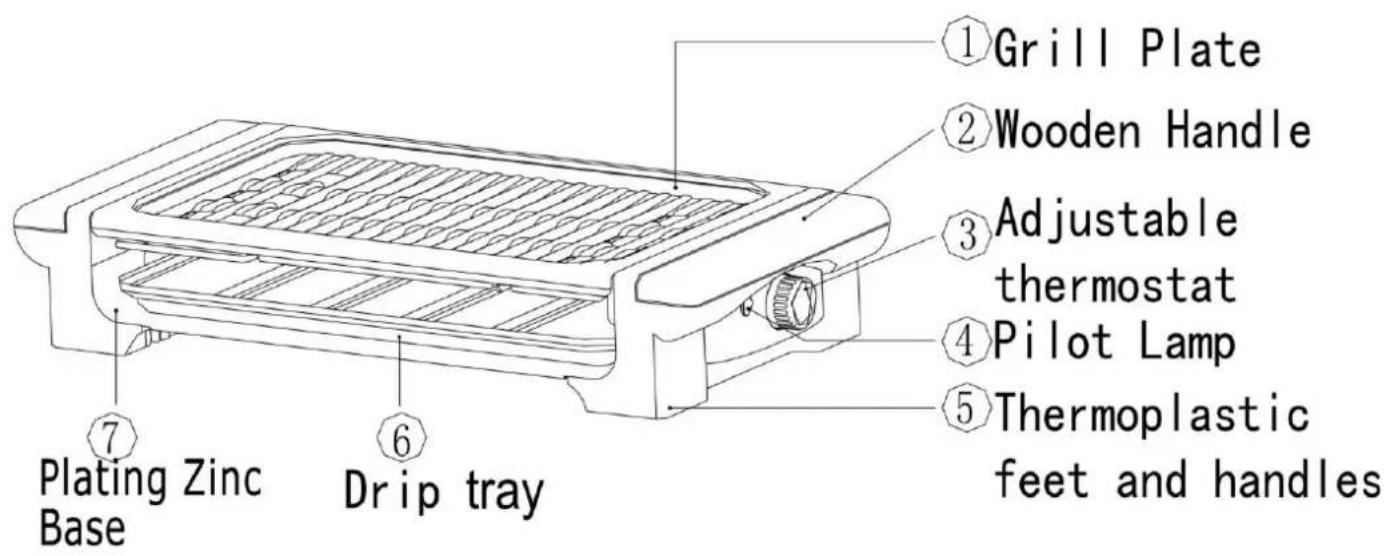

COMPONENTS:Getting started ⚫ Read all instructions carefully. ⚫ Remove any packaging from the product. ⚫ Place the packaging inside the box and either store or dispose of responsibly. Assembly

1. Check that the voltage of your appliance is the same as your mains (220-240Va.c.).

2. Place the unit on a flat and stable surface. The device must be used on a surface which is heat insulating

3. Place the Grill Plate on top of the Cool Touch Base. Be sure that it is properly fixed.

4. Place the Oil Drip Tray on the bottom of the Grill Plate.

Before each use, unwind the flex completely. And move it two to four inches away from the wall. Remove any object that may have been on top of the unit.

1. Plug the unit and switch on at the mains

2. Pull out the Oil Drip Tray and fill with water to half tray to reduce smoke while cooking. Then slide

the Oil Drip Tray carefully back into position. Important: Do not pour water over the heating element.

3. Adjust the Variable Temperature Control to the needed cooking temperature, from MIN to Max.

NOTE: For initial use, some smoke may be observed and odor when the unit is turned ON, this is normal.

4. Pre-heating:10-15 minutes.

HOW TO USE:5. Put the food items such as meat, fish or vegetables onto the Grill Plate for grilling.

6. Remove the food once the grilling process is complete.

7. Turn OFF after use and unplug the unit.

1. Ensure the drip tray is always filled with water to avoid overheating of the appliance and make clean-

2. All parts of the unit will be very hot, especially Grill Plate and Drip Tray when in use. Be careful of

3. Do not use this grill on unstable surfaces on top of flammable materials (eg.newspaper, cloth, carpets,

4. The appliance must be used on a heat-resistant surface.

1. The pilot light indicates that the appliance is heating up.

2. When the item is working, it will stop heating and pilot light will be off when the heater temperature

reaches to the set temperature. And it restarts again after 1-2 minutes.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Turn OFF the Variable Temperature Control and unplug the unit from the mains power supply and let it cool down thoroughly before cleaning. Be sure that the unit is cool enough before putting ON or taking OFF parts. The Grill Plate and Oil Drip Tray are washable with soap and water. Attention: They only should be cleaned with a sponge added washing-up liquid or dishwasher liquid. (NO scouring powder and brush!). Do not use metal scouring in cleaning the unit. Do not immerse the Cool Touch Base with Heating Element in water or any other liquids. Wipe the unit base with a damp cloth and dry thoroughly. To avoid scratching the non-stick surface, do not use harsh or abrasive cleaning agents. Reassemble the Electric Grill and BBQ after drying and then store. Stone care: Clean your stone using a metal scraper to remove any residue, then rinse it with a sponge and warm water, without adding dishwashing liquid. If necessary, let it soak. You can use steel wool, although this may dull its shine without affecting its performance. Be sure to dry the stone CLEANING AND MAINTENANCE:thoroughly before storing it to prevent condensation and oxidation. Note that the stone will darken gradually over time and with use. To maintain granite stone and prevent yellowing due to light, heat, and oxygen, use specific, non- abrasive, acid-free products. If foods have burnt onto the grill plate, leave it to soak for a few hours, and then clean it as described above.

Symptoms Possible Cause Solution Grill not heating. Plug fuse failed. Replace with another of the same type and rating. Thermostat set low or off. Increase thermostat setting. Odors or smoke coming from under the grill surface. Insufficient water in drip tray. Add water, taking care as the drip tray will be hot.

WARRANTY The warranty period for our products is 2 years. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél: +33 1 64 67 00 05FRANÇAIS Lisez ce manuel avant utilisation et conservez-le. Suivez ces instructions lorsque vous utilisez un appareil électrique :
