USER MANUAL NZR 1.5 B1 NEVADENT

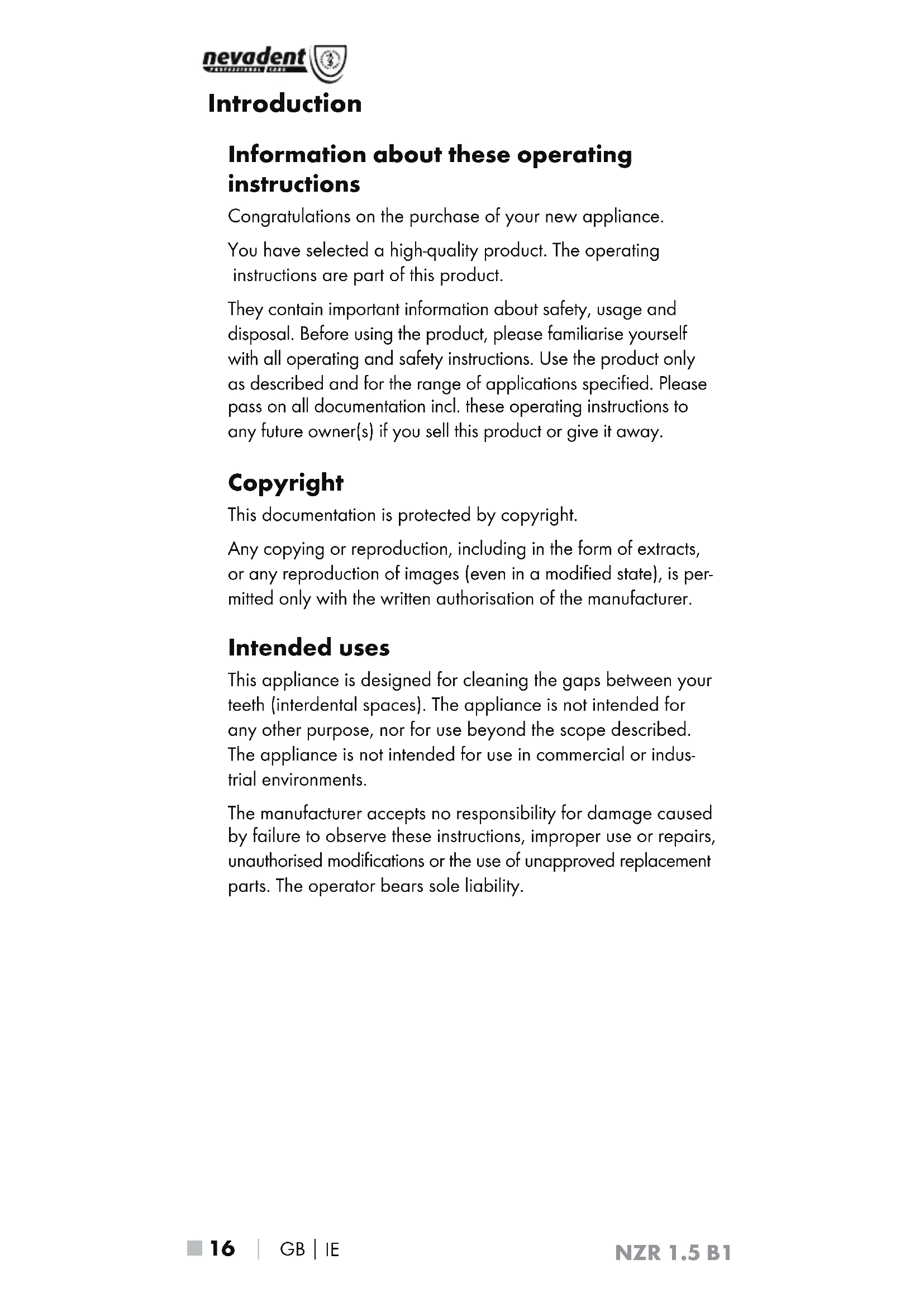

Introduction Information about these operating instructions Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please pass on all documentation incl. these operating instructions to any future owner(s) if you sell this product or give it away. Copyright This documentation is protected by copyright. Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is per- mitted only with the written authorisation of the manufacturer. Intended uses This appliance is designed for cleaning the gaps between your teeth (interdental spaces). The appliance is not intended for any other purpose, nor for use beyond the scope described. The appliance is not intended for use in commercial or indus- trial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The operator bears sole liability.NZR 1.5 B1

 17 ■ Warnings The following warning notice types are used in these operating instructions: CAUTION A warning notice at this hazard level indicates a risk of property damage. Failure to avoid this situation could result in material damage. ► Follow the instructions in this warning notice to prevent material damage. NOTE ► A note provides additional information that will assist you in using the appliance. Safety This section contains important safety instructions for using the appliance. This appliance complies with statutory safety regulations. Im- proper use may result in personal injury and property damage. Basic safety instructions To ensure safe operation of the appliance, follow the safety guidelines set out below: ■ Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped. ■ Cleaning and user maintenance should not be performed by children unless they are under supervision.NZR 1.5 B1 ■ 18 

Cleaning attachments may be used by children and people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been instructed how to use the appliance safely and have under- stood the potential risks. ■ Children must not play with the appliance. ■ Do not allow children to play with pack- aging materials. There is risk of suf- focation. ■ The cleaning attachments may not be swallowed or inhaled. If this does happen, however, contact a doctor immediately. ■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims. The hand element may not be dis assembled by the user. ■ Repairs to the appliance during the war- ranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise, no war- ranty claims will be held for any subse- quent damages.NZR 1.5 B1

 19 ■ ■ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used. ■ Do not place any objects on the appliance. ■ Never operate the appliance in the direct vicinity of open flames (e.g. candles) or in extreme environmental conditions (e.g. in an explosive atmosphere). ■ If you notice any unusual noises, smoke or similar uncertain situations, remove the batteries and disconnect any attached mains adapter from the power supply and contact Customer Service (see section “Service”). Information on using batteries CAUTION

Do not throw batteries into a fire. ► Never short-circuit batteries. ► Do not attempt to recharge the batteries. ► Check the condition of the battery regu- larly. Leaking battery acid can cause permanent damage to the appliance. ► Special care should be taken when handling damaged or leaking batteries. Risk of acid burns! Wear protective gloves.NZR 1.5 B1 ■ 20 

Store batteries in a place that is inacces- sible to children. If a battery is swallowed, seek medical attention immediately. ► If you do not intend to use the appliance for a long time, remove the battery. Operating components (See fold-out page for illustrations) Appliance head Cleaning attachment Attachment fitting Hand element Operating button Battery Housing Storage box Operation Package contents and transport inspection Check the contents of the package. The product includes the following components: ● Power flosser ● 1×1.5V battery ● 30 cleaning attachments ● Operating instructions NOTE ► Check the package for completeness and signs of visible damage. ► If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service). ♦ Remove all parts of the appliance and the operating instructions from the carton. ♦ Remove all packaging material.NZR 1.5 B1

 21 ■ Power supply ♦ Use a 1.5V battery to operate the appliance. To insert the supplied battery proceed as follows:

1) Carefully pull the housing off the hand set

and place it to one side.

2) Insert the battery . Pay attention to the polarity

markings given in the battery compartment.

3) Push the housing back onto the hand set until it sits

firmly in place and the gap is fully closed. The anti-slip dimples on the housing must be on the same side as the anti-slip dimples on the hand set . The writing on the housing must be on the same side as the operat- ing button . NOTE ► If the effectiveness of the cleaning starts to decrease, the battery needs to be replaced. Handling and use This section provides important information about proper hand- ling and operation of the appliance. Fitting the cleaning attachment

1) Remove the appliance head by turning it slightly so

that the dot on the appliance head is aligned with the symbol on the hand set . Then pull the appliance head upwards and off.

2) Push the attachment fitting into the hole of one of the

cleaning attachments in the storage box . You will feel a slight click.

3) Pull the hand set away from the storage box . The

cleaning attachment comes out of the storage box .

4) Check that the cleaning attachment is firmly attached

to the attachment fitting . If necessary, push the cleaning attachment onto the attachment fitting with slightly more force.NZR 1.5 B1 ■ 22 

attachment through the hole in the appliance head . The dot on the appliance head must align with the symbol. Turn the appliance head until the dot is lined up with the symbol Cleaning the interdental spaces NOTE ► We recommend using the appliance in front of a mirror so that you can guide the appliance more confidently and avoid injuring your gums. ► You can use this appliance every day to clean your inter- dental spaces. If you do so, we recommend changing the cleaning attachment roughly every 3 days, as every use causes the edges of the cleaning attachment to round off a little, reducing the cleaning effectiveness.

1) Hold the appliance vertically during the entire cleaning

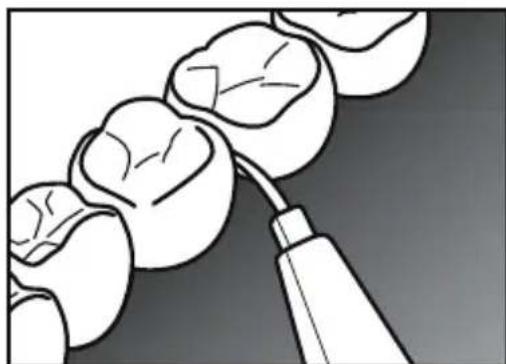

2) Guide the cleaning attachment from the outside into

the interdental space you wish to clean. The cleaning attachment is long enough: there is no need to also clean the interdental spaces from the rear.

3) Press the operating button . The cleaning attachment

4) Move the appliance up and down to clean the entire

lateral surfaces of the adjacent teeth. NOTE ► Do not use force when using the appliance! If you experi- ence discomfort during one cleaning phase, continue with a different interdental space.NZR 1.5 B1

5) Once the interdental space appears sufficiently clean,

release the operating button . The appliance stops.

6) Pull the cleaning attachment out of the interdental space

and continue cleaning with the next interdental space. NOTE

Divide your jaw into 4 quadrants. Once you have cleaned all the interdental spaces in one quadrant, rinse the cleaning attachment under running water.

7) After completing the cleaning session, rinse the cleaning

attachment thoroughly under running water. Hold the appliance so that the cleaning attachment is pointing downwards and the water flows over the cleaning attach- ment. If you want to remove and dispose of the cleaning attachment :

1) Remove the appliance head by turning it a little so that

point on the appliance head is aligned with the

symbol on the hand set . You can then remove the appliance head .

2) Pull the cleaning attachment off the attachment fitting .

If it is attached too firmly, use the removal tool on the storage box .

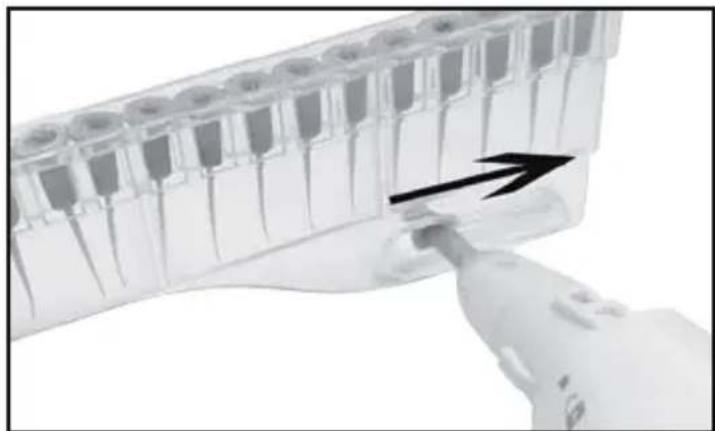

3) To do this, push the cleaning attachment all the way

through the opening in the storage box and move the hand set together with the appliance head in the direction of the arrow: This will remove the cleaning attachment from the attachment fitting and it will fall off.NZR 1.5 B1 ■ 24 

NOTE ► To reorder cleaning attachments , please contact our service department (see section "Ordering replacement parts"). Cleaning CAUTION Damage to the appliance! ► To avoid irreparable damage to the appliance, ensure that no moisture can penetrate the appliance during cleaning. ■ Clean the surfaces of the appliance with a damp cloth. Use a normal commercial detergent and a little water to remove stubborn residue. Ensure that no water gets into the appliance. ■ To clean the appliance head , remove it from the hand set and rinse it under running water. Allow the appliance head to dry before replacing it on the hand set . Storage/disposal Storage If you plan not to use the appliance for an extended period, store it in a clean, dry place out of direct sunlight. Disposal of the appliance Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU. Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please comply with all applicable regulations. Please contact your waste disposal centre if you are in any doubt.NZR 1.5 B1

 25 ■ Disposal of (rechargeable) batteries Used batteries must not be disposed of in the household waste. Consumers are legally obliged to dispose of (rechargeable) batteries at a collection point in their community/city district or at a retail store. The purpose of this requirement is to ensure that batteries are disposed of in an environmentally friendly manner. Only dis- pose of batteries when they are fully discharged. Disposal of packaging The packaging is made of environmentally friendly materials which you can dispose of at your local recycling centre. Appendix Technical details Voltage supply 1.5V battery, size AA, LR6,

Protection class IPX4 Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.NZR 1.5 B1 ■ 26 

Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.NZR 1.5 B1

 27 ■ Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase. ■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 293935 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

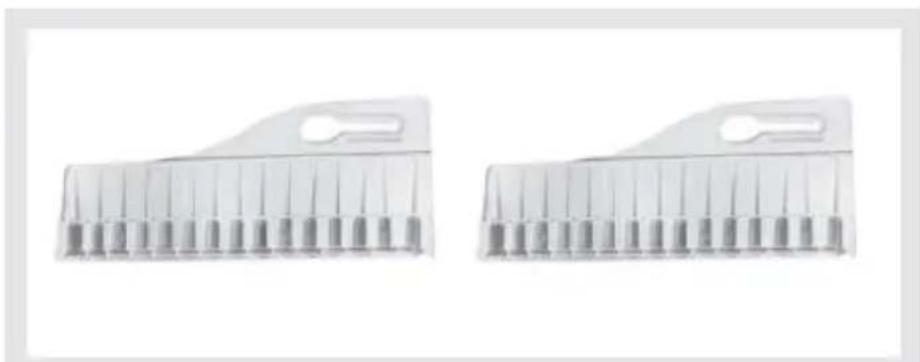

Ordering replacement parts You can order the following replacement parts for the product NZR 1.5 B1: ► Set: 30 cleaning attachments Order the replacement parts via the Service Hotline (see “Service” section) or simply visit our website at www.kompernass.com. NOTE ► Have the IAN number of the appliance ready (can be found on the cover of these operating instructions) when you place your order.FR
