Brand	Auriol
Model	HG02743A
Product type	Analog watch
Power supply	Button cell 1.5 V, type SR626SW
Display	Hour, minute and second hands
Time setting	By crown in unlocked position
Water resistance	Yes, suitable for rain, shower, bath, swimming and diving (according to pictograms)
Bracelet adjustment	By removing links using the repair kit (selected models)
Package contents	1 watch, bracelet(s), pre-installed battery, instruction manual, repair kit (depending on model)
Warranty	3 years from date of purchase
Intended use	Private use only, not for commercial use
Cleaning and care	Slightly damp lint-free cloth; rinse under running water if necessary
Battery replacement	To be carried out by a specialist
Water resistance pictograms	Use in rain, shower, bath, swimming, windsurfing and diving (depending on model)
Bracelet models	Silver, gold, rose gold; with or without sparkle
Recycling	Recyclable packaging; batteries and product to be disposed of at a collection point

Frequently Asked Questions - HG02743A AURIOL

How to set the time on the Auriol HG02743A watch?

Pull the crown to the unlocked position, then turn it to set the hours and minutes. Push the crown in to start the second hand.

How to adjust the bracelet length?

For models HG03031A/C, open the clasp and remove 1 or 2 links. For model HG03031E, use the repair kit to extract the pins and remove the links.

Is the watch waterproof?

Yes, according to the pictograms, it is suitable for rain, shower, bath, swimming and diving. However, the water resistance is not permanent and must be checked regularly.

Which battery to use for the watch?

A 1.5 V button cell type SR626SW. Replacement must be carried out by a specialist.

How to clean the watch?

Clean the outside with a slightly damp lint-free cloth. Rinse under running water if necessary, then dry well.

What does the 3-year warranty cover?

The warranty covers material and manufacturing defects. It excludes normal wear (batteries), damage to fragile components, loss of water resistance and unauthorized repairs.

How to recycle the watch at end of life?

Do not dispose of the watch with household waste. Take it to a municipal collection point. Used batteries must be recycled separately.

Why can water resistance decrease over time?

The water resistance components wear out with daily use. Annual checks are recommended, especially before intensive use.

How to remove a pin from the bracelet?

Use the repair kit to push the pin upward. If necessary, use small pliers. Follow the illustrations in the manual.

Can the watch be used for scuba diving?

Yes, according to the pictogram, it is suitable for diving. However, check the water resistance before each dive and have it checked annually.

USER MANUAL HG02743A AURIOL

ARMBANDUHR-SCHMUCKSET WRIST WATCH JEWELLERY SET PARURE MONTRE ET BRACELET

DE AT CH

ARMBANDUHR-SCHMUCKSET

WRIST WATCH JEWELLERY SET

Operation and safety notes

FR BE

PARURE MONTRE ET BRACELET

GB/IE Operation and safety notes Page 17

List of pictograms used . Page 18

Introduction. Page 18

Intended use. Page 19

Description of parts.. Page 19

Technical data . Page 20

Scope of delivery . Page 20

Before first use. Page 21

Changing the battery. Page 21

Setting the time. Page 21

Water resistance . Page 22

Shortening the watch strap . Page 22

Model no. HG03031A / HG03031C.... Page 22

Model no. HG03031E . Page 22

Removing segments (Fig. D). Page 23

How to exchange the pin inside the slider (Fig. E, F, G).Page 24

Cleaning and care . Page 24

Disposal. Page 25

Warranty . Page 27

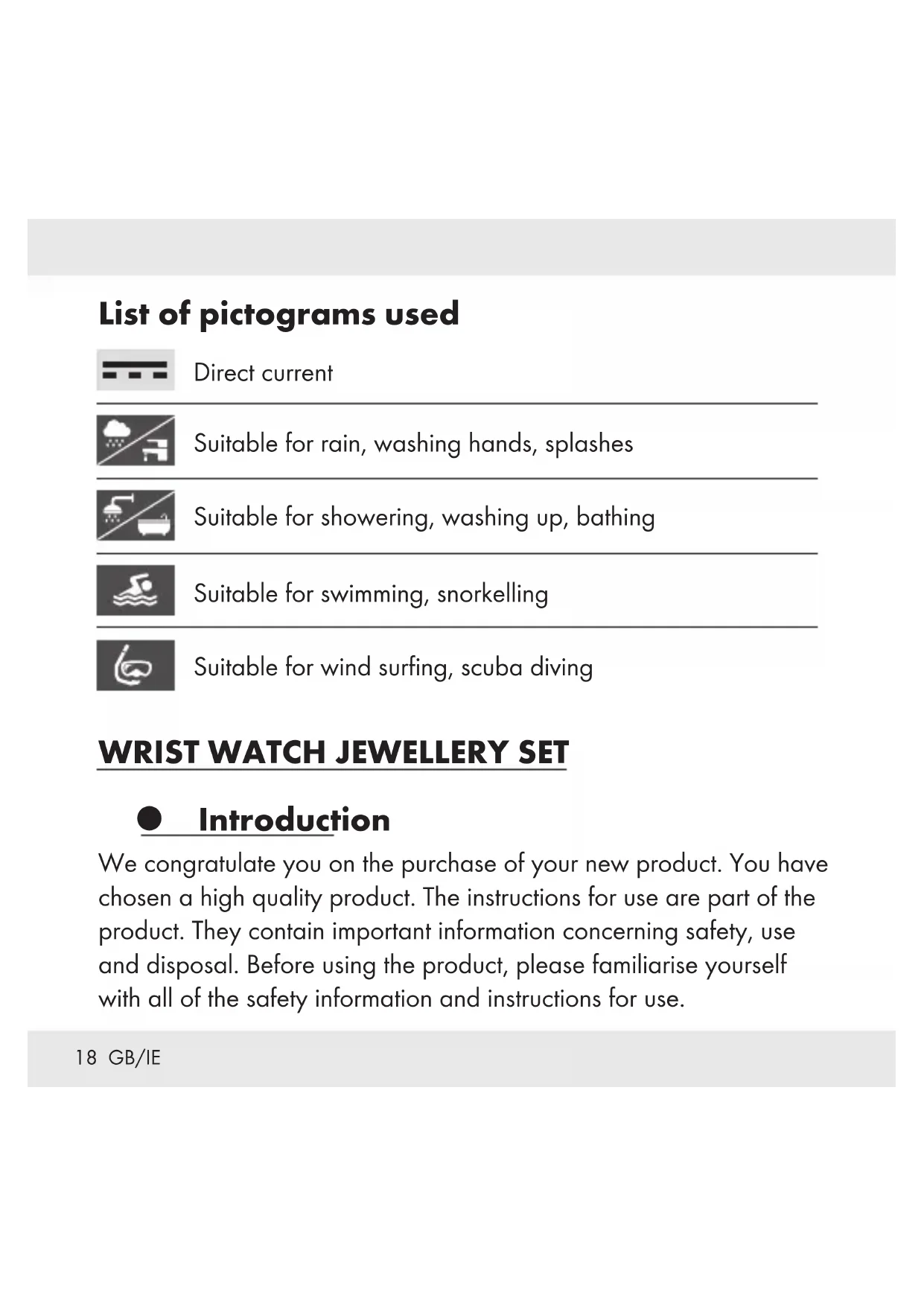

List of pictograms used

Direct current

Suitable for rain, washing hands, splashes

Suitable for showering, washing up, bathing

Suitable for swimming, snorkelling

Suitable for wind surfing, scuba diving

WRIST WATCH JEWELLERY SET

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use.

Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for consumer use only and must not be used in commercial areas.

Description of parts

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 Unlock position
6 Fastener (for model HG03031A / HG03031C)
Segment (for model HG03031E)
Repair set (for model HG03031E)
9 Slider (for model HG03031E)
10 Spare pin (for model HG03031E)
Bottom cover (for model HG03031E)

Technical data

Battery: 1 × 1.5 ~V =

Button cell (type SR626SW)

Model number:

HG03031A: Silver Glossy

HG03031B: Gold Glossy

HG03031C: Gold

HG03031D: Shiny Rose Gold

HG03031E: Glossy Rose Gold

HG03031F: Glossy Silver

Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch
1 Bracelet (HG03031B / D /E / F)
2 Bracelets (HG03031A / C)
1 Battery (pre-installed)
1 Set of instructions for use

1 Repair set (HG03031E)
2 Additional segments (HG03031E)

Before first use

Remove all packaging materials from the product.

Changing the battery

Note: Have batteries changed in a specialist shop.

Setting the time

1. To set the time, pull the crown 2 out to the unlock position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

Water resistance

Figure B shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

- Shortening the watch strap

Model no. HG03031A / HG03031C

To shorten the watch strap, 2 removable segments are included. Open the fastener of the watch strap and the fastener of the removable segment. Remove 1 or 2 segments and re-close the fastener of the watch strap (see Fig. C).

Model no. HG03031E

Note: The watch strap can be shortened by removing segments (2 spare units are included). To this purpose you should use the repair set supplied.

- Removing segments (Fig. D)

Note: The segments which can be removed are marked with an arrow (see Fig. D). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 8. Use a pair of tweezers if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 8.
Remove the pins of the segment that you wish to remove (as described above) and take out the segment 7.

Note: If you would like to take out more than one consecutive segment 7 , it is sufficient to remove the two outer pins.

Connect the watch strap together again by joining the loose segments 7 with a pin. Press this pin against the direction of the arrow into the adjacent segments 7 .

- How to exchange the pin inside the slider (Fig. E, F, G)

Take out the slider, open the bottom cover [11] with the spare pin [10] inside (Fig. F).

• You will need the pliers to carefully remove the old pin from the slider (Fig. G).
  Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed.

Cleaning and care

Clean the product on the outside only with a soft, wet and clean cloth.

Rinse the product under the running water if necessary. Dry thoroughly after rinse.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

C E
