| Product type | LED flashlight with powerbank |
| Brand | Livarno Lux |
| Model | 10395 |
| Light source | LED 3 W CREE XPE-R2 |
| Luminous flux | 120 lumens |
| Lighting modes | 100%, 30%, SOS |
| Power supply | Lithium-ion battery 18650 2200 mAh |
| Input voltage (charging) | 5 V, 1 A |
| Output voltage (powerbank) | 5 V, 2.1 A |
| Protection rating | IP44 (only with cover) |
| Focusing | Rotary ring |
| Use as external battery | Yes |
| Vehicle adapter | Input 12-24 V, output 5 V 1 A |
| Package contents | Flashlight, battery, USB cable, vehicle adapter, user manual |
| Cleaning | With a soft, dry cloth |
| Safety instructions | Do not look into the LED, do not immerse, keep out of reach of children |
| Warranty | 36 months |
| Customer service | Uni-Elektra GmbH, tel. 00800 888 11 333 |
Frequently Asked Questions - 10395 Livarno Lux
User questions about 10395 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual 10395 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 10395 by Livarno Lux.
USER MANUAL 10395 Livarno Lux
DE AT CH
LED-TASCHENLAMPE MIT POWERBANK
Operation and Safety Notes
FR BE
LAMPE DE POCHE À LED AVEC CHARGEUR
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
Scope of delivery....Page 15
Parts description......Page 15
Technical data......Page 15
Safety notices......Page 16
Safety instructions for rechargeable batteries......Page 16
Inserting/replacing the battery and charging......Page 17
Initial use Page 17
Using the car adapter....Page 17
Using the power bank......Page 18
Cleaning and care......Page 18
Disposal Page 18
Warranty and service......Page 19
Service address......Page 19
Manufacturer......Page 20

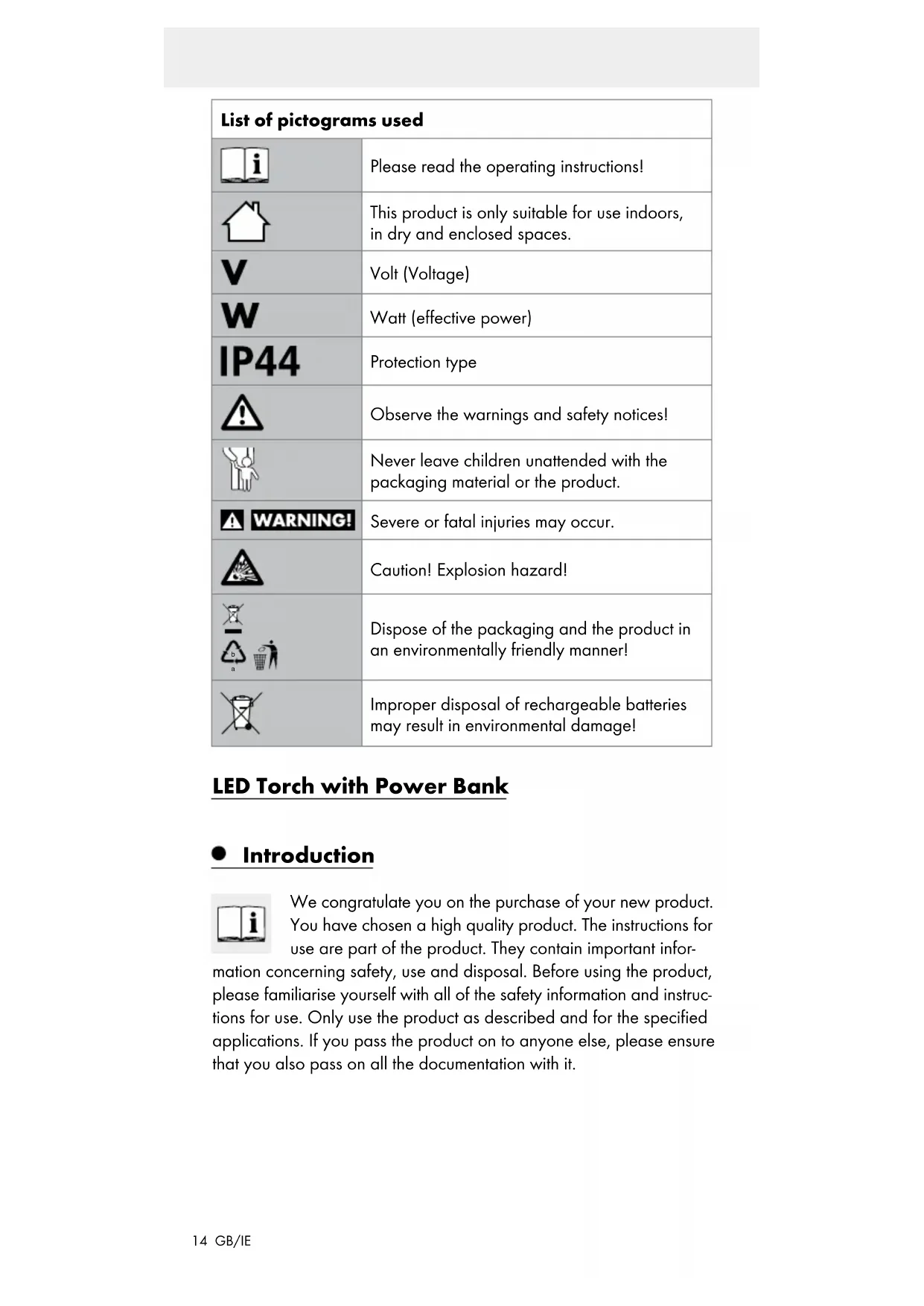

| List of pictograms used | |
 | Please read the operating instructions! |
 | This product is only suitable for use indoors, in dry and enclosed spaces. |
 | Volt (Voltage) |
 | Watt (effective power) |
 | Protection type |
 | Observe the warnings and safety notices! |
 | Never leave children unattended with the packaging material or the product. |
[DZZ]  | Severe or fatal injuries may occur. |
 | Caution! Explosion hazard! |
   | Dispose of the packaging and the product in an environmentally friendly manner! |
 | Improper disposal of rechargeable batteries may result in environmental damage! |
LED Torch with Power Bank
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important infor-
mation concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
The LED torch is not intended for use as indoor lighting and is only intended for private household use. The car adapter can be used in a normal car socket that provides the rating given under "Technical Data". Any modifications to the product are considered improper use and may result in considerable hazards. The manufacturer assumes no liability for damages arising from improper use. This product is not intended for commercial use.
- Scope of delivery
1 LED Torch with Power Bank
1 Lithium-ion rechargeable battery
1 USB Charging Cable
1 Car adapter
1 Instructions for use
- Parts description
1 USB Charging Cable
2 Car adapter
3 Rechargeable battery
4 Torch
5 Cover
6 Twist focus ring
7 USB socket
8 ON/OFF button
9 Micro USB socket
10 LED indicator
- Technical data
Model no.: 10395
Torch:
Battery: 1 x 18650 Lithium-ion rechargeable battery with 2200 mAh (included), discharge capacity approx. 1100 mAh at 5V 2.0-2.1A
LED: 3 W CREE XPE-R2
3 Lighting modes: 100 %, 30 %, SOS
Luminous flux: approx. 120 Lumen
Protection type: IP44 (only with cover)
USB charging capacity:
Input power: 5V, 1A
Output power: 5V, 2.1A
Car adapter:
Model no.: BE24L-100-050
Input power: 12-24V
Output power: 5V, 1A
Built-in fuse: T 2 A 250 V, 6 x 30 mm
Safety notices
PLEASE READ THE INSTRUCTIONS PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!
WARNING! This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.
- Do not use the product and / or the USB charging cable if they are damaged.
- Protect the product from moisture and humidity. Never immerse the product in water or other liquids!
■ The light bulb is not replaceable.
If the light bulb fails at the end of its life, the entire product must be replaced. - Do not look into the LED from a close distance during operation.
- Do not look at the LED with an optical instrument (e.g. magnifier).
■ The LED torch is only splash-proof with the cover 5 on it (IP44).
■ Make sure before use that the required current corresponds to that stated in the chapter "Technical Data."
Safety instructions for rechargeable batteries
WARNING! DANGER TO LIFE! Rechargeable batteries are not intended to be in the hands of children. If accidentally swallowed seek immediate medical attention!
UTION! EXPLOSION HAZARD!
■ Never throw batteries into fire or water!
- Do not exert mechanical strain on batteries!
- Do not use non-rechargeable batteries.
■ Never short-circuit or open rechargeable batteries.
Risk of property damage
■ Only use the battery type specified!
- Please note the correct polarity when inserting the battery! This is shown inside the battery compartment!
If necessary, clean the battery and device contacts before inserting the battery!
- The discharge capacity can increase when charging with a lower amperage.
- Inserting / replacing the battery and charging
☐ Insert the battery 3 or replace it as depicted in Fig. C.
☐ To charge the battery insert the USB charging cable 1 with the appropriate end into the micro USB socket 9 and the other end into the USB charger adapter. When the battery 3 has fully charged, the LED indicator 10 under the micro USB socket 9 will flash green.
☐ Please note the required input voltage for your torch and the output voltage for your USB charger.
Note: Do not charge the torch 4 during use.
- Initial use
☐ Push the ON / OFF button 8 per the chart below to switch the lighting mode:
| ON/OFF button | |
| 100% brightness X 1 | |
| 30% brightness X 2 | |
| SOS signal X 3 | |
| OFF X 4 |
☐ Focus the beam by twisting the focus ring 6 clockwise or anticlockwise.
- Using the car adapter
☐ Connect the torch 4 using the USB charging cable 1 to the car adapter 2.
☐ Plug the car adapter 2 into the connection socket. The LED on the car adapter 2 will flash red. The torch 4 will charge.
☐ The LED will light up green as soon as the torch 4 has been fully charged.
- Using the power bank
You can also use the charged torch 4 as a power bank. You can therefore use it as another energy source for different devices with corresponding connectors such as smartphones. Please note the required input voltages for the connected devices.
□ Connect your device cable to the USB socket 7.
- Cleaning and care
- Never use liquids or cleaning agents, as these will damage the product.
□ Clean the product on the outside only with a soft, dry cloth.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
- Warranty and service
Note: This product includes a 36 month warranty from the date of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.
The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs.
Please contact the Uni-Elektra GmbH service address with any questions. The product can only be returned to us after contacting us. Postage due shipments will not be accepted. Warranty services do not extend or restart the warranty period of 36 months.
Service address
Uni-Elektra GmbH
Kirchstr. 48
DE-72145 Hirrlingen
GERMANY
Tel.: 00800 888 11 333
GB uni-service-GB@teknihall.com
IE uni-service-IE@teknihall.com
IAN 295464
Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.
Manufacturer
Uni-Elektra GmbH
Kirchstr. 48
DE-72145 Hirrlingen
GERMANY
