USER MANUAL TPB 5000 A1 TRONIC

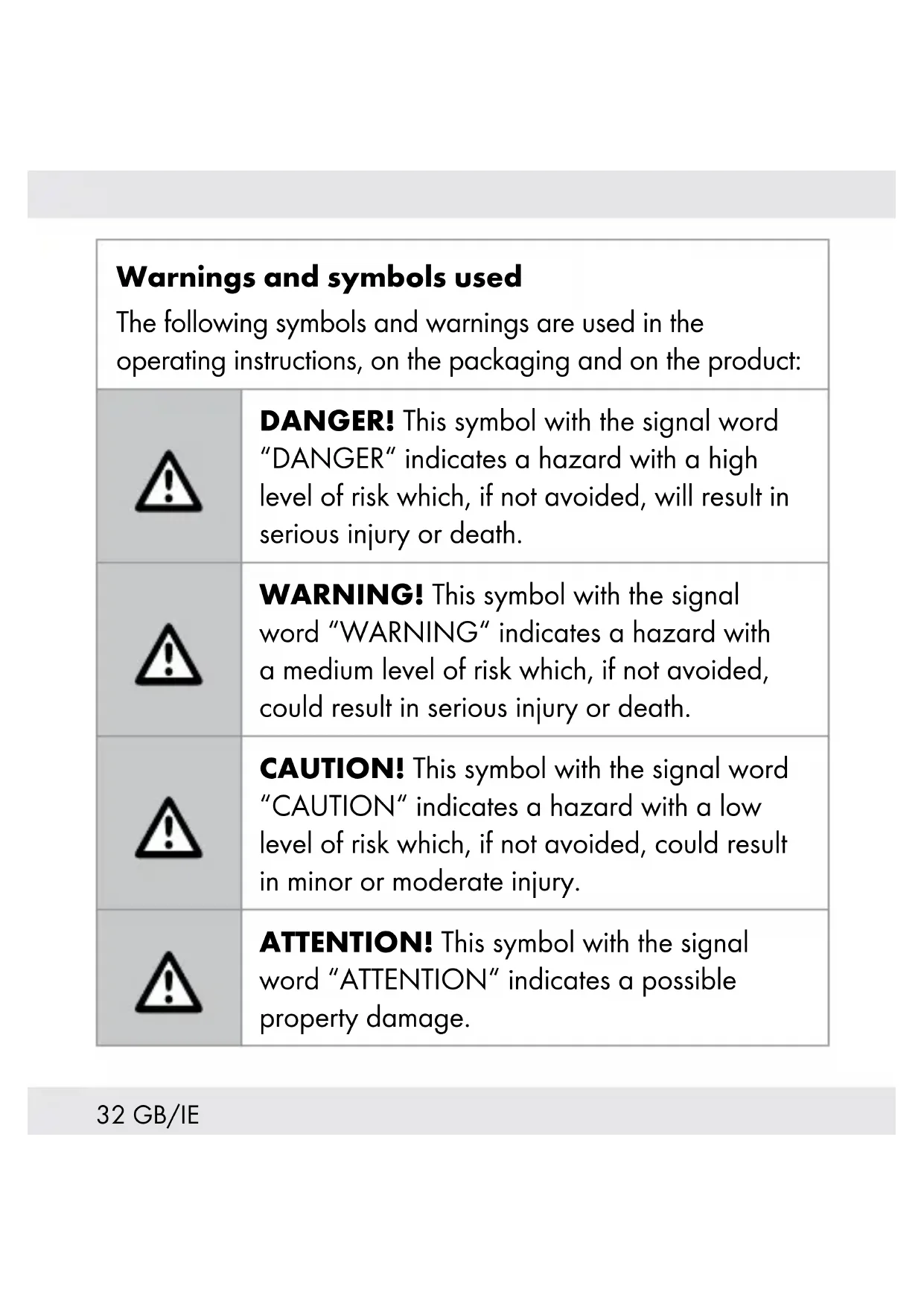

warning with this symbol and word “WARNING! EXPLOSION HAZARD” indicates the potential threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage! This symbol means that the operating instructions must be observed when using the product. Direct current / voltage CE mark indicates conformity with relevant EU directives applicable for this product. Safety Information Instructions for use34 GB/IE 5000mAh POWER BANK Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Intended use This 5000mAh POWER BANK (hereinafter referred to as “product”) is an Information Technology device which is intended to be used to charge mobile devices which are normally charged through a USBport. This product is not intended for commercial use. Manufacturer is not liable for damages, which result from non-intended use.35GB/IE Trademark notice – USB

is a registered trademark of USB Implementers Forum, Inc. – The TRONIC trademark and trade name is the property of their respective owners. – Apple, iPad, iPad Air, iPad Pro, iPhone, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries. – Galaxy, Samsung, Samsung Galaxy are registered trademarks by Samsung Electronics Co., Ltd. in the E.U. and other countries. – Any other names and products may be trademarks or registered trademarks of their respective owners. Scope of delivery 1 5000mAh power bank 1 USB type A to USB type C cable 1 Short Manual36 GB/IE Parts of description [1] USB type C input and output port [2] USB type A output port [3] LED indicator for battery capacity [4] USB cable (USB type A to type C) [5] Short Manual [6] ON / OFF button [7] Power bank Technical specifications Built-in rechargeable battery:

18.5Wh(Lithium-ion) USB type C input voltage/ current: 5 V , 2.4 A USB type C output voltage/ current 5V , 2.4A USB type A output voltage/ current: 5 V , 2.4 A Maximum output power: 12 W*37GB/IE Maximum output current: 2.4 A* Minimum output current: approx. 60 mA Operating temperature: 10 – 35 °C Storage temperature: 0 – 45 °C Humidity (no condensation): 10 – 70 % Dimensions: approx. 94.5 x 63.3 x 1.3 mm Weight: approx. 106 g *If All USB output ports are used at the same time, the total output current will only have 2.4A (5V 2.4A, 12W). The output voltage at both output ports will be 5V. Safety notices Please familiarise yourself with all instructions for use and safety notices before using the product for the first time. When passing this product on to third parties, please be sure to include all documentation.38 GB/IE Check the product for visible external damage before use. Do not use the product if damaged or dropped. This product may be used by children age 8years and up, as well as by persons with physical, sensory or mental impairments or lacking experience and/or knowledge, provided they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.

DANGER! Packaging materials are not toys. Keep all packaging materials out of the reach of children. Suffocation hazard! Always use the product on flat and smooth surface. The product could be damaged if it falls. Do not expose the product to direct sunlight or high temperatures. It may otherwise overheat and be damaged beyond repair. Do not operate the product near heat sources such as radiators or other devices producing heat. Do not operate the product near open flames.39GB/IE The product is not designed for use in rooms with high temperatures or humidity (i.e bathrooms) or those in which a great amount of dust is generated. Do not expose the product to extremely high temperatures. This applies in particular if you are thinking about storing the product in your car. Over a prolonged period of time, the car and the glove compartment could become extremely hot. Remove electric and electronic devices from the car. Do not use the product immediately after it has brought from a cold room to a warm room. Allow the product to acclimatise before you switch it on.

WARNING! Never open the product casing. This product has no internal parts requiring maintenance. Do not independently convert or modify the product. Repairs to the product must be performed by authorised specialised companies or customer service. Improper repairs may place the user in considerable danger. They will also void the warranty. Do not expose the product to dripping water or splashing water and do not place containers filled with liquids such as vases or open drinks on top of or beside the product.40 GB/IE Immediately switch the product off and remove the charging cable from the product if you smell burning or see smoke. Have the product examined by a qualified technician before using it again. If you use a USB power supply, the socket used must always be easily accessible so that the USB power supply can be quickly removed from the socket in the case of emergency. Please also refer to the manufacturer‘s instruction manual.

WARNING! EXPLOSION HAZARD! Improper handling of lithium-ion batteries can result in fire, explosions, hazardous substances leaking, or other dangerous situations! Do not throw the product into the fire, as this could lead to the built-in battery exploding. Observe the usage restrictions and prohibitions of use for battery-operated products in situations which may be hazardous such as at petrol stations, airports, hospitals, etc.

WARNING! During charging process, please be noticed that the product must not be covered. Otherwise the product can be heated.41GB/IE The product should never be charged at a PC or notebook, because due to the high power consumption, the PC or notebook could be damaged. Before use NOTE: Remove all packaging materials from the product. Please also check the content of delivery inside the packaging to see if there are any damages. If you notice any damage or missing parts, please contact the dealer who sold this product. Operation and use Charging the power bank The built-in rechargeable battery must be fully charged before using the product. To charge the power bank[7] only use power supplies with an output voltage and current matching the rated input voltage and current as stated in “Technical specifications” of this user manual.42 GB/IE

ATTENTION! The power bank should not be charged from a PC or notebook. In order to get the fastest charging speed, charge the powerbank [7] via the port[1] using a USB Type C to Type C cable (not included) and a power charger (not included). Connect the USB Type C plugs of your Type C to Type C cable to the port [1] of the powerbank[7] and the port of your USB power charger (see fig. A). Alternatively, you could charge the powerbank[7] via USB Type C port [1] using the included USB Type-A to Type C cable [4] with a conventional USB charger but the charging time will be longer. Connect the USB Type C plug of the USB cable [4] with the port[1] and connect the USB Type A plug of the USB cable [4] to the USB power supply (see fig.B). The LED indicator for battery capacity[3] shows you the approximate charge level of the internal battery via 4 LED lights as described below:43GB/IE LED indicator[3] status Power bank capacity level 1 LED flash 0 – 25 % 1 LED light up, 1 LED flash 25 – 50 % 2 LED light up, 1 LED flash 50 – 75 % 3 LED light up, 1 LED flash 75 – 100 % 4 LED light up 100% *This is approx percentage of power bank capacity but not actual measurement. NOTE: If a conventional USB charger is used for charging, the 4th LED will be the original colour of the battery status indicator.

ATTENTION! Do not connect any device to be charged to power bank as long as the power bank is charging. Remove the charging cable from the power bank when it is fully charged.44 GB/IE Checking the battery status You can check the battery status via the LED indicator[3] of the power bank [7] at anytime. Briefly press the ON/ OFF button[6]. The LED indicator [3] shows the approximate charge status of the internal battery capacity level for approx.30seconds. Charging mobile devices with the power bank You can charge up to two devices at the same time using the power bank [7] . If all outputs are used at the same time, the sum of the output current may not exceed 2.4 A. NOTE: You could charge your conventional USB devices from the USB Type A output port [2] of the power bank using the included USB cable [4] or a USB Type A to micro USB cable (not included). In case if the charging process does not begin immediately, press the ON / OFF button [6] briefly to begin the charging process. The current battery status of the power bank [7] is displayed during the charging process by the LED indicator for battery capacity [3] .45GB/IE To end the charging process, disconnect the USB charging cable from the mobile device and the power bank [7] . The power bank will switch OFF after approx. 30 seconds. Or simply double click with ON / OFF button[6]. The power bank and the LED indicator for battery capacity [3] will switch off. NOTE:

1. If you use all the USB ports, a voltage of 5V will output at

the outputs. The maximum output current must not exceed 2.4A for all outputs. If the product is not used for a long time, the built-in battery should be fully charged to prolong its operating life. Regularly charge the built-in battery if you do not use the product for a long period of time. This is necessary to preserve the battery. Troubleshooting = Problem = Cause = Solution The power bank[7] is not being charged.46 GB/IE It may be that the power bank is not connected properly. Check that it is connected. In order to charge the power bank, use a power supply with an output voltage and current matching the rated input voltage and current as stated in „Technical specifications“ of this user manual. A connected device is not being charged. The battery is drained. Charge the battery. The device is not connected. The device is not connected. Check that it is connected. Briefly press the ON / OFF button [6] to begin the charging process. The current consumption of the connected device might be too low. Check with your connected device manual and see if your connected device current consumption comply with this product. The minimal output current of the power bank is approx. 60 mA. The power bank[7] does not react when the button is pressed or when a device is connected, even though the battery is charged.47GB/IE The power consumption of the connected devices is too high. Therefore, the internal overcurrent protection device was activated. Reduce the number of devices connected and press the ON / OFF button [6]. Cleaning and care This product has no internal parts requiring maintenance. Moisture entering the product may result in damage. Ensure no moisture enters the product during cleaning to prevent damaging the product beyond repair. Do not use abrasive, solvent-based or aggressive cleaners. These can damage the surface of the product. Only clean the product with a slightly damp cloth and mild washing-up liquid. Storage during non-use Store the product in a dry dust-free location, protected from direct sunlight.48 GB/IE If the product is not used for a long time, the built-in battery should be fully charged to prolong its operating life. Regularly charge the built-in battery if you do not use the product for a long period of time. This is necessary to preserve the battery. Disposal Packaging: The packaging is made of environmentally friendly materials, which you be disposed through your local recycling facilities. Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98:composite materials. Product: Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.49GB/IE The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies. This disposal is free of charge to you. Protect the environment and dispose of properly. The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment. The Triman logo is valid in France only.50 GB/IE Batteries/accumulators: Environmental damage through incorrect disposal of the batteries/accumulators! Defective or exhausted batteries/rechargeable batteries must be recycled in accordance with DIRECTIVE 2023 / 1542. Return batteries/rechargeable batteries to the appropriate local collection facilities. The symbol showing the crossed-out bin on batteries or rechargeable batteries means that such batteries must not be disposed of in domestic waste. Remove the batteries/battery pack from the product before disposing of them/it. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.51GB/IE Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase. Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product. Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts. This warranty becomes void if the product has been damaged, or used or maintained improperly.52 GB/IE The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts. Warranty claim procedure To ensure quick processing of your claim, observe the following instructions: Make sure to have the original sales receipt and the item number (IAN483228_2404) available as proof of purchase. You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product. If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.53GB/IE Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred. Service Service Great Britain Tel.: 08000569216 E-Mail: owim@lidl.co.uk Service Ireland Tel.: 1800 200736 E-Mail: owim@lidl.ie54 FR/BE Avertissements et symboles utilisés ....... Page 55 Introduction .............................. Page 57 Utilisation prévue ......................... Page 58 Avis relatifs aux marques ................... Page 58 Contenu de la livraison .................... Page 59 Description des pièces ..................... Page 59 Spécifications techniques ................... Page 59 Avis de sécurité........................... Page 61 Avant utilisation .......................... Page 65 Fonctionnement et utilisation.............. Page 65 Charge de la batterie externe ............... Page 65 Vérification de l’état de la batterie............ Page 68 Charge d’appareils mobiles avec la batterie externe .......................... Page 68 Dépannage............................... Page 70 Nettoyage et entretien.................... Page 72 Rangement en cas de non utilisation....... Page 72 Mise au rebut............................. Page 73 Garantie ................................. Page 75 Faire valoir sa garantie .................... Page 79 Service après-vente ....................... Page 8155FR/BE Avertissements et symboles utilisés Les symboles et avertissements suivants sont utilisés dans le mode d’emploi, sur l’emballage et sur le produit: DANGER ! Ce symbole accompagnant le mot «DANGER» indique un danger avec un niveau de risque élevé qui, s’il n’est pas évité, peut entraîner des blessures graves ou la mort. AVERTISSEMENT ! Ce symbole accompagnant le mot «AVERTISSEMENT» indique un danger avec un niveau de risque moyen qui, s’il n’est pas évité, peut entraîner des blessures graves ou la mort. PRÉCAUTION ! Ce symbole accompagnant le mot «PRÉCAUTION» indique un danger avec un niveau de risque faible qui, s’il n’est pas évité, peut entraîner des blessures mineures ou modérées.56 FR/BE ATTENTION ! Ce symbole accompagnant le mot «ATTENTION» indique un dégât matériel possible. REMARQUE : Ce symbole accompagnant le mot «REMARQUE» fournit des informations supplémentaires utiles. AVERTISSEMENT ! RISQUE D’EXPLOSION! Un avertissement avec ce symbole et le terme «AVERTISSEMENT! RISQUE D’EXPLOSION» indique une menace potentielle d’explosion. Le fait de ne pas respect de cet avertissement peut entraîner des blessures graves ou mortelles et des dégâts matériels potentiels. Suivez les instructions de cet avertissement pour éviter les blessures graves, les dangers de morts et les dégâts matériels ! Ce symbole signifie que les instructions de fonctionnement doivent être respectées lors de l’utilisation du produit.57FR/BE Courant / tension continu La marque CE indique la conformité aux directives UE applicables à ce produit. Informations relatives à la sécurité Instructions d’utilisation
