USER MANUAL NC 520 plus OLYMPIA

NC 528PNa 1 2 3 4 5 6 SET STITCH ADD COUNT M/A RESET The right was Please place the pad of bits on the house

V 1.11

07.2021

ID: 947730450

DEUTSCH

Bedienungsanleitung

13 14 15 16 OLYMP NC 450 MG 8888 UV IR PCS COUNT AUTO PCS SET MANUAL 17 18 19 21203216

Illustration of a stack of papers with a paperclip attached (no text or symbols)

B

C

D

Diagram showing a rolling object on an inclined plane with directional arrows indicating motion (no text or symbols)

Diagram showing a striped rectangular object interacting with a circular object and a diagonal line, with an arrow indicating direction (no text or symbols)

Diagram showing a rotating object on a lever with a shaded plate and directional arrow (no text or symbols)

White and black digital currency counter with control panel and display (no visible text or symbols)

Close-up of a white and black digital currency counter with a rotary dial and control panel (no visible text or symbols)

Close-up of a white electronic device with black casing and internal components, showing a directional arrow (no text or symbols visible)

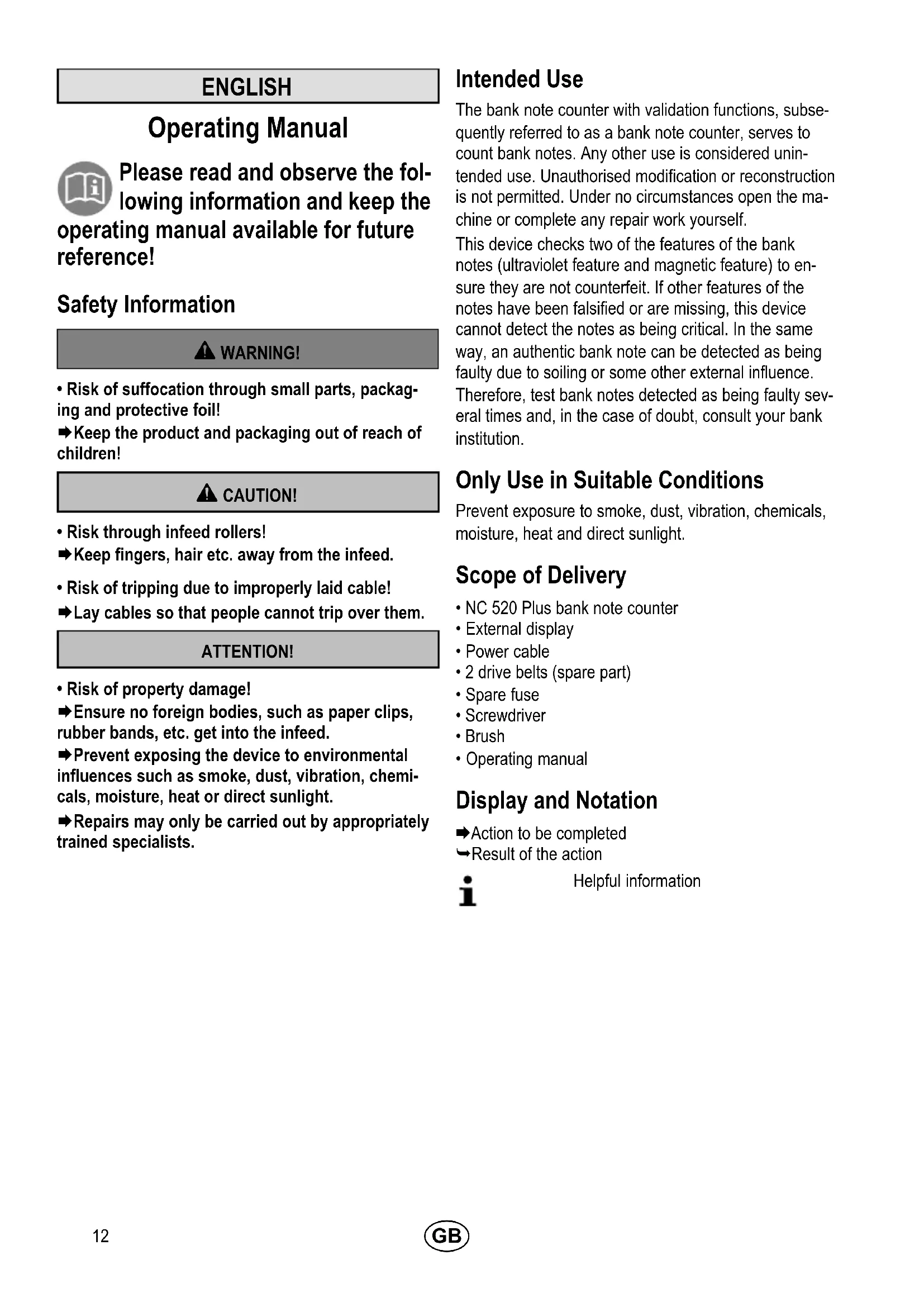

Please read and observe the following information and keep the timing manual available for futurence!

Safety Information

WARNING!

• Risk of suffocation through small parts, packaging and protective foil!
  →Keep the product and packaging out of reach of children!

CAUTION!

• Risk through infeed rollers!
  →Keep fingers, hair etc. away from the infeed.
• Risk of tripping due to improperly laid cable!
  →Lay cables so that people cannot trip over them.

ATTENTION!

• Risk of property damage!
  →Ensure no foreign bodies, such as paper clips, rubber bands, etc. get into the infeed.
  →Prevent exposing the device to environmental influences such as smoke, dust, vibration, chemicals, moisture, heat or direct sunlight.
  →Repairs may only be carried out by appropriately trained specialists.

Intended Use

The bank note counter with validation functions, subsequently referred to as a bank note counter, serves to count bank notes. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the machine or complete any repair work yourself.

This device checks two of the features of the bank notes (ultraviolet feature and magnetic feature) to ensure they are not counterfeit. If other features of the notes have been falsified or are missing, this device cannot detect the notes as being critical. In the same way, an authentic bank note can be detected as being faulty due to soiling or some other external influence. Therefore, test bank notes detected as being faulty several times and, in the case of doubt, consult your bank institution.

Only Use in Suitable Conditions

Prevent exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Scope of Delivery

• NC 520 Plus bank note counter
- External display
- Power cable
- 2 drive belts (spare part)
- Spare fuse
- Screwdriver
- Brush
- Operating manual

Display and Notation

→Action to be completed
→Result of the action

Helpful information

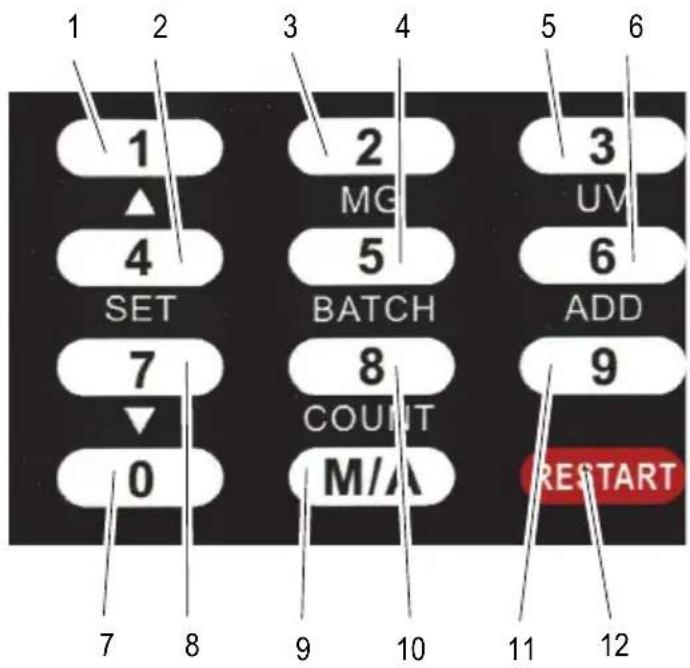

Operating Elements

1 2 3 4 5 6 1 2 3 ▲ MG UV 4 5 6 SET BATCH ADD 7 8 9 10 11 12 ▼ COUNT 0 M/A RESTART

1 1 or move upwards in the menu settings
2 4 or SET to open the menu settings or move one level further
3 2 or MG to activate/deactivate the magnetic test
4 5 or BATCH to process batches
5 3 or UV to activate/deactivate the ultraviolet test
6 6 or ADD to activate/deactivate the add function 7 0
8 7 or move downwards in open the menu settings
9 M/A to switch between automatic and manual start
10 8 or COUNT to activate Counting without sensors 11 9
12 RESTART

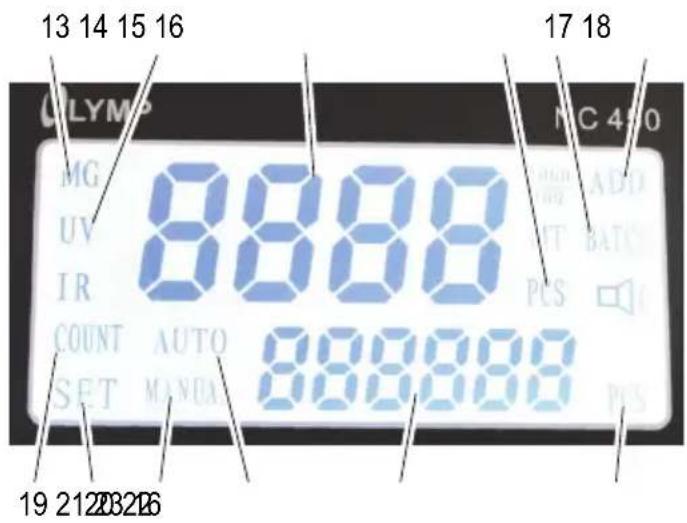

Display

13 14 15 16 MG UV IR COUNT AUTO SET MANUAL 8888 NC 400 17 18 PCS 19 21203216

The diagram illustrates the display during the power on self-test. Some of the features illustrated do not belong to the functional range of this bank note counter.

13 Magnet sensor is activated
14 Ultraviolet sensor is activated
15 Top display
16 Quantity
17 Batch function is activated
18 Add function is activated
19 Count without sensors is activated
20 Settings
21 Manual start is activated
22 Automatic start is activated
23 Bottom display

Operation

Switching the Bank Note Counter On/Off

The bank note counter is switched on and off using the switch on the rear of the machine.

i If the machine will not be used for a longer period, disconnect it from the power outlet.

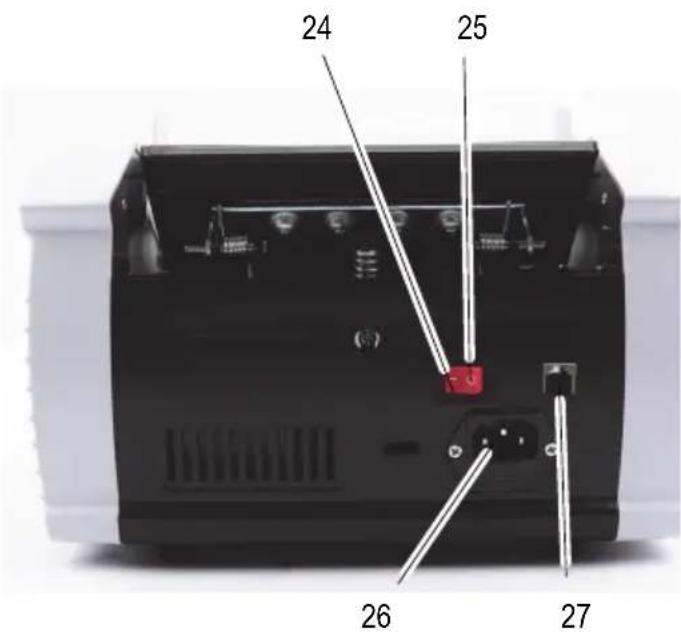

24 25 26 27

24 On
25 Off
26 Mains power connection
27 Connection socket for external display

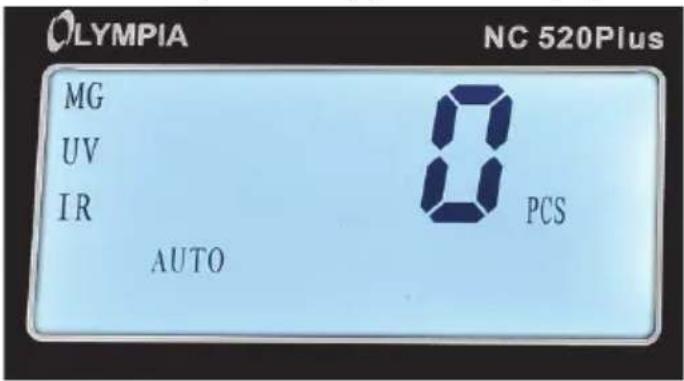

After switching the machine on, it performs a self-diagnosis. During the self-diagnosis, 8888 or 888888 appears in the display. When the self-diagnosis has finished without any errors, 0 appears in the display.

OLYMPIA NC 520Plus MG UV IR AUTO 8 PCS

If an error is detected, it is indicated in the top display (refer to the Error table) and the background turns red.

Validation Tests

i The best results are achieved after a warm-up phase of 3 minutes.

Bright ambient light can affect the sensor and falsify results.

Before inserting the bank notes, select which features (magnetic and/or ultraviolet) you want to test.

→Press the MG button.
The magnet sensor used to detect the magnetic ink is activated/deactivated. When activated, the sensor is indicated in the display. When activated, the sensor is indicated in the display.
→Press the UV button.
→The ultraviolet sensor for detecting UV light is activated/deactivated. When activated, the sensor is indicated in the display.

Preparing Bank Notes

Pay attention to the following points to prevent malfunctions.

A

Illustration of a stack of papers with a paperclip attached (no text or symbols)

B

C

D

→Check the batch of bank notes for paper clippings, paper clips, rubber bands and other foreign bodies (A) and remove them before inserting the bundle in the machine.
→Do not insert any damaged bank notes (B).
→ Smooth any creased and folded bank notes before inserting them (C/D).
→Do not attempt to count notes which are too thick or hard items.
→Fan out the bank notes to separate them prior to insertion.

Inserting Bank Notes

A

B

Diagram showing a striped object interacting with a rod and a circular component, with an arrow indicating direction (no text or symbols)

Diagram showing a sphere resting on a lever with a shaded plate and directional arrow (no text or symbols)

→Slide and fan the bank notes in the bundle so that the top bank note is somewhat lower than the one following. Insert the bank notes in the infeed tray (A).

Or

→ Insert the bundle vertically in the infeed tray and guide the bundle to the rear so that the bank notes shift against each other (B).
The counting process starts up automatically if the automatic start function has been activated (AUTO appears in the display).

i Bank notes which have been inserted incorrectly, as illustrated in C and D, lead to an improper count or a malfunction.

i Since the security features of bank notes are provided on both sides, the process for detecting counterfeit bank notes is performed reliably on both sides.

Functions

Counting

This function counts the number of bank notes and, depending on the sensor setting, their validity.

During the counting process, the quantity of bank notes appears in the top display.

When the bank notes counted are removed from the output tray, the quantity count in the top display is reset to 0 and the bottom display displays the quantity.

Adding

If several bundles of bank notes are stacked in the in-feed tray one after the other, counting continues even if the bank notes already counted are removed from the output tray.

→Press the ADD button
→ The Add function is activated/deactivated.

Batch

This function causes counting to stop when the preset quantity of bank notes has been counted. If the counted batch of bank notes is removed from the output tray, the display is reset to and the next batch is counted.

The quantity of bank notes can be set to any number between 1 and 999. The preset quantity appears in the bottom display.

If the infeed tray becomes empty before reaching the preset quantity, BATCH flashes in the display. When more bank notes are then inserted in the infeed tray, the process is resumed.

→Press the BATCH button.
→ BATCH flashes in the display. The preset quantity 100 appears in the bottom display.
→Use the digit buttons to enter the quantity you want counted.
→ The quantity entered appears in the bottom display.

Sorting

With this function, which is always activated, the first bank note is used as a reference for those following. If the machine detects a bank note which deviates from the reference note, the machine stops. d appears in the display, the background of which turns red. The deviating bank note can be removed.

Whether the removed bank note should be counted or not can be defined in the settings (refer to Settings).

Settings

The sensitivity of the sensor and other parameters can be modified using the respective Settings function.

→ Press the SET button for a few seconds until the acoustic signal stops.
→ d05 and C5 100 appear in the display.

d05 represents the current value of the memory segment C5 100. You can change the value using the arrow buttons.

→Press the SET button again.
→ The next memory segment appears together with the value.

After pressing the SET button for the last memory segment you exit from Setting function.

The table below contains the default settings and functional assignments of the memory segments.

Memory segment	Default value	Function Settings
CS 100d05		UV-sensitivity Setting range 0	-9The higher the value, the lower the sensitivity
CS 200d05		MG-sensitivity Setting range 0	-9The higher the value, the lower the sensitivity
CS 300d05		Detection of double bank notes	Setting range 0 - 9The higher the value, the lower the sensitivity
CS 400d09		Brake Setting range 0 - 9	The higher the value, the higher the sensitivity
CS 500d09		Counter wheel Setting range 0	-9The higher the value, the higher the sensitivity
CS 600d08		Transportation Setting range 0	-9The higher the value, the lower the sensitivity
CS 700d08		(Internal function) (Do not change)
CS 800d01		(Internal function) (Do not change)
CS 900d00		(Internal function) (Do not change)
CS 100d01		Count / Do not count bank notes which have been sorted out.	d01: Countd02: Do not count
CS 100d02		(Internal function) (Do not change)
CS 100d00		(Internal function) (Do not change)
CS 100d02		Detect size differences of the bank notes	Setting range 0 - 9The higher the value, the lower the sensitivity
CS 100d08		(Internal function) (Do not change)
CS 100d04		(Internal function) (Do not change)

To reset the machine to its default settings, press the RESTART-button while switching the machine on.

Clearing Errors

Errors are indicated in the display by an error code and the display background turning red.

i A frequent source of errors is soiling of the sensors (see Cleaning the Sensors).

Error code Cause Solution
R	Too little or no ultraviolet reaction from the bank note.	Remove critical notes from the batch.Check the sensitivity setting of the UV sensor.
b	Too little or no magnetic reaction from the bank note.	Remove critical notes from the batch.Check the sensitivity setting of the MG sensor.
C	Bank notes detected as being chained. Check w	whether the bank notes stick together and count the batch again.
F	Bank notes as half bank notes. Remove critical	notes from the batch and check for signs of damage.
E01	Bank note count sensor Clean the sensor for counting the notes or replace with a new one.
E03	Coding disk sensor Clean the sensor for the coding disk or replace with a new one.
E04	Infeed tray sensor Clean the sensor for the infeed tray or replace with a new one.
E05	Output tray sensor Clean the sensor for the output tray or replace with a new one.

Maintenance

Cleaning the Sensors

Bank notes are often soiled, particularly by dust. The dirt deposits on the sensors during the counting process. Soiled sensors are the most frequent cause of malfunctions.

Clean the sensors with the brush supplied. Open the bank note counter to clean the sensors. How to open the bank note counter is described in the following steps.

White digital currency counter with black buttons and a digital display, showing measurement tools (no readable text or symbols)

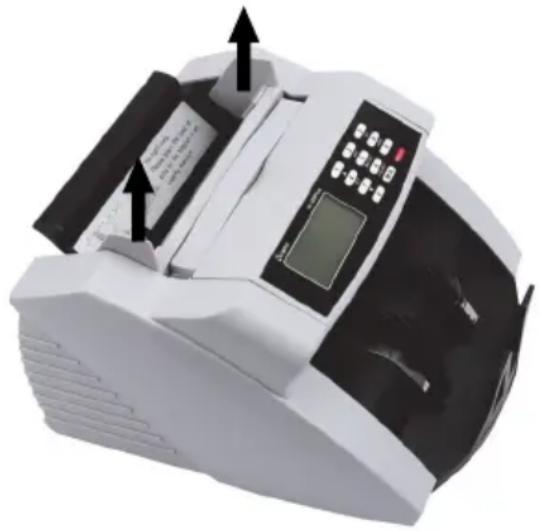

→Grip the bank note infeed at the sides and remove the infeed vertically out of the machine. Do not grip the infeed in the middle section.

Close-up of a white and black digital cash register machine with a rotary dial and control panel (no visible text or symbols)

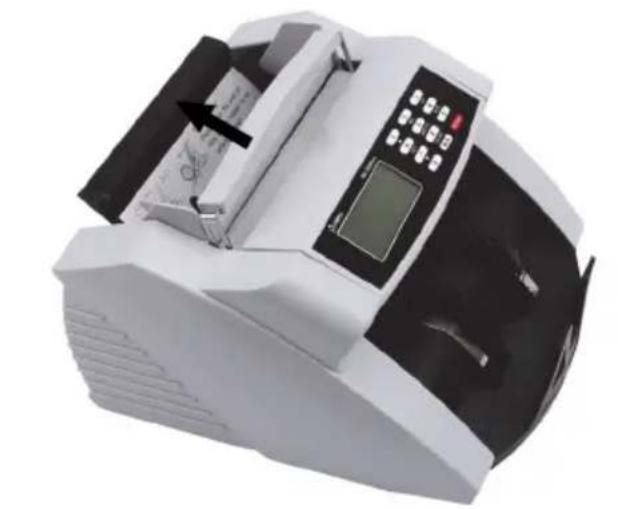

→Pivot the grip to the rear.

Close-up of a white electronic device with black casing and internal components, showing a directional arrow (no text or symbols visible)

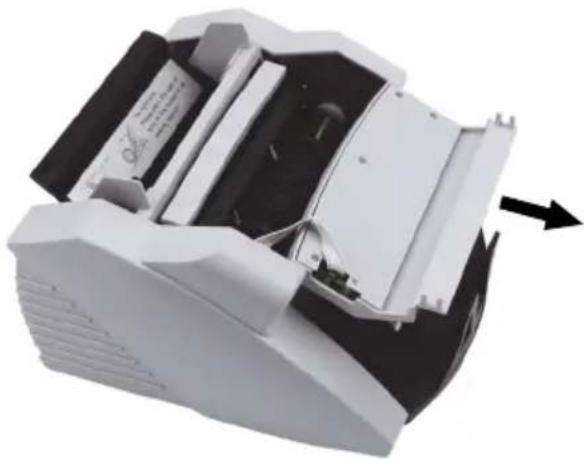

→ Pivot the operating panel to the front.

i Clean areas which cannot be accessed using compressed air, if necessary. Compressed air can be obtained in small aerosol cans.
→Clean the sensors with the brush supplied.
→Close the machine in the reserve sequence after cleaning.

Adjusting the Pressure of the Infeed Plate

The bank note counter is set-up at the factory to draw the bank notes in properly. If bank notes are no longer drawn in properly, adjust the pressure exerted by the infeed plate.

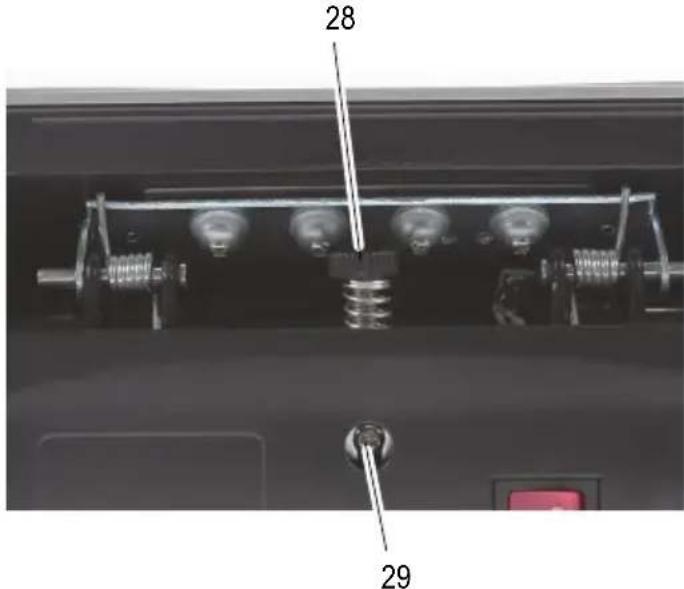

The adjusting screw to alter the pressure exerted by the infeed plate is located at the rear.

28 29

28 Adjusting screw

29 Locking screw

The adjusting screw is secured against being adjusted inadvertently by means of a locking screw.

→Switch the bank note counter off.
→Loosen the locking screw using the screwdriver supplied.
Adjust the pressure of the infeed plate so that the bank notes can be pushed under the rubber rollers by exerting a little force.
→Tighten the locking screw.

Technical Data

Model NC 520 Plus
Functions Free counting mode (without validation test)Automatic and manual startBatch function, up to 999 bank notes can be selectedAddition function
Validation test Ultraviolet and magnetic features test
Sensor sensitivity Adjustable in 9 levels
Capacities: infeed and output trays	100 old bank notes, 200 new bank notes
Size of countable bank notes 50 mm x 110 mm bis 90 mm x 185 mm
Counting speed 1,000 bank notes / minute
Power supply 230 V/ 50 Hz
Power consumption 75 W
Dimensions 306 mm x 247 mm x 185 mm
Weight 5.5 kg

Maintenance Tips

→ Clean the housing surfaces with a soft, fluff-free cloth.
→Clean the sensors after each use.
→Clean the sensors with the brush supplied.
→Do not use any cleaning agents or solvents.

Declaration of conformity

The CE Mark on the device confirms conformity.

The Declaration of Conformity can be read online at www.go-europe.com.

Disposal

The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.

Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials.

The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.

Packaging materials must be disposed of according to local regulations.

The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.

The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1–7: plastics / 20–22: paper and cardboard / 80–98: composite materials and (d) type of packaging. The logo is only applicable to Italy.

Warranty

Dear customer, we are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

FRANÇAIS

Mode d'emploi

13 14 15 16 MG UV IR COUNT AUTO SET MANUAL 88800 NC 470 17 18 PCS ADD BATU POS PHS 19 21 22 26

Simple line drawing of a stack of papers with a paperclip attached (no text or symbols)

B

C

D

Diagram showing a ball rolling down an inclined plane with an arrow indicating motion direction (no text or symbols)

C

Diagram showing a striped object interacting with a rod and a circular object, with an arrow indicating direction (no text or symbols)

D

Diagram showing a sphere resting on a lever with a shaded plate and directional arrow (no text or symbols)

Close-up of a white digital currency counter with black buttons and a digital display (no visible text or symbols)

Close-up of a white and black digital currency counter with a digital display and keypad (no visible text or symbols)

Close-up of a white electronic device with internal components and a black arrow indicating direction (no visible text or symbols)

Simple line drawing of a stack of papers with a paperclip attached (no text or symbols)

B

C

D

Diagram showing a striped surface being tilted onto a diagonal line with a circular object nearby (no text or symbols)

Diagram showing a sphere resting on a lever with a shaded rectangular block and an arrow indicating motion (no text or symbols)

White digital currency counter with control panel and display (no visible text or symbols)

Close-up of a white and black digital currency counter with a digital display and keypad (no visible text or symbols)

Close-up of a white electronic device with internal components and a black arrow indicating direction (no visible text or symbols)

13 14 15 16 OLYMP MG UV IR COUNT AUTO SET MANUAL 888800 17 18 NC 4/0 ADD BAT PCS 19 21203216

Simple line drawing of a stack of papers with a paperclip attached (no text or symbols)

B

C

D

Diagram showing a striped surface being tilted onto a diagonal line with a circular object nearby (no text or symbols)

Diagram showing a sphere resting on a lever with a shaded rectangular object and an arrow indicating motion (no text or symbols)

Close-up of a white digital currency counter with black buttons and a digital display (no visible text or symbols)

Close-up of a white and black digital currency counter with a digital display and keypad (no visible text or symbols)

Close-up of a white electronic device with black casing and internal components, showing a directional arrow (no text or symbols visible)

Simple line drawing of a stack of papers with a paperclip attached (no text or symbols)

B

C

D

Diagram showing a ball rolling down an inclined plane with an arrow indicating motion direction (no text or symbols)

Diagram showing a striped object interacting with a circular object and a rod, with an arrow indicating direction (no text or symbols)

Diagram showing a sphere resting on a beam with a shaded rectangular block and an arrow indicating direction (no text or symbols)

White digital currency counter with black buttons and a digital display, showing mechanical parts (no visible text or symbols)

Close-up of a white and black digital currency counter with a digital display and keypad (no visible text or symbols)

Close-up of a white electronic device with internal components and a black arrow indicating direction (no visible text or symbols)

13 14 15 16 MG UV IR COUNT AUTO SET MANUAL 88888 17 18 NC 4/0 ADD BATC PCS 19 21203216

Simple line drawing of a stack of papers with a paperclip attached (no text or symbols)

B

C

D

Diagram showing a striped rectangular object interacting with a circular object and a rod, with an arrow indicating direction (no text or symbols)

Diagram showing a rotating object on a beam with a shaded plate and directional arrow (no text or symbols)

Close-up of a white digital currency counter with black buttons and a digital display (no visible text or symbols)

White and black digital currency counter with a digital display and keypad (no visible text or symbols)

Close-up of a white electronic device with black casing and internal compartments, showing a directional arrow (no text or symbols visible)
