USER MANUAL Gratì Professional 0448 ARIETE

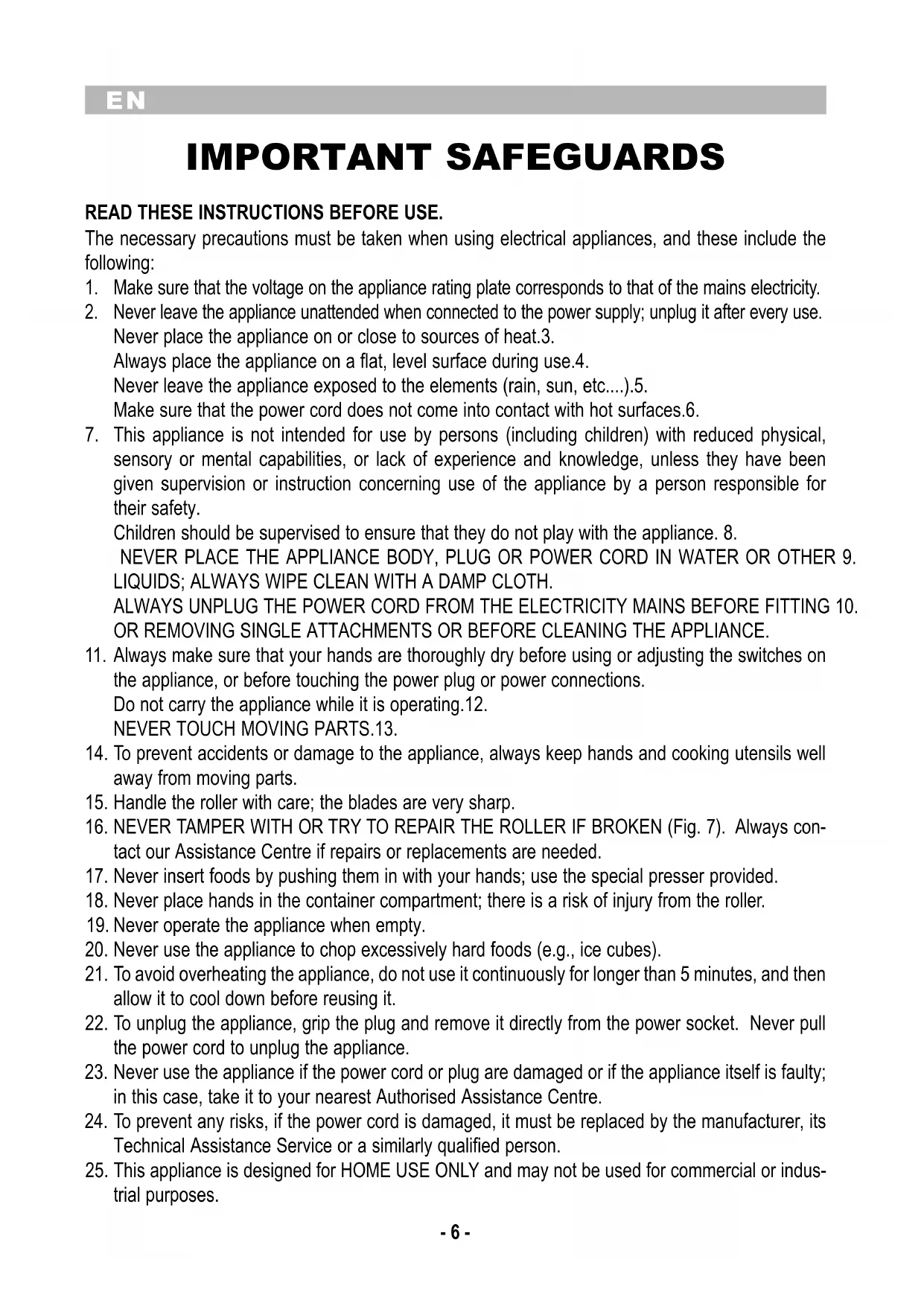

IMPORTANT SAFEGUARDS READ THESE INSTRUCTIONS BEFORE USE. The necessary precautions must be taken when using electrical appliances, and these include the following: Make sure that the voltage on the appliance rating plate corresponds to that of the mains electricity.1. Never leave the appliance unattended when connected to the power supply; unplug it after every use.2. Never place the appliance on or close to sources of heat.3. Always place the appliance on a flat, level surface during use.4. Never leave the appliance exposed to the elements (rain, sun, etc....).5. Make sure that the power cord does not come into contact with hot surfaces.6. This appliance is not intended for use by persons (including children) with reduced physical, 7. sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 8. NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER OR OTHER 9. LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH. ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING 10. OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE. Always make sure that your hands are thoroughly dry before using or adjusting the switches on 11. the appliance, or before touching the power plug or power connections. Do not carry the appliance while it is operating.12. NEVER TOUCH MOVING PARTS.13. To prevent accidents or damage to the appliance, always keep hands and cooking utensils well 14. away from moving parts. Handle the roller with care; the blades are very sharp.15. NEVER TAMPER WITH OR TRY TO REPAIR THE ROLLER IF BROKEN (Fig. 7). Always con-16. tact our Assistance Centre if repairs or replacements are needed. Never insert foods by pushing them in with your hands; use the special presser provided.17. Never place hands in the container compartment; there is a risk of injury from the roller.18. Never operate the appliance when empty.19. Never use the appliance to chop excessively hard foods (e.g., ice cubes).20. To avoid overheating the appliance, do not use it continuously for longer than 5 minutes, and then 21. allow it to cool down before reusing it. To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull 22. the power cord to unplug the appliance. Never use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; 23. in this case, take it to your nearest Authorised Assistance Centre. To prevent any risks, if the power cord is damaged, it must be replaced by the manufacturer, its 24. Technical Assistance Service or a similarly qualified person. This appliance is designed for HOME USE ONLY and may not be used for commercial or indus-25. trial purposes.EN

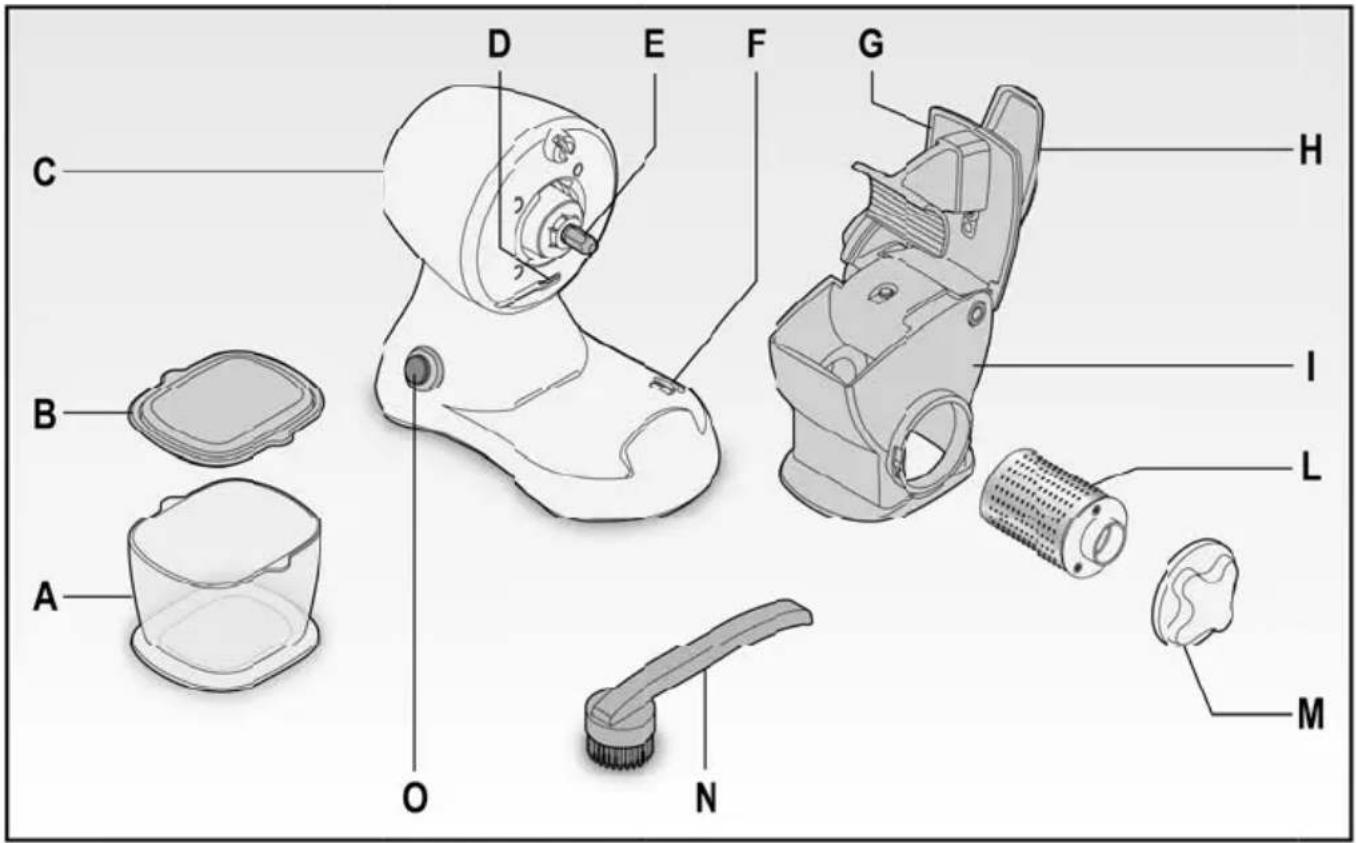

A Container B Container lid C Power base D Cheese grater lock slot E Roller shaft F Rear container lock G Lever H Hand grip I Hopper assembly L Grater roller M Roller cap N Brush O Lit on/off switch This appliance conforms to the 2006/95/EC and EMC 2004/108/EC directives.26. Any changes to this product that have not been expressly authorised by the manufacturer may 27. lead to the user’s guarantee being rendered null and void. In the event that you decide to dispose of the appliance, we advise you to make it inoperative 28. by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts. Packaging must never be left within the reach of children since it is potentially dangerous.29.

DO NOT THROW AWAY THESE INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE (Fig.1)

INSTRUCTIONS FOR USE

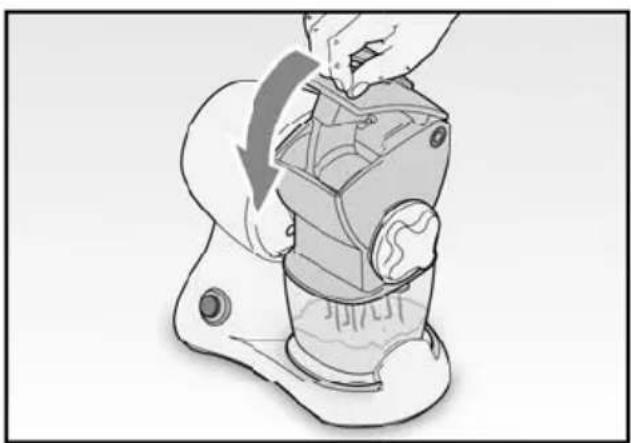

Designed to grate any type of hard cheese or cheese that is not too soft. GRATI’ can also be used for dry bread, almonds, walnuts etc... IMPORTANT: Carefully wash all removable parts before using, as described in the section entitled “CLEANING AND MAINTENANCE”. IMPORTANT: ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE. IMPORTANT: Before proceeding with use, make sure that you have correctly fitted all parts, as described here below. IMPORTANT: Do not try to grate soft cheese, as this will only clog the roller! - Cut the cheese into cubes, remove any rind and place the cubes inside the hopper assembly (I). - Plug the appliance into the power mains and press the switch (O). The switch will then light up. - To start the motor and begin grating, lower the lever (G) with the hand grip (H) and press it against the cheese (Fig. 2). IMPORTANT: For the appliance to work, all parts must be fitted correctly and if not, make sure that container (A) has been inserted into the relevant compartment as described below (Fig. 10-11). IMPORTANT: The on/off switch (O) will stay lit, even if the appliance is not operating, i.e., with the lever (G) raised or the container (A) not inserted or inserted incorrectly. - For operating at intervals, it is sufficient to lift the lever (G); the appliance will be ready to use until the switch is pressed (O). IMPORTANT: To avoid overheating the appliance, do not use it continuously for longer than 5 minutes, and then allow it to cool down before reusing it.EN

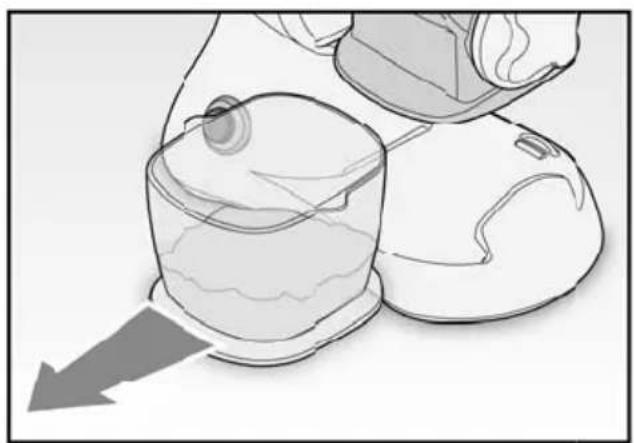

IMPORTANT: To prevent accidents or damage to the appliance, always keep hands and cooking utensils well away from moving parts. - After use, switch off the appliance using the on/off switch (O) and unplug it from the mains power socket. - Take out the container (A) (Fig. 3) and bring it to the table for use or close it with the special lid (B) to store the contents in the fridge.

CLEANING AND MAINTENANCE

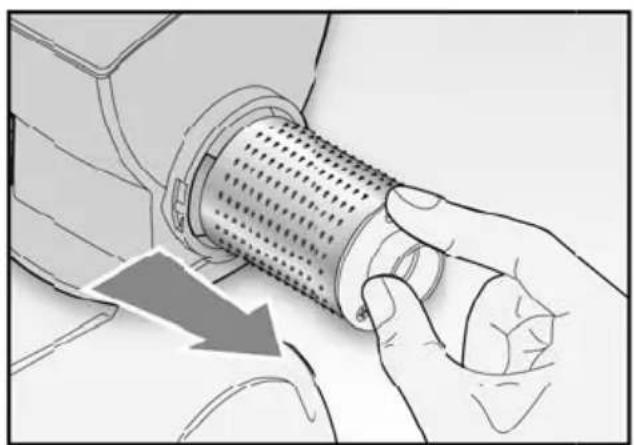

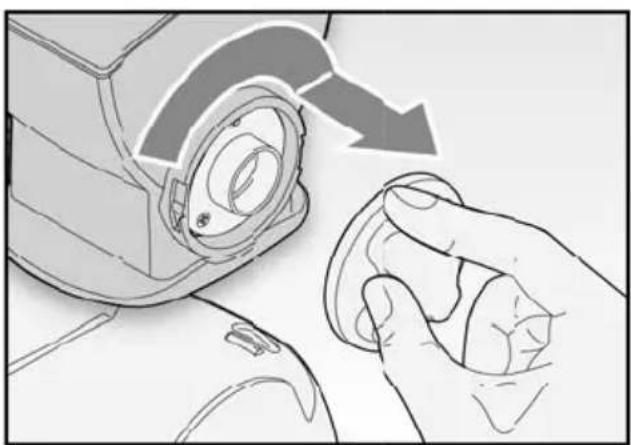

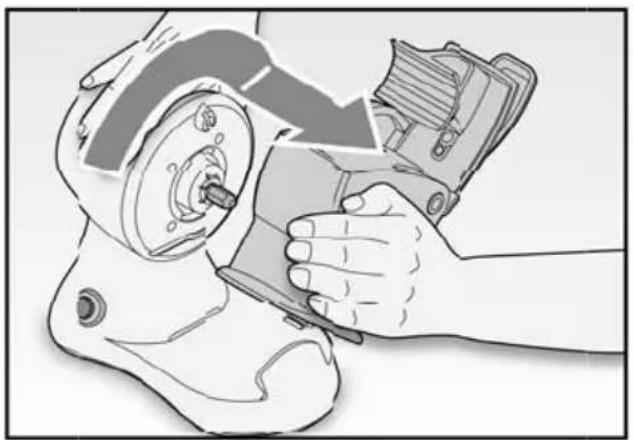

IMPORTANT: NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH. IMPORTANT: ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE. IMPORTANT: We recommend cleaning the appliance regularly to remove any food residues that might remain inside the hopper. Regular cleaning will mean guaranteed hygiene for your foods. ALWAYS clean the grater every time it is used with different foods (for example, when grating choco- late after grating cheese), since any food residues could contaminate different ingredients. IMPORTANT: Keep the appliance properly clean and in order, as this will guarantee excellent quality recipes and a longer useful life for the appliance itself. Before cleaning the appliance, it is necessary to remove all of the parts, proceeding as follows: - take out the container (A) (Fig. 3); - remove the roller cap (M) by turning it clockwise (Fig. 4); - pull the roller out (L) (Fig. 5); - remove the hopper assembly (I), lift the lever (G) first and then supporting the power base (C) with one hand, turn the handle clockwise and remove it (Fig. 6). Only the removable parts: roller (L), container (A), lid and cap (B-M), hopper (I), can be washed by hand, using hot water and a mild detergent or in the top rack of the dishwasher. - To clean the roller (L), remove it and handle it with care. Once it has been taken out, rinse it under running water and clean with the plastic-bristled brush (N) provided. IMPORTANT: Handle the roller with care; the blades are very sharp. IMPORTANT: If the teeth on the roller should become bent, then the roller needs to be replaced by an Authorised Assistance Centre. Do not try to straighten out the teeth with any type of tool (Fig. 7). - The power base (C) can be wiped clean with a damp cloth. Take care not to use rough cloths that could scratch the plastic surfaces; use soft cloths only.EN

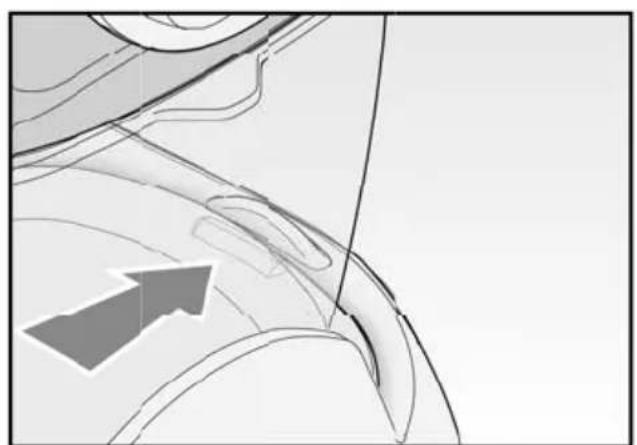

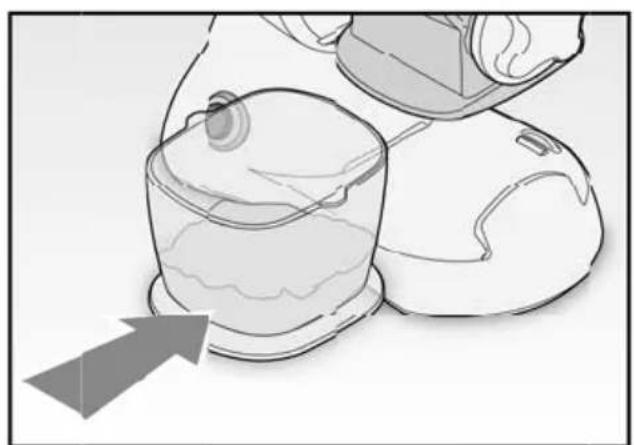

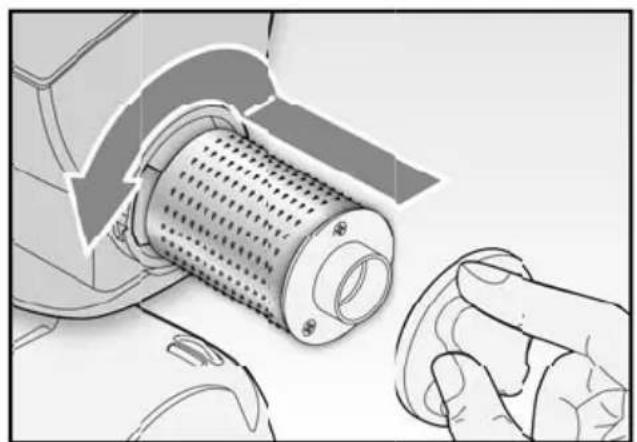

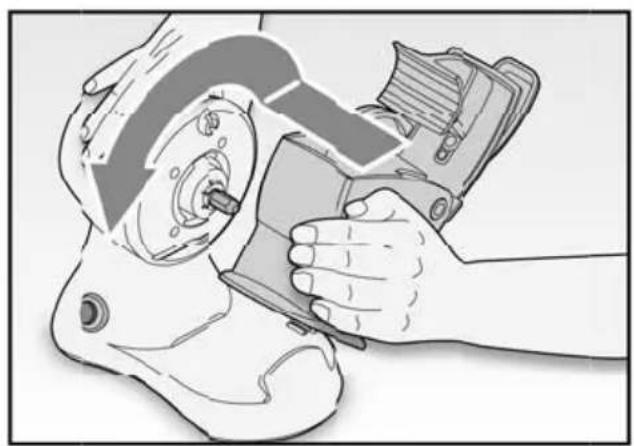

Appliance reassembly Before using again, assembly the appliance as follows: - with the lever (G) raised, insert the hopper (I) onto the shaft (E) of the power base and turn it forwards, anticlockwise, to lock it into place (Fig. 8); - insert the roller (L) onto the shaft (E) and then fit the cap (M) and lock it into place by turning it anticlockwise (Fig. 9); - insert the container (A) under the hopper (I) so that the side tab fits perfectly into the lock slot (D) (Fig. 10) and press it until it clicks into place on the rear lock (F) (Fig. 11). Note: The container (A) can be inserted from either side. IMPORTANT: Before use, make sure that all parts are fitted correctly, otherwise the appliance will not operate.FR
