Product type	Electric table barbecue
Brand	Steba
Model	VG 500
Power supply	230 V ~ 50 Hz, 2400 W, class I, IPX4
Cooking plates	Enameled grill plate (left) and Power plate (right)
Plate temperatures	Grill plate: up to 250°C; Power plate: up to 300°C
Thermostat settings	2 thermostats: keep warm 150-200°C, gentle grilling 200-225°C, medium 225-275°C, max 300°C
Stainless steel shelf	Surface for warming food (up to 200°C with lid closed)
Lid	With integrated thermometer indicating room temperature
Grease collecting trays	2 removable drawers with internal reflectors
Assembly required	Drawer handles and 4 feet to be assembled (screws supplied)
Dimensions (optional support table)	Mobile table GM 4: 40 x 52 cm, 2 folding shelves 31 x 27.5 cm, 2 bottle holders 12 x 26 cm
Weight	Approximately 8 kg (estimate)
Materials	Stainless steel, enameled plates
Cleaning	Plates and trays: brush and dish soap, do not use metal brush; housing: damp cloth
Safety	Do not use with charcoal or flammable liquids; do not immerse; do not use without collecting trays
Use	Indoors with adequate ventilation or outdoors sheltered from rain
Manual available in	French, German, English, Dutch, Russian, Danish

Frequently Asked Questions - VG 500 STEBA

How to assemble the Steba VG 500 barbecue?

For transport reasons, the drawer handles and the 4 feet are not pre-assembled. They must be attached using the supplied screws before first use.

What is the power and electrical supply?

The appliance operates on 230 V ~ 50 Hz, with a power of 2400 W. It is class I and IPX4 rating (protected against water splashes).

How to clean the plates and trays?

Unplug the appliance and let it cool down. Clean the plates and collecting trays with a brush and dish soap. Do not use a metal brush. Wipe the housing with a damp cloth and a little detergent.

What are the available temperatures on each plate?

The left grill plate reaches 250°C, the right Power plate reaches 300°C. The thermostat allows adjusting heat from 150°C to 300°C in steps.

Can I use the barbecue indoors?

Yes, provided there is adequate ventilation. The appliance is not designed for outdoor use in rain.

What to do if the appliance smokes during first use?

This is normal. Before first use, clean all parts, dry them, then heat the appliance with the lid closed for 15 minutes maximum. Coat the grid with a little cooking oil. After cooling, wash it with dish soap.

How to know when the temperature is reached?

The blue indicator light turns on when the appliance is plugged in and the thermostat is set. It turns off when the set temperature is reached.

Can I use charcoal in this barbecue?

No, the appliance is exclusively electric. Never use charcoal or flammable liquids.

What accessories are available for the VG 500?

Steba offers a mobile barbecue GM 4 (table with two folding shelves, two bottle holders and a large lower shelf) suitable for this model.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point or point of sale for recycling. The packaging must be sorted (paper, cardboard, plastics).

USER MANUAL VG 500 STEBA

Exterior view of a modern office building (no signage)

Premium BBQ-Tischgrill VG 500

Instructions for use 31

Mode d'emploi 38

Exploded view diagram of a portable stove with numbered components for identification

D

1. Lid
2. Rack
3. Power plate
4. Grill plate
5. Drawer
6. 2 knobs for drawers
7. 4 bases
8. Screw for knobs

Dear customer,

the knobs (No. 6) for both drawers (No. 5), as well as the 4 bases (No. 7) are not preassembled to the device because of reasons of transportation. These parts necessarily need to be assembled to the device for temperature reasons.

Thank you

F

Illustration of a human figure, a screwdriver, and an adjustable wrench (no text or symbols)

1、

Technical diagram of a mechanical device with labeled components and numbered connection points

2、A*2

A 5 6 ⑤ ⑥ A ⑤ ⑥

3、

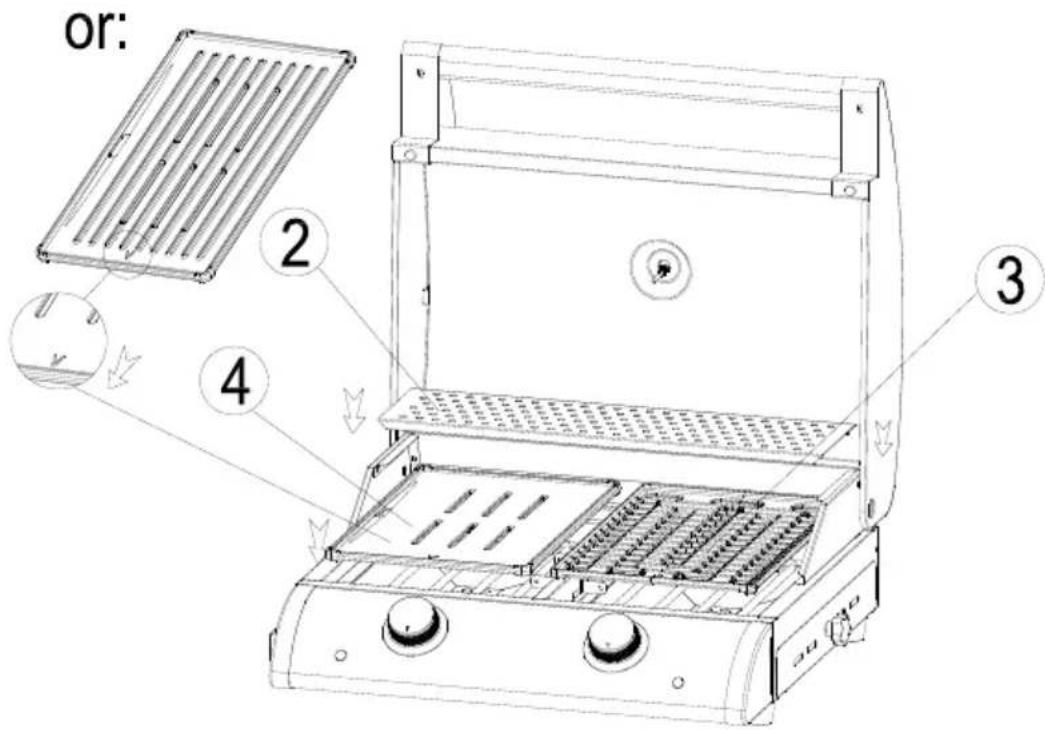

or: 2 4 3

4、

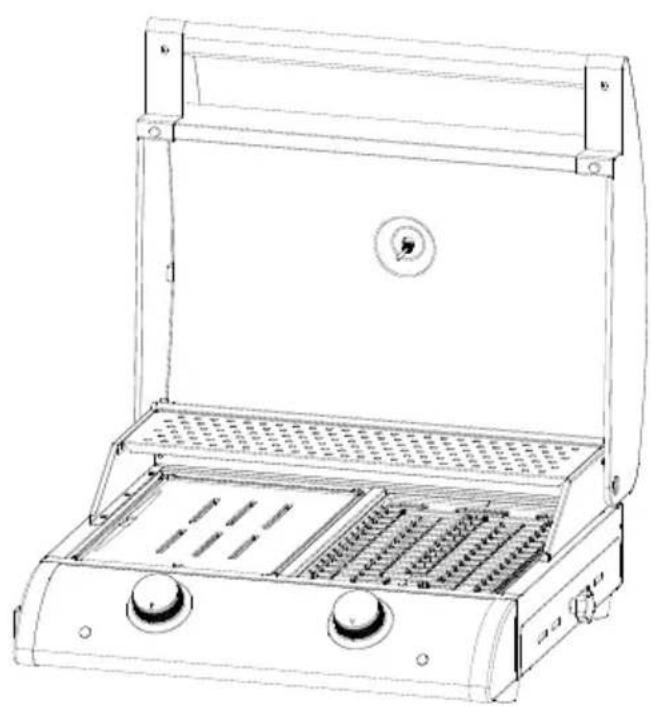

Line drawing of a portable electric stove or gas stove with two control knobs and a vent, no text or symbols present.

Allgemein

Line drawing of a trapezoidal tray with multiple vertical tubes and a central arrow, no text or symbols present.

Grillplatte links

Line drawing of a rectangular grid structure with recessed panels and a small V symbol at the bottom (no text or labels)

Black rectangular food cart with side handles and two side bottles on the side (no text or symbols visible)

Black rectangular electronic device with a circular handle and top panel (no visible text or symbols)

EAN-Code: 4011833400840

Farbe: schwarz

Gewicht: 13,7 kg

Maße 79,0 x 130,0 x 44,0

(H/B/T in cm):

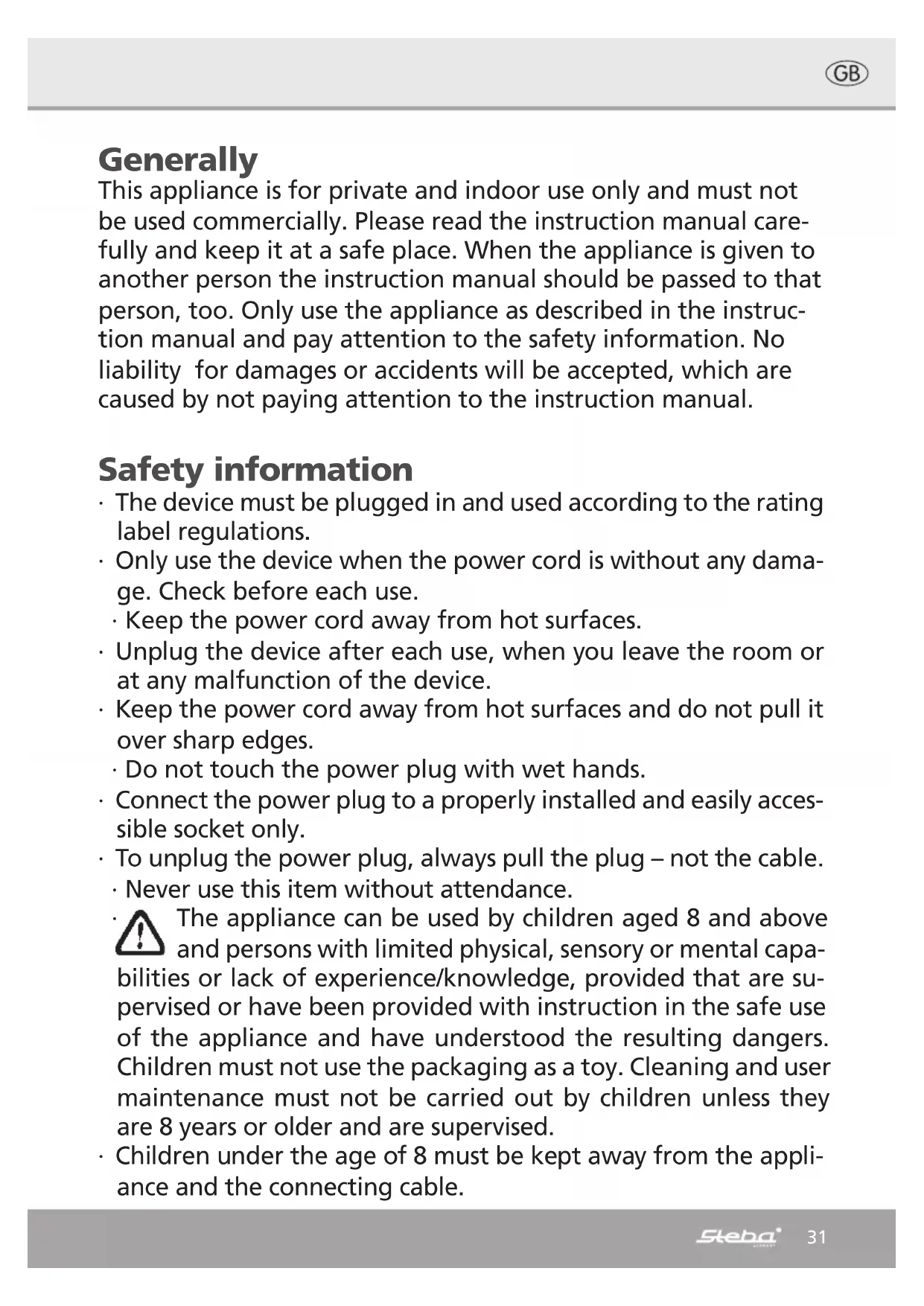

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

- The device must be plugged in and used according to the rating label regulations.

- Only use the device when the power cord is without any damage. Check before each use.

- Keep the power cord away from hot surfaces.

- Unplug the device after each use, when you leave the room or at any malfunction of the device.

- Keep the power cord away from hot surfaces and do not pull it over sharp edges.

- Do not touch the power plug with wet hands.

- Connect the power plug to a properly installed and easily accessible socket only.

- To unplug the power plug, always pull the plug – not the cable.

- Never use this item without attendance.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

- Children under the age of 8 must be kept away from the appliance and the connecting cable.

Children should not play near the device.

- The appliance must not be operated using a timer or a separate remote system!

- This grill is an electrical device! Never run in the rain or on wet surfaces.

- Never keep the appliance outdoor or in damp rooms.

- Do not immerse the appliance in water or you do not spray it off with a garden hose.

- Never operate the appliance without the reflectors and the grease drip trays.

- If the grill is used indoor, adequate ventilation must be provided.

- Close the lid before transportation.

· Only use the device for food preparation

- Never use the device after a malfunction, e.g. when it was fallen down or was damaged in any way.

- The producer takes no responsibility for wrong use, which comes from not obeying the instruction manual

- To avoid any dangers must repairs, e.g. change of a defect power cord, only be done by our service or an authorised company.

- Device gets hot. Only transport after it cooled down.

- If the appliance is used as a table top, it must be placed on a even, stable and heat resisting surface (e.g. Not on painted furniture) and keep away (min 70cm) of burnable materials (e.g. curtains)

- Before the first use: Clean all parts and dry them afterwards. To get rid of the new smell, heat up device for 15 minutes with top closed. Apply a light coating of cooking oil to griddle beforehand. After cooling, wash griddle in soapy water and dry.

Attention! Housing get hot, Risk of burns! Don't place the device on a sensitive surface (e.g. painted furniture) and keep distance of at least 70 cm to burnable materials (e.g. curtains).

- The appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

Working place:

Important: Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflamable items are near to the device.

Safety requirements during usage:

- Only use the appliance at a safety plug socket. This should be connected to a earth leakage circuit breaker

- Use the appliance only when it is assembled.

- Never leave the appliance outdoors after usage.

- Fat and other grill food can spatter and drop. Therefore do not place the appliance not directly on sensitive surfaces, e.g. Polished table tops, parquet or carpet.

- When using the appliance with stand, be sure that the stand is standing stable, because the danger of burns when it falls

- Be sure that the cable is placed that way that it cannot be pulled or touched during usage.

- Always unplug the appliance and cool it down before the device is carried away. Never carry it when it is hot.

- Unplug the appliance after each usage or before cleaning.

· Always place the oil tray bellow the grill plate.

The device must not be operated with charcoal or flammable liquids.

Cleaning

• Unplug the device
• Set the on/off switch to "0"

• Let the device cool down

• Clean the grill plate and drip trays with a brush and washing-up liquid (If heavily soiled might soak in soapy water before.). Do not clean the parts with a wire brush.
  · Clean the housing with a damp cloth

• Do not immerse the appliance in water or you do not spray it off with a garden hose.
• Extremely high heat can change the color of the stainless steel parts.

On/Off switch

Connect the device to the mains. Then press the on/off switch on the side. Switch off the device again after grilling.

Control lamp:

The blue light shines if the thermostat is set in. If the desired temperature is reached the lamp goes off and on.

Thermostat

The unit has 2 thermostats. The left thermostat is adjusted to a plate temperature of 250^ C. The right thermostat is adjusted to a plate temperature of 300^ C. This corresponds to an all-around heat in the grill room of 150^ C.

With the thermostat the temperature of the grill plate can be adjusted. The Numbers on the thermostat knob have following meaning:

100^ C = thermostat switched on

150^ - 200^ = keeping warm

200^ - 225^ = grilling with low temperature (for fish etc.)

225°C - 275°C = grilling on medium temperature (for chicken etc.)

300°C = grilling on max. temperature

Rack

Ready grilled meat or jacket potatoes can be kept warm on this surface with open lid; it can also be used to crisp white bread etc. The temperature in this area, when the lid is closed and the thermostat is set to max, is around 200^ C.

Thermometer

The thermometer shows the all-around heat, but not the temperature on the plates.

Grill preparations

If the device is used for the first time, all parts should be wiped with a damp cloth. Then the device should be preheated for about 15 minutes with the lid closed at maximum temperature to burn off possible residues of production. This may cause some smoke. Important: The enameled die-cast plates must be inserted correctly! Arrows must point to the front!

Line drawing of a trapezoidal tray with multiple parallel tubes, no text or symbols present

Left grill plate

Line drawing of a grid-patterned rectangular object with rounded corners and a small V-shaped feature at the bottom (no text or symbols)

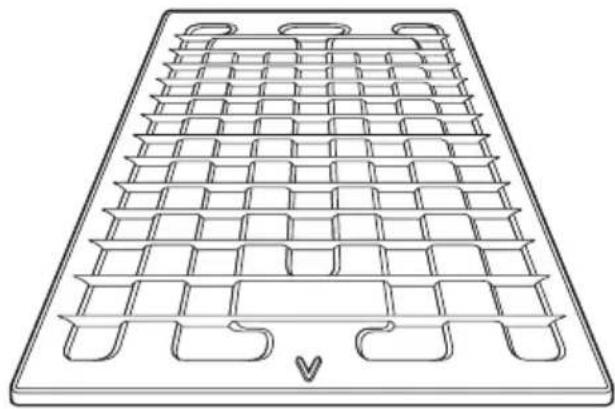

right grill plate (power grill plate)

The grease drip trays on the left and right side as well as the internal reflectors, must be inserted so that the surface will not get damaged. The grill plates must not be covered with aluminum foil, otherwise this could cause overheating. To prevent damage, do not cut on the grill plates!

The heating rods glow differently due to technical reasons.

Grilling

Oil the grill plates slightly before usage. This makes it easier to turn the food (eg. sunflower oil – virgin oils must not be used!). The best results are obtained when the lid is closed, as it hereby created an all-around heat. If the lid is closed the temperature increases by around 30^ C. This reduces energy consumption! The device can be operated with left side only, right side only or both sides together. You can pre-grill on the left plate, for example, and finish grilling on the power plate with 300^ C. Please make sure that there is not too much fat on the plates or in the drip tray. Heavily soiled items can ignite! For grill suggestions please refer to the following recipe ideas.

Grill plate and power plate

At maximum temperature setting and closed lid following temperatures are obtained on the plates:

• Grill plate left: 250°C
• Power plate right: 300°C

You can grill a steak on the left plate at 220^ C for 4 minutes per side and finish grilling on the right power plate with 1 minute per side. (The times are approximate and subject of meat, thickness and quality.)

Some Tips for grilling

In the interest of your health:

· Minced meat must be processed immediately
- Separate roasted poultry from raw meat, do not eat raw meat and always grill until fully cooked.
· Cured meat and sausages should not be grilled too much.
· Starches (eg, bread, potatoes) must not be grilled too dark

Accessories

Grill table GM 4

Black plastic food cart with side handles and two bottles on wheels (no text or symbols visible)

Black rectangular electronic device with a square top and side handles (no visible text or symbols)

• Grill table for Premium BBQ-table grill VG 500
• Can be used for all other Steba BBQ-table grills as well
  • Table surface: 40 x 52 cm
  • 2 foldaway trays each 31 x 27,5 cm
  • 2 bottle shelves: 12 x 26 cm
  • Big lower tray e.g. for beverages
• With its two wheels also for mobile use

Typ: GM 4

Art.-Nr.: 99 65 00

EAN-Code: 4011833400840

Farbe: black

Gewicht: 13,7 kg

Maße 79,0 x 130,0 x 44,0

(H/B/T in cm):

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
