USER MANUAL VG 30 Slim STEBA
BBQ Tischgrill VG 30 Slim
Instructions for use 9
Mode d'emploi 15

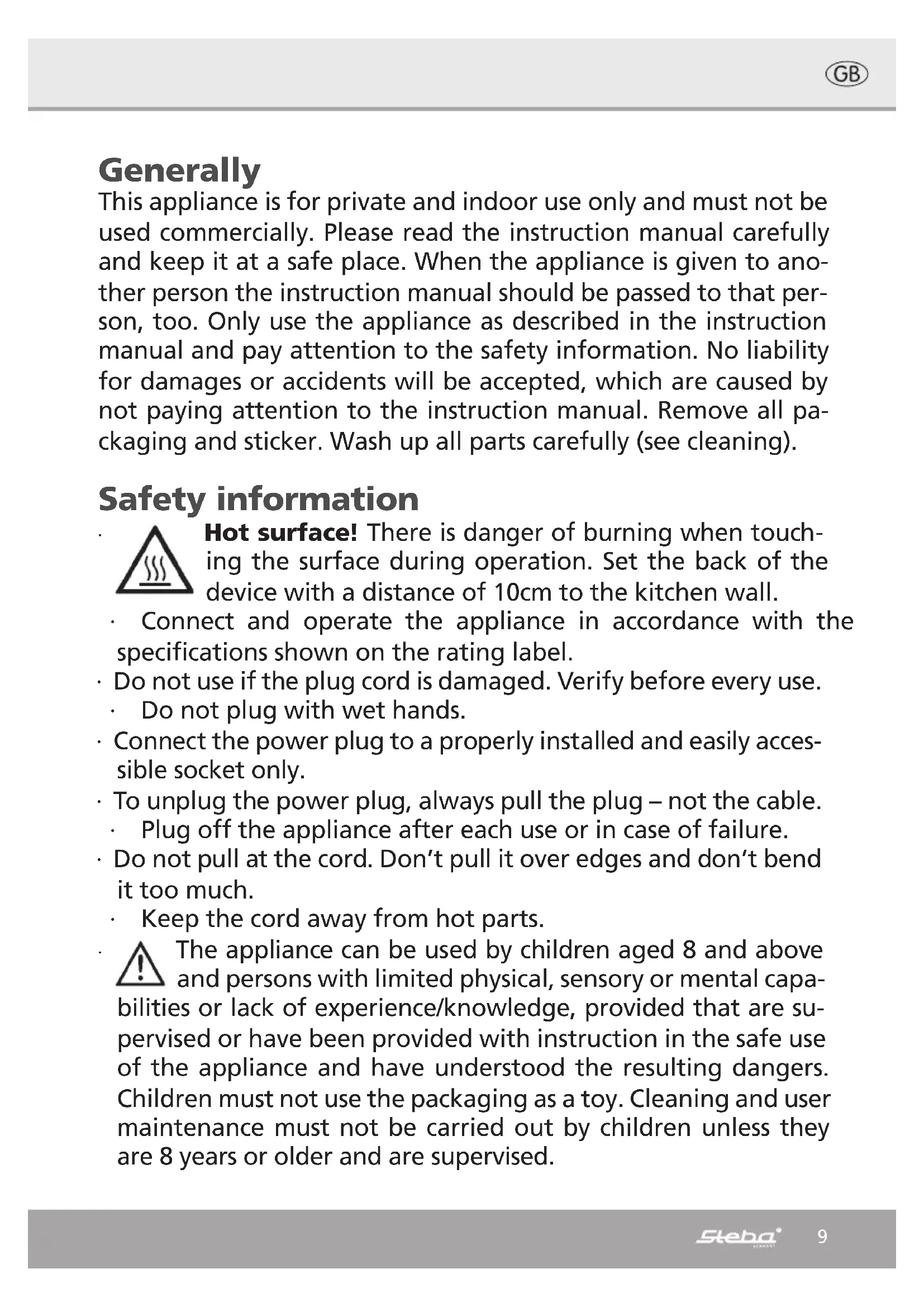

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).
Safety information
Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall.
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
- Do not use if the plug cord is damaged. Verify before every use.
- Do not plug with wet hands.
- Connect the power plug to a properly installed and easily accessible socket only.
- To unplug the power plug, always pull the plug – not the cable.
- Plug off the appliance after each use or in case of failure.
- Do not pull at the cord. Don't pull it over edges and don't bend it too much.
-
Keep the cord away from hot parts.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised. -
Children under the age of 8 must be kept away from the appliance and the connecting cable.
- Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
- The appliance must not be operated using a timer or a separate remote system!
- Never leave the appliance unattended when in use.
- Do not leave the appliance outdoors or in a damp area.
- Never leave the appliance unattended when in use.
- Do not leave the appliance outdoors or in a damp area.
ver place anything on top of the device.
- Never immerse the electric thermostat in water.
- Leave a space of about 10cm around the device.
- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.
- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner. - The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made. - To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.
- The device gets hot, only transport after it cooled down.
- Only use the device as described in this manual.
- This appliance is intended to be used in household and similar applications such as:
o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.
- Before initial use: clean all parts carefully and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness. The device can smoke easily in the first few minutes.
- Attention! Housing and glass get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials.
- If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
- Make sure that children do not tease the cable or that a trip hazard occurs.
- The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
- Hygiene: Please always clean the device to avoid bacteria and mold formation.
Cleaning
Attention! Pull the plug before cleaning and allow the device to cool down.
- Never immerse the unit into water.
• Pull the controller out of the grill plate.
- Clean the grill plate with a rinsing brush and detergent (if heavily soiled, soak in soapy water beforehand.)
- Wipe the housing with a damp cloth and a little washing-up liquid.
- Never immerse the controller housing with the supply line in water!
Workplace
Important:
Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.
Thermostat:
With the thermostat the temperature of the grill plate can be adjusted.
The Numbers on the thermostat knob have following meaning:
1 = thermostat switched on
2 = keeping warm
3 = grilling with low temperature (for fish etc.)
4 = grilling on medium temperature (for chicken etc.)
5 = grilling on max. temperature
Control Lamp:
When the appliance is plugged in and the thermostat is adjusted, the control lamp is shining. When the temperature is achieved, the lamp goes off.
Grill preparations:
Oil the grill slightly before the usage. This makes it easier to turn the food. Then heat up the device for ca 10 min; the thermostat on maximum level. The food should be not frozen during grilling. Please use the appliance only with the drip tray.
Never cover the grill plate with aluminium foil, because the heat cannot get away from the heating element.
Never cut on the grill surface because the coating can be damaged.
Some Tips for grilling
In the interest of your health:
- Minced meat must be processed immediately
- Separate roasted poultry from raw meat, do not eat raw meat and always grill until fully cooked.
• Cured meat and sausages should not be grilled too much. - Starches (egg, bread, potatoes) must not be grilled too dark
Important note
Cold-pressed oils, such as olive oil should not be used as dripping as these oils have a poor quality at high temperatures.
Due to the high grill temperatures (up to 250^ C), residues of oil, juices, herbs, etc. build up on the hot grill surface and the non-stick effect decreases. It is hard or impossible to remove these residues from the grilling plate.
Therefore, only use heat-resistant oils!
Troubleshooting
Dear Client,
Thank you for buying this STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.
| Problem Reason Suggestion | ||
| Red control lamp does not shine | · No power· Device does not (yet) heat | · Plug in device· Check the fuse |
| Red control lamp does not shine during operation | · Device has reached the desired temperature | · No defect, the lamp clocks if the device is heating |
| Fat runs onto the table | · Collector tray not correctly inserted· Collector tray not inserted· Collector tray full | · Empty the tray, reinsert und check if placed correctly |
| Browning of the food is too low | · Too low temperature· Grilling time too short | · Increase temperature or grilling time |
| Non-stick effect of grill plate is bad / scratches in the coating | · Coating is damaged by hard metal objects | · No cause for complaint |
| Device does not heat anymore | · Device is connected to a cable drum | · Unwind the cable drum completely and check the fuse |
| Grill plate cannot be removed | · Thermostat controller is still inserted | · Remove the controller first |
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.
Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.
Service and Repair:
If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
