Product type	Electric barbecue
Brand	Steba
Model	VG 195
Power	2000 W (estimated)
Power supply	230 V ~ 50 Hz
Plate material	Steel with non-stick coating
Hood	Glass, removable
Thermostat	5 positions: off, keep warm, low, medium, max
Indicator light	Heating indicator (red)
Drip tray	Removable, for grease
Wall safety distance	10 cm at the rear
Distance to flammable materials	70 cm
Usage	Private and light commercial (employee kitchens, agricultural, hotels)
Cleaning	Plate and reflector: brush and detergent; housing: damp cloth; do not immerse
Controller	Removable for cleaning, do not immerse
Storage	Vertical possible
Child safety	Supervision necessary for children under 8
Recommended extension cord	Section 1.5 mm², max 3680 W on power strip
Recommended oils	High-heat oils (avoid olive oil)
After-sales service	Repairs by qualified electrician

Frequently Asked Questions - VG 195 STEBA

How to clean the grill plate?

Unplug the appliance and wait for it to cool completely. Remove the thermostat controller. Clean the plate with a brush and mild detergent. If very dirty, soak it in soapy water. Never immerse the controller housing in water.

What to do if the red indicator does not light up?

Check the power outlet and that the appliance is plugged in. If the indicator does not light up, the appliance may not be heating yet or may have reached temperature. Consult the troubleshooting table in the manual.

Can I use aluminum foil on the grill?

No, never cover the grill with aluminum foil as it prevents proper heat transfer and could damage the appliance.

How to adjust the temperature?

Use the rotary thermostat with 5 positions: position 1 = off, 2 = keep warm, 3 = low (fish), 4 = medium (delicate meats), 5 = high. The indicator turns off when the temperature is reached.

How to prevent food from sticking to the plate?

Brush the plate with a thin layer of oil before grilling. Use high-heat oils (e.g., sunflower oil) and avoid olive oil which burns at high temperature. Preheat the appliance for 5 to 10 minutes at maximum power.

Is the appliance suitable for outdoor use?

No, the appliance is designed for indoor private use. Do not use it outdoors and do not store it in a damp room.

How to store the appliance?

You can store the appliance vertically to save space. Ensure it is completely cooled and clean before storing.

What to do if grease drips onto the table?

Check that the drip tray is correctly inserted and not full. If the tray is not in place, insert it. Clean the table with a damp cloth.

Can I use the appliance with a timer or remote control?

No, the appliance must not be used with an external timer or remote control system. It must be supervised during operation.

How to remove the 'new' smell during first use?

Heat the appliance for about 15 minutes empty (without food) to eliminate the new smell. Ensure the room is well ventilated.

USER MANUAL VG 195 STEBA

Instructions for use 10

Mode d'emploi 18

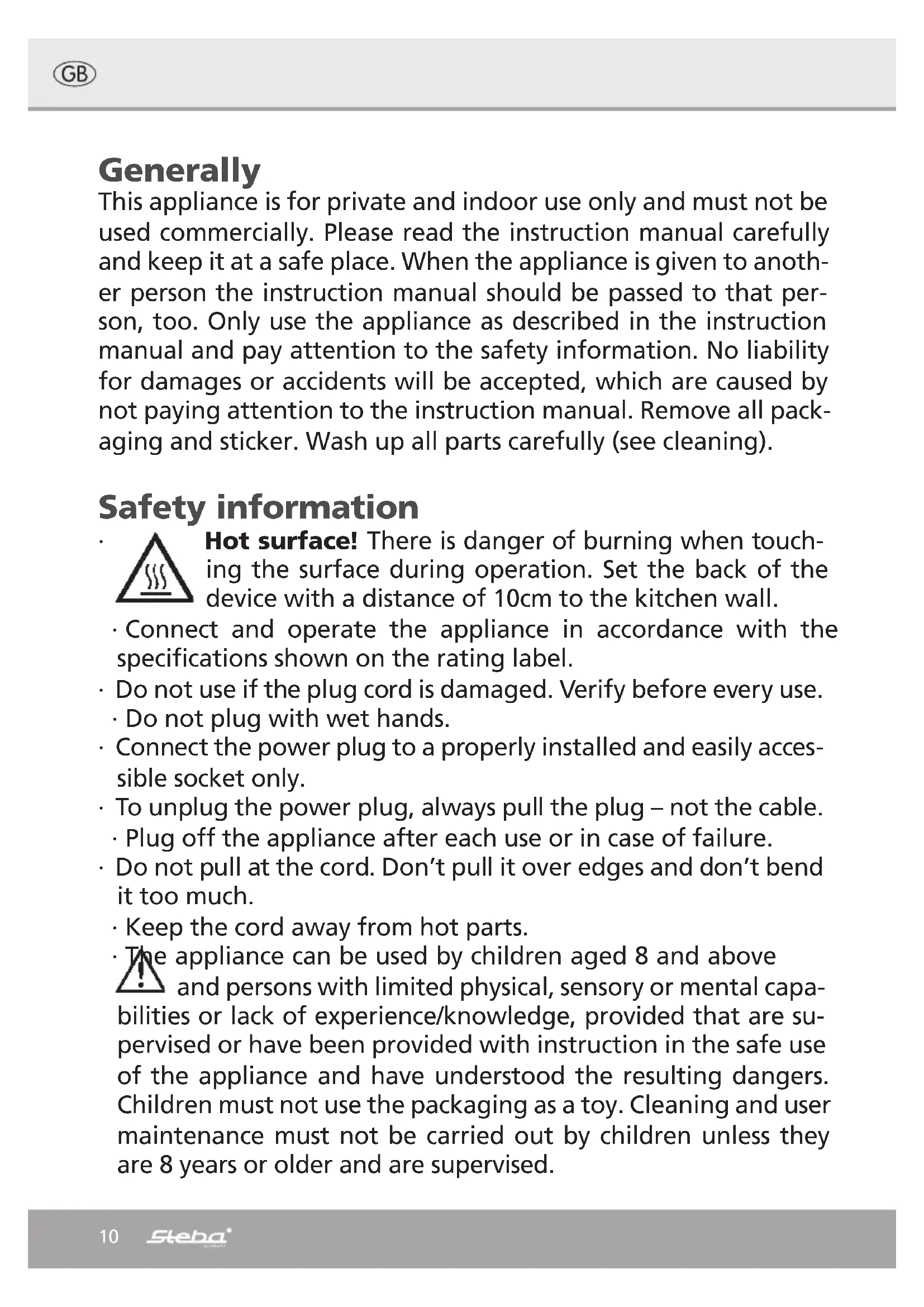

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall.
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
- Do not use if the plug cord is damaged. Verify before every use.
- Do not plug with wet hands.
- Connect the power plug to a properly installed and easily accessible socket only.
- To unplug the power plug, always pull the plug – not the cable.
- Plug off the appliance after each use or in case of failure.
- Do not pull at the cord. Don't pull it over edges and don't bend it too much.
- Keep the cord away from hot parts.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

Children under the age of 8 must be kept away from the appliance and the connecting cable.

Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

Never place anything on top of the device.

- Never immerse the electric thermostat in water.

• Leave a space of about 10cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

The device gets hot, only transport after it cooled down.
- Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness. The device can smoke easily in the first few minutes.

Attention! Housing and glass get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm

to burnable materials.

• Handle the glass lid carefully. Do not use if a crack is visible.
• If an extension cable is used, it has to have a cross-section of 1,5mm² . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Hygiene: Please always clean the device to avoid bacteria and mold formation.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

• Never immerse the unit into water.

• Pull the controller out of the grill plate.

• Clean the grill plate and the reflector plate with a rinsing brush and detergent (if heavily soiled, soak in soapy water beforehand.)

• The glass cover can be removed from the device for cleaning by pulling it vertically upwards.

• Wipe the housing with a damp cloth and a little washing-up liquid.

• Never immerse the controller housing with the supply line in water!

• The device can be placed vertically for storage.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a

even, stable and a heat resisting surface. It is important that no inflammable items are

near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Safety requirements during usage

• Use the appliance only when it is assembled.
• Do not use the grill plate outside of the appliance.
• Never leave the appliance outdoors after usage.
• Close the glass lid before transportation.
  When the glass lid is in the position as a windshield then the lid must not be pushed to the front or to the back by force. To close the lid pull it carefully upwards and then close it.
• The device must not be operated with charcoal or flammable liquids.

Thermostat:

With the thermostat the temperature of the grill plate can be adjusted.

The Numbers on the thermostat knob have following meaning:

1 = thermostat switched on
2 = keeping warm
3 = grilling with low temperature (for fish etc.)
4 = grilling on medium temperature (for chicken etc.)
5 = grilling on max. temperature

Control Lamp:

When the appliance is plugged in and the thermostat is adjusted, the control lamp is shining. When the temperature is achieved, the lamp goes off.

Grill preparations:

Oil the grill slightly before the usage. This makes it more easy to turn the food. Then heat up the device for ca 10 min; the thermostat on maximum level. The food should be not frozen during grilling. Please use the appliance only with the drip tray.

Never cover the appliance with aluminium foil, because the heat cannot get away from the heating element.

Never cut on the grill surface because the coating can be damaged.

During grilling the glass lid can be closed or the glass lid can be used in an opened position as a windshield.

Careful!!:

Steam from the food can emerge when the lid is opened. Danger of burns!

Some Tips for grilling

In the interest of your health:

• Minced meat must be processed immediately
• Separate roasted poultry from raw meat, do not eat raw meat and always grill until fully cooked.
  Cured meat and sausages should not be grilled too much.
  Starches (egg, bread, potatoes) must not be grilled too dark

Important note

Cold-pressed oils, such as olive oil should not be used as dripping as these oils have a poor quality at high temperatures.

Due to the high grill temperatures (up to 250°C ), residues of oil, juices, herbs, etc. build up on the hot grill surface and the non-stick effect decreases. It is hard or impossible to remove these residues from the grilling plate.

Therefore, only use heat-resistant oils!

Troubleshooting

Dear Client,

Thank you for buying this STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.

Problem Reason Suggestion
Red control lamp does not shine	·No power ·Device does not (yet) heat
Red control lamp does not shine during operation	·Device has reached the desired temperature	·No defect, the lamp clocks if the device is heating
Fat runs onto the table	·Collector tray not correctly inserted ·Collector tray not inserted ·Collector tray full	·Empty the tray, reinsert und check if placed correctly
Browning of the food is too low	·Too low temperature ·Grilling time too short	·Increase temperature or grilling time
Non-stick effect of grill plate is bad / scratches in the coating	·Coating is damaged by hard metal objects	·No cause for complaint
Device does not heat any-more	·Device is connected to a cable drum	·Unwind the cable drum completely and check the fuse
Grill plate cannot be removed	·Thermostat controller is still inserted	·Remove the controller first

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
