VG 500 Plus - Barbecue STEBA - Free user manual and instructions

Product type	Electric barbecue
Brand	Steba
Model	VG 500 Plus
Dimensions (L x W x H)	Approximately 50 x 30 x 15 cm
Weight	Approximately 5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W
Cooking surface	Non-stick coating
Main functions	Grill, smokeless cooking, adjustable thermostat
Thermostat	Continuously adjustable
Heating indicator light	Yes
Non-slip feet	Yes
Grease collection tray	Removable
Care and cleaning	Clean after cooling with a damp cloth; do not immerse in water
Safety	Auto shut-off in case of overheating, cool handle
Spare parts and repairability	Available from the manufacturer
General information	User manual included

Frequently Asked Questions - VG 500 Plus STEBA

How to turn on the Steba VG 500 Plus barbecue?

Plug the appliance into a power outlet, then turn the thermostat to the desired setting. The heating indicator light turns on and off when the temperature is reached.

What type of meat can be cooked on this barbecue?

All kinds of meats, fish, vegetables, and skewers. The non-stick surface allows healthy cooking with little fat.

How to clean the cooking plate?

Wait for the appliance to cool completely. Wipe the plate with a damp cloth or non-abrasive sponge. Never immerse the appliance in water.

Does the barbecue produce smoke?

The Steba VG 500 Plus is designed for smokeless cooking thanks to its air circulation system and grease collection tray.

What is the maximum power?

The maximum power is 2000 W, allowing rapid temperature rise.

Can aluminum foil or metal utensils be used?

Avoid aluminum foil and sharp metal utensils that could scratch the non-stick coating. Use wooden or silicone utensils.

How many people can be served with this barbecue?

The cooking surface allows preparing meals for 2 to 4 people depending on portions.

What to do if the appliance no longer heats up?

Check the power outlet and connection. If the problem persists, contact Steba customer service. Do not attempt to repair yourself.

Is the thermostat accurate?

Yes, the continuously adjustable thermostat maintains a constant temperature for even cooking.

Where to find spare parts?

Spare parts are available from the manufacturer Steba or authorized dealers. Refer to the manual for references.

USER MANUAL VG 500 Plus STEBA

Premium BBQ Table Grill VG 500

Instructions for use 31

Mode d'emploi 38

D

1. Lid
2. Rack
3. Power plate
4. Grill plate
5. Drawer
6. 2 knobs for drawers
7. 4 bases
8. Screw for knobs

Dear customer,

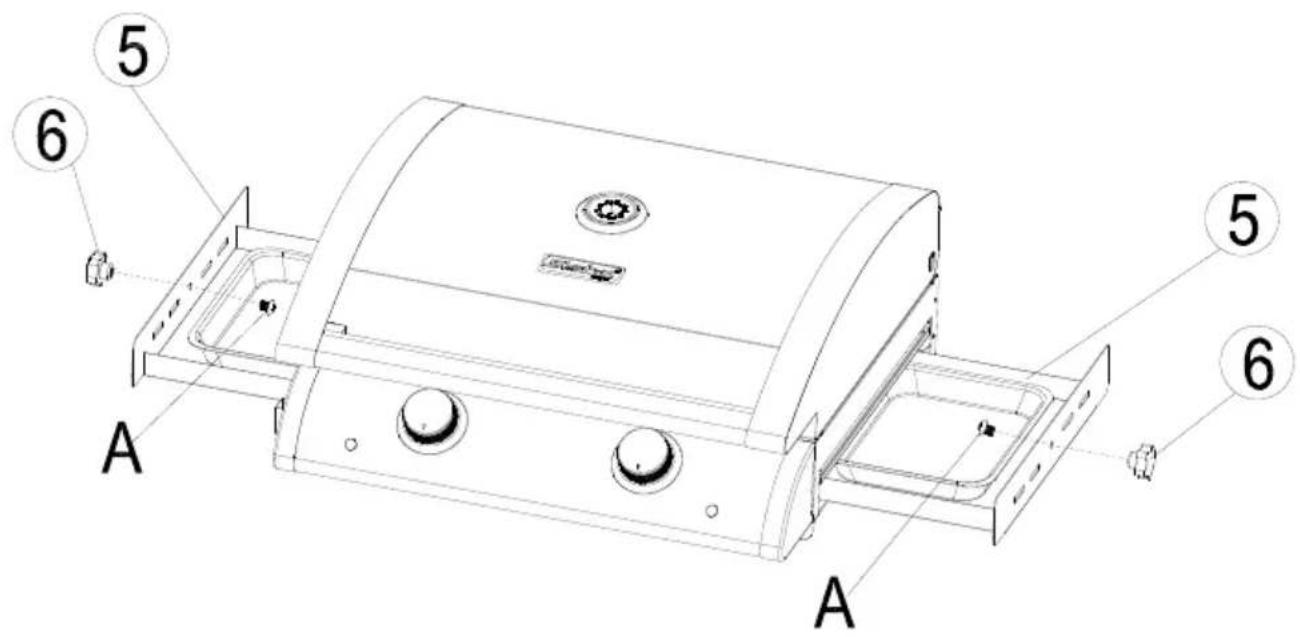

the knobs (No. 6) for both drawers (No. 5), as well as the 4 bases (No. 7) are not preassembled to the device because of reasons of transportation. These parts necessarily need to be assembled to the device for temperature reasons.

Thank you

General

Grill plate left

EAN code: 4011833400840

Color: black

Weight: 13.7 kg

Dimensions 79.0 x 130.0 x 44.0

(H/W/D in cm):

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it in a safe place. When the appliance is given to another person, the instruction manual should be passed to that person as well. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted if they are caused by not paying attention to the instruction manual.

Safety information

• The device must be plugged in and used according to the rating label regulations.
• Only use the device when the power cord is without any damage. Check before each use.

- Keep the power cord away from hot surfaces.

• Unplug the device after each use, when you leave the room or at any malfunction of the device.
• Keep the power cord away from hot surfaces and do not pull it over sharp edges.

- Do not touch the power plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.

- Never use this item without attendance.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

- Children under the age of 8 must be kept away from the appliance and the connecting cable.

Children should not play near the device. - The appliance must not be operated using a timer or a separate remote system! - This grill is an electrical device! Never run in the rain or on wet surfaces. - Never keep the appliance outdoor or in damp rooms. - Do not immerse the appliance in water or you do not spray it off with a garden hose. - Never operate the appliance without the reflectors and the grease drip trays. - If the grill is used indoor, adequate ventilation must be provided. - Close the lid before transportation. • Only use the device for food preparation - Never use the device after a malfunction, e.g. when it was fallen down or was damaged in any way. - The producer takes no responsibility for wrong use, which comes from not obeying the instruction manual - To avoid any dangers must repairs, e.g. change of a defect power cord, only be done by our service or an authorised company. • Device gets hot. Only transport after it cooled down. - If the appliance is used as a table top, it must be placed on a even, stable and heat resisting surface (e.g. Not on painted furniture) and keep away (min 70cm) of burnable materials (e.g. curtains) - Before the first use: Clean all parts and dry them afterwards. To get rid of the new smell, heat up device for 15 minutes with top closed. Apply a light coating of cooking oil to griddle beforehand. After cooling, wash griddle in soapy water and dry. Attention! Housing get hot, Risk of burns! Don't place the device on a sensitive surface (e.g. painted furniture) and keep distance of at least 70 cm to burnable materials (e.g. curtains).

- The appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

Working place:

Important: Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on an even, stable, and heat-resistant surface. It is important that no flammable items are near the device.

Safety requirements during usage:

- Only use the appliance at a safety plug socket. This should be connected to an earth leakage circuit breaker.

- Use the appliance only when it is assembled.

- Never leave the appliance outdoors after usage.

- Fat and other grill food can spatter and drop. Therefore, do not place the appliance directly on sensitive surfaces, e.g. polished table tops, parquet, or carpet.

- When using the appliance with a stand, be sure that the stand is stable, because there is a danger of burns if it falls.

- Be sure that the cable is placed in such a way that it cannot be pulled or touched during usage.

- Always unplug the appliance and let it cool down before the device is carried away. Never carry it when it is hot.

- Unplug the appliance after each usage or before cleaning.

- Always place the oil tray below the grill plate.

The device must not be operated with charcoal or flammable liquids.

Cleaning

• Unplug the device.
• Set the on/off switch to "0".
• Let the device cool down
• Clean the grill plate and drip trays with a brush and washing-up liquid (if heavily soiled, they might need to soak in soapy water before). Do not clean the parts with a wire brush.
• Clean the housing with a damp cloth.
• Do not immerse the appliance in water or spray it off with a garden hose.
• Extremely high heat can change the color of the stainless steel parts.

On/Off switch

Connect the device to the mains. Then press the on/off switch on the side. Switch off the device again after grilling.

Control lamp:

The blue light shines if the thermostat is set in. If the desired temperature is reached, the lamp goes off and on.

Thermostat

The unit has 2 thermostats. The left thermostat is adjusted to a plate temperature of 250° C. The right thermostat is adjusted to a plate temperature of 300° C. This corresponds to an all-around heat in the grill room of 150° C.

With the thermostat, the temperature of the grill plate can be adjusted. The numbers on the thermostat knob have the following meaning:

100° C = thermostat switched on

150°C - 200°C = keeping warm

200°C - 225°C = grilling with low temperature (for fish etc.)

225°C - 275°C = grilling on medium temperature (for chicken etc.)

300°C = grilling on max. temperature

Rack

Ready grilled meat or jacket potatoes can be kept warm on this surface with open lid; it can also be used to crisp white bread etc. The temperature in this area, when the lid is closed and the thermostat is set to max, is around 200° C.

Thermometer

The thermometer shows the all-around heat, but not the temperature on the plates.

Grill preparations

If the device is used for the first time, all parts should be wiped with a damp cloth. Then the device should be preheated for about 15 minutes with the lid closed at maximum temperature to burn off possible residues of production. This may cause some smoke. Important: The enameled die-cast plates must be inserted correctly! Arrows must point to the front!

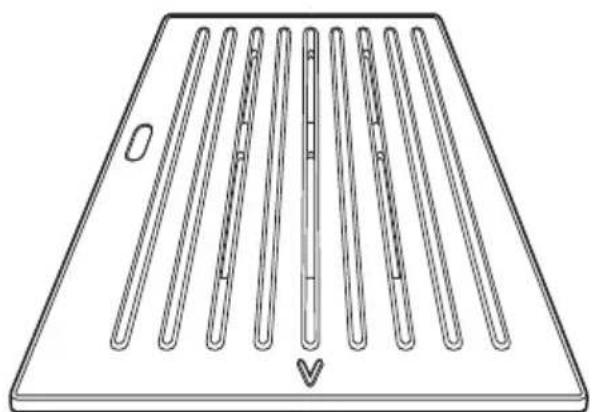

Left grill plate

right grill plate (power grill plate)

The grease drip trays on the left and right side as well as the internal reflectors, must be inserted so that the surface will not get damaged. The grill plates must not be covered with aluminum foil, otherwise this could cause overheating. To prevent damage, do not cut on the grill plates!

The heating rods glow differently due to technical reasons.

Grilling

Oil the grill plates slightly before usage. This makes it easier to turn the food (e.g., sunflower oil – virgin oils must not be used!). The best results are obtained when the lid is closed, as it hereby creates an all-around heat. If the lid is closed, the temperature increases by around 30°C. This reduces energy consumption! The device can be operated with left side only, right side only, or both sides together. You can pre-grill on the left plate, for example, and finish grilling on the power plate with 300°C. Please make sure that there is not too much fat on the plates or in the drip tray. Heavily soiled items can ignite! For grill suggestions, please refer to the following recipe ideas.

Grill plate and power plate

At maximum temperature setting and closed lid, the following temperatures are obtained on the plates:

• Grill plate left: 250°C • Power plate right: 300°C

You can grill a steak on the left plate at 220°C for 4 minutes per side and finish grilling on the right power plate with 1 minute per side. (The times are approximate and subject to meat, thickness, and quality.)

Some Tips for Grilling

In the interest of your health:

• Minced meat must be processed immediately.
• Separate roasted poultry from raw meat, do not eat raw meat, and always grill until fully cooked. • Cured meat and sausages should not be grilled too much. • Starches (e.g., bread, potatoes) must not be grilled too dark.

Accessories

Grill table GM 4

• Grill table for Premium BBQ-table grill VG 500
• Can be used for all other Steba BBQ-table grills as well • Table surface: 40 x 52 cm • 2 foldaway trays each 31 x 27.5 cm • 2 bottle shelves: 12 x 26 cm • Big lower tray e.g., for beverages
• With its two wheels, also for mobile use

Type: GM 4

Item no.: 99 65 00

EAN code: 4011833400840

Color: black

Weight: 13.7 kg

Dimensions 79.0 x 130.0 x 44.0

(H/W/D in cm):

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
