PDS 30 A1 - Ceiling support clamp PARKSIDE - Free user manual and instructions

Product Type	Ceiling support vise (ceiling prop)
Brand	Parkside
Model	PDS 30 A1
Adjustable height	137 cm to 290 cm
Upper bar diameter	12 mm
Lower bar diameter	25 mm
Tube diameter	32 mm
Net weight	Approx 3.0 kg
Maximum load	30 kg (at 90° inclination)
Permissible inclination angle	65° to 90°
Intended use	Domestic, work at height, drywall and interior construction
Main parts	Rubber fitting, upper bar, pump lever, lower bar, locking screw, tube, stop bolts, locking lever
Maintenance	No maintenance required
Cleaning	Brush or slightly damp cloth
Storage	Horizontal, dry place
Safety	Check before each use, do not use on sloping floor, do not exceed max load
After-sales service France	0800 919270, [e-mail]
After-sales service Belgium	0800 12089, [e-mail]
Importer	Kompernass (address not specified, contact after-sales service)
IAN number	380865_2110

Frequently Asked Questions - PDS 30 A1 PARKSIDE

How to adjust the height of the prop?

Loosen the locking screw, push the stop bolts out of the notch, extend the lower bar to the desired height, then retighten the locking screw. For fine adjustment, operate the pump lever.

What is the maximum supported load?

The maximum load is 30 kg at an inclination angle of 90°. For a smaller angle, the load is significantly reduced.

Can I use the prop on a sloping floor?

No, the prop should only be used on a clean, non-slip, level and vertical surface. It is prohibited on stairs or sloping floors.

How to check the condition of the prop before use?

Visually inspect the prop for any damage. Make sure the locking screw is tight and both stop bolts are fully engaged.

Is the prop suitable for professional use?

No, the prop is designed only for domestic use. Any commercial or industrial use is prohibited and voids the warranty.

How to clean the prop?

Clean the prop with a brush or slightly damp cloth. Do not use harsh agents.

How to store the prop?

Store the prop in a dry place, horizontally to prevent it from tipping over.

What to do if the prop is damaged?

Stop using the prop immediately. Contact after-sales service: in France at 0800 919270, in Belgium at 0800 12089, or by email.

Can the prop be used for permanent shoring?

No, the prop is intended only for temporary assembly. It is not suitable for permanently shoring ceilings or beams.

How to disassemble the prop after use?

Push the locking lever upward to retract the upper bar, loosen the locking screw, push the stop bolts, then fully retract the lower bar.

USER MANUAL PDS 30 A1 PARKSIDE

Operating instructions

FR BE

ÉTAI

Mode d'emploi

CZ

TELESKOPICKA PODPERNA TYC

Návod k obsluze

SK

STROPNÁ PODPERA

Návod na obsluhu

DK

LOFTSTØTTE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Information on these operating instructions 2
Intended use 2
Technical details 2
Safety instructions 3
Parts and operating components 4
Usage 4
Storage 6
Maintenance 6
Cleaning 6
Disposal 6
Disposal of the appliance 6
Disposal of the packaging 6
Service 7
Importer. 7

Information on these operating instructions

Congratulations!

You have purchased a high-quality product. Familiarise yourself with the product before using it for the first time. To do this, read the following operating instructions and the safety instructions thoroughly. Use the product only as described and for the range of applications specified. Keep these operating instructions in a safe place. Please pass this manual on to any future owner.

Intended use

The ceiling prop is intended exclusively for private use as a support during overhead work in dry and interior construction. The prop is not designed for use on stairways or sloping ground. Commercial or industrial use is not permitted. No liability will be assumed in cases of improper use.

No liability will be assumed for damage caused by misuse or improper handling, the use of force or unauthorised modification. The risk is borne solely by the user.

Technical details

Dimensions
Height	extensible between 137 cm and 290 cm
Ø Upper bar 12 mm
Ø Lower bar 25 mm
Ø Tube 32 mm
Weight
Net weight approx. 3.0 kg
Loading
Maximum load at an inclination of 90°	30 kg

Safety instructions

CAUTION! RISK OF INJURY!

• Check the prop before every use to make sure it is in perfect condition. If you notice any damage you may no longer use the prop.
• Ensure that the prop locking screw is always tightly fastened when under load and that both locking bolts are completely engaged.
• Only use the prop on clean, non-slip and level ground and in a stable position.
• Check the prop before every use to make sure it is in perfect technical condition.
• Never remain under supported loads.

CAUTION! PROPERTY DAMAGE!

• Only use the prop for short-term erection and not for permanent propping of ceilings, beams etc.
• Please note that the prop or the supporting material can be damaged by high pressure.
• Never place more than 30 ~kg payload on the prop at an inclination of 90^ . At a lower inclination, the max. load of the prop is lowered significantly.
• Use the prop only at an inclination between 65^ and 90^ .
• Never use the prop for purposes other than those described in these instructions.

Parts and operating components

(See fold-out page for illustrations)

The ceiling prop PDS 30 A1 consists of the following parts:

Rubber pad
Upper bar 2
Pump lever 3
Lower bar 4
- Locking screw 5
- Tube
- Locking bolt 7
- Locking lever 8

Usage

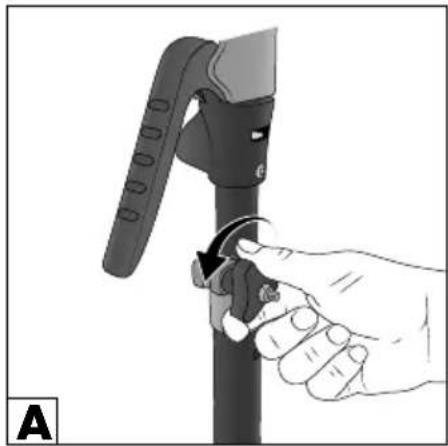

Loosen the locking screw (Fig. A).

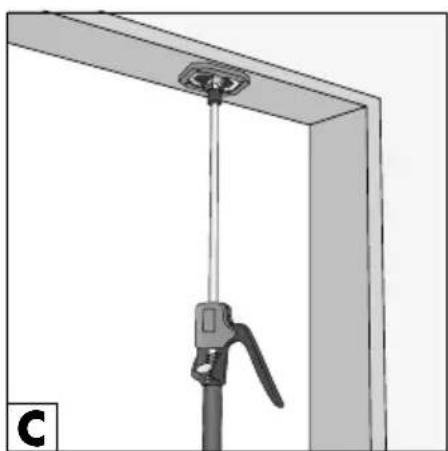

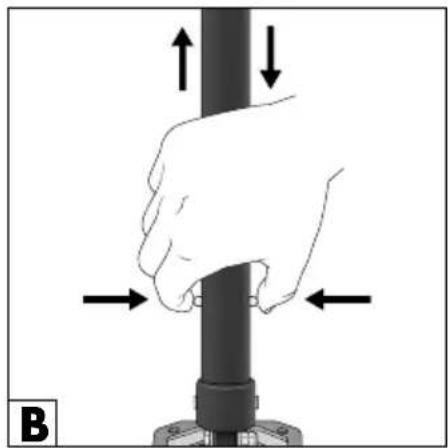

If necessary, press the two locking bolts out of their detent (Fig. B) and pull the lower bar 4 out up to the required height until the rubber pad 1 is located under the load to be supported (Fig. C).

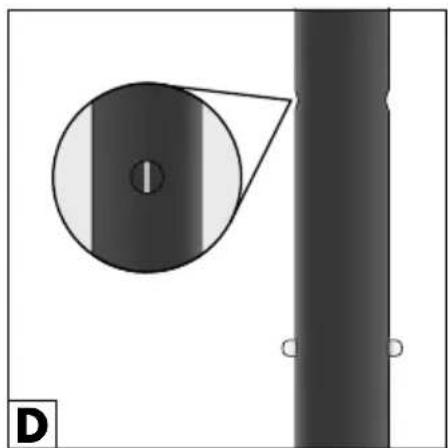

Allow the two locking bolts to engage completely in the tube detent. Use the red line which marks the position of the locking bolts (Fig. D) on the lower bar as an orientation aid.

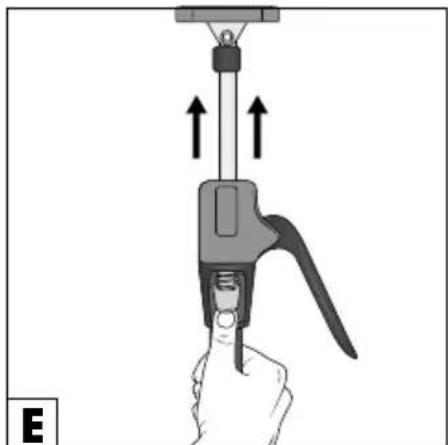

If the length of the lower bar 4 is insufficient, push the locking lever 8 upwards (Fig. E) and pull the upper bar 2 out to the required height.

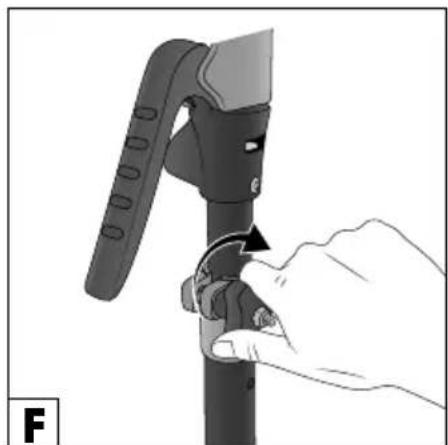

Re-tighten the locking screw (Fig. F).

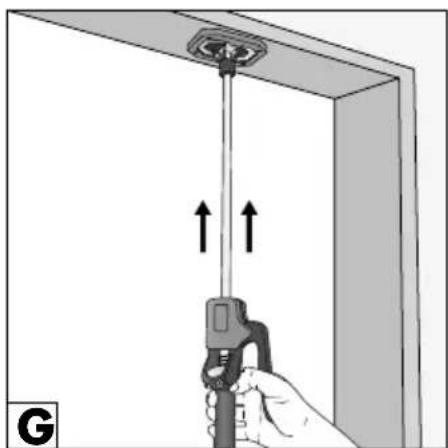

To make fine adjustments to the height, press the pump lever several times until the rubber pad is located firmly under the load to be supported (Fig. G).

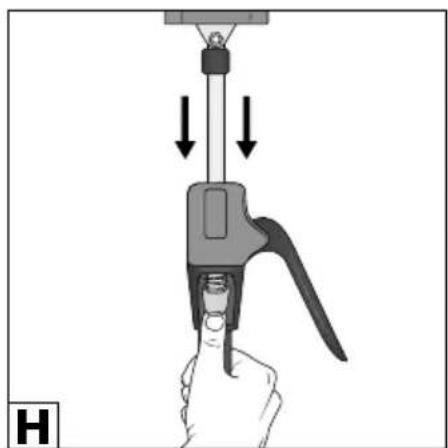

To loosen and remove the prop, press the locking level upwards until the upper bar has been completely retracted (Fig. H).
Loosen the locking screw (Fig. A).
Hold the tube ⑥ firmly with one hand and press the engaged locking bolts ⑦ out of their detent (Fig. B).
Push the lower bar back inside completely.

Storage

Store the prop in a dry location and in a lying position so that it cannot fall over.

Maintenance

The prop is maintenance free.

Cleaning

Clean the prop using a brush or a slightly damp cloth.

Disposal

Disposal of the appliance

Dispose of the product via an approved waste disposal company or your municipal waste disposal facility. Please comply with all applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics

20-22: paper and cardboard,

80-98: composites.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN380865_2110

Importer

Please note that the following address is not the service address.

Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
