PHKSA 12 A2 - Cordless circular saw PARKSIDE - Free user manual and instructions
Find the device manual for free PHKSA 12 A2 PARKSIDE in PDF.
| Brand | Parkside |
| Model | PHKSA 12 A2 |
| Product type | Cordless circular saw |
| Intended use | Home use, sawing wood, plastic and light materials |
| No-load speed | 1400 min⁻¹ |
| Blade diameter | 85 mm |
| Blade bore | 15 mm |
| Blade thickness | 1.1 mm |
| Number of teeth | 20 |
| Max. cutting depth (45°) | 17 mm |
| Adjustable cutting angle | 0° to 45° |
| Battery | Lithium-Ion 12 V, 4 Ah (PAPK 12 B1) |
| Charger | PLGK 12 B2, input 230 V~, output max. 4.5 A |
| Charging time | Approx. 60 min |
| Sound pressure level | 86.8 dB(A) |
| Sound power level | 97.8 dB(A) |
| Vibrations (wood) | 3.27 m/s² (K=1.5 m/s²) |
| Lower protective guard | Automatic with kickback lever |
| LED work light | Yes |
| Spindle lock | Yes |
| Parallel guide | Included, adjustable |
| Dust extraction adapter | Included |
| Protection class (charger) | II (double insulation) |
| Warranty | 3 years |
Frequently Asked Questions - PHKSA 12 A2 PARKSIDE
User questions about PHKSA 12 A2 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cordless circular saw in PDF format for free! Find your manual PHKSA 12 A2 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PHKSA 12 A2 by PARKSIDE.
USER MANUAL PHKSA 12 A2 PARKSIDE
AKKU-HANDKREISSÄGE / CORDLESS CIRCULAR SAW SCIE CIRCULAIRE SANS FIL PHKSA 12 A2
DE AT CH
AKKU-HANDKREISSÄGE
Translation of the original instructions
NL BE
ACCU-HANDCIRKELZAAG
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Translation of the original instructions Page 17
All Parkside tools and the chargers PLGK 12 A1 / PLGK 12 B2 of the X12V Team series are compatible with the PAPK 12 A1 / PAPK 12 A2 / PAPK 12 B1 battery pack.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
General power tool safety warnings 19
1.Work area safety 19
2. Electrical safety 20
3. Personal safety 20
4. Power tool use and care 20
5. Battery tool use and care 21
6. Service 21
Appliance-specific safety instructions for circular saws 21
Safety guidelines for battery chargers 23
Safety information for circular saw blades 24
Original accessories/auxiliary equipment 24
Before use 24
Removing/charging/inserting the battery pack 24
Checkingblade guard functionality. 24
Operation 25

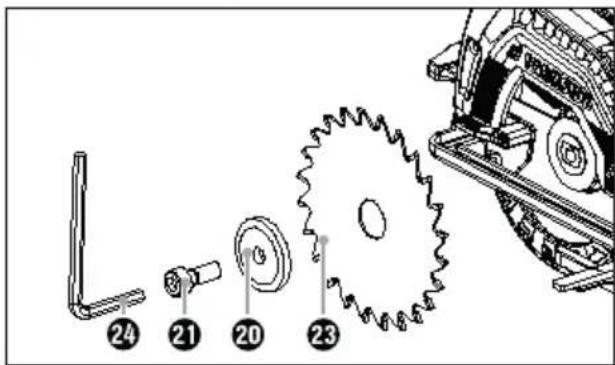

Fitting/changing the saw blade 25

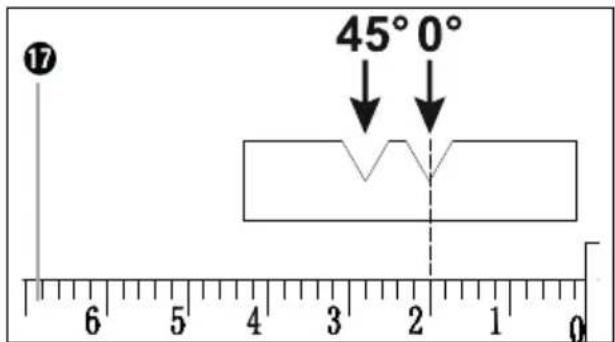

Rip fence 25
Connecting a dust extraction unit 25
Use 26
Switching on and off 26
Battery charge level 26
Overload warning 26
Setting the cutting angle 26
Setting the cutting depth 26
Working with the circular saw 26
Maintenance and cleaning 27
Disposal 27
Kompernass Handels GmbH warranty 28
Service 29
Importer 29
Translation of the original Conformity Declaration 30
Ordering a replacement battery 31
Telephone ordering 31
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
This hand-held circular saw (hereinafter "appli- ance") is designed for longitudinal, cross and mitre cuts in firmly supported chip board, plastics and lightweight construction materials. Any other uses of or modifications to the appliance are deemed to be improper usage and may result in serious physical injury. Not for commercial use.
Features
Figure A:
Safety lock-out
ON/OFF switch
3 Release button for battery pack
Battery pack

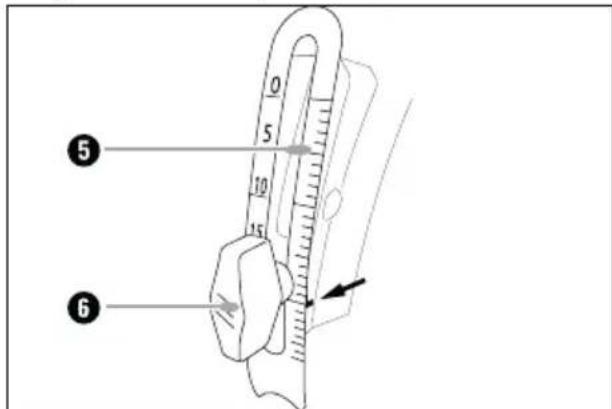

Cutting depth scale
Locking screw
Base plate
Blade guard
Wing screw for rip fence slot
Spindle lock
Chip ejector
Figure B:
12 Battery display LED
13 Overload warning
14 Vacuum adapter for dust extraction

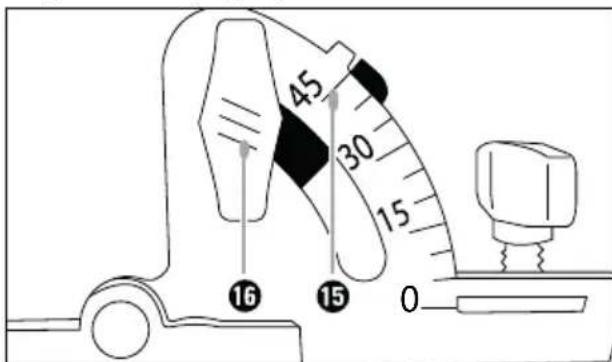

15 Cutting angle scale
16 Wing screw for cutting angle preselector
17 Rip fence
18 LED work light
19 Rip fence slot
20 Clamping flange
Tensioning screw
2 Release lever for the blade guard
Sawblade
24 Hex key
Figure C:
25 Charging status display LED
26 Control LED
High-speed charger
Package contents
1 cordless circular saw
1 high-speed battery charger
1 battery pack
1 guide fence
1 vacuum adapter for dust extraction (2 pieces)
1 hex key
1 saw blade (pre-assembled)
1 operating manual
Technical data
Cordless circular saw: PHKSA 12 A2
Rated voltage: 12 V (DC)
Rated idle speed: n 1400 rpm
Saw blade: 1 × 0.85 mm × 1.1 mm
x015mm,20 teeth
Max. cutting depth: At 0^ : 26 mm
At 45^ : approx. 17 mm
Battery pack: PAPK 12 B1
Type: Lithium LITHIUM ION
Rated voltage: 12 V (DC)
Capacity: 4000
Cells: 6
m
High-speed battery charger: PLGK 12 B2 INPUT:
Rated voltage: 220-240 V \~ (AC), 50-60 Hz
Power consumption: 75 W
OUTPUT:
Rated voltage: 12 V (DC)
Rated current: 4.5 A
Charging time: approx. 60 min
Fuse (internal): 3,15 A
Protection class: II / (double insulation)
Noise emission value:
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:
Sound pressure level: L_pA = 86.8 dB(A)
Uncertainty K: K PA = 3 dB
Sound power level: LWA = 97.8 dB(A)
Uncertainty K: K WA = 3 dB
Wear hearing protection!
Vibration emission value:
Total vibration values (vector total of three directions) determined in accordance with EN 62841:
Sawing wood a_hW = 3.27 m/s^2
Uncertainty K = 1.5m / s^2
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General power tool safety warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ (265^) may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!
t the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
Appliance-specific safety instructions for circular saws
Safety instructions for all saws
Sawing method
a) AANGER! Keep your hands clear of the sawing area and the saw blade. When both hands are being used to hold the saw, neither can be injured by the saw blade.
b) Do not reach underneath the workpiece. The blade guard cannot protect you from the saw blade underneath the workpiece.
c) Set the cutting depth to match the thickness of the workpiece. The blade should not extend more than one full tooth depth under the workpiece.
d) Never hold the workpiece to be sawn in your hand or over your leg. Fasten the workpiece onto a stable working surface. It is important to fasten the workpiece securely to minimise the danger of bodily contact, jamming of the saw blade or loss of control.
e) Hold the power tool only by the insulated handles when you are carrying out work in which the accessory tool may come into contact with concealed power cables. Contact with a live wire will also make exposed metal parts of the power tool live and could give the operator an electric shock.
f) When making longitudinal cuts, always use a rip fence or a straight edge guide. This will improve the accuracy of your cut and reduce the likelihood of the saw blade jamming.
g) Always use saw blades of the correct size and with an appropriate central fixing bore (e.g. diamond-shaped or circular). Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolts. The saw blade washers and screws have been specially designed to provide optimum performance and operational safety for your saw.
Further safety instructions for all saws
Kickback - causes and corresponding safety instructions
- A kickback is a sudden reaction caused as a result of the saw blade catching, jamming or being falsely aligned, causing the saw to jump up uncontrollably and out of the workpiece in the direction of the operator;
-
if the saw blade catches or jams in a narrowing saw cut, the blade can no longer rotate and the power of the motor throws the appliance back in the direction of the operator;
-
if the saw blade twists in the saw cut or becomes misaligned, the teeth at the rear edge of the saw blade can become caught in the wood surface, causing the saw blade to jump out of the cut and the saw to jump backwards in the direction of the operator.
Kickback is a result of saw misuse and/or incorrect operating procedures or conditions. This can be avoided by taking proper precautions as given below.
a) Hold the saw firmly and position your arms so that they can absorb the force of a kickback. Always stand to the side of the saw blade and never in line with it. If a kickback occurs, the circular saw may jump backwards. However, by taking appropriate precautions the operator can control the kickback forces.
b) If the saw blade jams or you stop working, switch the saw off and hold it steadily in the workpiece until the saw blade has completely stopped turning. Never attempt to remove the saw from the workpiece or pull it backwards while the saw blade is still moving as this could lead to a kickback. Investigate and take corrective actions to eliminate the cause of blade binding.
c) If you want to restart a saw that is still in the workpiece, centre the saw blade in the cut and check to ensure that the teeth are not caught anywhere in the workpiece. If the saw blade catches it can jump out of the workpiece or cause a kickback when the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to bend under their own weight. Panels/ boards must be supported on both sides: i.e. both in the vicinity of the saw cut and also at the edge.
e) Do not use blunt or damaged saw blades. Saw blades with blunt or misaligned teeth may cause excessive friction as the saw cut is too narrow, and this can cause a saw blade jam and kickback.
f) Before sawing, ensure that the fastenings for the cut depth and cut angle settings are tightened. If the settings change while sawing, the saw blade might jam and cause a kickback.
g) Be particularly careful when sawing in existing walls or other obscured areas. The inserted saw blade could get caught on hidden objects and cause a kickback.
Function of the lower blade guard
a) Check whether the lower blade guard closes properly before each use. Do not operate the saw if lower blade guard does not move freely and close instantly. Never clamp or tie the lower blade guard into the open position. If the saw is accidentally dropped, lower blade guard may be bent. Raise the blade guard with the release lever and make sure it moves freely and does not touch the blade or any other part at all angles and cut depths.
b) Check the operation of the lower blade guard spring. Have the saw serviced before using it if the lower blade guard and spring are not working properly. Damaged parts, sticky deposits or accumulations of chippings can cause the lower blade guard to operate slowly.
c) Lower guard may be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise the lower blade guard with the release lever and release it as soon as blade enters the material. During all other types of sawing work, the lower blade guard should function automatically.
d) Always ensure that the lower blade guard is covering the blade before placing the saw down on the workbench or floor. An unprotected, coasting saw blade will move the saw in the opposite direction to the cutting direction and saw anything in its path. Always take into account that the saw blade takes some time to stop spinning.
Safety guidelines for battery chargers
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under super
vision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.
To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.
The charger is suitable for indoor use only.
WARNING!
Do not operate the appliance with a damaged cable, power cord or mains plug. A damaged power cable poses a threat of a fatal electric shock.
ATTENTION!
This charger can only charge the following batteries: PAPK 12 A1 / PAPK 12 A2 / PAPK 12 B1.
A current list of battery compatibility can be found at www.Lidl.de/Akku.
Supplementary notes:
■ Do not use any grinding discs.
Use only saw blades with diameters corresponding to the label on the saw.
Always use the right saw blade for the material being worked.
Use only saw blades with a speed marking that corresponds to or is higher than the speed specified for the power tool.
Saw blades that are intended for use on wood or similar materials must comply with EN 847-1.
Do not allow the teeth of the saw blade to overheat.
When sawing plastic, avoid melting the plastic.
Wear a dust mask when sawing.
Only use recommended saw blades.
Always wear hearing protection!
Safety information for circular saw blades
protective gloves!
Wear a dust mask!
Wear protective goggles!
Wear hearing protection!
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable batteries.
Original accessories/auxiliary equipment
Only use the accessories and additional equipment that are specified in the operating instructions and compatible with the appliance.
Before use
Removing/charging/inserting the battery pack
CAUTION!
Always unplug the appliance before you remove the battery pack 4 from or connect the battery pack to the charger.
NOTE
The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1 hour. This guarantees full battery performance. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery.
If the battery overheats during operation, it cannot be charged immediately. Allow it to cool down first.
Never charge the battery pack if the ambient temperature is below 10^ or above 40^ . If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .
- To remove the battery pack, press the release button and pull the battery pack of the appliance.
- Insert the battery pack into the high-speed charger
- Insert the mains plug into the socket. The control LED lights up red.
- The green charge status indicator LED25 indicates that the charging process is complete and the battery pack ready.
- Insert the battery pack back into the appliance.
Checking blade guard functionality
Pull the release lever for the blade guard as far as it will go.
The blade guard should move without jamming. When letting go of the release lever for the blade guard 22t should automatically jump back to its original position.
Operation
Fitting/changing the saw blade
Always remove the battery pack before changing the saw blade
- Set the cutting depth (using the locking screw) to the minimum position, 0mm .
- Press the spindle lock button (until it engages) and hold it in.
- Undo the tensioning screw using a hex key .24
- Now, remove the tensioning screw and the clamping flange see also fig.A).
Fig. A: Changing the saw blade
- Pull the blade guard 8 all the way back using the release lever and keep the blade guard 8 in this position.
- Remove the saw blade carefully out of the appliance from below.
- Fitting a saw blade is done in the reverse order.
- Press the spindle lock button until it engages and use the hex key 2 to tighten the clamping screw
WARNING!
The arrow on the saw blade must correspond to the arrow showing the direction of rotation. Running direction shown on the blade guard
Ensure that the saw blade is suitable for the rotational speed of the tool.
Rip fence
Undo the wing screw for the rip fence and place the rip fence the rip fence slot. 19
Set the desired cut width using the scale on the rip fence and the cut out in the base plate (see also fig. B).
The right recess in the base plate is for a cutting angle of 0^ .
Fig. B: Cutting width 2 cm
Retighten the wing screw for the rip fenc.
Connecting a dust extraction unit
Attach the adapter for dust extraction to the chip ejector 1
Optional depending on the diameter of the dust and sawdust extraction.
Connect an approved dust and chip extraction device.
NOTE
- When sawing wood or other materials that create dusts that are hazardous to health, always connect the appliance to a suitable, certified suction appliance.
Use
Switching on and off
Switching on:
Push the safety lock-out to the left or right and keep it pressed.
Press the ON/OFF switch. The LED work light lights up. Once the saw is running, you can release the safety lock-out
Switching off:
Release the ON/OFF switch 2.
Battery charge level
The status will be shown on the battery display LED 13s follows:
RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge
RED = low charge - charge the battery
Overload warning
If the appliance is in danger of overloading, the overload warning lights up briefly. The appliance switches off.
Setting the cutting angle
You can select the cutting angle using the cutting angle scale 15
Undo the wing screw of the cutting angle preselector. Set the desired angle on the cutting angle scale using the top edge of the raised black metal part (see fig. C). Retighten the wing screw
The left recess in the base plate is for a cutting angle of 45^ (Fig. B)
Fig. C: Setting the cutting angle to 45 degrees
Setting the cutting depth
NOTE
- Select a cutting depth of approx. 3mm more than the thickness of the material. This ensures that you achieve a clean cut.
Undo the locking screw and set the desired cutting depth on the cutting depth scale using the reference marks (see arrow in fig. D). Retighten the locking screw.
Fig. D: Setting the cutting depth
Working with the circular saw
- Switch on the appliance - as described in "Switching on and off" - and then place it with the front edge of the base plate ① on the material.
- Align the machine using the rip fence or by using a marked line.
Maintenance and cleaning
NING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.
The cordless hand-held circular saw is maintenance-free.
The appliance must always be kept clean, dry and free from oil or grease.
Never allow liquids to get into the appliance.
Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
The blade guard must always move freely and close automatically. Therefore, keep the area around the blade guard clean at all times. Remove dust and chips by blowing them out with compressed air or with a brush.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage environment is cool and dry.
NOTE
Replacement parts not listed (such as batteries, battery charger) can be ordered via our service hotline.
Disposal
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
dispose of power tools in your normal domestic waste!
European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.
dispose of batteries in your normal household waste!
Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7:plastics, 20-22: paper and cardboard, 80-98: composites
Your local community or municipal authorities can provide information on how to dispose of the product.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly
to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.
Service
WARNING!
Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or its customer service. This will ensure that the safety of the appliance is maintained.
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN322704_1901
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive (2006/42/EC)
EC Low Voltage Directive (2014/35/EU) (ONLY CHARGER)
EMC (Electromagnetic Compatibility) (2014/30/EU)
RoHS Directive (2011/65/EU)*
- The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Applied harmonised standards:
EN 62841-1:2015
EN 62841-2-5:2014
EN 60335-1:2012/A13:2017
EN 60335-2-29:2004/A11:2018
EN 62233:2008
EN 55014-1:2006/A2:2011
EN 55014-1:2017
EN 55014-2:1997/A2:2008
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 50581:2012
Type designation of machine: Cordless circular saw PHKSA 12 A2
Year of manufacture: 06 - 2019
Serial number: IAN 322704_1901
Bochum, 18/06/2019
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.
NOTE
- Online ordering of replacement parts might not be possible in some countries. In this is the case, please contact the Service hotline.
The promotion is limited to one battery per customer/appliance and also to a timeline of two months after the promotion period. Thereafter, the replacement battery can be ordered as a replacement part under other conditions.
Telephone ordering
GB
Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
To ensure fast processing of your order, have the article number of your appliance to hand (e.g. IAN 322704) in case of questions. The article number can be found on the type plate or the title page of these instructions.
Sommaire
Introduction 34
ImprecisionK:K 3dB WA
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines
(2006/42/CE)
Accupack: PAPK 12 B1
Type: Lithium LITHIUM-ION
Nominate spanning: 220 - 240V ~ (wisselsroom), 50-60 Hz
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Akumulator: PAPK 12 B1
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Neurcitos K:K PA 3 dB
Neurcitos'K:K WA=3dB
Nosit ochranu slchu!
Hodnota emisie vibraci:
Celkovi hodnoty vibraci (sucet vektorov troch smerov) zistovane podla EN 62841:
Pilenie drev a a_h,W = 3,27m / s^2
Neurcitost K = 1,5m / s^2
UPOZORNENIE
Uvedené celkové hodnoty vibracii a uvedené hodnoty emisie hluku boli merané podla normovaného skusobného postupu a mozu sa pouzit na porovnanie jegneho elektrického náradia s druhym.
Uvedené celkové hodnoty vibracii a uvedené hodnoty emise hluku sa mozu tiez pouzit na predbezný odhad zafazenia.
VYSTRAHAI!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
