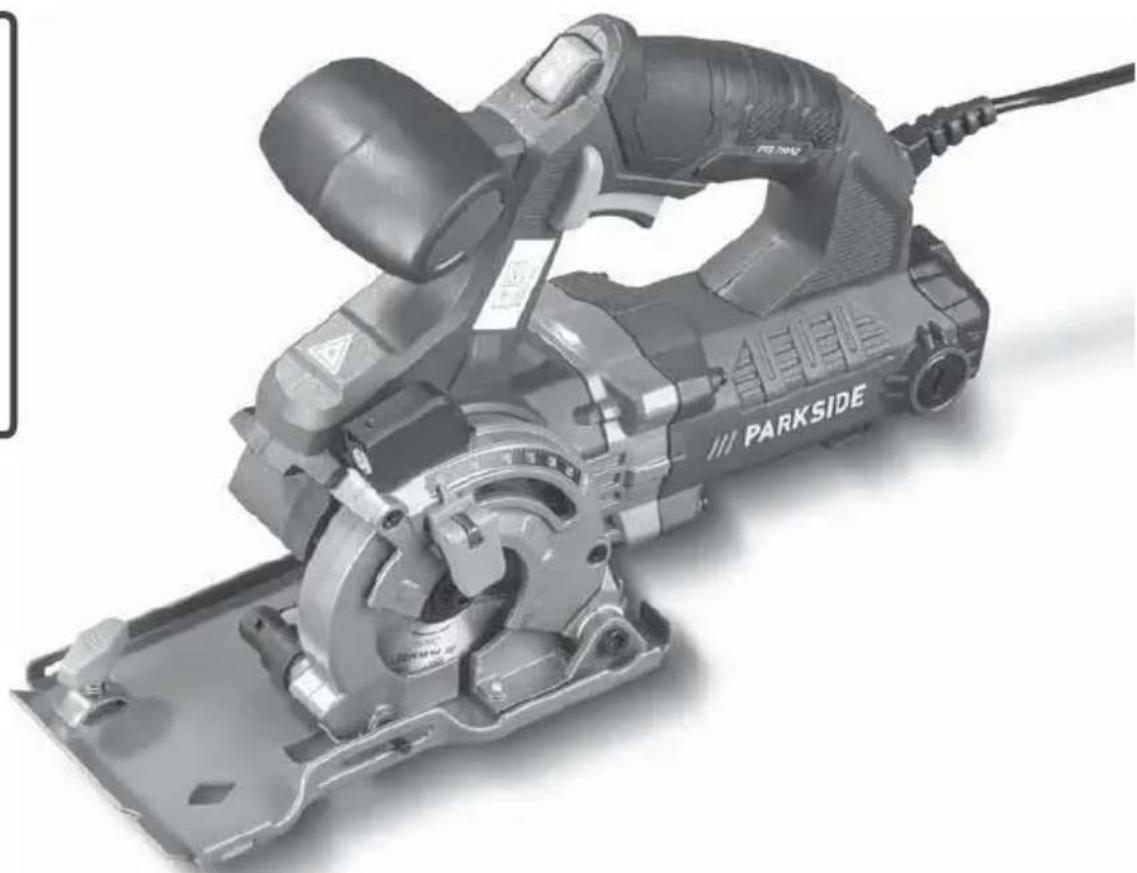

USER MANUAL PTS 710 A2 PARKSIDE

Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please famil- iarise yourself with all operating and safety instruc- tions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use The appliance is primarily designed for sawing longitudinal and cross cuts in a plunge cut into firmly supported solid wood, chip board, plywood, aluminium, tiles, stone, plastics, and lightweight construction materials. Any other uses of or modifi- cations to the appliance are deemed to be improp- er usage and may result in serious physical injury. Not for commercial use. Equipment Front handle Safety lock-out ON/OFF switch Rear handle Power on/control lamp Power cord Base plate Scale for cutting depth Cutting depth preselector Rip fence Rip fence slot Screw for rip fence Viewing window for cutting line Figure A: Battery compartment cover Dust extractor connection Spindle lock Figure B: Clamping flange Tensioning screw Saw blade Hex key Figure C: Laser ON/OFF switch Laser aperture Figure D: Diamond-coated cutting saw blade HSS circular saw blade Z89/60 HSS circular saw blade Z89/80 TCT saw blade Z89/30 Suction hose Package contents 1 plunge saw 1 TCT saw blade Z89/30 1 diamond-coated cutting saw blade 1 HSS circular saw blade Z89/60 1 HSS circular saw blade Z89/80 1 rip fence 1 suction hose 1 hex key 1 carrying case 1 button cell (best before date 05/2023) 1 set of operating instructions Technical data Nominal output: 710W Nominal voltage: 230 V

5500 rpm Max. cutting depth: 27 mm max.27 mm Thread size: M6 Protection class: II / (double insulation) Noise and vibration data: Noise measurement value determined in accord- ance with EN 62841. The A-rated noise level of the power tool is typically as follows: Sound pressure level: L

= 3 dB Sound power level: L

= 3 dB Wear ear muffs!PTS 710 A2

NOTE ► The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool. ► Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or bat- tery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.PTS 710 A2 ■ 22 

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduc- es the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-slip safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detacha- ble, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired be- fore use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.PTS 710 A2

 23 ■ h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Appliance-specific safety instructions Safety instructions for all saws Sawing method a) DANGER! Keep your hands clear of the sawing area and the saw blade. Hold the auxiliary handle or motor housing with your other hand. If you are holding the saw with both of your hands, neither can be injured by the saw blade. b) Do not reach underneath the workpiece. The blade guard cannot protect you from the saw blade underneath the workpiece. c) Set the cutting depth to match the thickness of the workpiece.The blade should not extend more than one full tooth depth under the work- piece. d) Never hold the workpiece that you want to saw in your hand or over your leg. Fasten the workpiece onto a stable working surface. It is important to fasten the workpiece securely to minimise the danger of bodily contact, jamming of the saw blade or loss of control. e) Always hold the power tool by the insulated gripping surfaces when performing an op- eration during which the cutting tool may hit hidden wiring or the tool’s own power cord. Contact with a live wire will also make exposed metal parts of the power tool live and could give the operator an electric shock. f) When making longitudinal cuts, always use a rip fence or a straight edge guide. This will improve the accuracy of your cut and reduce the likelihood of the saw blade jamming. g) Always use saw blades of the correct size and with an appropriate central attachment hole (e.g. star-shaped or round). Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control. h) Never use damaged or incorrect blade washers or bolts. The saw blade washers and screws have been specially designed for your saw to provide optimum performance and oper- ational safety. Further safety instructions for all saws Kickback – causes and corresponding safety tips: – A kickback is a sudden reaction caused as a result of the saw blade catching, jamming or being falsely aligned that cause the saw to jump up uncontrollably and out of the work- piece in the direction of the operator; – if the saw blade catches or jams in a narrowing saw cut, the blade can no longer rotate and the power of the motor throws the appliance back in the direction of the operator; – if the saw blade twists in the saw cut or be- comes misaligned, the teeth at the rear edge of the saw blade can become caught in the sur- face of the workpiece, causing the saw blade to jump out of the cut and the saw to jump back- wards in the direction of the operator.PTS 710 A2 ■ 24 

Kickback is a result of saw misuse and/or incorrect operating procedures or conditions. This can be avoided by taking proper precautions as given below. a) Hold the saw firmly in both hands and position your arms such that they can absorb the force of a kickback. Always stand to the side of the saw blade and never in line with it. If a kickback occurs, the circular saw may jump backwards. However, the operator can control the kickback forces by taking appropriate pre- cautions. b) If the saw blade jams or you stop working, switch the saw off and hold it steadily in the workpiece until the saw blade has completely stopped turning. Never attempt to remove the saw from the workpiece or pull it backwards while the saw blade is still moving as this could lead to a kickback. Investigate and take corrective actions to eliminate the cause of the jam. c) If you want to restart a saw that is still in the workpiece, centre the saw blade in the cut and check to ensure that the teeth are not caught anywhere in the workpiece.If the saw blade catches, it can jump out of the workpiece or cause a kickback when the saw is restarted. d) Support large panels to minimise the risk of the blade jamming and kickback. Large panels tend to bend under their own weight. Panels must be supported on both sides, in the vicinity of the saw cut and also at the edge. e) Do not use blunt or damaged saw blades. Saw blades with blunt or misaligned teeth may cause excessive friction if the saw cut is too narrow, and this can cause a saw blade jam and kickback. f) Before sawing, ensure that the fastenings for the cut depth and cut angle settings are tight- ened. If the settings change while sawing, the saw blade might jam and cause a kickback. g) Be particularly careful when sawing in ex- isting walls or other obscured areas. The inserted saw blade could get caught on hidden objects and cause a kickback. Specific safety instructions for this saw Function of the blade guard: a) Before every use, check to ensure that the blade guard closes properly. Do not use the saw if the blade guard does not move freely and does not close immediately. Never jam or fasten the blade guard; this would leave the saw blade unprotected. If the saw is ac- cidentally dropped, the blade guard may be bent. Ensure that the blade guard moves freely and does not touch the saw blade or other parts at any cutting angles or depths. b) Check the condition and function of the spring for the blade guard. Have the saw serviced before using it if the blade guard and spring are not working properly. Dam- aged parts, sticky deposits or accumulations of chippings can cause the lower blade guard to operate slowly. c) When making a “plunge cut” that is not at right angles, secure the base plate of the saw to prevent any lateral movement. Lateral movement can cause the saw blade to jam, thus causing a kickback. d) Do not leave the saw on the work bench or floor if the blade guard is not fully covering the saw blade. An unprotected, coasting saw blade will move the saw in the opposite direc- tion to the cutting direction and saw anything in its path. Always, take into account that the saw blade takes some time to stop spinning.PTS 710 A2

 25 ■ Supplementary notes: ■ Do not use any grinding discs. ■ Use only saw blades with diameters corre- sponding to the label on the saw. ■ When working with wood or materials that produce dust hazardous to health, the appli- ance must be connected to a suitable, tested extraction appliance. ■ Wear a dust mask when sawing wood. ■ Only use recommended saw blades. ■ Always wear ear muffs. ■ Avoid overheating the sawtooth tips. ■ When sawing plastic, avoid melting the plastic. ■ Use the correct saw blade according to the material to be sawn. ■ Use only saw blades specified by the manu- facturer which, if intended for cutting wood or similar materials, comply with EN 847-1. ■ Tools may only be used by trained and expe- rienced persons who are familiar with the use of tools. ■ Circular saw blades with torn bodies must be taken out of service (repair is not permitted). ■ The maximum speed indicated on the tool must not be exceeded. If specified, the speed range must be observed. Circular saw blades (symbols) Wear protective gloves! Wear a dust mask! Wear safety goggles! Wear ear muffs! Safety instructions for abrasive cutting appliances a) The blade guard, which is a part of the pow- er tool, must be attached securely and set in a way that ensures maximum safety, i.e. the smallest possible amount of the grinding tool is exposed to the operator. Ensure that you and anyone else in the vicinity remain outside of the range of the rotating grinding disc. The blade guard is designed to protect the operator from fragments and accidental contact with the grinding tool. b) Use only diamond-coated cutting discs for your power tool. Just because you can attach the accessories to your power tool, does not ensure they are safe to use. c) The permissible speed of the accessory tool used must be at least as high as the maximum speed specified for the power tool. Accessories which rotate faster than the maximum permissi- ble rate can break and throw pieces into the air. d) Grinding tools should only be used for the recommended applications. For example: Never grind with the side sur- face of a cutting disc. Cutting discs are de- signed to remove material with the edge of the disc. Any lateral application of force on these grinding tools can lead to a breakage. e) Always use an undamaged clamping flange of the correct size and shape for the selected grinding disc. Suitable flanges support the grinding disc and reduce the risk of a disc breakage. f) Do not use worn grinding discs from larger power tools. Grinding discs for larger power tools are not designed for the higher rotational speeds of smaller power tools and can break. g) The external diameter and thickness of the accessory tool used must comply with the dimensions of your power tool. Incorrectly dimensioned accessory tools cannot be suffi- ciently shielded or controlled. h) Grinding discs and flanges must fit precisely onto the grinding spindle of your power tool. Accessory tools which do not fit precisely on the grinding spindle of the power tool will rotate unevenly, vibrate severely and can lead to a loss of control.PTS 710 A2 ■ 26 

i) Do not use damaged grinding discs. Check

the grinding discs before each use for chips and cracks. If the power tool or grinding disc is dropped, check to see if it either are dam- aged, or use an undamaged grinding disc. After checking and inserting the grinding disc, ensure that you and any other people in the vicinity remain outside of the range of the rotating grinding disc and allow the tool to rotate at maximum speed for one minute. Damaged grinding discs usually break during this test period. j) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or goggles. If required, use a dust mask, ear muffs, protective gloves or a special apron to protect you from grindings and material par- ticles. Protect your eyes from flying debris that may be created during certain applications. Dust or filter masks must be used to filter any dust created by the application. If you are ex- posed to loud noise for any length of time, you can suffer a hearing loss. k) Ensure that other people remain at a safe dis- tance to your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of the workpiece or bro- ken accessory tools can fly off and cause injury – even outside the immediate working area. l) Hold the power tool only by the insulated handles while you are carrying out work during which the accessory tool may come into contact with concealed power cables or the tool’s own power cord. Contact with a live cable can also make metal parts of the appli- ance live and could result in an electric shock. m) Keep the power cord away from any rotating accessories. If you lose control of the appli- ance, the cord may get cut or caught and your hand or arm could get caught in the rotating accessory tool. n) Never put the power tool down until the accessory tool has come to a complete stand- still. The rotating accessory tool could come into contact with the surface and cause you to lose control of the power tool. o) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could cause your clothing to get caught and the ac- cessory tool to penetrate a part of your body. p) Clean the ventilation slits of your power tool regularly. The engine fan draws dust into the housing and a strong accumulation of metal dust can cause electrical hazards. q) Do not use the power tool in the vicinity of flammable materials. Sparks can ignite such materials. r) Do not use any accessory tools which require liquid coolant. The use of water or other liquid coolants may lead to an electric shock. Further safety instructions for abra- sive cutting applications Kickback and corresponding safety instruc- tions Kickback is a sudden reaction caused when a rotating grinding disc catches or jams. Catching or jamming causes the rotating accessory tool to stop abruptly. If this happens, an uncontrolled power tool turns rapidly against the direction of rotation of the accessory tool caught in the blockage.PTS 710 A2

 27 ■ If, for example, a grinding disc catches or jams, the edge of the grinding disc that is projecting into the workpiece can get caught and break off the grind- ing disc or cause a kickback. The grinding disc can then fly in the direction of the operator or away from him, depending on the direction of rotation of the disc at the blockage. This can also break grinding discs. A kickback is caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as given below. a) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of a kickback. Always use the auxiliary handle, if available, so that you have the maximum possible control over the kickback force or reaction forces at full speed. By taking adequate precautions, the operator can stay in control of the kickback and reaction forces. b) Never hold your hand close to a rotating accessory tool. The accessory tool could jump out of your hand if there is a kickback. c) Avoid the area in front of and behind the rotating cutting disc. The kickback will force the electrical tool in the opposite direction to the direction of rotation of the grinding disc at the blockage. d) Take special care when working near corners, sharp edges, etc. Avoid allowing the accesso- ry tool to bounce back from the workpiece or jam. The rotating accessory tool is more likely to jam in corners or sharp edges or if it bounc- es. This can cause a loss of control or kickback. e) Do not use a toothed or chain saw blade or a segmented diamond-coated disc with more than 10 mm wide slits. Such accessory tools cause a kickback or loss of control over the power tool. f) Avoid cutting disc jams or excessive contact pressure. Do not make any excessively deep cuts. Overloading the cutting disc increases the stress and likelihood of tilting or blocking and thus the possibility of a setback or a breakage of the grinding tool. g) If the cutting disc jams or you stop working, switch the tool off and hold it steady until the disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to kickback. Identify and remove the cause of the jam. h) Do not switch the power tool back on as long as it is in the workpiece. Allow the cutting disc to reach its full speed before you carefully continue the cut. Otherwise, the disc may jam, jump out of the workpiece or cause kickback.

i) Support panels or large workpieces to re-

duce the risk of the cutting disc jamming and causing a kickback. Large workpieces can bend under their own weight. The workpiece must be supported on both sides, namely in the vicinity of the cut and also at the edge. j) Be particularly careful when making pocket cuts into existing walls or other obscured areas. The inserted cutting disc may cut into gas or water pipes, electrical wiring or other objects that can cause kickback. Supplementary notes Approved cutting disc designs: Diamond-coated, disc diameter 89 mm, disc thickness max. 1.8 mm ■ Always wear a dust mask! ■ Always wear ear muffs!PTS 710 A2 ■ 28 

Original accessories/auxiliary equip- ment ■ Use only the accessories and additional equip- ment that are specified in the operating instruc- tions and are compatible with the appliance. Cutting saw blade (symbols) Wear ear muffs! Wear safety goggles! Wear safety shoes! Wear protective gloves! Wear a dust mask! Not approved for wet grinding! 89 mm Approved diameter of tools Not approved for side grinding Safety instructions for grinding tools a) General Grinding tools are susceptible to breakage; there- fore extreme care is required when handling grind- ing tools. Using damaged, incorrectly clamped or incorrectly installed grinding discs is dangerous and may cause serious injury. b) Handling, transport and storage Grinding tools are to be treated with care and transported carefully. Grinding tools should be stored in such a way that they are not exposed to mechanical damage or harmful environmental influences. Avoid any risk of an electric shock. ■ Check the condition of the appliance, power cord and plug regularly. Stop using appliances if any of the aforementioned parts are dam- aged. Never open the appliance. Damaged appliances, power cords or power plugs cause danger to life by electric shock. Have repairs and replacement work done only by the Service centre or a qualified electrician. ■ Do not operate the appliance if it is damp or in a humid environment. ■ When working outdoors, connect the appliance via a fault current circuit breaker with a max- imum tripping current of 30mA. Use only an extension cord approved for outdoor use. NOTE ► Always hold the power cord away from the working area of the machine and run it to the rear away from the machine.PTS 710 A2

P max.: < 1 mW • λ: 650 nm • EN 60825- 1:2014 This appliance contains a Class 2 laser. ► Never direct the laser beam at people or animals. ► Never look directly into the laser beam. The laser beam can cause serious eye damage. ► Do not direct the laser beam at strongly reflective material. Reflected laser beams are also dangerous. ► Any adjustment intended to increase the intensity of the laser beam is forbidden. There is a risk of injury! ► No liability will be accepted for damage resulting from manipulation of the laser equipment or from disregarding these safety instructions. ► Take extreme care if operating or adjusting devices other than those specified here are used or if other procedures are carried out; this can lead to dangerous radiation exposure. NOTE ■ If the appliance is not used in accordance with the manufacturer's operating instructions, the intended protection may be impaired. DANGER Mishandling the batteries can cause fires, explosions, leakages or other hazards! ► Do not throw the batteries into a fire and do not subject them to high temperatures. ► Do not open, deform or short-circuit batteries, since this can lead to chemical leakage. ► Do not attempt to recharge the batteries. Do not charge batteries unless they are explicitly labelled as "rechargeable". There is a risk of explosion! ► Check the condition of the batteries at reg- ular intervals. Leaking chemicals can cause permanent damage to the appliance. Take particular care when handling damaged or leaking batteries. Risk of acid burns! Wear protective gloves. ► Chemicals that leak from a battery can cause skin irritation. In event of contact with your skin, rinse off with plenty of water. If the chemicals come into contact with your eyes, rinse thoroughly with water, do not rub and consult a doctor immediately. ► Keep batteries out of the reach of children. Children might put batteries into their mouths and swallow them. If a battery has been swallowed, seek medical assistance immedi- ately. ► Do not mix different types of batteries. ► Always insert the batteries the right way round (observe correct polarity) otherwise there is a danger that they could explode. ► If you do not intend to use the appliance for a long time, remove the batteries.PTS 710 A2 ■ 30 

Inserting/replacing the battery ■ Open the battery compartment cover with a Phillips screwdriver. ■ If necessary, remove the used battery. ■ Insert a new 3 V button cell (type CR 2032) in accordance with the polarity shown. Screw the lid of the battery compartment cover back on. CAUTION! If operating and adjustment equipment is used or procedures other than those specified here are carried out, this may result in hazardous radiation exposure. Setting up NOTE ► The appliance is equipped with a Power on/ control lamp . This lights up green as soon as the appliance is connected to the mains. This indicates that the appliance is live. Check base plate/blade guard: WARNING! RISK OF INJURY! Always remove the plug from the mains pow- er socket before carrying out any work on the appliance. ♦ Check the freedom of movement of the base plate before each use

♦ Activate the safety lock-out and keep it in that position. Lower the circular saw. In this way, you can test the function of the base plate . It must move freely. It may not jam. ♦ After letting go, it must be move smoothly back to its starting position of its own accord. Switching on and off Switching on: ♦ Activate the safety lock-out and keep it in that position. ♦ Press the ON/OFF switch . Once the saw is running, you can release the safety lock-out . Switching off: ♦ Release the ON/OFF switch

Selecting the cutting depth NOTE ► We generally recommend setting the cutting depth to approx. 2 mm more than the thickness of the material. This ensures that you achieve a clean cut. ♦ Let go of the quick-release lever of the cutting depth preselector . Set the desired cutting depth on the scale . Clamp the quick-release lever tight again. Fitting the rip fence ♦ Loosen the screw for the rip fence on the base plate . Insert the rip fence into the rip fence slot . Retighten the screw for the rip fence . Handling the circular saw

1. Place the machine on the material. If necessary,

align the machine with the rip fence or on a marked line.

2. Activate the safety lock-out

and keep it in that position. Press the ON/OFF switch .

3. Press the appliance forward to lower the circular

4. Saw by applying moderate pressure.PTS 710 A2

 31 ■ Types of saw blades: The types of saw blades supplied cover the most common fields of application. HSS circular saw blade Z89/60: Description: ø 89 mm, 60 teeth Suitable for: Softwood and soft metals HSS circular saw blade Z89/80: Description: ø 89 mm, 80 teeth Suitable for: Softwood and soft metals Diamond-coated cutting saw blade Z89: Description: ø 89 mm Suitable for: Ceramics and stone TCT saw blade Z89/30: Description: ø 89 mm, 30 teeth suitability: Wood and plastic Markings for cutting line The viewing window for the cutting line helps you accurately guide machine along the cutting line on the workpiece. ♦ For a true-to-size cut, place the machine onto the workpiece so that the cut marking appears in the viewing window for the cutting line

Connecting the sawdust extractor NOTE ► When working on wood for long periods of time, and especially when working on materials that generate dust that is hazardous to health, connect the unit to an external dust extraction device suitable for the material. ► Check that the dust extraction unit is correctly attached. ► Also observe the operating instructions for the dust extraction device . ► Observe the regulations valid in your country for the materials to be processed. ♦ Push the suction hose onto the dust extractor connection and lock it in place. ♦ Attach an approved dust and sawdust extractor to the suction hose

Changing the saw blade WARNING! RISK OF INJURY! Al- ways remove the plug from the mains power socket before carrying out any work on the appliance.

1. Actuate the spindle lock

and use the hex key to loosen the tensioning screw (turn clockwise to open). Now remove the tensioning screw and the clamping flange (see also Fig. B).

2. Set the cutting depth to the maximum position.

3. Activate the safety lock-out

and keep it in that position. Swivel the base plate upwards.

4. Remove the saw blade

5. Fit the saw blade in the reverse order as de-

(until it engag- es) and use the hex key to tighten the ten- sioning screw . ■ The arrow on the saw blade must correspond to the arrow showing the direction of rotation (running direction shown on the appliance). Switching the laser on and off Switching on: ♦ Press the Laser ON/OFF switch

Cleaning and maintenance WARNING! RISK OF INJURY! Always remove the plug from the mains power socket before carrying out any work on the appliance. NOTE ► Have the carbon brushes replaced by the manufacturer, its customer service or a similarly qualified person. ■ Always clean the appliance after completion of work. ■ Use a cloth to clean the housing; do not use petrol, solvents or cleaners. ■ Always keep the area around the protective hood clean. Remove dust and shavings with a brush or compressed air. Disposal The packaging is made from environmen- tally friendly material and can be dis- posed of at your local recycling plant. Do not dispose of power tools in your normal household waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn- out appliance. Battery disposal Batteries must be recycled in accordance with Directive 2006/66/EC and may not be disposed of with household waste. Consumers are legally obliged to dispose of all used batteries at a collection point in their town/ district or at a retail store. The purpose of this obli- gation is to ensure that batteries are disposed of in an environmentally friendly manner. Only return batteries when they are fully discharged. Batteries must be removed from the appliance before disposal. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites Your local community or municipal authorities can provide information on how to dispose of the product. The product is recyclable, subject to extended producer responsibility and is collected separately.PTS 710 A2

 33 ■ Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (re- ceipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improper- ly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazardsPTS 710 A2 ■ 34 

Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN12345) available as proof of pur- chase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456. Service WARNING! ► Have the power tool repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appli- ance is maintained. ► Always ensure that the power plug and power cord are replaced only by the manu- facturer of the appliance or its customer service.This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 332000_1907 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

 35 ■ Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) Electromagnetic Compatibility (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous sub- stances in electrical and electronic appliances. Applied harmonised standards: EN 62841-1:2015 EN 62841-2-5:2014 EN 60745-2-22:2011+A11 EN 55014-1:2006+A1+A2 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50581:2012 Type/appliance designation: Plunge saw PTS 710 A2 Year of manufacture: 11 - 2019 Serial number: IAN 332000_1907 Bochum, 04/12/2019 Semi Uguzlu - Quality Manager - The right to effect technical changes in the context of further development is reserved.PTS 710 A2 ■ 36 
