USER MANUAL PAS 1200 D3 PARKSIDE

Translation of the original instructions

NL BE

ASZUIGER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IETranslationof the original instructionsPage 16

General description. 17

Delivery Contents 17

Description of operation. 17

Overview 17

Technical data. 17

Safety information 18

Device symbols 18

Symbols used in the instructions 18

General notes on safety 19

Assembly. 20

Reel assembly 20

Folded filter assembly 21

Suction hose assembly. 21

Switching on/off 21

Operating Instructions. 22

Cleaning/Maintenance 22

General Cleaning Work 22

Cleaning the folded filter. 23

Storage. 23

Disposal/Environmental

protection 23

Trouble shooting 24

Spare Parts/Accessories 24

Guarantee 25

Repair Service. 26

Service-Center 26

Importer 26

Translation of the original EC declaration of conformity.87

Exploded Drawing 93

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product.

They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Application

The motorised ash vacuum cleaner is a household appliance intended for removing cold ash and other cold small objects from chimneys, charcoal stoves, ashtrays or barbecue grills.

The equipment is not suitable for vacuuming liquids, soot or cement dust or for vacuuming heating boilers and oil-burning ovens. The vacuuming of glowing embers and of materials that are combustible, explosive or harmful to health is prohibited. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The manufacturer will not be held responsible for injuries resulting from use which does not comply with the directions, or from incorrect use.

General description

See the front fold-out page for illustrations.

Delivery Contents

Unpack the equipment and check that it is complete. Dispose of the packaging material in a proper manner.

• Container lid incl. motor housing
• Metal container
• Suction hose
• Suction tube
• Crevice nozzle
• Pleated filter
• Instruction Manual

Description of operation

The ash vacuum cleaner is provided with a stable metal container with cover and reels. The suction equipment consists of a flexible suction hose, an aluminium suction tube and an attachment for crevice cleaning.

A safety switch prevents the appliance from being operated without the filter.

A thermal fuse disconnects the power circuit in the event of overheating or fire inside the device.

The following describes the function of the operating parts.

Overview

1 Power cord

2 Holder for suction tube/suction hose
3 Filter cleaning switch
4 Suction tube holder

5 Carry handle

6 Power cord holder
7 Viewing window filling level indicator

8 On/off switch

9 Seal clips

10 Container lid

11 Hose connection
12 Arched handle for metal container
13 Metal container
1.4 Reels with attachment port
15 Suction hose
16 Suction tube
17 Crevice nozzle
18 Pleated filter

19 Safety switch

Technical data

Ash vacuum cleaner .PAS 1200 D3

Mains voltage....220-240 V\~, 50/60 Hz Rated power input

(Power consumption) 1200 W

Power cord length 5.0 m

Safety class.

Protection category.. IPX0

Suction force 16,5 kPa (165 mbar)

Metal container capacity, gross 18 I

Length of the metal

Suction hose

Length approx. 140 cm

Diameter........................ approx. 30 mm

Suction tube

Length suction tube +

crevice nozzle approx. 40 cm

Diameter suction tube.....approx. 35mm

Weight (incl. all

accessories) approx. 4.2 kg

Safety information

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Device symbols

For cold ash only, see manual!
Do not vacuum any soot or flammable substances.
Always check hoses and vacuum cleaner for heating when vacuuming. Always empty and clean vacuum cleaner before and after vacuuming. Please clean the filter regularly.

Warning!

Read carefully before use. Retain for reference.

Do not expose the unit to rain.

For cold ashes only*!
Matter exceeding a tem-.
perature of 40^ 104°F)
poses a fire risk!

• "Cold ashes" are ashes that have cooled for a sufficient time and no longer contain pockets of

embers. This can be determined by sifting through the ashes with a metal implement before using the equipment. The cold ashes emit no further perceptible heat radiation.

Do not suck up any liquids with the device!

Insert the folded filter correctly

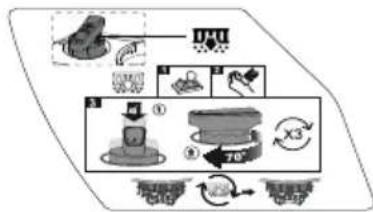

Semi-automatic filter self-cleaning system

Switch for filter cleaning system.

Suction tube connection metal container

Electrical machines do not belong with domestic waste.

Safety class II

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol with information on prevention of harm / damage.

Plug in the power plug

Pull off the power plug

Notice symbol with information on how to handle the device properly.

General notes on safety

The information contained in these operating instructions must be observed. In addition, legal safety and accident prevention regulations must also be observed.

Caution: when using the equipment, observe the following basic safety measures in order to protect against the risks of injury and fire:

To avoid accidents and injuries from electric shocks:

• Ensure that the power cord is not damaged by being pulled over sharp edges, by jamming, or by pulling on the power cord.

• Before each use, check the power supply lead and the extension cable for damage and ageing. Do not use the equipment if the cable is damaged or worn. Danger of electric shock hazard.

• If the power cord for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

• Switch the machine off and disconnect the mains plug:

• when the machine is not in use,

• before the machine is opened up,

• for all maintenance and cleaning work,

• if the connecting cable is damaged or tangled up.

• Do not use the power cord to pull the plug out of the socket. Protect the power cord from heat, oil, and sharp edges.

• Make sure that the mains voltage corresponds with the information on the rating plate.

• Only plug the appliance into a socket which is safeguarded by at least 13 A.

The device must be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30mA .

• Do not expose the equipment to the rain. Do not use the equipment in a damp or wet environment.

• Protect yourself from electric shocks. Avoid bodily contact with earthed parts (e.g. pipes, radiators, electric cookers, cooling devices).

• Use extension cables outdoors. Use only extension cables that are approved and labelled accordingly for outdoor use.
• Avoid accidental starting. Ensure that the switch is off when plugging into the socket.

To avoid accidents and injuries:

• Never leave a machine which is ready for operation unattended at the workplace.
  People and animals must not be vacuumed with the machine.

GB E

• Nozzles and suction tubes must not reach head level whilst in use. Personal injury could occur.
• Do not vacuum up substances or dusts that are hot, glowing, combustible, explosive or hazardous to health (dust classes L, M, H). This includes hot ashes, petrol, solvents, acids or caustic solutions. Personal injury could occur.
• Caution! Do not vacuum up hazardous substances (e.g. petrol, solvents, acids or lyes) and ash from unauthorised fuels (e.g. from oil-burning ovens or heating boilers). There is a risk of injury.
• Do not vacuum up fine, combustible dusts. There is a risk of explosion.
• Do not vacuum up hot ashes and hot, glowing or combustible objects (e.g. charcoal, cigarettes...). There is a risk of fire.
• Do not vacuum up liquids, soot or plaster and cement dust. You could damage the equipment.
• The vacuum must not exceed a temperature of 40^ . Vacuum material that appears cool from the outside may still be hot inside. Hot vacuum material can re-ignite in the air stream. Furthermore, the equipment can be damaged.

In the event of a rise in temperature, switch off the equipment and disconnect at the plug. Place the equipment outside and monitor it as it cools.

The following states how damage to the appliance and possible injury to people can be avoided:

• Ensure that the equipment is as

sembled correctly and the filter is in the correct position.

• When vacuuming, do not place the equipment on heat sensitive floors. For safety reasons, use a fireproof base when cleaning ovens, chimneys or barbecue equipment.
• Do not extinguish hot ash particles with water, as the sudden temperature differences can cause cracks in your chimney.
• Use only replacement parts and accessories supplied and recommended by our service centre. The use of foreign parts will result in immediate invalidation of the guarantee.
• Have repairs carried out only by customer service points that we have authorised.
• Observe the instructions for the cleaning and maintenance of the equipment.
• Empty and clean the vacuum before and after vacuuming in order to prevent the accumulation in the vacuum of materials that represent a fire load.
• Keep the equipment in a dry place, out of reach of children.

Assembly

Disconnect at the plug before carrying out any work on the equipment.

Risk of electric shock!

Reel assembly

Clip the three reels (A 14) at the lower edge of the housing onto the relevant curvatures. The curvatures are located on the bottom of the housing

B

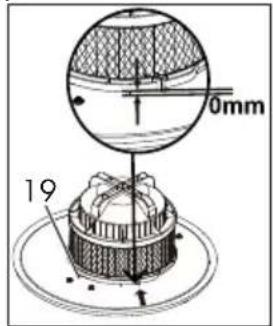

Folded filter assembly

The metal folded filter (18) is already pre-assembled before initial use.

1. Place the folded filter (18) on the inverted container cover (10).
2. Screw in the folded filter (18) tightly in a clockwise direction.

The folded filter (18) must rest on the container cover (10). Then press down the switch of the safety switch (19).

The arrow on the folded filter (18) must

be at the same height as the arrow on the label of the container cover (10).

If the safety switch (19) is not pressed down, the appliance cannot be started.

If the folded filter (18) is rotated further, as the arrow mark on the label indicates, the folded filter can firmly suction to the container cover (10).

1. Place the container cover (10) on the metal container (13) and lock it with the locking clips (9).

When fitting the container cover (10), you must ensure that the on/off switch (8) and the hose connection (11) are roughly aligned to each other or the container cover cannot be put on correctly.

C

Suction hose assembly

1. Connect the suction hose (15). To do this, insert the rotatable plastic end piece with the printed symbol into the hose connection (11) and screw it on clockwise (bayonet connection).

When assembling/detaching the suction hose (15), hold the black plastic end piece and not the suction hose (15). Twisting or bending could damage the hose.

Suction tube:

Plug the suction tube (16) onto the rigid end piece of the suction hose (15).

Crevice nozzle:

Place the crevice nozzle (17) on the rigid end piece of the suction hose (15).

Suction tube and crevice nozzle:

Place the crevice nozzle (17) on the suction tube (16) and place this on the rigid end piece of the suction hose (15).

Switching on/off

Connect the mains plug.

The appliance is equipped with a safety switch (B 19) that permits operation only if the folded filter (B 18) is fitted correctly.

Switching On:

On/Off Switch (see A 8) In position "I"

Switching Off:

On/Off Switch (see A 8) In position "0"

Operating Instructions

The vacuuming of glowing embers and of materials that are combustible, explosive or harmful to health is prohibited. There is a risk of injury!

• Place the equipment on a level surface that is not heat sensitive.

Always use the suction tube (A 16) for vacuuming. In case of minor contamination, hold the suction tube (A 16) approx. 1cm above the ash. Remove large ash volumes by directly immersing the suction pipe.

Vacuum only cooled ash at less than 40^

• When vacuuming, keep checking the metal container (A 13) and suction hose (A 15) for rises in temperature.

• In the event of a rise in temperature, switch off the equipment and disconnect at the plug. Place the equipment outside and monitor it as it cools.

• During breaks, you can insert the suction pipe (A 16) into the holder (A 2) on the container cover (A 0) or into an attachment port on one of the rollers (A 14).

Always use the carry handle (A 5) for transporting the equipment.

The metal container (A 13) may be filled to no more than half, so the pleated filter (A 18) always remains clear.

• Empty the container outside in order to avoid mess (see "cleaning/maintenance").

• Clean the pleated filter (A 18) (see "Cleaning/Maintenance"):

• if suction power declines

• if the inspection window on the container lid of the blockage indication system (A 7) turns red.

Filter cleaning switch

Insert the mains plug of the device and turn the device on.

If the suction power decreases, you can improve it by pressing the filter cleaning switch (A 3)

1. Turn the machine on.
2. Close the suction opening of the suction pipe/suction hose (A 16/A5) by hand.
3. Press the switch 3) downwards to unlock. Keep the switch pressed and turn it 70^ clockwise until you hear a clicking sound.
4. Now release the switch. Repeat the procedure three times.

Cleaning/Maintenance

Pull out the mains plug. Danger of electric shock.

Never hose the appliance down with water. Never use aggressive cleaning agents or solvents. This could damage the appliance.

General Cleaning Work

Clean the equipment after each use:

• Carry out cleaning outside in order to avoid mess.
• Remove the container lid (A 10) and empty the metal container (A 13).
• Clean the metal container (A 13) with water and allow it to dry.
  After removing the suction hose (A 15), clean the dust and soot particles from the connections. This

ensures that the suction hose (A 15) can be inserted again easily.

Clean the folded filter A 18) (see "Cleaning the folded filter").

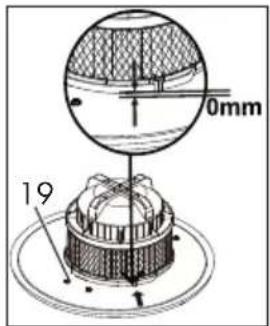

Cleaning the folded filter

Replace the pleated filter (18) if it is worn, damaged or heavily soiled (see "Spare Parts/Accessories").

1. Take off the container cover (10).
2. Rotate the folded filter (18) in an anticlockwise direction and remove it.
3. Tap out the pleated filter (18) and clean it with a paintbrush or hand brush. Don't wash the pleated filter (18) in water.
4. Place the folded filter (18) on the inverted container cover (10).
5. Screw in the folded filter (18) tightly in a clockwise direction.

The folded filter (18) must rest on the container cover(10) and press the safety switch (19) downwards.

The arrow on the folded filter (18) must be at the same height as the arrow container cover (10)

Storage

• To store, wind the power cord (1) around the retaining bracket (6) on the container lid (10).
• Keep the equipment in a dry place, out of reach of children.

For space-saving storage of the ash vacuum, you can for example:

• place the other end of the hose on the holder (2);
• fit the suction pipe (16) and the crevice nozzle (17) onto one of the three rollers with an attachment port (14).

Disposal/Environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines must not be disposed of with household refuse.

Take the machine to a recycling point. The waste plastic and metal parts can be separated, accurately graded and passed on for recycling. Contact our Service Centre for more details.

Defective units returned to us will be disposed of for free.

Trouble shooting

Problem Possible cause Fault correction
Device does not start	Mains voltage is not present	Check plug socket, power cord, line, plug and fuse, where appropriate, repair through electrical specialist
	The equipment is not switched on	Switch on the equipment (see "Switching on/off")
	Safety stop due to missing or incorrectly inserted pleated filter (A 18)	Insert the pleated filter correctly (see "Cleaning/Maintenance")
	Defective on/off switch (A 8)	Repair through customer service
	Defective motor
Low or lack of suction	Suction hose (A 15) or suction tube (A 16) blocked	Remove obstructions and blockages
	Metal container (A 3) is not closed	Close the metal container
	Metal container (A 13) is full	Empty the metal container (see "Cleaning/Maintenance")
	Pleated filter (A 18) is clogged	Clean or replace the pleated filter (see "cleaning/maintenance")

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 26). Please have the order number mentioned below ready.

Position instruction manual drawing		Position exploded	Description	Order No.
A	15 16 Suction hose	91102932
A	16+17	10+11	Suction tube + Crevice nozzle	91102909
A	18 13 Pleated filter	91102930
A	13 14 Metal container	91102931

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and identification number (IAN 322109-1901) ready as proof of purchase for all enquiries.

• Please find the item number on the rating plate.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the pro

cessing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 322109-1901

IE Service Ireland Tel.:[phone]

(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 322109-1901

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

GB IE	Translation of the original EC declaration of conformity
We hereby confirm that the Ash vacuum cleaner model PAS 1200 D3 Serial number 201903000001 - 201908281075 conforms with the following applicable relevant version of the EU guidelines:
2014/30/EU • 2014/35/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A11:2014 • EN 60335-2-2:2010/A1:2013 • PPP 52341D:2015 EN 62233:2008 • EN 55014-1:2006/A2:2011 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013
This declaration of conformity (19)** is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großbostheim, Germany 30.08.2019	Christian Frank (Documentation Representative)

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
  ** The last two digits of the year in which the CE marking was affixed.
