PESG 120 B4 - Welding machine PARKSIDE - Free user manual and instructions
Find the device manual for free PESG 120 B4 PARKSIDE in PDF.
| Brand | Parkside |
| Model | PESG 120 B4 |
| Category | Electric welding machine |
| Welding type | Manual arc welding with coated electrodes (MMA) |
| Supply voltage | 230 V~, 50 Hz |
| Max. welding current | 100 A (at 22 V) |
| No-load voltage (U₀) | 48 V |
| Effective input current max. | 7 A (I₁eff) |
| Max. input current | 22.5 A (I₁max) |
| Recommended weld thickness | 1.5 to 3.0 mm |
| Supported electrode diameters | 1.6 mm, 2.0 mm, 2.5 mm |
| Protection type | IP21S |
| Weight | 12 kg |
| Duty cycle (at max. current) | Not explicitly stated, but integrated thermal protection |
| EMC class | Class A (IEC 60974-10) |
| Delivery contents | Welding machine, welding mask, 2 welding cables, metal brush with slag hammer, 5 electrodes (2x1.6 / 2x2.0 / 1x2.5 mm), manual |
| Safety functions | Thermal protection, on/off switch, overheating indicator |
| Maintenance | Clean with a fine brush or dry cloth; check condition of cables and clamps |
| Warranty | 3 years (conditions according to manual) |
| After-sales service (France) | Ecos Office Forbach – Tel. 0033 (0)3 87 84 72 34 – service.fr@cmc-creative.de |
Frequently Asked Questions - PESG 120 B4 PARKSIDE
User questions about PESG 120 B4 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Welding machine in PDF format for free! Find your manual PESG 120 B4 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PESG 120 B4 by PARKSIDE.
USER MANUAL PESG 120 B4 PARKSIDE
Operation and Safety Notes Translation of the original instructions
FR BE CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB / IE/NI/CY/MT Operation and Safety Notes Page 5


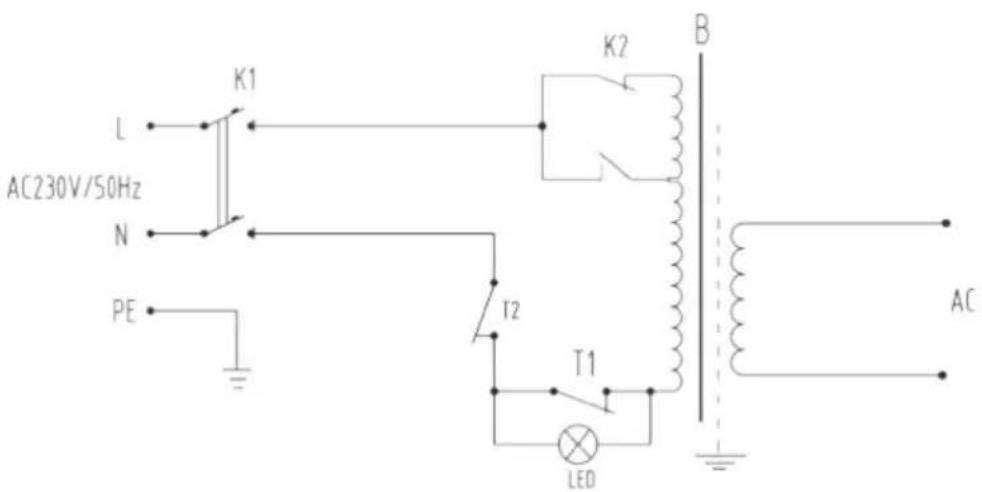

Schaltplan
Schéma électrique
Schakelschema
Kruhový diagram
Schemat elektryczny
Schéma zapojenia
diagrama de circuito
kredsløbsdiagram
Introduction Page 7
Intended use....Page 7
Package contents......Page 7
Parts description Page 8
Technical specifications....Page 8
Safety instructions......Page 8
Potential hazards during electric arc welding......Page 11
Welding mask-specific safety instructions....Page 13
Environment with increased electrical hazard Page 14
Welding in tight spaces....Page 14
Total of open circuit voltages....Page 15
Protective clothing Page 15
Protection against rays and burns....Page 15
EMC Device Classification......Page 16
Before use....Page 16
Mounting Page 17
Fit welding mask....Page 17
Using the device....Page 17
Welding preparation Page 17
Welding Page 17
Overload protection....Page 18
Maintenance Page 18
Information about recycling and disposal......Page 18
EU Declaration of Conformity Page 19
Warranty and service information Page 19
Warranty conditions ......Page 19
Warranty period and statutory claims for defects....Page 20
Extent of warranty....Page 20
Processing of warranty claims Page 20
Service Page 21

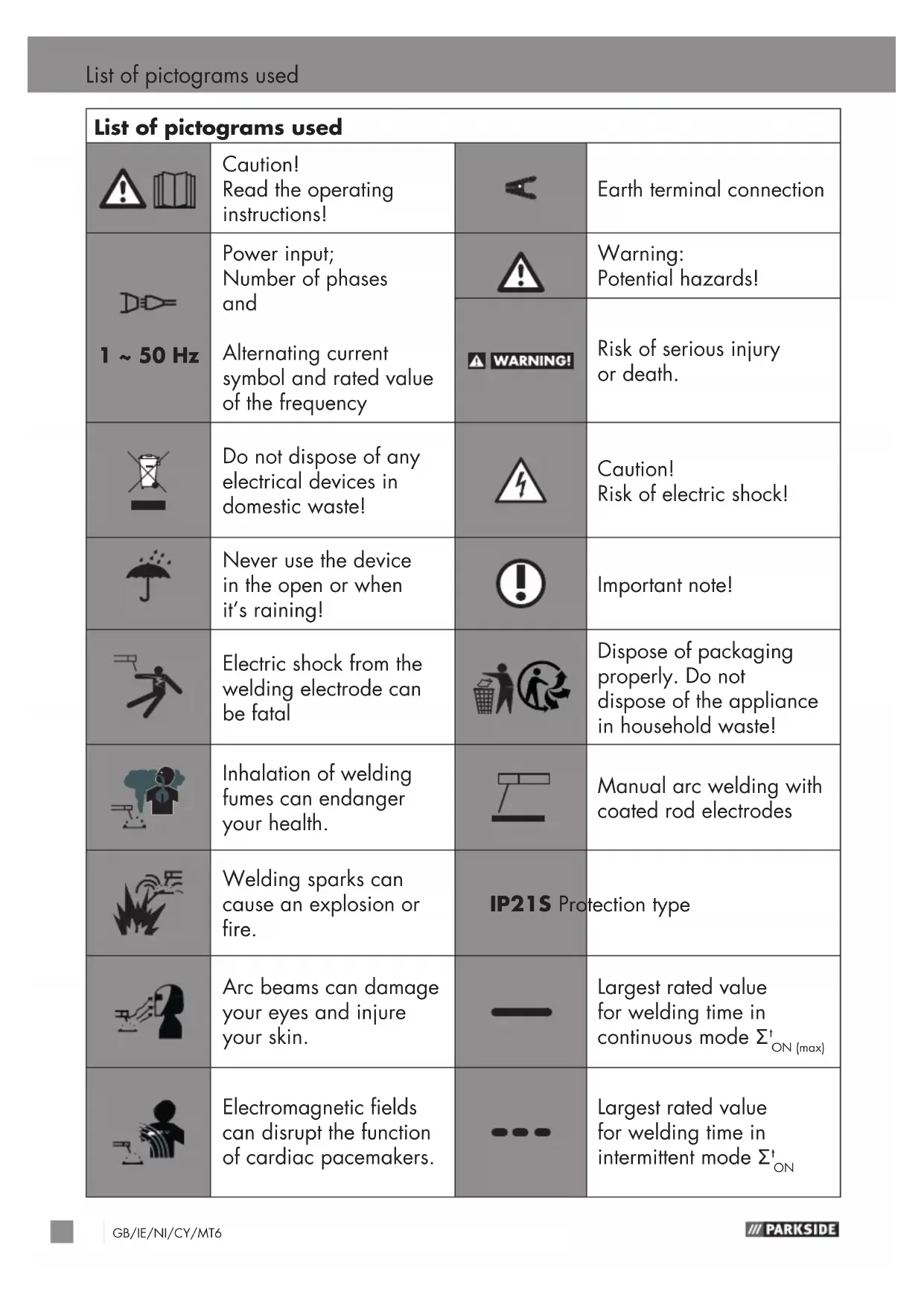

| List of pictograms used | |||
 | Caution!Read the operating instructions! | [KGSS] | Earth terminal connection |
 1 ~ 50 Hz | Power input;Number of phases andAlternating current symbol and rated value of the frequency |  | Warning:Potential hazards! |
| [00187] [019C] | Risk of serious injury or death. | ||
 | Do not dispose of any electrical devices in domestic waste! |  | Caution!Risk of electric shock! |
 | Never use the device in the open or when it's raining! |  | Important note! |
 | Electric shock from the welding electrode can be fatal |  | Dispose of packaging properly. Do not dispose of the appliance in household waste! |
 | Inhalation of welding fumes can endanger your health. |  | Manual arc welding with coated rod electrodes |
 | Welding sparks can cause an explosion or fire. | IP21S Protection type | |
 | Arc beams can damage your eyes and injure your skin. | Largest rated value for welding time in continuous mode ^+_ON (max) | |
 | Electromagnetic fields can disrupt the function of cardiac pacemakers. | Largest rated value for welding time in intermittent mode ^+_ON | |
 | Electrode holder connection |  | Made from recycled material |
 | Rated value of the open circuit voltage |  | greatest rated value of the welding current |
 | Rated value of the mains voltage |  | Greatest rated value of the mains current |
 | Standardised operating voltage | [7ZA9] | Effective value of the greatest mains current |
| [21GW] | Single-phase transformer | ||
Arc welder PESG 120 B4
- Introduction
Congratulations! You have purchased one of our high-quality
devices. Please familiarise yourself with the product before setup or first use. To do so, please read through the following operating and safety instructions carefully. This tool must be set up or used only by people who have been trained to do so.
KEEP OUT OF THE REACH OF CHILDREN!
- Intendeduse
This arc welder is ideal for manual arc welding of steel, stainless steel, steel sheet and cast material using the appropriate coated electrodes. If not handled properly, the product can be dangerous to individuals, animals and property. The welding mask must only be used with welding protection glasses as well as header glasses, which are marked as such and the mask must only be used for welding.
The welding mask is not suitable for
laser welding! Use the product only as described and only for the specific applications as stated. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device has been designed for household use only and must not be used in commercial or industrial applications. Commercial use will void the guarantee.
• Package contents
| 1 Arc welder |
| 1 Welding mask |
| 2 Welding cables |
| 1 Combi wire brush with slag hammer |
| 1 Assembly and operating instructions |
| 5 Welding electrodes(2 x 1.6 mm; 2 x 2.0 mm;1 x 2.5 mm) |
PLEASE NOTE!
▶ After unpacking the product, please check that all of the package contents are present and that the devices are in perfect condition. Do not use the devices if they are defective.
Keep the packaging materials away from small children. There is a risk of suffocation!
- Parts description
Arc welder
1 Handle
2 ON/OFFswitch
3 Manualwheel
4 Earhterminal
5 Electrodeholder
6 Control lamp for overheating
Welding mask
7 Weldingmask
8 Handle
9 Combi wire brush with slag hammer
10 Protectiveglass
• Technical specifications
| Mains connection: 230 V~ 50 Hz | |
| Max. welding current and the appropriate standardised operating voltage: | 75 A / 21 V-100A / 22 V |
| Rated value of the mains voltage: | U_1 : 230 V |
| Greatest rated value of the mains current: | I_1 max : 22.5 A |
| Maximum effective input current: | I_1 eff : 7A |
| Rated value of the open circuit voltage: | U_0 : 48 V |
| Protection class: IP21S | |
| Material thickness which can be welded: | 1.5 - 3.0 mm |
| Weight: 12 kg | |
- Safety instructions
Please read the operating instructions with care and observe the notes described. Familiarise yourself with the device, its proper use and the safety notes based on these operating instructions. The rating plate contains all technical data of this welding device; please learn about the technical features of this device.
PLEASE NOTE!
The use of the term 'product' or 'device' in the following text refers to the PESG 120 B4 arc welder named in these operating instructions.
This device may be used by children aged 16 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision.
■ Repairs and/or maintenance work must only be carried out by qualified electricians.
■ Only use the welding cables (PESG 120 B4 H01N2-D1 x 10 mm ^4 ) included in the scope of delivery.
■ During operation, the device should not be positioned directly on the wall, covered or jammed between other devices
so that sufficient air can be absorbed through the ventilation slats.
Makes sure that the device is correctly connected to the supply voltage. Avoid any form of tensile stress of the power cable. Disconnect the plug from the socket prior to setting up the device in another location.
If the device is not in operation, always switch it off by pressing the ON/OFF switch. Place the electrode holder on an insulated surface and only remove it from the holder after allowing it to cool down for 15 minutes.
■ Pay attention to the condition of the welding cable, electrode holder and the earth terminal. Wear and tear of the insulation and the live parts can lead to hazards and reduce the quality of the welding work.
- Arc welding creates sparks, molten metal parts and smoke. Therefore ensure that: All flammable substances and/or materials are removed from the work station and its immediate surrounding.
■ Ensure the work station is ventilated.
■ Do not weld on containers, vessels or tubes that contain or contained flammable liquids or gases.
WARNING! Avoid any form of direct contact with the welding current circuit. The open circuit voltage between the electrode holder and earth terminal can be dangerous, there is a risk of electric shock.
■ Do not store or use the device in a damp or wet environment or in the rain. Protection rating IP21S is applicable in this case.
■ Protect your eyes using the appropriate protective glasses (DIN level 9-10), which are fastened to the supplied welding mask. Wear gloves and dry protective clothing that are free of oil and grease to protect the skin from exposure to ultraviolet radiation of the arc.
WARNING! Do not use the welding current source to defrost pipes.
Please note:
■ The light radiation emitted by the electric arc can damage eyes and cause burns to the skin.
■ Arc welding creates sparks and drops of melted metal. The welded workpiece starts to glow and remains hot for a relatively long period.
Therefore, do not touch the workpiece with bare hands.
■ Arc welding can cause vapours to be release that may be hazardous to health. Be careful not to inhale these vapours.
■ Protect yourself from the harmful effects of the electric arc and keep people that are not involved in the work away from the arc maintaining a distance of at least 2 m.
ATTENTION!
■ During the operation of the welding device, other consumers may experience problems with the voltage supply depending on the network conditions at the connection point. In case of doubt, please contact your energy supply company.
■ During the operation of the welding device, other devices may malfunction, e.g. hearing aids, cardiac pacemakers, etc.
• Potential hazards during electric arc welding
There are a series of potential hazards that can occur during electric arc welding. It is therefore particularly important for the welder to observe the following rules to avoid endangering him/herself and others and to prevent damage to people and the device.
■ Work on the voltage side, e.g. on cables, plugs, sockets etc., may only be carried out by qualified electricians according to national and local regulations.
■ In the event of accidents, disconnect the welding device from the mains voltage immediately.
■ If electrical contact voltages occur, switch off the device immediately and make sure you have it checked by a qualified electrician.
■ Always ensure good electrical contacts on the welding current side.
■ Always wear insulating gloves on both hands during welding work. These provide protection
from electrical shocks (open circuit voltage of the welding current circuit), harmful radiations (heat and UV radiation) and incandescent metal and splashes of slag.
■ Wear sturdy, insulating shoes. The shoes should also insulate when exposed to moisture. Loafers are not suitable as falling incandescent metal droplets can cause burns.
■ Wear suitable protective clothing, no synthetic garments.
■ Do not look into the electric arc without eye protection; only use a welding mask with the prescribed protective glass as per DIN. In addition to light and heat radiation, which can dazzle or cause burns, the electric arc also emits UV radiation. Without suitable protection the invisible ultraviolet radiation can cause very painful conjunctivitis which is not apparent until several hours later.
Furthermore, UV radiation can cause burns with sunburn-like effects on unprotected parts of the body.
■ Any persons in the vicinity of the electric arc or helpers must also be informed of the dangers and be equipped with the necessary protective equipment.
If necessary, set up protective walls.
■ Ensure an adequate supply of fresh air whilst welding, particularly in small spaces, as it produces smoke and harmful gases.
- No welding work may be carried out on containers that have been used for storing gases, fuels, mineral oils or similar – even if they have been empty for a long time – as possible residues may present a risk of explosion.
■ Special regulations apply in rooms where there is a risk of fire or explosion.
■ Welded joints that are subject to heavy stress loads and are required to comply with certain safety requirements may only be carried out by specially trained and certified welders. Examples of this are pressure vessels, running rails, tow bars, etc.
⚠️ ATTENTION! Always connect the earth terminal as close as possible to the point of weld to provide the shortest possible path for the welding current from the electrode to the earth terminal. Never connect the earth terminal to the housing of the welding device!
Never connect the earth terminal to earthed parts far away from the workpiece, e.g. a water pipe in another corner of the room. This could otherwise damage the protective bonding system of the room you are welding.
■ Do not use the welding device in the rain.
■ Do not use the welding device in a moist environment.
■ Only place the welding device on a level surface.
■ The outlet is measured at an ambient temperature of 20 °C and welding time can be reduced in the event of higher temperatures.
Risk of electric shock:
Electric shock from the welding electrode can be fatal. Do not weld in rain or snow. Wear dry insulating gloves.
Do not touch the electrodes with bare hands. Do not wear wet or damaged gloves. Protect yourself from electric shock with insulation against the workpiece. Do not open the device housing.
Danger from welding fumes:
Inhalation of welding fumes can endanger health. Do not keep
your head in the fumes. Use the equipment in open areas. Use extractors to remove the fumes. Never wrap the welding cable around your body. Guide welding cables together.
Danger from welding sparks:
Welding sparks can cause an explosion or fire. Keep flammable substances away from the welding location.
Do not weld next to flammable substances. Welding sparks can cause fires. Keep a fire extinguisher close by and an observer should be present to be able to use it immediately. Do not weld on drums or any other closed containers.
Danger from arc beams:
Arc beams can damage your eyes and injure your skin. Wear a hat and safety goggles. Wear hearing protection and high, closed shirt collars. Wear a welding safety helmet and make sure that the filter setting is right. Wear complete body protection.
Danger from electromagneticfields
Welding current generates electromagnetic fields. Do not use if you have a medical implant.
- Welding mask-specific safety instructions
■ With the help of a bright light source (e.g. lighter) examine the proper functioning of the welding mask prior to starting with any welding work.
■ Weld spatters can damage the protective screen. Immediately replace damaged or scratched protective screens.
■ Immediately replace damaged or highly contaminated or splattered components.
■ The device must only be operated by people over the age of 16.
■ Please familiarise yourself with the welding safety instructions. Also refer to the safety instructions of your welding device.
■ Always wear a welding mask while welding. If it is not used, you could sustain severe lesions to the retina.
■ Always wear protective clothing during welding operations.
■ Never use the welding mask without the protective screen because this could damage the optical unit.
■ Regularly replace the protective screen to ensure good visibility and fatigue-proof work.
• Environment with increased electrical hazard
Environments with increased electrical hazard may be encountered, for example:
or effect of protective equipment.
Even a metal conductor or scaffolding can create an environment with increased electrical hazard.
When using welding devices under electrically dangerous conditions, the output voltage of the welding device must be greater than 35 volt when idling (effective value). Based on the output voltage this welding device may not be used in these conditions.
In workplaces where the space for movement is restricted, such that the operator is working in a forced posture (e.g.: kneeling, sitting, lying) and is touching electrically conductive parts;
In workplaces which are restricted completely or in part in terms of electrical conductivity and where there is a high risk through avoidable or accidental touching by the operator;
In wet, humid or hot workplaces where the air humidity or weld significantly reduces the resistance of human skin and the insulating properties
- Welding in tight spaces
When welding in tight spaces this may pose a hazard through toxic gases (risk of suffocation). In tight spaces the device may only be operated if there are trained individuals in the immediate vicinity who can intervene if necessary. In this case, before starting to use the welding device, an expert must carry out an assessment in order to determine what steps are necessary, in order to guarantee safety at work and which precautionary measures should be taken during the actual welding procedure.
• Total of open circuit voltages
When more than one welding current source is operated at the same time, their open circuit voltages may add up and lead to an increased electrical hazard. The welding current sources must be clearly marked with their individual control units and connections, in order to be able to identify which device belongs to which circuit.
- Protective clothing
■ At work, the welder must protect his/her whole body by using appropriate clothing and face protection against radiations and burns. The following steps must be observed:
- Wear protective clothing prior to welding work.
- Wear gloves.
- Open windows or use a fan to guarantee air supply.
- Wear safety glasses and a face mask.
■ Gauntlet gloves made of a suitable material (leather) must
be worn on both hands. They must be in perfect condition.
■ A suitable apron must be worn to protect clothing from flying sparks and burns. When specific work, e.g. overhead welding, is required, a protective suit must be worn and, if necessary, even head protection.
• Protection against rays and burns
- Warn of the danger to the eyes by hanging up a sign saying "Caution! Do not look into flames!". The workplaces must be shielded so that the persons in the vicinity are protected. Unauthorised persons must be kept away from welding work.
■ The walls in the immediate vicinity of fixed workplaces should neither be bright coloured or shiny. Windows up to head height must be protected to prevent rays from penetrating or reflecting through them, e.g. by using suitable paint.
• EMC Device Classification—
As per the standard
IEC 60974-10, this welding device is a welding unit with class B electromagnetic compatibility. Thus it complies with the corresponding requirements for commercial and domestic use. In residential areas, it can be connected to the public low-voltage supply network.
Even if the welding device complies with the emission limit values of the standard, arc welding devices can still result in electro-magnetic interferences in sensitive systems and devices.
The operator is responsible for malfunctions that occur through the arc while welding and must take suitable protective measures. In doing so, the operator must consider the following:
- network, control, signal and telecommunication lines
– computers and other micro- processor-controlled devices
– TVs, radios and other playback devices - electronic and electrical safety equipment
- people with cardiac pacemakers or hearing aids
– measurement and calibration devices
- interference immunity of other equipment nearby
– the time at which the welding work is carried out.
The following is recommended to reduce possible interference radiation:
- equip the mains connection with a mains filter
– the welding device must be regularly maintained and kept in a good condition - welding cables should be completely uncoiled and run as close to parallel with the floor as possible
– devices and systems that are compromised by the interference radiation must be removed from the welding area or shielded.
- Before use
Take all parts from the packaging and check whether the arc welder or parts show any damage. If this is the case, do not use the arc welder. Contact the manufacturer via the indicated service address.
■ Remove all protective films and other transport packaging.
- Check that the delivery is complete.
- Mounting
- Fit welding mask
■ Fit the handle onto the welding mask 7, as shown in Fig. B.
■ Fit the protective glass onto the welding mask 7, as shown in Fig. B.
■ The protective glass must be pushed in at the top.
Note: If it is not possible to push the protective glass 10 in fully, then press gently on the protective glass 10 from the outside.
- Using the device
- Welding preparation
Note: If you adjust the current, check whether the manual wheel 3 can still move and that the lead screw is not jammed.
Note: If the clamping force of the electrode holder 5 and the earth terminal 4 decreases, replace these immediately.
■ Connect the power cable.
- Set the ON/OFF switch to the "ON" position. The power indicator lights up, the procedure can start.
To stop the procedure, set the ON/OFF switch 2 to the "OFF" position.
Note: If the yellow control lamp 6 lights up, then this indicates overheating. The power circuit is shut off automatically. The procedure is stopped. Attach the earth terminal 4 straight onto the workpiece or to the base on which the workpiece is positioned.
Note: Make sure that there is direct contact with the workpiece. You should therefore avoid lacquered surfaces and/or insulating materials.
Note: The welding mask 7 must always be used during welding operations.
It protects the eyes from the light radiation emitted by the arc and therefore permits a clear view of the workpiece.
Note: The weldable material thickness is 1.5 - 3.0 mm.
- Welding
Once you have connected all the electrical connections for the power supply as well as for the welding current circuit, proceed as follows:
- Insert the non-coated end of the electrode into the electrode holder 5 and connect the earth terminal 4 with the workpiece. Please ensure good electrical conductivity.
The device has a detent to set the electrode thickness. Switch the device on by setting the ON/OFF switch 2 to the "ON" position. Then select the electrode thickness using the manual wheel 3: For 1.6 or 2.0 mm electrodes, set the manual wheel 3 to the 1.6 / 2.0 position. For 2.5 mm electrodes set the manual wheel 3 to the 2.5 position. - Hold the welding mask in front of your face and guide the tip of the electrode over the workpiece as if you were going to strike a match. This is the best way to ignite the arc.
■ Use a sample to test whether you have the right electrode and current strength on a sample.
ATTENTION!
Do not dab the workpiece with the electrode. It could be damaged and it could be more difficult to ignite the
arc. As soon as the arc is ignited, try to maintain a gap from the workpiece, which is equivalent to the diameter of the electrode used. The gap should remain as constant as possible while you are welding. The angle of the electrode in the direction of operation should be 20–30 degrees.
ATTENTION!
Always use pliers to remove used electrodes or move hot workpieces. Please note that the electrode holder must always be placed onto an insulated base after welding. The slag can only be removed from the seam once it has cooled down. If welding continues on an intermittent weld seam, then the slag should be removed at the point of attachment first.
ATTENTION!
Welding generates heat. For this reason, after use the welding device must be allowed to idle for at least half an hour. Alternatively, let the device cool off for an hour. The device can only be packed and stored once the device temperature has returned to normal.
- Switch the device OFF by setting the ON/OFF switch 2 to the "OFF" position.
• Overload protection
The welding device is protected against overheating by means of an automatic protection device. Allow the device to cool down (approx. 15 min.) for the activation of the protection device. As soon as the control lamp 6 goes out, the device is ready for operation again. PESG 120 B4 (with AC 230 V 50 Hz EU mains plug)
The fuses of the supply lines to the power sockets must comply with the regulations (VDE 0100). Safety sockets must be fused with max. 16 A (type and technical specifications: NDM1-63, AC 230 / 400 V C16. IEC 60898. slow blow trigger. Manufacturer: Nader) (fuses or Miniature circuit-breakers). Higher levels of fuse protection can result in cable fire or structural fire damage.
Attention: The device must be connected to a power source with the fuse as specified above. If the electrode holder and earth terminal are short circuited, the fuse can trigger in 16-20 seconds. Classification in accordance with the EMC Directive: Class B in accordance with IEC 60974-10.
- Maintenance
■ Remove dust and contamination from the device regularly.
- Clean the device and accessories with a fine brush or a dry cloth.
• Information about recycling and disposal
Don't throw away - recycle!
Please return this device, accessories and packaging to your local recycling depot. Do not dispose of the arc welder in household waste, in fire or in water. Devices that are no longer functional should be recycled wherever possible. Ask your local stockist for advice.
- EU Declaration of Conformity
We,
C. M. C. GmbH
Responsible for documentation:
Dr Christian Weyler
Katharina-Loth-Str. 15
66386 St. Ingbert
GERMANY
hereby take sole responsibility for declaring that the product
Arc welder
Item number: 2346
Year of manufacture: 18/2021
IAN: 360194_2007
Model: PESG 120 B4
meets the basic safety requirements as specified in the European Directives
EC low-voltage directive
2014 / 35 / EÜ
EC Guideline on Electromagnetic Compatibility
2014/30/EU
RoHS directive
2011 / 65 / EU + 2015 / 863 / EU
and the amendments to these Directives.
The manufacturer will be solely responsible for the creation of the declaration of conformity.
The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
This conformity assessment is based on the following harmonised standards:
EN 60974-10:2014/A1:2015
EN 60974-1:2016
EN 60974-6:2016
IEC 61000-3-11:2000
IEC 61000-3-12:2011
St. Ingbert, 01/10/2020
- Quality Assurance -
● Warranty and service information
Warranty from Creative Marketing & Consulting GmbH
Dear Customer,
The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.
- Warranty conditions
The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.
Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge.
This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred.
If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.
- Warranty period and statutory claims for defects
The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.
- Extent of warranty
This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.
The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.
This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.
The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.
- Processing of warranty claims
To ensure prompt processing of your claim, please follow the instructions given below.
Please retain proof of purchase and the article number (e.g. IAN) for all inquiries. The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device.
In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.
Note: You can
You can download this handbook and many more, as well as product videos and software at www.lidl-service.com.
With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your Operating Instructions by entering the article number (IAN) 360194.
How to contact us:
GB, IE, NI, CY, MT
Name: C. M. C. GmbH
Website: www.cmc-creative.de
E-mail: service.gb@cmc-creative.de
Phone: 0-808-189-0652
Registered office: Germany
IAN 360194\_2007
Please note that the following address is not a service address.
Please first contact the service point given above.
C. M. C. GmbH
Katharina-Loth-Str. 15
66386 St. Ingbert
GERMANY
©
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
DEUTSCHLAND
E-Mail: service.de@cmc-creative.de service.at@cmc-creative.de service.ch@cmc-creative.de
Telefon: +49 (0) 6894 9989750
Protection anti-surcharge Page 54
Maintenance Page 55
• Protection anti-surcharge
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
ALLEMAGNE
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
NIEMCY
z up. Dr. Christian Weyler
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
NEMECKO
Dr. Christian Weyler
Katharina-Loth-Str. 15
66386 St. Ingbert
ALEMANIA
Dr. Christian Weyler
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
TYSKLAND
