USER MANUAL PALP 16 A1 PARKSIDE

Translation of the original instructions

PALP 16 A1 Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use Cordless compressor PAK 16 A1: The appliance is designed for pumping up bicycle tyres and inflatable game, sport and beach articles; however, not for large-volume inflatables such as rubber dinghies and large inflatable mat- tresses. It is also suitable for measuring the current pressure. The pressure display is not calibrated. The compressor is not suitable for inflating car tyres. Cordless air pump PALP 16 A1: The appliance is designed for inflating and deflat- ing inflatable mattresses, rubber dinghies, paddling pools and other large-volume inflatables for home use. It is not suitable for pumping up bicycle or car tyres. The appliances are not suitable for commercial use. Any other usage of or modification to the appliances is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attribut- able to misuse. NOTE ► Store these operating instructions in the im- mediate vicinity of the compressor and make them available to all operators. Features Air inlet Battery pack Battery charge level button Battery display LED Release button for battery pack ON/OFF switch LED work light Air outlet Adapter nozzle Adapter nozzle Adapter nozzle Display indicator "+" button ON/OFF button on the display "−" button Battery pack Battery charge level button Battery display LED Release button for battery pack ON/OFF switch LED work light Compressed air hose adapter 22a Compressed air hose threaded connection Union nut Compressed air hose Ball needle Valve adapter Valve adapter Universal adapter Universal adapter Universal adapter High-speed charger Red charge control LED Green charge control LEDPAK 16 A1 / PALP 16 A1 GB 

 31 ■ Package contents 1 battery charger PLG 16 A1 1 rechargeable battery PAP 16 A1 1 cordless compressor PAK 16 A1 incl. 1 x hose with valve adapter incl. 2 x inner-tube valves (1 x Dunlop/express valve, 1 Presta valve) incl. 1 x ball needle incl. 3 x plastic adapters 1 cordless air pump PALP 16 A1 incl. 3 x plastic adapters (universal adapter for valves with an internal diameter of approx. 8 mm, adapter screw valve, e.g. for bathing boats, adapter for deflation valves) 1 carrying case 1 set of operating instructions Technical data Cordless compressor: PAK 16 A1 Rated voltage: 16 V (DC) Max. pressure: 7 bar (100 psi) Cordless air pump: PALP 16 A1 Rated voltage: 16 V (DC) Air flow rate: 45 m³/h Use only the following battery to operate the cordless tools: PAP 16 A1: Type: LITHIUM ION Cells: 4 Rated voltage: 16 V (DC) Capacity: 1.5 Ah Use only the following charger to charge the battery pack: PLG 16 A1 INPUT: Rated voltage: 230–240 V ∼, 50 Hz (AC) Rated power consumption: 33 W OUTPUT: Rated voltage: 16.5 V (DC) Charging current: 1.8 A Charging time: approx. 60 min Fuse (internal): 3.15 A T3.15A Protection class: II / (double insulation) Noise emission value: The measured values have been determined in accordance with EN60745. The A-rated noise level of the tool is typically: Cordless compressor: Sound pressure level: L

= 3 dB Sound power level: L

= 3 dB Cordless air pump: Sound pressure level: L

= 3 dB Sound power level: L

= 3 dB Total vibration value: Total vibration values (vector total of three direc- tions) determined in accordance with EN 60745: Cordless compressor: Vibration emission value: ah = 2.6 m/s² Uncertainty: K = 1.5m/s² Cordless air pump: Vibration emission value: ah = 2.5 m/s² Uncertainty: K = 1.5m/s² NOTE ► The vibration level specified in these instruc- tions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.PAK 16 A1 / PALP 16 A1 ■ 32 │ GB WARNING! ► The vibration level will vary according to the use of the power tool and may sometimes be higher than the value specified in these instructions. Regular use of the power tool in this way may cause the user to underestimate the vibration. To estimate the vibration load during a specific working period accurately, also take into account periods during which the appliance is switched off (or running, but not being used). This can significantly reduce the vibration load over the total working period. General Power Tool Safety Warnings WARNING! ► Read all the safety information, instruc- tions, illustrations and technical data provided with this electric tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to mains-operated (corded) power tools or battery- operated (cordless) power tools.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmo- spheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the mains cable. Never use the cable for carrying, pulling or unplugging the power tool. Keep mains cable away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock. e) When working outdoors with an electrical power tool always use extension cords which are also suitable for use outdoors. The use of an extension cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.PAK 16 A1 / PALP 16 A1 GB 

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying the power tool with your finger on the ON/OFF switch or connecting the power tool to the mains supply whilst it is switched on can lead to serious ac- cidents. d) Remove any adjusting key or wrench before turning the power tool on. A tool or wrench attached to a rotating component on the power tool can cause serious injuries. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. The use of an extraction system can reduce hazards caused by dust. h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety regulations for power tools, even if you are familiar with the power tool after repeated use. Careless handling can lead to serious injuries within a fraction of a second.

4. Power tool use and care

a) Do not overload the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove any removable battery packs before making any adjustments, changing accessories, or storing the power tool. This precaution is intended to prevent you from unintentionally starting the appliance. d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Look after power tools and accessories with care. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. Arrange for damaged components to be repaired before using the power tool. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.PAK 16 A1 / PALP 16 A1 ■ 34 │ GB g) Use the power tool, accessories and ac- cessory tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep the handles and handle surfaces dry, clean and free from oil and grease. Slippery handles and handle surfaces do not allow safe use and operation of the power tool in unfore- seen situations.

5. Use and handling of the cordless

electrical power tool a) Charge the rechargeable battery unit using only the charger recommended by the manu- facturer. Chargers are often designed for a par- ticular type of rechargeable battery unit. There is a risk of fire if the battery charger specified for a particular type of battery is used with other batteries. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire. c) When they are not being used, store recharge- able battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek addi- tional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Extended safety guidelines ■ Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury. ■ Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130°C (265°F) can cause an explo- sion. ■ Follow all instructions regarding charging and never charge the battery or the cordless tool outside the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.PAK 16 A1 / PALP 16 A1 GB 

 35 ■ Safety instructions for battery chargers & blowers ■ This appliance may be used by children aged 8 and above and by persons with limited physical, sensory, or mental capabilities or lack of experience and knowledge, provided that they are under super- vision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised. The charger is suitable for indoor use only. WARNING! ■ If the power cord requires replacement, this should be carried out by the manufacturer or an approved representative to avoid safety hazards. Before use: Charging the battery pack (see fig. A) CAUTION! ► Always unplug the appliance before you re- move the battery pack from or connect the battery pack to the charger. NOTE ► The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1 hours. This guarantees full battery power. Li-ion batteries can be charged at any time without adversely affect- ing their service life. Interruption of the charg- ing process will not damage the battery. ► Never charge the battery pack when the ambient temperature is below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0°C and 50°C. ♦ Insert the battery pack into the high-speed charger . ♦ Insert the power plug into the socket. The control LED lights up red to indicate that the appliance is charging. ♦ The green control LED indicates that the charging process is complete and the battery pack is ready for use. ♦ Push the battery pack back onto the appliance. ♦ Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.PAK 16 A1 / PALP 16 A1 ■ 36 │ GB Attaching/disconnecting the battery pack to/from the appliance Inserting the battery pack: ♦ Allow the battery pack to click into the handle. Removing the battery pack: ♦ Press the release button and remove the battery pack . Checking the battery charge level: ♦ Press the battery charge level button

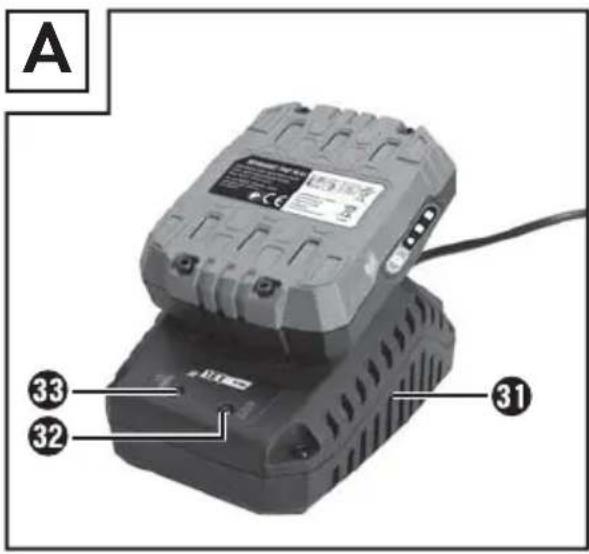

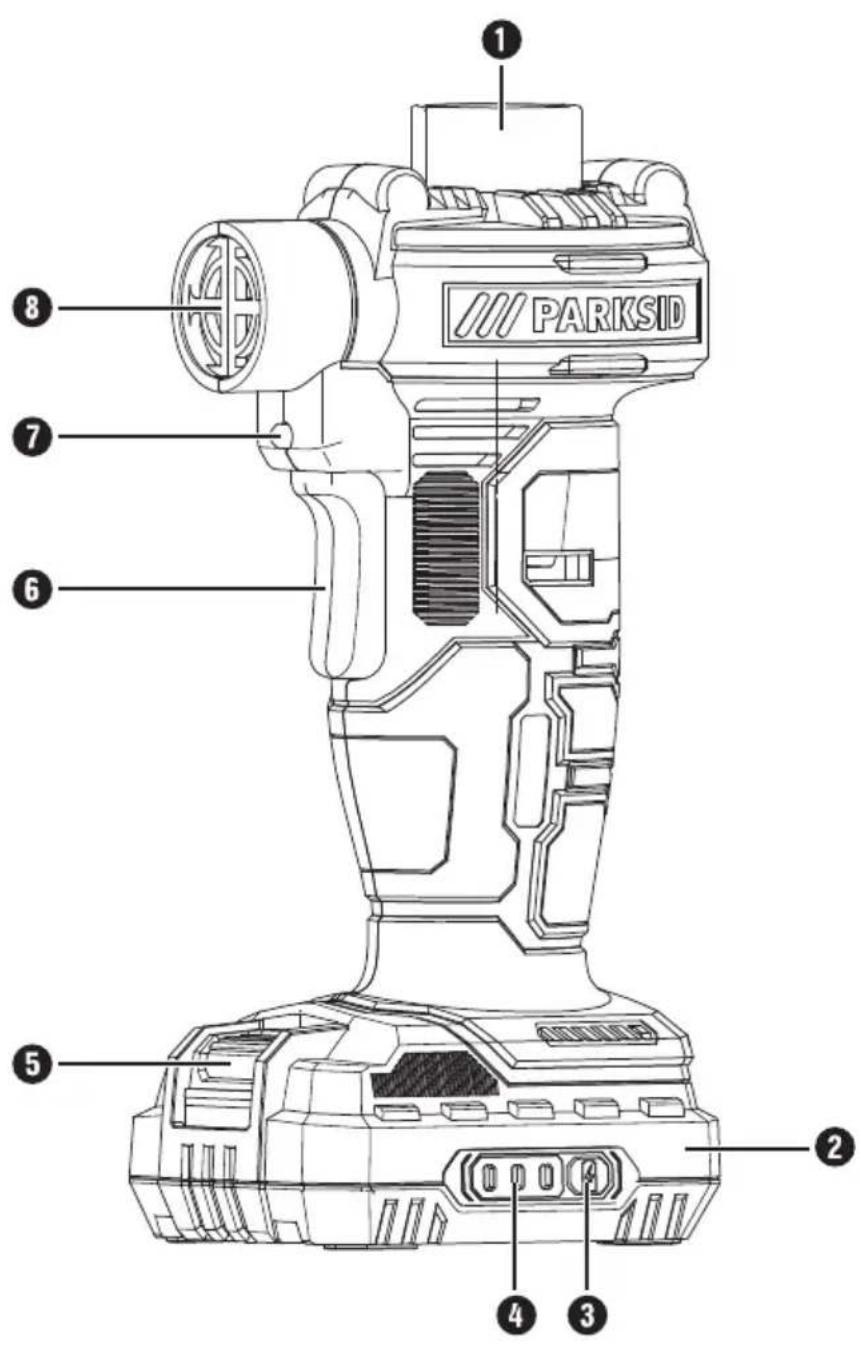

check the battery charge level. The status/remaining charge will be shown on the battery display LED as follows: ♦ RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge – charge the battery Operating the cordless air pump PALP 16 A1 This appliance is not designed for continuous operation. The appliance may be used for a maxi- mum of 20 minutes of continuous operation. If the appliance overheats, remove the battery pack . Allow the appliance to cool down completely and then try using it again. Inflation ♦ Remove the valve cap of the item you want to inflate. ♦ Fit the appropriate adapter , or onto the pump air outlet . ♦ Push the adapter , or into the valve of the item to be inflated. ♦ Switch the appliance on by pressing the ON/ OFF switch

♦ Once the desired level of inflation has been reached, switch off the appliance by releasing the ON/OFF switch

♦ Now remove the adapter , or . ♦ Replace the valve cap on the item that you have inflated. Deflation ♦ Fit the appropriate adapter , or onto the pump air inlet

♦ Remove the valve cap of the item you want to deflate and push the adapter , or into the valve of the item to be deflated. ♦ Switch the appliance on by pressing and holding the ON/OFF switch

♦ Once the item is fully deflated, switch off the ap- pliance by releasing the ON/OFF switch

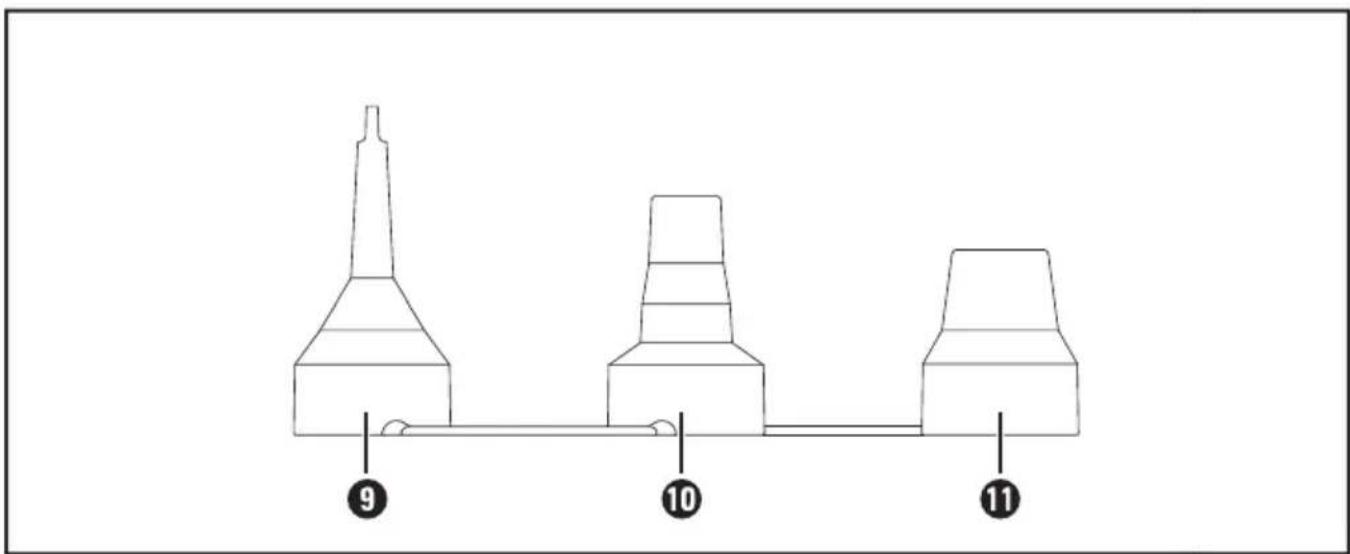

♦ Now remove the adapter , or . Adapters Adapter : For standard valves with an internal diameter of 8 mm. Adapter

For inflatable items with a screw valve. Deflation is only possible with an unscrewed valve and with this adapter. Adapter

For inflatable items with a deflation valve. NOTE ► The LED working light is lit when the ON/ OFF switch is lightly or fully depressed. This allows illumination of the working area while inflating in low light conditions.PAK 16 A1 / PALP 16 A1 GB 

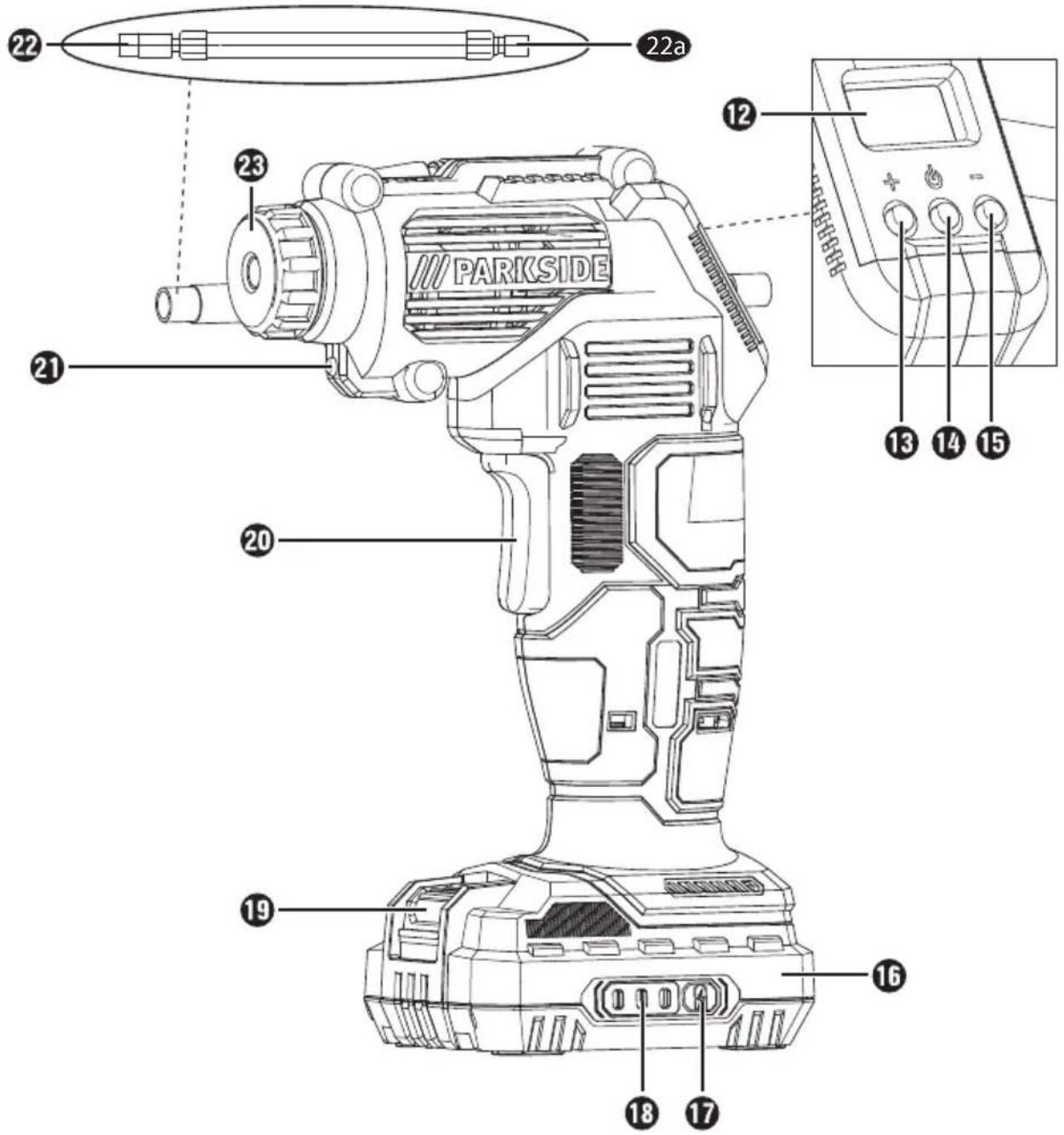

 37 ■ Operating the cordless compressor PAK 16 A1 This appliance is not designed for continuous operation. The appliance may be used for a maxi- mum of 10 minutes continuous operation. If the appliance overheats, remove the battery pack

Allow the appliance to cool down completely and then try using it again. Display indicator ♦ Press the ON/OFF switch on the display or press the ON/OFF switch to switch on the display indicator . ♦ The last set pressure is displayed for 2 seconds. ♦ After two seconds, the current pressure of the connected item is shown. NOTE ► If the compressed air hose is not connected to a suitable item, the display indicator shows "0". ♦ If the display indicator is switched on, you can switch between "bar" and "psi" by pressing the ON/OFF button . ♦ To switch off the display indicator , press the ON/OFF button for 3 seconds. NOTE ► The compressor will not work if the display indicator is switched off. Setting the pressure ♦ Hold down the "+" or "–" button until the display flashes. ♦ Press the "+" or "–" button to set the desired pressure. ♦ Once you see the desired pressure on the display indicator , do not press any button for about 3 seconds. The desired pressure is now set. NOTE ► The display indicator (and thus the com- pressor) switches off after around three minutes of inactivity. TIP ► If you press and hold the "+" or "–" button, the pressure changes quickly. Initial operation ♦ Loosen the cap nut (do not unscrew it com- pletely!), twist in the compressed air hose threaded connection 22a and retighten the cap nut . ♦ Select the desired pressure. ♦ Screw one of the supplied adapters (

, , ) tightly onto the compressed air hose adapter . ♦ Connect the adapter , , , , or to the object to be inflated. ♦ Press the ON/OFF switch

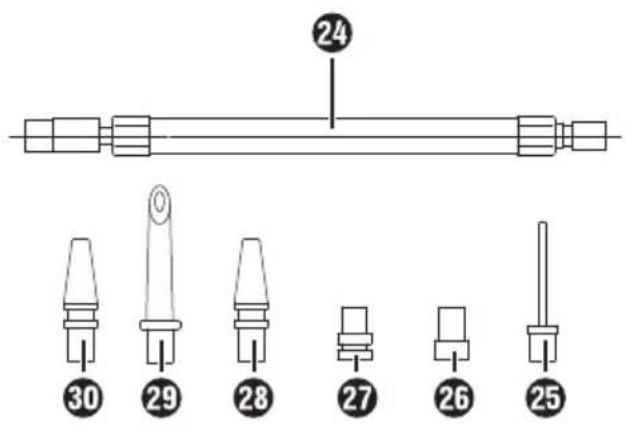

♦ The compressor switches off automatically when you reach the preset pressure. ♦ Pull the adapter , , , , or out of the now inflated item.PAK 16 A1 / PALP 16 A1 ■ 38 │ GB Adapters Adapter The ball needle can be used to inflate various balls. Adapter The Presta valve can be used for inflating bicycle tyres. Adapter The Dunlop valve can be used for inflating bicycle tyres. Adapter The universal adapter can be used to inflate air mattresses or similar. Adapter For inflating pool toys, etc. Adapter The universal adapter can be used to inflate air mattresses or similar. Maintenance, storage and cleaning WARNING! RISK OF ELECTRIC SHOCK! Before cleaning, disconnect the charger from the mains socket. NOTE ► Before carrying out any work on the appli- ance, ensure that the battery pack has been removed. This prevents unintentional switching on. ■ The cordless appliances are maintenance-free. ■ The appliances must always be clean, dry and free from oil or grease. ■ Never allow liquids to get into the appliances. ■ Use a soft cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic. ■ Always ensure the appliances and attachments are clean, free of dust and dry before storing. ■ If you do not intend to use the appliances for an extended period, remove the batteries and store them in a clean, dry place away from direct sunlight. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry. ■ Never try to repair damaged batteries. Main- tenance of batteries should only be carried out by the manufacturer or an approved customer service centre. NOTE ► Replacement parts not listed (such as batteries, battery charger) can be ordered via our service hotline.PAK 16 A1 / PALP 16 A1 GB 

 39 ■ Disposal The packaging consists of environmentally friendly material. It can be disposed of in the local recycling containers. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.PAK 16 A1 / PALP 16 A1 ■ 40 │ GB The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of pur- chase. ■ You will find the item number on the type plate, an engraving on the front page of the instruc- tions (bottom left), or as a sticker on the rear or bottom of the appliance. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. NOTE ► For Parkside and Florabest tools, please send us only the defective item without the acces- sories (e.g. battery, storage case, assembly tools, etc.). You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com. Service WARNING! ■ Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts.This will ensure that the safety of the appliance is maintained. WARNING! ■ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider.This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail] IAN 280447 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

 41 ■ Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, docu- ment officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EC Low Voltage Directive (2014/35/EU) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011 / 65 / EU)* *The manufacturer bears the full responsibility for compli- ance with this conformity declaration. The object of the declaration described above complies with the require- ments of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards: EN 60745-1:2009/A11:2010 EN ISO 12100:2010 EN 60335-1:2012/A11:2014 EN 60335-2-29:2004/A2:2010 EN 62233:2008 EN 55014-1:2006/A2:2011 EN 55014-2:1997/A2:2008 EN 61000-3-2:2014 EN 61000-3-3:2013 Type designation of machine: Cordless compressor PAK 16 A1 Cordless air pump PALP 16 A1 Year of manufacture: 10 - 2016 Serial number: IAN 280447 Bochum, 18/10/2016 Semi Uguzlu - Quality Manager - We reserve the right to technical changes in the context of further product development.PAK 16 A1 / PALP 16 A1 ■ 42 │ GBIAN 280447
