| Product type | Pneumatic sandblasting gun |
| Brand | Parkside |
| Model | PDSP 1000 D5 |
| Working pressure | 6.3 bar |
| Air consumption | 320 l/min |
| Container capacity | 0.9 l |
| Required air quality | Filtered and oil-free |
| Sound pressure level | LpA = 94 dB(A) |
| Sound power level | LWA = 105 dB(A) |
| Vibration value | ah < 2.5 m/s² |
| Delivery contents | Gun, 4 nozzles (surface, spot, inner edge, outer edge), collection bag, hose clamp, 2 kg of blasting material, instruction manual |
| Recommended blasting material | Ground blast furnace slag, grain size 0.21-0.35 mm (grain 40-60) |
| Maximum grain size | 0.8 mm |
| Power supply | Compressed air (via compressor) |
| Intended use | Removal of rust and paint from metal surfaces |
| Safety | Wear safety goggles, hearing protection, dust mask, protective clothing. Do not use with flammable gases. Max pressure 6.3 bar. |
| Maintenance and cleaning | Clean after use with compressed air. Store in a dry place. |
| Warranty | 3 years from date of purchase |
| Spare parts | Available according to the parts list in the manual (ref. positions 01-39) |
Frequently Asked Questions - PDSP 1000 D5 PARKSIDE
User questions about PDSP 1000 D5 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual PDSP 1000 D5 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PDSP 1000 D5 by PARKSIDE.
USER MANUAL PDSP 1000 D5 PARKSIDE


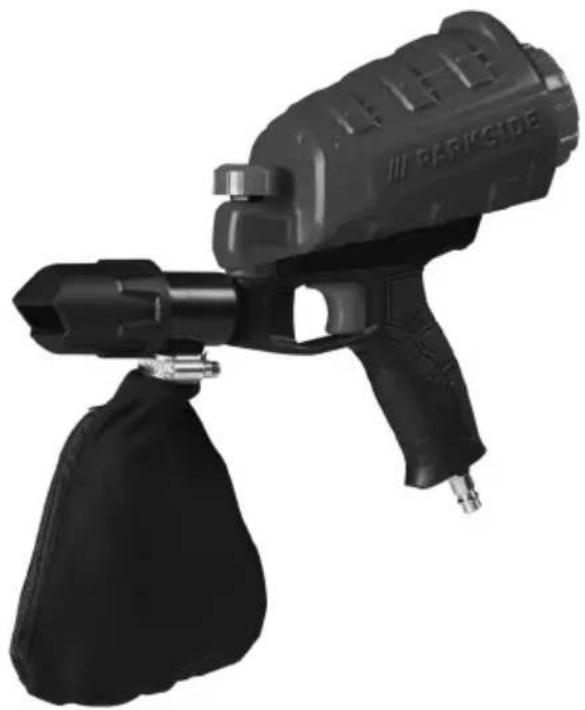

Black outdoor spray gun with attached black bag, no visible text or symbols on the weapon itselfDRUCKLUFT-SANDSTRAHLPISTOLE / AIR SAND BLASTER GUN / PISTOLET DE SABLAGE PNEUMATIQUE PDSP 1000 D5
DE AT CH
DRUCKLUFT-SANDSTRAHLPISTOLE
Operation and safety notes
Translation of the original instructions
NL BE
PERSLUCHT-ZANDSTRAALPISTOOL
GB / IE Operation and safety notes Page 14
Intended use....Page 15
Parts description Page 15
Delivery contents......Page 15
Technical data......Page 16
General safety information......Page 16
Workplace safety......Page 16
Tool-specific safety information for the compressed air sandblaster ......Page 16
Operation Page 17
Assembling the collection bag for sandblasting material (pre-assembled)......Page 17
Selecting and assembling an attachment......Page 17
Filling the blasting material holder....Page 17
Connecting the compressed air source Page 18
Using the air sand blaster gun Page 18
Emptying the collection bag for sandblasting material Page 19
Troubleshooting Page 19
Parts Page 20
Maintenance and cleaning......Page 20
Disposal Page 20
Warranty Page 20
Warranty claim procedure....Page 21
Service Page 21
EC Declaration of conformity....Page 22
| List of pictograms used | |||
 | Please read the instructions for use! |  | Wear protective glasses! |
 | Wear ear protection! Wear protective glo |  | |
 | Wear a dust mask! Wear protective clothin |  | |
 | Danger of explosion! |  | Observe warnings and safety information! |
Air Sand Blaster Gun PDSP 1000 D5
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
The product is suitable for removing rust and paint on metal surfaces. This product is not intended for any other use. Any other use or product modification is considered improper use and entails serious risks of accidents. The manufacturer does not assume any liability for damage arising from improper use. Not intended for commercial purposes.
Partsdescription
1 Blasting material holder
2 Screw cap
3 Air sand blaster gun
4 Coupling plug (air connection)
5 Trigger
6 Collection bag for sandblasting material (pre-assembled)
7 Screw clamp
8 Jet nozzle
9 Rotary control (7)
10 Surface attachment
11 Point attachment
12 Inner-corner attachment
13 Edge attachment
14 Blasting material
- Delivery contents
1 Air Sand Blaster Gun PDSP 1000 D5
1 Surface attachment
1 Point attachment
1 Edge attachment
1 Inner-corner attachment
1 Collection bag for sandblasting material
1 Screw clamp
2 kg Blasting material
1 Instructions for use
- Technical data
Operating pressure: 6.3 bar
Air consumption: 320l/min
Container volume: 0.9 l
Air quality required: purified and oil-free
Setting values
for work: set operating pressure on
the pressure regulator or filter pressure gauge max.
6.3 bar.
Noise emission value:
Measured sound value determined according to EN 1265. The A-rated noise level of the air tool is typically:
Sound pressure level: L_pA = 94 dB(A)
Uncertainty: K _pA = 3 dB(A)
Sound power level: L WA = 105 dB(A)
Uncertainty: K WA = 3 dB(A)
Wear ear protection!
Vibration emission value:
Total vibration value determined according to EN ISO 20643: ah < 2.5 m / ♂
WARNING! The vibration level specified in these instructions was measured in accordance with an EN ISO 20643 standardised measurement process and can be used to compare tools. The vibration emission value specified can also serve as a preliminary assessment of the exposure. Different uses of the air tool give rise to different vibration levels and in many cases they may exceed the values given in these instructions. It is easy to underestimate the vibration load if the air tool is used regularly in particular circumstances. If you wish to make an accurate assessment of the vibration loads experienced during a particular period of work, you should also take into account the periods when the product is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.
Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the product is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.
Generalsafety information
WARNING! Please read all safety information and instructions. Failure to observe the safety information and instructions may result in electric shock, fire, and/or serous injuries.
KEEP ALL SAFETY INFORMATION AND INSTRUCTIONS FOR FUTURE REFERENCE.
- Workplace safety
a) Keep your work area clean and well lit. Untidy or poorly lit work areas can result in accidents.
b) Do not use the product in explosive environments with flammable liquids, gasses or dust. The product can create sparks which can ignite dusts or fumes.
c) Keep children and other people away from the product during use. You could lose control of the product if you are distracted.
● Tool-specific safety information for the compressed air sandblaster
- Check the product for damage before use. Refrain from using the product if it is defective.
- Keep children and other people away from the product during use. You could lose control of the product if you are distracted.
RISK OF INJURY! IMPROPER USE!
Never point the product at people and/or animals.
We
Just mask!
We
tective glasses!
We
protection!
We
tective gloves!
We
tective clothing!
EXPLOSION HAZARD! Do not
use the air sand blaster gun in environments containing gases, open
flames, fires or gas-operated water heaters.
SMOKING PROHIBITED!
Only work in well ventilated spaces.
Never use oxygen or other flammable gases as an energy source.
Never exceed the maximum permitted operating pressure of 6.3 bar.
WASKIO GRECOIL
FORCES! High operating pressures can give rise to recoil forces that under certain conditions can result in danger from continuous loading.
RISK OF INJURY! Remove the product from the compressed air source before repair and maintenance work and before transport.
RISK OF INJURY! Remove the product from the compressed air source to fill the product with blasting material.
NOTE! Please note the safety information of the manufacturer of the blasting material.
Only use suitable materials for the air sand blaster gun. Use a suitable blasting material!
ATTENTION! Heavy dust formation. Take precautions!
Make sure that the sandblasting material is collected so that you can dispose of it in an environmentally-friendly way.
Do not remove any markings/type plates. These are safety-relevant.
If you are inexperienced in the use of this type of product, you should seek training to learn how to handle it safely.
WARNING! NOXIOUS DUST! Working on materials which can produce harmful / toxic dusts presents a health risk to the user and people within close vicinity.
CAUTION! Ensure that the product is disconnected from the air supply when it is not in use, when replacing accessories or when carrying out repair work. The air hose must not be pressurised.
CAUTION! Ensure that the product is disconnected from the air supply when it is not in use, when replacing accessories or when carrying out repair work. The air hose must not be pressurised.
Operation
- Assembling the collection bag for sandblasting material (pre-assembled)
☐ Use the screw clamp included in the delivery contents and a screwdriver to assemble the collection bag 6 on the product. - Selecting and assembling an attachment
First, select the attachment ^10 , 11 , 12 , 13 ) which is suitable for your work.
Place the attachment you have selected onto the jet nozzle 8 and ensure that no air can leak from the sides.
Filling the blasting material holder
CAUTION! Before opening the screw cap 2 of the blasting material holder 1 or configuring other settings, the pressure must always be fully relieved and the air sand blaster gun disconnected from the compressed air source (i.e. compressor).
Only use a suitable blasting material for your work 14.
Note: We recommend sandblasting material (ground blast furnace slag) which does not cause silicosis with a grain size of 0.21 mm - 0.35 mm (Grain size: 40 - 60).
- Ensure that the blasting material is completely dry and that it is not too coarse.
Note: The maximum grain size is 0.8 mm.
Open the screw cap of the blasting material holder 1 by turning it counterclockwise.
Pour the desired amount of blasting material 14 into the blasting material holder 1.
■ Ensure that the maximum holder contents do not exceed 0.9 l (see figure D).
Then close the screw cap of the blasting material holder 1 by turning it clockwise. Ensure that the screw cap 2 is closed tightly.
Note on grain size of the blasting material:
The bigger/the coarser the grain size of the blasting material used, the coarser the contamination you are trying to remove by using it. The blasting material contained is small and is highly suitable for removing materials such as flash rust or impurities. The material surface is spared by using a small blasting material and this only results in superficial wear. A coarser grain size for the blasting material, which you can get in a specialist shop, is suitable for coarser rust.
Caution: Observe the maximum grain size.
- Connecting the compressed air source
Note: The air sand blaster gun 3 may only be operated using purified, oil-free and condensate-free compressed air with a maximum pressure of 6.3 bar. To regulate the compressed air you should use a pressure regulator and filter.
Note: Ensure that the rotary control 9 is at „before connecting the product to the compressed air source.
Connect the air sand blaster gun to a suitable compressed air source. Now connect the supply pipe using the quick coupling to the coupling
plug 4 on the air sand blaster gun 3. This automatically locks into place.
• Using the air sand blaster gun
Prepare the material to be sandblasted by degreasing and cleaning it.
Note: Dust and grease deposits significantly impair the result.
Carefully cover or mask everything which will not be sandblasted.
The distance between the attachment and the surface to be processed is crucial for the result. Hold it as low as possible so that the blasting material 14 can be collected by the collection bag 6.
☐ The closer you go with the product to the work piece, the smaller the blasting pattern and vice versa.
If necessary, do a test run beforehand on a work piece you no longer need. By doing so you will figure out the correct distance/operating pressure and prevent excessive blasting.
Switching on:
Open the air passage by setting the rotary control 9 to "
☐ Introduce the air sand blaster gun 3 to the surface to be processed.
□ Activate the trigger to operate the air sand blaster gun 3.
Switching off:
☐ Release the trigger to switch off the air sand blaster gun 3.
Set the rotary control to "to close the air passage.
☐ Disconnect the product from the compressed air source after finishing work.
Note: First, remove the hose from the compressed air source, and then remove the supply hose from the product. Following these instructions will stop the supply pipe from twirling around uncontrollably or recoiling.
● Emptying the collection bag for sandblasting material
Note: Do not reuse excess sandblasting material from the collection bag 6 before it has been purified.
☐ You can remove excess sandblasting material which has collected in the collection bag 6 through the zip. Alternatively, you can loosen the screw clamp 7 using a screwdriver and remove the collection bag 6 from the product.
- Troubleshooting
| Error Possible cause Solution | ||
| No material flow | The air is not dry enough. | Install a water separator in your compressed air system. |
| Air pressure is too low. Increase the pressure of the compressor. | ||
| The attachment is not fitted correctly. | Ensure that the attachment fits tightly on the product and that no air can leak from the sides. | |
| Blocked sandblasting material lines. | Check that there are no lumps of sandblasting material blocking the lines. For best results use a blow-out gun to clean blocked lines (wear protective glasses!). Also check the outlet of the tank. | |
| The sandblasting pattern is not as desired. | The air is not dry enough. Install a water separator in your compressed air system. | |
| The size of the sandblasting material is not consistent. | Replace the sandblasting material. | |
| The sandblasting material is contaminated. | Purify/replace the sandblasting material. | |
| The attachment is worn-out. Replace the attachment. | ||
| Other errors Contact a specialist or retailer. | ||
Parts (see Figure A)
| Pos. No. | Description Amount |
| 01 Nut for screw 1 | |
| 02 Screw 2 | |
| 03 Screw 1 | |
| 04 O-ring 1 | |
| 05 O-ring 1 | |
| 06 Pin 1 | |
| 07 Air valve spring 1 | |
| 08 O-ring 1 | |
| 09 Nut for screw 1 | |
| 10 Spring 1 | |
| 11 Trigger 1 | |
| 12 Air intake 1 | |
| 13 Socket 1 | |
| 14 Nozzle 1 | |
| 15 O-ring 1 | |
| 16 Container ring 1 | |
| 17 Connector 1 | |
| 18 Nozzle 1 | |
| 19 O-ring 1 | |
| 20 Control lever 1 | |
| 21 O-ring 1 | |
| 22 Connection lever 1 | |
| 23 Pin 1 | |
| 24 Connecting rod bushing | 1 |
| 25 Adjustment knob 1 | |
| 26 Screw 1 | |
| 27 Container 1 | |
| 28 Nut for screw 1 | |
| 29 O-ring 1 | |
| 30 Protective cover 1 | |
| 31 Screw 1 | |
| 32 Screw cap 1 |
| Pos. No. | Description Amount | |
| 33 Handle | cover 1 | |
| 34 Nozzle | 1 | |
| 35 Nozzle | 1 | |
| 36 Nozzle | 1 | |
| 37 Sand bottles | 2 | |
| 38 Sand bottle caps | 2 | |
| 39 Adjustment knobinner sleeve | 1 | |
● Maintenance and cleaning
WARNING! DANGER OF INJURY!
Disconnect the product fully from the compressed air supply before cleaning.
□ Clean the air sand blaster gun 3 and the blasting material holder 1 after you have finished using them. To do so, blow out the air sand blaster gun 3 and blasting material holder 1 using compressed air.
☐ Only store the air sand blaster gun 3 in dry enclosed rooms.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
- Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR / Min., (peak))
(0,06 EUR / Min., (off peak))
E-Mail: owim@lidl.ie
CE
● EC Declaration of conformity
EC DECLARATION OF CONFORMITY
IAN: 339143_1910
Product identification: Air sandblaster gun PDSP 1000 D5
Model Number: HG05370
The object of the declaration described above is in conformity with the relevant Community harmonisation legislation:
Directive 2006/42/EC
References to the relevant harmonised standards used or references to the specifications in relation to which conformity is declared:
| N° / Parts |
| Directive 2006/42/EC |
| EN ISO 12100:2010 |
| EN ISO 4414:2010 |
| EN 1248:2001+A1 |
Name and address of the manufacturer:
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Original declaration of conformity
| Neckarsulm | 18.02.2020 | ||
| Place | Date | Peter Fischer Managing Director | Dr. Thorsten Maier Authorised Signatory |
protection auditive!
Port
gants de protection !
Port
DÉCLARATION CE DE CONFORMITÉ
IAN: 339143_1910
Identification du produit: PISTOLET DE SABLAGE PNEUMATIQUE PDSP 1000 D5
Model Number: HG05370
Directive 2006/42/EC
| Neckarsulm | 18.02.2020 | ||
| Lieu | Date | Peter Fischer Managing Director | Dr. Thorsten Maier Authorised Signatory |
WAARSCHUWING! GEVAAR VOOR
Directive 2006/42/EC
Peter Fischer Managing Director
Dr. Thorsten Maier Authorised Signatory
DEKLARACJA ZGODNOŚCI WE
IAN: 339143_1910
Directive 2006/42/EC
Directive 2006/42/EC
Peter Fischer Managing Director
Dr. Thorsten Maier Authorised Signatory
Directive 2006/42/EC
