SHH 150 B2 - Electric towel warmer SILVERCREST - Free user manual and instructions

Brand	SilverCrest
Model	SHH 150 B2
Product type	Electric towel warmer
Power supply	230 V ~, 50 Hz
Power consumption	150 W
Protection class	Class I
IP protection rating	IP22
Main functions	Continuous heating, adjustable timer (2/4/8/24 h), LED status indicator
Mounting modes	Floor-standing (feet included) or wall mounting
Included accessories	2 feet, 2 wall mounts, 4 wall plugs, 4 pointed screws M4×27 mm, 2 blunt screws M4×14 mm, 4 pointed screws M4×16 mm
Safety distance to floor	Lowest bar at least 60 cm above floor
Intended use	Indoor only, drying towels and water-washed garments
Usage prohibitions	Do not use near bathtub, shower or swimming pool; do not cover; do not use with extension cord
Maintenance and cleaning	Unplug and cool down; clean exterior with soft slightly damp cloth; no cleaning products
Repairability	Repairs by authorized professional; use only original spare parts
Customer service (France)	Phone [phone], email [e-mail]
Customer service (Belgium)	Phone [phone], email [e-mail]
Article number (IAN)	392304_2201

Frequently Asked Questions - SHH 150 B2 SILVERCREST

How to turn on the towel warmer?

Plug in the mains plug, then press the on/off switch. The LED changes from red (standby) to green (continuous heating).

How to set the timer?

Press the timer button to select from 2, 4, 8 or 24 hours. The corresponding LED flashes every 3 seconds to indicate activation.

What is the safety distance to the floor for children?

The lowest heating bar must be at least 60 cm above the floor to prevent very young children from reaching it.

Can I use an extension cord?

No, the use of extension cords or multiple sockets is prohibited for safety reasons.

How to clean the towel warmer?

Before cleaning, turn off the appliance and unplug it. Allow to cool then wipe the exterior with a soft slightly damp cloth. Never use liquid cleaning products.

Can the product be installed in a bathroom?

Yes, but only outside volumes 0, 1 and 2 (defined by standard NF C 15-100). The switch must not be accessible from a bathtub or shower.

How to mount the towel warmer on the wall?

Drill 4 holes of 6 mm, insert wall plugs, screw in M4×27 mm screws leaving 5 mm protruding. Attach wall mounts to the appliance then hang it on the screws. Electrical installation must be carried out by a qualified electrician.

What does the red LED indicator mean?

The steady red light indicates that the appliance is in standby mode, ready to be turned on.

What to do if the power cord is damaged?

The cord cannot be replaced. If the cord or plug is damaged, the appliance must be disposed of. Do not use.

What is the protection class and can it be used outdoors?

Protection class I and IP22 rating (protected against dripping water). It is intended for dry indoor use and must not be exposed to water.

USER MANUAL SHH 150 B2 SILVERCREST

GB/IE Short manual Page 13

Warnings and symbols used 14

Short manual. 14

Intended use. 14
Description of parts 15
Technical data 16

Safety instructions. 16

Installation 18

Free-standing 18
Wall-mounting 19

Operation. 19

Cleaning and care 19

Disposal. 19

Service 19

Assembly - Free-standing 20

Assembly-Wall-mounting. 21

Warnings and symbols used The following warnings are used in the instruction manual, short manual and on the packaging:
!	DANGER! This symbol in combination with the signal word "Danger" marks a high-risk hazard that if not prevented will result in death or serious injury.	~	Alternating current/voltage
		Hz	Hertz (supply frequency)
		W	Watts
!	WARNING! This symbol in combination with the signal word "Warning" marks a medium-risk hazard that if not prevented could result in death or serious injury.	i	NOTE: This symbol in combination with "Note" provides additional useful information.
			Use the product in dry indoor spaces only.
!	CAUTION! This symbol in combination with the signal word "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Danger - risk of electric shock!
		CE	CE mark indicates conformity with relevant EU directives applicable for this product.

ELECTRIC TOWEL WARMER

Short manual

This document is a shorter printed version of the complete instruction manual. By scanning the QR code, you will be taken straight to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 392304_2201.

WARNING! Observe the complete instruction manual and safety notes to prevent personal injury and property damage. The short guide forms an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Keep the short manual well preserved and if you hand the product on to third parties, all documentation should be passed on as well.

Intended use

This product is designed to heat and dry towels and garments without a clothes hanger. The product is suitable for indoor use only.

Other uses or modifications to the product shall constitute improper use and may result in risks such as death, personal injury and damage. The manufacturer accepts no liability for any damages resulting from improper use. This product is not intended for commercial use.

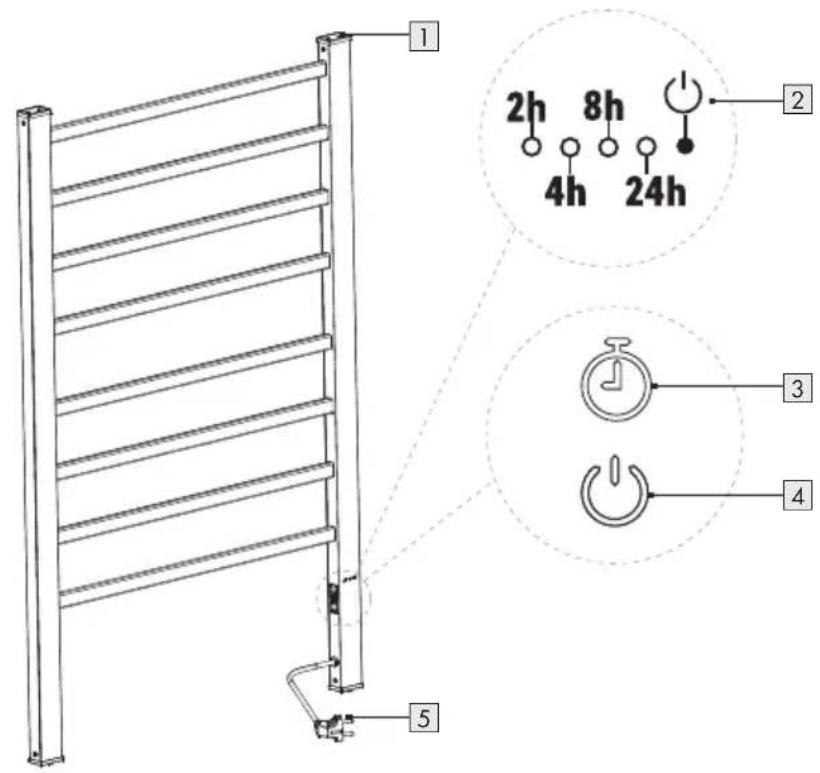

Description of parts

A

1 Towel holder
2LED status display
3Timer button
4On/off switch
5Power cord with power plug
6Foot

7Dowel
8 Wall bracket
9 Screw (M4 x 27 mm, pointy)
10Screw (M4 x 14 mm, blunt)
11Screw (M4 x 16 mm, pointy)

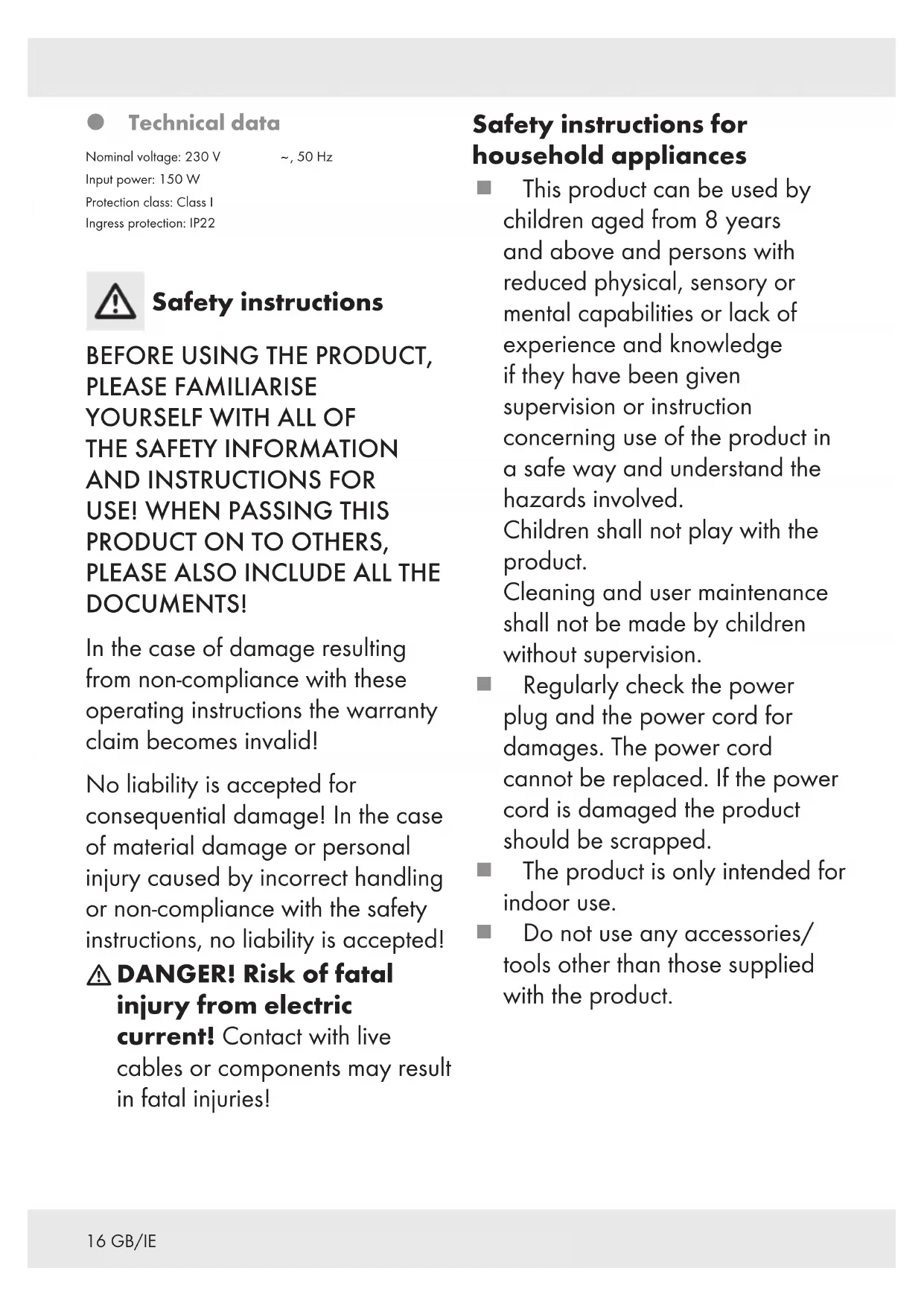

Technical data

Nominal voltage: 230 V , 50 Hz

Input power: 150 W

Protection class: Class I

Ingress protection: IP22

Safety instructions

BEFORE USING THE PRODUCT,
PLEASE FAMILIARISE
YOURSELF WITH ALL OF
THE SAFETY INFORMATION
AND INSTRUCTIONS FOR
USE! WHEN PASSING THIS
PRODUCT ON TO OTHERS,
PLEASE ALSO INCLUDE ALL THE
DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

DANGER! Risk of fatal injury from electric

current! Contact with live cables or components may result in fatal injuries!

Safety instructions for household appliances

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product.

Cleaning and user maintenance shall not be made by children without supervision.

Regularly check the power plug and the power cord for damages. The power cord cannot be replaced. If the power cord is damaged the product should be scrapped.
The product is only intended for indoor use.
Do not use any accessories/ tools other than those supplied with the product.

Specific safety instructions for mounted towel dryers

WARNING! To avoid putting very young children at risk, it is recommended to install this product in such a way that the lowest heated bar is at least 60 cm above ground level. "The lowest heated bar" is to be understood as "the top of the lowest bar that children can grab".
The product must also be installed in a way that prevents anyone in the bath or shower from being able to touch the switch.

Supplementary safety instructions

Do not use the product if the power cord or power plug is damaged. Before you continue to use the product, ensure that a new power cord is installed by an authorised specialist.
Do not open the product housing under any circumstances. If live connections are touched and/or the electrical and mechanical structure is modified, this may result in an electric shock!

Before connecting the product, check the electrical connection data on the nameplate (voltage and frequency) with the electrical specifications of your electrical network. It is important to ensure that the specifications match to avoid causing any damage to the product.
Do not use extension cords or a power strip.
Make sure that the power cord is undamaged and is not routed over hot surfaces and/or sharp edges.
Take care to ensure that the power cord is not bent, twisted or wedged.
Repairs to electrical devices may only be carried out by qualified personnel who have been trained by the manufacturer. Unauthorised repairs can lead to considerable hazards for the user.

WARNING! Fire hazard!

Never use the product close to or below curtains or other combustible materials.
Do not allow flammable materials to come into contact with the product.

• Wall mounting: To avoid danger to children, the product must be mounted with its underside at least 60~cm above the ground. Mount the product so that the on/off switch cannot be operated by a person in the bathtub or shower.

Inspect the product for any visible damage before use. Do not operate a product that has been damaged or fallen.

This product is not equipped with a unit for controlling the room temperature. The product must not be used in small rooms inhabited by persons who cannot leave the room independently, unless continuous monitoring is guaranteed.

WARNING! Hot

surfaces! Some parts of the product may become

very hot and can cause burns. Special care should be taken when children and vulnerable persons are present.

Defective components may only be replaced with genuine spare parts. Only genuine parts guarantee that safety requirements are met.
Protect the product from moisture and liquid penetration.

Only disconnect the power cord from the socket at the power plug, not with the cable.
Do not operate the product in the vicinity of naked flames.
Do not install the product directly under or above a socketoutlet.
In case of any malfunctions or thunderstorms, disconnect the power plug from the socket-outlet.
Never use the product near a bathtub, shower or swimming pool.
Only use the product with the power cord fully unrolled. Never wrap the power cord around the product. Take care to ensure that the power cord does not come into contact with hot surfaces. Route the power cord so that it is not possible to trip over it.

WARNING! This product is intended only for drying textiles washed in water.

Installation
NOTE: The product can be operated free-standing or wall-mounted.

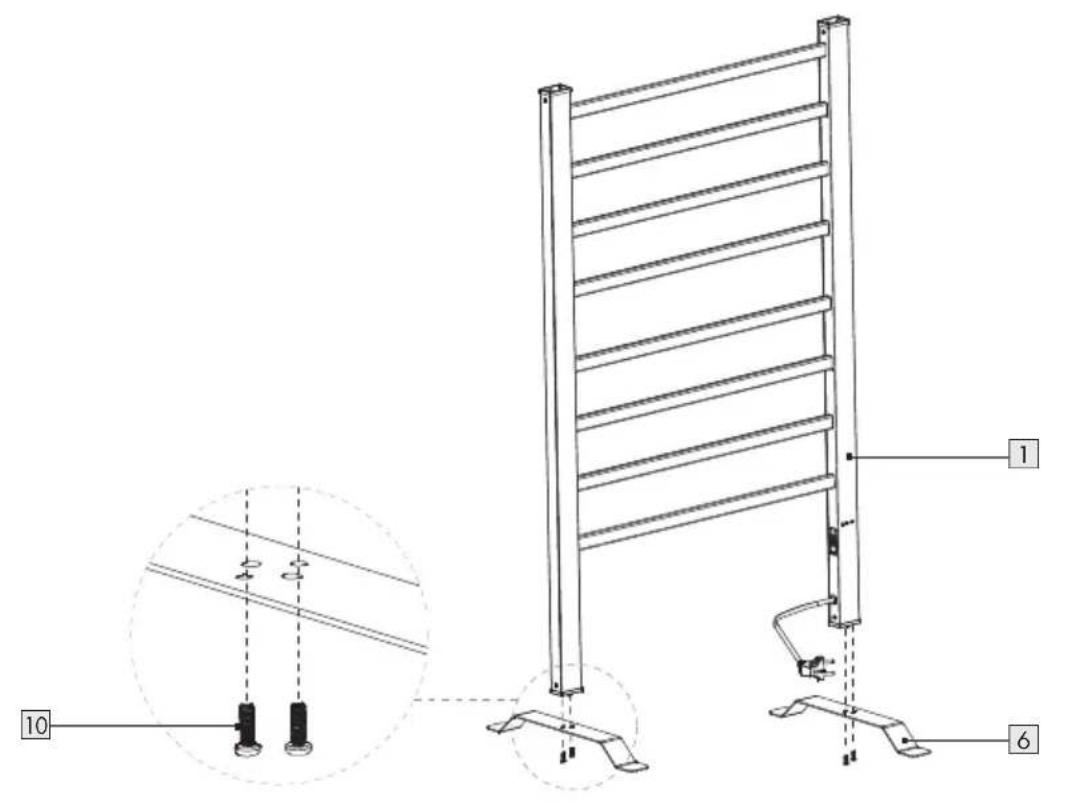

Free-standing

(fig.B)

• Attach the feet 6 to the underside of the towel holder 1 with 2 screws (M4 x 14 mm, blunt) 10 each.

- Wall-mounting

(fig.C)

DANGER! Risk of death, personal injury and damage to property! Read your drill's operating and safety instructions carefully.

DANGER! Risk of fatal injury! Avoid hitting electricity, gas or water pipes when drilling into the wall. If necessary, check with a cable detector before drilling into a wall.

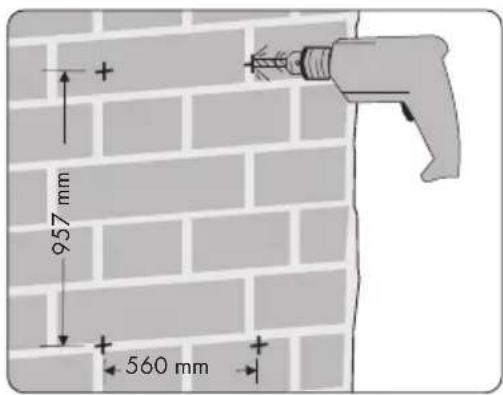

Mark the position of the drill holes on the wall (see above illustration).
Drill 4 holes ( 6mm) into the wall.
Insert the dowels into the drill holes.
Turn 1 screw (M4 x 27 mm, pointy) into each dowel. Let the screw head protrude approx. 5 mm from the wall.
- Attach 2 wall brackets 8 to the top of the towel holder 1 with 2 screws (M4 x 16 mm, pointy) 11 each.
- Attach 2 wall brackets 8 to the underside of the towel holder 1 with 2 screws (M4 x 1.4 mm, blunt) 10 each.
Hang the towel holder with the wall brackets on the screws (M4 x 27 mm, pointy) previously turned into the wall.

Operation

Connect the power plug 5 to a socket-outlet. All LEDs in the LED status display 2 light up for 2 seconds. The power LED in the LED status display lights up red to indicate that the product is in standby mode.
Switching on: Press the on/off switch 4. The power LED in the LED status display 2 lights up green to indicate that the product is in continuous heating mode.
Setting the timer: Press the timer button 3 to set the duration (2/4/8/24 hours) after which the product switches off automatically. The corresponding LED in the LED status display 2 lights up green and flashes once every 3 seconds. The power LED in the LED status display remains lit.
Switching off: Press the on/off switch 4. The power LED in the LED status display 2 lights up red to indicate that the product is in standby mode.
- Disconnect the power plug 5 from the socket-outlet if you are not going to use the product for a long time.

Cleaning and care

CAUTION! Risk of electric shock! Before cleaning, switch off the product and disconnect the power plug 5 from the socket-outlet.

Let the product to cool down completely.
The product should only be cleaned externally using a soft, slightly damp cloth. Do not use any liquids or cleaning agents under any circumstances as they may damage the product.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Service

GB Service Great Britain

Tel: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel: [phone]

E-Mail: [e-mail]

C

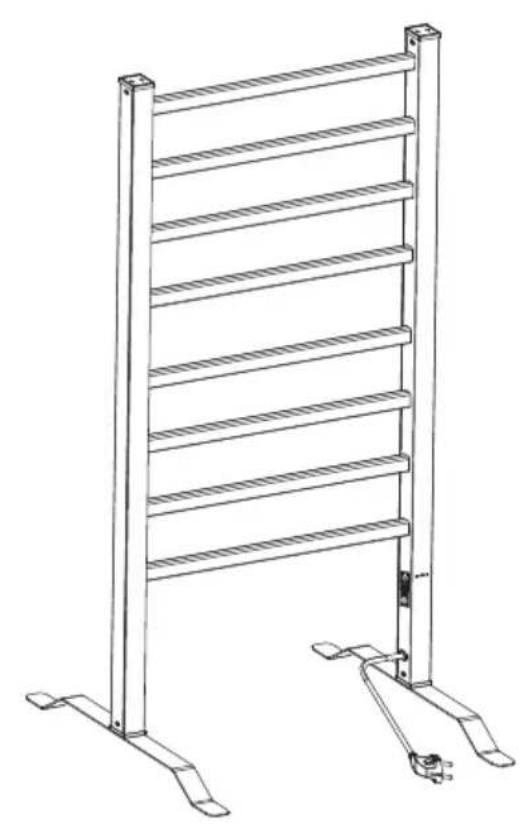

Assembly - Free-standing

B

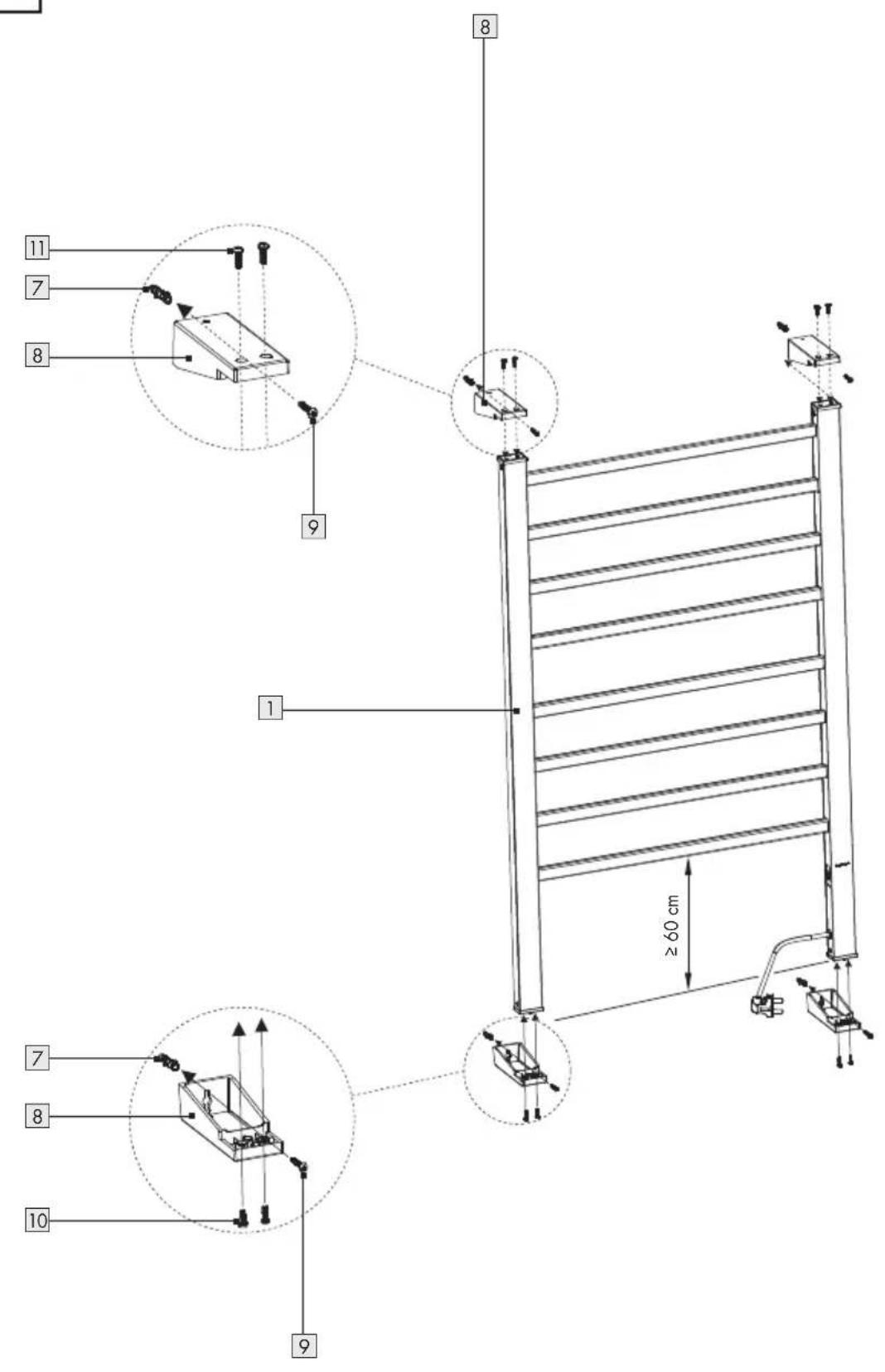

Assembly - Wall-mounting

C
