USER MANUAL SZP 85 A1 SILVERCREST

Operation and safety notes

NL BE

CITRUSPERS

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IEOperation and safety notesPage 21

Safety information.. Page 24

Before first use. Page 30

Preparing the product for use.. Page 30
Preparing citrus fruits.. Page 31

Initial use

Cleaning and care.. Page 32

Disposal

Warranty and service.. Page 33

Warranty declaration.. Page 33
Service address.. Page 34

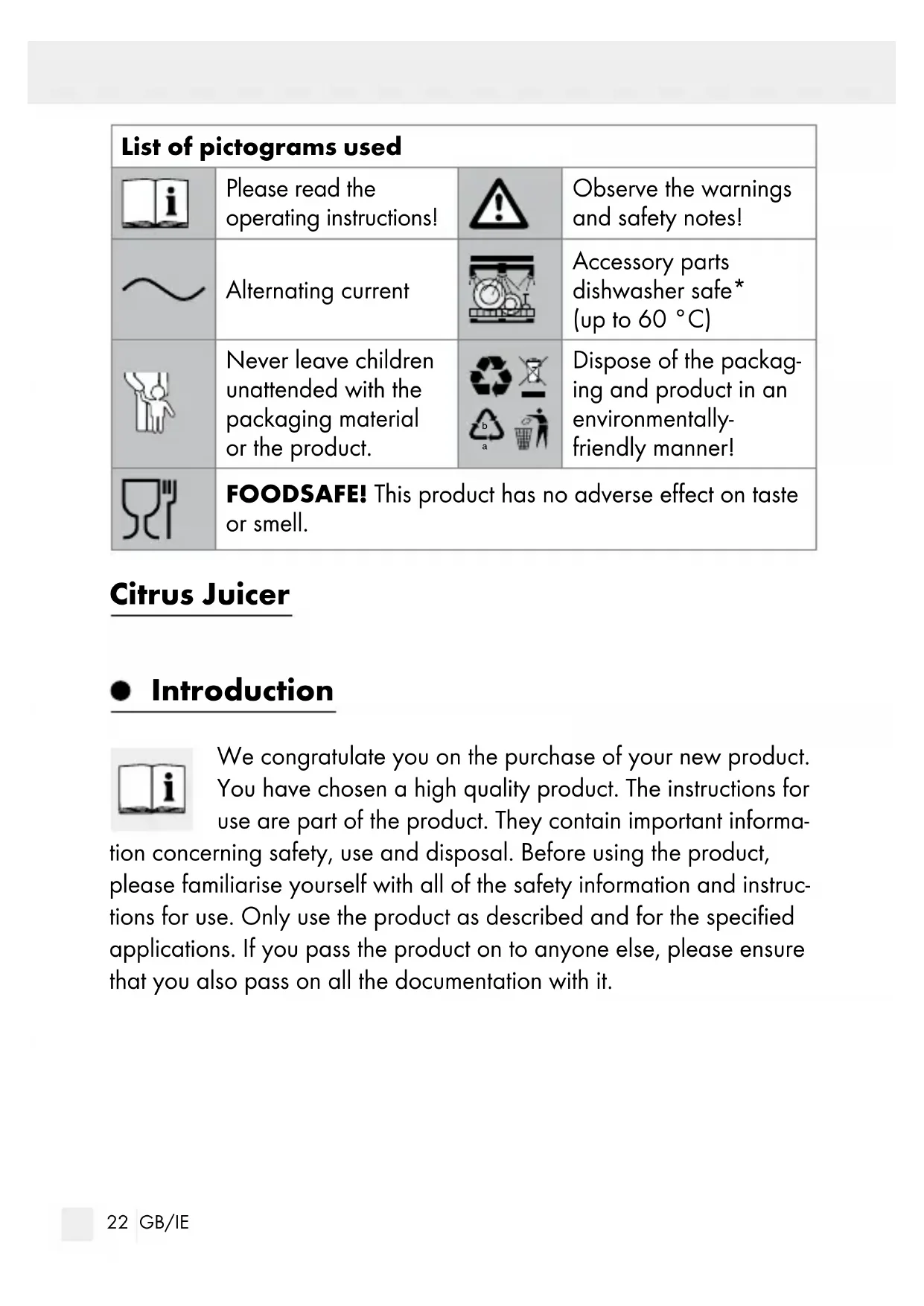

List of pictograms used
i	Please read the operating instructions!		Observe the warnings and safety notes!
~	Alternating current		Accessory parts dishwasher safe* (up to 60 °C)
	Never leave children unattended with the packaging material or the product.		Disposition of the packaging and product in an environmentally-friendly manner!
	FOODSAFE! This product has no adverse effect on taste or smell.

Citrus Juicer

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is exclusively intended for squeezing citrus fruits. Any use other than described above or any modification of the product is prohibited and will result in damage. The manufacturer assumes no liability for damages due to improper use. This product is not intended for commercial use.

Parts description

1 Cover
2a Large juicing cone
2b Small juicing cone
3 Sieve (for fruit pulp and seeds)
4 Juice holder
5 Juice holder spout

Drive shaft
7 Drive shaft bracket
8 Base unit
9 Cable winder
10 Rubber foot
11 Power cord with mains plug

Technical data

Power consumption: 85 W

Filling capacity

Juice holder: 240 ml

Rated voltage: 220 - 240V , 50 Hz, 85 W

Rotation of squeezing

cone motor: 100 RPM (in one direction)

Cable length: 140 cm

- Delivery contents

1 citrus juicer

comprising: 1 base unit, 1 cover, 1 2in1 juicing cone, 1 sieve,

1 juice holder, 1 drive shaft

1 set of instructions for use

Safety information

Damage due to failure to comply with these operating instructions will void the warranty! We assume no liability for consequential damages!

We assume no liability for property damage or personal injury caused by improper handling or failure to observe the safety notes!

DANGER TO LIFE AND RISK OF

ACCIDENT FOR INFANTS AND

CHILDREN! Never leave children unsuper-

vised with the packaging material. The packaging material poses a suffocation hazard.

Children frequently underestimate the dangers. Always keep children away from the product.

This product may be used by children aged 8 years and up, as well as by persons with

reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Cleaning and maintenance by the user must not be performed by children unless they are aged 8 or older and are being supervised. Keep the device and its power cord away from children under 8 years old.

Unplug the mains plug from the mains socket if the you are leaving the product unsupervised, assembling or dismantling the product, and before cleaning the product.
This product is not intended for operation with an external timer switch or a separate remote control system.
Misuse of the product can result in injuries.
If this product's power cord [1] becomes damaged, it must be replaced by the manufacturer or its service department or a similarly qualified person in order to avoid hazards.

Only use the original accessories.
Clean all parts and surfaces that come into contact with food before the first use (see chapter „Cleaning and care”).
- Electrical appliances may pose hazards for pets and livestock. Furthermore, animals can also damage the product. Therefore always keep animals away from electrical appliances.

Avoid the risk of fatal injury from electric shock

• Do not operate the product if the product or the power cord [11] are visibly damaged or if the base unit [8] was previously dropped.
• Only connect the mains plug to a correctly installed, easily accessible mains socket with a voltage that corresponds to the information on the type plate. The mains socket must also be easily accessible after the product has been connected.

Make sure that the power cord cannot become damaged by sharp edges or hot surfaces.
- Protect the base unit from moisture, dripping water or spray water.
- Do not immerse the base unit, the power cord and the mains plug in water or other liquids.
A damaged power cord [11] or mains plug poses the danger of death from electric shock. In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician.
Have your product checked by the service centre or an electrician and only repair it using original replacement parts. This will maintain the safety of this product.
Always have the plug or the power cord replaced by the product manufacturer or its customer service centre. This will maintain the safety of this product.
If liquids should enter the base unit, unplug the mains plug immediately. Have the product checked before using it again.

The product is not fully disconnected from the mains power supply even when switched off. To disconnect it fully, unplug the mains plug from the mains socket.
When using the product, make sure that the power cord [11] does not become clamped or squashed.
To unplug the mains plug from the mains socket, always pull on the mains plug and never on the power cord [11].
- Unplug the mains plug from the mains socket if a fault occurs, if you are not using the product, before assembling or dismantling the product, before cleaning the product and during storms.
To prevent hazards, do not make any alterations to the product.

CAUTION! RISK OF INJURY! Do not directly touch the spinning juicing cone (2a and 2b combined or 2b). Do not hold a spoon or similar on the spinning parts. Keep long hair or loose clothing away from spinning parts.

• Only plug the mains plug into a mains socket if the product is completely assembled.

ATTENTION! RISK OF PROPERTY DAMAGE!

Do not block and overload the motor. Do not exert too much pressure on the juicing cone (2a and 2b combined or 2b).

Make sure that there are no foreign objects in the sieve 3 or the product when operating it.

To avoid damaging the product, stop the juicing process immediately if the juicing cone (2a and 2b combined or 2b) does not spin easily or does not spin at all. Unplug the mains plug and check whether there are foreign objects inside the product.

The product is equipped with anti-slip rubber feet [10]. As furniture surfaces are coated with a variety of varnishes and materials and treated with different care products, it cannot be ruled out that some of these substances may contain chemicals that will corrode and soften the rubber feet [10]. If necessary, place an anti-slip layer under the product.

Place the product on a stable, level surface.

• Never place the product on hot surfaces (i.e. hobs) or near sources of heat or open fires.
• Do not clean the base unit 8 in the dishwasher or using boiling water.
  Do not use harsh or abrasive cleaning agents.

FOODSAFE!This product has no adverse effect on taste or smell.

Before first use

Preparing the product for use

Rinse the removable parts before the first use.
Use the cable winder to wind up the length of the power cord that is not required and fix this into the intended groove on the back of the product.
Plug the mains plug into a mains socket.
Insert the drive shaft 6 into the drive shaft bracket 7.
□ Attach the juice holder 4, sieve 3 and your chosen juicing cone (2a and 2b combined or 2b) to the drive shaft. If you would like to use the small juicing cone 2b, remove this from the large juicing cone 2a by using your thumb and index finger to exert pressure on the sides of the large juicing cone 2a (see Fig. D). Use the large juicing cone 2a for larger fruits such as oranges and the small juicing cone 2b for small fruits such as lemons.
Place a collecting vessel, e.g. a glass, under the spout 5

Preparing citrus fruits

The product is made so that citrus fruits (e.g. limes, lemons, oranges) can be appropriately squeezed based on their size.

For an optimal juice yield, use the ripest fruits possible, which contain more juice.

Cut the citrus fruits in half across the fruit segments, so that you get an upper and a lower half and all fruit segments are cut.

Initial use

WARNING! Make sure that there are no foreign objects in the sieve 3 or the product when operating it.

• Do not exert too much pressure on the juicing cone ( 2a and 2b combined or 2b).
  Open the spout 5 by pressing it downwards.
  Place a halved citrus fruit on the juicing cone ( 2a and 2b combined or 2b) with the cut surface down and press it down. Due to the automatic stop-start function, the motor runs automatically. The squeezed juice flows through the sieve 3, where large fruit pulp and seeds are collected, into the juice holder 4 and through the spout 5 into the glass. Releasing the pressure turns the product off again. To achieve an optimal juice yield, this process should be repeated a few times.

Note: Exerting too much pressure can block the motor. In this case, reduce the pressure somewhat.

Before the glass is served, close the spout 5 by pushing it upwards.
If fruit will be pressed again after a short time, the product can be hygienically closed with the cover 1 in the meantime.

Note: Citrus juices should be drunk when fresh. Under no circumstances should the juice be stored in metal containers.

- Cleaning and care

Unplug the mains plug after use.
All removable accessory parts are dishwasher safe (up to 60^ ).
Before beginning to clean the product or putting the removable parts in the dishwasher, remove the majority of the seeds and fruit pulp from the sieve 3 and dispose of these.
Then immediately clean the removable parts with warm water and washing-up liquid or in the dishwasher.
Do not use abrasive cleaning agents.
- Never immerse the base unit 8 in water, instead only wipe it clean with a damp cloth.
- Carefully dry all parts before re-assembling the product and putting it away.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty and service

Warranty declaration

This product comes with a 3 year warranty from the date of purchase. Please keep your receipt as proof of purchase. The warranty applies to material or manufacturing defects only and does not cover wear parts or damage caused by improper use. Any unauthorised modifications will void the warranty. This warranty does not limit your legal rights. Please phone the service centre for warranty claims. This is the only way to return your product free of charge.

Service address

Atlanta Electronics GmbH

Gernotstraße 18

44319 Dortmund

GERMANY

GB

Tel.: [phone]

Email: [e-mail]

IE

Tel.: [phone]

Email: [e-mail]

IAN 333363_1907

Please have your receipt and the item number (e.g. IAN 123456_7890) ready as your proof of purchase when contacting us.

www.tuv.com
ID 1419075349
