SUC2 A1 - USB Charger SILVERCREST - Free user manual and instructions

Product type	Dual USB charger
Brand	SilverCrest
Model	SUC2 A1
Color	White (not specified, common estimate)
Number of USB ports	2 USB Type A ports
Input voltage	100-240 V~, 50/60 Hz
Output voltage (per port)	5.0 V ⎓
Max output current (per port)	2.4 A
Max total output current	4.8 A
Output power (per port)	12.0 W
Total output power	24.0 W
Average efficiency in active mode	85.3%
Efficiency at low load (10%)	80.4%
No-load power consumption	0.08 W
Protection class	II
Operating temperature	0 - 25 °C
Indicator light	Yes, white LED indicating power on
Intended use	Powering and charging electronic devices (smartphones, tablets, etc.)
Warranty	3 years from date of purchase
After-sales service (France)	Tel.: [phone], email: [e-mail]
After-sales service (Belgium)	Tel.: [phone], email: [e-mail]
After-sales service (Luxembourg)	Tel.: [phone]
Cleaning	Dry, soft, lint-free cloth
Disposal	Do not dispose of with household waste, recycle at appropriate collection points

Frequently Asked Questions - SUC2 A1 SILVERCREST

What type of charger is the SilverCrest SUC2 A1?

It is a dual USB charger allowing you to charge two electronic devices simultaneously.

What are the maximum output voltage and current?

Each USB port provides 5 V ⎓ with a maximum current of 2.4 A. The combined total current can reach 4.8 A.

Can I use this charger with all my USB devices?

Yes, as long as the device requires a voltage of 5 V and a current less than or equal to 2.4 A per port (4.8 A total). It is compatible with most smartphones, tablets, and other gadgets.

Is the charger suitable for use in a car?

No, this model is intended for a mains socket (100-240 V~), not for a cigarette lighter socket. For the car, you need a suitable charger.

How do I know if the charger is working?

A white LED lights up when the charger is plugged into a mains socket and powered.

What safety precautions should be taken?

Do not use if damaged, do not expose to moisture or sunlight, unplug before cleaning, and do not connect devices exceeding 4.8 A total.

How to clean the charger?

Unplug it, then wipe with a dry, soft, lint-free cloth. Do not use liquid or abrasive products.

What is the warranty period for the SilverCrest SUC2 A1?

The warranty is 3 years from the date of purchase, upon presentation of the receipt.

How to contact after-sales service in France?

Call 0800904879 or send an email to [e-mail]. For Belgium: 080071011, for Luxembourg: 80023970

Is this charger compatible with fast charging?

It supports Smart Fast Charge technology which optimizes charging time according to the connected device, but the power is limited to 12 W per port (5 V/2.4 A).

USER MANUAL SUC2 A1 SILVERCREST

Operation and Safety Notes

FR BE

CHARGEUR DOUBLE USB

Operation and Safety Notes Page 12

FR/BE

Pokyny pre obsluhu a

List of pictograms used.. 13
Introduction 13
Intended use.. 13
Description of parts.. Page 14
Technical data.. 14
Scope of delivery.. 15
Safety notes.. 15
Start-up Page 16
Cleaning and care... Page 16
Disposal... Page 17
Warranty and service... Page 17
Warranty Page 17
Warranty claim procedure......Page 18
Service.. 19

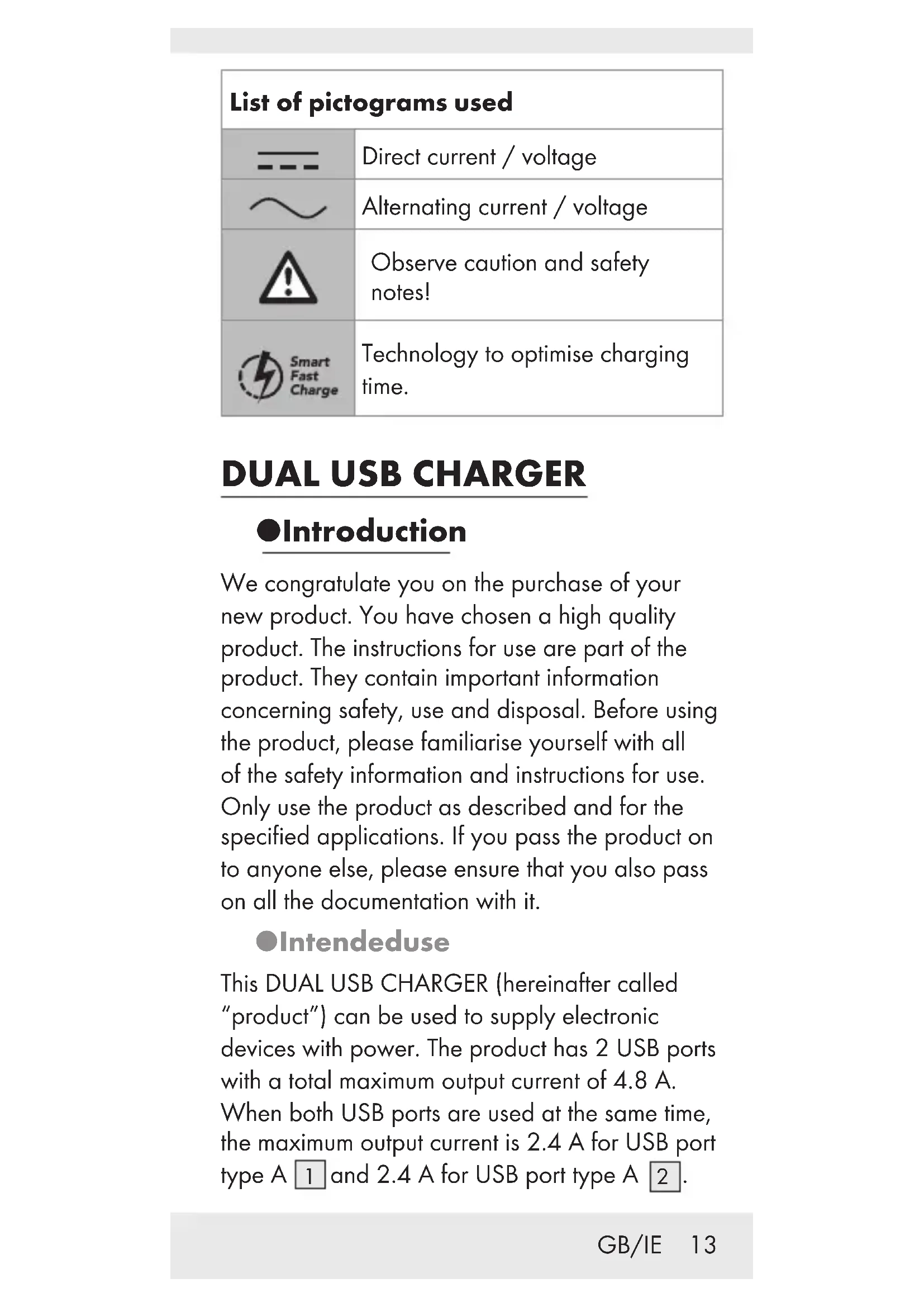

List of pictograms used
---	Direct current / voltage
~	Alternating current / voltage
	Observe caution and safety notes!
Smart Fast Charge	Technology to optimise charging time.

DUAL USB CHARGER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This DUAL USB CHARGER (hereinafter called "product") can be used to supply electronic devices with power. The product has 2 USB ports with a total maximum output current of 4.8 A. When both USB ports are used at the same time, the maximum output current is 2.4 A for USB port type A 1 and 2.4 A for USB port type A 2.

The product can be used in a normal socket that provides the specifications given under "Technical data".

The product is not intended for commercial use. The manufacturer is not liable for any damages caused by any use other than for the intended purpose.

Description of parts

1/2 USB port type A
3 Control lamp

-Technicaldata

Manufacturer's name or
trade mark, commercial
registration number
and address: OWIM GmbH & Co. KG HRA 721742 Stiftsbergstraße 1, 74167 Neckarsulm,

GERMANY

Model identifier: HG06045

Input voltage: 100 - 240V

Input AC frequency: 50 / 60Hz

Output voltage: 5.0V

= (per USB port)

Output current: 2.4 A (per USB port)
4.8 A (total)

Output power: 12.0 W (per USB port)
24.0 W (total)

Average active efficiency: 85.3%

Efficiency at low load (10%): 80.4%

No-load power consumption: 0.08 W

Protection class: II /

Operating temperature: 0 - 25^

Scope of delivery

1 Dual USB charger
1 Set of operating instructions

Safety notes

PLEASE READ THE INSTRUCTIONS PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE!

Check the product for damage before use. Never use a damaged product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

Suitable for indoor use only. Do not expose the product to direct sunlight or moisture.
Only plug the product into sockets that are easily accessible, so that you can unplug it easily in case of an emergency.

Start-up

ATTENTION! RISK OF

OVERHEATING! Only connect the product to your external devices which do not require more than 4800mA (= 4.8A)

Plug the product into a correctly installed socket that provides the specifications given under "Technical data". The control lamp 3 lights up white to show that the product is receiving current.
- Connect your external devices that should be charged with the product by plugging its USB plug into the USB port type A 1 or 2.
- Disconnect your charged external device from the product after charging, by unplugging the USB plug from the USB port type A 1 or 2.
Unplug the product from the socket.

Cleaning and Care

Always unplug the product from the socket before cleaning!
Use a dry, soft and lint-free cloth for cleaning and care.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and

numbers (b) with following meaning: 1-7:

plastics / 20-22: paper and fibreboard /

80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman

logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life

and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

C E

Listedes pictogrammes

utilisés Page 21

Introduction.. Page 21

Modelidentification: HG06045

Indgangsspaending: 100-240 V~

Vekselstrømsfrekvens
på indgang 50/60 Hz

Udgangsspaending:5.0V --- (hver USB-port)

Udgangsstrøm: 2,4 A (hver USB-port)
4,8 A (i alt)

Udgangseffekt: 12,0 W (hver USB-port)
24,0 W (i alt)

Gennemsnitlig aktiv

effektivitet: 85,3%
