USER MANUAL SUCS A3 SILVERCREST

White portable electronic device with three ports and a coiled cable, no visible text or symbols

USB-LADESTATION/ USB CHARGING HUB/ STATION DE CHARGE USB SUCS A3

DE AT CH

USB-LADESTATION

Operation and Safety Notes

FR BE

STATION DE CHARGE USB

Image containing an information icon and a diagram showing a folded document with patterned panels.

DE/AT/CH

Operation and safety notes Page 22

FR/BE

Technical diagram of a device with labeled parts 3 and 4, showing internal components and a base plate.

7 6 5

Warnings and symbols used ...... Page 23

Introduction Page 25

Intended use......Page 25

Product features...... Page 26

Trademark notices...... Page 26

Scope of delivery....Page 26

General safety instructions......Page 27

Description of parts......Page 30

Technicaldata Page 31

Before use ...... Page 32

Operation and use......Page 33

Connecting the charger to the power supply......Page 33

Connecting your devices ...... Page 33

Disconnectingyourdevice...... Page 33 Disconnect from the power supply......Page 34

Storage when not in use ...... Page 34

Cleaning Page 34

Troubleshooting......Page 34

Disposal Page 35

Warrenty and service......Page 36

Warranty Page 36

Warranty claim procedure ...... Page 36

Service......Page 37

Warnings and symbols used

These instructions for use contain the following symbols and warnings:

DANGER!

This symbol with the signal word "DANGER" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING!

This symbol with the signal word "WARNING" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury.

CAUTION!

This symbol with the signal word "CAUTION" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

ATTENTION!

This symbol with the signal word" ATTENTION" indicates a potential property damage, if not avoided, could result in property damage.

NOTE

This symbol with the signal word "NOTE" provides additional useful information.

Use product only in dry indoor areas.

	Safety class II The product has double insulation and no safety connection with grounding is required.
	Alternating current / voltage
	Direct current / voltage
	Qualcomm quick charge 3.0The product complies Quick Charge 3.0 specifications and agreements issued by Qualcomm Technologies, Inc.
	Smart Fast ChargeTechnology to optimize charging time.
	This symbol means that the operating instructions must be observed before using the product.

USB CHARGING HUB

●Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This USB CHARGING HUB (hereinafter called „product“) is an information technology device designed for charging and operating USB devices that are charged or operated from a USB port by default. The used Qualcomm® Quick Charge™ 3.0 technology reduces the charging time on compatible devices. Compatible connected devices are automatically detected and supplied with the appropriate output voltage and current from the USB charger.

The product is not intended for commercial use. The manufacturer is not liable for any damages caused by any use other than for the intended purpose.

Product features

The product has 5 USB ports with a total maximum output current of 6 A. When multiple USB ports are used at the same time, the maximum output current is 3 A for USB Port A (Quick Charge 3.0) 1 and 3A for USB Ports B - E 2. The maximum output current is 2.4 A each for USB Ports B - E 2.

Trademark notices

■ ^® is USB Registered trademark of USB Implementers Forum, Inc.
■ The Qualcomm Quick Charge 3.0 trademark and trade name is the property of their respective owners.
■ The Smart Fast Charge trademark and trade name is the property of their respective owners.
■ The SilverCrest trademark and trade name is the property of their respective owners.
■ Any other names and products are trademarks or registered trademarks of their respective owners.

Scopeofdelivery

1 x USB charging hub
1 x Power cable
1 x Stand
1 x Instructions for use

⚠️ General safety instructions

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

DANGER!

DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Risk of suffocation!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.

DANGER!

- Danger to life due to electric shock! Keep the product away from moisture, damp areas, dripping and splashing water!

- Never open the product. There is the risk of electrical shock, if the product is open.

- Refer all servicing to qualified personnel. Servicing is required when the product has been damaged in any way, such as liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING!

• Unplug the product during lightning storms or when unused for long periods of time.
• Grip the power plug every time directly whenever you want to pull it from the mains socket. Do not pull on the power cable itself.
• Never touch the power plug with wet hands, as this could result in either a short circuit or electric shock.
• Do not place any furniture or similar items on the power cable and ensure that it cannot become trapped.
• Never tie knots in the power cable and do not bind it together with other cables.
• A damaged power cable or power plug can cause fire or electric shock. Check the power cable and power plug regularly. Do not use a damaged power cable or power plug.
• The mains socket used must be easily accessible so that the power plug can be quickly disconnected in an emergency.
• To completely disconnect the product from the power, you must remove the power plug from the mains socket. The power plug serves as a separator. At standby mode, a minor power is consumed.
• If you notice any unusual noise, smoke or similar uncertain situations, immediately disconnect the power plug from the mains socket and disconnect all connected devices. Have the product checked by a qualified person before using it again.

WARNING!

- Before operating this product, check the input voltage of this product to see if it is identical to the voltage of your local power supply.

• The product may only be used in dry indoor areas.
• Unplug the product from the mains socket before cleaning.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

ATTENTION! RISK OF PROPERTY DAMAGE

• This product does not contain any parts which can be serviced by the user.
• Do not place burning candles or other open fire on or next to the product.
• Check the product and accessories for damage before each use. Never use a damaged product.
• Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!

ATTENTION! Ensure that:

• the product is not exposed to bright artificial light.
• any contact with splashed and dripping water and corrosive liquids is avoided and the product are not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product.
• the product is not used in the immediate vicinity of magnetic fields (e.g. speakers).
• no foreign objects penetrate the product.

• the product is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the product has reached ambient temperature before use.

• the product is never subjected to excessive shocks and vibrations.

• the connected cables are always laid in such a manner that nobody can step on or trip over them. There is a risk of injury.
• no objects are placed on a cable and cables are not connected over sharp edges because they could be damaged.
• the power cable is protected from being walked on and pinched or kinked particularly at plugs, convenience receptacles, and the point where they exit from the product.

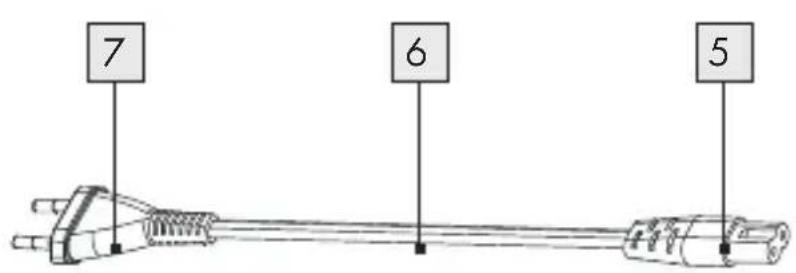

● Description of parts

Please refer to the fold out page.

1 USB Port A, (Qualcomm® Quick Charge™ 3.0)
2 USB Port B - E, Type A 2.0
3 Power cable socket
4 Stand
5 Power cable connector
6 Power cable
7 Power plug

●Technicaldata

Manufacturer's name or trade mark, commercial registration number and

address:

OWIM GmbH & Co. KG

HRA 721742

3.0 A (for 3.6 - 6.0 V = ), or

USB port A:

2.0 A (for 6.0 - 9.0 V == ), or

1.5 A (for 9.0 - 12.0 V==)

Output current

2.4 A (per port)

USB port B-E:

3.0 A (total for B-E)

Output power: 33.0 W (USB A-E)

18.0 W (USB A)

15.0 W (total for USB B-E)

Average active efficiency:

80.37%

Efficiency at low load (10%):

74.18%

No-load power consumption:

0.25 W

Protection class:

Dimensions: approx. 88 x 62 x 29 mm

Weight (main device): approx. 150 g

Operating temperature: 0 - 30 °C

Storage temperature: 0 - 45 °C

Humidity

10 - 70 %

(no condensation):

Length of power cable: approx. 1.2 m

i NOTE:

The specification and design may be changed without notification.

●Before use

NOTE:

• All parts have to be unpacked and the packaging material has to be removed completely.
• Before use, verify the package contents are complete and undamaged!
• If you notice any damage or missing parts, please contact the dealer who sold this product.

● Operation and use

Attention! Risk of overheating! Only

connect the product to your external devices which do not require more than 6000 mA (= 6 A).

ATTENTION! If you use the product under max.

loading condition, the product may get hot. This is normal because in this condition, the product uses more power and therefore generates more heat.

- Connecting the charger to the power supply

■ Connect the power cable connector the power cable socket 3.
- Insert the power plug to an easily accessible mains socket. The requirements for the voltage can be found in the "Technical data" section.

- Connecting your devices

If your device to be charged is equipped with the Qualcomm Quick Charge 3.0 technology, connect the device's USB plug into USB Port A (Quick Charge 3.0) ^1 .
For devices without Qualcomm Quick Charge 3.0 technology, connect devices USB plugs into one of the other USB Ports B - E ^2 . The optimum charging voltage / charging current for the connected device is set automatically.

- Disconnecting your device

After charging is complete, simply unplug your device's USB plug from the product.

- Disconnect from the power supply

Grip the power plug and unplug it from the mains socket. Do not pull on the power cable 6.

●Storage when not in use

Store the product in a dry environment, protected from dust and direct sunlight.

●Cleaning

• Disconnect the product from the mains socket and remove all plugs before cleaning!
• Be sure moisture does not enter the product during cleaning to prevent damage to the product and related repairs.
• Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids / abrasive cleaning agents. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.

●Troubleshooting

What should I do if external devices cannot get power from the product?

• Check the power cable connection between the mains socket and the product.
• Check the USB cable (not included) connection between the external devices and the product.
• Make sure the external device's charging socket is working properly.

What should I do if the device charges very slowly?

- Check if you have connected the device to the wrong USB port.

- Check if your device is Quick Charge capable.

●Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to Directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately.

●Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]
