Product Type	Wireless Bluetooth Speaker
Brand	ETON
Model	Rukus XL
Power Source	Rechargeable Li-ion battery (via included AC adapter or built-in solar panel)
Main Functions	Bluetooth connectivity, auxiliary input (AUX), play/pause, volume +/-, bass boost (Bass Boost), USB charging for smartphones
Maintenance and Cleaning	Clean with a dry cloth. Do not use chemical detergents or solvents.
Safety	Do not expose to rain or moisture. Do not immerse. Operating temperature: 0 to 40°C. Disconnect immediately if liquid is spilled.
Spare Parts and Repairability	Replaceable Li-ion battery available from ETON. Repairs via ETON after-sales service (USA/Canada/International).
Box Contents	Rukus XL speaker, AC adapter, user manual
Warranty	Limited warranty. Register online at www.etoncorp.com/productregistration

Frequently Asked Questions - Rukus XL ETON

How to turn on the Rukus XL speaker?

Press and hold the ON/OFF button for 3 seconds until you hear a beep. The icons flash sequentially to indicate power on.

How to pair a Bluetooth device with the Rukus XL?

Make sure the speaker is on. Enable Bluetooth on your device and select 'Rukus XL' from the list of devices. Connection is automatic after the first pairing.

How to charge the battery of the Rukus XL?

You can recharge the battery in two ways: via the included AC adapter by plugging the cable into the DC jack under the rubber cover, or by exposing the solar panel to light. A charging indicator shows the battery status.

Can I charge my smartphone with the Rukus XL?

Yes, simply plug your smartphone or other USB device into the USB port of the speaker. Charging starts immediately, even if the Rukus XL is off. Note: leaving the device plugged in after full charge drains the Rukus XL battery.

How to use the auxiliary input (AUX)?

Connect your audio source (MP3 player, etc.) to the AUX input using a 3.5mm jack cable. Press the AUX button to switch from Bluetooth to auxiliary input. The AUX indicator lights up when this input is active.

How to activate the Bass Boost function?

Press the Bass Boost button to toggle this function. It enhances low frequencies for a more powerful sound.

How to save battery?

The power saving mode activates automatically when the smartphone or USB device is not in use. You can also turn off the speaker by holding the ON/OFF button.

What to do if the Rukus XL won't turn on?

Check that the battery is charged. Plug the AC adapter into an outlet and the speaker. If the problem persists, contact ETON customer service at 1-800-872-2228 (USA) or 650-903-3866 (international).

How to clean the Rukus XL?

Use a dry cloth to clean the device. Never use chemical detergents or solvents, as they may damage the finish.

Where to find spare parts for the Rukus XL?

You can buy a new rechargeable Li-ion battery by contacting ETON via www.etoncorp.com or by phone at 1-800-872-2228 (USA) or 650-903-3866 (international).

USER MANUAL Rukus XL ETON

The super-loud, solar-powered, music-blasting wireless sound system

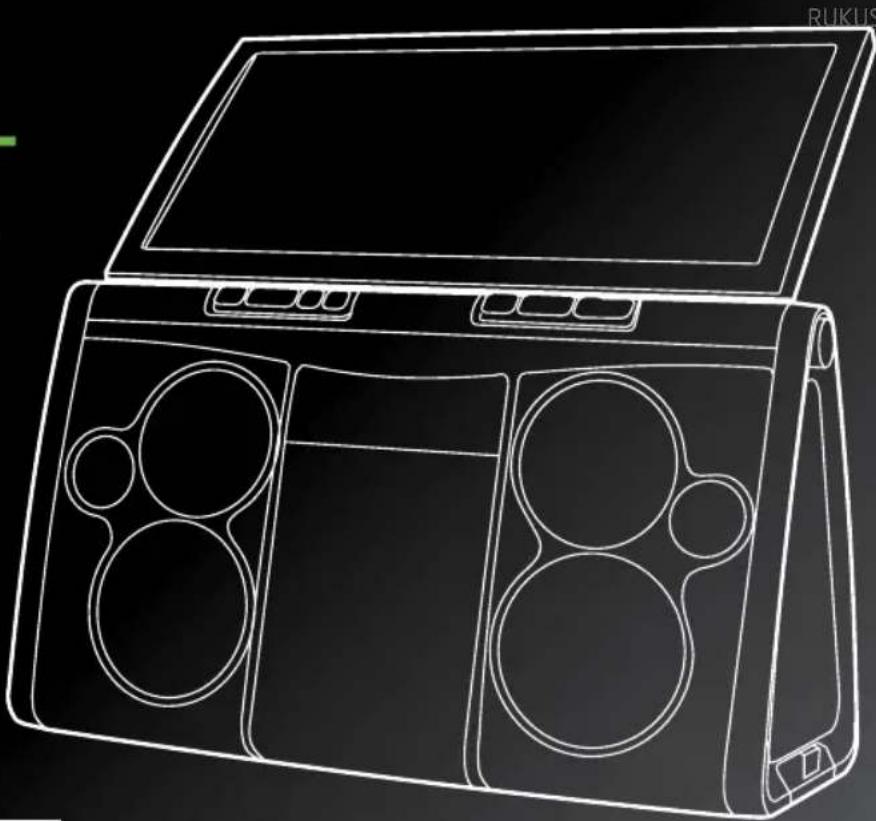

Line drawing of a vintage-style electronic device with front panel and buttons (no text or symbols)

RUKUS XL USER MANUAL

USER MANUAL

etón

EMPOWERED BY NATURE

EN English

2

Thank you for purchasing the Etón Rukus XL, a Bluetooth® wireless speaker with beautiful sound quality. The Rukus XL is powered from the rechargeable Li-ion battery charged by the solar panel or the AC adapter (included). Please read this user manual to get a good understanding of how the Rukus XL works and how to fully enjoy it.

RUKUS XL USER MANUAL

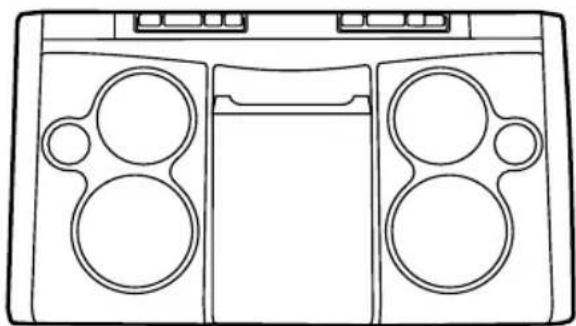

WHAT'S IN THE BOX

Line drawing of a vehicle front panel with two circular vented chambers (no text or symbols)

Rukus XL Adapter

Line drawing of a plug with a coiled cable and terminal pins (no text or symbols)

EN English

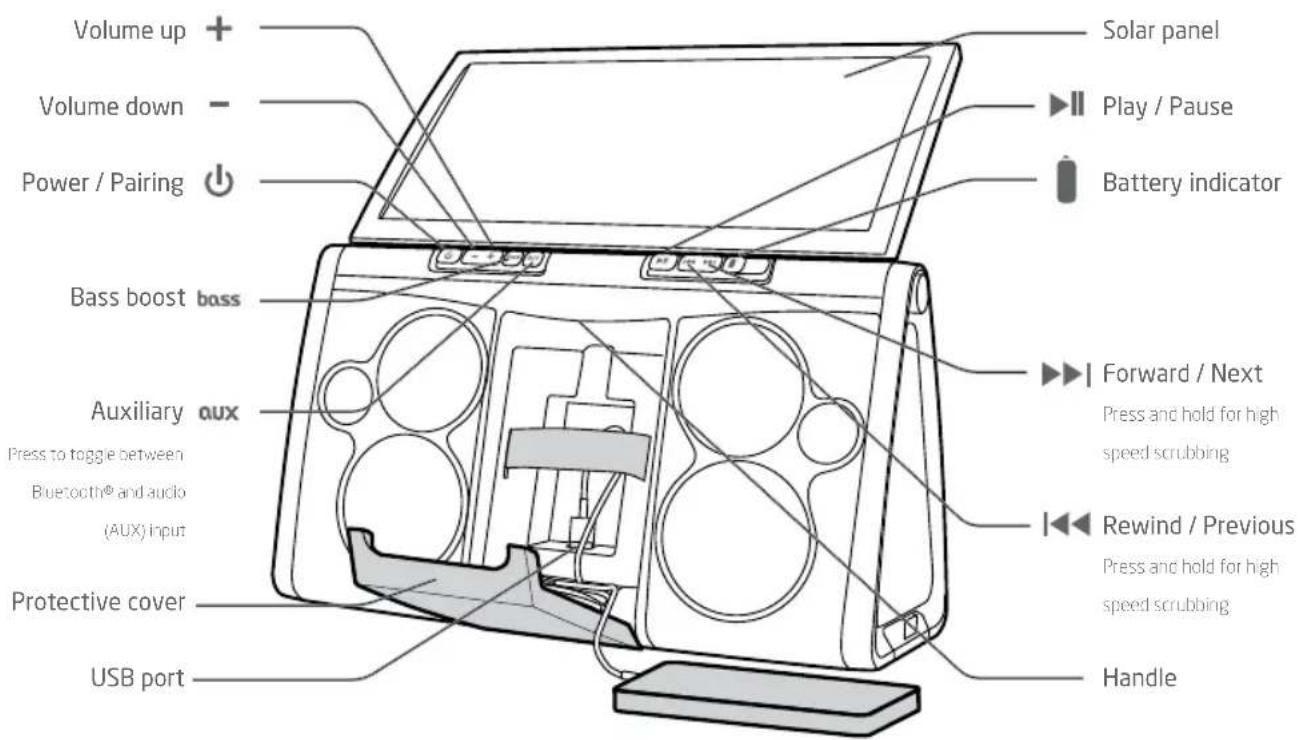

Rukus XL FUNCTIONS

Volume up + Volume down - Power / Pairing ⏻ Bass boost bass Auxiliary aux Press to toggle between Bluetooth® and audio (AUX) input Protective cover USB port Solar panel Play / Pause Battery indicator Forward / Next Press and hold for high speed scrubbing Rewind / Previous Press and hold for high speed scrubbing Handle

RUKUS XL USER MANUAL

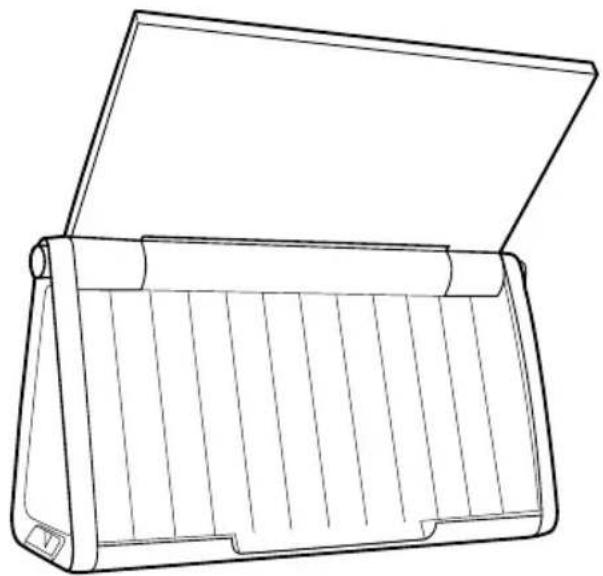

Line drawing of a mechanical device with an open lid and internal compartments (no text or symbols)

Pure technical line drawing of a triangular mechanical component with internal circular feature (no text or symbols)

Audio input
Power saving mode
DC in

Charge On/Off

Charge standby switch. Turn 'Off' when unit not in use to conserve the battery life of the device.

EN English

LET'S GET STARTED

2

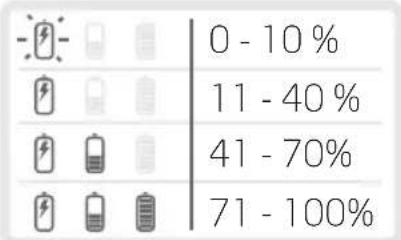

Press the ON/OFF button Icons will sequentially flash Press and hold to view battery life

6

rukus XL

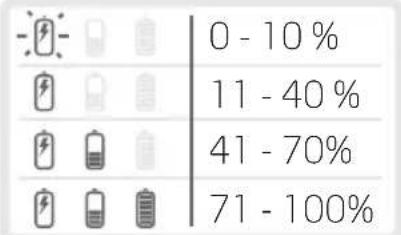

Battery display showing four battery icons with different charging states (no text or labels)

(2 blinks every 2 secs)

DC: power adaptor

Battery: using internal battery

Battery full

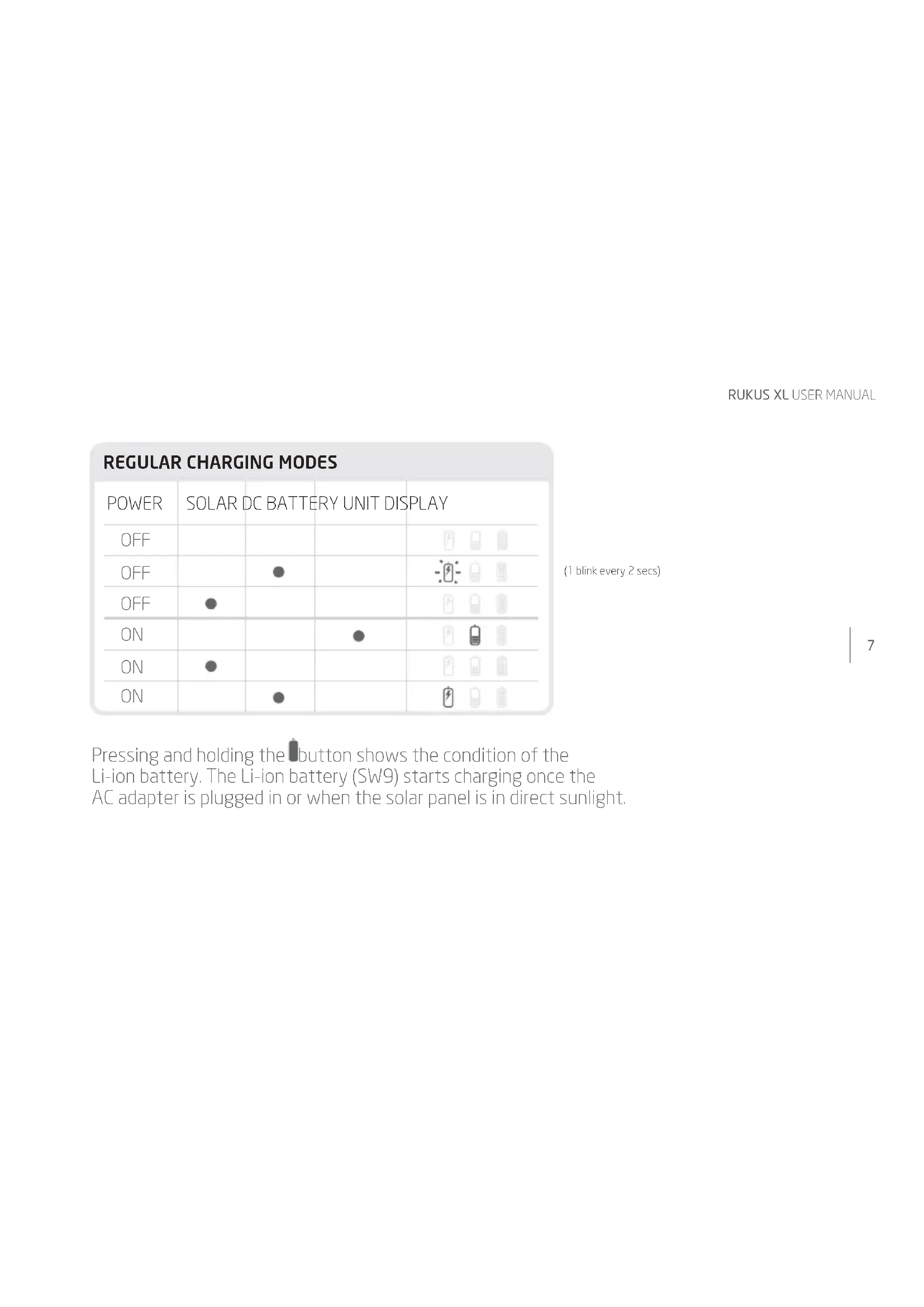

REGULAR CHARGING MODES

POWER	SOLAR DC BATTERY UNIT DISPLAY
OFF
OFF		●
OFF	●
ON			●
ON	●
ON		●

(1 blink every 2 secs)

Pressing and holding the button shows the condition of the Li-ion battery. The Li-ion battery (SW9) starts charging once the AC adapter is plugged in or when the solar panel is in direct sunlight.

EN English

PLUGGING IN THE AC ADAPTER

The Rukus XL comes equipped with an AC adapter. Plug the AC adapter into the right socket labeled DC located under the rubber plug on the side of the Rukus XL. Plug the other end into an AC socket. With the AC adapter plugged in, the Rukus XL starts charging its Li-ion battery and is ready to play.

CONNECTING YOUR BLUETOOTH DEVICE

Press and HOLD the ON/OFF Power button for 3 seconds (until you hear the beep).

CHARGING A SMARTPHONE OR OTHER USB DEVICE THROUGH USB PORT

The smartphone or USB device starts charging once it is inserted into the USB port. When the Rukus XL's POWER is OFF it can still charge your device. Please be advised that leaving your device after it has received a full charge from the Rukus XL, if is still set 'ON', it will continue to drain the Rukus XL's internal battery.

ADJUSTING THE VOLUME +-

Press the volume buttons, +, to increase or decrease volume levels or control it on your Bluetooth® device.

BASS BOOST FUNCTION

Press the boss on to turn on Bass Boost.

AUX (AUXILIARY)

The AUX ton switches between Bluetooth device and AUX-input if there is a signal from the AUX-In port. The Bluetooth signal takes priority if there is a Bluetooth signal and an audio-in signal at the same time. If the audio-in signal is present, the switching function of the 'AUX' button is available. The AUX light turns on when auxiliary input is being used.

PLAY/PAUSE ▶II

Pressing the ▶ button switches from play to pause for the Bluetooth device, or control it directly on your device.

EN English

FWD/REW,

Pressing these buttons, I selects previous track/next track with a short press; hold down to scrub forward/reverse or control it directly on your Bluetooth device.

REPLACING THE LITHIUM-ION BATTERY

A new rechargeable battery can be purchased by contacting us at www.etoncorp.com or by calling (US) 1-800-872-2228 or (Worldwide) 650-903-3866.

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration of your product should be completed as soon as possible after purchase or receipt. Please go to http://www.etoncorp.com/productregistration to register your product.

Please go to http://http://www.etoncorp.com/productregistration to register your product.

LIMITED WARRANTY

Retain the warranty information from your warranty card with your proof of purchase or the Limited Warranty information can also be viewed at www.etoncorp.com.

SERVICE FOR YOUR PRODUCT

To obtain service for your product, we recommend first contacting an Etón service representative at 800-872-2228 US, 800-637-1648 Canada or [phone] for problem determination and trouble-shooting. If further service is required, the technical staff will instruct how to proceed based on whether the radio is still under warranty or needs non-warranty service.

WARRANTY – If your product is still in warranty and the Etón service representative determines that warranty service is needed, a return authorization will be issued and instructions for shipment to an authorized warranty repair facility. Do not ship your radio back without obtaining the return authorization number.

NON-WARRANTY – If your product is no longer under warranty and requires service our technical staff will refer you to the nearest repair facility that will be able to best handle the repair. For service outside of North America, please refer to the distributor information included at time of purchase/receipt.

EN English

DO YOU NEED HELP?

If you need help, please contact us, Monday-Friday, 8:00 a.m.- 4:30 p.m., North American Pacific Standard Time.

US:

1-800-872-2228

12

CANADA:

1-800-637-1648

WORLDWIDE:

650-903-3866

FAX:

650-903-3867

WARNING

Do not expose this appliance to rain or moisture.

Do not submerge or expose for extended period to water.

Protect from high humidity and rain.

Only operate within specified temperature range •

(0 °C to 40 °C).

Unplug immediately if liquid has been spilled or any object has fallen into the apparatus.

Clean only with a dry cloth. Do not use detergents or •

chemical solvents as this might damage the finish.

Unplug and disconnect external antennas during •

lightning storms.

Do not remove cover [or back].

Refer servicing to qualified service personnel.

Disposal

According to the European Directive 2002/96/EC all electrical and electronic products must be collected separately by a local collection system.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Please dispose of all types of batteries per your Government, State or Local rules and/or regulations. If

you are unsure, please call the appropriate local authority to find out how to dispose of them safely and help protect the environment.

ES Español

14

Line drawing of a vehicle front panel with four circular vent slots (no text or symbols)

Rukus XL Adaptador

Line drawing of a plug with a coiled cable and terminal pins (no text or symbols)

ES Español

Line drawing of a mechanical device with an open lid and internal compartments (no text or symbols)

Pure technical line drawing of a triangular frame with internal circular cutout and base (no text or symbols)

Diagram showing four battery icons with different charging states (no text or labels)

Line drawing of a vehicle front panel with four circular vent slots (no text or symbols)

Rukus XL Adaptateur

Line drawing of a handheld electrical plug with wires (no text or symbols)

FR Français

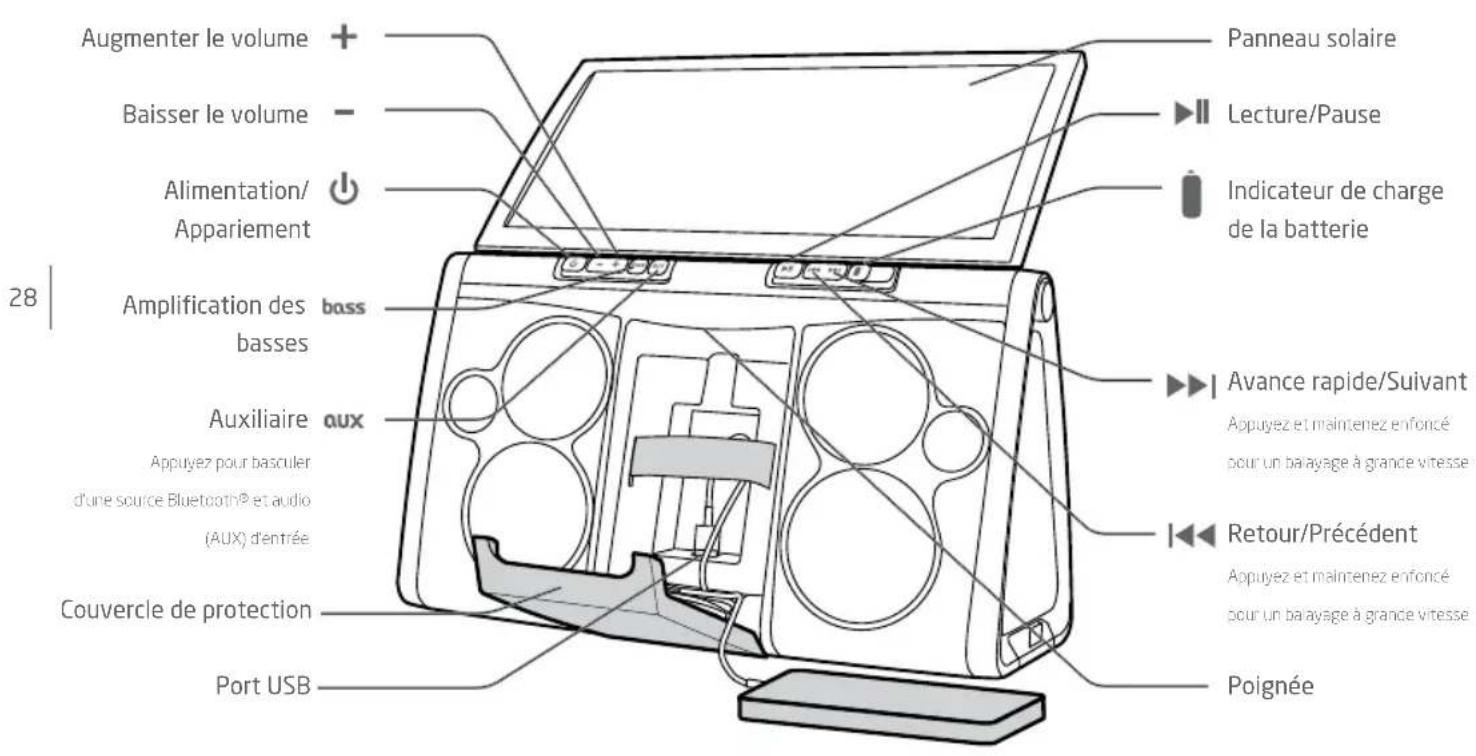

FONCTIONS DU Rukus XL

Line drawing of a mechanical device with an open lid and internal compartments (no text or symbols)

Technical line drawing of a triangular mechanical component with internal circular feature and mounting base (no text or symbols)

Battery display showing four battery icons with different charging states (no text or symbols)

Pressing and holding the button shows the condition of the Li-ion battery. The Li-ion battery (SW9) starts charging once the AC adapter is plugged in or when the solar panel is in direct sunlight.

FR Français

BRANCHEMENT DE L'ADAPTATEUR SECTEUR

Line drawing of a front view of a vehicle dashboard with two circular vented seats (no text or symbols)

Rukus XL Netzteil

Line drawing of a plug with a coiled cable and terminal pins (no text or symbols)

DE Deutsch

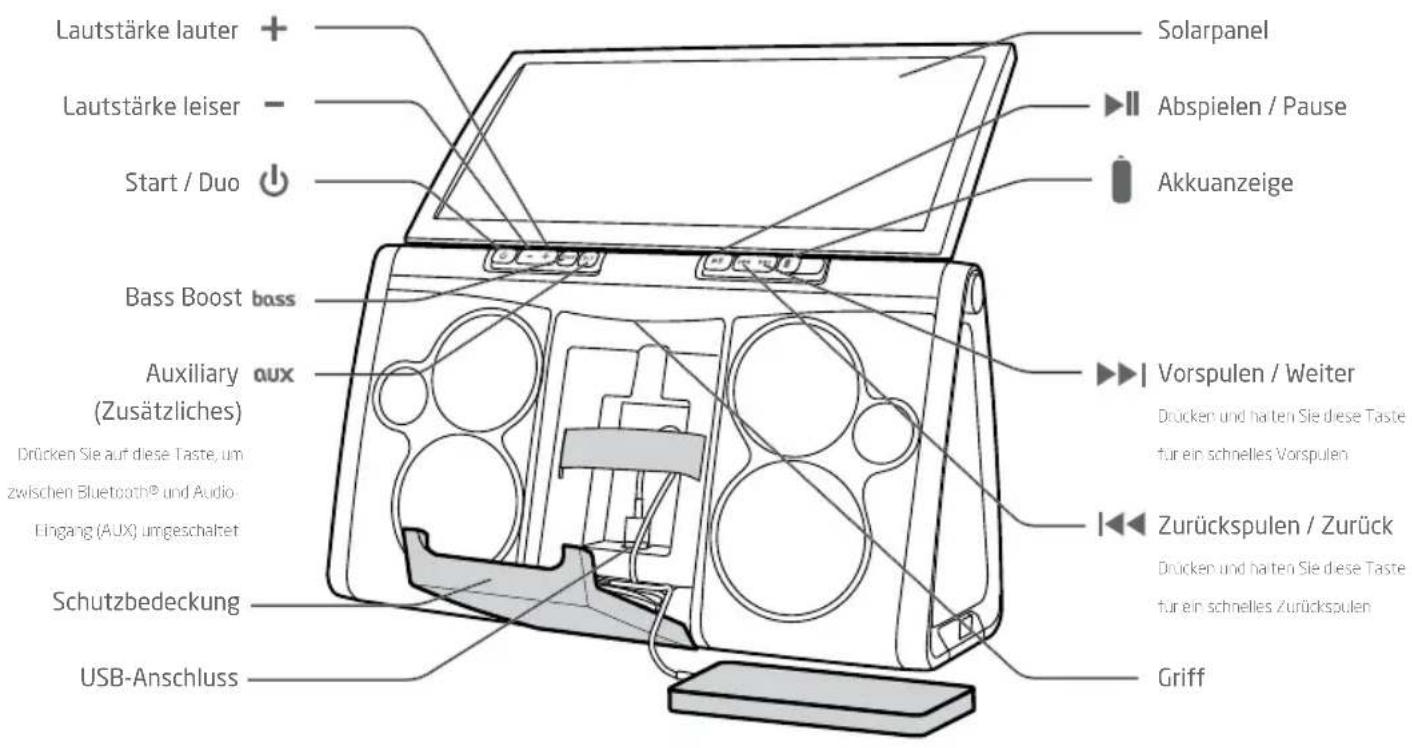

Rukus XL FUNKTIONEN

40

Line drawing of a vehicle front panel with four circular vent slots (no text or symbols)

Rukus XL Adattatore

Line drawing of a plug with a coiled cable and terminal pins (no text or symbols)

IT Italiano
