USER MANUAL 5SB89030 BLAUPUNKT

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of

the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

- Take off the doors. - Leave the shelves in place so that children may not easily climb inside. The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory. Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance.

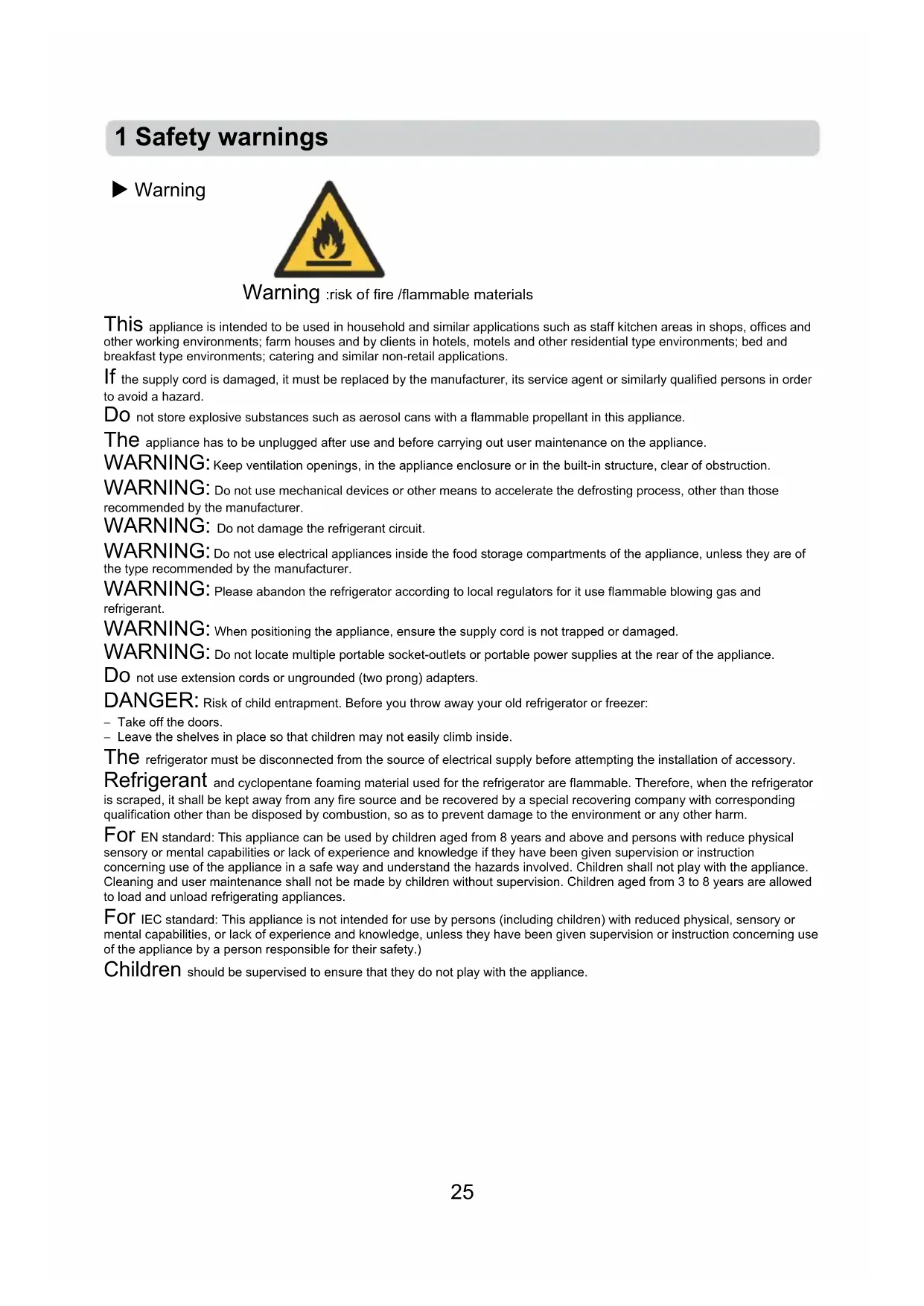

1 Safety warnings26 The instructions shall include the substance of the following: To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. ( note 1 ) - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2JL - One -,two -and three-star compartments are not suitable for the freezing of fresh food. ( note 3 ) - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Note 1, 2 ,3: Please confirm whether it is applicable according to you product compartment type.27

1.2 Meaning of safety warning symbols

1.3 Electricity related warnings

l Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly. l To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

l Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. l The power cord should be firmly contacted with the socket or else fires might be caused. l Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

l Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

l Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer. This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused. This is a cautioning symbol. Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product. Prohibition symbol Warning symbol Note symbol This manual contains lots of important safety information which shall be observed by the users.28

l Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist l Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

l The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles. l Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

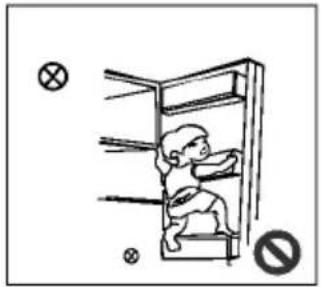

l Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

l Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused. l Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

l Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents. l Do not place flammable items near the refrigerator to avoid fires.

l The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.29

l Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature

becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.

2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-

temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;

3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and

particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;

4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the

refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could

shorten the storage life. 6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside

1.7 Warnings for disposal

Correct Disposal of this product: This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. When the refrigerator is scraped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child. Freezing chamber30

l Before use, remove all packing materials, Including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

l Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. l Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

l The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

l The top space of the refrigerator shall be greater than 30cm, and The refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation. 2 Proper use of refrigerators31

1) Precautions before operation:

Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the levelling feet, precautions shall be taken to prevent any personal injury.

2) Schematic diagram of the levelling feet

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

3) Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator; b. Turn the feet counterclockwise to lower the refrigerator; c. Adjust the right and left feet based on the procedures above to a horizontal level.32

1) Precautions before operation:

Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the door, precautions shall be taken to prevent any personal injury.

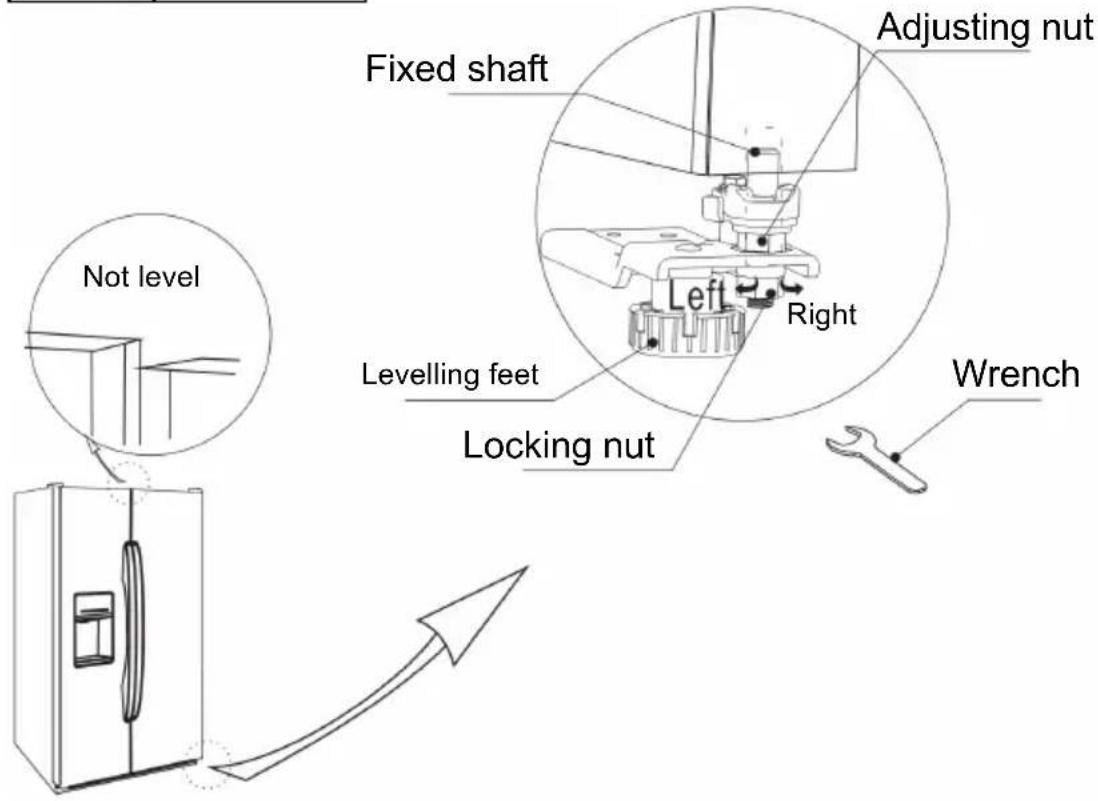

2) Schematic diagram of levelling the door body

List of tools to be provided by the user

(The picture above is only for reference. The actual configuration will depend on the physical product.) When the fridge door is low: Open the door, use a wrench to loosen the locking nut and to rotate the adjusting nut anti-clockwise to raise the height of the door. Once the doors are aligned, then tighten the locking nut by rotating it anti-clockwise. When the fridge door is high: Open the door, use a wrench to rotate the adjusting nut clockwise to lower the height of the door. Once the doors are aligned, then tighten the locking nut by rotating it anti-clockwise. Fixed shaft Adjusting nut Wrench Right Locking nut Not level Levelling feet33

2.4 Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by a qualified person.

l Before initial start, keep the refrigerator still for half an hour before connecting it to power supply. l Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

l Spare enough space for convenient opening of the doors and drawers. l The picture above is only for reference. The actual configuration will depend on the physical product.

2.6 Energy saving tips

l The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight. l Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil. l Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. l Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient. l Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.34

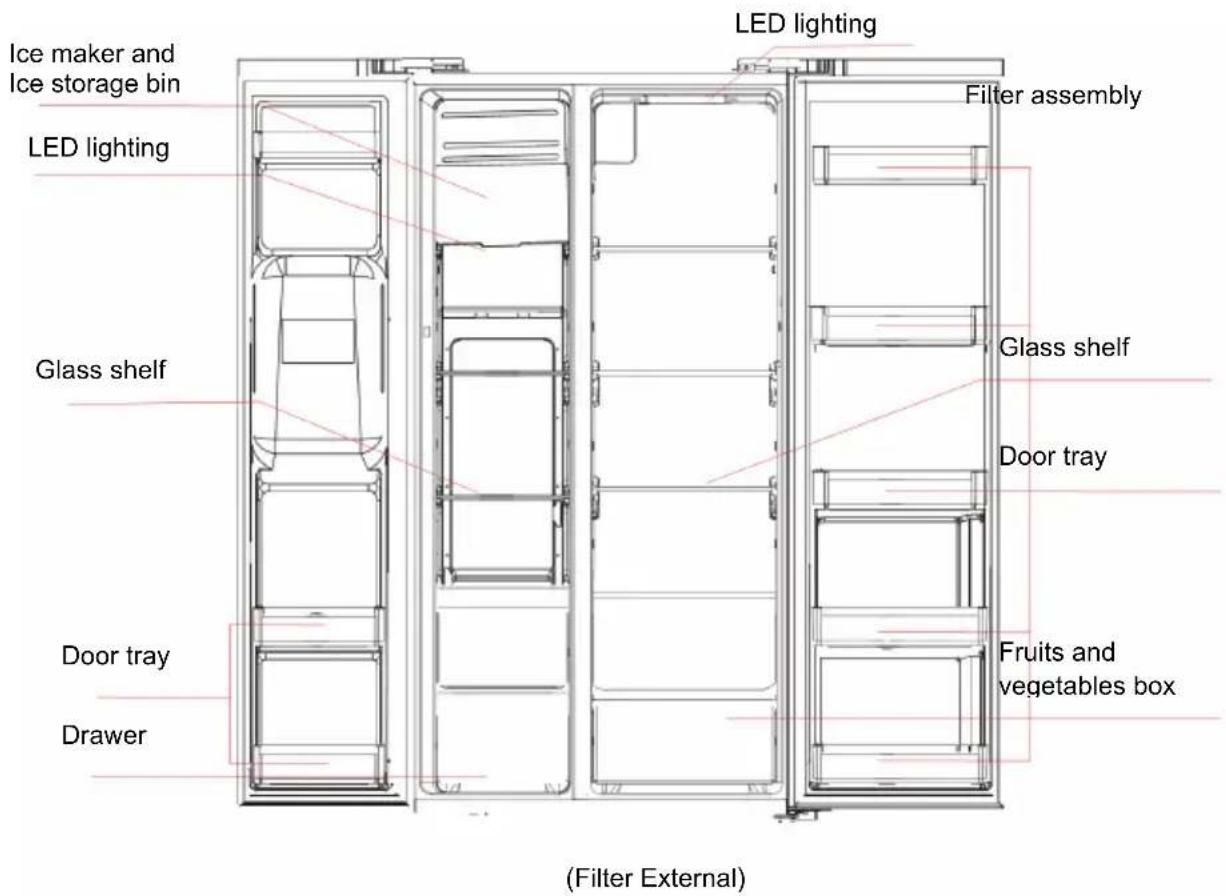

(Filter External) (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Refrigerating chamber l The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term. l Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature. l Foods are recommended to be sealed up before putting into the refrigerator. l The glass shelves can be adjusted up or down for a proper storage space and easy use. Freezing chamber l The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice. l The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term. l Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time. Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected. 3 Structure and functions LED lighting Filter assembly Glass shelf Door tray Fruits and vegetables box Drawer Door tray Glass shelf LED lighting Ice maker and Ice storage bin35

(The picture above is only for reference. The actual configuration will depend on the physical product.)

Freezer compartment temperature

Refrigerate compartment temperature

Fetching crushed ice

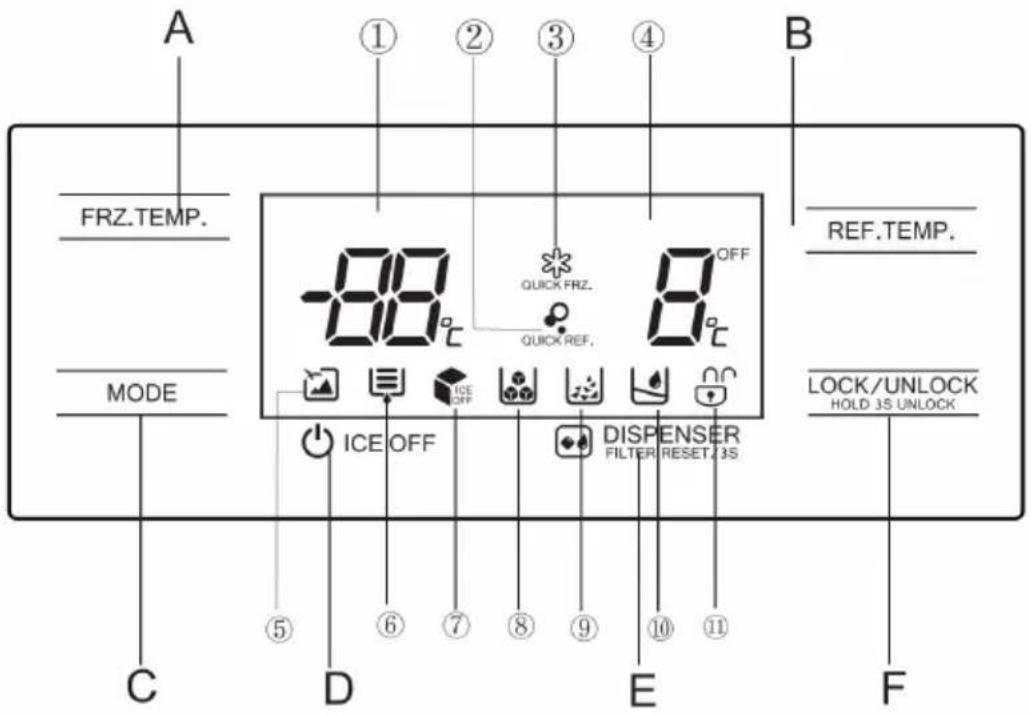

A. Freezer compartment temperature adjustment B. Refrigerate compartment temperature adjustment C. Mode setting D. Ice OFF/ON botton E. Fetching ice/ Fetching water/Filter set F. Lock/unlock controls

3. Operation instructions

The first time the power was turn on for the refrigerator, the display screen will total display for 3 seconds. Meanwhile the starting up bell rings and then the screen enters the normal display of the operation. The first time for using the refrigerator, temperatures of refrigerating chamber, temperature and freezing chamber should be set at 5° C/-18°C respectively. When the error occurs, the display shows the error code in refrigerating temperature displaying area (see next page); during normal operation, the display shows the set temperature of the cooling compartment. Under normal circumstances, if there is no any manual operation on refrigerator last for 30 seconds, the control panel will lock itself automatically, and in locked state, the display light will go out after 30 seconds.36

In the unlocked state, long press the button for 3 seconds, enter the locked state; In the locked state, long press the button for 3 seconds, enter the unlocked state. All the following functions must be operated in the unlocked status

Press the button to enter the vacation mode. Icon lights up, the vacation mode will take effect after panel locked. Press the button FRZ.TEMP. or REF.TEMP. to exit the vacation mode.

Press the button to enter the quick cooling mode. Icon lights up, the quick cooling mode will take effect after panel locked. Press the button REF.TEMP. to exit the Quick cooling mode.

Press the button to enter the quick freezing mode. Icon lights up, the quick freezing mode will take effect after panel locked. Press the button FRZ.TEMP. to exit the Quick freezing mode.

7) Temperature setting of refrigerating chamber

Press temperature adjusting button of the refrigerating chamber , the refrigerating temperature displaying will blink,. Then press the button again to set the temperature, it will has beeps when do temperature adjustment. Temperature setting range is between 2°C and 8°C.Every time you press the button, the temperature will change 1 °C. After adjusting, the refrigerating temperature will blink for 5 seconds. New temperature setting will take effect after panel locked.

8) Temperature setting of freezing chamber

Press temperature adjusting button of the freezing chamber , the freezing temperature displaying will blink. Then press the button again to set the temperature, it will have beeps when do temperature adjustment. Temperature setting range is between -16"Cand-24°C. Every timeyou press the button, the temperature will change 1°C. After adjusting, the freezing temperature will blink for 5 seconds. New temperature setting will take effect after panel locked.

9) Quick-freeze time setting

In quick-freeze mode, long press the "FRZ.TEMP" button for 3 seconds. the refrigerating temperature area will display the existing quick-freeze time, click the "FRZ.TEMP" button again to set the quick-freeze time, the setting circulates as "26-48-26-48..".lock the panel or long press the "FRZ.TEMP" button for 3seconds to exit the quick-freeze time setting. The 48 hours quick- freeze time is mainly for laboratory testing, not recommended for end-consumers.37

Press the button ICE OFF, the icon will shine or go out, what means the switching off/on of ice maker.

Press the button to enter the ice/water selection condition; the selection circulation will show as "Fetching ice cubes /Fetching crushed ice/ Fetching water / none", and then the corresponding icon on the panel will shine successively. when the refrigerator is running, the working time of the water filter will be accumulated; after 150 days, the water filter icon will shine, when it reaches 180days, the water filter icon will blink; long press the button for 3s to reset the service time of water filter.

12) Storage upon power failure

In case of power failure, the instant working state will be memorized and maintained till re-electrification.

13) Opening warning and alarm control

When the refrigerator chamber door gets open, the warning tone will play. If the door is not closed in two minutes, the buzzer will sound once every second until the door is closed.

14) Fault indication

The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have refrigerator and freezing function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure normal use of the refrigerator. Error code Error description

Temperature sensor detection circuit error of refrigerating chamber

Circulation of ambient temperature sensor detection circuit error

Temperature sensor detection circuit error of freezing chamber

icemaker sensor circuit error

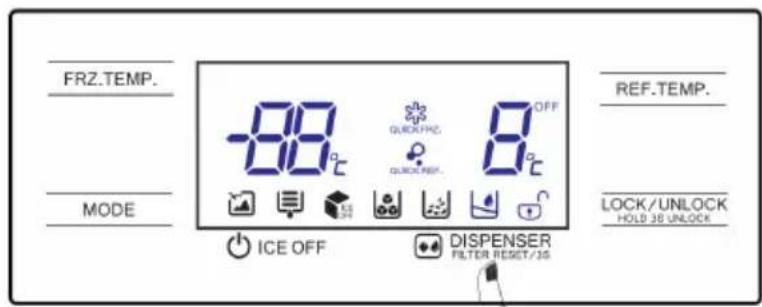

3.3 Fetching water and Ice

l Sounds will be produced during making ice cubes and crushed ice: Water valve will produce buzzing sounds; water's flowing into ice vessel will produce sounds; grinding machine's grinding ice into small pieces or product ice's falling into the container will produce sounds. The sounds are normal. l Scratching noises may be produced when taking out the ice cubes. Nothing to worry about this. l The ice in the container may be stuck together. In such cases, please take out the ice container and separate stuck ice into pieces by means of, for instance, using plastic or wooden spoons to push hard on the ice carefully. l Other possibilities are illustrated in the chapter “ice container cleaning” To avoid overheating of the ice- making machine's engine, please fetch ice about 1 minute after the stopping. Please wait for a while until the engine's temperature reaches working temperature. Please fetch the ice from the ice container if you need a lot of ice. l The chapter "ice container cleaning" explains how to remove ice container from freezer compartment. l If there is no enough ice in the ice container, the ice cannot be taken out. Please wait for a while until new ice is made. To prevent ice smell or bad taste of the ice, please clean the ice container regularly. l Ice and water can only be fetched when the door of freezer compartment is closed. In the process of fetching water and ice, if you open the freezer door, that process will automatically end.

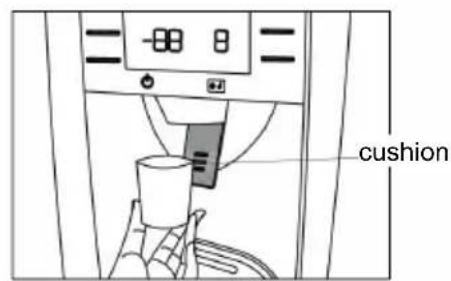

1) Fetching cold water

Keep clicking the buttons until the icon turns on. Push the container in the direction of fetching water cushion. Cold water starts to flow into the container. Remove the container from fetching water cushion and end the exporting of water.

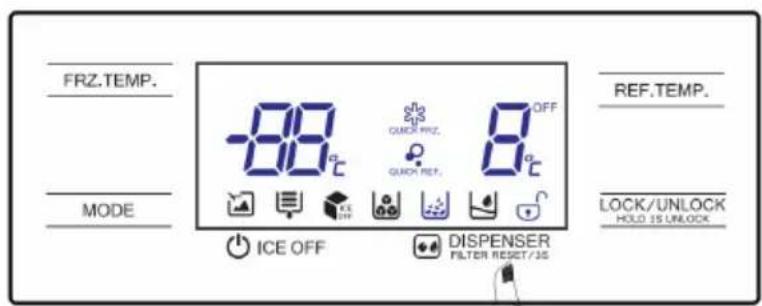

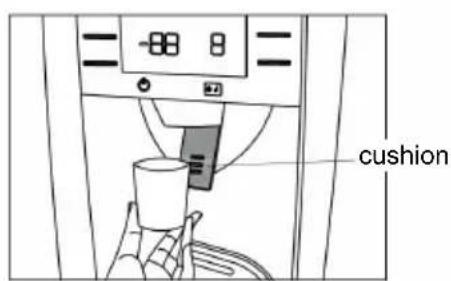

2) Fetching crushed ice

Keep clicking the buttons until the icon turns on. Make the container tight with mouth of dispenser to prevent the side jet. Press the container in the direction of fetching water cushion Fill the container with crushed ice. Remove the container from fetching water cushion and end the exporting of crushed ice. cushion cushion39

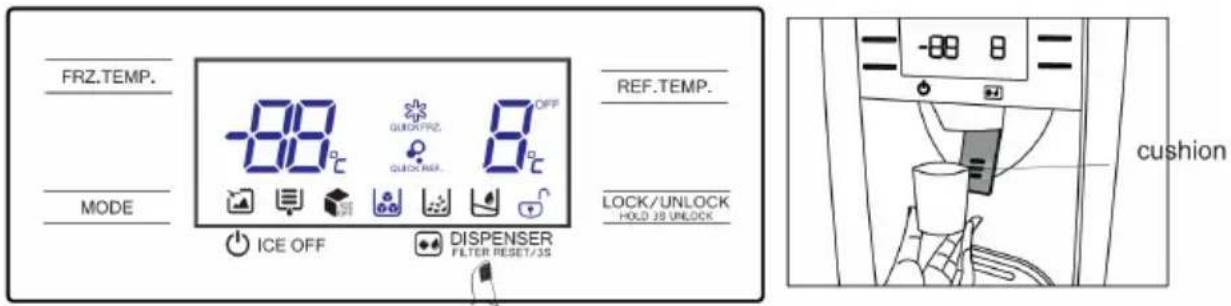

3) Fetching ice cubes

Keep clicking the buttons until the icon turns on. Push the container in the direction of fetching water cushion. Ice cubes start to fall into the container. Remove the container from fetching water cushion and end the exporting of ice cubes.

4) Cancel the function of ice-making

If the function of fetching water and ice is not used for long time, you can cancel the function of ice-making Press the button ICE OFF, the icon turns on. (The picture above is only for reference. The actual configuration will depend on the physical product.)40

4.1 Overall cleaning

l Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. l Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. l The interior of the refrigerator should be cleaned regularly to avoid odor. l Please turn off the power before cleaning interior, remove all foods, drinks .shelves, drawers, etc. l Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power. l For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas. l Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food. l Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally. l Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry. l Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts. l Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

4.2 Cleaning of door tray

l According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out. l After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement. (The picture above is only for reference. The actual configuration will depend on the physical product.) 4 Maintenance and care of the appliance Please unplug the refrigerator for defrost and cleaning.41

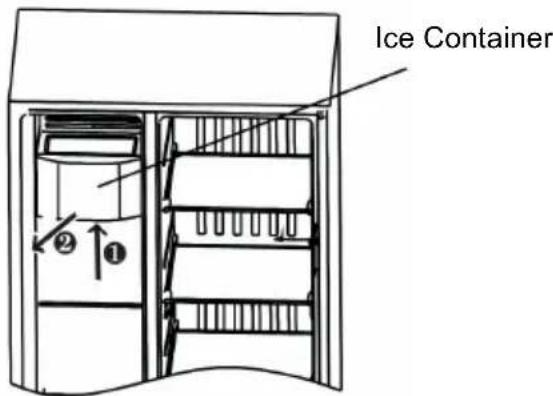

4.3 Clean the Ice Container

Ice in the ice container may block the outlet because of lumping or other reasons. In this case the ice container needs cleaning or eliminating block.

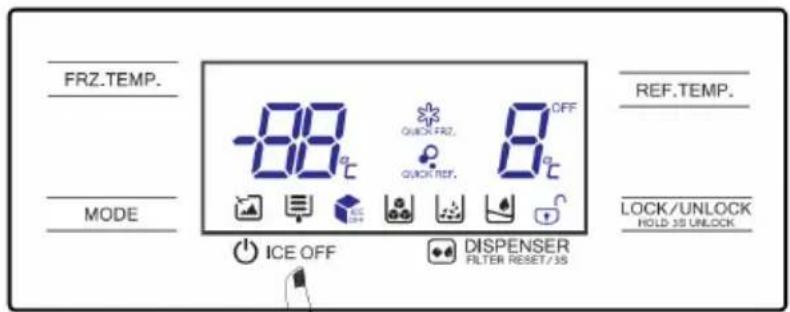

1) Press the ICE OFF button to cancel the function of ice-making and power off the refrigerator(unplug

from the socket). Hold the components of ice storage box by both hands and pull them upwards and outwards horizontally.

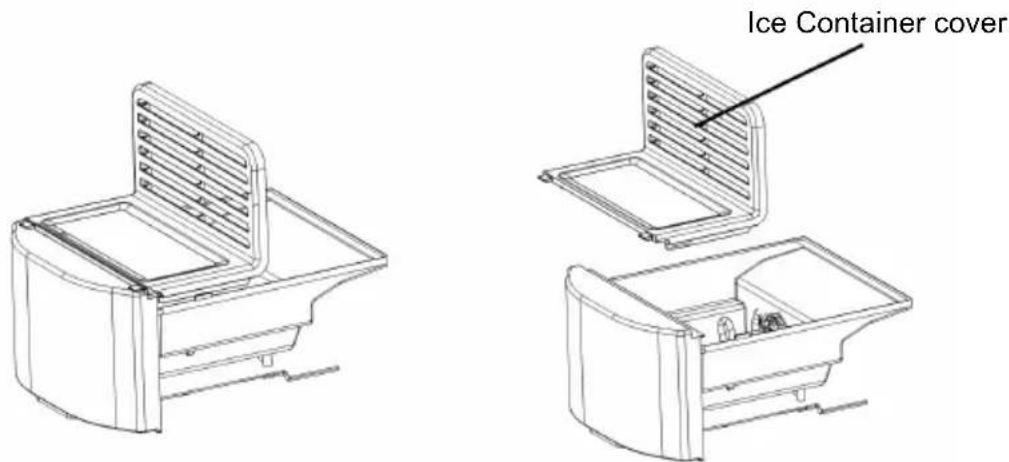

2) Please dismantle Ice Container cover and clean Ice Container with neutral cleaners, clean rags and water.

The reverse operation is for assembly.

3) Close the door of freezer compartment.

Insert the plug again. Press the ICE OFF button to activate the function of ice-making. Ice Container Ice Container cover42

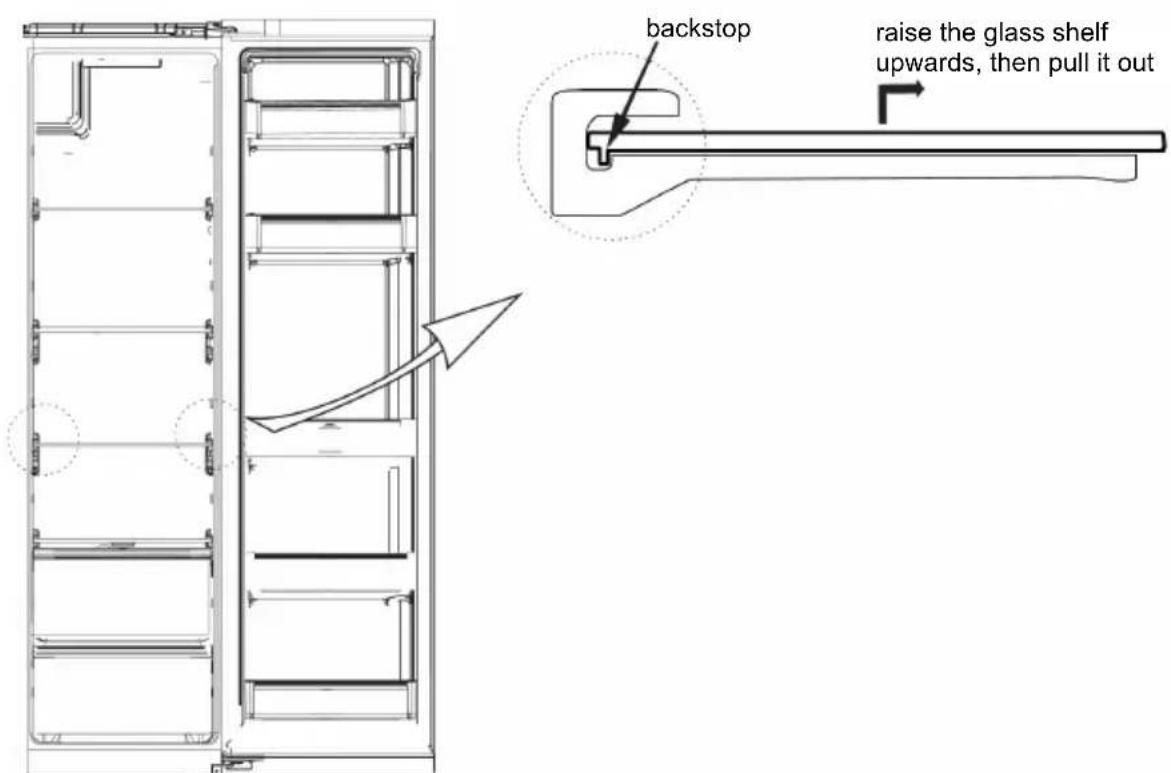

4.4 Cleaning of Glass shelf

l As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out. l Adjust or clean the shelves according to your requirement. (The picture above is only for reference. The actual configuration will depend on the physical product.)

4.5 Cleaning of Ice lattice and water pipe

l Ice making function if not used for a period of time, before using again. Please empty the ice in the ice storage box, make half a box of ice(about 24h) and dump it again, then you can use it normally. l If the water intake function is not used for a period of time, before using again, please press the water intake operation to take two liters of water, and then normal use.

l The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4.7 Out of operation

l Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance. l Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor. l Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the levelling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; l the inclination during movement shall be no more than 45°. backstop raise the glass shelf upwards, then pull it out The appliance shall run continuously once it is started. Generally, the operation of the appliance C shall not be interrupted otherwise the service life may be impaired43

5.1 You may try to solve the following simple problems by yourself.

If them cannot be solved, please contact the after-sales department. Failed operation Check whether the appliance is connected to power or whether the plug is in well contact Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped Odor Odorous foods shall be tightly wrapped Check whether there is any rotten food Clean the inside of the refrigerator Long-time operation of the compressor Long operation of the refrigerator is normal in summer when the ambient temperature is high It is not suggestible having too much food in the appliance at the same time Food shall get cool before being put into the appliance The doors are opened too frequently Light fails to get lit Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged Have the light replaced by a specialist Doors cannot be properly closed The door is stuck by food packages Too much food is placed The refrigerator is tilted Loud noise Check whether the floor is level and whether the refrigerator is placed stably Check whether accessories are placed at proper locations Door seal fails to be tight Remove foreign matters on the door seal Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) Water pan overflows There is too much food in the chamber or food stored contains too much water. resulting in heavy defrosting The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting Hot housing Heat dissipation of the built-in condenser via the housing, which is normal When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation Surface condensation Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel. Abnormal noise Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal. Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

1. Before installation

The information in the operating instructions is for reference purposes only. The physical product may differ.

1) Before installing any accessories, ensure that the refrigerator is disconnected from the mains.

2) Risk of electric shocks!

The water pressure of the device is 147-834 kPa (1.5 - 8.5 kgf/cm). If the water pressure is too high, install a decompressor.

3) Please do not connect the water pipe to a water heater.

When laying the pipes, do not bend them. Connect the water pipes carefully.

4) Do not use old or used water pipes. Buy the joint that connects the pipe with the faucet and install

as shown in the figure.

5) After 6 months of continuous operation, the symbol flashes on the display.

If this happens, replace the water filter.

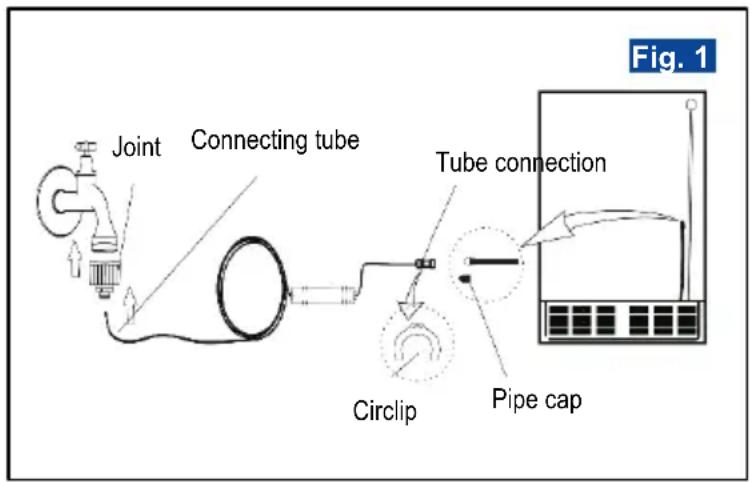

2. Connecting the water pipe (Fig. 1)

1) Slide the end of the connecting tube into the joint. Attach the joint to the faucet.

2) Remove the tube cap from the white flexible tube.

Slide the end of the white flexible tube into the connecting tube, which is secured with a circlip. If necessary, attach the flexible hose to the wall to avoid the risk of tripping.

3) After connecting the pipes, carefully unscrew the faucet to check that the pipe is tight.

Joint Connecting tube Pipe cap Circlip Fig. 1 Tube connection45

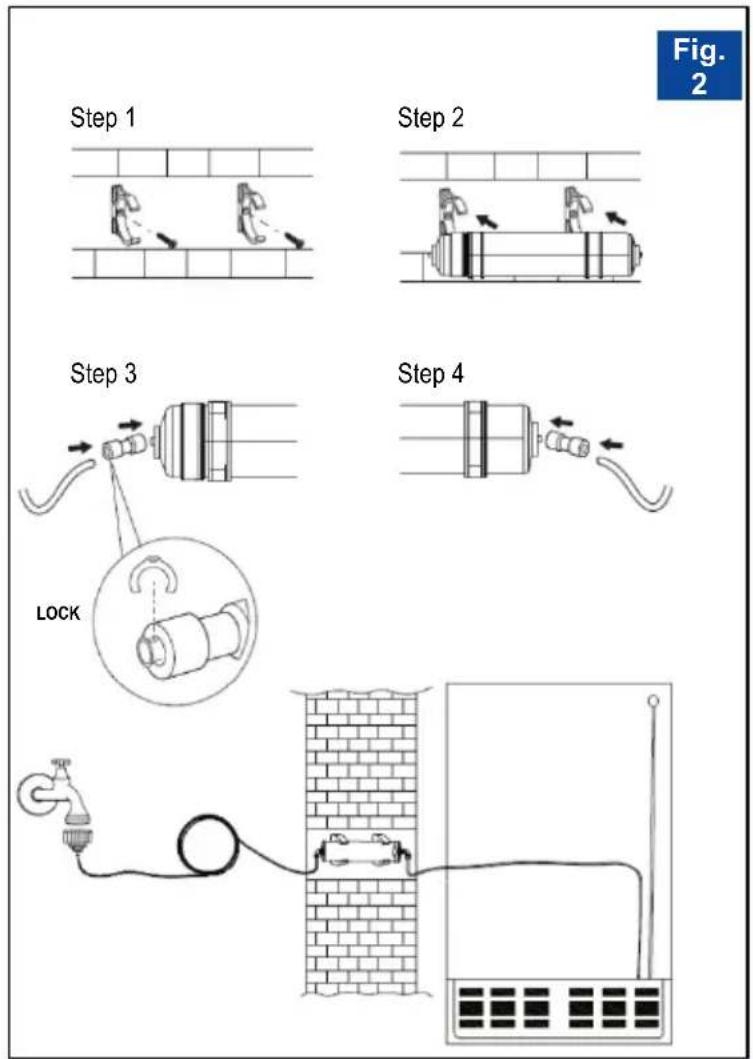

3. Mounting and fixing the filter (Fig. 2)

1) Attach the two plastic clips to the wall with screws.

2) Insert the filter into the clips.

3) Mount the quick connector at one inlet of the filter and insert the water supply into another

end of the quick connector. Lock the connection with the circlip.

4) Mount the quick connector and the water pipe at the outlet of the filter in the same way.

5) After installation, check the figure on the right.

NOTE If you have not used the chilled water function for some time, please remove several cups of water and pour them away (residual water in the water tank) before using the function again.
