Product type	Range hood
Brand	Blaupunkt
Model	5DG66650
Use	Domestic, elimination of kitchen odors
Minimum safety distance	650 mm (according to model, may be lower)
Exhaust duct diameter	120 mm minimum
Electrical class	Class I (grounding required)
Filters	Grease filter (dishwasher safe, every 2 months) and activated carbon filter (replacement every 4 months)
Controls	4 speeds (including a 6-minute timer) + lighting
Lighting	Type not specified, replacement by after-sales service
Power supply	Mains (see rating plate for voltage)
Installation	By a competent technician, compliance with exhaust standards
Maintenance	Clean exterior with damp cloth and mild detergent
Special functions	6-minute timed intensive speed

Frequently Asked Questions - 5DG66650 BLAUPUNKT

What is the safety distance between the hood and the cooktop?

The minimum safety distance is 650 mm. However, some models can be installed at a lower height; check the specific installation instructions. If your gas cooktop indicates a greater distance, respect that.

How to install the hood correctly?

Installation must be carried out by a competent technician. Make sure the mains voltage matches that on the rating plate. Connect the exhaust duct with a tube at least 120 mm in diameter. Respect all local air exhaust regulations.

Can I use the hood without an exhaust duct?

Yes, the hood can operate in recirculation mode with an activated carbon filter. In this case, the air is filtered and returned to the room. The carbon filter must be replaced approximately every 4 months.

How often should I clean the grease filters?

The grease filters should be cleaned every 2 months of use, or more often with heavy use. They can be washed in the dishwasher.

How to replace the activated carbon filter?

The activated carbon filter cannot be washed or regenerated. It must be replaced approximately every 4 months. For replacement, contact after-sales service or refer to the manual.

What to do if the hood does not work?

First check the power supply and that the plug is connected. Make sure the filters are not clogged. If the problem persists, contact a qualified technician.

How to adjust the speeds?

The T1, T2, T3 buttons select speeds 1, 2 and 3. A long press on T3 (2 seconds) activates the intensive speed timed to 6 minutes. The T1 button turns off the motor by going through first speed.

Can I use the hood with gas appliances?

Yes, but ensure the room is adequately ventilated. The negative pressure must not exceed 0.04 mbar to prevent backflow of combustion gases.

How to clean the exterior of the hood?

Clean the hood with a damp cloth and a neutral liquid detergent. Do not use abrasive products.

Where to find spare parts?

For any spare parts (filters, bulbs, etc.), contact Blaupunkt after-sales service or your authorized dealer.

USER MANUAL 5DG66650 BLAUPUNKT

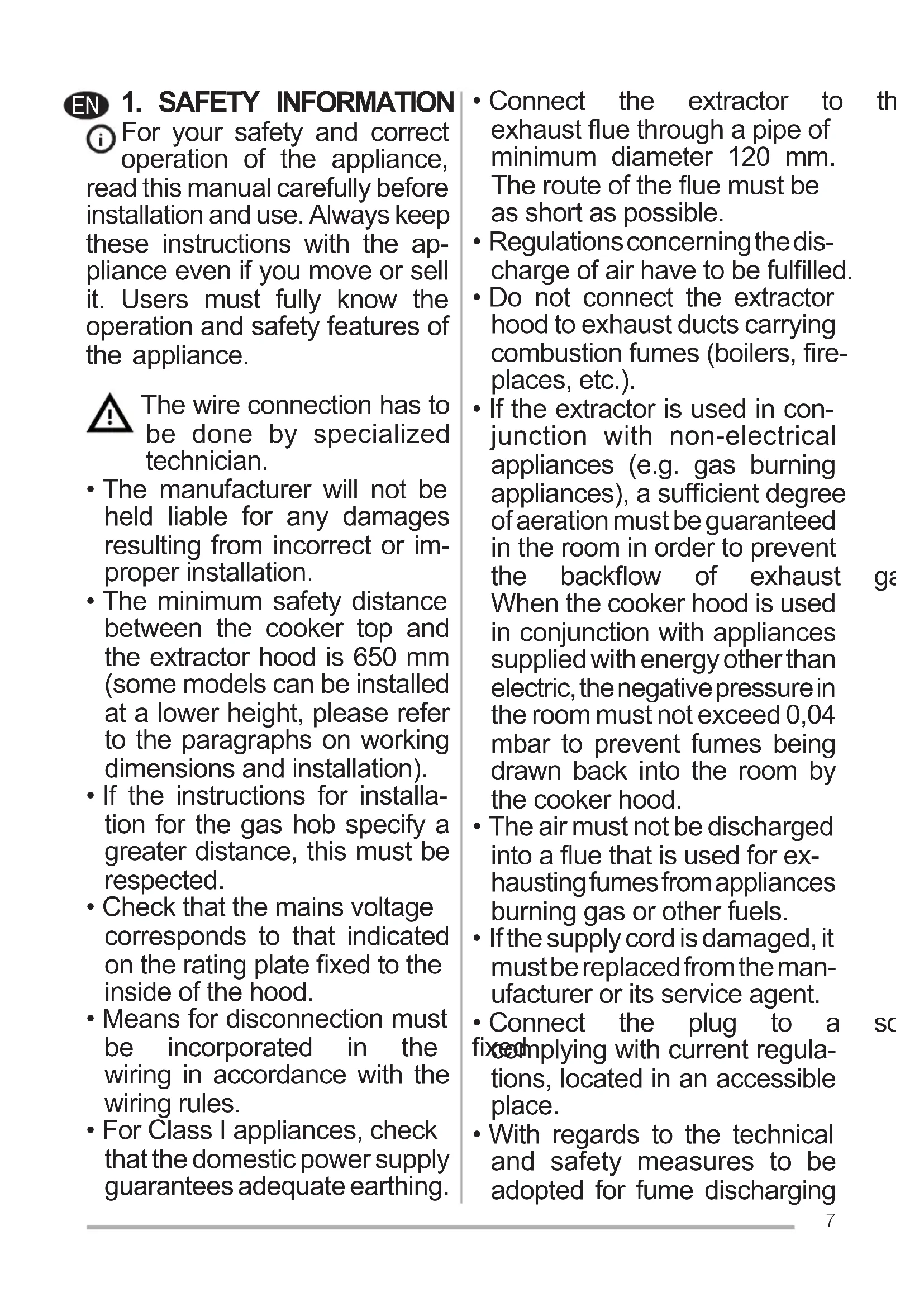

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to exhaust flue through a pipe of minimum diameter 120~mm . The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a fix by complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.
- Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- Do not flambé under the range hood; risk of fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol × on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

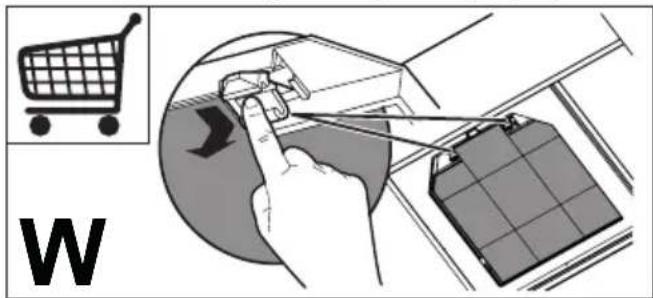

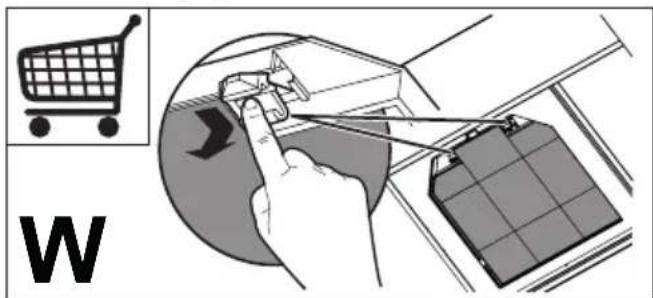

• The Activated charcoal filter is not wash able and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

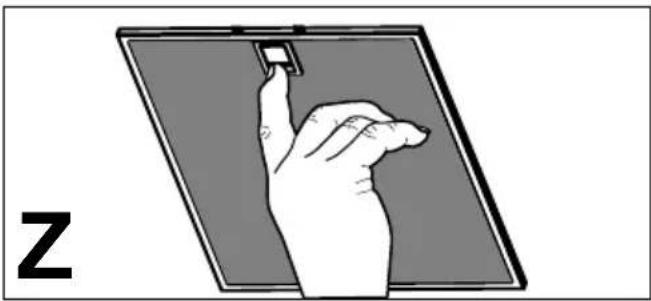

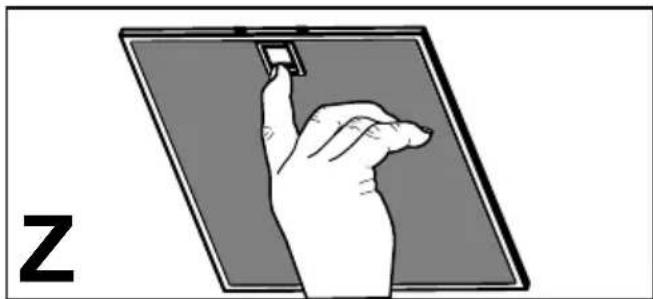

• The Grease filters must be every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

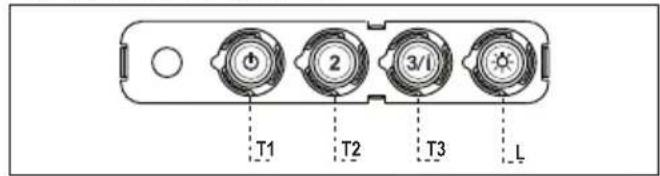

Button Functions Led
T1 Speed	Turns the Motor on at Speed one.	On
	Turns the Motor off. -
Under Speed	Turns the Motor on at Speed two.	On
T3 Speed	Turns the Motor on at Speed three.	On
	Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.	Flashing
L Light	Turns the Lighting System on and off.	-

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

cleaned
