USER MANUAL CP2100 Concept

PARNI CISTENI KOBERCU

POZANMKA: Pied pouzitani panni chtié poda lihy zamette noh yasvata, abyste odstanili velekar neclstoty. DUELZEIT: Nepouzijteve panni chtié bez textilino hato potai plipvenmeho na poda hovubi kubi.

1. Na podlahovou hubici nasadte kobercovy kluzak
2. Zapojte napejci kabel spotbice do zasuvky. Stiskne tlačitko zapnuti/ypnuti a zacne blikat modra kontrkla intensityz dyr.
   P. 3o Nekolika sekdecadh zacne konktorika svitit modre, cz je znamka toho, ze je parni cistic pripraven k provozu a zaene sm produkovat paru.
3. Poharati s zvolte intensituz produkovane pary tlaiktem intensity pary, LOW pro nizkou intensituz, MEDIUM pro stredni intensituz pary, HIGH pro vysokou intensituz pary.
4. Naklonte parni cisticak, ze podlahovou hubici prisapnete nohou a hlavni ccast naklonfte k zemi.
5. Parnim citicem pohybuje pomalu smerem dopiedu a dozadu a venujt zvlastni pozornost frekventovanejism plocham.

POZOR! Pro naplineni nadrzkny na vodu pouziveje touze destilovanou vodu

Vzdy yopoje spotrebic z elektricke zasuvky pri pinieni destilovanov vodou, vyprazdovanim nebo neni-li spotrebic pouzivan.

VYMENA YODNIHO FILTRU

Vodini filmtomahia fhtrovat mineraly obasevne v odve, ktere nsiuizui cinnostnarnpoi hristie. V zavilisti na frekvenci yuziiti spotbeirce byse m feli mlitn mez kazdy 80-100 hodin.Do pannoi mopu poupiviteje vydradne destilvanovu podu.Kudobydlo v otblasi v tvdou vodu, mze se pih teto vdo tvo ftovu aszenitsa na topem telese, coz povede k snzieni yvkonu stiche. Po kaizdem poitai vjmtez azsobnik na vodu a vijtje z nej vekserou podu.

PRAslusenstvI

CP2100-Soucasti baleni je 1x cistici textilie a 1x kobercovy kluzak

CP2110-Soucasti baleni je 3x cisticici textilie a 1x kobercovy kluzak

concept

concept

CISTENIA UDRZBA

DULEZITE: PRED ZAHAJENIM JAKEKOLIV UDRZBY SE NEJPRVE UIISTETE, ZEPARNI CISTICZCELA VYCHLADL.

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V, 50/60 Hz
Input 1300 W
Water tank volume 330 ml

IMPORTANT SAFETY PRECAUTIONS

Do not leave the appliance unattended when it is plugged in. When using the electrical appliance, the following safety precautions must always be followed:

• Always unplug the appliance when performing maintenance or when you are not using it.
• Do not use the appliance outside or on a wet surface.
• Do not use the appliance in an upright and locked position.
• Do not leave the appliance running for prolonged period of time without moving it. Keep the appliance constantly moving while it is in operation.
• Do not allow the appliance to be used as a toy. Care should be taken when using the appliance near children.
• Use the appliance only as described in this manual. Use manufacturer-recommended accessories only.
• Always unplug the appliance when filling it with water, emptying it or when the appliance is not in use.
• Do not use the appliance if the power cord or the plug is damaged. If the appliance malfunctions, has fallen down, is damaged, has been left outside or has fallen into water, contact an authorized service centre.
• Do not pull the power cord, do not carry the appliance by holding the power cord, do not use the power cord as a handle, do not close the door on the power cord and do not wrap the power cord around sharp edges or corners.
• Keep the power cord away from hot surfaces.
• Do not run the appliance over the power cord.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from

CP2100|CP2110

EN

concept

concept

EN

the receptacle.

• Do not touch the appliance or the plug with wet hands.
• Do not use the appliance without the lid of the water tank.
• Do not use the steam if there is no water in the water tank.
• If you do not use the appliance for a prolonged period of time, empty the water tank.
• Do not insert any objects into the openings. Do not use the appliance if any of the openings is blocked. Keep the appliance clean and free of dust, fibres, hair and anything that could reduce its performance.
• Contact a manufacturer/seller (see warranty and service conditions) Incorrect installation and repair can cause electric shock to persons using the steam cleaner.
• Keep hair, loose pieces of clothing, fingers and other parts of the body at a safe distance from openings and all moving parts.
• Never release the steam on another person. The steam is very hot and may cause burns.
• Do not use the appliance in the presence of explosive or flammable vapours.
• Switch off the appliance before unplugging it.
• Do not use the appliance to vacuum hot or smoking objects, such as cigarettes, matches or hot ashes.
• Be especially careful when cleaning the stairs.
• Do not use the appliance to vacuum flammable or explosive liquids, such as petrol or lighter liquid. Do not use the appliance in places where these liquids may be present.
• Do not use the appliance in an enclosed space where flammable, explosive or toxic fumes may be released from oil paints, thinners or moth-proofing preparations. Do not use the appliance in the presence of flammable dust. The use of chemicals may damage the appliance. Using chemicals will void your warranty.
• Do not use the appliance to vacuum toxic substances, such as chlorine bleach, drain cleaner, petrol, etc.
• Never add additives such as perfumes, stain removers or alcoholic substances to the water. They could damage the appliance or the appliance could become dangerous to the user.

• Before using the appliance, make sure that the water tank cap is completely screwed on.

• Do not touch the hot parts of the appliance. It is normal for the appliance to heat up during operation.

• Do not use the appliance to clean a piece of clothing that you or another person is wearing.
• The power and temperature of the hot steam can have a detrimental effect on some materials. Always test the steam cleaner on a small spot first to see if the material is suitable to be cleaned by the hot steam.
• Never point the appliance at animals, people or plants (risk of scalding)! Do not point the appliance at electrical equipment or wires.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or persons not familiar with the operation must use the appliance only under the supervision of a responsible person and a person familiar with the operation. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

Only for household use.

The steam mop and vacuum cleaner is designed for use on hard surfaces such as ceramics, glass, stone, marble, concrete, vinyl, linoleum, sealed wood floor and carpet. The appliance is not intended to be used on fine silk, leather, velvet or any other fine materials sensitive to hot steam. Next, do not use on waxed furniture, very thin plastics, unsealed wood floors, ceilings, plasterboard, car exterior lacquers, electronics or electrical objects.

NOTE: Heat and steam may not be suitable for floors that are sensitive to high temperatures or hot steam. In case of any doubts, we recommend requesting the information directly from the manufacturer of your floor and test the steam cleaner on small and hidden area before use.

EN

concept

concept

EN

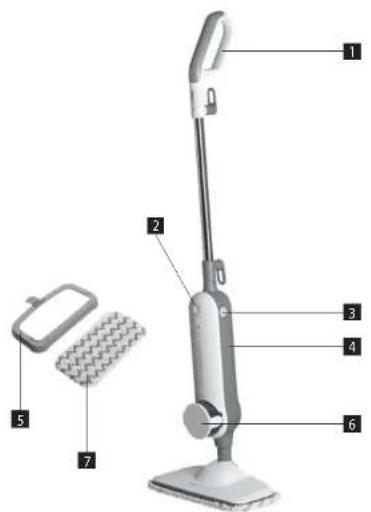

PRODUCT DESCRIPTION

1. Handle
   2Steam Intensity button
2. Steampowerability
   3PowerButton
   4 Appliance body
3. Carpet glider
   6.Water tank
   8 Water tank 7 Cleaning cloth

OPERATING INSTRUCTIONS

ASSEMBLY

Unpack all parts of the appliance and accessories.
1. Slide the handle into the main unit of the cleaner until it clicks into place (1).
2. Insert the appliance body into the floor nozzle (2).

USE

Before first use

1. Press the water tank release buttons and remove it [3].
2. Pull the water tank cap and open it.
3. Fill the water tank with distilled water. Put the cap back to the water tank. Do not add any cleaning agents, chemicals or perfumes to the water tank.
4. Re-attach the water tank to the main part of the cleaner and make sure that the water filter is in place.
5. Attach the textile cover on the bottom side of the floor nozzle.
   IMPORTANT: Always unplug the appliance before refilling with distilled water or changing the textile cover.
   NOTE: Before use, wash the textile cover to remove any loose fibres.

1

STEAM FLOOR CLEANING

NOTE: Before using the steam cleaner, always sweep or vacuum the floor to remove any dirt.
IMPORTANT: Do not use the steam cleaner without the textile cover attached to the floor nozzle.

NOTE: Do not use a carpet glider to clean the floors.

1. Plug the power cord of the appliance into the socket. Press the power button and the blue steam intensity indicator starts to flash.
2. After a few seconds, the steam intensity indicator lights up blue, which means that the steam cleaner is ready for use and automatically starts to produce steam.
3. After the steam heats up, use the steam intensity button to select the intensity of the steam produced: LOW for low steam intensity, MEDIUM for medium steam intensity, HIGH for high steam intensity.
4. Step on the floor nozzle and point the main part of the steam cleaner toward the ground.
5. Move the steam cleaner slowly back and forth, paying special attention to heavy foot traffic areas.

STEAM CARPET CLEANING

NOTE: Before using the steam cleaner, always sweep or vacuum the floor to remove any dirt.
IMPORTANT: Do not use the steam cleaner without the textile cover attached to the floor nozzle.
1. Attach the carpet glider to the floor nozzle.
2. Plug the power cord of the appliance into the socket. Press the power button and the blue steam intensity indicator starts to flash.
3. After a few seconds, the steam intensity indicator lights up blue, which means that the steam cleaner is ready for use and automatically starts to produce steam.
4. After the steam heats up, use the steam intensity button to select the intensity of the steam produced: LOW for low steam intensity, MEDIUM for medium steam intensity, HIGH for high steam intensity.
5. Step on the floor nozzle and point the main part of the steam cleaner toward the ground.
6. Move the steam cleaner slowly back and forth, paying special attention to heavy foot traffic areas.

CAUTION! Use only distilled water to fill the water tank!

Always unplug the appliance when filling it with distilled water, emptying it or when the appliance is not in use.

REPLACING THE WATER FILTER

The water filter helps to filter out minerals contained in water which reduce the efficiency of the steam cleaner. The filter should be changed every 80-100 hours, depending on the frequency of the use of the appliance. Pour only distilled water into the steam mop. If you live in an area with hard water, deposits of this water may form on the heating element, which will then reduce the performance of the cleaner. After each use, remove the water tank and pour out all the water.

ACCESSIONS

CP2100 - The package includes 1x cleaning cloth and 1x carpet glider

CP2110 - The package includes 3x cleaning cloth and 1x carpet glider

EN

concept

concept

EN

CLEANING AND MAINTENANCE

IMPORTANT: BEFORE CARRYING OUT ANY MAINTENANCE, MAKE SURE THAT THE STEAM CLEANER HAS COOLED DOWN COMPLETELY.

Emptying the water tank

1. Unplug the power cord and make sure that the appliance has cooled down sufficiently.
2. Release the water tank from the main part of the steam cleaner.
3. Remove the water tank cap.
4. Pour the remaining water out of the water tank. Put the cap back on the water tank and attach it to the steam cleaner.

Removing and cleaning the textile cover

1. Unplug the power cord and make sure that the appliance has cooled down sufficiently.
2. If necessary, first remove the carpet glider and then remove the textile cover from the floor nozzle.
3. Wash the textile cover in the washing machine at a maximum of 40^ and use a mild detergent.

IMPORTANT: Never use bleach or fabric softener to wash microfibre covers.

Replacing the hard water filter

The steam cleaner is equipped with a hard water filter. If you live in an area with hard water, the filter will colour over time. Depending on the water hardness and frequency of use of the cleaner, the filter should be replaced every 6 months.

1. Unplug the power cord and make sure that the appliance has cooled down sufficiently.
2. Release the water tank from the main part of the steam cleaner.
3. Remove the water filter from the steam cleaner. Replace the old filter with a new one.
4. Put the water tank back in the steam cleaner.

NOTE: The condition of the filter will affect the performance of the appliance.

TROUBLESHOOTING

If there is a problem with the appliance, consult the following check list before contacting a service centre.

Steam nozzle does not produce steam.

• There may be no water in the water tank.
  The water tank may be incorrectly inserted into the appliance body.
  The textile cover does not capture dirt.
  The textile cover may be dirty and needs to be washed before further use. See chapter Cleaning and maintenance.

FAQS ABOUT CLEANING

When is the steam nozzle ready for use? In approximately 30 seconds.

Can I use the steam nozzle on all types of floors? It can be used on all hard floors made of marble, ceramic, stone, linoleum, wood and parquets.

Does the steam nozzle produce steam automatically? Yes, It starts to produce steam automatically when it heats up. Can I add detergents or other chemicals to the water tank? No, you would damage the whole appliance.

What should I do if I live in a city with very hard water? You can use filtered water or replace filters more often. If there is only a weak current of steam coming out of the nozzle, check the steam nozzle opening for clogging caused by limescale. When is the right time to replace the filter? How do I know? It depends on the hardness of the water. Usually after 6 months. You may notice that the colour yellow inside of the filter cartridge has faded slightly.

How long will a tank full of clean water last before it needs to be refilled? Approximately 18 minutes of continuous hot steam operation.

Can I wash the mop? Yes, you can hand-wash it or wash it in a washing machine at a maximum of 40^ . Use a mild detergent, do not use bleach or fabric softener.

How often should I replace the mop? That depends on several different factors, but mainly on the hardness of the floor. The best way to know when is the right time to replace a mop is if the mop remains dirty after washing, or if you notice that it no longer works as well as it did at the beginning.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

concept concept

DE

DANKSAGUNG

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to.
  to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  to malfunctions caused by an inexpert third-party intervention,
  to malfunctions caused by natural disaster,
  to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments.
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement), or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remediying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned.

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta-Concept

Vysokomytska 1800,56501 Chocen

Czech Republic

tel.: [phone]

fax[phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DE GARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

www.www.my-concept.com

concept concept

CONDICIONES DE GARANTIA

Garantia

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw
Tel.: [phone], Fax: [phone]
www.my-concept.pl

ASPICO KFT
