Product type	Steam cleaner / Garment steamer
Brand	Concept
Model	Perfect Steam NO8020
Power supply	220-240 V ~ 50/60 Hz
Power	2280 W
Water tank capacity	2 liters
Heat-up time	Approximately 48 seconds
Steam modes	Silk, Flannel, Cotton
Functions	Horizontal ironing, suspended ironing, vertical steaming
Auto shut-off	After 15 minutes of inactivity (standby mode)
Safety	Dry-cut protection, lid lock, overheat protection
Maintenance	Regular descaling recommended, use distilled or demineralized water
Included accessories	Folding ironing board, rotating steam/iron head, drain bowl, protective cover
Control type	Electronic with POWER and OPTION buttons
Warranty	24 months
Water level indicator	Lacking Water light + audible signal
Recommended use	Cold water only, never hot
Surface types	Fabrics, clothing (do not direct towards people, animals, or electrical devices)
Head material	Metal (rotating head) with protective cover for delicate fabrics
Dimensions (L x W x H)	Approximately 30 x 25 x 160 cm (board unfolded, estimate)

Frequently Asked Questions - Perfect Steam NO8020 Concept

What water should I use in the Perfect Steam NO8020?

It is strongly recommended to use only distilled or demineralized water to prevent scaling and extend the life of the appliance. Never use hot water or additives.

Why is there no steam coming out?

Check that the appliance is plugged in and the water tank is filled. If the light is off, check the power supply. If the light is on, the tank may be empty or descaling is needed. Refer to the troubleshooting guide in the manual.

How do I descale the appliance?

Follow the descaling instructions provided in the manual. Generally, use a mixture of water and white vinegar or a special descaling agent, then rinse thoroughly. Regular descaling is essential to maintain performance.

Can I use the appliance on delicate fabrics?

Yes, select the Silk mode for delicate fabrics. Also use the provided protective cover on the head to avoid burns.

The appliance makes a gurgling noise, is this normal?

Yes, a gurgling noise is due to condensation in the tube. Straighten the tube so that the condensation flows back into the appliance. If the noise persists, check for any blockage.

How do I clean the appliance after use?

Unplug and let the appliance cool down for at least 30 minutes. Empty the water tank through the drain plug. Clean the exterior with a damp cloth. Never use abrasive or chemical products.

The appliance turns off automatically, what should I do?

The appliance enters standby mode after 15 minutes of inactivity. Press any button to reactivate it. Preheating resumes after about 25 to 48 seconds depending on the standby duration.

Can I use the appliance to steam curtains or upholstery?

Yes, the appliance is suitable for suspended ironing. Use the vertical steam function. Never direct steam towards people, animals, plants, or electrical devices.

What should I do if the Lacking Water light comes on?

Fill the tank immediately with cold water. If an audible signal sounds, make sure the tank is properly engaged. The appliance will not operate without water for safety reasons.

Is the warranty valid if tap water is used?

The manual recommends using distilled or demineralized water. Using hard water may cause scaling and reduce performance, which could void the warranty. Follow instructions to preserve your appliance.

USER MANUAL Perfect Steam NO8020 Concept

Black office lamp with adjustable armrest and base mount (no visible text or symbols)

NO8020

CZ

HU LV DE FRENSK PL

IT ES

RO

concept

CZ

PODĚKOVÁNÍ

POPIS HLAVICE

1

PO POUŽITÍ

POPIS HLAVICE

Pure technical line drawings of mechanical components without any text, numbers, or symbols

1

PO POUŽITÍ

1. Zariadenie vypnite hlavným spínačom ON/OFF
2. Spotrebic odpojte zo siete.
3. Zariadenie nechajte aspoň 30 minút vychladnút.
4. Po každom použití vyberte nádrž na vodu a všetku vodu vylejte!!!!
5. Vytiahnite vypušťací uzáver a do misky nechajte vytiect zvyšnú vodu.
6. Zvyšnú vodu vypustte cez vypůstaci uzáver v spodnej časti zariadenia.
7. Skrátte teleskopické tyče a spotrebič uložte.

RIEŠENIE PROBLÉMOV

OPIS GŁOWICY

1

PO ZAKOŃCZENIU UŻYWANIA

A FEJ LEÍRÁSA

Pure mechanical diagram showing exploded view of components without any text or symbols

1

HASZNÁLAT UTÁN

UZGALA APRAKSTS

1

2

PĒC IZMANTOŠANAS

1. Izslédziet ieri ci ar galveno slédzi ("ON"/"OFF")
2. Atvienoijet jerici no elektrotikla
3. Laujiet ierícel vismaz 30 minütes atdzist.
4. Péc katras lietošanas Iznemlet üdens tvertni un pilnibā iztukšojiet to!!!
5. Izvelciet izplüdes aizbāzni un laujiet atlikušajam üdenim ieplüst traukā.
6. Izlejiet atlikušo údeni pa izplüdes atveri apakšdalja.
7. Saisiniet teleskopiskos stieņus un noglabājiet ieriči.

TRAUCĚJUMU NOVĚRŠANA

Šajá nodalá ir noráditas visizplatitákás problémas, kas var rasties, izmantojot ieriči. Ja nevarat atrisinát problému, arí izpildot turpmák sniegtos norádíjumus, lüdzu, sazinieties ar uzpēmuma "Jindrich Valenta – Concept" servisa centru.

40

NO8020NO8020

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the Instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220-240 V - 50/60 Hz
Input 2280 W
Water tank volume 2 l

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the appliance. Only use grounded sockets.
• The appliance is hot during operation and for some time after switching off. Therefore, do not touch hot surfaces. Due to the risk of burning use only the handle and buttons.
• Do not clean, store or cover the appliance until it has cooled completely.
• Do not leave the appliance unattended when it is switched on or connected to the mains.
• Never carry the appliance during operation or while it is still hot. Do not carry it by the power cord.
• Before connecting or disconnecting the appliance from the mains socket, make sure that the switch is in the off position.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.

NO8020

EN

concept

concept

EN

• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not use any accessories other than those recommended by the manufacturer.
• Before cleaning and after use of the appliance, switch the appliance off, disconnect it from the mains and allow it to cool down.
• Do not allow the power cord to hang freely over the edge of the table. Do not allow the power cord to touch hot surfaces.
• Only place the appliance on a stable and heat-resistant surface away from other heat sources such as radiators, ovens, etc. Protect it from direct sunlight and moisture.
• There must be water in the appliance before connecting it to the mains.
• Do not add water when the appliance is on!
• After filling the appliance with water, make sure that it is dry and that no water leaks anywhere.
• Fill the water tank only up to the recommended maximum – if the amount of water exceeds the recommended maximum level, boiling water may spurt out – RISK OF SCALDING!
• Before switching the appliance on, make sure that the lid is properly closed. Do not open it during operation to avoid scalding.
• Do not switch the appliance on if there is no water in it. Do not exceed the maximum limit of water. However, if an empty appliance is switched on, the safety fuse will automatically switch it off. Then let the appliance cool down, fill it with cold water and you can use it again.
• Do not use coarse and chemically aggressive substances to clean the appliance.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the appliance outdoors.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not immerse the power cord, plug or appliance in water or any other liquid.

• Do not repair the appliance yourself. Contact an authorized service centre.

• Never direct the steam towards people, body parts, animals, plants or any appliances containing electrical parts (electrical appliances, sockets, cables, interiors of ovens, etc.) - risk of electric shock.

• Direct the steam only at the fabric.
• Never steam clothes that you or someone else is wearing.
• Some parts of this product can become very hot and cause burns. Be cautious when using the appliance in the presence of children and disabled people.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

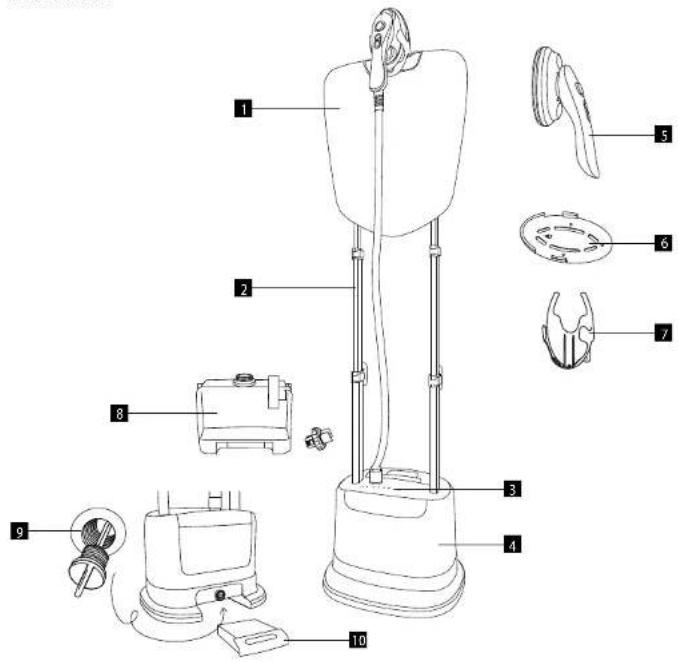

PRODUCT DESCRIPTION

1 Foldable ironing board
2 Telescopic rods
3 Control panel
4 Base
5 Rotating steaming/ironing head
6 Protective cover
7 Collar holder
8 Detachable water tank with a lid
9 Drain plug
10 Drain container

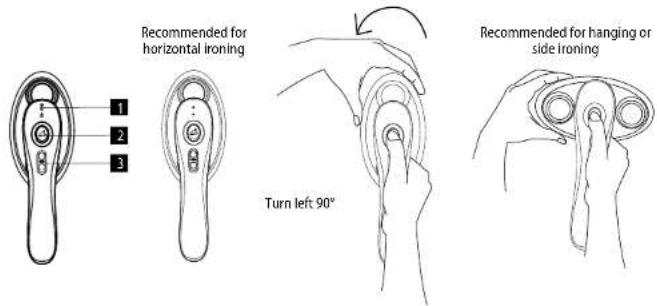

HEAD DESCRIPTION

1. Light indicator of the selected function (steaming/ironing)
2. Rotation button
3. Function selection button (steaming/ironing)

Important information:

When steaming very fine fabrics, use a protective cover attached to the head. Always attach this cover on a cooled appliance. There is risk of serious burns!

CONTROL PANEL LAYOUT

POWER – device on/off button

OPTION - mode switching button (for STEAMING function only)

Silk
Flannel
Cotton

Sleep - if the mode is not changed for 15 minutes, the appliance automatically enters sleep mode. Select any mode to wake it up. The appliance is ready for use after 25 seconds (the sleep mode did not last longer than 3 minutes) or after 48 seconds (the sleep mode lasted more than 5 minutes).

Preheat - preheat indicator

Lacking Water – empty water tank indicator

NO8020NO8020

EN

concept

concept

EN

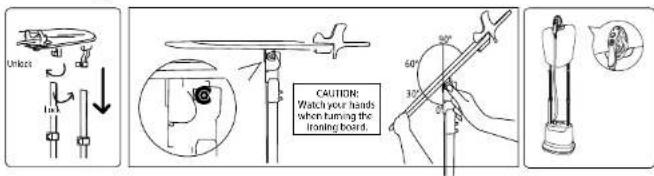

PRODUCT ASSEMBLY INSTRUCTIONS

1. Open the locks on the telescopic rods and lock them in the desired position.
2. Attach the rods to the base.
3. Attach the holder to the ironing board.

1. Open the locks on the board and slide them onto the telescopic rods. Lock them.
2. Use the button on the bottom side of the board to set the desired position.
3. Place the ironing head in the holder.

Important safety information:

• Always place the steam head in the holder. Never let it lay loose. This could result in accidental personal injury or property damage.
- Never attempt to wind or otherwise bend the steam hose using excessive force.
- Never carry the appliance by pulling on this hose.

STEAMING GARMENT INSTRUCTIONS

1. Fill the water tank and insert it back into the base.
2. Plug in the appliance. Press the ON/OFF button and select the desired function according to the fabric type.
3. Wait approximately 48 seconds,
4. When steam starts to come out of the head, the appliance is ready for use.

Important notice:

• To ensure maximum lifetime of the appliance, we strongly recommend using only distilled or demineralized water. If you live in an area with hard water, limescale will clog the appliance and reduce its efficiency!!!!
  • Use only cold water (never hot)!
• The appliance is equipped with an empty water tank indicator. If the Lacking Water Indicator lights up, refill the water tank immediately. If you hear a beep sound, the water tank is not properly inserted.

IRONING GARMENT INSTRUCTIONS

1. Fix the adjustable ironing board in the desired position.
2. Select the desired position of the ironing head.
3. Select a suitable ironing method.

1

AFTER USE

1. Use the main ON/OFF switch to switch off the appliance.
2. Disconnect the appliance from the mains.
3. Let the appliance cool down for at least 30 minutes.
4. After each use, remove the water tank and empty it!!!!
5. Pull out the drain plug and allow the remaining water to drain into the container.
6. Drain the remaining water through the drain plug at the bottom of the appliance.
7. Shorten the telescopic rods and store the appliance.

TROUBLESHOOTING

This chapter lists the most common problems you may encounter when using the appliance. If the instructions below do not help you to solve the problem, contact the Jindrich Valenta - Concept company service department.

EN

concept

concept

DE

Problem Cause Remedy
There is no steam coming out of the appliance. The light indicator is off.	The appliance is not plugged in. Plug in the appliance.
	Power failure / circuit breaker failure.	Check your home's power supply. Ask a professional for help.
There is no steam coming out of the appliance. The light indicator is on.	Limescale deposits.	Remove the limescale deposits according to the instructions.
	The water tank is empty. Fill the tank with water.
Excessive gurgling of the hose and the steam head.	Condensed water in the hose.	Some gurgling is a natural effect of the steaming process. For excessive gurgling, extend the hose vertically to allow water to drain back into the water tank.
The steam is intermittent. Limescale deposits.		It is normal for the appliance to periodically stop steaming for a few seconds. If there is no steam coming out of the appliance for a longer period of time, follow the descaling instructions.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
  • Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

NO8020

DANKSAGUNG

1

NACH BENUTZUNG

DESCRIPTION DE LA TÊTE

1

APRÈS UTILISATION

Flannel (flanella)
Cotton (cottone)

Pure technical line drawings of mechanical components without any text, numbers, or symbols

1

DOPO USO

1

2

DESPUÈS DE USAR

DESCRIEREA CAPULUI

INSTRUCTIUNI PENTRU CĂLCAREA HAINELOR

Pure mechanical diagram showing exploded view of components without any text or symbols

1

DUPĂ UTILIZARE

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DEGARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw Tel.: [phone], Fax: [phone] www.my-concept.pl

ASPICO KFT
