USER MANUAL GDM5402 SONY

Color Graphic Display

21 inch model

Operating Instructions US
Mode d'emploi FR
Bedienungsanleitung DE
Manual de instrucciones ____ ES
Instruzioni per l'uso IT

Owner's Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

Declaration of Conformity

Trade Name: Sony

Model No.: GDM-5402

Responsible Party: Sony Electronics Inc.

Address: 1 Sony Drive, Park Ridge, NJ. 07656 USA

Telephone No.: 201-930-6970

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 · 18 AWG

Length Maximum 15 feet

Rating Minimum 7 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

ECOLOGY ENERGY EMISSIONS SCIENCE TCO 99 ERGONOMICS

This monitor complies with the TCO'99 guidelines.

Production Model name: GDM-5402 (19.8" viewing image)

Table of Contents

Precautions....4

Identifying parts and controls 5

Setup....6

Step 1: Connect your monitor to your computer ..... 6

Step 2: Connect the power cord....6

Step 3: Turn on the monitor and computer .....6

Selecting the on-screen menu language (LANGUAGE)....7

Selecting the input signal 7

Automatically sizing and centering the picture ..... 7

Customizing Your Monitor....8

Navigating the menu....8

Adjusting the brightness and contrast....9

Adjusting the size of the picture (SIZE/CENTER)....10

Adjusting the centering of the picture (SIZE/CENTER) ..... 10

Enlarging or reducing the picture (ZOOM) 10

Adjusting the shape of the picture (GEOMETRY) ..... 10

Adjusting the convergence (CONVERGENCE) ..... 11

Adjusting the quality of the picture (SCREEN) 11

Adjusting the color of the picture (COLOR) 12

Additional settings (OPTION) 13

Resetting the adjustments 14

Technical Features ....14

Power saving function....14

Troubleshooting....15

If thin lines appear on your screen (damper wires)....15

On-screen messages 15

Trouble symptoms and remedies 16

Self-diagnosis function 18

Specifications....18

Appendix....i

TCO'99 Eco-document....i

• VESA and DDC ^11 are trademarks of the Video Electronics Standard Association.
  • ENERGY STAR is a U.S. registered mark.
• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
• Furthermore, “¶” and “¶” are not mentioned in each case in this manual.

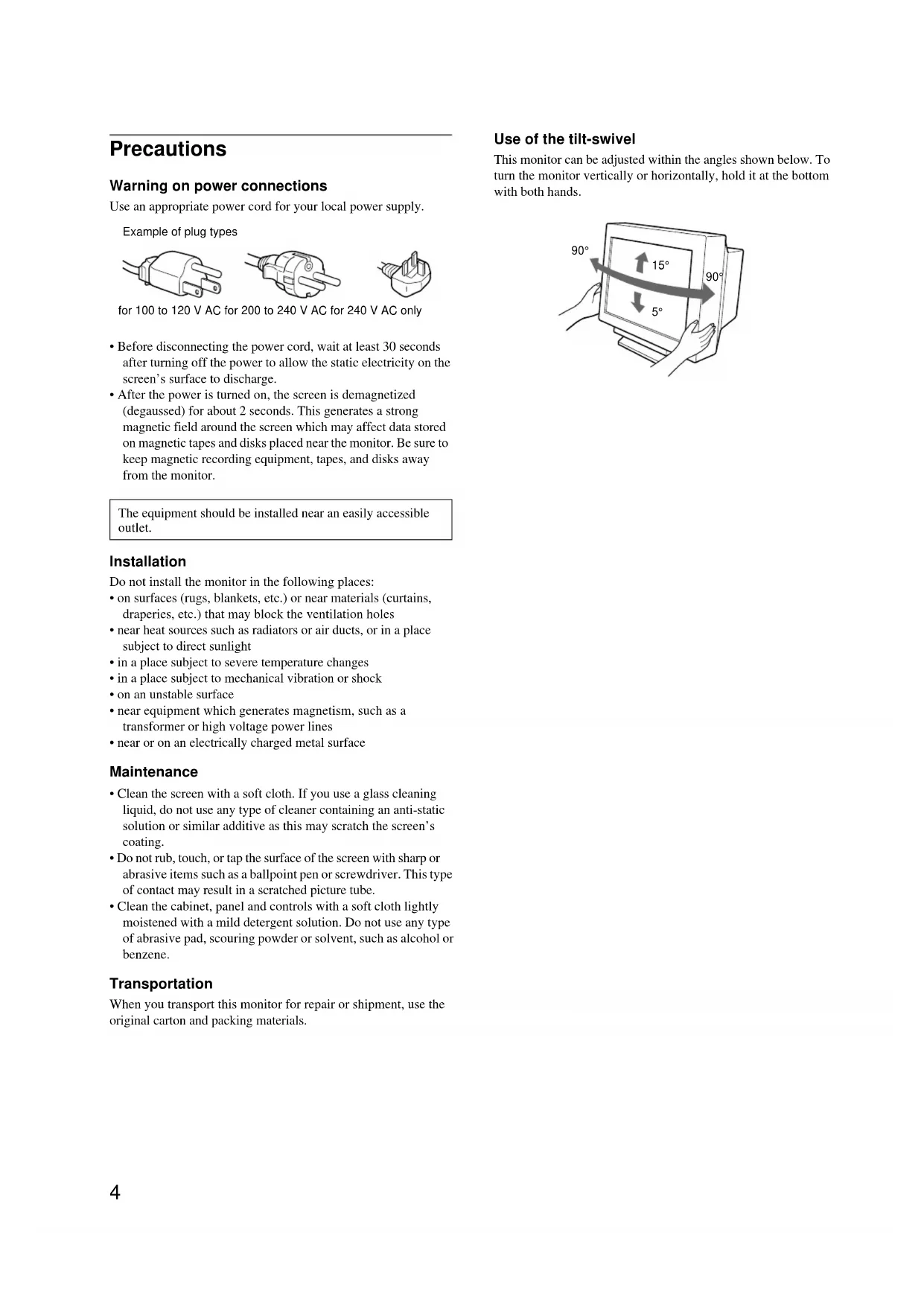

Precautions

Warning on power connections

Use an appropriate power cord for your local power supply.

Example of plug types

Three line drawings of different types of electrical plugs (no text or symbols)

for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only

• Before disconnecting the power cord, wait at least 30 seconds after turning off the power to allow the static electricity on the screen's surface to discharge.
  • After the power is turned on, the screen is demagnetized (degaussed) for about 2 seconds. This generates a strong magnetic field around the screen which may affect data stored on magnetic tapes and disks placed near the monitor. Be sure to keep magnetic recording equipment, tapes, and disks away from the monitor.

The equipment should be installed near an easily accessible outlet.

Installation

Do not install the monitor in the following places:

• on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place subject to direct sunlight
  • in a place subject to severe temperature changes
  • in a place subject to mechanical vibration or shock
• on an unstable surface
• near equipment which generates magnetism, such as a transformer or high voltage power lines
  • near or on an electrically charged metal surface

Maintenance

• Clean the screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the screen's coating.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene.

Transportation

When you transport this monitor for repair or shipment, use the original carton and packing materials.

Use of the tilt-swivel

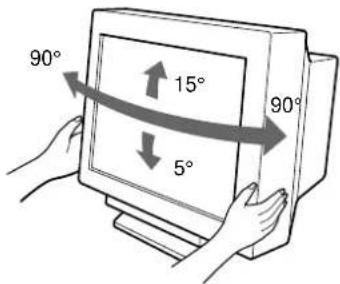

This monitor can be adjusted within the angles shown below. To turn the monitor vertically or horizontally, hold it at the bottom with both hands.

90° 15° 5° 90°

Identifying parts and controls

See the pages in parentheses for further details.

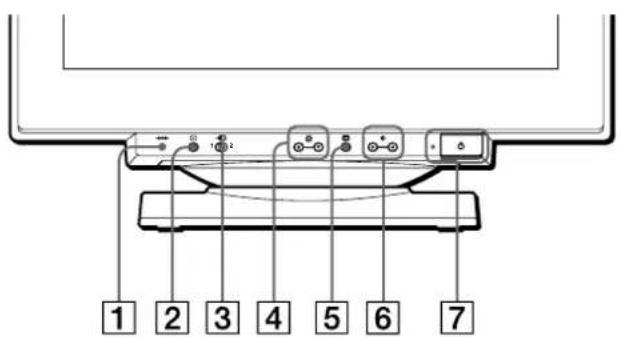

1 2 3 4 5 6 7

1→← (reset) button (page 14)

This button resets the adjustments to the factory settings.

② ASC (auto sizing and centering) button (page 7)

This button automatically adjusts the size and centering of the picture.

3→(input) switch (page 7)

This switch selects the INPUT 1 (video input 1 connector: 1) or INPUT 2 (video input 2 connector: 2) video input signal.

4 ⚙ (brightness) ↓/↑ buttons (page 9)

These buttons display the BRIGHTNESS/CONTRAST menu and function as the ↓/↑ buttons when selecting menu items.

5 (menu) button (page 9)

This button displays the main menu.

6 ● (contrast) ←/→ buttons (page 9)

These buttons display the BRIGHTNESS/CONTRAST menu and function as the / buttons when making adjustments.

7 ⏻ (power) switch and indicator (pages 6, 14, 18)

This button turns the monitor on and off. The power indicator lights up in green when the monitor is turned on, and either flashes in green and orange, or lights up in orange when the monitor is in power saving mode.

8 AC IN connector (page 6)

This connector provides AC power to the monitor.

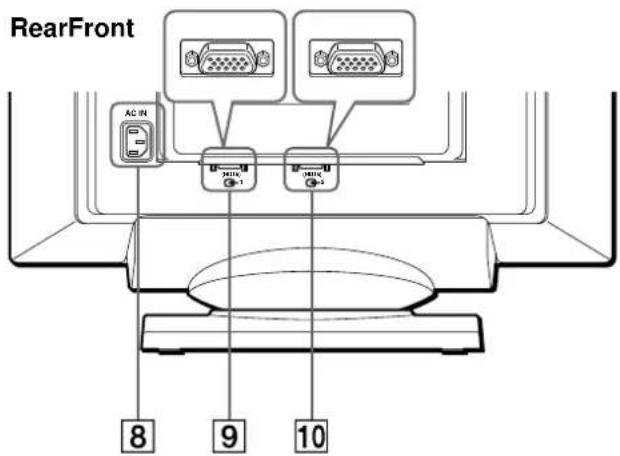

RearFront AC IN 8 9 10

9 Video input 1 connector (HD15) (←1) (page 6)

This connector inputs RGB video signals (0.700 Vp-p, positive) and sync signals.

Pin No. Signal
1	Red
2 Green(Sync on Green)
3	B	I	u	e
4 ID (Ground)
5 DDC Ground*
6 Red Ground
7 Green Ground
8 Blue Ground
9 DDC + 5V*
10 Ground
11 ID (Ground)
12 Bi-Directional Data (SDA)*
13 H. Sync
14 V. Sync
15 Data Clock (SCL)*

* DDC (Display Data Channel) is a standard of VESA.

10 Video input 2 connector (HD15) (←2) (page 6)

This connector inputs RGB video signals (0.700 Vp-p, positive) and sync signals. Pin assignment is the same as 9 described above.

Setup

This monitor works with platforms running at horizontal frequencies between 30 and 121 kHz.

Step 1: Connect your monitor to your computer

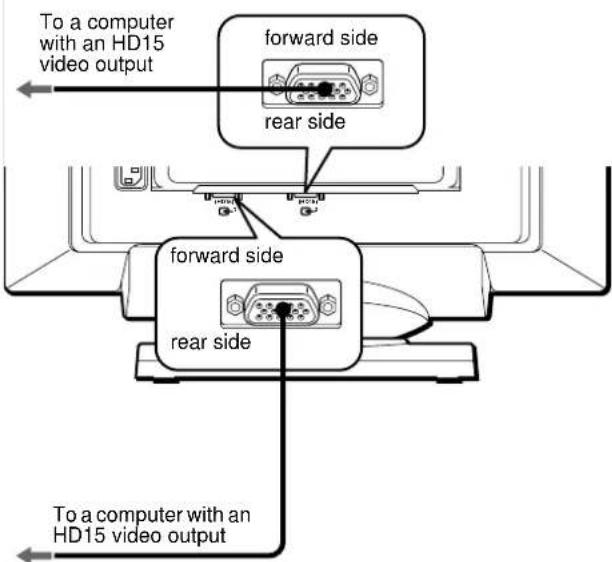

With the monitor and computer switched off, connect the video signal cable to the video input connector of the monitor and to the video output of the computer.

To a computer with an HD15 video output forward side rear side forward side rear side To a computer with an HD15 video output

Notes

• Do not touch the pins of the video signal cable connector as this might bend the pins.
• When connecting the video signal cable, check the alignment of the HD15 connector. Do not force the connector in the wrong way or the pins might bend.

Step 2: Connect the power cord

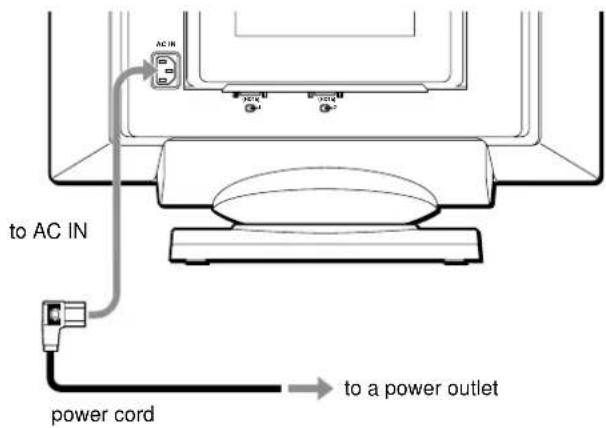

With the monitor and computer switched off, first connect the proper power cord for your local power supply to the monitor, then connect it to a power outlet.

AC IN to AC IN power cord to a power outlet

Step 3: Turn on the monitor and computer

First turn on the monitor, then turn on the computer.

The installation of your monitor is complete.

If necessary, use the monitor's controls to adjust the picture.

If no picture appears on your screen

• Check that the monitor is correctly connected to the computer.
• If NO INPUT SIGNAL appears on the screen, follow the on-screen messages (page 15).
• If you are replacing an old monitor with this model and OUT OF SCAN RANGE appears on the screen, reconnect the old monitor. Then adjust the computer's graphic board so that the horizontal frequency is between 30 – 121 kHz, and the vertical frequency is between 48 – 160 Hz.

For more information about the on-screen messages, see "Trouble symptoms and remedies" on page 16.

Selecting the on-screen menu language (LANGUAGE)

English, French, German, Spanish, Italian, Dutch, Swedish, Russian and Japanese versions of the on-screen menus are available. The default setting is English.

1 Press the button.

See page 9 for more information on using the ☐ button.

MENU EXIT SIZE/CENTER GEOMETRY CONVERGENCE SCREEN COLOR LANGUAGE OPTION

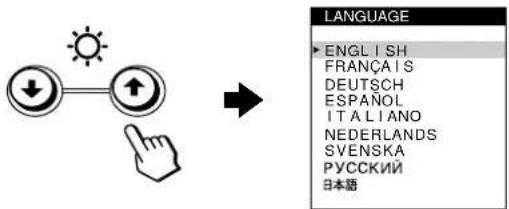

2 Press the ↓/↑ buttons to highlight 📄 LANGUAGE and press the button again.

See page 9 for more information on using the ↓/↑ buttons.

LANGUAGE ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO NEDERLANDS SVENSKA РУССКИЙ 日本語

3 Press the ↓/↑ buttons to select a language.

• ENGLISH
• FRANÇAIS: French
• DEUTSCH: German
- ESPAÑOL: Spanish
• ITALIANO: Italian
• NEDERLANDS: Dutch
• SVENSKA: Swedish
• РУССКИЙ:
• : 由本語csc

R u

To close the menu

Press the button once to return to the main MENU, and twice to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 30 seconds.

To reset to English

Press the →← (reset) button while the LANGUAGE menu is displayed on the screen.

Selecting the input signal

You can connect two computers to this monitor using the video input 1 (☐1) and video input 2 (☐2) connectors. To select one of the two computers, use the ☐ switch.

Move the → switch.

The selected connector appears on the screen for 3 seconds.

"INPUT 1" (video input 1 connector: ⬆1) or "INPUT 2" (video input 2 connector: ⬆2) appears on the screen.

Note

If no signal is input to the selected connector, NO INPUT SIGNAL appears on the screen. After a few seconds, the monitor enters the power saving mode. If this happens, switch to the other connector.

Automatically sizing and centering the picture

You can easily adjust the picture to fill the screen by pressing the ☐ (auto sizing and centering) button.

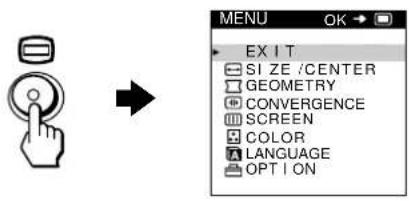

Press the button.

The picture automatically fills the screen.

Notes

• This function is intended for use with a computer that provides a full-screen picture. It may not work properly if the background color is dark or if the input picture does not fill the screen to the edges.
• Pictures with an aspect ratio of 5:4 (resolution: 1280 · 1024, 1600 · 1280) are displayed at their actual resolution and do not fill the screen to the edges.
• The displayed image moves for a few seconds when the button is pressed. This is not a malfunction.

Customizing Your Monitor

You can make numerous adjustments to your monitor using the on-screen menu.

Navigating the menu

Press the button to display the main MENU on your screen.

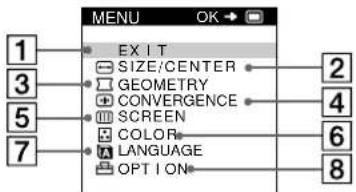

MENU EXIT SIZE/CENTER GEOMETRY CONVERGENCE SCREEN COLOR LANGUAGE OPTION

Use the ↓/↑ and □ buttons to select one of the following menus. See page 9 for more information on using the ↓/↑ and □ buttons.

1 EXIT

Select EXIT to close the menu.

2 SIZE/CENTER (page 10)

Selects the SIZE/CENTER menu to adjust the picture's size, centering or zoom.

3 GEOMETRY (page 10)

Select the GEOMETRY menu to adjust the picture's rotation and shape.

4 CONVERGENCE (page 11)

Select the CONVERGENCE menu to adjust the picture's horizontal and vertical convergence.

5 SCREEN (page 11)

Select the SCREEN menu to adjust the picture's quality. You can adjust the landing and moire cancellation effect.

6 COLOR (page 12)

Select the COLOR menu to adjust the picture's color temperature. You can use this to match the monitor's colors to a printed picture's colors.

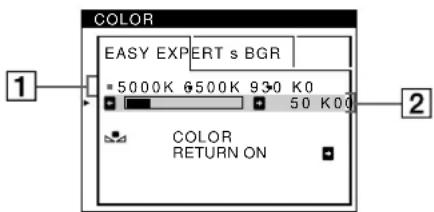

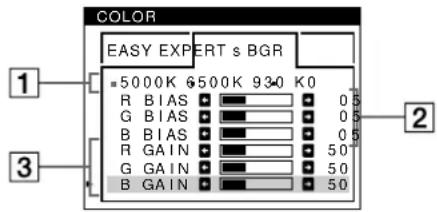

COLOR EASY EXPERT s BGR 5000K 6500K 930 K0 50 K0 COLOR RETURN ON

7 LANGUAGE (page 7)

Select LANGUAGE to choose the on-screen menu's language.

LANGUAGE ▶ ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO NEDERLANDS SVENSKA РУССКИЙ 日本語

8 OPTION (page 13)

Select OPTION to adjust the monitor's options. The options include:

• degaussing the screen
  • changing the on-screen menu position
• locking the controls

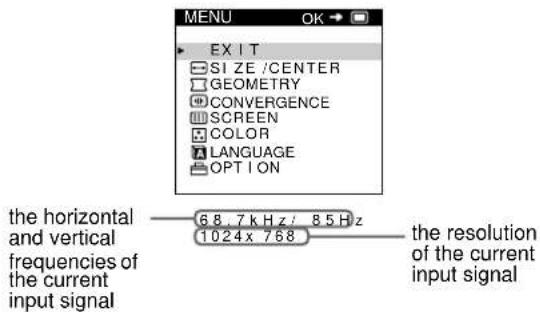

■Displaying the current input signal

The horizontal and vertical frequencies of the current input signal are displayed in the main MENU. If the signal matches one of this monitor's factory preset modes, the resolution is also displayed.

MENU EXIT SIZE/CENTER GEOMETRY CONVERGENCE SCREEN COLOR LANGUAGE OPTION the horizontal and vertical frequencies of the current input signal 6.8, 7 kHz / 8.5 Hz 1024 x 768 the resolution of the current input signal

■ Using the □, ↓/↑, and ←/→ buttons

1 Display the main MENU.

Press the Button to display the main MENU on your screen.

2 Select the menu you want to adjust.

Press the ↓/↑ buttons to highlight the desired menu. Press the □ button to select the menu item.

Diagram showing directional icons for sun, down arrow, up arrow, and hand with a right-pointing arrow to control a button

3 Adjust the menu.

Press the ↓/↑ buttons to select the desired adjustment item. Press the ←/→ buttons to make the adjustment.

4 Close the menu.

Press the button once to return to the main MENU, and twice to return to normal viewing. If no buttons are pressed, the menu closes automatically after about 30 seconds.

■ Resetting the adjustments

Press the →← (reset) button. See page 14 for more information on resetting the adjustments.

Adjusting the brightness and contrast

Brightness and contrast adjustments are made using a separate BRIGHTNESS/CONTRAST menu.

These settings are stored in memory for the signals from the currently selected input connector.

1 Press either one of the ⚙ (brightness) ↓/↑ or Ⓞ (contrast) ←/→ buttons.

The BRIGHTNESS/CONTRAST menu appears on the screen.

2 Press the ⚙ (brightness) ↓/↑ buttons to adjust the brightness (○), and Ⓞ (contrast) ←/→ buttons to adjust the contrast (∅).

If you are using the sRGB mode

If you selected the sRGB mode in the COLOR menu, the following BRIGHTNESS/CONTRAST menu appears on the screen.

For more information about using the sRGB mode, see "Adjusting the color of the picture (COLOR)" on page 12.

The menu automatically disappears after about 3 seconds.

Adjusting the size of the picture (SIZE/CENTER)

This setting is stored in memory for the current input signal.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight → SIZE/CENTER and press the □ button again.

The SIZE/CENTER menu appears on the screen.

3 First press the ↓/↑ buttons to select → for horizontal adjustment, or for vertical adjustment. Then press the ←/→ buttons to adjust the size.

Adjusting the centering of the picture (SIZE/CENTER)

This setting is stored in memory for the current input signal.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight ↔ SIZE/CENTER and press the □ button again.

The SIZE/CENTER menu appears on the screen.

3 First press the ↓/↑ buttons to select □ for horizontal adjustment, or □ for vertical adjustment. Then press the ←/→ buttons to adjust the centering.

Enlarging or reducing the picture (ZOOM)

This setting is stored in memory for the current input signal.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight → SIZE/CENTER and press the button again.

The SIZE/CENTER menu appears on the screen.

3 Press the ↓/↑ buttons to select ☑ (zoom), and press the ←/→ buttons to enlarge or reduce the picture.

Note

Adjustment stops when either the horizontal or vertical size reaches its maximum or minimum value.

Adjusting the shape of the picture (GEOMETRY)

The GEOMETRY settings allow you to adjust the rotation and shape of the picture.

The (rotation) setting is stored in memory for all input signals.

All other settings are stored in memory for the current input signal.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight □ GEOMETRY and press the □ button again.

The GEOMETRY menu appears on the screen.

3 First press the ↓/↑ buttons to select the desired adjustment item. Then press the ←/→ buttons to make the adjustment.

Select To
	rotate the picture
	expand or contract the picture sides
	shift the picture sides to the left or right
	adjust the picture width at the top of the screen
	shift the picture to the left or right at the top of the screen

Adjusting the convergence (CONVERGENCE)

The CONVERGENCE settings allow you to adjust the quality of the picture by controlling the convergence. The convergence refers to the alignment of the red, green, and blue color signals. If you see red or blue shadows around letters or lines, adjust the convergence. These settings are stored in memory for all input signals.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight CONVERGENCE and press the button again. The CONVERGENCE menu appears on the screen.
3 First press the ↓/↑ buttons to select the desired adjustment item. Then press the ←/→ buttons to make the adjustment.

Select To
	horizontally shift red or blue shadows
	vertically shift red or blue shadows
TOPV CONVER TOP	vertically shift red or blue shadows at the top of the screen
BOTV CONVER BOTTOM	vertically shift red or blue shadows at the bottom of the screen

Adjusting the quality of the picture (SCREEN)

The SCREEN settings allow you to adjust the quality of the picture by controlling the moire and landing.

• If the color is irregular at the corners of the screen, adjust the landing.
• If elliptical or wavy patterns appear on the screen, cancel the moire.

The CANCEL MOIRE and MOIRE ADJUST settings are stored in memory for the current input signal. All other settings are stored in memory for all input signals.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight 📄 SCREEN and press the ⏻ button again.

The SCREEN menu appears on the screen.

3 First press the ↓/↑ buttons to select the desired adjustment item. Then press the ←/→ buttons to make the adjustment.

Select To
□LANDING	reduce any color irregularities in the screen’s top left corner to a minimum.
□LANDING	reduce any color irregularities in the screen’s top right corner to a minimum.
□LANDING	reduce any color irregularities in the screen’s bottom left corner to a minimum.
□LANDING	reduce any color irregularities in the screen’s bottom right corner to a minimum.
○CANCEL MOIRE*	turn the moire cancellation function ON or OFF.(MOIRE ADJUST) appears in the menu when you select ON.
○MOIRE ADJUST	adjust the degree of moire cancellation until the moire is at a minimum.

• Moire is a type of natural interference which produces soft, wavy lines on your screen. It may appear due to interference between the pattern of the picture on the screen and the phosphor pitch pattern of the monitor.

Example of moire

Note

The picture may become fuzzy when CANCEL MOIRE is set to ON.

Adjusting the color of the picture (COLOR)

The COLOR settings allow you to adjust the picture's color temperature by changing the color level of the white color field. Colors appear reddish if the temperature is low, and bluish if the temperature is high. This adjustment is useful for matching the monitor's color to a printed picture's colors.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight ■ COLOR and press the button again.

The COLOR menu appears on the screen.

3 Press the / buttons to select the adjustment mode.

There are three types of adjustment modes, EASY, EXPERT and sRGB.

4 First press the ↓/↑ buttons to select the desired adjustment item. Then press the ←/→ buttons to make the adjustment.

Adjust the selected mode according to the following instructions.

EASY mode

COLOR EASY EXPERT s BGR 5000K 6500K 930 K0 50 K00 COLOR RETURN ON

1 First press the ↓/↑ buttons to select the color temperature row ①, then press the ←/→ buttons to select a color temperature.

The preset color temperatures are 5000K, 6500K, and 9300K. Since the default setting is 9300K, the whites will change from a bluish hue to a reddish hue as the temperature is lowered to 6500K and 5000K.

2 If necessary, fine tune the color temperature.

First press the ↓/↑ buttons to select the color temperature adjustment row 2, then press the ←/→ buttons to fine tune the color temperature.

If you fine tune the color temperature, the new color settings are stored in memory for each of the three color temperatures and item 1 of the on-screen menu changes as follows.

• [5000K]→[ ◯1 ]
• [6500K]→[2]
• [9300K]→[ ◎3 ]

EXPERT mode

You can make additional adjustments to the color in greater detail by selecting the EXPERT mode.

COLOR EASY EXPERT s BGR ■5000K 6500K 930 K0 R BIAS □ 0.5 G BIAS □ 0.5 B BIAS □ 0.5 R GAIN □ 50° G GAIN □ 50° B GAIN □ 50° 1 2 3

1 Press the ↓/↑ buttons to select the color temperature row ①, then press the ←/→ buttons to select a color temperature.
2 Press the ↓/↑ buttons to select the adjustment item ②, then press the ←/→ buttons to adjust the BIAS (black level).

This adjusts the dark areas of an image.

3 Press the ↓/↑ buttons to select the adjustment item ③, then press the ←/→ buttons to adjust the GAIN (white level).

This adjusts the light areas of an image.

You can adjust the R (red), G (green), B (blue) component of the input signal when making changes to items 2 and 3.

If you fine tune the color temperature, the new color settings are stored in memory for each of the three color temperatures and item 1 of the on-screen menu change as follows.

• [5000K]→[ ◯1 ]
• [6500K]→[2]
• [9300K]→[ ■3 ]

Setting the color temperature for each of the video input connectors

You can set the fine tuning of the color temperature in EASY or EXPERT mode for each of the video input connectors (INPUT 1 and INPUT 2).

1 Select the same adjustment mode and color temperature in the COLOR menu for both INPUT 1 and INPUT 2.
2 Fine tune the color temperature in each menu for INPUT 1 and INPUT 2.

The settings are stored in memory for each of the INPUT 1 and INPUT 2 connectors.

For information on how to select the connector, see page 7.

sRGB mode

The sRGB color setting is an industry standard color space protocol designed to correlate the displayed and printed colors of sRGB compliant computer products. To adjust the colors to the sRGB profile, simply select the sRGB mode in the COLOR menu. However, in order to display the sRGB colors correctly (γ=2.2, 6500K), you must set your computer to the sRGB profile and adjust the brightness (☐) and contrast (☐) to the numbers shown in the menu. For information on how to change the brightness (☐) and contrast (☐), see page 9.

Note

Your computer and other connected products (such as a printer), must be sRGB compliant.

COLOR EASY EXPERT s BGR :56 :76 FOR sRGB COLOR RETURN ON

Restoring the color from the EASY or sRGB menus

The colors of most display monitors tend to gradually lose brilliance over several years of service. The COLOR RETURN feature found in the EASY and sRGB menus allows you to restore the color to the original factory quality levels. The explanation below explains how to restore the monitor's color from the EASY menu.

1 Press the / buttons to select EASY or sRGB mode.
2 First press the ↓/↑ buttons to select 🔊 (COLOR RETURN), then press the → button.

The picture disappears while the color is being restored (about 2 seconds). After the color is restored, the picture reappears on the screen again.

Notes

- Before using this feature, the monitor must be in normal operation mode (green power indicator on) for at least 30 minutes. If the monitor goes into power saving mode, you must return the monitor to normal operation mode and wait for 30 minutes for the monitor to be ready. You may need to adjust your computer's power saving settings to keep the monitor in normal operation mode for the full 30 minutes. If the monitor is not ready, the following message will appear.

COLOR EASY EXPERT s BGR *5000K 6500K 930 K0 50 K0 COLOR RETURN AVAILABLE AFTER WARM UP

- The monitor may gradually lose its ability to perform this function due to the natural aging of the picture tube.

Additional settings (OPTION)

You can manually degauss (demagnetize) the monitor, change the menu position, and lock the controls.

1 Press the button.

The main MENU appears on the screen.

2 Press the ↓/↑ buttons to highlight ☐ OPTION and press the button again.

The OPTION menu appears on the screen.

3 Press the ↓/↑ buttons to select the desired adjustment item.

Adjust the selected item according to the following instructions.

Degaussing the screen

The monitor is automatically demagnetized (degaussed) when the power is turned on.

To manually degauss the monitor, first press the ↓/↑ buttons to select ⬆(DEGAUSS). Then press the → button.

The screen is degaussed for about 2 seconds. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.

Changing the menu's position

Change the menu's position if it is blocking an image on the screen.

To change the menu's on-screen position, first press the ↓/↑ buttons to select ☐ (OSD H POSITION) for horizontal adjustment, or ☐ (OSD V POSITION) for vertical adjustment. Then press the ←/→ buttons to shift the on-screen menu.

Locking the controls

To protect adjustment data by locking the controls, first press the ↓/↑ buttons to select O _π (CONTROL LOCK). Then press the → button to select ON.

Only the ⏻ (power) switch, EXIT, and Ⓑ CONTROL LOCK) of the ⏱PTION menu will operate. If any other items are selected, the 📂 mark appears on the screen.

To cancel the control lock

Repeat the procedure above and set CONTROL LOCK) to OFF.

Resetting the adjustments

This monitor has the following three reset methods. Use the ·s (reset) button to reset the adjustments.

Resetting a single adjustment item

Use the ☐, ↓/↑ buttons to select the adjustment item you want to reset, and press the →← (reset) button.

Resetting all of the adjustment data for the current input signal

Press the →← (reset) button when no menu is displayed on the screen.

Note that the following items are not reset by this method:
• on-screen menu language (page 7)
- adjustment mode in the COLOR menu (EASY, EXPERT, sRGB) (page 12)
• on-screen menu position (page 13)
• control lock (page 13)

Resetting all of the adjustment data for all input signals

Press and hold the (reset) button for more than two seconds.

Note

The →* (reset) button does not function when ON (CONTROL LOCK) is set to ON.

Technical Features

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption in three stages as shown below.

Power mode	Power consumption	(power) indicator
normal operation	≤ 145 W green
1 standby ≤ 15 W green and orange		alternate
2 suspend (sleep)*	≤ 15 W green and orange	alternate
3 active off** (dcep sleep)*	Approx. 1 W orange
power off 0 W off

* "Sleep" and "deep sleep" are power saving modes defined by the Environmental Protection Agency.
** When your computer enters a power saving mode, the input signal is cut and NO INPUT SIGNAL appears on the screen. After a few seconds, the monitor enters power saving mode.

Troubleshooting

Before contacting technical support, refer to this section.

If thin lines appear on your screen (damper wires)

The lines you are experiencing on your screen are normal for the Trinitron monitor and are not a malfunction. These are shadows from the damper wires used to stabilize the aperture grille and are most noticeable when the screen's background is light (usually white). The aperture grille is the essential element that makes a Trinitron picture tube unique by allowing more light to reach the screen, resulting in a brighter, more detailed picture.

Damper wires

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen.

If NO INPUT SIGNAL appears on the screen

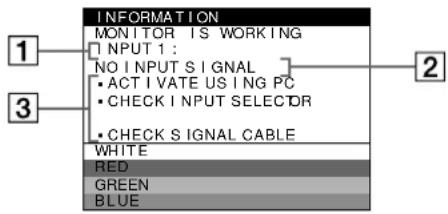

INFORMATION MONITOR IS WORKING NPUT 1: NO INPUT SIGNAL • ACTIVATE USING PC • CHECK INPUT SELECTOR • CHECK SIGNAL CABLE WHITE RED GREEN BLUE

1 The selected connector

This message shows the currently selected connector (INPUT 1 or INPUT 2).

②The input signal condition NO INPUT SINGAL

This indicates that no signal is input, or that no signal is input from the selected connector.

3 The remedies

One or more of the following messages may appear on the screen.

• If ACTIVATE USING PC appears on the screen, try pressing any key on the computer, and confirm that your computer's graphic board is completely seated in the correct bus slot.
• If CHECK INPUT SELECTOR appears on the screen, try changing the input signal (page 7).
• If CHECK SIGNAL CABLE appears on the screen, check that the monitor is correctly connected to the computer (page 6).

If OUT OF SCAN RANGE appears on the screen

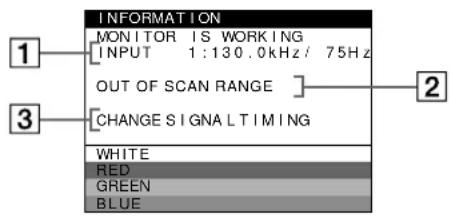

INFORMATION MONITOR IS WORKING [INPUT 1:130.0kHz / 75Hz] OUT OF SCAN RANGE CHANGE SIGNAL TIMING WHITE RED GREEN BLUE

1 The selected connector and the frequencies of the current input signal

This message shows the currently selected connector (INPUT 1 or INPUT 2). If the monitor recognizes the frequencies of the current input signal, the horizontal and vertical frequencies are also displayed.

②The input signal condition OUT OF SCAN RANGE

This indicates that the input signal is not supported by the monitor's specifications.

3 The remedies

CHANGE SIGNAL TIMING appears on the screen. If you are replacing an old monitor with this monitor, reconnect the old monitor. Then adjust the computer's graphic board to that the horizontal frequency is between 30 - 121 kHz, and the vertical frequency is between 48 - 160 Hz.

For more information, see “Trouble symptoms and remedies” on page 16.

Trouble symptoms and remedies

If the problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual. Use the self-diagnosis function (page 18) if the following recommendations do not resolve the problem.

* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a malfunction.

Symptom Check these items
No picture
If the ⏻ (power) indicator is not lit	Check that the power cord is properly connected.Check that the ⏻ (power) switch is in the “on” position.
If the NO INPUT SIGNAL message appears on the screen, or if the ⏻ (power) indicator is either orange or alternating between green and orange	Check that the → switch setting is correct (page 7).Check that the HD15 video input connector’s pins are not bent or pushed in.■Problems caused by the connected computer or other equipmentThe computer is in power saving mode. Try pressing any key on the computer keyboard.Check that the computer’s power is “on.”Check that the graphic board is completely seated in the proper bus slot.
If the NO INPUT SIGNAL and CHECK SIGNAL CABLE message appear on the screen, or if the ⏻ (power) indicator is either orange or alternating between green and orange	Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 6).Check that the HD15 video input connector’s pins are not bent or pushed in.Check that the → switch setting is correct (page 7).■Problems caused by the connected computer or other equipmentCheck that the graphic board is completely seated in the proper bus slot.
If the OUT OF SCAN RANGE message appears on the screen	■Problems caused by the connected computer or other equipmentCheck that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the frequency range to the following.Horizontal: 30 – 121 kHzVertical: 48– 160 Hz
If no message is displayed and the ⏻ (power) indicator is green or flashing orange	Use the Self-diagnosis function (page 18).
Picture flickers, bounces, oscillates, or is scrambled	Isolate and eliminate any potential sources of electric or magnetic fields such as other monitors, laser printers, electric fans, fluorescent lighting, or televisions.Move the monitor away from power lines or place a magnetic shield near the monitor.Try plugging the monitor into a different AC outlet, preferably on a different circuit.Try turning the monitor 90° to the left or right.■Problems caused by the connected computer or other equipmentCheck your graphics board manual for the proper monitor setting.Confirm that the graphics mode and the frequency of the input signal are supported by this monitor. Even if the frequency is within the proper range, some video boards may have a sync pulse that is too narrow for the monitor to sync correctly.Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy	Adjust the brightness and contrast (page 9).Degauss the monitor* (page 13).If CANCEL MOIRE is ON, the picture may become fuzzy. Decrease the moire cancellation effect or set CANCEL MOIRE to OFF (page 11).
Picture is ghosting	Eliminate the use of video cable extensions and/or video switch boxes.Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly	Press the button (page 7).Adjust the size (page 10) or centering (page 10). Note that some video modes do not fill the screen to the edges.
Edges of the image are curved	Adjust the geometry (page 10).
Wavy or elliptical pattern (moire) is visible	Set CANCEL MOIRE to ON and adjust the degree of moire cancellation until the moire is at a minimum (page 11).■Problems caused by the connected computer or other equipmentChange your desktop pattern.
Color is not uniform	Degauss the monitor* (page 13). If you place equipment that generates a magnetic field, such as a speaker, near the monitor, or if you change the direction the monitor faces, color may lose uniformity.Adjust the landing (page 11).
White does not look white	Adjust the color temperature (page 12).
Letters and lines show red or blue shadows at the edges	Adjust the convergence (page 11).
Monitor buttons do not operate (appears on the screen)	If the control lock is set to ON, set it to OFF (page 13).
COLOR RETURN function does not operate	Before using this function, the monitor must be in normal operation mode (green power indicator on) for at least 30 minutes. For more information on using the COLOR RETURN function, see page 13.Adjust the computer's power saving settings to keep the monitor in normal operation mode for more than 30 minutes.The monitor may gradually lose its ability to perform this function due to the natural aging of the picture tube.
A hum is heard right after the power is turned on	This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is automatically degaussed for two seconds.

Displaying this monitor's name, serial number, and date of manufacture.

While the monitor is receiving a video signal, press and hold the button for more than five seconds to display this monitor's information box.

If the problem persists, call your service representative and give the following information.

• Model name: GDM-5402
- Serial number
- Name and specifications of your computer and graphics board.

Example INFORMATION MODEL: GDM-5402 SER NO: 1234567 MANUFACTURED: 1999-52

Self-diagnosis function

This monitor is equipped with a self-diagnosis function. If there is a problem with your monitor or computer(s), the screen will go blank and the ⏻ (power) indicator will either light up green or flash orange. If the ⏻ (power) indicator is lit in orange, the computer is in power saving mode. Try pressing any key on the keyboard.

Pure technical line drawing of a mechanical assembly with no text or symbols

(power) indicator

If the ⏻ (power) indicator is green

1 Remove any plugs from the video input 1 and 2 connectors, or turn off the connected computer(s).
2 Press the ⏻ (power) button twice to turn the monitor off and then on.
3 Press the button for 2 seconds before the monitor enters power saving mode.

If all four color bars appear (white, red, green, blue), the monitor is working properly. Reconnect the video input cables and check the condition of your computer(s).

If the color bars do not appear, there is a potential monitor failure. Inform your service representative of the monitor's condition.

If the ⏻ (power) indicator is flashing orange

Press the ⏻ (power) button twice to turn the monitor off and then on.

If the ⏻ (power) indicator lights up green, the monitor is working properly.

If the ⏻ (power) indicator is still flashing, there is a potential monitor failure. Count the number of seconds between orange flashes of the ⏻ (power) indicator and inform your service representative of the monitor's condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and video board.

Specifications

CRT 0.24 mm aperture grille pitch

21 inches measured diagonally

90-degree deflection

FD Trinitron

Viewable image size Approx. 403.8 · 302.2 mm (w/h)

(16 · 12 inches)

19.8" viewing image

Maximum resolution Horizontal: 1600 dots

Vertical: 1200 lines

Standard image area Approx. 388 · 291 mm (w/h)

(15 ^3 /8 · 11 ^1 /2 inches)

or

Approx. 364 · 291 mm (w/h)

(14 ^3 /8 · 11 ^1 /2 inches)

Deflection frequency* Horizontal: 30 to 121 kHz

Vertical: 48 to 160 Hz

AC input voltage/current 100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A

Power consumption Approx. 145 W

Dimensions Approx. 498 · 491 · 478 mm (w/h/d)

(19^5/8 · 19^3/8 · 18^7/8 inches)

Mass Approx. 32 kg (70 lb 9 oz)

Plug and Play DDC1/2B/2Bi, GTF**

* Recommended horizontal and vertical timing condition

- Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8~ s , whichever is larger.

• Horizontal blanking width should be more than 2.3 μsec.

• Vertical blanking width should be more than 450 μsec.

** If the input signal is Generalized Timing Formula (GTF) compliant, the GTF feature of the monitor will automatically provide an optimal image for the screen.

Design and specifications are subject to change without notice.

Table des Matières

Précautions....4

TCO'99 Eco-document ....i

Three line drawings of different types of electrical plugs (no text or symbols)

ArrièreAvant A/C IN B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X V W

Diagram showing a sun icon connected to a directional arrow with a hand pointing at it, followed by a right-hand rule to press a button.

3 Réglez le menu.

MANUFACTURED : 1999-52

Pure technical line drawing of a mechanical assembly with no text or symbols

TCO'99 Eco-document ....i

Diagram showing a hand pressing a button with a sun icon, illustrating the process to press or click.

• [5000K]→[ ]
• [6500K]→[2]
• [9300K]→[ ☐β ]

Modus KOMPLEX

MANUFACTURED : 1999-52

50 - 60 Hz, 2,0 - 1,0 A

Plug and Play DDC1/2B/2Bi, GTF**

TCO'99 Eco-document .....i

Diagram showing a sun icon interacting with two circular buttons, followed by a hand pointing at the button and a close-up of the screen.

3 Ajuste el menú.

4 Cierre el menú.

MANUFACTURED : 1999-52

Pure technical line drawing of a mechanical assembly with no text or symbols

Plug and Play DDC1/2B/2Bi, GTF**

TCO'99 Eco-document....i

Three line drawings of different types of electrical plugs (no text or symbols)

da 100 a 120 V CA da 200 a 240 V CA solo 240 V CA

MENU USC I TA D IMENS / CENTRO GEOMETR I A CONVERGENZA SCHERMO COLORE LANGUAGE OPZ I ONI

MENU 1 USC I TA 3 D IMENS / CENTRO 5 GEOMETR I A 7 CONVERGENZA SCHERMO COLORE LANGUAGE OPZ I ON I 2 4 6 8

Diagram showing a hand pressing a button with a sun icon, illustrating the right-hand rule to press or click.

• [5000K]→[ ]
• [6500K]→[2]
• [9300K]→[ ■■ β ]

Pure technical line drawing of a mechanical assembly with no text or symbols

Plug and Play DDC1/2B/2Bi, GTF**

ECOLOGY ENERGY EMISSIONS TOG 99 CO 99

■Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimydighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

(continued)

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
