USER MANUAL GDM90W01T5 SONY

Color Graphic Display

GDM-90W01T

(22.5" viewing image)

Operating Instructions EN

Mode d'emploi F

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your service representative regarding this product.

Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing to qualified personnel only.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 · 18 AWG

Length Maximum 15 feet

Rating Minimum 7A, 125V

NOTICE

This monitor complies with the TCO 1992 guidelines for power saving when used with a computer equipped with VESA Display Power Management Signaling (DPMS).

This monitor is Energy Star Compliant when used with a computer equipped with VESA Dispaly Power Management Signaling (DPMS). As an International ENERGY STAR Partner, we have determined that this product meets the International ENERGY STAR Program for energy efficiency.

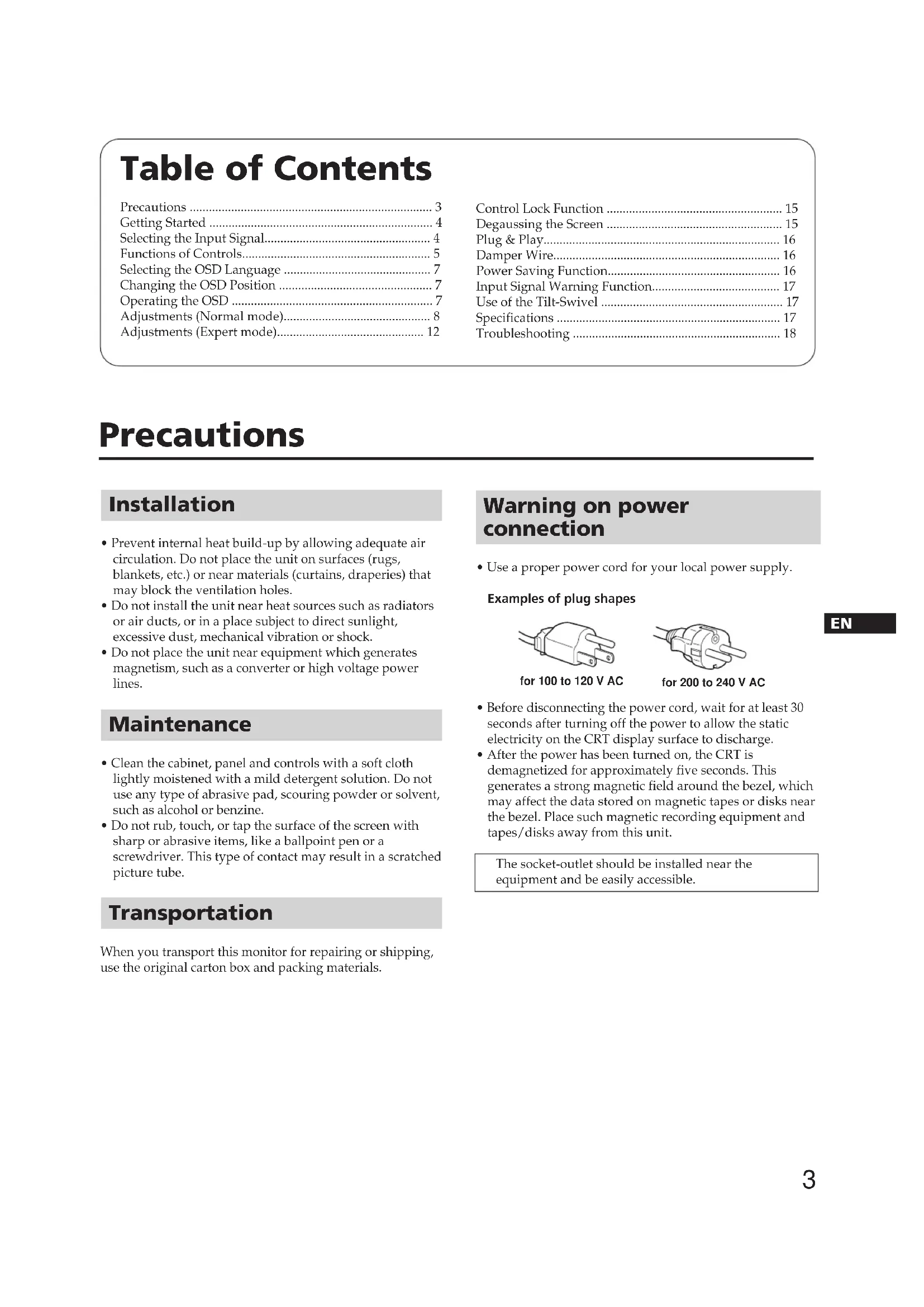

Table of Contents

Precautions 3

Getting Started 4

Selecting the Input Signal.... 4

Functions of Controls.... 5

Selecting the OSD Language 7

Changing the OSD Position 7

Operating the OSD 7

Adjustments (Normal mode)....8

Adjustments (Expert mode).... 12

Control Lock Function 15

Degaussing the Screen 15

Plug & Play.... 16

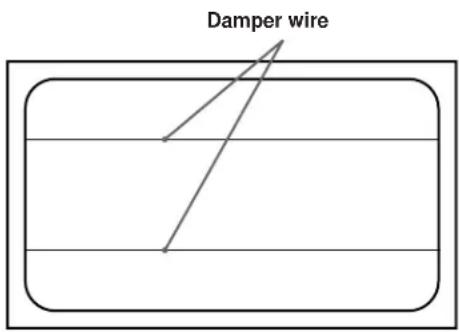

Damper Wire....16

Power Saving Function.... 16

Input Signal Warning Function.... 17

Use of the Tilt-Swivel 17

Specifications 17

Troubleshooting 18

Precautions

Installation

• Prevent internal heat build-up by allowing adequate air circulation. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes.
• Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
• Do not place the unit near equipment which generates magnetism, such as a converter or high voltage power lines.

Maintenance

• Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items, like a ballpoint pen or a screwdriver. This type of contact may result in a scratched picture tube.

Transportation

When you transport this monitor for repairing or shipping, use the original carton box and packing materials.

Warning on power connection

- Use a proper power cord for your local power supply.

Examples of plug shapes

for 100 to 120 V AC

for 200 to 240 V AC

• Before disconnecting the power cord, wait for at least 30 seconds after turning off the power to allow the static electricity on the CRT display surface to discharge.
• After the power has been turned on, the CRT is demagnetized for approximately five seconds. This generates a strong magnetic field around the bezel, which may affect the data stored on magnetic tapes or disks near the bezel. Place such magnetic recording equipment and tapes/disks away from this unit.

The socket-outlet should be installed near the equipment and be easily accessible.

Before using this monitor, check that the following items are included in your package:

• Monitor (1)
  • This operating instructions (1)

This monitor will sync to platforms running at horizontal frequencies between 30 and 96 kHz.

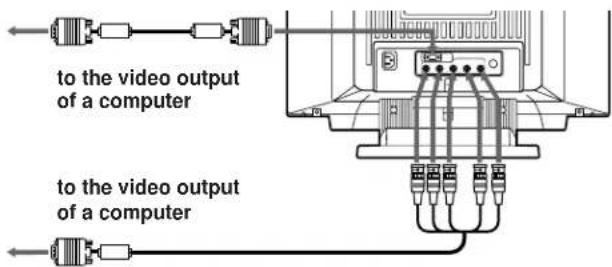

Step 1: Connect the monitor to the computer.

With the computer switched off, connect the video signal cable to the video output of the computer.

Note

Do not touch the pins of the video signal cable.

to the video output of a computer to the video output of a computer

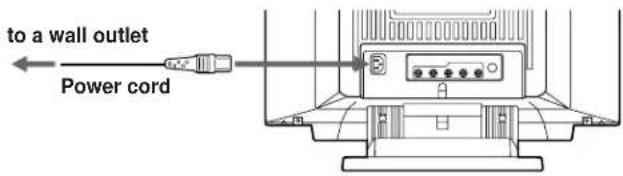

Step 2: Connect the power cord.

With the monitor switched off, connect the proper power cord for your local power supply to the monitor and the other end to the power outlet.

to a wall outlet Power cord

Step 3: Turn on the monitor and computer.

Step 4: If necessary, adjust the user controls according to your personal preference.

The installation of your monitor is complete. Enjoy your monitor.

Selecting the Input Signal

This monitor has two signal input connectors and can connect two computers. When the power of both computers is on, select the signal you want to input as follows.

1 Turn on power of the monitor and the computer.

2 Select the input signal.

To input the signal from the computer connected to the HD15 connector

Set the input select switch to →1.

To input the signal from the computer connected to the 5 BNC's connector

Set the input select switch to 2.

If only one computer is connected or turned on Set the input select switch to ⏻ (center position). The input signal is automatically selected.

3 If necessary, adjust the user controls according to your preference on pages 8 to 14.

When you set the input select switch to ⏻ and connect computers to both connectors

If you turn on or restart the computer you want to input a signal from, or the computer is in power saving mode, the monitor may automatically select another computer's signal. This is because no signal is input to the monitor at that moment. If this happens, select the signal using the input select switch.

See the given pages for further description.

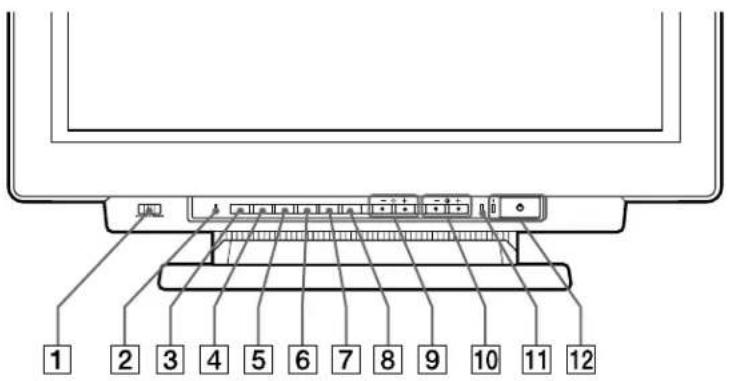

Front

1 2 3 4 5 6 7 8 9 10 11 12

1 Input select switch (page 4)

Selects the input signal.

2 →←(reset) button (pages 8 - 14)

Resets the adjustment to the factory preset levels.

3 (option) button (pages 7, 8, 12, 15)

Displays the "OPTION" OSD (On Screen Display).

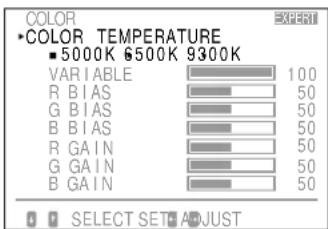

4 color) button (page 11,14)

Displays the "COLOR" OSD to adjust color temperature.

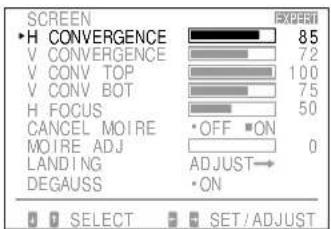

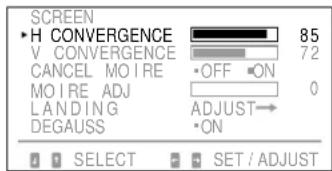

5 (screen) button (pages 10, 13 - 15)

Displays the "SCREEN" OSD to adjust the vertical and horizontal convergence, etc.

6 □(geometry) button (pages 9, 10, 13)

Displays the "GEOMETRY" OSD to adjust the picture rotation and pincushion, etc.

7 (size) button (page 9, 13)

Displays the "SIZE" OSD to adjust the picture size.

8 (center) button (page 9, 13)

Displays the "CENTER" OSD to adjust the picture position.

9 (brightness) -/+ (↓/↑) buttons (pages 7-15)

Adjust the picture brightness.

Act as the -/+(/) buttons when adjusting other items.

10 ⬆ (contrast) -/+ (←/→) buttons (pages 7 - 15)

Adjust the contrast.

Act as the -/+(/) buttons when adjusting other items.

11 power saving indicator (page 16)

Lights up when the monitor is in the Power Saving Mode.

12 ⏻ power switch and indicator (page 16)

Turns the monitor on or off. The indicator lights up when the monitor is turned on.

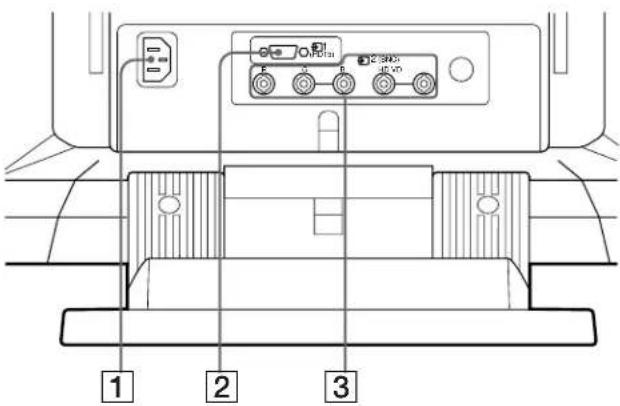

Rear

1 2 3

1 AC IN connector

Plug in an AC power cord.

2 Video input 1 connector (HD15)

Inputs RGB video signal (0.714 Vp-p, positive) and SYNC signal.

Pin No.	Signal	Pin No.	Signal
1	Red	8	Blue Ground
2	Green(Composite Sync on Green)	9	DDC + 5V*
		10	Ground
		11	Ground
3	Blue	12	Bi-Directional Data (SDA)*
4	Ground
5	DDC Ground*	13	H. Sync
6	Red Ground	14	V. Sync
7	Green Ground	15	Data Clock(SCL)*

* Display Data Channel (DDC) Standard by VESA

3 Video input 2 connector (5 BNC)

Inputs RGB video signal (0.714 Vp-p, positive) and SYNC signal.

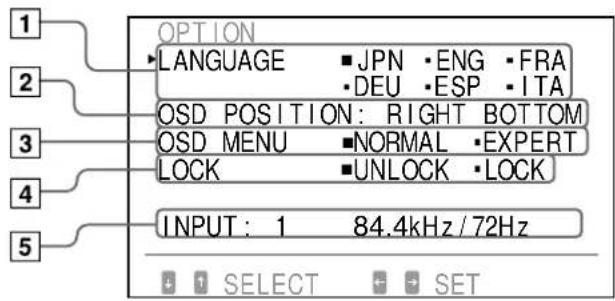

OPTION OSD

The "OSD" is the abbreviation of "On Screen Display".

OPTION LANGUAGE ■JPN •ENG •FRA •DEU •ESP •ITA OSD POSITION: RIGHT BOTTOM OSD MENU ■NORMAL •EXPERT LOCK ■UNLOCK •LOCK INPUT: 1 84.4kHz / 72Hz SELECT SET

1 LANGUAGE (page 7)

Selects an OSD language, Japanese, English, French, German, Spanish, or Italian.

2 OSD POSITION (page 7)

Changes the OSD position to be displayed.

3 OSD MENU (pages 8, 12)

Selects the adjustment mode, normal or expert.

4 LOCK (page 15)

Turns on or off the control lock function.

5 INPUT (pages 4, 17)

Shows the current active connector, the 13W3 connector or the HD15 connector, and the signal frequency.

Selecting the OSD Language

Japanese, English, French, German, Spanish, or Italian versions of OSD are available.

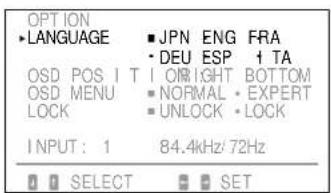

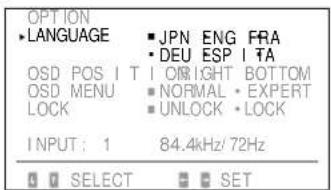

1 Press the button.

The "OPTION" OSD appears.

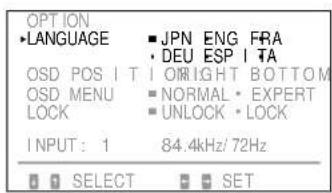

2 Press the ⚙↓/↑ button to select "LANGUAGE."

OPTION •LANGUAGE JPN ENG FRA • DEU ESP ITA OSD POS I T I ORLIGHT BOTTOM OSD MENU NORMAL • EXPERT LOCK • UNLOCK • LOCK INPUT: 1 84.4kHz/72Hz SELECT SET

3 Press the 0←/→ button to select the desired language.

JPN: Japanese, ENG: English, FRA: French, DEU: German, ESP: Spanish, ITA: Italian

The "OPTION" OSD automatically disappears after about 30 seconds. To turn off the OSD, press the □ button again.

Changing the OSD Position

You can change the OSD position, for example, when you want to adjust the picture behind the OSD.

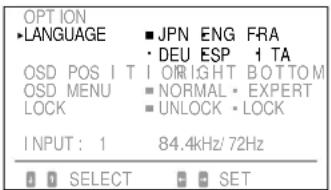

1 Press the button.

The "OPTION" OSD appears.

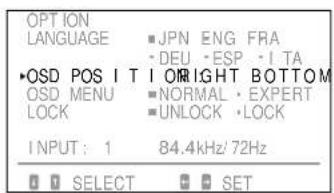

2 Press the ⬤↓/↑ button to select "OSD POSITION."

OPTION LANGUAGE •JPN ENG FRA •DEU •ESP •ITA •OSD POS IT I ORIGHT BOTTOM OSD MENU •NORMAL • EXPERT LOCK •UNLOCK • LOCK INPUT: 1 84.4kHz/72Hz SELECT SET

3 Press the 0←/→ button to move the OSD to the desired position.

The "OPTION" OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ☐ button again.

Operating the OSD

Select a parameter using the ⚙↓/↑ buttons in the OSD which parameters are arranged in vertical row, and adjust or select the setting of the selected parameter using the Ⓞ←/→ buttons.

To select a parameter to adjust or select the setting, press ⚙↓ or ↑ button.

The green ▶ mark goes to the selected parameter and the parameter becomes yellow.

To adjust or select the settings of the selected parameter, press ⏻← or → button.

When adjusting, the bar length and the figure increase or decrease.

When selecting the setting, the green ■ goes to the selected setting.

You can adjust the picture to your preference.

This monitor has two levels of adjustment mode, normal and expert.

Before adjusting

• Connect the monitor and the computer, turn them on and feed the signal to the monitor.
• Select "LANGUAGE" in the "OPTION" OSD, then select "ENG" (English) on page 7.

Selecting the normal mode

1 Press the button.

The "OPTION" OSD appears.

OPTION •LANGUAGE ■JPN ENG FRA •DEU ESP 1 TA OSD POS I T | OIRIGHT BOTTOM OSD MENU LOCK ■NORMAL • EXPERT ■UNLOCK • LOCK INPUT: 1 84.4kHz/72Hz SELECT SET

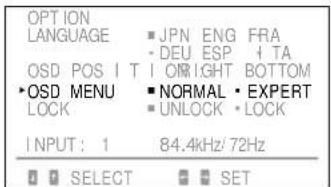

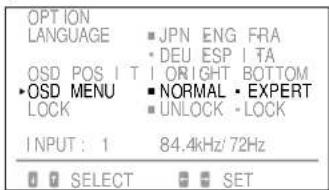

2 Press the ⬤/↑ button to select "OSD MENU."

The "OSD MENU" becomes yellow.

OPTION LANGUAGE JPN ENG FRA - DEU ESP I TA OSD POS I T | ONRIGHT BOTTOM • OSD MENU NORMAL • EXPERT LOCK UNLOCK • LOCK INPUT: 1 84.4kHz/ 72Hz SELECT SET

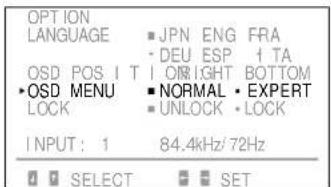

3 Press the ⏻←/→ button to select "NORMAL."

Move the green ■ to "NORMAL".

OPTION LANGUAGE JPN ENG FRA DEU ESP 1 TA OSD POS I T | ORI:IGHT BOTTOM • OSD MENU NORMAL • EXPERT LOCK UNLOCK • LOCK INPUT: 1 84.4kHz/72Hz SELECT SET

The "OPTION" OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ☐ button again.

Adjusting the picture brightness

The adjustment data becomes the common setting for all input signals received.

1 Press the Ⓧ (brightness) ↓/↑ button.

The "BRIGHTNESS/CONTRAST" OSD appears.

BRI GHTNESS / CONTRAST 23 10

2 Press the ⚙↓/↑ button again to adjust picture brightness.

↓ . . . for less brightness
↑ . . . for more brightness

The OSD automatically disappears after about 3 seconds.

To reset, press the ⋯ (reset) button while the OSD is on.

The brightness and contrast are both reset.

Adjusting the picture contrast

The adjustment data becomes the common setting for all input signals received.

1 Press the Ⓐ (contrast) ←/→ button.

The "BRIGHTNESS/CONTRAST" OSD appears.

BRI GHTNESS / CONTRAST 23 10

2 Press the ⏻←/→ button again to adjust picture contrast.

← ... for less contrast
→ ... for more contrast

The OSD automatically disappears after about 3 seconds.

To reset, press the ⋯ (reset) button while the OSD is on. The brightness and contrast are both reset.

Adjusting the picture centering

The adjustment data becomes the individual setting for each input signal received.

1 Press the 📞 button.

The "CENTER" OSD appears.

CENTER 23 10

2 For vertical adjustment

Press the ⚙️ ↓/↑ buttons.

↓... to move down ↑... to move up

For horizontal adjustment

Press the Ⓐ ←/→ buttons.

← ... to move left → ... to move right

The OSD automatically disappears after about 10 seconds. To turn off the OSD, press the 📞 button again.

To reset, press the (reset) button while the OSD is on. The horizontal and vertical centerings are both reset.

Adjusting the picture size

The adjustment data becomes the individual setting for each input signal received.

1 Press the 📋button.

The "SIZE" OSD appears.

SIZE 23 10

2 For vertical adjustment

Press the ⚙️↓/↑ buttons.

↓ ... to decrease ↑ ... to increase

For horizontal adjustment

Press the ⏻ ←/→ buttons.

← ... to decrease → ... to increase

The OSD automatically disappears after about 10 seconds. To turn off the OSD, press the ⏻ button again.

To reset, press the (reset) button while the OSD is on. The horizontal and vertical sizes are both reset.

Adjusting the picture rotation

The adjustment data becomes the common setting for all input signals received.

1 Press the □□ button.

The "GEOMETRY" OSD appears.

GEOMETRY 23 10

2 Press the ⚙️/↑ buttons.

↓ ... to rotate counterclockwise ↑ ... to rotate clockwise

The OSD automatically disappears after about 10 seconds. To turn off the OSD, press the ☐ button again.

To reset, press the (reset) button while the OSD is on. The picture rotation and the pincushion settings are both reset.

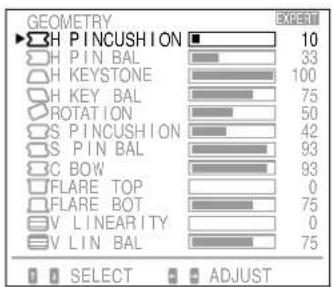

Adjusting the pincushion

The adjustment data becomes the individual setting for each input signal received.

1 Press the □□ button.

The "GEOMETRY" OSD appears.

GEOMETRY 23 10

2 Press the ①←/→ button so that the picture edges become straight.

The OSD automatically disappears after about 10 seconds. To turn off the OSD, press the ☐ button again.

To reset, press the →← (reset) button while the OSD is on. The picture rotation and the pincushion settings are both reset.

Adjusting the screen

1 Press the button.

The "SCREEN" OSD appears.

SCREEN •H CONVERGENCE 85 V CONVERGENCE 72 CANCEL MOIRE •OFF •ON MOIRE ADJ 0 LANDING ADJUST→ DEGAUSS •ON SELECT SET/ADJUST

2 Press the ⬤↓/↑ button to select the parameter you want to adjust referring to the following.

The selected parameter turns yellow.

The OSD automatically disappears after about 30 seconds. To turn off the OSD, press the 📄 button again.

To reset, press the (reset) button while the OSD is on. The selected parameter is reset.

Convergence

The adjustment data becomes the common setting for all input signals received.

Press the ⏻←/→ button so that the red or blue shadow disappears.

"H CONVERGENCE" (Horizontal convergence)

← ... to move Red to the left and Blue to the right
→ ... to move Red to the right and Blue to the left

"V CONVERGENCE" (Vertical convergence)

← ... to move Red down and Blue up

→ ... to move Red up and Blue down

Canceling the Moire

The adjustment data becomes the individual setting for each input signal received.

Press the ⬆←/→ button to select "ON" for "CANCEL MOIRE."

If the picture becomes unclear

The picure may become unclear by canceling moire.

1 Press the ⚙️/↑ button to select "MOIRE ADJ."

2 Press the ①←/→ button to adjust beginning from 0 until the moire is minimum.

Landing

Correct when the color is not uniform due to influence from the earth's magnetizm.

The adjustment data becomes the common setting for all input signals received.

First, degauss the screen, then display an entirely white picture for more than 20 minutes before the adjustment to adjust more accurately.

1 Press the ⚙↓/↑ button to select "DEGAUSS."

2 Press the ⏻→ button.

The screen is degaussed for about five seconds.

3 Press the ⚙️/↑ button to select "LANDING."

4 Press the ⏻→ button.

The "LANDING" OSD appears on the screen.

LANDING • SCREEN MENU → CENTER TOP/ BOT 25 LEFT TOP 85 RIGHT TOP 72 RIGHT BOTTOM 0 LEFT BOTTOM 0 0 SELECT ADJUST

5 Press the ⬇↓/↑ button to select the position, and adjust by pressing the Ⓞ←/→ button.

To return to the "SCREEN" OSD, select "SCREEN MENU →" and press the ⬆→ button.

To reset, press the ⋯ (reset) button while the OSD is on. The selected parameter is reset.

Adjusting the color temperature

The adjustment data becomes the common setting for all input signals received.

1 Press the button.

The "COLOR" OSD appears.

COLOR • COLOR TEMPERATURE ■5000K 6500K 9300K VARIABLE SELECT SET ADJUST

2 Press the ⏻←/→ buttons to select a color temperature.

The factory settings are: 5000K, 6500K, 9300K

Adjusting the color temperature

Press the ⚙↓/↑ button to select "VARIABLE," and adjust by pressing the Ⓞ←/→ button.

The figure of the adjusted color temperature changes.

The OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ☐ button again.

To reset, press the (reset) button while the OSD is on. The selected color tempetarure is reset. The adjustments you made in the expert mode (page 14) are also reset.

Resetting to the factory-preset levels

1 Press the button of the OSD you want to reset to the factory setting.
2 When the parameters are arranged in vertical row in the OSD, select a parameter you want to reset by pressing the ⚙️/↑ buttons.
3 Press the →← (reset) button.

Resetting all adjustment data

When there is no OSD displayed, press and hold the (reset) button for more than two seconds.

All adjustment data including the brightness and contrast are reset to factory-preset levels.

Resetting the picture size, position, moire, and geometry\* at the same time

When there is no OSD displayed, press and hold the (reset) button for one second.

The above items of the current input signal are reset to factory-preset levels.

* The "Rotation" adjustment (pages 9, 13) is not reset.

You can adjust more in detail in the expert mode than in the normal mode.

Before adjusting

• Connect the monitor and the computer, turn them on and feed the signal to the monitor.
• Select "LANGUAGE" in the "OPTION" OSD, then select "ENG" (English) on page 7.

Selecting the expert mode

1 Press the button.

The "OPTION" OSD appears.

OPTION •LANGUAGE ■JPN ENG FRA ■DEU ESP I TA OSD POS I T | ORI:IGHT BOTTOM OSD MENU ■NORMAL • EXPERT LOCK ■UNLOCK • LOCK INPUT: 1 84.4kHz/ 72Hz ○ ○ SELECT □ ● SET

2 Press the ⚙↓/↑ button to select "OSD MENU."

The "OSD MENU" turns yellow.

OPTION LANGUAGE • OSD POS I T I ORIGHT BOTTOM • OSD MENU LOCK • JPN ENG FRA • DEU ESP I TA • NORMAL • EXPERT • UNLOCK • LOCK INPUT: 1 84.4kHz/72Hz SELECT SET

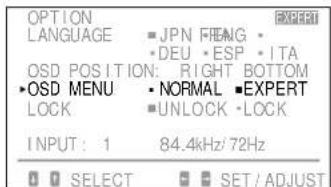

3 Press the ⏻←/→ button to select "EXPERT."

Move the green ■ to EXPERT.

EXPERT appears at the top right corner of the OSD in Expert mode.

OPTION LANGUAGE • JPN FRENG • • DEU • ESP • ITA OSD POSITION: RIGHT BOTTOM • OSD MENU • NORMAL • EXPERT LOCK • UNLOCK • LOCK INPUT: 1 84.4kHz/72Hz ○ SELECT ○ SET/ADJUST

The "OPTION" OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ☐ button again.

Adjusting the picture brightness and contrast

The adjustment data becomes the common setting for all input signals received.

1 Press the ⏻/↑ button or the Ⓞ←/→ button. The "BRIGHTNESS/CONTRAST" OSD appears.

BRIGHTNESS / CONTRAST • ▲ CONTRAST ○ BRI GHTNESS PRESET -1 2 -3 10 23 SELECT SET ▼ ADJUST

2 Press the ⏻↓/↑ button to select "PRESET" and the ⏻←/→ button to select a preset number.

When you want to use the monitor later in the same condition, just select the same preset number.

3 Press the ⬇↓/↑ button or the ⬆←/→ button to adjust the brightness or contrast.

BRIGHTNESS:

Adjusts the picture brightness.

CONTRAST:

Adjusts the picture contrast.

The OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ⏻↓/↑ or ⏻←/→ button again.

To reset, press the (reset) button while the OSD is on. The selected preset number is reset.

Adjusting the picture centering and size

The adjustment data becomes the individual setting for each input signal received.

1 Press the 🔒 button or the 🔒 button. The "CENTER/SIZE" OSD appears.

CENTER/ SIZE H CENTER V CENTER H SIZE V SIZE 10 10 23 23 SELECT ADJUST

2 Press the ⬇↓/↑ button to select and the ⏻←/→ button to adjust the parameter.

H CENTER:

Adjusts the picture position in horizontal direction.

V CENTER:

Adjusts the picture position in vertical direction.

H SIZE:

Adjusts the picture size in horizontal direction.

V SIZE:

Adjusts the picture size in vertical direction.

The OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ⏻ or 📊 button again.

To reset, press the ⋯ (reset) button while the OSD is on. The selected parameter is reset.

Adjusting the picture rotation and the pincushion

The adjustment data becomes the individual setting for each input signal received.

1 Press the □□ button.

The "GEOMETRY" OSD appears.

GEOMETRY H PIN CUSHION 10 H PIN BAL 33 H KEYSTONE 100 H KEY BAL 75 ROTATION 50 S PIN CUSHION 42 S PIN BAL 93 C BOW 93 FLARE TOP 0 FLARE BOT 75 V LINEARITY 0 V LIN BAL 75 SELECT ADJUST

2 Press the ⚙ ↓/↑ button to select and the Ⓞ ←/→ button to adjust the parameter.

H PINCUSHION/ H PIN BAL:

Corrects the picture distortion of the picture edges.

H KEYSTONE:

Corrects the difference of picture size at the top and bottom.

H KEY BAL:

Corrects the imbalance of picture position at the top and bottom.

ROTATION:

Corrects the picture rotation.

S PINCUSHION/ SPIN BAL/ C BOW:

Corrects the wavy distortion of the picture edges.

FLARE TOP/ FLARE BOT:

Corrects the flare distortion of the picture at the top and bottom.

Corrects the vertical linearity and the vertical linearity balance.

The OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ☐ button again.

To reset, press the ⋯ (reset) button while the OSD is on. The selected parameter is reset.

Adjusting the screen

1 Press the button.

The "SCREEN" OSD appears.

SCREEN • H CONVERGENCE 85 V CONVERGENCE 72 V CONV TOP 100 V CONV BOT 75 H FOCUS 50 CANCEL MOIRE • OFF • ON MOIRE ADJ 0 LANDING ADJUST→ DEGAUSS • ON 0 SELECT SET/ADJUST

2 Press the ⬇↓/↑ button to select and the Ⓞ←/→ button to adjust the parameter.

H CONVERGENCE/V CONVERGENCE:

Adjusts the horizontal convergence and the vertical convergence.

The adjustment data becomes the common setting for all input signals received.

V CONV TOP/V CONV BOT:

Adjusts the vertical convergence at the top and bottom of the screen.

The adjustment data becomes the common setting for all input signals received.

H FOCUS:

Adjusts the horizontal focusing.

The adjustment data becomes the common setting for all input signals received.

(continued)

CANCEL MOIRE:

Cancels the moire when "ON" is selected.

The adjustment data becomes the individual setting for each input signal received.

MOIRE ADJ:

Reduces fuzziress of the picture caused by canceling moire.

Adjust beginning from 0 until the moire is minimum.

The adjustment data becomes the individual setting for each input signal received.

LANDING:

See "Landing" on page 10.

The adjustment data becomes the common setting for all input signals received.

DEGAUSS:

See "Degaussing the screen" on page 15.

The OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ⏻ button again.

To reset, press the (reset) button while the OSD is on. The selected parameter is reset.

Adjusting the color

The adjustment data becomes the common setting for all input signals received.

1 Press the button.

The "COLOR" OSD appears.

COLOR • COLOR TEMPERATURE ■ 5000K 6500K 9300K VARIABLE 100 R BIAS 50 G BIAS 50 B BIAS 50 R GAIN 50 G GAIN 50 B GAIN 50 SELECT SET·ADJUST

2 Press the ⬆←/→ button to select the color temperature to adjust, 5000, 6500 or 9300.

3 Press the ⚙↓/↑ button to select and the Ⓞ←/→ button to adjust the parameter.

VARIABLE:

Adjusts the color selected in step 2 to the desired color temperature. The figure of the selected color temperature changes.

R BIAS/G BIAS/B BIAS:

Adjusts the black level of each signal. “++” appears at the right shoulder of the adjusted color temperature.

R GAIN/G GAIN/B GAIN:

Adjusts the white level of each signal. “++” appears at the right shoulder of the adjusted color temperature. The OSD automatically disappears after about 30 seconds. To turn off the OSD, press the ☐ button again.

To reset all parameters of a particular color temperature

Select the color temperature in step 2, and then press the (reset) button. All parameters of the color temperature are reset and “++” at the right shoulder disappears.

To reset a particular parameter of a particular color temperature

Select the parameter in step 3, and then press the (reset) button. Only the selected parameter of the color temperature is reset.

Resetting to the factory-preset levels

Reset in the same way as described in "Resetting to the factory-preset levels" on page 11.

Control Lock Function

The control lock function disables all the buttons on the front panel except the ⏻ (power) switch, □ button and input select switch.

1 Press the button.

The "OPTION" OSD appears.

OPTION •LANGUAGE ■JPN ENG FRA • DEU ESP 1 TA OSD POS I T | ORI:IGHT BOTTOM OSD MENU ■ NORMAL • EXPERT LOCK ■ UNLOCK • LOCK INPUT : 1 84.4kHz/ 72Hz SELECT SET

2 Press the ⚙↓/↑ button to select "LOCK."
3 Press the ⏻←/→ button to select "LOCK."

The "OPTION" OSD automatically disappears after about 30 seconds.

To turn off the OSD, press the ☐ button again.

Once you select "LOCK," you cannot select other item on the "OPTION" OSD using the ⚙️↓/↑ button.

If you press any button other than the ⏻ (power) switch,

☐ button and input select switch, the ☐ mark appears on the screen.

To cancel the control lock

Press the Ⓐ ←/→ button to select "UNLOCK."

Note

Use the control lock function only when necessary.

Degaussing the Screen

The screen of the monitor is automatically degaussed when the power is turned on (page 3).

You can degauss manually.

1 Press the 📄 button.

The "SCREEN" OSD appears.

SCREEN •H CONVERGENCE 85 V CONVERGENCE 72 CANCEL MOIRE •OFF •ON MOIRE ADJ 0 LANDING ADJUST→ DEGAUSS •ON SELECT SET/ADJUST

2 Press the ⚙️ ↓/↑ button to select "DEGAUSS."
3 Press the Ⓞ → button.

The screen is degaussed for about five seconds.

Plug & Play

This monitor complies with the DDC1, DDC2B and DDC2AB which are the Display Data Channel (DDC) standards of VESA.

When a DDC1 host system is connected, the monitor synchronizes with the V. CLK in accordance with the VESA standards and outputs the EDID (Extended Display Identification Data) to the data line.

When a DDC2B or DDC2AB host system is connected, the monitor automatically switches to each communication.

DDC is a trademark of Video Electronics Standard Association.

Damper Wire

Using a white background, very thin horizontal lines on the screen are visible as shown below. These lines are damper wires.

The Trinitron tube has a vertically striped Aperture Grill inside. The Aperture Grille allows more light to pass through to the screen giving the Trinitron CRT more color and brightness.

These damper wires are attached to the Aperture Grille to prevent vibration of the Aperture Grille wire so that the screen image is constantly stable.

Damper wire

Power Saving Function

This monitor is capable of three states of reduced power consumption. By sensing the absence of video signals and one or both sync signals coming from the host computer, it will reduce power consumption as follows.

	Power consumption state	Power consumption	Recovery time	power saving indicator	power indicator
1	Normal operation	≤ 200 W	—	Off	Green on
2	Standby (1st state)	≤ 140 W	Approx. 3 sec.	Orange on	Green on
3	Suspend (2nd state)	≤ 15 W	Approx. 3 sec.	Orange on	Green on
4	Active-off (3rd state)	≤ 8 W	Approx. 10 sec.	Orange on	Off
5	Power-off	0 W	—	Off	Off

Power saving operation

• The H-sync is not present.
→ The unit goes into standby state.
• The V-sync is not present.
→ The unit goes into suspend state.
- Both the H-sync and V-sync are not present.
→ The unit goes into active-off state.

The monitor requires a video card or screen saver software which switches off one or both sync signals to activate the power saving function.

Caution

If no video signal is input to the monitor, or if the input select switch is set to the connector to which no signal is input when you turn on the monitor, the input signal warning indicator (page 17) appears. After 30 seconds, the Power Saving function automatically puts the monitor into the Active-off state and the power saving indicator lights up. Once the horizontal and vertical syncs are sensed, the monitor will automatically return to its Normal operation state.

Input Signal Warning Function

If there is something wrong with the input signal, one of the following messages appears when you turn the monitor off and on, or when you operate the input select switch. The message disappears after about 30 seconds.

1 Shows the input select switch setting.
2 Shows the input signal condition.

"FH: - kHz" indicates no horizontal sync signal.

"FV: - Hz" indicates no vertical sync signal.

"OUT OF SCAN RANGE" indicates that the input signal is not supported by the monitor's specifications.

"NO CONNECTION" indicates that the supplied video signal cable is disconnected from the HD15 connector when the input select switch is set to 1.

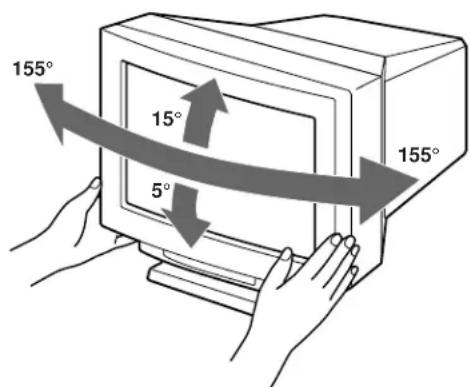

Use of the Tilt-Swivel

With the tilt-swivel, this unit can be adjusted to be viewed at the desired angle within 310^ horizontally and 20^ vertically.

To turn the unit vertically and horizontally, hold it at its bottom with both hands as illustrated below.

155° 15° 5° 155°

Specifications

Picture tube 0.25 - 0.28 mm aperture grille pitch

24 inches measured diagonally

90-degree deflection

Viewable image size Approx. 482 · 304 mm (w/h)

(19 · 12 inches)

22.5" viewing image

Resolution Horizontal: Max. 1920 dots

Vertical: Max. 1200 lines

Standard image area Approx. 473 · 296 mm (w/h)

(18^5/8 · 11^3/4 inches)

Deflection frequency Horizontal: 30 to 96 kHz

Vertical: 50 to 160 Hz

Input HD15 (1), 5 BNC (1)

R/G/B: 75 Ω, 0.714 Vp-p, positive

HD/VD or Composite sync

Sync-on-green: 0.286 Vp-p,

negative

AC input voltage/current

100 to 120 V, 50/60 Hz, 2.2 A

200 to 240 V, 50–60 Hz, 1.4 A

Power consumption Max. 200 W

Dimensions 580 · 500 · 548 mm (w/h/d)

(22 ^7 /8 · 19 ^3 /4 · 21 ^5 /8 inches)

Mass Approx. 41 kg (90 lb 6 oz)

Design and specifications are subject to change without notice.

This section may help you isolate a problem and as a result, eliminate the need to contact technical support, allowing continued productivity.

• If the problem persists, call your service representative from a location near your monitor.

Symptom Check these items
No picture
If the ⏻ power indicator nor ⚙ power saving indicator is lit	Check that the power cord is properly connected.Check that the ⏻ power switch is in the “on” position.
If the ⚙ power saving indicator is lit	Check that your computer power switch is in the “on” position.The monitor will recover when you press any key on the keyboard of the computer.The input select switch setting is incorrect.Check that the video signal cable is properly connected and all plugs are firmly seated in their socket.Check that the 5 BNC’s are connected in the correct order (from the power cord side: Red-Green-Blue-HD-VD).Ensure that no pins are bent or pushed in the HD15 video input connector.Check that the video board is seated completely in the proper bus slot.
If the ⏻ power indicator is flashing in green	Check that the video frequency range is within that specified for the monitor.(Horizontal: 30 - 96 kHz, Vertical: 50 - 160 Hz)
If the ⏻ power and/or ⚙ power saving indicators are flashing in orange	Turn the monitor off and on. If the indicator is off, the monitor is in the normal condition. If the indicator is still flashing, there is a potential monitor failure.
If you do the above procedures and the monitor does not recover	Unplug the video input 1 and 2 connectors and wait for 5 seconds. Then press and hold the ⭕ + button for 2 seconds to display the color bars. If the color bars appear, the monitor may be in normal condition. Turn the monitor off and on to return to the normal operation mode. If the color bars do not appear, there is a potential monitor failure.
Picture is scrambled	Check your graphic board manual for proper monitor setting.Check this manual and confirm that the graphic mode and the frequency at which you are trying to operate is supported (page 6). Even within the proper range some video boards may have a sync pulse that is too narrow for the monitor to sync correctly.
Color is not uniform	Degauss the monitor (page 15).If you place equipment which generates a magnetic field such as a loudspeaker, or you change the direction of the monitor, color may lose uniformity.This function is to demagnetize the metal frame of the CRT to obtain a neutral field for uniform color reproduction. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.Adjust the landing (page 10).
You cannot adjust the monitor with the buttons on the front panel	If the control lock function is set to on, set it to off on the OPTION OSD (page 15).You will be able to adjust the monitor.
White does not look white	Adjust color (pages 11, 14).Check that the 5 BNC’s are connected in the correct order (from the power cord side: Red-Green-Blue-HD-VD).
Screen image is not centered or sized properly	Adjust the centering or size (pages 9, 13).Some video modes do not fill the screen to the edge of the monitor. There is no single answer to solve the problem. This problem tends to occur on higher refresh timings.
Edges of the image are curved	Adjust the geometry items such as pincushion and keystone distortion (pages 10, 13).
White lines show red or blue shades at edges	Adjust the convergence (pages 10, 13).
Picture is fuzzy	Adjust the contrast and brightness (pages 8, 12).Degauss the monitor (page 15).If you place equipment which generates a magnetic field such as a loudspeaker, or you change the direction of the monitor, color may lose uniformity.This function is to demagnetize the metal frame of the CRT to obtain a neutral field for uniform color reproduction. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.If red or blue shades are found at the edge of images, adjust the convergence (pages 10, 13).If the moire is cancelled, the picture may become fuzzy. Adjust so that the picture is as clear as possible (pages 10, 14).
Picture bounces or has wavy oscillations	Isolate and eliminate any potential sources of electric or magnetic fields. Common causes for this symptom are electric fans, fluorescent lighting, laser printers, and so on.If you have another monitor close to this monitor, increase the distance between them to reduce the interference.Try plugging the monitor into a different AC outlet, preferably on a different circuit.Try the monitor on a completely different computer in a different room.
Picture is not stable	Set the refresh rate to non-interlace of 75 Hz or more on the computer referring to the computer's manual.
Picture appears to be ghosting	Eliminate the use of video cable extension cable and/or video switch boxes if this symptom occurs. Excessive cable length or weak connection can produce this symptom.
Two fine horizontal lines (wires) are visible	These wires stabilize the vertically striped Aperture Grille (page 16). This Aperture Grille allows more light to pass through to the screen giving the Trinitron CRT more color and brightness.
Wavy or elliptical (moire) pattern is visible	Cancel the moire (pages 10, 14).The moire may be modified depending on the connected computer.Due to the relationship between resolution, monitor dot pitch and the pitch of some image patterns, certain screen backgrounds, especially gray, sometimes show moire. Change your desktop pattern.
Hum is heard right after the power is turned on	When the power is turned on, the auto-degauss cycle is activated. While the Auto-degauss cycle is activated, a hum may be heard. This is not a malfunction.

• Note the model name and the serial number of your monitor. Also note the make and name of your computer and video board.

Owner's Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your service representative regarding this product.

Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing to qualified personnel only.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 · 18 AWG

Length Maximum 15 feet

Rating Minimum 7A, 125V

NOTICE

This monitor complies with the TCO 1992 guidelines for power saving when used with a computer equipped with VESA Display Power Management Signaling (DPMS).

This monitor is Energy Star Compliant when used with a computer equipped with VESA Dispaly Power Management Signaling (DPMS). As an International ENERGY STAR Partner, we have determined that this product meets the International ENERGY STAR Program for energy efficiency.

Table des matières

Précautions 3

Préparation 4

COINS HAUTS/ COINS BAS :

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your service representative regarding this product.

Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing to qualified personnel only.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 · 18 AWG

Length Maximum 15 feet

Rating Minimum 7A, 125V

NOTICE

This monitor complies with the TCO 1992 guidelines for power saving when used with a computer equipped with VESA Display Power Management Signaling (DPMS).

This monitor is Energy Star Compliant when used with a computer equipped with VESA Dispaly Power Management Signaling (DPMS). As an International ENERGY STAR Partner, we have determined that this product meets the International ENERGY STAR Program for energy efficiency.

Inhalt

B I D L G A L E / G R O S S E ▶ H B I D L G A L E V B I D L G A L E B R E I T E H O H E W Ä H L E N R G L E 10 23 10 23

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your service representative regarding this product.

Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing to qualified personnel only.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 · 18 AWG

Length Maximum 15 feet

Rating Minimum 7A, 125V

NOTICE

This monitor complies with the TCO 1992 guidelines for power saving when used with a computer equipped with VESA Display Power Management Signaling (DPMS).

This monitor is Energy Star Compliant when used with a computer equipped with VESA Dispaly Power Management Signaling (DPMS). As an International ENERGY STAR Partner, we have determined that this product meets the International ENERGY STAR Program for energy efficiency.

Indice

Precauciones.... 3

DIST S/ BAL S/ ARCO C:

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your service representative regarding this product.

Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing to qualified personnel only.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3 · 18 AWG

Length Maximum 15 feet

Rating Minimum 7A, 125V

NOTICE

This monitor complies with the TCO 1992 guidelines for power saving when used with a computer equipped with VESA Display Power Management Signaling (DPMS).

This monitor is Energy Star Compliant when used with a computer equipped with VESA Dispaly Power Management Signaling (DPMS). As an International ENERGY STAR Partner, we have determined that this product meets the International ENERGY STAR Program for energy efficiency.

Indice

Precauzioni 3

CENTRATURA 23 10

DIMENSIONE 23 10

☐ DIST CUSC OR/ ☑ DIST SFER OR:

24" misurati in diagonale

Deflessione di 90°
