USER MANUAL PARTY200UHF MADISON

Two black Party Uruguay-based audio mixing devices with wireless cables and dials (no visible text or labels)

PARTY-200UHF

GB - INSTRUCTION MANUAL

F - MANUEL D'UTILISATION

Imported from China by

LOTRONIC SA

Avenue Zénobe Gramme 9

B-1480 Saintes

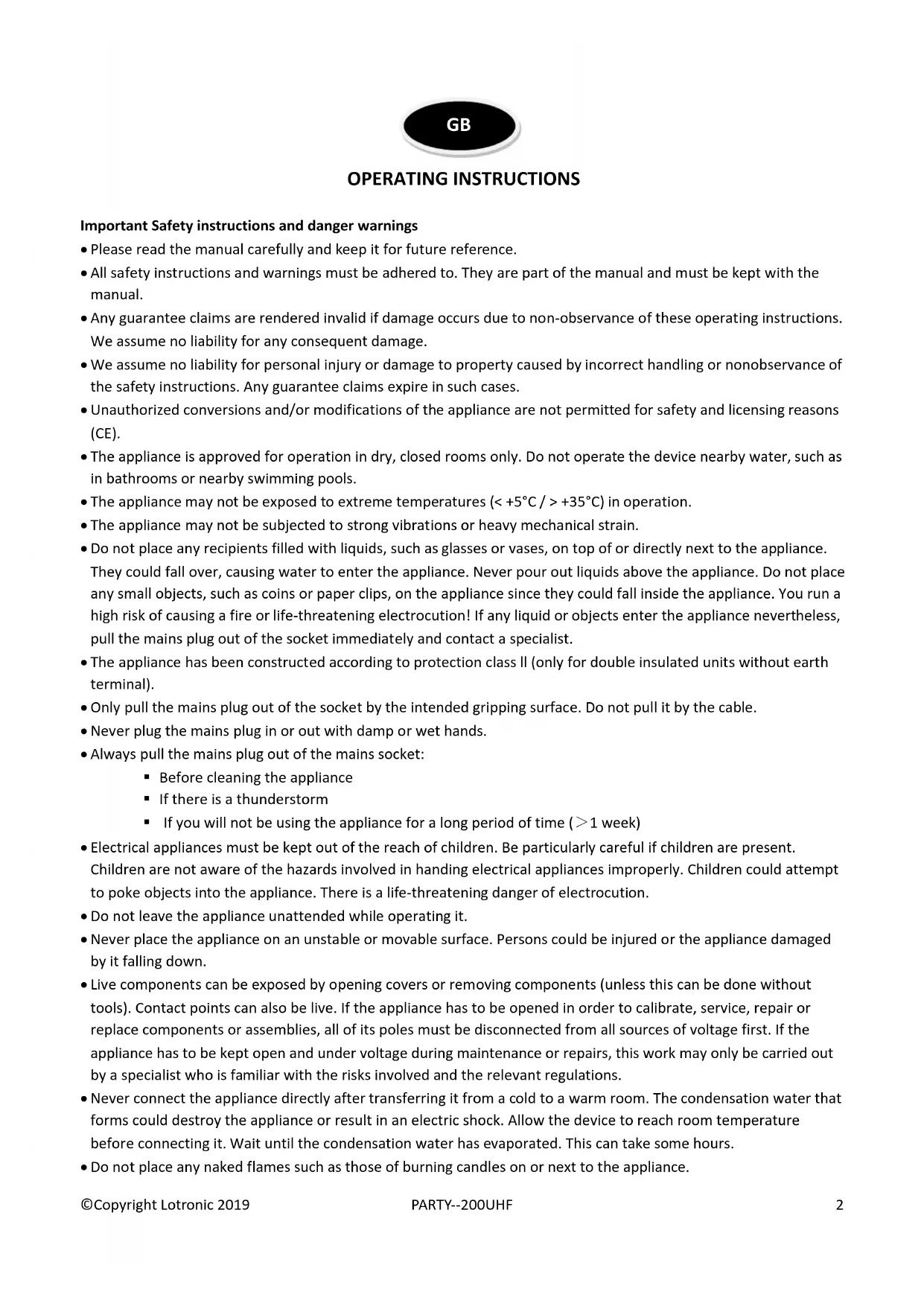

OPERATING INSTRUCTIONS

Important Safety instructions and danger warnings

• Please read the manual carefully and keep it for future reference.
• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
• Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or nonobservance of the safety instructions. Any guarantee claims expire in such cases.
• Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).
• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.
• The appliance may not be exposed to extreme temperatures ( < +5^ / > +35^ ) in operation.
• The appliance may not be subjected to strong vibrations or heavy mechanical strain.
• Do not place any recipients filled with liquids, such as glasses or vases, on top of or directly next to the appliance.

They could fall over, causing water to enter the appliance. Never pour out liquids above the appliance. Do not place any small objects, such as coins or paper clips, on the appliance since they could fall inside the appliance. You run a high risk of causing a fire or life-threatening electrocution! If any liquid or objects enter the appliance nevertheless, pull the mains plug out of the socket immediately and contact a specialist.

• The appliance has been constructed according to protection class II (only for double insulated units without earth terminal).
• Only pull the mains plug out of the socket by the intended gripping surface. Do not pull it by the cable.
• Never plug the mains plug in or out with damp or wet hands.
• Always pull the mains plug out of the mains socket:

■ Before cleaning the appliance
■ If there is a thunderstorm
■ If you will not be using the appliance for a long period of time (>1 week)

• Electrical appliances must be kept out of the reach of children. Be particularly careful if children are present.
  Children are not aware of the hazards involved in handing electrical appliances improperly. Children could attempt to poke objects into the appliance. There is a life-threatening danger of electrocution.
• Do not leave the appliance unattended while operating it.
• Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance damaged by it falling down.
• Live components can be exposed by opening covers or removing components (unless this can be done without tools). Contact points can also be live. If the appliance has to be opened in order to calibrate, service, repair or replace components or assemblies, all of its poles must be disconnected from all sources of voltage first. If the appliance has to be kept open and under voltage during maintenance or repairs, this work may only be carried out by a specialist who is familiar with the risks involved and the relevant regulations.
• Never connect the appliance directly after transferring it from a cold to a warm room. The condensation water that forms could destroy the appliance or result in an electric shock. Allow the device to reach room temperature before connecting it. Wait until the condensation water has evaporated. This can take some hours.

• Do not place any naked flames such as those of burning candles on or next to the appliance.

• Do not place the appliance on soft surfaces such as carpets or beds. Do not cover the air vents of the appliance. Do not obstruct the air circulation with objects such as magazines, table cloths or curtains. This prevents the dissipation of heat from the appliance and can result in overheating.

• Only use the appliance in a moderate climate, not in tropical environments.
• Defective mains cables may only be replaced by specialists. Danger of shock hazard!
• If you are not sure about the correct connection or if questions arise which are not answered by the operating instructions, please do not hesitate to contact support or a specialist of your choice. Consult a specialist if you are in doubt the operating principle or the safety of the product.

SYSTEM FEATURES

1. Simultaneous output use: Unbalanced 6.35mm jack plug and balanced XLR output connectors may be used simultaneously to different external devices.
2. Range: UHF series transmitters will work at a distance of up to 30m from the receiver.
3. Noise squelch: Squelch circuit analyzes signal strength and quality to avoid interference due to environmental RF noise.
4. Low battery warning light: A red light on the microphone(s) warns the user that there is less than one hour of battery life left.

DUAL CHANNEL RECEIVER

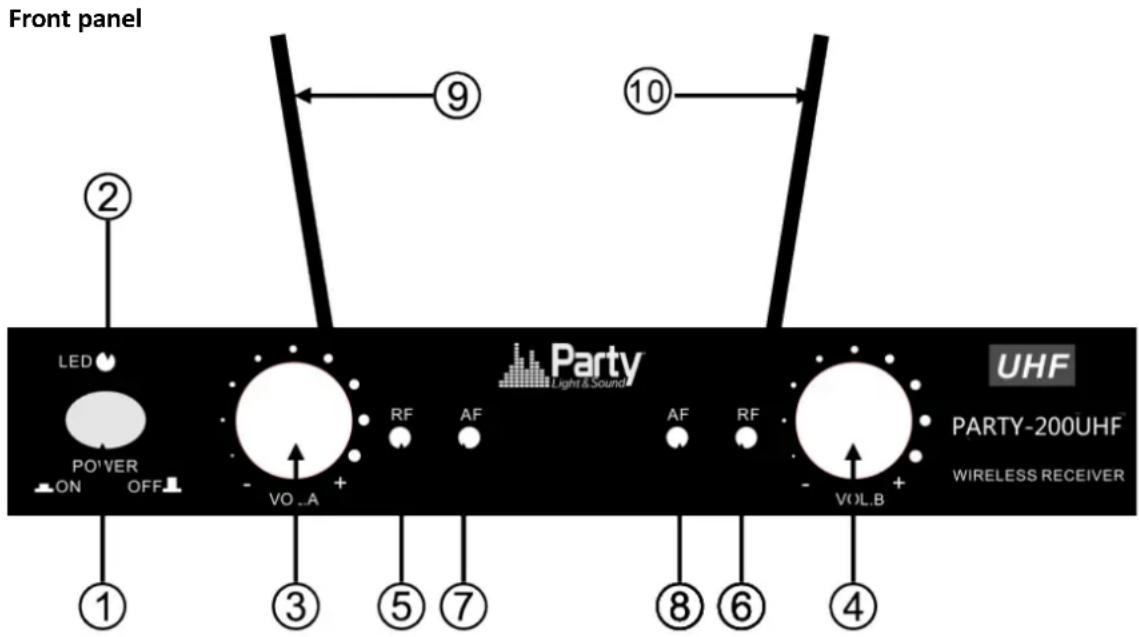

Front panel ② LED POWER ON OFF - VO_A + ③ ⑤ ⑦ ⑨ AF RF AF RF VOL.B + ⑩ UHF PARTY-200UHF WIRELESS RECEIVER ① ⑥ ⑧ ④

1. Power Button: Power ON/OFF the receiver.
2. Power Indicator: Indicate the power ON/OFF.
3. Volume Knob channel 1.
4. Volume knob channel 2
   5 & 6."RF" signal Indicator: It glows when the Receiver receives an RF signal from mic 1 & mic2.
   7 & 8."AF"Audio Level Indicator: Indicate the wireless system audio signal level of channel 1 & 2.
   9 & 10. Antenna channel 1 & 2

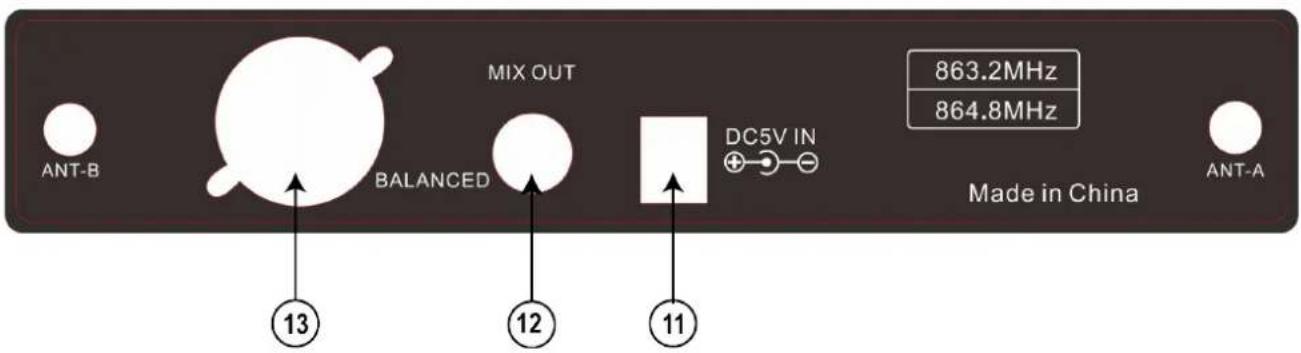

Rear panel.

1. 5Vdc Power Jack: Connect the AC/DC adapter to receiver
2. Audio Output Jack 6.35mm: Connect the audio cable from this jack to the input port of amplifier, mixer.
3. XLR Balanced Output Jack: Connect the audio cable from this jack to the input port of amplifier, mixer.

MIX OUT BALANCED 13 12 11 863.2MHz 864.8MHz DC5V IN Made in China ANT-B ANT-A

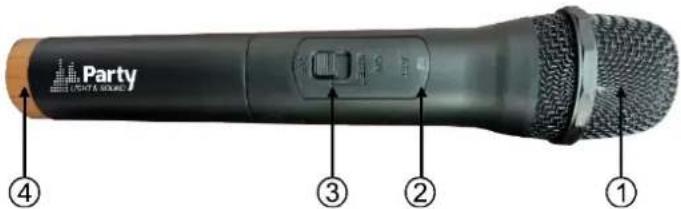

MICROPHONE TRANSMITTER FEATURES

1. Grille: Protects the cartridge and helps reducing the breath sounds and wind noise.
2. Power indicator
3. ON/OFF switch
4. Tail-hood to identify the mic

Party PARTY & ROUND

TRANSMITTER BATTERY INSTALLATION

Push the battery cover open. Insert 2x AA batteries into the battery compartment with the correct polarity. Close the battery cover.

Diagram of a microphone with labeled components and directional arrows indicating assembly or operation

SYSTEM CONNECTION

1. Receiver power connection: Connect the DC connector of the supplied AC/DC adaptor to the DC input socket on the receiver. Plug the AC connector into an appropriate mains outlet.
2. Antenna: Keep the position of the antenna at an angle of 90^ .
3. Audio connection: Connect the corresponding output of the receiver via a 6.35mm Jack lead or an XLR lead to the input of a power amplifier, mixer, etc.

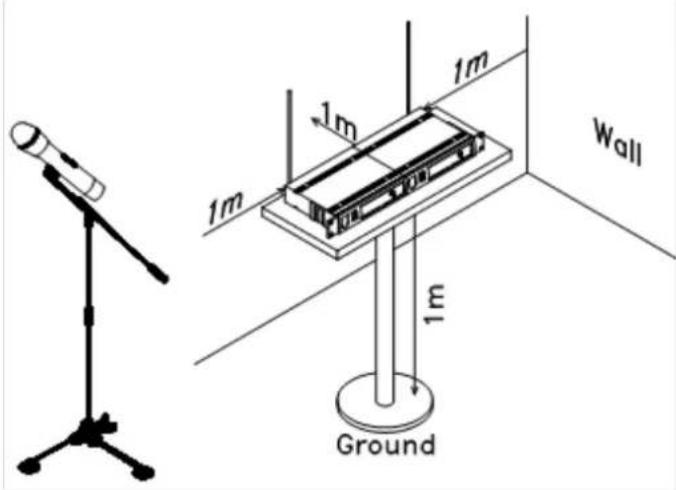

TIPS TO ACHIEVE MAXIMUM PERFORMANCE

Make sure you can always see the receiver antenna from the transmitter position.

Keep the distance from transmitter to receiver antenna as short as possible.

Avoid placing the receiver antennae near metal surfaces and obstruction.

Monitor battery power and replace the battery as soon as the red light goes on.

If stacking or rack mounting receivers in a multiple system, do not allow antennae to touch or cross.

Perform a walk-through before performance or presentation. If dead spots are found, adjust location of the receiver. If dead spots remain, mark them and avoid them during performance.

1m 1m 1m 1m Wall Ground

For a good operation, don't place the receiver near to sources of interference. Place the receiver in 1m distance from the ground and let at least 1m free space around the receiver.

TROUBLESHOOTING

Problem	Indicator status	Solution
No sound	Red transmitter indicator doesn’t flash	Slide the POWER ON/OFF switch on the transmitter to ON. Make sure that the batteries are properly inserted with the correct polarity (+/-). If the batteries are correctly inserted, replace them by new ones.
No sound	The red POWER indicator on the receiver is OFF	Check if the mains adaptor is plugged correctly into the mains outlet and the DC socket. Make sure that the mains outlet supplies the proper voltage
No sound	The signal indicators A/B on the receiver are glowing	Increase the volume on the receiver. Check the output connections from the receiver to the external equipment
No sound	The signal indicators A/B on the receiver are off. The POWER indicators on the transmitter and receiver are glowing	Make sure that the frequencies of the receiver and the transmitter match.Move the transmitter closer to the receiver
Distortion level increases gradually	The signal indicators A/B on the receiver and LOW BATTERY indicator on the transmitter are glowing	Replace transmitter battery
Bursts of noise or other audible radio signals are present	Signal indicators A/B are on	Identify potential sources of interference (other RF sources) and turn off, remove or use a wireless system operating on a different frequency
Momentary loss of sound as transmitter is moved around the performing area	Signal indicators A/B on the receiver are off when the sound is lost	Reposition receiver and perform walk-through test again. If audio dropouts persist, mark “dead” spots and avid them during performance

SYSTEM SPECIFICATIONS

RF Carrier frequency range 863.2MHz & 864.8MHzMHz

Max. RF emission 4.29wW

Operating range 30m typical

Audio frequency response 40-15,000Hz ±3dB

THD....<0.5%

RECEIVER SPECIFICATIONS

Input power....5Vdc via supplied mains adaptor

Signal/noise ratio ....>80dB

Border upon channel rejection ....>80dB

Image & spurious rejection.....>80dB

Receiving sensitivity....>5dBu

MICROPHONE SPECIFICATIONS

Power requirements 2 x 1.5AA batteries

Modulation type ......F3E

RF output....>10dBm

Max. deviation ±25kHz

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

INSTRUCTIONS D'UTILISATION

Diagram of a microphone with labeled components including speaker, audio jack, and battery

BRANCHEMENT DU SYSTEME

1m 1m 1m Wall 1m Ground

DIAGNOSTIC DE DEFAILLANCE

Alimentation....2 piles 1.5AA

Type de modulation ...... F3E

Party Light & Medium

EINSETZEN DER BATTERIEN INS MIKROFON

Diagram of a microphone with labeled components and directional arrows indicating sound or audio flow

1m 1m 1m Wall 1m Ground

FEHLERDIAGNOSE

Party LIGHT & MEDIUM

PLAATSEN VAN DE BATTERIJEN

Diagram of a microphone with labeled components and directional arrows indicating signal or movement

SYSTEEM AANSLUITING

1m 1m 1m 1m Ground Wall

IN GEVAL VAN PROBLEMEN

Image & spurious rejection.....>80dB

Spurious emission ....<40dB

Party PART & SOUND

NAMESTITEV BATERIJ V ODDAJNIK

Potisnite da odprete pokrov baterije. Vstavite 2 × AA baterije v predalček za baterije s pravilno polarnostjo. Zaprite pokrov baterije.

Diagram of a microphone with labeled components and directional arrows indicating assembly or operation

POVEZAVA SISTEMA

1m 1m 1m 1m Wall Ground

ODPRAVLJANJE TEŽAV

Max. RF emission 4.29mW

Razdalja delovanja....30m tipično

Audio frekvenčni razpon....40 - 15,000Hz ±3dB

Popačenje....<0.5%

TEHNIČNI PODATKI SPREJEMNIKA

Vhodno napajanje....5V DC preko priloženega omrežnega adapterja

Razmerje Signal / Šum ....>80dB

Meja po zavrnitvi kanala ....>80dB

1m 1m 1m 1m Wall Ground

DIAGNOSTICO DE FALLO

Max. RF emission 4.29mW

1. Power Button: Power ON/OFF the receiver.
2. Power Indicator: Indicate the power ON/OFF.
3. Volume Knob channel 1.
4. Volume knob channel 2
   5 & 6."RF" signal Indicator: It glows when the Receiver receives an RF signal from mic 1 & mic2.
   7 & 8."AF"Audio Level Indicator: Indicate the wireless system audio signal level of channel 1 & 2.
   9 & 10. Antenna channel 1 & 2

Rear panel.

1. 5Vdc Power Jack: Connect the AC/DC adapter to receiver

2. Audio Output Jack 6.35mm: Connect the audio cable from this jack to the input port of amplifier, mixer.

3. XLR Balanced Output Jack: Connect the audio cable from this jack to the input port of amplifier, mixer.

MIX OUT BALANCED 13 12 11 863.2MHz 864.8MHz DC5V IN Made in China ANT-B ANT-A

MICROPHONE TRANSMITTER FEATURES

1. Grille: Protects the cartridge and helps reducing the breath sounds and wind noise.
2. Power indicator
3. ON/OFF switch
4. Tail-hood to identify the mic

Party LIGHT & SOUND

TRANSMITTER BATTERY INSTALLATION

Push the battery cover open. Insert 2x AA batteries into the battery compartment with the correct polarity. Close the battery cover.

Diagram of a microphone with labeled components including speaker, audio jack, and battery

1m 1m 1m 1m Wall Ground

Problem	Indicator status	Solution
No sound	Red transmitter indicator doesn’t flash	Slide the POWER ON/OFF switch on the transmitter to ON. Make sure that the batteries are properly inserted with the correct polarity (+/-). If the batteries are correctly inserted, replace them by new ones.
No sound	The red POWER indicator on the receiver is OFF	Check if the mains adaptor is plugged correctly into the mains outlet and the DC socket. Make sure that the mains outlet supplies the proper voltage
No sound	The signal indicators A/B on the receiver are glowing	Increase the volume on the receiver. Check the output connections from the receiver to the external equipment
No sound	The signal indicators A/B on the receiver are off. The POWER indicators on the transmitter and receiver are glowing	Make sure that the frequencies of the receiver and the transmitter match.Move the transmitter closer to the receiver
Distortion level increases gradually	The signal indicators A/B on the receiver and LOW BATTERY indicator on the transmitter are glowing	Replace transmitter battery
Bursts of noise or other audible radio signals are present	Signal indicators A/B are on	Identify potential sources of interference (other RF sources) and turn off, remove or use a wireless system operating on a different frequency
Momentary loss of sound as transmitter is moved around the performing area	Signal indicators A/B on the receiver are off when the sound is lost	Reposition receiver and perform walk-through test again. If audio dropouts persist, mark “dead” spots and avid them during performance

SYSTEM SPECIFICATIONS

RF Carrier frequency range 863.2MHz & 864.8MHzMHz

Max. RF emission 4.29mW

Operating range 30m typical

Audio frequency response 40-15,000Hz ±3dB

THD....<0.5%

RECEIVER SPECIFICATIONS

Input power....5Vdc via supplied mains adaptor

Signal/noise ratio ....>80dB

Border upon channel rejection ....>80dB

Image & spurious rejection.....>80dB

Receiving sensitivity....>5dBu

MICROPHONE SPECIFICATIONS

Power requirements ....2 x 1.5AA batteries

Modulation type ...... F3E

RF output....>10dBm

Max. deviation ....±25kHz

EC Declaration of Conformity

We, LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgium

+32.2.390.91.91

certify and declare under our sole responsibility that the following product:

Trade name: PARTY LIGHT & SOUND

Product name: 2-CHANNEL UHF MICROPHONE

Type or model: PARTY-200UHF

conforms with the essential requirements of:

RED directive 2014/53/EU

based on the following standards applied:

EN60065:2014

EN62479:2010

Draft ETSI EN 301 489-1 V2.2.0

Final Draft EN 301 489-9 V2.1.1

ETSI EN 301 357-1 V1.4.1

ETSI EN 301 357-2 V1.4.1

EN 55022 : 2010

EN 61000-3-2 : 2014

EN 61000-3-3 : 2013

EN 55024:2010+A1:2015

Place and date of issue: Saintes (Belgium), on 08/05/2018

Manuel De Sousa

Quality Manager
