• Wear Protective Equipment: Ensure you wear all personal protective equipment as directed in this manual.

• Eye Protection: Always wear eye protection. Any power tool can throw foreign objects into your eyes and cause permanent eye damage. ALWAYS wear safety goggles (not glasses) that comply with EU safety standard EN166. Everyday glasses have only impact resistant lenses. They ARE NOT safety glasses.

• Hand Protection: Always wear suitable gloves compliant with EU safety standard EN388

• Hearing Protection: Always wear suitable hearing protection compliant with EU safety standard EN352

• Dust Masks: Always wear a dust mask compliant with EN149/EN405 suitable for the material you are working with.

• Before each use: You must inspect the condition of the tool. If any damage is found you must not use the tool and have it repaired by a suitably qualified person.

• Check Working Area: Check your work area to ensure it is clear of hazards and people, always maintain a tidy area while working to reduce risk of injury.

• Wet and Damp: Electrical tools must not be used in wet, damp conditions or during rain, neither should they be left or stored outside. Never touch the plug or operate the machine with wet hands.

• Dress properly: Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

• Take Regular Breaks: Tiredness can result in loss of concentration and makes working with tools dangerous.

• Adults Only: Power tools are designed for use by able bodied ADULTS only. If you are in any way unsure of your ability to use the tool – do not use it.

• Training: Never use a power tool unless you have undertaken formal training in its use, there are often unforeseen factors that may put you or others in danger.

• Loaning Tools: Only loan tools to people you are sure are trained to use them. Always provide the instruction manual along with the tool.

• Medicines and Drugs: Never operate tools or machinery if you are taking medication that may leave you drowsy, or if you are under influence of alcohol or illegal drugs.

• Store in a Safe Place: When not in use or once you have finished using, Power tools must always be stored in a safe place away from damp/water and not accessible to children or others. In between breaks or tasks it is important to ensure that tools are placed in a safe location.

• For Intended Use Only: Power tools should be used for their intended use only – always check the manual if unsure.

• Dust: If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

• Water: Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Explosion Hazard: Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.Electrical Tools – General Safety Guidelines These are still relevant if you have purchased a battery tool and it is supplied with a battery charger.

• Use an RCD: For safe operation it is always necessary to use and RCD device which will protect you in the case of an electrical emergency.

• Operating voltage: Before putting the tool into operation, make sure that the voltage stated on the rating plate is the same as that of your electricity supply.

• Extension cables: Always ensure a cable is does not become a trip hazard by routing it safely to your work location. Do not walk, ride or place objects on the cable as it will result in damage. It is important that you are aware of the location of an extension cable whenever you are working to prevent accidents. Always protect power cables from sharp edges, heat and oil. Do not allow the cable to become knotted or kinked.

• If the extension cord becomes damaged: Pull the plug immediately from the socket outlet, do not touch the cable until you have done so.(1)

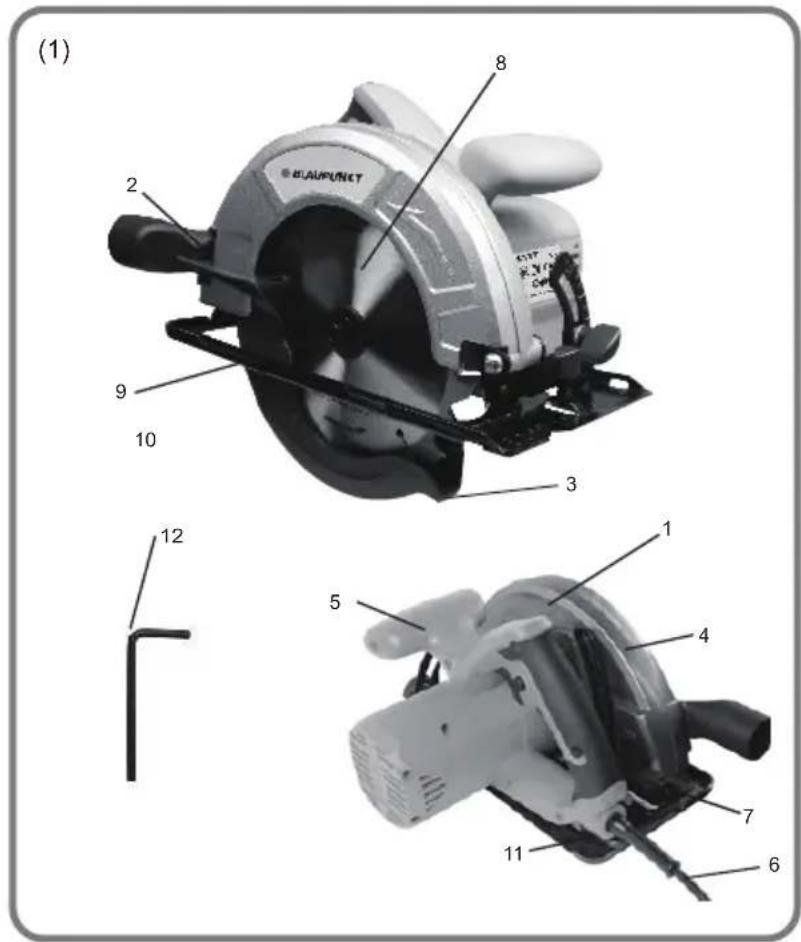

Know Your Saw (2) (4) (3) (5)(6) (7) (9) (12) (13) (10) (11)Machine Specic Safety Instructions Know your circular saw. Do not operate the tool until you have read and understand this Instruction Manual. Learn the tool’s applications and limitations, as well as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.

• This machine requires the use of two hands to ensure safe operation and should not be used when working from ladders and step ladders.

• If the machine is to be used when working at height a suitable, stable platform or scaffold tower with hand rails and kick boards should be used.

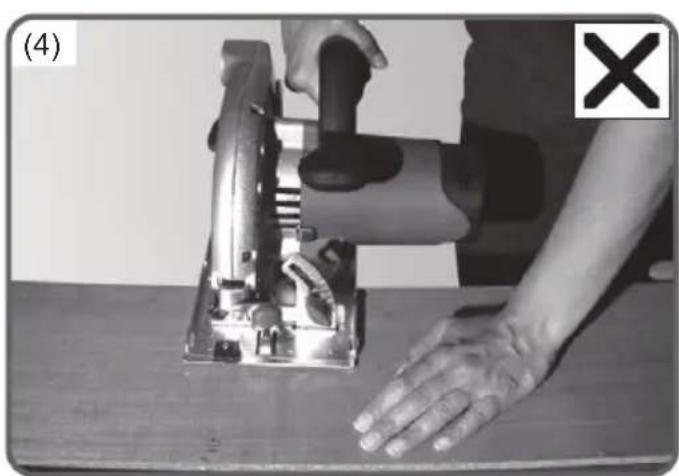

• Keep hands away from cutting area and blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.

• Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.

• Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

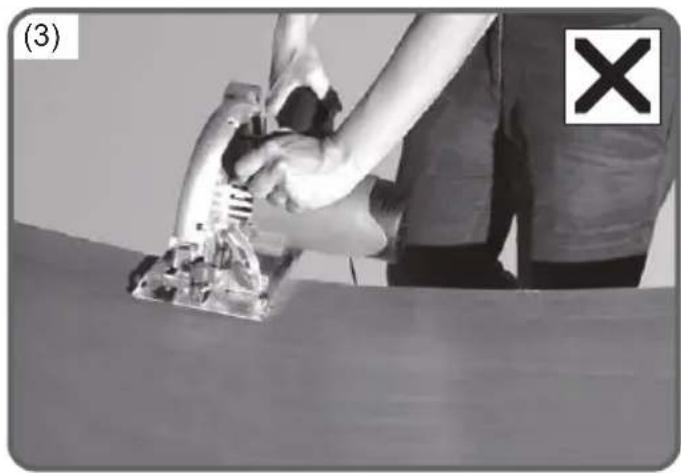

• Never hold the piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.

• Hold the power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator.

• Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.

• Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

• Never use a cracked or distorted saw blade. Only use sharp blades.

• Do not use blades of High Speed Steel (HSS blades) (15) (14) (16)• Avoid cutting nails. Inspect the work piece and remove all nails and other foreign objects before beginning sawing.

• Do not lock the movable guard in the open position and always ensure that it is working properly, freely rotating and returning to fully cover the teeth of the blade. Safety Instructions - Kickback

• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator.

• When the blade is pinched or bound tightly by the cut closing, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.

• If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the cut and jump back towards the operator. Kick back occurs when the saw stalls rapidly and is driven back towards the operator. To avoid kick back keep blades sharp and always support large work pieces correctly. Release the switch immediately if blade binds or if the circular saw stalls.

• Do not remove the saw from a work piece while the blade is still moving. Never place your hands or fingers behind or in front of the saw (Pic 4). If kick back occurs, the saw could jump backwards over your hand, possibly causing severe injury.

• Always lower guard with the retaining handle. Before cutting be sure that the depth and bevel adjustments are tight.

• Use only the correct blades for your power tool with the correct bore size.

• Never use defective or incorrect blade washers or bolts.

• Avoid cutting nails by inspecting the work piece, remove all nails from the work piece before cutting.

• Operate with the correct hand and work piece support.

• It is important to support the work piece properly and to hold the saw firmly to prevent loss of control which could cause personal injury.

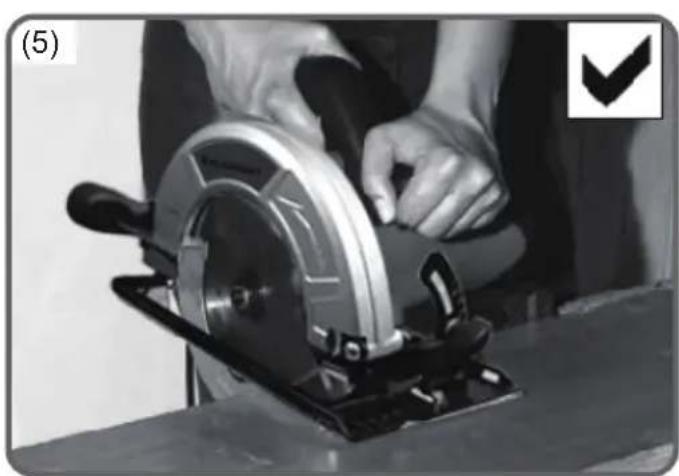

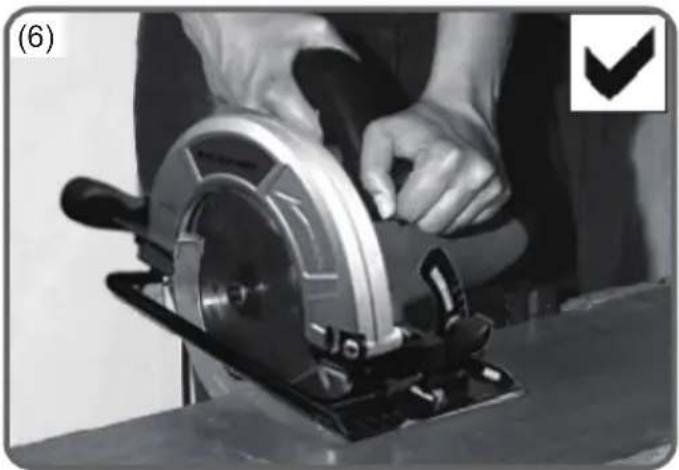

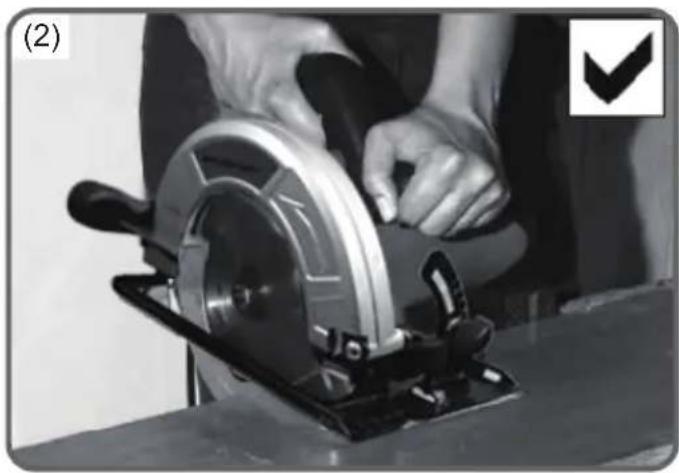

• Pic. 5 illustrates the correct hand positions to support of the saw

• Place the wider portion of the saw base on that part of the work piece which is solidly supported, not on the section that will fall off when the cut is made. If the work piece is short or small, clamp it to a suitable support.

• DO NOT TRY TO HOLD SHORT PIECES BY HAND!

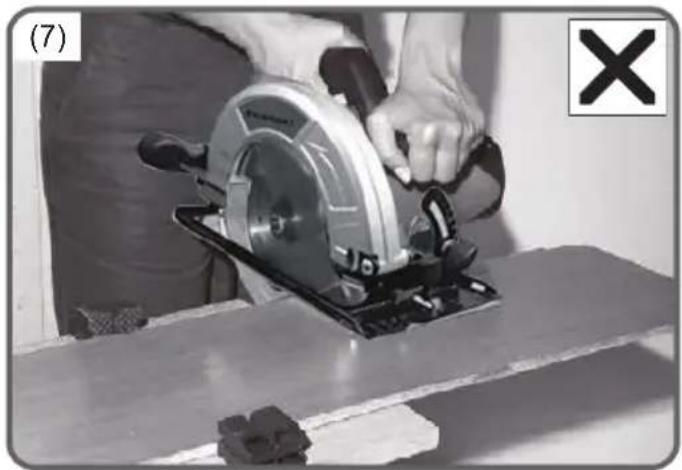

• Pic. 6 illustrates the correct way to cut off the end of a board. Pic.7 shows the wrong way to cut off the end of a board.

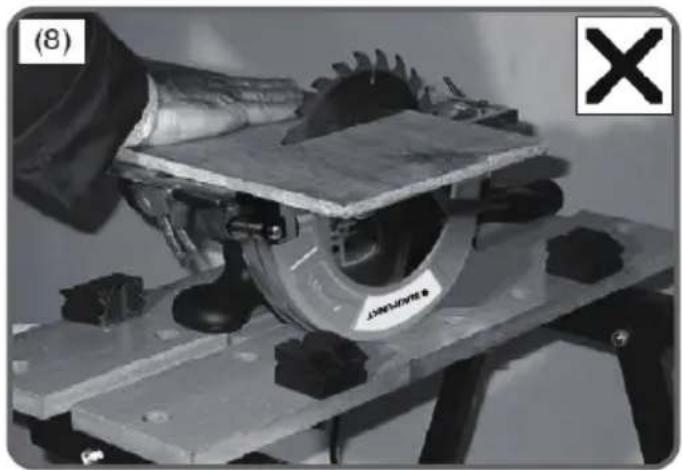

• Never attempt to saw with the Circular Saw held upside down in a vice (Pic. 8) this is extremely dangerous and can lead to a serious accident.

• Before setting the tool down after completing a cut, be sure that the lower guard has closed and the blade has come to a complete stop. Safety Instructions - Lower Guard

• Check lower guard is properly closed before each use. Do not operate the saw if the lower guard does not move freely and close instantly. Never clamp or tie the lower guard in the open position. If the saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the blade guard lever and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.

• Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

• Lower guard should be retracted manually only for special cuts such as “plunge cuts” and “compound cuts”. Raise lower guard by blade guard lever. As soon as blade enters the material, the lower guard must be released. For all other sawing tasks, the lower guard should operate automatically.

• Always observe that the lower guard is covering the blade before placing the saw down on bench or floor.

• Be aware of the time it takes for the blade to stop after the switch is released.Product Specications Voltage 230 ~50 Hz Motor 1400 W No load speed 5400 min-1 Max Cut 90° 64mm Blade Size 185mm 24T Sound Pressure Level LPA 89 dB(A) Sound Power Leve LWA 100 dB(A) Vibration Level 1,5m/s 2 Weight 4,4 kg Operating Instructions Adjustments Depth Of Cut At 90° (Pic.9-12)

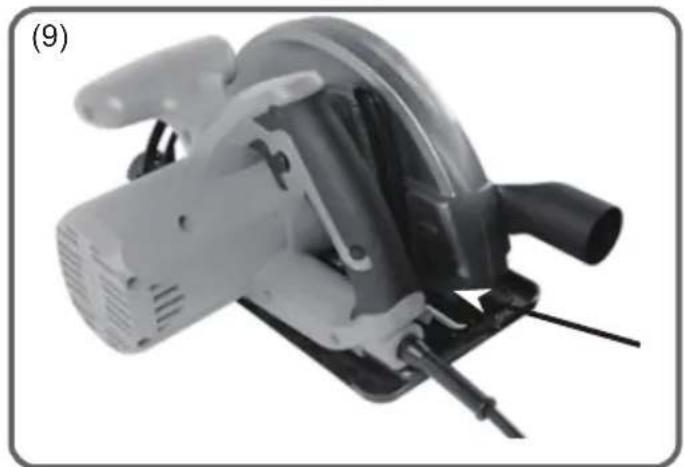

• The Circular Saw has an adjustable depth of cut. To adjust the depth of cut slacken the lever located on the side of the machine (Pic.9).

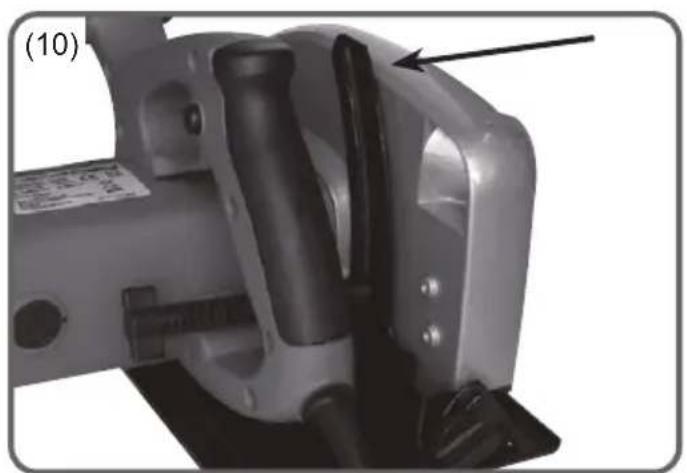

• Measure the depth required from the base plate to the highest point of the blade or use the depth gauge on the fixed guard. (Pic.10). Angle Of Cut 0-45° (Pic. 11)

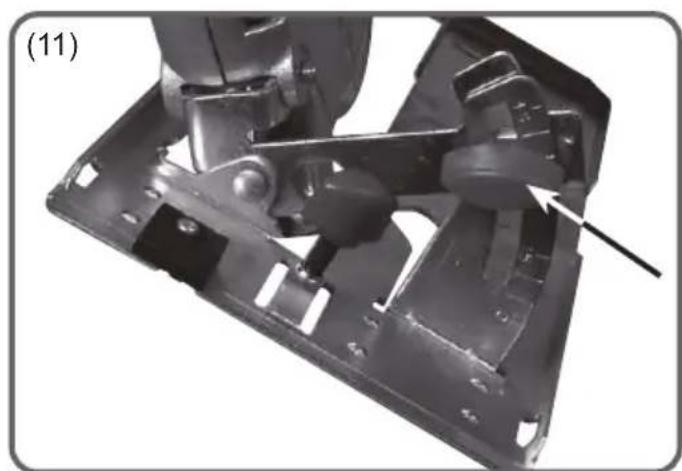

• Located at the front of the machine is the 0-45° locking lever (Pic.11). Slacken the lever and the base plate assembly will rotate between 0-45°. Set the desired cutting angle by using degree scale at the front of the machine and tighten the locking lever.

• At the front of the base plate there are two notches marked 90° and 45°. These notches are a guide to indicate the position of the blade in relation to the cut being made in the material. Parallel Cutting (Pic.12)

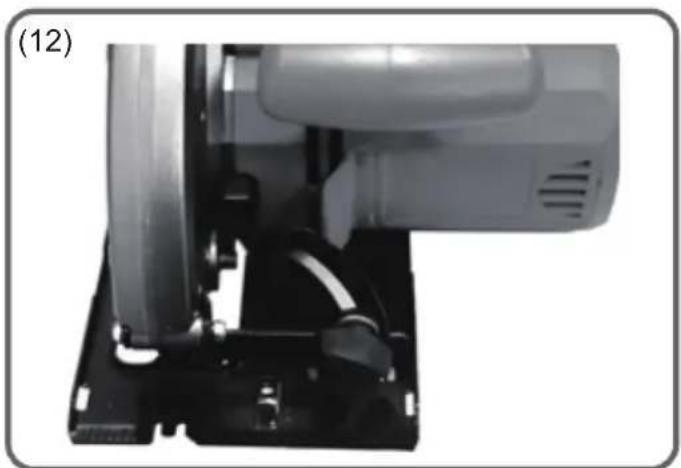

• This machine is supplied with a parallel cutting guide. This cutting guide is fitted to the front of the machine and secured with the locking knob (Pic.12). Changing The Blade (Pics. 13 To 16)

• Always ensure that the Circular Saw is disconnected from the mains supply before carrying out any maintenance or adjustments.

• The blade is extremely sharp and care must be observed when handling.

• Caution must be observed as the blade guard is spring loaded and if released may cause an injury. Rotate the blade guard into the fully open position and secure it in this position using a screwdriver or piece of wood.

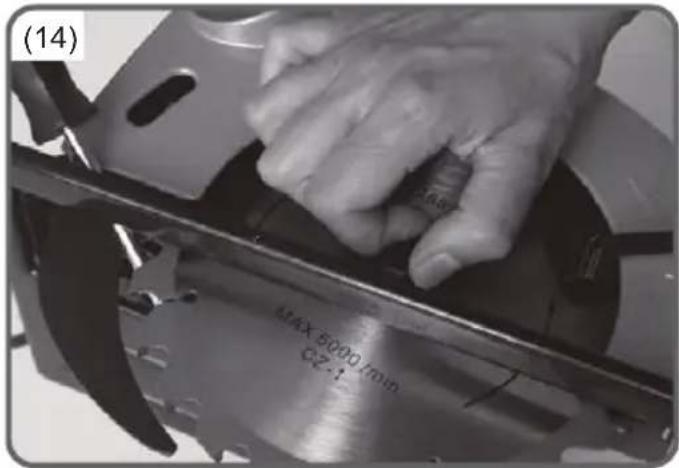

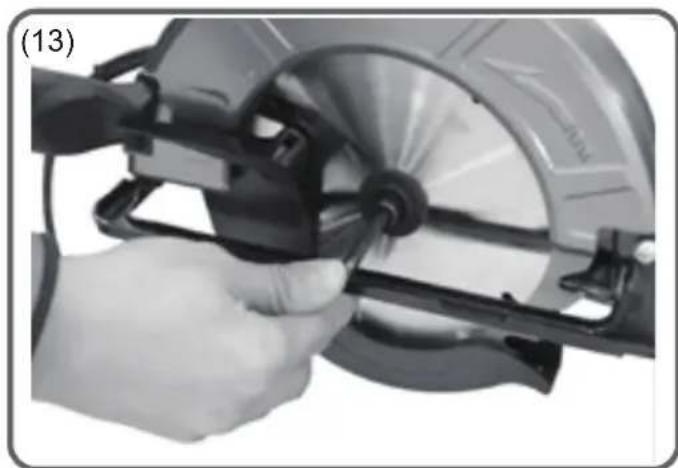

• Depress the spindle lock and using the supplied hex key, unscrew the hex socket screw in an anti-clockwise direction. (Pic.13 - 14)

• Remove the hex socket screw and the retaining flange noting which way round the retaining flange is fitted (Pic.14). You can now remove the blade.

• Do not dispose of the blade in house-hold waste, recycle correctly.

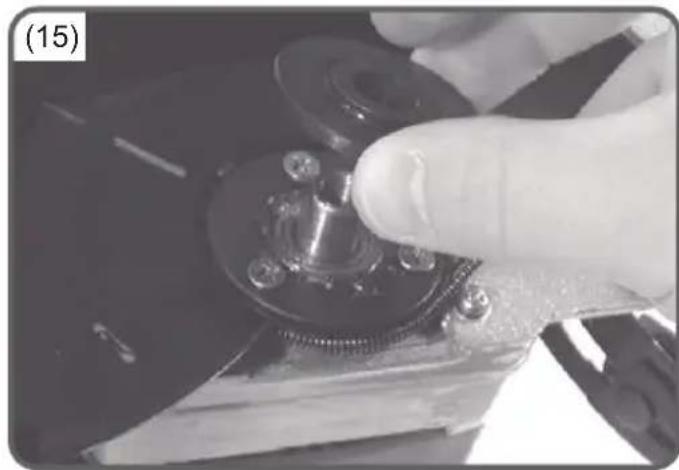

• Take note of the position of the inner flange, if this should fall off it must be replaced as shown in (Pic.15).

• Remove any wood debris from around the motor spindle and the two flanges.

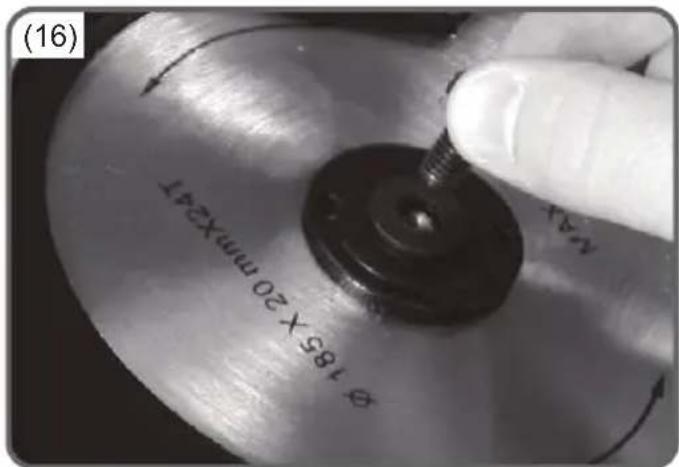

• Fit the new blade as shown in (Pic.16) ensuring that the direction of rotation arrow on the blade corresponds with the direction of rotation arrow on the fixed guard. Replace the retaining flange and blade bolt.

• Tighten the hex socket screw securely but do not over tighten.

• Check the tightness of the hex socket screw before, during and after each use.

• Remove the piece of wood or screwdriver that is holding it in the open position. Slowly release the guard so that it covers the blade.

• Check the operation of the blade guard making sure that it operates correctly. The operation is complete and your machine is ready for use.LI-ION Symbols The manual or rating plate on your tool may show symbols. These represent important information about the product or instructions on its use. You must read the instruction manua Wear protective footwear Wear ear protection Wear safety gloves Wear protective clothing Wear safety mask Wear eye protection Wear head protection Wear respiratory protection Product is compliant with CE safety standards Product is compliant with RoHS safety standards General warning Dispose of in compliance with WEEE standards Contains Lithium-Ion battery Product is double insulated Fire hazard Electrocution hazard DISPOSAL Do not dispose of in general waste. As stated in European Directive 2012/19/EU for Waste Electrical and Electronic Equipment, this product must be disposed of in an environmentally safe manner. We recommend taking it to a recycling facility.Warranty This product has 3 Years Warranty (except batteries) for manufacturing defects. The warranty period will be counted from the date of purchase of the product, according to purchase invoice. Product warranty only covers manufacturing defects, defects resulting from improper use, such as dropping, improper transportation, connection to the mains power supply not in compliance with the voltage specified in this manual, insertion of foreign objects and natural wear of parts and parts Such as plastic parts (caps, buttons, handles, latch locks, power cables, etc.) and metal parts (wires, motors, etc.). Also not covered are damages due to agents of nature, lightning, food, sea, oxidation, humidity etc.). The product will lose its warranty if it presents defects, which after analysis by our technicians, are characterised as being improperly used, used for professional use or for the purpose for which it is not intended (according to the Owner's Manual). This warranty will be void if it is found that the device has been tampered with, has been repaired by a person or service not authorised by Blaupunkt. The guarantee is only valid with the receipt/invoice provided at purchase. We undertake to provide the above-mentioned services within the warranty period only in places where it maintains an authorised service. Consumers not located near an authorised service centre are responsible for the costs and risks of transport to an authorised service. Territorial Limitations: Any repair, replacement, or support of the Products provided under the Warranty (or any other support service offered in our sole discretion), shall be restricted to, and provided solely within, the Distribution Territory as then in effect on the date the Product is delivered to you. If you purchase a Product within a defined Distribution Territory and later transport the Product outside of the Distribution Territory, we cannot provide returns, warranty, out-of-warranty, or aftermarket support of any kind outside the Distribution Territory. Natural ‘wear and tear’ is not covered under warranty. This product is for domestic use only.

SAVE THESE INSTRUCTIONS
