USER MANUAL RS6010 BLAUPUNKT

Enjoy it.

Sabre saws

Reciprocating saw

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply with its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to a socket with values corresponding to the values on the rating label.
• It is necessary to check if the total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let the cord hang over the edge of a counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work, always disconnect the unit from the power supply.

- When unplugging the power cord from the electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug, or the whole device into water or any other liquids.
• The device should be cleaned regularly, complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element, or a hot oven. Do not place it on any other device.
• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.
• The appliance may be used by individuals with limited physical, sensory, or mental capability, as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards. Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sunlight or rain, etc. Never use the product in humid conditions (like a bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged, the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.
• Never use the product with a damaged power cable, or if it was dropped or damaged in any other way, or if it does not work properly. Do not try to repair the defective product yourself, as it can lead to electric shock. Always return the damaged device to a professional service to repair it.

All repairs should only be performed by authorized service professionals. Any attempted unauthorized repairs performed can be a hazard to the user.

• Only original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage to the device and may render the device unsafe for use.
• Keep your workplace tidy and well lit. Disorder and insufficient lighting lead to accidents.
• Do not use power tools in explosive atmospheres, i.e., in the presence of flammable liquids, gases, or dust.
• A moment of carelessness may cause losing control of your tool.
• If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.
• Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.
• Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.
• Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.
• Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

- Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.

- Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.

- Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.

- Ensure that the vents are free from debris.

- The device may only be used in a dry, well-lit environment.

• This tool should not be used by anyone under the age of 16.

- Use only sharp blades in perfect condition. Condition to replace: cracked, distorted or blunt.

- Make sure the foot adjustment screws are tightened before resuming work.

- Choose the right blade for the material, stroke frequency and pendulum.

• Make sure that the saw blade does not touch other objects when the tool is switched on.

- Hold the device by the insulated handle as the blade may run over the electrical wires or its own power cord when cutting.

• After finishing work, always wait for the device to come to a complete stop.

- Do not turn off the power tool during operation, it may get stuck and you may lose control of the device if you try to switch it on again.

- Do not saw objects with a larger diameter/thickness than the length of the blade.

- Use the blades according to their intended use, and before cutting the material, inspect them carefully for foreign objects such as nails or screws.

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate. • These signs contain important information about the product and instructions on how to use it.

	Read the user manual.		Use ear protection
			Wear protective glovesGeneral warning
	Fire hazard		Wear protective clothing
	Electric shock hazard		Wear a protective mask
	Wear safety glasses		Wear respiratory protection

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliances should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose of this appliance in the common waste bin.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

WEAR PERSONAL PROTECTIVE EQUIPMENT

• Wear safety glasses according to EN166
• Use protective masks in accordance with EN149

- Use other types of proper personal protective equipment, depending on the type of work involved.

Description of equipment

1. Foot
2. SDS chuck
3. On/Off switch
4. Switch lock
5. Foot adjustment screws
6. Handle position change button.

Blade installation:

Make sure the device is disconnected from the power source.

The device is equipped with a rapid blade installation system (SDS).

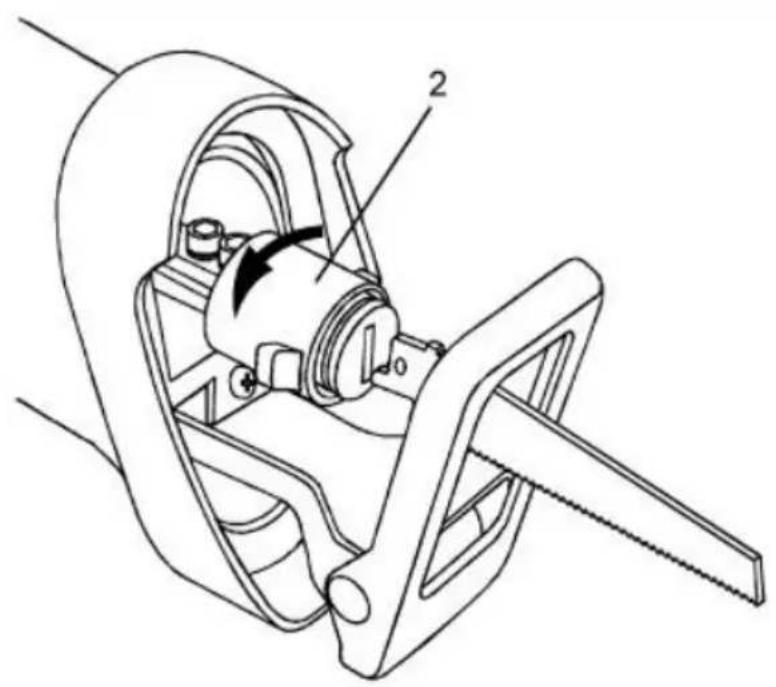

Turn the SDS chuck.

Place the blade in the chuck.

Release the SDS clamping ring.

When replacing the blade make sure that:

The blade holder is free from other materials

Always check that the blade is securely clamped before use.

Blade removal:

Remember to wait after work because the blade may be hot.

Make sure the device is disconnected from the power source.

Rotate the saw blade chuck SDS ring

and remove the blade from the chuck.

SPEED CONTROL

To change the rotation speed use the adjustment knob (2).

The knob is used to set the motor speed within the range specified in the technical data.

The control changes the blade oscillation frequency which is particularly important when cutting various types of materials susceptible to high temperature, such as plastics.

Operating the device:

Press the button (3) to turn the device on

Keep the button (3) pressed and press the lock button (4) at the same time to put the device in continuous operation.

Release the button (3) to stop the device.

Press the button (3) again to turn off the continuous mode.

The device has a cutting speed control knob (7), which is located on the button (3).

Foot length adjustment screws (5).

Button for changing the handle position (6).

Secure the workpiece with clamps.

Always hold the device with both hands and

make sure that you have a secure backrest when cutting.

The foot can be extended by loosening

two fixing screws (5) using an Allen wrench.

Incorrect operation can cause damage to the machine.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure the device is disconnected from the power source.

Keep the ventilation apertures (air inlets and outlets) of the device free of dirt. Wipe the device with a dry cloth or blow it with compressed air. Keep the work tool chuck free of dust. It is recommended to clean the device after each use. Do not immerse in water or other liquids. Do not use aggressive cleaning agents or solvents.

SPECIFICATIONS

• 0-2800 strokes per minute • Maximum cutting length 115 mm • Power supply: 230-240 V ~ 50 Hz, power 800 W, max 1200 W

Noise

Typical A-weighted noise level measured in accordance with ISO/TR 11688-1:

Sound pressure level (LpA): 87 dB (A) ; LwA: 98 dB (A)

Measurement uncertainty (K): 5.0 dB (A); KWA: 5.0 dB (A)

Noise level during operation may exceed: 99 dB (A). Wear hearing protection!

Vibrations

Total vibration value measured in accordance with EN1299:

Vibration emission: ahB=7.94m/s²; ahWB=6.92m/s²

Measurement uncertainty (K): Km=1.5 m/s² ; KB=1.5 m/s²

Permissible Operating Time: 15 minutes of operation, 30 minutes off.

The declared vibrations have been measured according to the standard test method and can be used to compare tools.

The declared vibrations can also be used in the initial exposure assessment.

IMPORTANT INFORMATION

USE PERSONAL PROTECTIVE EQUIPMENT

Rotate the SDS chuck.

EU - DECLARATION OF CONFORMITY

01/2022/RSG010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Name:

Reciprocating saw

RS6010

If used for its intended use, it complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2014/35/EU (LVD Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 55014-1:2017+A1:2020

EN 55014-2:2015

MD and LVD standards:

EN ISO 12100:2010

EN 62841-1:2015

EN IEC 62841-2-11:2016

EN 50204-1:2018

RoHS standards:

EN IEC 63000:2018

Warsaw, 14.11.2022

BLAUPUNKT

Blaupunkt Competence Center 2N-Everpol Sp. z o.o.

Registered office:

Pulawska 403A

02-801 Warsaw, Poland

Correspondence address:

Pulawska 12

05-532 Baniocha, Poland

Phone [phone]

EU DECLARATION OF CONFORMITY

01/2022/RSG010

PRODUCER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warszawa, Polska

EN IEC 62841-2-11 2016

EN 60204-1:2018

RoHS standard:

EN IEC 63000:2018

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems, please contact our service.

Tel. [phone]

Email: [e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
