Product type	Hi-Fi system with turntable, CD player, cassette player, DAB/FM radio, USB/SD recording
Brand	Denon
Model	MRD166
Main functions	Turntable (33/45/78 rpm), CD player, cassette player, DAB/FM radio, auxiliary input, USB port, SD/MMC slot, MP3 recording
Output power	2 × 2 W
Power supply	Mains (230 V AC, 50 Hz)
Radio frequency range	FM: 87.5–108 MHz, DAB: 168–240 MHz
Supported audio formats	Audio CD, MP3, WMA (USB/SD)
Connectivity	Auxiliary input (3.5 mm), headphone jack (3.5 mm), speaker output, Line out, FM antenna wire
Dimensions (approx.)	Not specified in the manual
Weight	Not specified in the manual
Included accessories	Remote control, 45 rpm adapter
Care and cleaning	Wipe with a soft, dry cloth. Do not use solvents or abrasive cleaners.
Safety and compliance	Compliant with directive 2014/53/EU. CE marking. Crossed-out wheelie bin symbol for recycling.

Frequently Asked Questions - MRD166 DENON

How to switch between sources (phono, CD, cassette, radio)?

Use the dedicated buttons on the front panel: PHONO for turntable, CD/USB/SD for CD player or USB/SD devices, FM/DAB for radio, CASSETTE for cassette, and AUX for auxiliary input.

How to tune in a DAB station?

Press FM/DAB to select DAB mode. On first power-up, an automatic station scan is performed. Then use the next/previous button to browse detected stations and press Play/Pause to select.

How to record a source (phono, CD, cassette, or aux) to USB flash drive or SD card?

Insert the USB flash drive or SD card. Select the desired source (e.g. PHONO). Press REC. The screen shows USB or SD choice; confirm with REC. Start playing the source and press Stop to end recording. The format is MP3 128 kbps.

What to do if the turntable stops before the end of the record?

Set the auto-stop control to OFF at the back of the tonearm. The record will play to the end. You will then need to manually stop the rotation. Set the control back to ON after use.

How to connect an external device (MP3 player, smartphone)?

Connect your device to the AUX IN jack (3.5 mm) on the front of the unit. Select AUX mode with the corresponding button. The audio signal will be output through the system's speakers.

How to play MP3 files from a USB flash drive or SD card?

Insert the USB device or SD card. Select CD/USB/SD mode using the button. If both media are present, press repeatedly to switch between USB and SD. Playback starts automatically.

Can I use headphones with this system?

Yes, plug headphones with a 3.5 mm plug into the headphone jack on the front of the unit (reference 9). The speaker sound is then muted.

How to adjust the sound equalizer (EQ)?

Press the Mode (EQ) button (reference 3) or the EQ key on the remote control to cycle through the available sound presets.

Does the remote control work? Which battery to use?

Yes, the remote control is supplied. It likely requires two AAA batteries (not included). Check the battery compartment. Point it at the receiver on the front of the unit.

How to switch between cassette decks DECK 1 and DECK 2?

Use the DECK 1 (reference 13) and DECK 2 (reference 28) buttons on the front panel to select the deck you want to use.

USER MANUAL MRD166 DENON

CLASSICAL TURNTABLE WITH DAB/FM RADIO, CASSET PLAYER & USB/SD SLOT

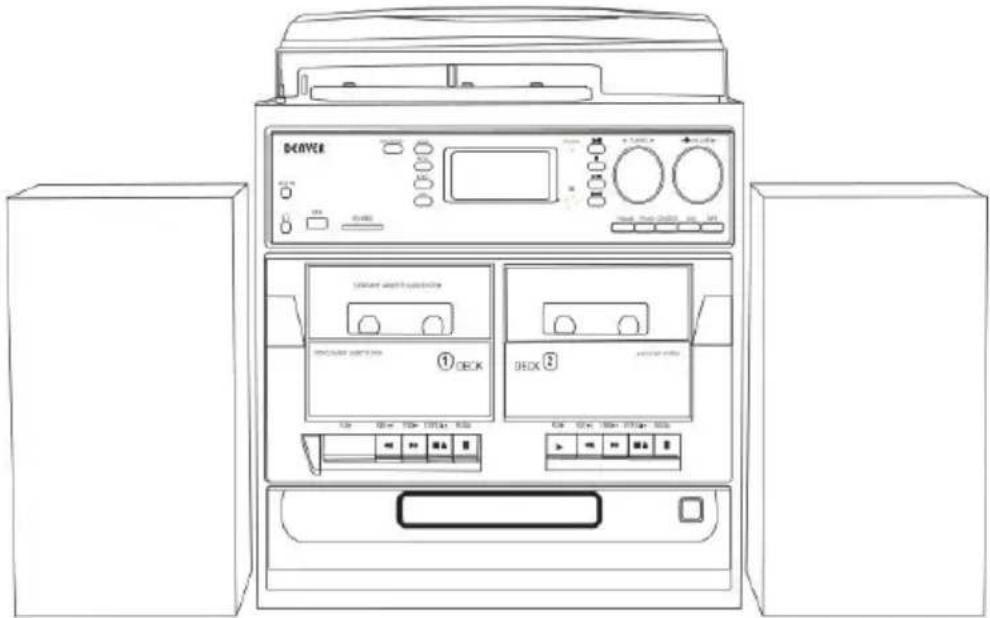

MRD-166 music centre with dual external speakers

Operating and Instruction Manual

LOCATIONS OF CONTROLS AND INDICATORS

1 Dust cover
2 Turntable
3 Mode (EQ) button
4 Menu/Info button
5 Program button
6 Record button
7 Auxiliary input
8 Delete button
9 3.5mm headphone socket
10 USB socket
11 SD/MMC socket
12 LCD display
13 DECK 1 button
14 Disk tray door

15 Play/Pause button
16 FM Tuning knob
17 Power ON/OFF/Volume
18 Skip up button
19 Standby/power light (beside display)
20 Stop button (beside display)
21 Skip down button (beside display)
22 Tape button
23 Aux button
24 CD/USB/SD button
25 Phono button
26 FM/DAB button
27 Remote control receiver
28 Deck 2 button
29 CD open/close button

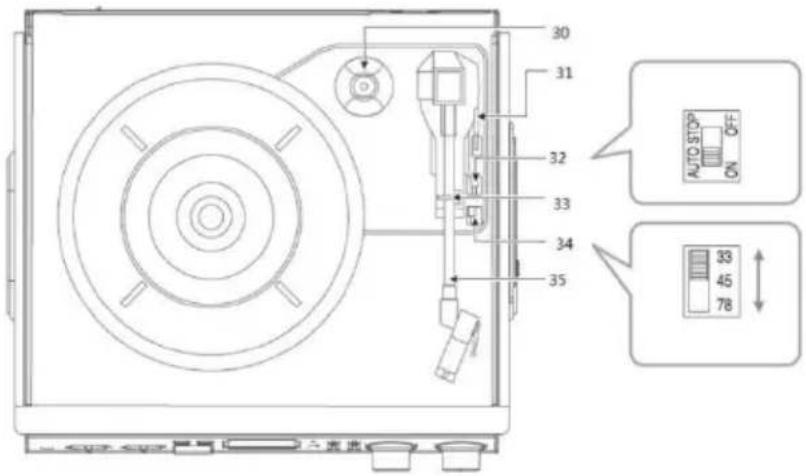

PHONOGRAPH

30 45 rpm adaptor
31 Lift lever
32 Auto stop control
33 Tone arm lock
34 Speed selector (33/45/78 rpm)
35 Tone arm

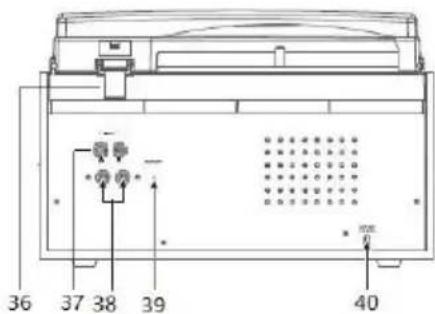

BACK PANEL

36 Dust cover hinge
37 Line out R/L
38 Speaker jack R/L
39 FM wire antenna
40 AC power cord

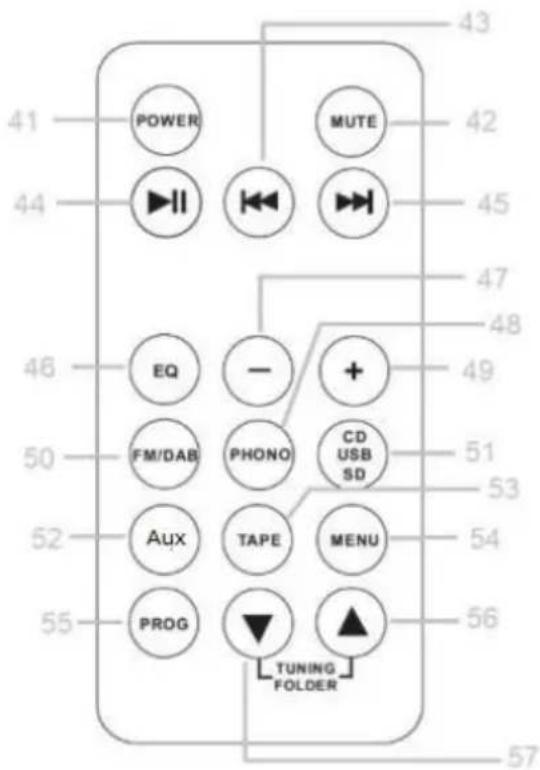

REMOTE CONTROL

41 Power
42 Mute
43 Skip down button
44 Play/Pause
45 Skip up button
46 EQ
47 volume down
48 Phono
49 volume up
50 FM/DAB+
51 CD/USB/SD
52 Aux-in
53 Tape
54 Menu
55 Prog
56 Tuning/folder up

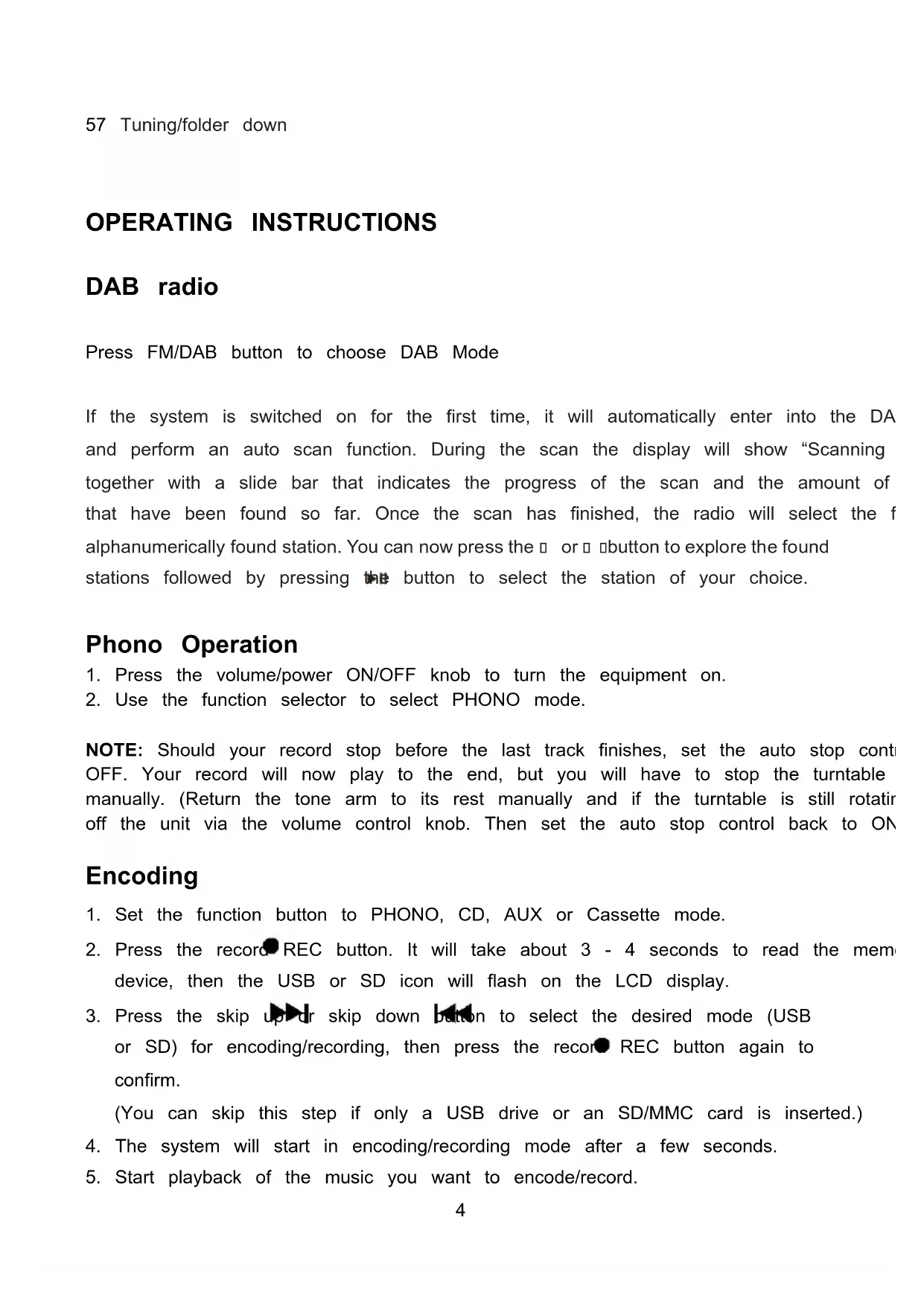

OPERATING INSTRUCTIONS

DAB radio

Press FM/DAB button to choose DAB Mode

If the system is switched on for the first time, it will automatically enter into the DA and perform an auto scan function. During the scan the display will show “Scanning together with a slide bar that indicates the progress of the scan and the amount of that have been found so far. Once the scan has finished, the radio will select the f alphanumerically found station. You can now press the □ or □ button to explore the found stations followed by pressing the button to select the station of your choice.

Phono Operation

1. Press the volume/power ON/OFF knob to turn the equipment on.
2. Use the function selector to select PHONO mode.

NOTE: Should your record stop before the last track finishes, set the auto stop control OFF. Your record will now play to the end, but you will have to stop the turntable manually. (Return the tone arm to its rest manually and if the turntable is still rotating off the unit via the volume control knob. Then set the auto stop control back to ON

Encoding

1. Set the function button to PHONO, CD, AUX or Cassette mode.
2. Press the record REC button. It will take about 3 - 4 seconds to read the mem device, then the USB or SD icon will flash on the LCD display.
3. Press the skip up or skip down button to select the desired mode (USB or SD) for encoding/recording, then press the record REC button again to confirm.
   (You can skip this step if only a USB drive or an SD/MMC card is inserted.)
4. The system will start in encoding/recording mode after a few seconds.

5. Start playback of the music you want to encode/record.

6. To finish encoding/recording, press the ▪op button. The display will show "END" a return to PHONO mode.

NOTE:

The recording speed is 1:1. Recording time is governed by how long it takes for music to play to its end.

☐ The recording format is preset at the MP3 bit rate of 128 Kbps.

CD & Cassette Operation

1. Press the VOLUME knob to turn the equipment on.
2. Choose the mode you wish to use (CD or Cassette)
3. Start playback of the music

The USB Port and SD Card Slot

Playback of music in MP3/WMA format via USB device or memory ca

The system is able to decode and playback all MP3/WMA files stored in the memory media connected to the USB port or SD/MMC card slot.

1. Press the VOLUME knob to turn on the equipment.
2. Set the function selector to CD/USB/SD mode. (If you have both a USB device a memory card inserted, press the same button to toggle between CD/USB and SD mode.) The system will start reading the storage medium automatically after mode selection and will display the total number of folders and MP3/WMA files.
3. The system will then start audio playback from the media storage device (USB or card) automatically.

The auxiliary input

1. Press the VOLUME knob to turn the equipment on.
2. Use the function selector to select AUX mode, then connect the external audio device (such as a CD player) to the AUX IN socket on the front of the equipment. The signal from the external audio device will now be played through the system.

Please notice - All products are subject to change without any notice. We take reser for errors and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment contains materials, components and substances that are hazardous to your health and the environment, if the waste material (discarded elec and electronic equipment) is not handled correctly.

Electric and electronic equipment is marked with the crossed out trash can symbol, so above. This symbol signifies that electric and electronic equipment should not be disposed of with other household waste, but should be disposed of separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or collected from the households. Additional information is available at the technical department of your city.

Hereby, Inter Sales A/S declares that the radio equipment type MRD-166 is in compli with Directive 2014/53/EU. The full text of the EU declaration of conformity is availabl

the following internet address: www.denver-electronics.com and then click the search ICON on topline of website. Write model number: MRD-166. Now enter product page, and I directive is found under downloads/other downloads.

Operating Frequency Range: FM:87.5-108MHz DAB:168-240MHz

Max Output Power: 2*2W

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark
