USER MANUAL DM33S DENON

TO PREVENT FIRE OR SHOCKHAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR MOIS-TURE. CAUTION: 1. Handle the power supply cord carefullyDo not damage or deform the power supply cord.If it is damaged or deformed, it may cause electricshock or malfunction when used. When removingfrom wall outlet, be sure to remove by holding theplug attachment and not by pulling the cord.2. Do not open the top coverIn order to prevent electric shock, do not open thetop cover.If problems occur, contact your DENON DEALER.3. Do not place anything insideDo not place metal objects or spill liquid inside thesystem.Electric shock or malfunction may result.NOTE:This system uses the semiconductor laser. To allowyou to enjoy music at a stable operation, it isrecommended to use this in a room of 5 °C (41 °F) ~ 35°C (95 °F). CAUTION: USE OF CONTROLS OR ADJUSTMENTS ORREFORMANCE OF PROCEDURES OTHER THANTHOSE SPECIFIED HEREIN MAY RESULT INHAZARDOUS RADIATION EXPOSURE.THE COMPACT DISC PLAYER SHOULD NOT BEADJUSTED OR REPAIRED BY ANYONE EXCEPTPROPERLY QUALIFIED SERVICE PERSONNEL. SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operatinginstructions should be read before the product isoperated.2. Retain Instructions – The safety and operatinginstructions should be retained for future reference.3. Heed Warnings – All warnings on the product and inthe operating instructions should be adhered to.4. Follow Instructions – All operating and useinstructions should be followed.5. Cleaning – Unplug this product from the wall outletbefore cleaning. Do not use liquid cleaners or aerosolcleaners.6. Attachments – Do not use attachments notrecommended by the product manufacturer as theymay cause hazards.7. Water and Moisture – Do not use this product nearwater – for example, near a bath tub, wash bowl,kitchen sink, or laundry tub; in a wet basement; ornear a swimming pool; and the like.8. Accessories – Do not place this product on anunstable cart, stand, tripod, bracket, or table. Theproduct may fall, causing serious injury to a child oradult, and serious damage to the product. Use onlywith a cart, stand, tripod, bracket, or tablerecommended by the manufacturer, or sold with theproduct. Any mounting of the product should followthe manufacturer’s instructions, and should use amounting accessory recommended by themanufacturer.9. A product and cart combinationshould be moved with care.Quick stops, excessive force,and uneven surfaces may causethe product and cart combinationto overturn.10. Ventilation – Slots and openingsin the cabinet are provided forventilation and to ensure reliable operation of theproduct and to protect it from overheating, and theseopenings must not be blocked or covered. Theopenings should never be blocked by placing theproduct on a bed, sofa, rug, or other similar surface.This product should not be placed in a built-ininstallation such as a bookcase or rack unless properventilation is provided or the manufacturer’sinstructions have been adhered to.11. Power Sources – This product should be operatedonly from the type of power source indicated on themarking label. If you are not sure of the type ofpower supply to your home, consult your productdealer or local power company. For productsintended to operate from battery power, or othersources, refer to the operating instructions.12. Grounding or Polarization – This product may beequipped with a polarized alternating-current line plug(a plug having one blade wider than the other). Thisplug will fit into the power outlet only one way. Thisis a safety feature. If you are unable to insert the plugfully into the outlet, try reversing the plug. If the plugshould still fail to fit, contact your electrician to replaceyour obsolete outlet. Do not defeat the safetypurpose of the polarized plug. FIGURE AEXAMPLE OF ANTENNA GROUNDINGAS PER NATIONALELECTRICAL CODEANTENNALEAD IN WIRE GROUNDCLAMPELECTRICSERVICEEQUIPMENTANTENNADISCHARGE UNIT(NEC SECTION 810-20)GROUNDING CONDUCTORS(NEC SECTION 810-21)GROUND CLAMPSPOWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H) NEC - NATIONAL ELECTRICAL CODE 13. Power-Cord Protection – Power-supply cords shouldbe routed so that they are not likely to be walked onor pinched by items placed upon or against them,paying particular attention to cords at plugs,convenience receptacles, and the point where theyexit from the product.15. Outdoor Antenna Grounding – If an outside antenna orcable system is connected to the product, be sure theantenna or cable system is grounded so as to providesome protection against voltage surges and built-upstatic charges. Article 810 of the National ElectricalCode, ANSI/NFPA 70, provides information withregard to proper grounding of the mast and supportingstructure, grounding of the lead-in wire to an antennadischarge unit, size of grounding conductors, locationof antenna-discharge unit, connection to groundingelectrodes, and requirements for the groundingelectrode. See Figure A.16. Lightning – For added protection for this productduring a lightning storm, or when it is left unattendedand unused for long periods of time, unplug it fromthe wall outlet and disconnect the antenna or cablesystem. This will prevent damage to the product dueto lightning and power-line surges.17. Power Lines – An outside antenna system should notbe located in the vicinity of overhead power lines orother electric light or power circuits, or where it canfall into such power lines or circuits. When installingan outside antenna system, extreme care should betaken to keep from touching such power lines orcircuits as contact with them might be fatal.18. Overloading – Do not overload wall outlets, extensioncords, or integral convenience receptacles as this canresult in a risk of fire or electric shock.19. Object and Liquid Entry – Never push objects of anykind into this product through openings as they maytouch dangerous voltage points or short-out parts thatcould result in a fire or electric shock. Never spillliquid of any kind on the product.20. Servicing – Do not attempt to service this productyourself as opening or removing covers may exposeyou to dangerous voltage or other hazards. Refer allservicing to qualified service personnel.21. Damage Requiring Service – Unplug this product fromthe wall outlet and refer servicing to qualified servicepersonnel under the following conditions:a) When the power-supply cord or plug is damaged,b) If liquid has been spilled, or objects have fallen intothe product,c) If the product has been exposed to rain or water,d) If the product does not operate normally byfollowing the operating instructions. Adjust onlythose controls that are covered by the operatinginstructions as an improper adjustment of othercontrols may result in damage and will oftenrequire extensive work by a qualified technician torestore the product to its normal operation,e) If the product has been dropped or damaged in anyway, andf) When the product exhibits a distinct change inperformance – this indicates a need for service.22. Replacement Parts – When replacement parts arerequired, be sure the service technician has usedreplacement parts specified by the manufacturer orhave the same characteristics as the original part.Unauthorized substitutions may result in fire, electricshock, or other hazards.23. Safety Check – Upon completion of any service orrepairs to this product, ask the service technician toperform safety checks to determine that the productis in proper operating condition.24. Wall or Ceiling Mounting – The product should bemounted to a wall or ceiling only as recommended bythe manufacturer.25. Heat – The product should be situated away from heatsources such as radiators, heat registers, stoves, orother products (including amplifiers) that produceheat.Please, record and retain the Model name and serialnumber of your set shown on the rating label.Model Name. RCD-M33 Serial No.1. PRODUCTThis product complies with Part 15 of the FCCRules. Operation is subject to the following twoconditions: (1) this product may not cause harmfulinterference, and (2) this product must accept anyinterference received, including interference thatmay cause undesired operation.2. IMPORTANT NOTICE: DO NOT MODIFY THISPRODUCT This product, when installed as indicated in theinstructions contained in this manual, meets FCCrequirements. Modification not expressly approvedby DENON may void your authority, granted by theFCC, to use the product.3. NOTEThis product has been tested and found to complywith the limits for a Class B digital device, pursuantto Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection againstharmful interference in a residential installation.This product generates, uses and can radiate radiofrequency energy and, if not installed and used inaccordance with the instructions, may causeharmful interference to radio communications.However, there is no guarantee that interferencewill not occur in a particular installation. If thisproduct does cause harmful interference to radio ortelevision reception, which can be determined byturning the product OFF and ON, the user isencouraged to try to correct the interference by oneor more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipmentand receiver.• Connect the product into an outlet on a circuitdifferent from that to which the receiver isconnected.• Consult the local retailer authorized to distributethis type of product or an experienced radio/TVtechnician for help. FCC INFORMATION (For US customers) CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DONOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICINGTO QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowheadsymbol, within an equilateral triangle,is intended to alert the user to thepresence of uninsulated “dangerousvoltage” within the product’senclosure that may be of sufficientmagnitude to constitute a risk ofelectric shock to persons.The exclamation point within anequilateral triangle is intended to alertthe user to the presence of importantoperating and maintenance (servicing)instructions in the literatureaccompanying the appliance. CAUTION

MAIN FEATURES 1. Quality power for high quality sound22W+22W (6 Ω/ohms, 1 kHz, T.H.D. 10%)high quality amplifier and terminals for largespeakers.2. MP3/WMA playbackDiscs containing MP3 and/or WMA files canbe played, and the track and artists namescan be displayed during playback.3. TONE and SDB controlTONE control is available for BASS andTREBLE separately and the SDB (SuperDynamic Bass) control enables powerfulbass tones when listening at lower volumelevels.This unit has Source Direct position to turnoff the SDB/TONE.4. RDS compatibleCompatible with various RDS services,including program service name (PS)program type identification (PTY), trafficprogram identification (TP), clock time (CT)and radio text (RT).

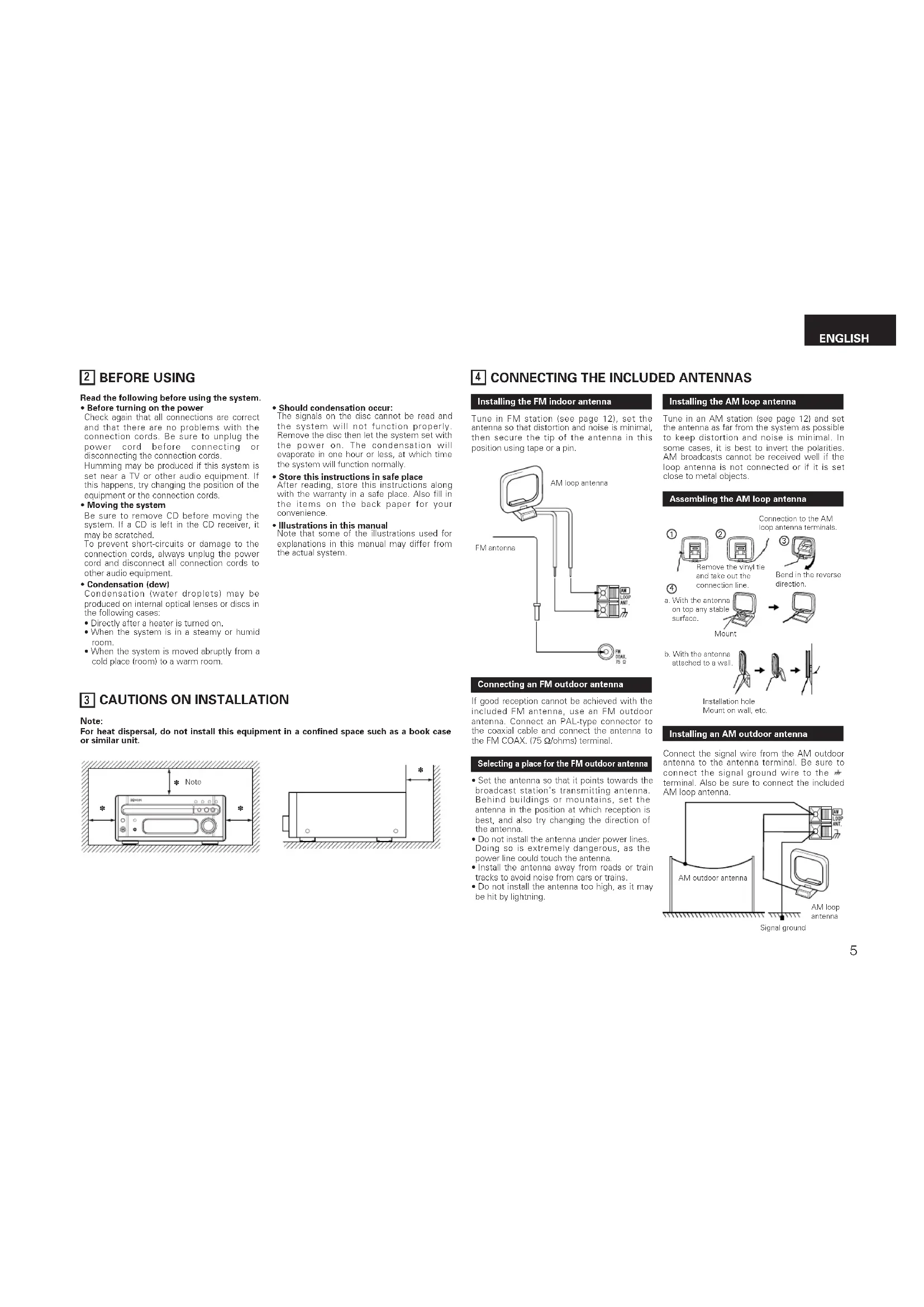

Installing the FM indoor antennaTune in FM station (see page 12), set theantenna so that distortion and noise is minimal,then secure the tip of the antenna in thisposition using tape or a pin.Installing the AM loop antennaTune in an AM station (see page 12) and setthe antenna as far from the system as possibleto keep distortion and noise is minimal. Insome cases, it is best to invert the polarities.AM broadcasts cannot be received well if theloop antenna is not connected or if it is setclose to metal objects.Connecting an FM outdoor antennaIf good reception cannot be achieved with theincluded FM antenna, use an FM outdoorantenna. Connect an PAL-type connector tothe coaxial cable and connect the antenna tothe FM COAX. (75 Ω/ohms) terminal.Selecting a place for the FM outdoor antenna• Set the antenna so that it points towards thebroadcast station’s transmitting antenna.Behind buildings or mountains, set theantenna in the position at which reception isbest, and also try changing the direction ofthe antenna.• Do not install the antenna under power lines.Doing so is extremely dangerous, as thepower line could touch the antenna.• Install the antenna away from roads or traintracks to avoid noise from cars or trains.• Do not install the antenna too high, as it maybe hit by lightning.FM antennaAM loop antennaAssembling the AM loop antenna

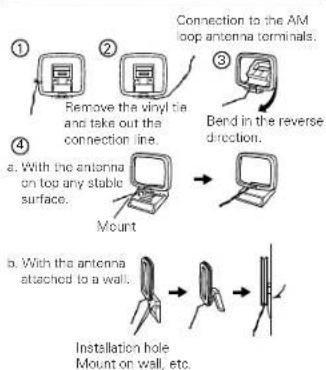

Connection to the AM loop antenna terminals.Bend in the reversedirection.Remove the vinyl tieand take out theconnection line.Installation holeMount on wall, etc.Mounta. With the antennaon top any stablesurface.b. With the antennaattached to a wall.Installing an AM outdoor antennaConnect the signal wire from the AM outdoorantenna to the antenna terminal. Be sure toconnect the signal ground wire to the terminal. Also be sure to connect the includedAM loop antenna.Signal groundAM loopantennaAM outdoor antennaNote:For heat dispersal, do not install this equipment in a confined space such as a book caseor similar unit. Note

BEFORE USING Read the following before using the system.• Before turning on the powerCheck again that all connections are correctand that there are no problems with theconnection cords. Be sure to unplug thepower cord before connecting ordisconnecting the connection cords.Humming may be produced if this system isset near a TV or other audio equipment. Ifthis happens, try changing the position of theequipment or the connection cords.• Moving the systemBe sure to remove CD before moving thesystem. If a CD is left in the CD receiver, itmay be scratched.To prevent short-circuits or damage to theconnection cords, always unplug the powercord and disconnect all connection cords toother audio equipment.• Condensation (dew)Condensation (water droplets) may beproduced on internal optical lenses or discs inthe following cases:• Directly after a heater is turned on.• When the system is in a steamy or humidroom.• When the system is moved abruptly from acold place (room) to a warm room.• Should condensation occur:The signals on the disc cannot be read andthe system will not function properly.Remove the disc then let the system set withthe power on. The condensation willevaporate in one hour or less, at which timethe system will function normally.• Store this instructions in safe placeAfter reading, store this instructions alongwith the warranty in a safe place. Also fill inthe items on the back paper for yourconvenience.• Illustrations in this manualNote that some of the illustrations used forexplanations in this manual may differ fromthe actual system.

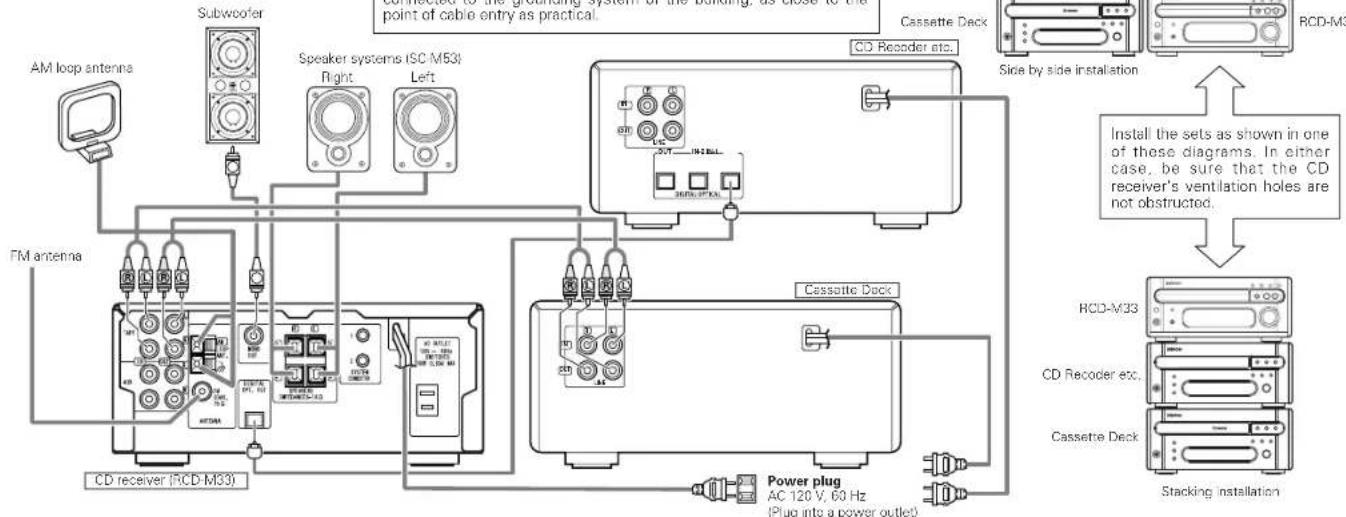

CONNECTIONS Connecting the speaker systemsConnect the speaker system for the left channel (the left side as seenfrom the front) to the L terminals, the speaker system for the rightchannel to the R terminals. Refer to the instructions supplied with thespeaker system for details. Be sure to use speaker systems with animpedance of 6 Ω/ohms or greater.NOTE:• This system includes digital circuitry whichmay cause interference such as colorblotching or changes in the color on TVs. Ifthis happens, move the system and theTV as far apart as possible.NOTES:• Do not plug the power cord into the power outlet until all connections are completed. Besure to interconnect the channels (L to L (white) and R to R (red)) properly, as shown on thediagram.• Insert the plugs securely. Incomplete connections may result in noise.• Be sure to connect the speaker cords between the speaker terminals and the speakersystems with the same polarities ( + to +, – to – ). If the polarities are switched, the sound atthe center will be weak, the position of the different instruments will be unclear, and thestereo effect will be lost.• After unplugging the power cord, wait about 5 seconds before plugging it back in.

• Note that setting the connection cords (pin-plug cords) next to the power cords may result in humming or other noise.CAUTION:• Whenever the power operation switch is in the STANDBYposition, the unit is still connected to AC line voltage.Please be sure to unplug the power cord when you leave homefor, e.g.,a vacation, etc.System operationsSuch system operations as the timer and the auto power on functions, as well as remote controloperations cannot be performed unless all the RCA pin-plug cords are connected between theunits, so be sure to make all the connections properly as shown in the diagram. Be sure to unplugthe power cord before changing connections.Install the sets as shown in oneof these diagrams. In eithercase, be sure that the CDreceiver’s ventilation holes arenot obstructed.(1) Connecting to Cassette deck OUT

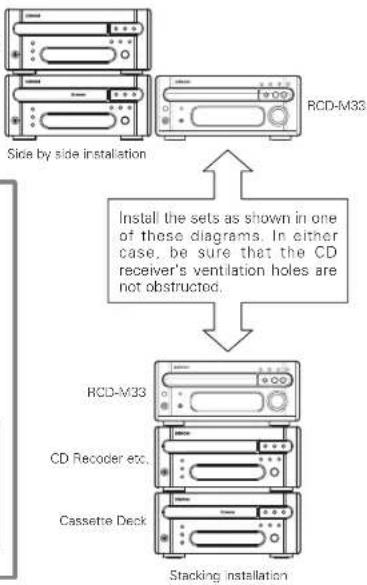

FM antennaAM loop antennaRightSubwoofer Left Speaker systems (SC-M53)Power plugAC 120 V, 60 Hz(Plug into a power outlet)CD receiver (RCD-M33)Side by side installationStacking installationCassette Deck Note to CATV system installer:This reminder is provided to call the CATV system installer’s attentionto Article 820-40 of the NEC which provides guidelines for propergrounding and, in particular, specifies that the cable ground shall beconnected to the grounding system of the building, as close to thepoint of cable entry as practical.CD Recoder etc.CD Recoder etc.Cassette Deck CD Recoder etc.Cassette Deck RCD-M33RCD-M33

PHONES (headphones jack)• Plug the headphones into this jack.• No sound is produced from the speakerswhen headphones are plugged in. FUNCTION button• Use this to select the input (function).• The input changes in the following ordereach time this button is pressed: Display• Refer to page 8.

(play/pause) button• Press this button to start playing a disc.When the disc tray is closed, playbackbegins when this button is pressed.• When pressed in STANDBY mode, thepower automatically turns on andplayback begins (Auto On function).Press this button again to stop playbacktemporarily. VOLUME control• Use this to adjust the overall volume(Rotary Encorder System).• The volume increases when the controlis turned clockwise (,) and decreaseswhen it is turned counterclockwise (.).• The volume increases and decreases in35 steps from the minimum (VOLUME00) to the maximum (VOLUME MAX).

• Use the 8 and 9 buttons to move to the beginning of a specific track whilein CD function.• Use the +/– button to select radiostations while in TUNER function.

(open/close) button• Press this button to open and close thedisc tray.• When pressed once, the disc tray opensout, and when pressed again, the disctray closes. If a disc is loaded, the totalnumber of tracks and total playing timeof the disc are displayed several secondsafter the disc tray is closed.• When pressed in STANDBY mode, theCD receiver’s power turns on. Disc tray• Load discs here. Power operation switch (ON/STANDBY)• This turns the power for the entiresystem on and off. • Press this once to turn the power on,then press again to set the power toSTANDBY mode.• The LED color changes as follows,according to the condition:During power ON : greenDuring STANDBY : redDuring TIMER STANDBY: orange✻The muting mode is set when the mainunit’s power button is pressed and whenthe standby mode is canceled from theremote control unit. The power indicatorflashes green when in the muting mode,then stops flashing and turns green oncethe set is in the operational mode.✻If the indicator is flashing orange(quickly):The protective circuit is activated.If this happens, unplug the power cordto turn the indicator off, then check theinput and output terminals on the rearpanel. Check in particular for short-circuiting of the speaker cords. Once allconnections have been corrected, plugthe power cord. (Wait for at least 10seconds after turning the power offbefore turning it back on.)✻Power is supplied to the RCD-M33 evenwhen the power is in the standby mode(The clock is displayed in the clockdisplay mode.) Remote sensor• When operating the remote control unit,point it at this sensor. 2 /BAND button( 2 : CD stop button BAND : TUNER band button)• In CD function, press this button to stopplayback.• In TUNER function, each time thisbutton is pressed, the band and FMreception mode change as follows: SDB (Super Dynamic Bass)/TONEbutton• Press this button to select the preferredsound of TONE CONTROL/SDB. Eachtime this button is pressed, the displaychanges as follows:• You can switch the SDB on/off by usingthe +/– (up/down) button.• BASS and TREBLE can be adjusted byusing the +/– (up/down) button.• When you select S.DIRECT (SourceDirect), SDB/TONE is switched off, andthe sound characteristic becomes flat.• SDB can be controlled powerful basstones when listening at lower volumelevels. MENU/ SET button• When pressed in the standby mode, thestandby mode is switched (the clockdisplay is switched on and off).• When pressed while the clock isdisplayed, the manual time setting modeis set. (This cannot be set while theclock is displayed in the standby mode.)• Switches the display of the timer settingmenu on and off.• When the function is set to FM and theCT tuning mode is set, the modeswitches to the auto time setting mode.• When the function is set to TUNER andan FM station is being received, ifpressed for more than 1 second, thedisplay switches to the AUTO PRESETmenu.

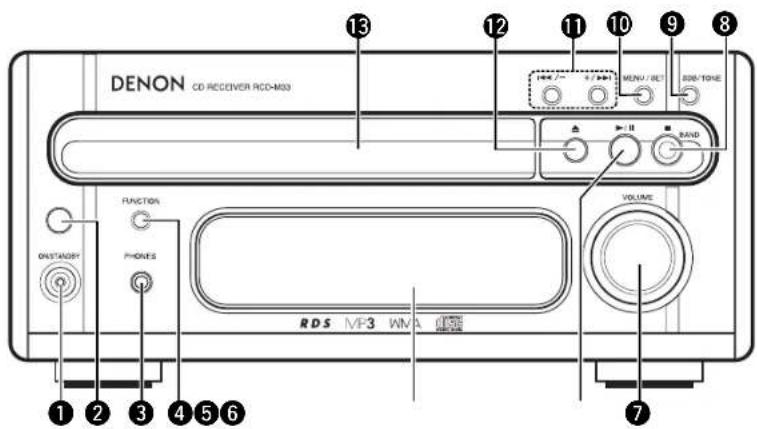

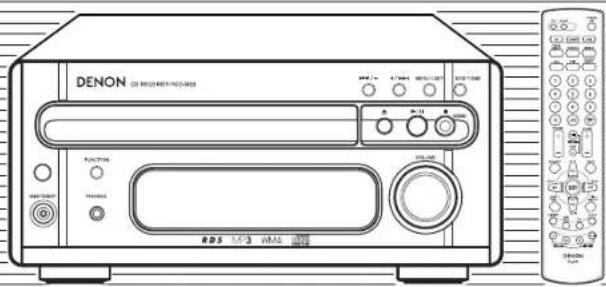

PART NAMES AND FUNCTIONS

(See page 3.) (1) Front PanelNOTE:• The SDB should be deactivated whenlistening at higher volume levels.Excessive bass at high volume levelswill result in a distorted sound andmay cause damage to your set andspeaker system.NOTE:• Care must be taken when you adjustthe volume as the CD receiver isequipped with an electronic volumecontrol. Turn the VOLUME controlslowly referring to the indication onthe display to adjust the volume.

1.RCD-M33-E3-ENG05.4.135:46PMページ7ENGLISH

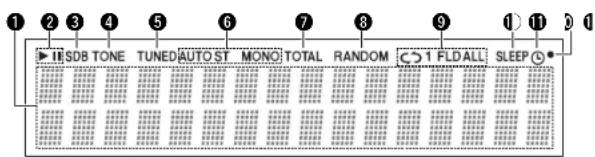

/ 1 / FLD / ALLThis changes as follows each time theREPEAT button is pressed.• When the function is set to CD and themode is not the folder mode:1st press : 1 (single-track repeat)is displayed.2nd press : ALL (1 disc all trackrepeat) is displayed.3rd press : Nothing is displayed.• When the function is set to CD and thefolder mode is set (only valid for discscontaining MP3 and/or WMA files):1st press : 1 (single-track repeat)is displayed.2nd press : FLD (all track in afolder repeat) is displayed.3rd press : Nothing is displayed. SLEEPThis lights when the sleep timer isoperating. The timer will operate when this is lit. Remote control signal indicatorFlashes when remote control signals arereceived.

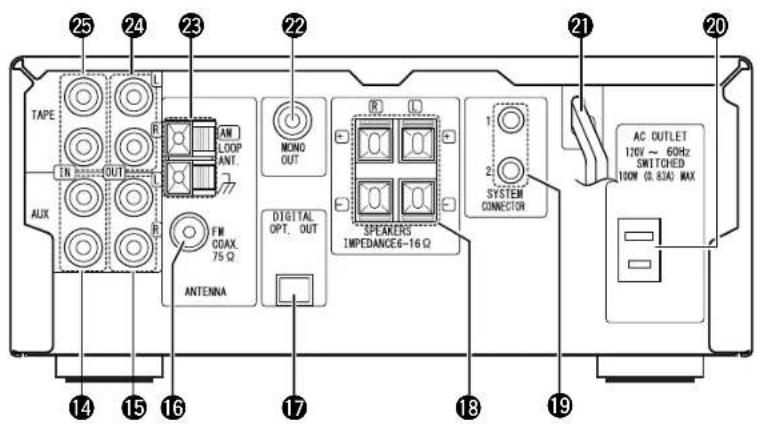

AUX IN (analog input) jacks• This is an input terminal. AUX OUT (analog output) jacks• This is an output terminal for recording. FM antenna terminal (ANTENNA TERMINAL FM)• Connect the FM antenna here. Digital output jack (DIGITAL OPTICAL OUT)• Digital data is output in optical form fromthis jack. Speaker terminals (SPEAKERS)• Use these to connect the speakers. System connectors (SYSTEM CONNECTOR 1 and 2)• When connecting the cassette deck,connect these connectors to systemconnectors on other systemcomponents.(Use the system cords included with theother components.) AC OUTLET• When using in combination with thecassette deck, connect to the AC outleton the CD receiver (RCD-M33) or one ofthe other components (100W MAX). Power cord• Plug this cord into a wall power outlet. MONO OUT terminal (SUB WOOFER)• Connector jack for subwoofer with built-in amplifier (super woofer), etc. AM antenna terminal (ANTENNA TERMINAL AM)• Connect the AM antenna here. TAPE OUT (analog output) jacks• This is an output terminal for recording. TAPE IN (analog input) jacks• This is an input terminal.(2) Rear Panel (3) DisplayNOTE:• The timer standby mark (“ ”) doesnot light if the current timeand the timer have not been set. SegmentThe selected functions, volume, receptionband, reception frequency, RDS data, time,and timer settings are displayed here. 1/ 31 (the play indicator) lights when a disc is playing, and 3 (the pause indicator) lights when pause mode is set.

SDB This lights when SDB mode is on.

TONE This lights when the TONE is adjusted. TUNEDThis lights when a station is tuned inproperly. AUTO / ST / MONOThese display the FM reception mode.ST : This lights when a stereoprogram is received in the FMAUTO mode.MONO : This lights when a monauralprogram is received in the FMAUTO mode and when theBAND button is pressed,setting the FM MONO mode.AUTO : This lights when the BANDbutton is pressed, setting theFM AUTO mode. TOTALLights when the total remaining time or thetotal number of tracks remaining on thedisc is displayed on the segment. RANDOM“RANDOM” lights during random play.

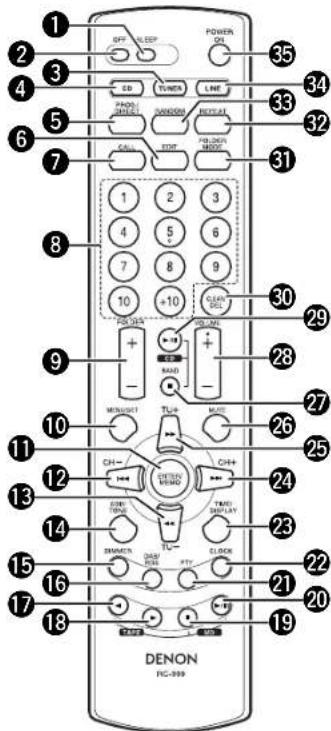

• The supplied remote control unit (RC-999) is for use with the RCD-M33 unit only.

• If the cassette deck is connected to the main unit, you may operate each of the above components using its respective remote control unit (refer to pages 9, 10).

(1) Inserting the batteriesq Open the battery compartment cover of theremote control unit.Press the knob and open the cover in thedirection of the arrow.w Insert the two R03 (AAA) batteries, followingthe + and – marks in the battery compartment.e Close the cover of the battery compartment.Cautions on Batteries• Use R03 (AAA) batteries in this remotecontrol unit.• Replace the batteries with new ones afterapproximately 1 year, though this dependson the frequency with which the remotecontrol unit is used.• Replace the batteries with new ones if theunit does not operate when the remotecontrol unit is operated from nearby, even ifthe batteries are less than a year old.• Be sure to insert the batteries in the proper direction, following the “ < ” and “ > ” marks in the battery compartment.• To avoid damage or leakage of battery fluid:• Do not use a new battery with an old one.• Do not use two different types of batteries.• Do not short-circuit, take apart, heat ordispose of batteries in flames.• Remove the batteries when you do not planto use the remote control unit for anextended period of time.• If the battery fluid should leak, carefully wipeoff the fluid from the inside of the batterycompartment, then insert new batteries.(2) Using the Remote Control Unit• The remote sensor is located on the CD receiver.Point the remote control unit at the remotesensor as shown on the diagram when operating it.

• The remote control unit will operate from adirect distance of approximately 7 meters, butthis distance will be shortened if obstacles arepresent or if operated at an angle. (The remotecontrol unit will operate at an angle of up to 30°in either direction.)

30°30° NOTES:• The remote control unit may not operate ifthe remote sensor is exposed to directsunlight or the strong light from a lightingfixture, or if there is an obstacle between theremote control unit and the remote sensor.• Do not press buttons on the remote controlunit and on the set at the same time. Doingso could result in malfunctions.• If the remote control unit is pointed awayfrom the re-mote sensor during continuousoperations (such as when turning the volumeup or down), the operation will stop. If thishappens, point the remote control unit at theremote sensor and press the button again.The RCD-M33 comes with a system remote control unit (RC-999

• When pressed in the standby mode, the standby mode is switched (the clock display is switched on and off).

• When pressed while the clock is displayed, the manual time setting mode is set. (This cannot be set while the clock is displayed in the standby mode.)

• Switches the display of the timer setting menu on and off.

• When the function is set to FM and the CT tuning mode is set, the mode switches to the auto time setting mode.

• When the function is set to TUNER and an FM station is being received, if pressed for more than 1 second, the display switches to the AUTO PRESET menu. !1 ENTER/ MEMO button

• Press this button to enter editing settings.

• Press this button to preset memory. !2 8 /CH– (automatic search) button In CD function :

• Move to the beginning of current Track or previous Track. In TUNER function :

• Use this button to recall preset stations on the tuner. !3 6 /TU– (manual search / rewind) button In CD function :

• The manual search operation is performed. In TUNER function :

• Use this button to selecting the station. In TAPE function :

• Press this button to rewind the front side of the tape. (The back side of the tape is fast-forwarded.) Also use this button to search for the beginning of the current selection when playing in the forward (1) direction, or to search for the beginning of the following selection when playing in the reverse (0) direction. !4 SDB /TONE button

• Press this button to adjust SDB (Super Dynamic Bass) and TONE. !5 DIMMER button

• Use this to adjust the brightness of the main unit‘s display. Can be switched in 4 steps, from OFF to always on. !6 DAB/ RDS button

• Use this button to automatically tune to stations using the radio data system. !7 0 (reverse play) button (TAPE)

• Not supported. !8 1 (forward play) button (TAPE)

(stop) button (TAPE)

(play/pause) button (MD)

• Not supported. @1 PTY button

• Press this button after selecting “PTY” with the RDS button to select one of the 24 program types. @2 CLOCK button

• Press this to switch the clock display between on and off. @3 TIME/ DISPLAY button For audio CDs with the function set to CD:

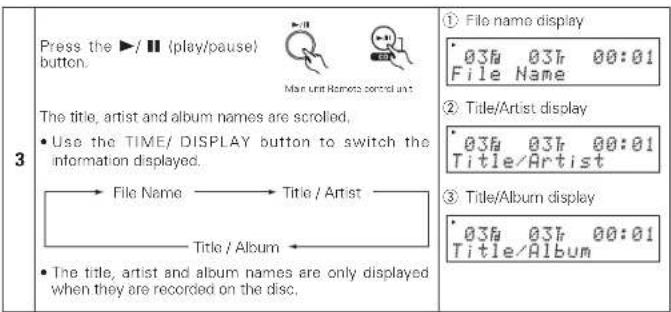

• Press this button during the play or pause mode to switch the time display. (During programmed playback, indicate the total remaining time of the programmed tracks.) For MP3/WMA discs containing track information with the function set to CD:

• Press this button during the play or pause mode to switch the track information. With the function set to TUNER, and in the FM and RDS modes:

• Press to switch the display below. PS:This is displayed when the radio station currently being received is one named using the procedure described in “P13 – Presetting or naming radio stations”. frequency (PS) PTY

file name Title / ArtistTitle / Album elapsed timeper trackremaining time for the tracktotal remaining time on the disc

• Move to the beginning of Next Track. In TUNER function :

• Use this button to recall preset stations on the tuner. @5 7 /TU+ (manual search / fast-forward) button In CD function :

• The manual search operation is performed. In TUNER function :

• Use this button to selecting the station. In TAPE function :

• Press this button to fast-forward the front side of the tape. (The back side of the tape is rewind.) Also use this button to search for the beginning of the following selection when playing in the forward ( direction, or to search for the beginning of the current selection when playing in the reverse (0) direction. @6 MUTE button

• Mutes the speaker output. When operated while the output is muted, the mute mode is canceled.

• In CD function, press this button to stop playback.

• In TUNER function, use this button to selecting the band. @8 VOLUME button

• Use these buttons to adjust the volume.

• The volume increases when the • button is pressed and decreases when the

button is pressed. @9 CD 1/ 3 (play/pause) button

• Press this button to play or pause of the CD player. #0 CLEAR/ DEL button In CD function :

• Press this button to clear the track from the program. In TUNER function :

• Press this button to erase the station name.

• For MP3/WMA discs with the function set to CD, switches the play mode between disc and folder. #2 REPEAT button

• Press this button for repeat playback. #3 RANDOM button

• Press this button to set the tracks in random order. #4 LINE button

• Press this button to switch the function LINE . The input changes in the following order each time this button is pressed. #5 POWER ON button

• Use this switch to turn on the power of the entire system. TAPE AUX

1.RCD-M33-E3-ENG05.4.135:46PMページ10ENGLISH

Only discs with the mark canbe played on the RCD-M33.

CAUTIONS ON HANDLING DISCS

About Compact DiscsCD’s with special shapes (heart-shaped CDs,octagonal CDs etc.) cannot be played on this set.Attempting to do so may damage the set. Do notuse such CDs. Use compact discs that include the mark.• Removing discs from their casesAs shown on the diagram, grasp the outer edgeof the disc with your fingers, insert a finger inthe center hole, press gently, then lift the discout of the case.• Loading discs in the disc trayBe sure to load the disc with the labelled sidefacing up. (Compact discs only play on one side.)For 8 cm CDs, set the disc in the sunken sectionin the center of the tray.NOTES:

• The disc tray opens when the 5 (open/close) button is pressed once and closes when it ispressed again.•When the disc tray is closed, the disc turnsautomatically for several seconds, then thetotal number of tracks and total playing timeof that disc appear on the display.• The disc tray can also be closed by pressing the

(play /pause) button, in which caseplayback automatically starts from the firsttrack on the disc (or if tracks areprogrammed, from the first programmedtrack).Handling the Disc Tray:• Do not turn off the power, stop the disc trayby hand or pull on it when it is moving. Doingso may damage it.If the headphones’ cord or some other objectaccidentally gets caught in the disc tray whileit is closing and the disc tray stops, press the5 (open/close) button again to open the trayand remove the obstacle.Do not set objects other than discs on thedisc tray. Doing so may damage it.Cleaning DiscsDust, fingerprints or spit on the disc will result innoise or skipping. If the disc is dirty or if the CDreceiver does not operate properly, use thefollowing procedure to clean the disc:• Hold the disc with the signal surface (the sideopposite the labelled side) facing up, as shownin the diagram.•Wipe the disc gently from the center towardsthe edge (in the direction of the arrow) with asoft cloth.Do not clean discs with the following:• Benzene, alcohol or other solvents• Cleaner including an abrasive• Sprays or cleaners designed for records• Anti-staticNOTES:• Do not wipe discs in the direction oppositethe arrow or in a circular motion as withregular records.• The disc’s signal surface is easily damaged,so do not wipe it with a hard cloth or rub itstrongly.

(Check the connections on pages 5, 6.)Use this to automatically search for FM broadcasts and store up to 40 stations at preset channels1 to 40.Auto tuner presets

NOTE: If an FM station cannot be preset automatically due to poor reception, use the “Manualtuning” operation to tune in the station, then preset it using the manual “Preset memory”operation. Press the power operationswitch to turn on the power. Press the FUNCTION orTUNER button to select TUNERmode. Press the MENU/ SET buttonfor at least 1 second. Press the /BANDbutton tocancel. Use the MENU/ SET button to startsearching. When auto presetting is completed, thestation set at preset position 1 isdisplayed. If you want to stop searching, press the /BANDbutton.

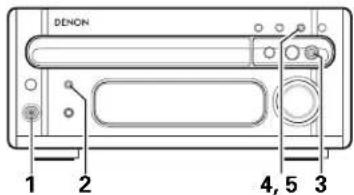

4, 5 Main unit Remote control unit Remote control unit Main unit Remote control unit Main unit Remote control unit Main unit

Manual tuningNOTE: A humming sound may be heard when using a TV nearby while receiving AM programs. Ifthis happens, move the system as far from the TV as possible.Example: Tuning in FM 92.50 MHz(AM stations are tuned in using the same procedure.)

Use the Tuning +/– (TU+/ TU–) button to tune thefrequency to 92.50. Once the frequency is tuned in,adjust the volume to the desired level using the VOLUMEcontrol.

Main unit Remote control unitRemote control unitMain unitMain unit Press the /BANDbutton onthe tuner to select the FMAUTO.Main unit Remote control unit ✽The function of the +/– button on the main unit may toggle between Tuning +/– and Preset +/– functions.

• Pressing the – button while holding down the BAND button at the same time changes function of the +/– button to Tuning +/–. (“TUNING” flashes for 5 seconds.)• Pressing the + button while holding down the BAND button at the same time changes thefunction of the +/– button to Preset +/–. (“PRESET” flashes for 5 seconds.)• The +/– button is factory preset to function as a Tuning +/– button.However, be sure that the +/- buttons function as the Tuning +/– button before proceeding withstep 4.Auto Tuning• When a program being broadcast in stereo is received, the “ST” indicator lights and theprogram is received in stereo.
• If reception is poor and there is much noise in the stereo signals, press the BAND button to set the FM MONO mode.
• When one of the Tuning +/– (TU+/ TU–) button is pressed, the frequency changes in steps of 200 kHz in the FM band, 10 kHz in the AM band.
• If one of the Tuning +/– (TU+/ TU–) button is held for over 1 second, the frequency continues to change when the button is released (auto tuning) and stops when a station is tuned in. Tuningwill not stop at stations whose reception is poor.• To stop the auto tuning function, press the Tuning +/– (TU+/ TU–) button once.Remote control unit

1.RCD-M33-E3-ENG05.4.135:46PMページ12ENGLISH

You can preset up to 40 FM/AM stations.You can name the preset stations (up to 8 characters each).Presetting or naming radio stations(This operation is only possible from the remote control unit.)

• To change a preset station name, press the CH+(9)/ CH–(8) to display the preset station you want to change, then press EDIT and use the same procedure as in step 3 above tochange.
• To preset only the frequency of the radio station, start over from step 1. Then press the ENTER/ MEMO button and proceed to steps 5 through 6. The display shows the preset number, bandand frequency.Flashes Tune in the desired preset station. Press the EDIT button on the remotecontrol unit. You can now begin character input. Press the EDIT button to confirm thenames of the preset stations.. Press the 9 /8 button until thedesired character appears on the display.Press the ENTER/ MEMO button on theremote control unit to store the inputcharacter. Press the 7 button or the ENTER/MEMO button to store the inputcharacter. The cursor will move to thenext character space. Repeat step 3 untilall the characters have been stored. You can move the cursor backward bypressing the 6 button to makecorrections. ENTER/MEMO

Press the 9 /8 button on theremote control unit to tune in thedesired preset number.Next Flashes Press the ENTER/ MEMO button to confirmthe preset station number.If the following operation is performed when the system power is off, the power automaticallyturns on and the radio is played. (Auto on function)Listening to Preset StationsExample: Listening to the station preset at number 3Using the RDS functions(This operation is only possible from the remote control unit.)Receiving RDS broadcasts (FM only)NOTE: If no RDS station is found, “ NO PROGRAM ” is displayed. Press the FUNCTION orTUNER button to select TUNERmode.

Use the “9” and “8” buttons to select preset number “3” or press the “3” button on the numerickeypad to display preset number “P03”.

The “9” and “8” buttons on the main unit can be selected when the preset mode has been set. ress the 2 /BAND and + buttons at the same time tochange the Preset mode.) Press the BAND button and setthe FM AUTO. Press the RDS button.Main unit Remote control unit Press the TU+(7 ) orTU–(6) button. (auto tuning) The station is tuned in.Reception frequencyMain unit Remote control unitMain unit Remote control unitRemote control unit

PTY Search (News) (Top 40) (Information) (Sports) (Talk) (Rock) (Classic Rock) (Adult Hits) (Country) (Oldies)

(Soft Rock) Program Types (Nostalgia) (Personality) (Jazz) (Classical) (R&B) (Soft R&B) (Language) (Religious Music) (Public) (College) (Weather) (Religious Talk) NOTE: If no program of the specified type is found, “ NO PROGRAM ” is displayed.

Press the RDS button twice.

Press the PTY button to select the type of program. (One of the 24 types listed below can be selected.)

The station is tuned in.

Press the TU+(7 ) or TU–(6) button. (auto tuning) TP Search NOTE: “ NO PROGRAM ” is displayed when there is no traffic information broadcast station.

Press the RDS button 3 times.

The station is tuned in.

• When the RT mode is turned on while an RDS radio station not offering an RT service is tuned in, “NO TEXT” is displayed on the display, then the mode automatically switches to the PS mode.

• In the same way, the mode automatically switches to the PS mode when the RT service is finished. In this case, the mode automatically switches from the PS mode back to the RT mode when an RT broadcast is resumed.

• The RT mode cannot be set in the AM band or for FM stations not offering RDS broadcasts.

To set the RT mode, press the TIME/ DISPLAY button on the remote control unit until “Radio Text” scrolls on the display.

When the station currently tuned in is offering a radio text message service, the message scrolls on the display. Scrolling display

1.RCD-M33-E3-ENG05.4.135:46PMページ14ENGLISH

The time and timer functions are incorporated in the CD receiver.

Timer SettingsTypes of timer operationsEVERYDAY TIMER : Use this to turn the power on and standby at the same time every day.ONCE TIMER : Use this to turn the power on and standby once.SLEEP TIMER : Use this to set the power to turn standby after 10 to 90 minutes, in stepsof 10 minutes (operated from the remote control unit).Notes on timer settings• Be sure to set the current time beforehand.

• To listen to or record a radio program (“air check”) using the timer, be sure to preset the station beforehand. (Refer to “Presetting or naming radio station” on page 13.)Power FailuresIf the power cord is unplugged or there is a power failure, the settings of the current time andonce timer are erased and the time display will flash. If this happens, reset the current time andthe once timer.Also check the timer and tuner presettings, and reset them if they have been cleared.Checking the SettingsTo check the timer settings, press the MENU/ SET button to select TIMER. Next, press the 9 or 8 button to select EVERYDAY or ONCE TIMER, then press the MENU/ SET and 9/ 8 button repeatedly to display in order: Timer Setting mode, Function selection, (when in TUNER mode) the reception band and preset channel number, Timer On time,Timer Off time and Timer ON/OFF. Press the MENU/ SET button again to return to the currentmode display.Changing the SettingsRepeat the timer setting operation to erase the previous settings and set the new settings.Clearing the Settings Press the MENU/ SET button to select TIMER. Next, press the 9/ 8 button to select EVERYDAY, then press the 2 (stop) button for at least 2 seconds while EVERYDAY is displayed to clear the everyday timer settings. Press the MENU/ SET button to select TIMER. Next, press the 9/ 8 button to select ONCE, then press the 2 (stop) button for at least 2 seconds while ONCE is displayed to clear the everyday timer settings.Note on Setting the TimerIf the time set with the timer is reached while the system power is on, the operation switches tothe operation set by the timer.Turning the Timer OffFollow the steps for “to turn on or turn off EVERYDAY/ONCE timer feature” to turn off theEVERYDAY/ONCE timer mode.NOTE:• Be sure to set the power to the standby mode when using the timer.The time is displayed in the 12-hour mode. 2, 4, 63, 5 Example: Setting to 9:30 p.m.
• If an RDS station offers a time service the time can be set by pressing the TIME/ DISPLAY and MENU/ SET buttons on the remote control unit while that station is tuned in.Setting the Current Time Press the MENU/ SET button at the cue of a separateclock or time service to start the clock. The time display stops flashing and the clock startsrunning.The hours place flashes. (If thehours have already been set, thatnumber flashes.)The minutes place flashes. (Ifthe minutes have already beenset, that number flashes.)The display stops flashing andthe clock starts running from 00seconds. Press the CLOCK button and select theclock display mode. Press the MENU/ SET buttonfor at least 1 second to selectthe manual time setting mode.(This cannot be set while theclock is displayed in thestandby mode.) Press the MENU/ SET button.Remote control unitRemote control unitMain unit Use the 9 or 8button to set the hours.Main unit Remote control unit 2, 4, 6 3, 5 3, 5

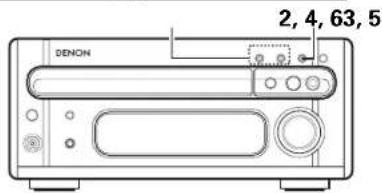

Remote control unitMain unitThe hours place flashes. Use the 9 or 8button to set theminutes.Main unit Remote control unit The minutes place flashes.

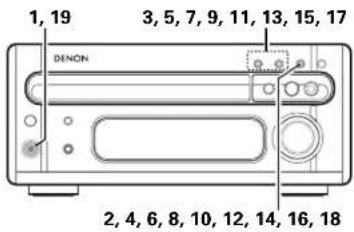

2, 4, 6, 8, 10, 12, 14, 16, 18 1, 19 3, 5, 7, 9, 11, 13, 15, 17 Example: Setting the tuner to turn on at 1:35 p.m., off at 1:56 (with FM 92.50 MHz preset atchannel 3) with everyday timer. Press the power operationswitch to turn on the power. Press the MENU/ SET button toset the timer setting mode. Press either the 9 or8 button as desired. The everyday timer is selected and “EVERYDAY”appears in the display. Press the MENU/ SET button.Setting the Timer

Use the 9 or 8 button to set the“TUNER” mode.Say that FM 87.5 MHz is tunedin preset channel number “ 1 ”.FlashesThe power can be set to turn on and off at a specific time or at the same time everyday.FlashesNOTE:

• Please do not change the setup function of this unit after performing the timer setup. In the event the setup function is changed, the timer start mode may not start properly.Main unit Remote control unitRemote control unitMain unitMain unit Remote control unitRemote control unitMain unitMain unit Remote control unitFlashes 2, 4, 6, 8, 10, 12, 14, 16, 18

3, 5, 7, 9, 11, 13, 15, 17

Use the 9/ 8 button to set the preset channel number.Flashes(If the timer has already beenset, that number flashes.)Flashes Press the MENU/ SET button. Use the 9 or 8button to set the hoursfor the timer on time.FlashesRemote control unitMain unitMain unit Remote control unitRemote control unitMain unitMain unit Remote control unit Press the MENU/ SET button. Use the 9 or 8button to set theminutes for the timer ontime. Press the MENU/ SET button. Use the 9 or 8button to set the hoursfor the timer off time. Press the MENU/ SET button.Flashes(If the timer has already beenset, that number flashes.)Remote control unitMain unitMain unit Remote control unitFlashesRemote control unitMain unitFlashes(If the timer has already beenset, that number flashes.)Main unit Remote control unitFlashesFlashes(If the timer has already beenset, that number flashes.)Remote control unitMain unit

1.RCD-M33-E3-ENG05.4.135:46PMページ16ENGLISH

✽Turning on and off the timer standby ON/OFF• In TIMER STANDBY mode, each time the 9 or 8 button is pressed, the setting changesas follows;

• When you complete the setting, the display automatically returns to the former state after 5 seconds.• To change the settings of TIMER STANDBY, press MENU/ SET button to set the unit in TIMER STANDBY mode first, then use 9 or 8 button to make changes.

Use the 9 or 8 button to set theminutes for the timeroff time. Press the MENU/ SET button.

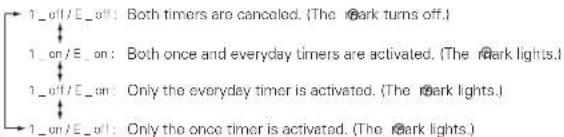

Use the 9 or 8 button to select“1_off/E_on”. The mark lights. Press the power operationswitch to turn standby thesystem’s power. The power switch indicatorturns orange and display turns off. Displays the currently settimer ON or OFF mode. 1 _ on / E _ on :1 _ off / E _ on :1 _ on / E _ off :1 _ off / E _ off : Both once and everyday timers are activated. (The mark lights.)Only the everyday timer is activated. (The mark lights.)Only the once timer is activated. (The mark lights.)Both timers are canceled. (The mark turns off.)Main unit Remote control unitFlashesRemote control unitMain unitMain unit Remote control unit Press the MENU/ SET button.Remote control unitMain unitRemote control unitMain unit 3, 5, 7, 8

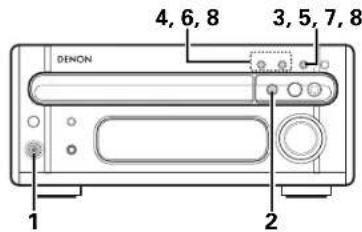

4, 6, 8 Example: Playing a compact disc with the once timer Press the 5 (open/close) button and place adisc on the disc tray. Close the disc tray.Various Timer Operations 3, 5, 7,

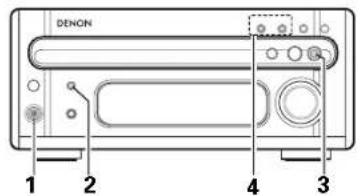

Press the power operationswitch to turn on the power. Press the MENU/ SET button toset the timer setting mode. Press the 9 or 8button. The once timeris selected and“ONCE” appears in thedisplay. Press the MENU/ SET button.

Now follow steps 8 to 18 under “Setting the Timer” on page 16.

• “The “E” indicating “EVERYDAY” switches to “1” indicating “ONCE”.

• Press the MENU/ SET and 9 or 8 button to select “1_on/E_off” and the mark lights in the step

Remote control unitMain unit With this function, the power can be set to turn off after 10 to 90 minutes, in steps of 10 minutes, using the remote control unit. Setting the Sleep Timer (This operation is only possible from the remote control unit.)

• The time is reset to “OFF” if the SLEEP button is pressed again while the sleep timer is functioning. Example: To turn the power off after 80 minutes when listening to FM 87.50 MHz

Tuner currently set to FM 87.50 MHz.

Press the SLEEP button again while the “SLEEP” indicator lights.

The previous display reappears after 5 seconds.

The “SLEEP” indicator remains lit, indicating that the sleep timer is functioning. 20:00 21:00ON OFF SLEEP OFF 22:00 Select OFF using the SLEEP button. The sleep timer is also canceled if the CD receiver‘s power operation switch or the power operation switch on the remote control unit is pressed, turning the system power off. Cancelling the Sleep Timer NOTE:

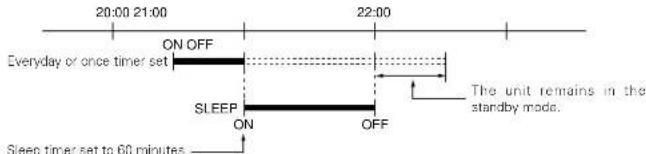

If a several timer operations are set at once, the sleep timer has priority. The sleep timer has priority for the off time. (The system operates as indicated by the bold lines.) Order of priority of the sleep, everyday and once timers Everyday or once timer setSleep timer set to 60 minutesThe unit remains in thestandby mode. Even when the power was turned on with the timer, the power turns off if the remaining time of the sleep timer reaches “00” before the off time set with the everyday or once timer is reached. If the everyday or once timer’s on time is reached while the sleep timer is functioning, the everyday or once timer does not function. When the setting times of the everyday and once timer overlap, the once timer has priority over the everyday timer and the everyday timer will be canceled.

Example: Playing a disc containing 15 tracks and with a playing time of 62 minutes, 3seconds, starting from the first track.Normal Playback

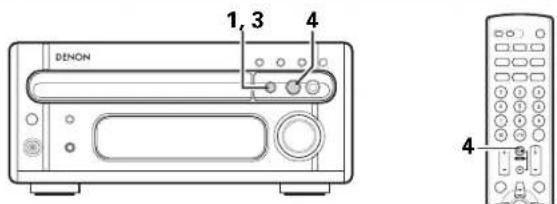

Load the CD in the disc tray. Press the 5 (open/close) button to open thedisc tray. Press the 5 (open/close) button. The disctray closes.• After several seconds, the discinformation is displayed.

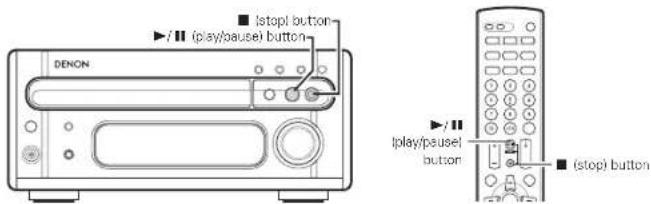

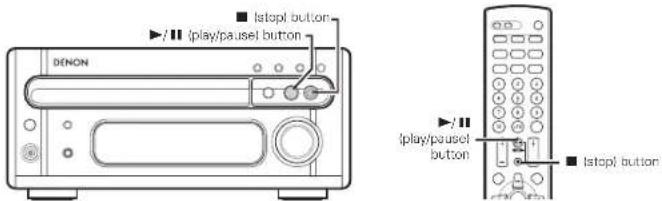

1/ 3 (play/pause) button2 (stop) buttonNOTES:

• When a disc is loaded, “LOADING” is displayed on the display for several seconds while the data on the number of tracks and total playing time is being read from the innermost side ofthe disc, after which the number of tracks and total playing time appear.
• The CD SRS button of the cassette deck will not function if pressed while the disc is being read. Please press this button after the total playing timehas been displayed.• If no disc is loaded, if the disc is upside down, or if the datacannot be read properly due to scratches or dirt, the displayreads as shown below and the disc will not play.Interrupting playback temporarilyResuming playbackStopping playback

Press the 1/ 3 (play/pause) button.The “ 3 ” mark appears on thedisplay, and playback stops atthe point where the button waspressed.

Press the 1/ 3 (play/pause) button.The “ 3 ” mark turns off on thedisplay, and playback resumesfrom the point where the pausebutton was pressed. Press the 2 (stop) button.Main unit Remote control unitMain unit Remote control unitMain unit Remote control unit2 (stop) button1/ 3(play/pause)button

1.RCD-M33-E3-ENG05.4.135:46PMページ19ENGLISH

(Using the remote control unit)Example: Playing the 8th track Press the CD button on the remote control unit. Press the button corresponding to the number of the track 8.• “8” appears on the track number display and playback of tracknumber 8 begins.• When the end of the track is reached, playback continues on the next track.• To specify a track number of 11 or greater, say track 15, press then , and to specify atrack number of 20 or greater, say track 23, press , , then .To play track 20, press then .• The system is in program play mode if “Pxx (xx:program number)” lights in the display. Tocancel the program play mode, press PROG/DIRECT button before you input the desired tracknumber.

In addition to the regular playback, the RCD-M33 also offers the following playback functions:(1) Playing a specific track ………………………………………………………………………………Direct Search(Using the remote control unit) When the REPEAT button is pressed once, “ ” appears onthe display and the single track repeat mode is set.

Use the 8 and 9 buttons to select the track to be repeated.

• When the end of the specified track is reached, playback starts over from the beginning of that track.• The single-track repeat mode can also be set by pressing the REPEAT button once duringplayback.• To cancel the single-track repeat mode, press the REPEAT button repeatedly until the “ ”indicator turns off.

(2) Playing a single track repeatedly …………………………………………………………………Single- track Repeat

Press the 1/ 3 (play/pause) button to start playback. (Using the remote control unit)(3) Playing all the tracks repeatedly ……………………………………………………………………All-track Repeat When the REPEAT button is pressed twice, “ ” appearson the display and the all-track repeat mode is set.

Press the 1/ 3 (play/pause) button to start playback.

• The all-track repeat mode can also be set by pressing the REPEAT button twice duringplayback.• To cancel the all-track repeat mode, press the REPEAT button to turn the “ ”indicator off.• If the REPEAT button is pressed during programmed playback, the tracks are playedrepeatedly in the programmed order.

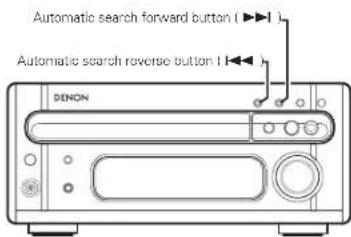

Automatic search reverse button ( 8 )Automatic search forward button ( 9 )Other operations possible during programmed playback:Such operations as quick search, pause and skip monitor are also possible during programmedplayback.For the quick search function, press the automatic search reverse button ( ) to move back tothe beginning of the track, then press it again while the time display reads “00:00” to move backto the beginning of the preceding track.To move ahead to the beginning of the next track, press the automatic search forward button

NOTES:• With this CD receiver, you can program up to 25 tracks.• The entire program is canceled when the (open/close) button is pressed.• Set the stop mode when cancelling tracks from the program. To cancel the program mode,press the PROG/DIRECT button.after 5 secondsafter 5 secondsDisplays the total number of programmedtracks and total playing time.• Press the PROG/DIRECT button again to resume normal playback during the stop mode.• To cancel the entire program, press the PROG/DIRECT button or cancel the program one byone using the CLEAR button.• If you program the wrong track, press the CLEAR button then program the right track. (Thelast track in the program is erased each time the CLEAR button is pressed.)• To confirm the programmed playing order, press the CALL button. The programmed playingorder appears in the display. Pressing the CLEAR button with a track number appearing in thedisplay automatically erases that specific track from Program Play.

Press the 1/ 3 (play/pause) button to start playback.• The tracks are played in the programmedorder.Press the number and +10 buttons to selectthe track to be programmed.• For example, to program the 3rd track and the12th track, press , , and .

Displays when the 3rd track is set at thefirst place.Displays when the 12th track is set at thesecond place.Displays the total number ofprogrammed tracks and total playingtime. Press the automatic search forward button ( 9 ).Press the automatic search reverse button ( 8 ).(5) Moving ahead to the next track during playback ………………………………………………Quick Search(6) Moving back to the beginning of the track during playback …………………………………Quick SearchAutomaticsearch forwardbutton ( 9 )Automaticsearch reversebutton ( 8 )

• The track currently being monitored and the elapsed time for that track are indicated on the display.

• If the manual search forward button is held in until the end of the disc is reached, the stop mode is set. (7) Finding a certain spot on the disc while listening to the sound ……………………………

Forward skip monitor (Using the remote control unit) During playback, press and hold in the manual search forward button ( 7 ) to skip through the disc in the forward direction while listening to the sound. Skip Monitor

Reverse skip monitor (Using the remote control unit) During playback, press and hold in the manual search reverse button ( 6 ) to skip through the disc in the reverse direction while listening to the sound.

• The track currently being monitored and the elapsed time for that track are indicated on the display.

• If the manual search reverse button ( 6 ) is pressed continuously, it will reach the beginning of the first track on the disc. Release the manual search reverse button ( 6 ) to resume normal playback. Manual search reverse button ( 6 )Manual search forward button ( 7 ) (Using the remote control unit)

• Use this function to skip through the disc while listening to the sound.

• When the desired spot is reached using the skip monitor function, release the manual search forward button ( 7 ) or manual search reverse button ( 6 ) to resume normal playback from that point.

• If the RANDOM button is pressed while the repeat mode is set, the tracks are each played once in random order, then played again in another order, and so on.

• The repeat mode is set to the all-track repeat mode when the RANDOM button is pressed during single-track repeat mode. (8) Playing the tracks in random order ………………………………………………………………

• Use this function to play all the tracks on the disc once in random order.

• In the stop mode, simply press the RANDOM button to set random playback.

• “RANDOM” appears on the display. Random Playback RANDOM button (Using the remote control unit) NOTES:

• The total remaining time cannot be displayed during the random playback mode.

• The random playback mode cannot be set during editing.

There are many music distribution sites on the internet from which music files in MP3/WMA(Windows Media Audio) audio compression format can be downloaded. Music downloaded asinstructed on the site and written onto a CD-R/RW disc can be played on the RCD-M33.Listening to Recorded MP3/WMA (Windows Media Audio) CD/CD-R/CD-RWIf files in MP3 and/or WMA format are stored in multiple folders, the folder numbers are setautomatically when the disc is loaded. When the FOLDER +/ – buttons are pressed, the foldersswitch according to the numbers set at this time. Folders not including any playback files areskipped, and the next folder is selected.Example :How the folder numbers are set for a disc containing MP3/WMA files in the folder structureshown belowq The ROOT folder is set as Folder1. w For the folders in the ROOT folder (FolderA and FolderB), the folder that comes first in the sequence information* stored on the disc is set as Folder2. e For the folders in the FolderA (FolderC and FolderD), the folder that comes first in the sequence information* stored on the disc is set as Folder3.r FolderC does not contain any other folders, so FolderD is set as Folder4.t FolderE in FolderD is set as Folder5.y FolderB in the ROOT folder is set as Folder6.*The folder and file sequence information stored on the disc depends on the writingapplication used. For this reason the actual playback order may not be as expected.The folder mode can be turned on (folder mode) and off (disc mode) using the FOLDERMODE button. The files that are played differ according to whether the folder or disc mode is set. When the disc mode is set:All the files in all the folders after the selected folder and file are played.When File3 in FolderC is selected, all the files after File3 are played.When the folder mode is set:All the files in the selected folder are played.When FolderD is selected, File4, File5 and File6 are played. FolderE inside FolderD is treatedas a different folder, so File7 and File8 are not played.About the folder playing orderROOT FolderA FolderC File1 (Folder1)(Folder2)(Folder3) File2 File3FolderD File4(Folder4) File5File6FolderE File7(Folder5) File8FolderB File9(Folder6) File10Fig,12-1Windows Media, and the Windows logo are trademarks, or registeredtrademarks of Microsoft Corporation in the United States and/or othercountries.

• Uses of recordings you have made other than for your personal enjoyment are not permitted under the Copyright Law without permission of the copyright holder.q Disc modeUse the CH+(9)and CH–(8 )buttons to selectFile3.

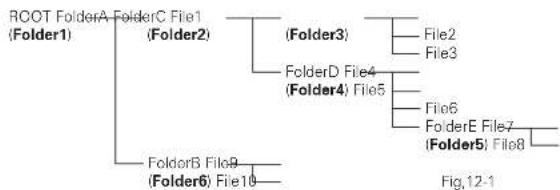

Example: For a CD containing MP3/WMA files with the structure shown in Fig. 12-1, (1) playback from File3 in FolderC in the disc mode, (2) playback of FolderD in the folder mode.Normal Playback Press the 5 (open/close) button to open the disc tray.Load the CD in the disc tray.Press the 5 (open/close) button to close the disc tray .• After several seconds, the disc information is displayed. Main unitRemote control unit

w Folder modeUse the FOLDER MODEbutton to select the foldermode, than use the FOLDER+/ – buttons to selectFolderD.Remote control unit• The FOLDER +/ – buttons can also be used in the playor pause modes to select the folder. The first track inthe selected folder is played or paused.Main unit

1.RCD-M33-E3-ENG05.4.135:46PMページ23ENGLISH

(1) Repeat playback ………………………………………………………………………………………1/ 3 (play/pause) button2 (stop) buttonInterrupting playback temporarilyStopping playbackVarious Playback FunctionsRepeat and random playback are also possible for discs containing files in MP3 and/or WMAformat.

• It is possible to play only the files in the selected folder by selecting the folder mode with the FOLDER MODE button.• Programmed playback is not possible for discs containing files in MP3 and/or WMA format.(Using the remote control unit) Use the REPEAT button to select the repeat mode.The repeat modes that can be selected depend on the randommode setting and the play mode. Press the REPEAT buttonrepeatedly to switch between the repeat modes. When random mode is off in the disc mode: When random mode is on in the disc mode: When random mode is off in the folder mode: When random mode is on in the folder mode: (Repeatoff) (Repeatoff) (Repeatoff) Repeatoff

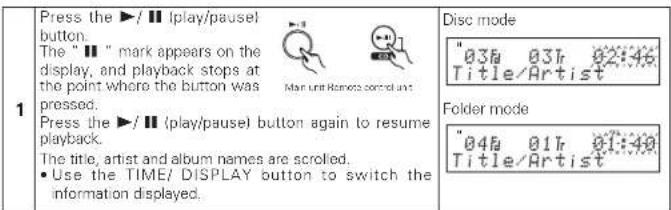

Press the 1 / 3 (play/pause) button.The “ 3 ” mark appears on thedisplay, and playback stops atthe point where the button waspressed. Press the 1/ 3 (play/pause) button again to resume playback.The title, artist and album names are scrolled.• Use the TIME/ DISPLAY button to switch theinformation displayed. Press the 2 (stop) button.• The current folder is displayedin both the disc and foldermodes.Main unit Remote control unitMain unit Remote control unit2 (stop) button1/ 3(play/pause)buttonDisc modeFolder modeSelect the folder or disc mode using the FOLDER MODE button.

Press the 1/ 3 (play/pause) button.Main unit Remote control unitThe title, artist and album names are scrolled.• Use the TIME/ DISPLAY button to switch theinformation displayed.• The title, artist and album names are only displayedwhen they are recorded on the disc.q File name displayw Title/Artist display File NameTitle / ArtistTitle / Album e Title/Album display

• When the 1/ 3 (play /pause) button or 5 (open/close) button on the CD receiver is pressed while the power is set to STANDBY mode, the power automatically turns on and the play oropen/close operation is performed.• When the CD 1/ 3 button on the remote control unit is pressed while the power is set to STANDBY mode, the power automatically turns on and the play operation is performed.• In the same way, when the TUNER buttons on the remote control unit is pressed, the powerturns on and the corresponding station is tuned in.

Press the RANDOM button in the play stop mode. Disc mode :The mode for playing all the files on the disc in random orderis set. Folder mode :The mode for playing all the files in the selected folder inrandom order is set.Random repeat playback is possible using the REPEAT button. Use the FOLDER +/ – buttons to select the folder to be repeated.

Press the 1/ 3 (play/pause) button to start playback. Select the folder or disc mode using the FOLDER MODE button. NOTES:

• The RCD-M33 is compatible with the “MPEG-1 Audio Layer 3” standards (sampling frequency of 32, 44.1 or 48 kHz). It is not compatible with such other standards as “MPEG-2 Audio Layer 3”, “MPEG-2.5 Audio Layer 3”, MP1, MP2, etc.
• It may not be possible to play some CD-R/RW discs due to disc properties, dirt, warping, etc.

• The sampling frequency is output as 44.1 kHz by the sampling converter.

• In general, the higher an MP3 file’s bit rate, the better the sound quality. On the RCD-M33, we recommend using MP3 files recorded with bit rates of 128 kbps or greater.Applicable bit rates: 32 to 320 kbps for MP3 files, 64 to 160 kbps for WMA files.
• MP3/WMA files may not be played in the expected order, since the writing software may change the position of the folders and the order of the files when writing them on the CD-R/RW.• Programmed playback are not possible with MP3/WMA discs.•When writing MP3/WMA files on CD-R/RW discs, select “ISO9660 JOLIET EXTENSION” as thewriting software format. This may not be possible with some types of writing software. For details,refer to the writing software’s usage instructions.
• With the RCD-M33 it is possible to display folder names and file names on the display up to 32 characters.
• If recorded in a format other than “ISO9660 level 1”, normal display and playback may not be possible. In addition, folder and file names including other symbols will not be displayed properly.
• Be sure to add the extension “.MP3/WMA” to MP3/WMA files. Files cannot be played if they have any extension other than “.MP3/WMA” or if they have no extension. (with Macintosh computers,MP3/WMA files can be played by adding the extension “.MP3/WMA” after the file name consistingof up to 32 capital or numbers and recording the files on the CD-R/RW.)
• Do not apply stickers, tape, etc., to either the label side or the signal side of CD-R/RW discs. If adhesive gets on the surface of a disc, the disc may get stuck inside the RCD-M33 and beimpossible to eject.• The RCD-M33 is not compatible with packet write software.• The RCD-M33 is only compatible with MP3 ID3-Tag Version 1.x.• The RCD-M33 is not compatible with play lists.
• The time may not be displayed properly when manual searching is performed during variable bit rate playback.
• Not compatible with switching of the time display using the TIME/ DISPLAY button.

• For files for which title and artist names are recorded, the title and artist names can be displayed in the play or pause mode by pressing the TIME/ DISPLAY button on the remote control unit.
• Multi-session discs and CD-R/RW that have not been finalized can also be played back; however, playback of discs that have had session closure within 10 sessions or have been finalized isrecommended.
• The WMA meta tag function is compatible with title, artist and album names.

• The maximum number of playable files and folders is 512 for the sum of the number of folders and files, with the maximum number of folders being 256.• Copyright-protected WMA files cannot be played.(“Not Support” appears on the displayed. Use the 9 and 8 buttons to select another file.) Use the FOLDER +/ – buttons to select the folder to be repeated.•:Only the files in the selected folder are played repeatedly.•:All the files on the disc are played repeatedly. Once playback of the last file isfinished, playback starts over from the first file on the disc.•:All the files in the selected folder are played repeatedly. Once playback of thelast file in the selected folder is finished, playback starts over from the firstfile in the folder.• To cancel the folder repeat mode, press the REPEAT button repeatedly until the “ ”,“” or “ ” indicator turns off.

Press the 1/ 3 (play/pause) button to start playback.

TROUBLESHOOTING Check the following once more before assuming there is a problem with the system.1. Are connections proper?2. Is the system being operated as explained in the operating instructions?If the system does not seem to be operating properly, check as shown on the table below. Ifnone of these checks apply to the problem, the system may be malfunctioning. Disconnect thepower cord immediately and contact your store of purchase.Symptom Cause Remedy pagePower does not turn onwhen power operationswitch is pressed.• Power cord is not plugged into apower outlet.• Plug the power cord securelyinto an outlet. GeneralNo sound is producedfrom the speakers.• VOLUME control is turneddown.• Headphones are connected.• Speaker cords are not securelyconnected.• Set the control to an appropriatePosition.• Disconnect the headphones.• Connect securely.

Receiver sectionNo treble sound isproduced, or theposition of theinstruments is unclear.

• Speaker polarities ( < and >) are inverted.• Connect the speaker cordsproperly. A source other than thedesired one is heard.
• Function is not properly set. • Set the desired function using the FUNCTION button. Hissing sound is heardin FM programs.• Antenna direction is poor.• Signals from the broadcaststation are weak.• Change the direction of theantenna.• Install an outdoor antenna.

Hissing sound is heardin AM programs.• Noise from a TV or interferencefrom a broadcast station.• Turn the TV off.• Change the direction of the loopantenna.• Install an outdoor antenna.

Humming sound isheard in AM programs.• Signals on the power cord arebeing modulated by the powersource frequency.•Insert the power cord in theopposite direction.• Install an outdoor antenna.

CD player sectionTotal number of tracksnot displayed whendisc is loaded.• Disc is loaded upside-down.• Disc is dirty.• Disc is not of the specified type.• Reload the disc.•Clean the disc.• Replace with a disc of thespecified type.

Nothing happens whenoperating buttons arepressed.Disc stops in themiddle of a track andwill not play properly.• Disc is loaded upside-down.• Foreign object on disc tray.• Disc is dirty.•Disc is scratched.• Reload the disc.• Remove the disc and the foreignobject.•Clean the disc.• Replace with an unscratcheddisc.

Sound is broken. • Dirt, fingerprints, spittle, etc. ondisc.•Disc is scratched.• Player is in an unstable placeand vibrates strongly.•Clean the disc.• Replace with an unscratcheddisc.• Place the player in a stable placewith no vibrations.

Humming sound isheard, when disc isplayed.• Signals on the power cord arebeing modulated by the powersource frequency.•Insert the power cord in theopposite direction.

SPECIFICATIONS Receiver sectionReception frequency band: FM : 87.50 MHz ~ 107.90 MHzAM : 520 kHz ~ 1710 kHz Reception sensitivity: FM : 1.5 µV/75 Ω/ohms AM : 20 µVFM stereo separation: 35 dB (1 kHz) Rated output power: 22 W + 22 W (6 Ω / ohms, 1 kHz, T.H.D. 10%) Audio input / output jacks: TAPE input/output jacks, AUX input/output jacks,MONO OUT3.5 mm headphones jackCD player sectionWow & flutter: Below measurable limits (±0.001% W. peak)Sampling frequency: 44.1 kHzOptical source: SemiconductorAnalog Audio Output: OUTPUT level : 1.0 Vrms (TAPE OUT, AUX OUT)Clock, Timer sectionClock system: Power source synchronous systemClock precision (per month): ± 30 secondsTimer functions: Everyday timer (1 setting)Once timer (1 setting)Sleep timer (maximum 90 min.)GeneralPower supply: AC 120 V, 60 HzPower consumption: 50 WMaximum external dimensions: 210 (W) x 95 (H) x 328 (D) mm(including feet, controls and terminals)Mass: 4.3 kg (9 lbs, 8 oz)Remote control unit (RC-999)Remote control system: Infrared pulse systemPower Supply: Two DC 1.5V R03/AAA batteriesMaximum external dimensions: 49 (W) x 220 (H) x 25 (D) mmMass: 120 g (including batteries)* Maximum dimensions include controls, jacks, and covers.(W) = width, (H) = height, (D) = depth

• For improvement purposes, specifications and functions are subject to change without advanced notice.“Not Support” isdisplayed when playingMP3 or WMA files.•A copyright-protected WMA fileor a file that cannot be playedproperly is selected.• Use the 9 and 8 buttonsto select another file.23, 25

1.RCD-M33-E3-ENG05.4.135:46PMページ2627

3, 5, 7, 9, 11, 13, 15, 17

• No lo admite. !8 Botón 1 (forward play) (TAPE)

3, 5, 7, 9, 11, 13, 15, 17
