USER MANUAL SM 01 BLAUPUNKT
- Safety instructions 2
- Technical Specifications 4
- Insert the memory card and SIM card 5
- Switch the device on and off 5
- Using the Phone's Buttons 6
- Manage calls.. 6
6.1 Make calls 6
6.2Receive a call 7
6.3 Emergency calls 7
- The Home screen 7
7.1 Notification bar 8
7.2 Application Launcher 9
- Handling and maintenance 10
8.1 Battery 10
8.2 Maintain the appliance 10
9.Declaration of Compliance 11
1. Safety instructions
ATTENTION: Please read this guide carefully. Failure to comply with the safety regulations may be dangerous or illegal, and the manufacturer can not be held liable for any malfunction resulting from improper use.
Safe switch-on
The owner of the device is responsible for the use of the device. Never switch the device on in areas where wireless devices are prohibited or radio interference may be dangerous.
Road safety
Observe the local laws and regulations regarding smartphone usage while driving. If you make a phone call while driving, observe the following rules: Focus on driving to become aware of traffic conditions; If the device has a hands-free function, use handsfree. If the traffic situation requires, stop the car before you pick up the phone.
Interference
Wireless devices may be sensitive to interference that affects performance.
Electronic devices
To avoid demagnetisation, do not leave your device for a long time close to electronic devices.
Use in hospitals
Hospitals and other healthcare facilities can use devices that are particularly sensitive to RF signals. Switch off your phone if prohibited signals are instructed to do so, or hospital staff ask for it.
Electrical medical devices
Your phone is a radio transmitter that can interfere with electronic medical devices or implants such as hearing aids, pacemakers, insulin pumps, and so on. operation. We recommend that you keep a distance of at least 15 cm between the implant and the device, never wear your phone in the breast pocket. Follow the instructions of the
manufacturer of the medical device. If you have a medical implant and have any other questions about using mobile or wireless devices, ask your doctor.
Use on the airplane
Your device supports flying mode, please use this feature on the airplane. Follow the instructions on the airplane.
Explosion hazards and restricted areas
Turn off the device in explosion hazardous areas. Sparks in such places may lead to an explosion or fire that may result in serious injury or death. Turn off the device at gasoline or gas filling stations, especially near the fuel pumps. Follow the instructions strictly in locations such as fuel tanks, chemical plants, and explosive substances.
Use environment
The device complies with the recommended emission values for radio waves when kept at a minimum distance of 1.5cm from the ear. When carrying the phone in a case, belt clip or holder, make sure that it does not contain metal and that the phone is slightly distracted from the body. When using other accessories, it is not possible to operate in accordance with radio frequency guidelines. If you do not use a case and do not hold the phone on your ear, keep it at least 2.5 cm away from your body, especially during data transfer.
Proper use
Please do not attempt to disassemble the device. If the product is defective, contact your distributor.
Battery and other accessories
Only use parts and accessories approved by the manufacturer. Using non-factory accessories and spare parts may result in warranty loss. Please do not charge the device before inserting the battery. Do not short-circuit the battery.
Charge the appliance in a well-ventilated and suitable temperature environment away from flammable and explosive materials. Handle
the used battery according to local regulations and do not throw it into household trash.
Water resistance
The appliance is not waterproof and dry. Precipitation, fog, and other liquids can corrode electronic circuits. If moisture has reached the phone, remove the battery and contact the dealer.
Backup
Make a backup of all the data stored on your device.
Connect to another device
Before connecting an external device, read the safety instructions in this manual. Do not connect an incompatible device.
2. Technical Specifications
Basic Features
- Android™ 7.0 Nougat
- 4" WVGA display, 480x800 pixel
- 2 MP front camera
- 5 MP back camera
1.3 GHz Quad Core processor - 1 GB RAM + 8 GB ROM memory
- microSD card up to 32 GB
- Single SIM
- Multimedia functions
Wi-fi - Bluetooth
- 1400 mAh battery
- GSM 900 / 1800 MHz
WCDMA 900/2100MHz
Android is a trademark of Google™ Inc.
Power Supply Features:
- Input: AC 100-240V~50/60Hz 0.20 A
- Output: DC 5.0V - 750 mAh
Battery and Voltage:
- 1400 mAh; 3.7V
SAR value:
- 0,187 W/Kg (Head)
- 0,756 W/Kg (Body)

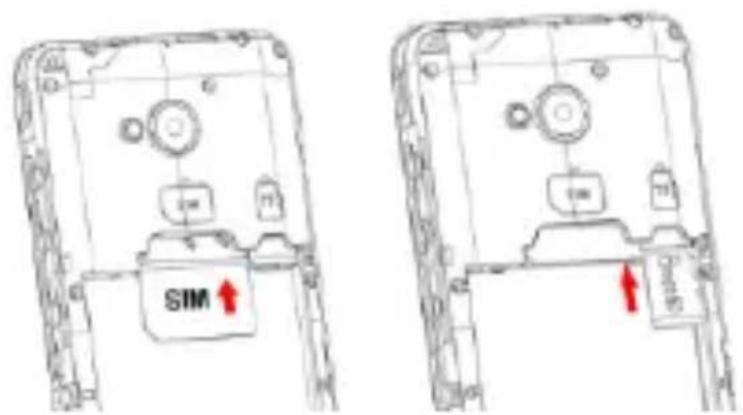

3. Insert the memory card and SIM card
Turn off the phone and remove the back cover and battery. Insert the SIM card according to the mark on the device. Make sure that the chip contact and the cut edge of the card are aligned in the correct direction. Slide the card into the slot until it stops.
Tip: Insert an SD card to store more media.
Caution: Do not scratch or bend the SIM card. Be careful not to get dust or water.
4. Switch the device on and off
Press and hold the Power button to turn on the power. Press and hold the power button and select "Power off" from the Options menu.
5. Using the Phone's Buttons
Button
Description
Menu: Opens the related menu with additional options and actions, depending on the application. Press and hold to open a list of recent applications.
Home: returns to Home screen.
Back: returns to the previous screen you were working in
6. Manage calls
6.1 Make calls
- Tap the icon on main menu or the home screen to dial the desired number.
- Touch the icon on main menu or the home screen to make a call from contact, groups or favorites.
-
To dial an international number, touch and hold the 0 key to enter the Plus (+) symbol, and then enter the international country prefix, followed by the phone number
-
Press the Volume Up/ Down keys to adjust the call volume.
- You can access Call Logs, Contacts from the dialer screen.
While during a call, touch the icon to end a call.
6.2 Receive a call
In an incoming call, you can choose from the following options:
Drag the phone icon he right to receive the call.
Drag the phone icon he left to reject the call.
Drag the phone icon wards to reject with SMS.
6.3 Emergency calls
You can also make emergency calls without a SIM card. For more information, contact your network service provider.

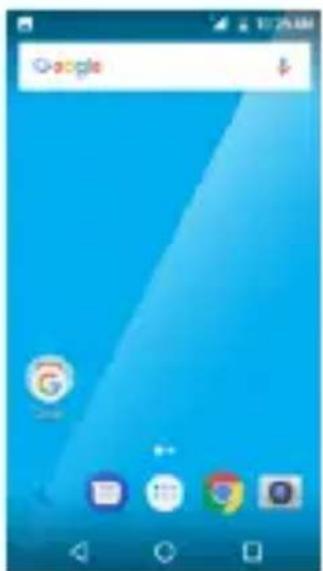

7. The Home screen
When you sign in, the home screen opens.
The Home screen is your starting point to access all the features on your phone. Touch the main menu icon at the bottom of the screen to view all installed applications.
The status bar shows the time, signal strength, battery
Touch and hold an empty spot to change wallpaper.

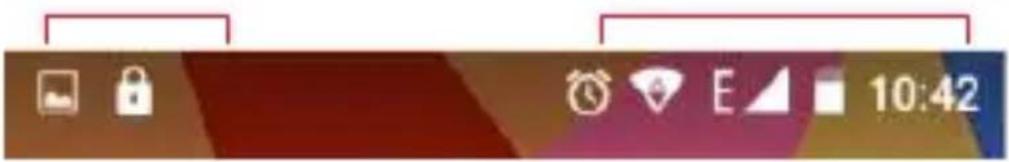

7.1 Notification bar
The notification bar shows your device status and notifications.
Notification icons indicate new messages and events. When a new notification arrives, its icon appears in the Notification Bar.
Notification Icons
Status Icons
To see more information about notifications, open the notification panel by swiping your finger over the top of the screen.
Status icons:
| Icon | Description | Icon | Description |
| Signal strength indicator | Alarm has been set | ||
| New missed calls | Wi-Fi is activated | ||
| USB is connected | Bluetooth is on | ||
| The headphone is being used | Battery charging symbol | ||
| New message from SIM 1 | Airplane mode is activated |
Close the notification bar:
Drag the bottom of the notification panel to the top of the screen or simply press the back button. The notification panel will also close when responding to a notification.

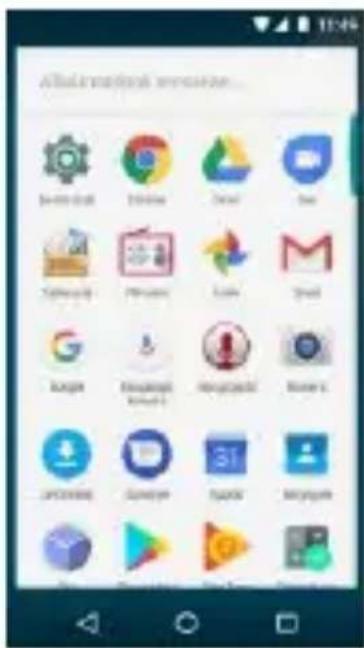

7.2 Application Launcher
Press the Launcher icon to enter the Main Menu. From here you can access all installed applications and widgets.
Touch the app to start.
To add an application shortcut to the desktop screen, press and hold it until it vibrates and enters Home screen. Place it and release your finger.
Slide the Launcher left or right to bring more icons into view.
As soon as you install a new application, it comes in this list.

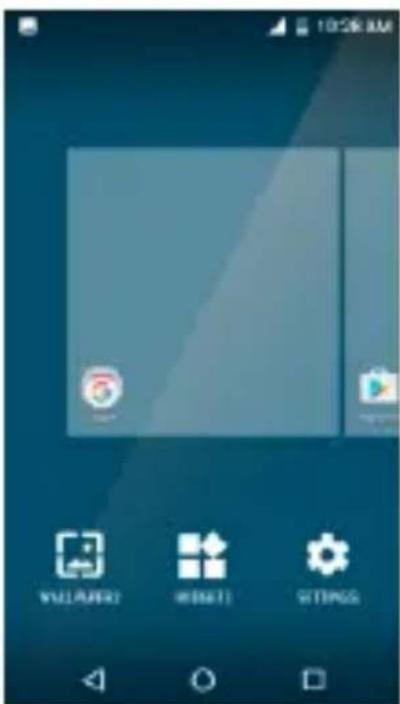

To access widgets, press the menu button on the Home screen, then tap the widget icon at the bottom of the screen. Widgets can not be started as an application.
Press and hold the selected widget until it vibrates and the Home screen open. Place and release your finger from the screen. The app may request further action to activate the widget.
You can configure the widget in the submenu,
for example, size. The options displayed, depend on the given widget. If there is not enough space on the Home screen, the widget will not be added.
To close the launcher, press the Home button or the Back button.
8. Handling and maintenance
8.1 Battery
The device has a rechargeable battery. When the power supply is low, charge the battery.
Disconnect the charger from the power outlet and the appliance when not in use. Do not allow the battery to charge for more than a week, as it may reduce the battery life.
Extreme temperatures may also affect the battery. If the ambient temperature exceeds 40^ , do not charge the battery.
Do not use a damaged battery or charger.
Do not short-circuit the battery. For example, a metallic object such as a coin, clip or pen may cause a short circuit.
Do not leave the battery too hot (such as in a car in summer) or too cold (such as freezing), as it may reduce its service life. Try to store the battery between 15^ and 25^ . A too cold or too hot battery may temporarily not work, even if it is fully charged.
Do not throw the battery in a fire. Dispose of the used battery according to local regulations and recycle if possible.
8.2 Maintain the appliance
Keep the appliance dry. Precipitation, mist and all other liquids can cause corrosion in the circuit boards. If it is still wet, remove the battery. Do not put it back until the product is completely dry.
Do not store the product in dusty places, as moving parts and electrical accessories may be damaged.
Do not store the device in hot places. High temperatures can shorten the life of the electrical devices, damage the battery and melt the plastic parts.
Do not store the device in a cold place. When the device returns to normal temperature, the inside moisture can damage the electrical circuits.
Open the appliance only as instructed in this manual.
Do not drop, shake the appliance as small parts break.
Do not use strong chemicals or solvents to clean the appliance.
Do not paint the appliance. Paint can clog the moving parts and hinder proper operation.
Use only approved parts, improper parts may damage the unit and may result in warranty loss. If the product does not work properly, consult the service provided on the warranty card.
The manufacturer is not liable for any malfunction resulting from improper use.
9. Declaration of Compliance
The Blaupunkt SM 01 model complies with the essential requirements and relevant provisions of the 2014/53 / EU Directive and RoHS Directive 2011/65 / EU. To view the Declaration of Compliance, please contact us at the following e-mail address: info@blaupunkt-mobile.eu
Import: HTM Mobile Ltd.
Address: 1118 Budapest, Dayka Gabor utca 3.
For more information on this product, visit our website at www.htmmmobile.hu or www.blaupunkt.com.
Google, Android, and Google Play, is a trademark of Google™ Inc.
BLAUPUNKT
Android is a trademark of Google™ Inc.
Android is a trademark of Google™ Inc.
2.2 Muszaki adatok
Android is a trademark of Google™ Inc.
Typová Jednotka
Vstup: (AC), 100-240V~50/60Hz 0.20 A
Vystup: (DC), 5.0V - 750 mAh
Typ bataire a napatie:
- Bateria Li-ion, 1400 mAh; 3,7V
Hodnoty SAR:
- 0,187 W/kg (Hlava)
- 0,756 W/kg (Telo)
3. Vlozenie pamătovej karty a karty SIM
Android is a trademark of Google™ Inc.
Android is a trademark of Google™ Inc.
Android is a trademark of Google™ Inc.
2.2 Date tehnice
Träsāturi tehnice:
- Intrare: AC 100-240V~50/60Hz 0.20 A
- leșire: DC 5.0V - 750 mAh
Tip batetrie Şi voltaj:1400 mAh; 3,7V
Valoare SAR:
- 0,187 ~W / Kg (cap)
- 0,756 W/Kg (corp)
