FXS 01 - Smartphone BLAUPUNKT - Free user manual and instructions

Product Type	Smartphone
Brand	Blaupunkt
Model	FXS 01
Network Support	GSM 900/1800 MHz
Battery Type	Li-ion 3.7V, 280 mAh
Display	0.96-inch OLED
SIM Card	Micro SIM (1 slot)
Memory Expansion	MicroSD card (not included)
Audio Jack	3.5 mm
Charging Port	Micro USB
Bluetooth	Yes (Bluetooth Transfer, Dial, Remote Capture)
Key Functions	Cell Phone, SMS, Phonebook, MP3 Player, Alarm, Calendar, Calculator, Sound Recorder, Pedometer, Anti-Lost, Remote Notifier, Sedentariness Alert
SAR Value (Head)	0.07 W/kg
SAR Value (Body)	0.41 W/kg
Default Password	1122 (change as soon as possible)
Water Resistance	Not waterproof
Safety Distance (Body)	At least 2.5 cm during data transfer
Compliance	RoHS 2014/53/EU and 2011/65/EU

Frequently Asked Questions - FXS 01 BLAUPUNKT

What type of SIM card does the Blaupunkt FXS 01 use?

The device uses a Micro SIM card. Only one SIM card can be inserted.

How do I change the factory password?

The default password is 1122. To change it, go to the phone settings and set a new 4-8 digit code. It is strongly recommended to change it immediately for security.

Can I expand the storage?

Yes, the memory can be expanded using a MicroSD card. The card is not included in the package.

What is the battery capacity and how long does it last?

The battery is a Li-ion 3.7V with 280 mAh. Typical usage time varies, but for a basic phone it can last several days on standby.

Does the Blaupunkt FXS 01 support Bluetooth?

Yes, it supports Bluetooth for file transfer, dialing, and remote capture. Features include Bluetooth Transfer, Bluetooth Dial, and Remote Capture.

What functions are available on this phone?

Functions include: Calling, Messaging, Phonebook, MP3 Player, Alarm, Calendar, Calculator, Sound Recorder, Pedometer, Anti-Lost, Remote Notifier, and Sedentariness Alert.

How do I charge the phone?

Use the included charger and connect via the Micro USB port. Only use accessories approved by the manufacturer.

Is the phone water resistant?

No, the device is not waterproof. Keep it dry and avoid exposure to moisture.

What are the SAR values?

The SAR (Specific Absorption Rate) values are 0.07 W/kg (head) and 0.41 W/kg (body). These are within recommended limits.

How do I obtain the Declaration of Conformity?

You can request the Declaration of Conformity by emailing [e-mail].

USER MANUAL FXS 01 BLAUPUNKT

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Safety

Please read the safety instructions carefully, as ignoring it may be dangerous or illegal.

The owner of the device is responsible for the use of this appliance.

Explosion hazards and restricted areas

Do not switch on the device, where it is prohibited to use a mobile phone or can interfere with radio waves or cause danger, e.g. on airplanes, in hospitals or nearby medical devices, fuel, chemicals and blasting area.

Follow the instructions strictly in restricted areas.

Road safety

Observe the local laws and regulations. Do not use the device during driving, road safety comes first.

Interference

Every wireless device can be sensitive to the interference, which can influence the performance.

Qualified service

The product can only be repaired by a qualified person.

Charger, battery and other accessories

Please, use battery, charger and other accessories which are approved by the manufacturer. Do not connect incompatible products.

Hearing protection

To avoid hearing loss, do not listen to music or radio for a long time at high volume.

Water resistance

The appliance is not waterproof, so keep it dry.

Use environment

The device complies with the recommended emission values for radio waves when kept at a minimum distance of 1,5 cm from the ear. When carrying the phone in a case, belt clip or holder, make sure that it does not contain metal and that the phone is slightly distracted from the body. When using other accessories, it is not possible to operate in accordance with radio frequency guidelines. If you do not use a case and do not hold the phone on your ear, keep it at least 2,5 cm away from your body, especially during data transfer.

2. Product specifications

The device handles one Micro SIM card.

Battery Type and Voltage: Li-ion battery 3,7V - 280mAh

Network type: GSM 900/1800MHz

SAR values: 0,07W/Kg (Head) - 0,41W/Kg (Body)

The memory of the device can be expanded with an SD card, but the memory card is not part of the basic package.

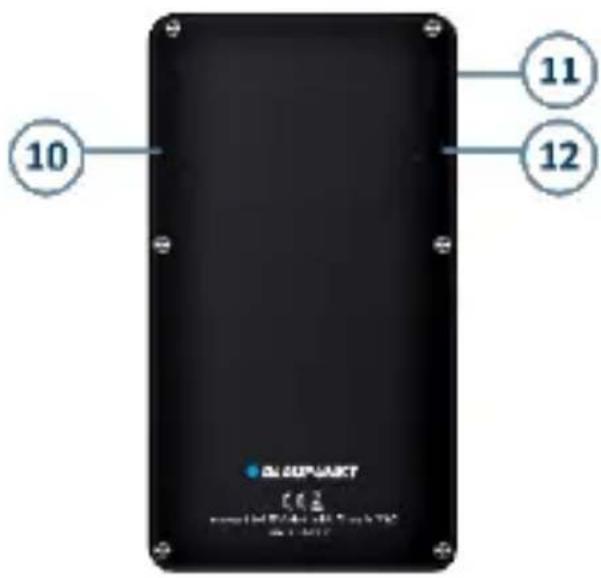

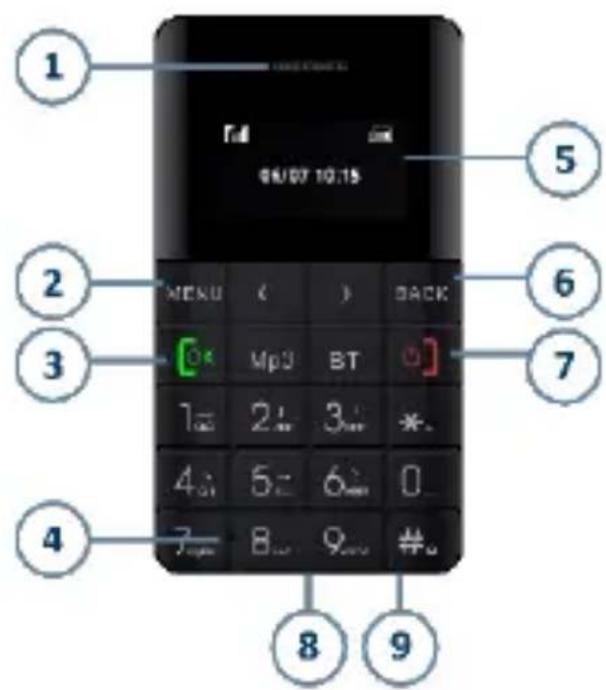

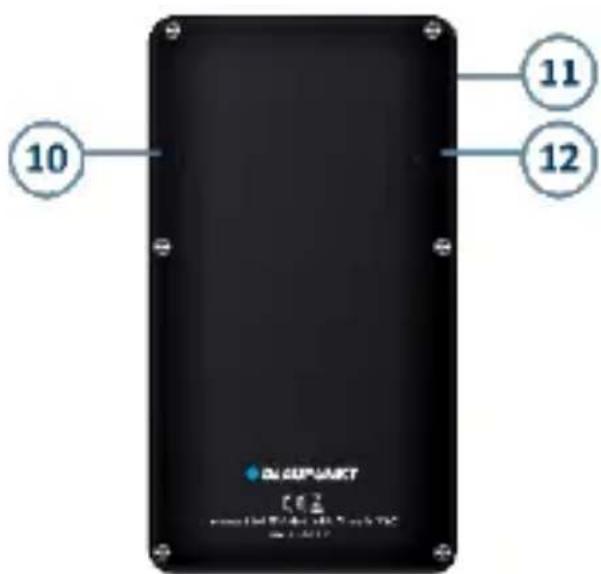

3. About the keys

1	Loudspeaker	5	0,96 OLED screen	9	3,5mm Audio
2	Function key	6	Delete key	10	SD Card
3	Dial key	7	Hang up key	11	Power switch
4	Microphone	8	Micro USB	12	Micro SIM

4. Functions

The device has the following functions: Cell Phone, Message, Phone Book, Mp3 player, Alarm, Calendar, Calculator, Sound Recorder, Bluetooth Trasfer, Bluetooth Dial, Remote Capture, Anti Lost, Pedometer, Remote Notifier, Sedentariness Alert.

5. Phone password

The phone password can be a 4-8-digit code that protects your device from unauthorized use.

The factory default password is „1122”. When the feature is active, the phone asks for this code every time you turn it on. To protect your privacy, change the default password as soon as possible. Set a password you can easily remember.

6. Declaration of Conformity

The Blaupunkt FXS 01 is compliant with the essential requirements and relevant provisions of RoHS Directive 2014/53/EU and 2011/65/EU. To view the Declaration of Conformity, please contact us at the following e-mail address: [e-mail]

Import: HTM Mobile Ltd.

Address: 1118 Budapest, Dayka Gábor street 3. HUNGARY

For more information on this product, visit our website at www.htmmobile.hu or www.blaupunkt.com.

BLAUPUNKT

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Sicherheit

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Bezpečnost

Pure vertical black bar with no text or symbols

Enjoy it.

1. Bezpieczeństwo

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Bezpečnost

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Biztonság

Pure vertical black bar with no text or symbols

Enjoy it.

1. Securitate

Pure vertical black bar with no text or symbols

Enjoy it.

1. Güvenlik

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Siguria

1	Folës	5	0,96 OLED ekran	9	3,5mm Audio
2	Butoni i menysë	6	Butoni mbrapa	10	Vendndodhja e kartës SD
3	Butoni dial	7	Lëreni butonin	11	Kaloni pushtet
4	Mikrofon	8	Micro USB	12	Fole mikro SIM

4. Funksionet

Pure vertical black bar with no text or symbols

Enjoy it.

1. Безопасност

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Sigurnost

Molimo pažljivo pročitajte sigurnosne propise, jer zanemarenje istih može biti opasno pa čak i ilegalno.

Vlasnik uređaja je odgovoran za uporabu istog.

Pure vertical black line on white background (no text or symbols)

Enjoy it.

1. Varnost
