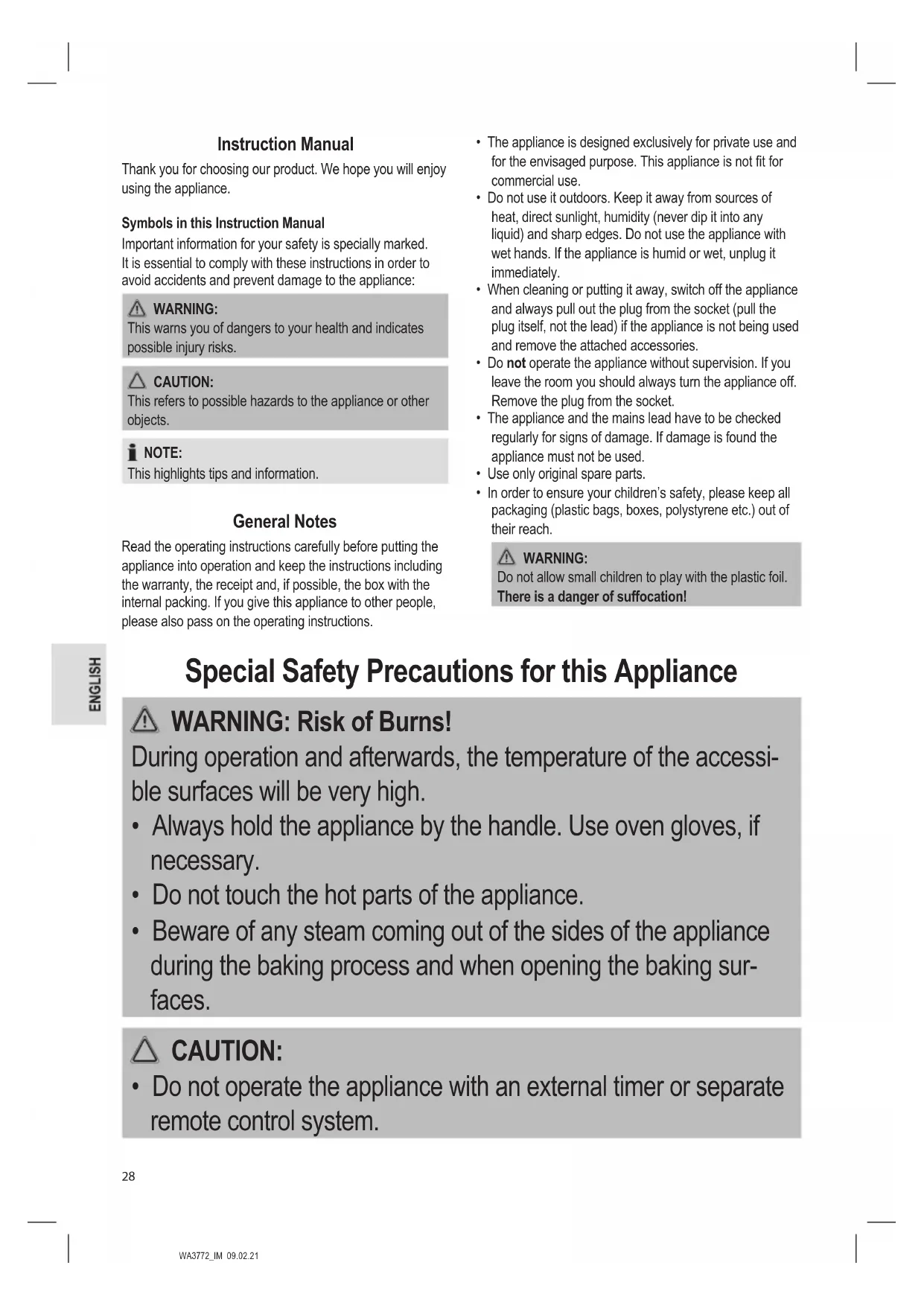

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

WARNING: Risk of Burns!

During operation and afterwards, the temperature of the accessible surfaces will be very high.

• Always hold the appliance by the handle. Use oven gloves, if necessary.
• Do not touch the hot parts of the appliance.
• Beware of any steam coming out of the sides of the appliance during the baking process and when opening the baking surfaces.

CAUTION:

- Do not operate the appliance with an external timer or separate remote control system.

CAUTION:

• Place the appliance on a flat and heat-resistant surface. In the case of sensitive surfaces please place a heat-resistant board under the appliance.
• In order to prevent heat from building up, do not put the appliance directly underneath a cupboard. Ensure that there is enough space all around!
• Be cautious of heat escaping from the appliance! Never use the appliance near or below curtains or other flammable materials!
• Please ensure that the mains lead does not come into contact with the hot sections of the appliance.
• Allow the appliance to cool down before cleaning it and putting it away.
• This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter “Cleaning”.

- Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials such as films, filler material, cable clips and carton.
3. To prevent hazards, check the appliance for any transport damage. Do not put a damaged appliance into operation. Return it to the dealer immediately.

Starting-Up the Appliance

Electrical Connection

Check whether the mains voltage that you want to use matches the one of the appliance. You will find the information about this on the type plate.

Non-Stick Coating

Before you prepare the first waffles for consumption:

1. Clean the housing and the baking surfaces with a damp cloth.
2. Lightly grease the baking surfaces before the appliance is used for the first time.
3. Use the appliance for about 10 minutes with the toasting surfaces closed (see "Using the Appliance").

NOTE:

• Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

• Do not eat the waffles prepared during first time operation.

• Remove the mains plug from the socket and allow the appliance to cool down.

• After the appliance has cooled down, wipe the baking surfaces off with a paper towel.

Using the Appliance

CAUTION:

Do not use pointed or sharp objects to avoid damaging the coating of the baking surfaces.

NOTE:

• Keep the baking surfaces closed while heating.
  • After heating up the appliance, the green control lamp will turn off.
• The red control lamp remains on to show that the appliance is working.
• The green control lamp switches on and off during baking in order to maintain the baking temperature.
• The baking section should always be closed in the intervals between baking.

NOTE:

- Make sure the power cord does not become twisted with the repeated turning of the appliance. For this reason, always turn the appliance once to the right and once to the left.

1. Set up the appliance so that you can see both indicator lights.
2. Connect the appliance to a properly installed earthed socket. Both indicator lights are lit. The appliance will begin heating up immediately.
3. Once the appliance has heated up, open the baking surfaces using the handle.
4. For best results, use a pastry brush to spread some shortening on both baking surfaces. Alternatively, spray the baking surface lightly with edible cooking oil. This will make it easier to remove the waffles once they have finished baking.
5. Add some dough to the middle of the lower baking surface. Spread the dough using a silicone spoon, for example.

NOTE:

• The recesses in the baking surface should be filled, but the outer edge should remain clear.

• The dough should be filled in quickly as otherwise the wafers will not brown evenly.

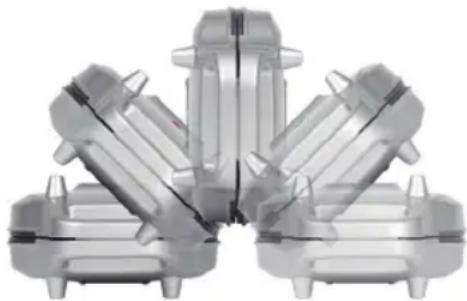

• Close the appliance. In order to spread the dough evenly, we recommend immediately turning the appliance around 180° degrees. Grasp the appliance by the handle as you do this.

3D rendered mechanical component with symmetrical arms and mounting holes (no text or symbols)

Now, you will only see the green indicator light on the appliance.

7.

WARNING:

Be careful of the emitted steam. Risk of burns!

NOTE:

- The baking process lasts approx. 3 minutes. This may vary depending on the consistency of the mixture.

NOTE:

- If your waffles come out too dark, shorten the baking time the next time.

Remove the ready-to-eat waffles with a wooden fork or similar.

1. Place the waffle on a platter or plate and sprinkle some icing sugar on top of it.
2. Lightly grease the baking surfaces again as required after each baking process.

End of Operation

Remove the mains plug from the socket. The red control lamp goes off.

Recipe for "Bubble Waffles"

1. Place the following ingredients in a bowl and beat them until fluffy:

85 g melted butter

175g sugar
1 sachet of vanilla sugar
1 pinch of salt
4 eggs

1. Prepare a mixture consisting of 175 g wheat flour and 1 teaspoon baking powder. Stir this mixture into the foamy batter.
2. Finally stir 50 ml of milk into the batter.

You can find more recipes in cookbooks or on the internet. You can also use ready-mixes.

Cleaning

WARNING:

• Always pull out the plug from the mains socket before cleaning and wait until the appliance has cooled down.
• Do not immerse the appliance in water! It could result in an electric shock or fire.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.

Baking Surfaces

• Remove any food residues while they are still warm with a damp cloth or paper towel.
• Wash off the baking surfaces with a soft sponge and soapy water; then wipe with clean water and dry thoroughly with a soft cloth. After drying please apply a thin film of edible oil to the surface.

Housing

Clean the housing after use with a slightly damp cloth.

Storage

• Clean the appliance as described and allow to dry completely.
• We recommend to keep the appliance in the original packaging if the appliance will not be used for long periods.
  • Always keep the appliance out of the reach of children in a dry, well ventilated place.

Troubleshooting

If a problem occurs, it is often only a small thing. Before you contact our service, please note the following information:

Problem Possible Cause Remedy
The appliance does not work. The appliance has no power supply. Check the socket with another appliance.
The waffles are varying degrees of brown.	You did not turn over the appliance after adding the dough.	After adding the dough, immediately turn the appliance around 180°.
The waffles don’t have the characteristic bubble-like structure.
The batter has overflow. You have poured into much batter.		Fill in and distribute the correct amount of batter.
The waffles are too light. The baking time was too short. Increase the baking time.
The waffles are too dark. The baking time was too long. Next time, shorten the baking time.

Technical Data

Model: WA 3772

Power supply: 220-240 V\~, 50/60 Hz

Power consumption: 700 W

Protection class:....I

Net weight: .... approx. 1.5kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
